Entry time:

Sat May 18 04:47:22 2019

Author*:

Subject*:

12.47 DAQ continues OK to file May19/R7_3

alpha background

ASIC settings 2018Oct03-13.26.58
      *except* slow comparator 0xa -> 0x64

BNC PB-4 Pulser OFF

all system wide checks OK *except* nnaida7 fails ADC calibration

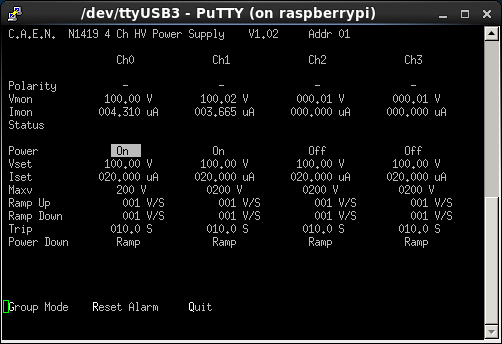

detector biases & leakage currents OK - see attachments 1 & 2

FEE64 temperatures OK - see attachment 3
      good event statistics OK - see attachments 4

Merger OK - see attachment 5
      TapeServer OK - see attachment 6

12.51 Check ASIC Control *all* ASICs & FEE64s

1.8.L spectra - see attachments 7 & 8
      p+n FEE64s 1.8.W spectra 20us, 200us, 2ms, 20ms FSR - attachments 9-12
      n+n FEE64s 1.8.W spectra 20us, 200us, 2ms, 20ms FSR - attachments 13-16

13.13 analysis of May19/R7_3 - see attachment 17
      deadtime OK
      ADC data for FEE64s nnaida5 & nnaida6 hot channels (Stat spectrum channel # 104)
      Also observed at a much lower rate for nnaida1 & nnaida2

13.27 Julabo FL11006 chiller set point +20 deg C actual +20.0 deg C - water topped up to H level marker
      Temperature +24.6 deg C dew point +7.1 deg C RH 32.6%

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

1.png Original size: 502x344

Attachment 2:

2.png Original size: 502x344

Attachment 3:

3.png Original size: 1284x1027

Attachment 4:

4.png Original size: 1284x1027

Attachment 5:

5.png Original size: 1920x1080

Attachment 6:

6.png Original size: 1257x1027

Attachment 7:

7.png Original size: 1284x1027

Attachment 8:

8.png Original size: 1284x1027

Attachment 9:

9.png Original size: 1284x1027

Attachment 10:

10.png Original size: 1284x1027

Attachment 11:

11.png Original size: 1284x1027

Attachment 12:

12.png Original size: 1284x1027

Attachment 13:

13.png Original size: 1284x1027

Attachment 14:

14.png Original size: 1284x1027

Attachment 15:

15.png Original size: 1284x1027

Attachment 16:

16.png Original size: 1284x1027

Attachment 17:

R7_3

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:       7972
          ADC data format:     589980 (      84.2 Hz)
        Other data format:   64461540 (    9197.6 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:          1 (       0.0 Hz)
                               RESUME:          1 (       0.0 Hz)
                              SYNC100:   64165173 (    9155.3 Hz)
                           FEE64 disc:      86113 (      12.3 Hz)
                             MBS info:     210252 (      30.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:       4944 (       0.7 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:     7008.548 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1      20142    2687656          0          0          0          0    2673549      14107          0          0        154
  2      30449    2675880          0          0          0          0    2673549       2331          0          0        131
  3        624    2677479          0          0          0          0    2673549       3930          0          0        306
  4        859    2678307          0          0          0          0    2673549       4758          0          0        333
  5     427723    2675549          0          0          0          0    2673549       2000          0          0        143
  6      99001    2885550          0          0          0          0    2673549       1749     210252          0        128
  7        758    2676951          0          0          0          0    2673549       3402          0          0        219
  8        594    2678423          0          0          1          1    2673549       4872          0          0        253
  9        339    2675597          0          0          0          0    2673549       2048          0          0        164
 10        468    2675528          0          0          0          0    2673549       1979          0          0        129
 11        790    2678452          0          0          0          0    2673549       4903          0          0        320
 12        757    2678764          0          0          0          0    2673549       5215          0          0        267
 13        659    2675423          0          0          0          0    2673549       1874          0          0        128
 14        507    2675196          0          0          0          0    2673549       1647          0          0        128
 15        633    2675145          0          0          0          0    2673549       1596          0          0        128
 16        740    2678190          0          0          0          0    2673549       4641          0          0        276
 17        300    2675657          0          0          0          0    2673549       2108          0          0        154
 18        457    2675474          0          0          0          0    2673548       1926          0          0        130
 19        742    2678231          0          0          0          0    2673548       4683          0          0        325
 20        763    2677829          0          0          0          0    2673548       4281          0          0        282
 21        668    2675193          0          0          0          0    2673549       1644          0          0        128
 22        425    2675460          0          0          0          0    2673549       1911          0          0        147
 23        735    2678053          0          0          0          0    2673549       4504          0          0        320
 24        847    2677553          0          0          0          0    2673549       4004          0          0        251
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:    1.539s ( 5179.777 blocks/s, 323.736 Mb/s)
