Entry time:

Wed May 22 06:08:29 2019

Author*:

Subject*:

14.08 Julabo FL11006 chiller set point +20 deg C actual +20.0 deg C
      Water level c. 75% M-H markers
      Temperature +26.5 deg C dew point +6.2 deg C RH 27.6%

DAQ continues OK to file May19/R8_8

alpha background

ASIC settings 2019May19-17.54.03
      slow comparator 0x64

BNC PB-4 Pulser OFF

all system wide checks OK *except* nnaida7 fails ADC calibration

detector biases & leakage currents OK - see attachments 1 & 2

FEE64 temperatures OK - see attachment 3
      good event statistics OK - see attachments 4

Merger OK - see attachment 5
      TapeServer OK - see attachment 6

1.8.L spectra - see attachments 7 & 8
      p+n FEE64s 1.8.W spectra 20us FSR - attachment 9
      n+n FEE64s 1.8.W spectra 20us FSR - attachment 10

14.17 analysis of May19/R8_8 - see attachment 11
      deadtime OK
      ADC data for FEE64s nnaida5 & nnaida6 hot channels (Stat spectrum channel # 104)
      Also observed at a much lower rate for nnaida1 & nnaida2

14.39 DAQ stop file May19/R8_8

AIDA to be moved into position within DTAS for efficiency tests with 137Cs/60Co sources
      positioned immediately upstream of the end of the AIDA snout

15.07 End of AIDA snout now 16cm from upstream edge of upstream NaI detectors
      i.e. DSSSD#3 centred between upstream/downstream NaI detectors

Slow comparator 0x64 -> 0xa

Check ASIC Control *all* ASICs & FEE64s

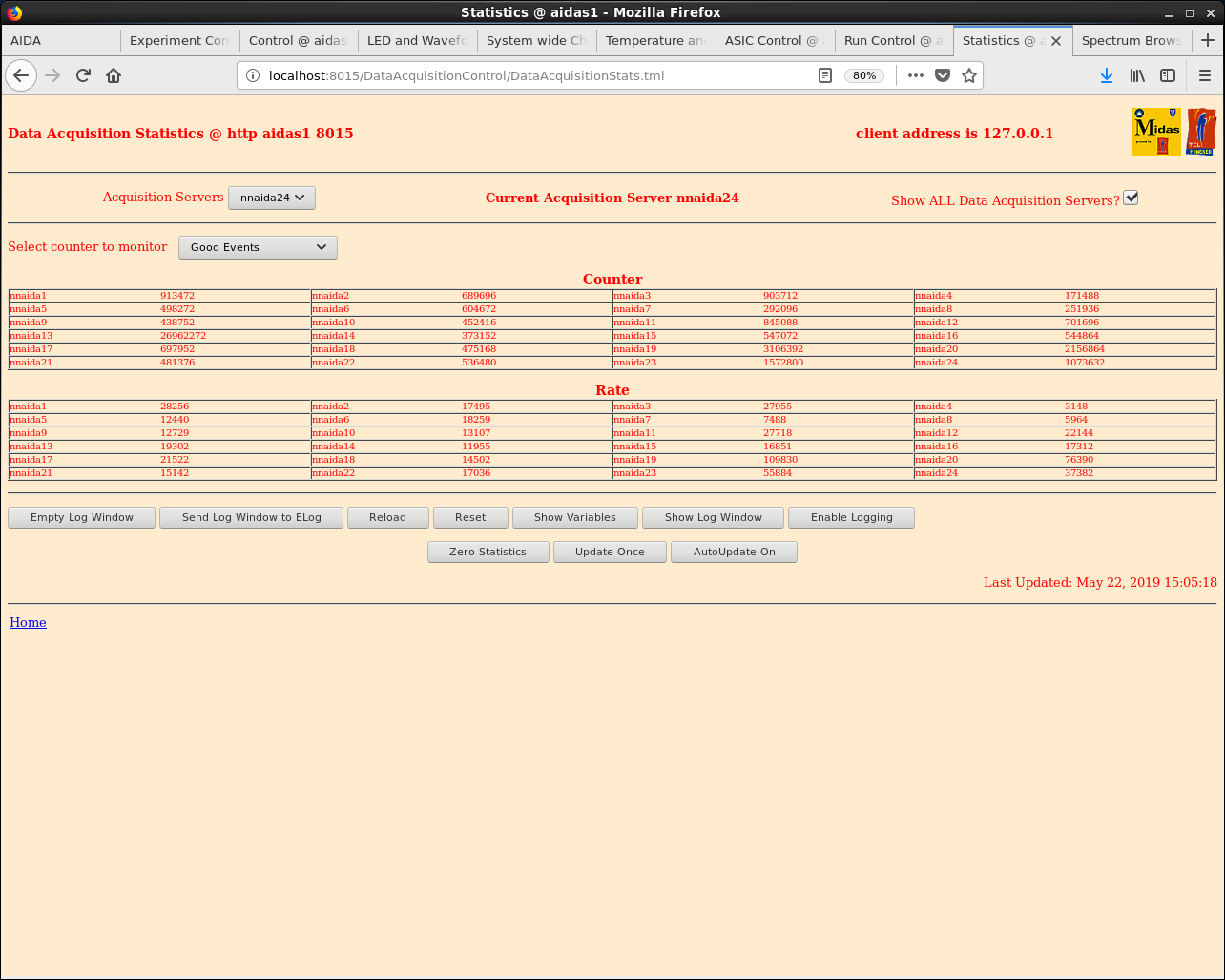

good event statistics OK - see attachments 12
      15x < 20k, 21x < 50k, 1x > 100k

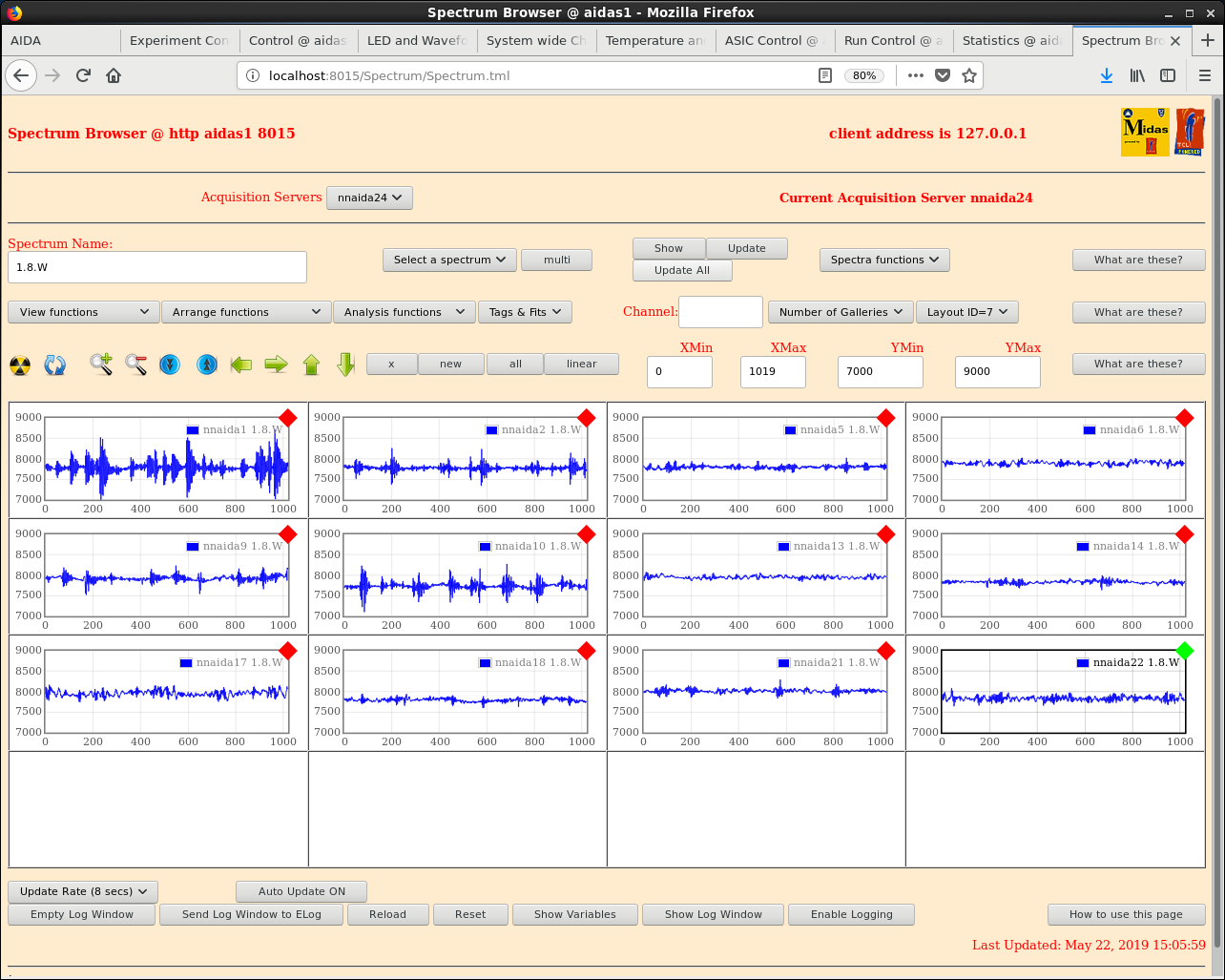

p+n FEE64s 1.8.W spectra 20us FSR - attachment 13

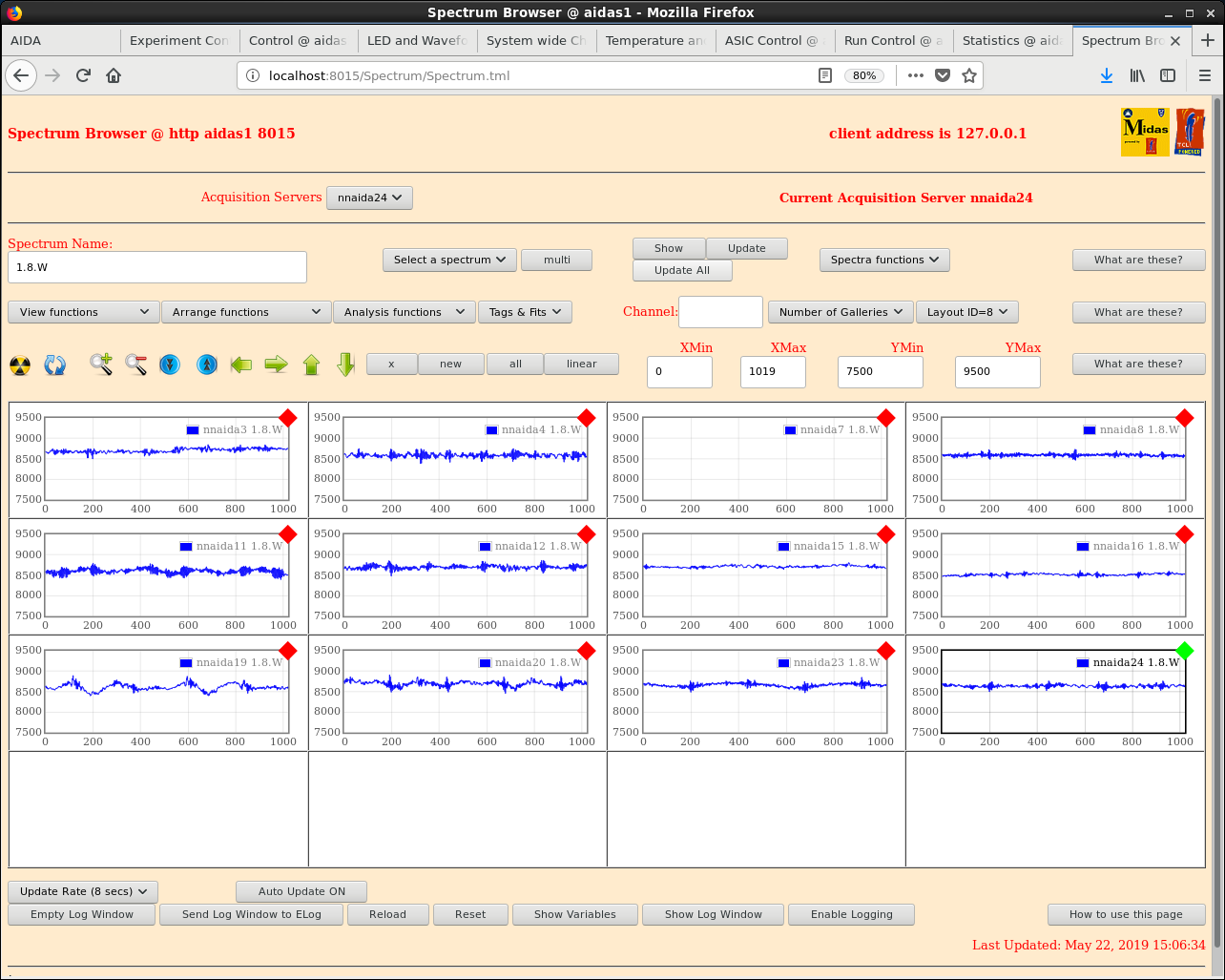

      n+n FEE64s 1.8.W spectra 20us FSR - attachment 14

Slow comparator 0xa -> 0x64

Check ASIC Control *all* ASICs & FEE64s

All histograms zero'd

15.24 DAQ start file May19/R9

alpha background

ASIC settings 2019May19-17.54.03
      slow comparator 0x64

BNC PB-4 Pulser OFF

all system wide checks OK *except* nnaida7 fails ADC calibration

16.03 Water level topped up (1x jugful) to H level marker

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

1.png Original size: 502x344

Attachment 2:

2.png Original size: 502x344

Attachment 3:

3.png Original size: 1284x1027

Attachment 4:

4.png Original size: 1284x1027

Attachment 5:

5.png Original size: 1920x1080

Attachment 6:

6.png Original size: 1257x1027

Attachment 7:

7.png Original size: 1284x1027

Attachment 8:

8.png Original size: 1284x1027

Attachment 9:

9.png Original size: 1284x1027

Attachment 10:

10.png Original size: 1284x1027

Attachment 11:

R8_2

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:      29623
          ADC data format:    2975396 (     114.5 Hz)
        Other data format:  238748284 (    9187.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:  237913266 (    9155.3 Hz)
                           FEE64 disc:      55432 (       2.1 Hz)
                             MBS info:     779586 (      30.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          2 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:    25986.471 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1     134034    9966618          0          0          0          0    9913052      53566          0          0          2
  2     216203    9913277          0          0          0          0    9913052        225          0          0          0
  3         84    9913112          0          0          0          0    9913052         60          0          0          0
  4        114    9913181          0          0          0          0    9913052        129          0          0          0
  5    2118344    9913102          0          0          0          0    9913052         50          0          0          0
  6     503593   10692674          0          0          0          0    9913052         36     779586          0          0
  7         85    9913102          0          0          0          0    9913053         49          0          0          0
  8         93    9913117          0          0          0          0    9913053         64          0          0          0
  9        218    9913217          0          0          0          0    9913053        164          0          0          0
 10        230    9913294          0          0          0          0    9913053        241          0          0          0
 11         79    9913162          0          0          0          0    9913053        109          0          0          0
 12         95    9913091          0          0          0          0    9913053         38          0          0          0
 13        248    9913085          0          0          0          0    9913053         32          0          0          0
 14        257    9913120          0          0          0          0    9913053         67          0          0          0
 15         81    9913053          0          0          0          0    9913053          0          0          0          0
 16         89    9913098          0          0          0          0    9913053         45          0          0          0
 17        280    9913108          0          0          0          0    9913053         55          0          0          0
 18        257    9913106          0          0          0          0    9913053         53          0          0          0
 19        100    9913123          0          0          0          0    9913053         70          0          0          0
 20        137    9913137          0          0          0          0    9913053         84          0          0          0
 21        266    9913131          0          0          0          0    9913053         78          0          0          0
 22        268    9913170          0          0          0          0    9913053        117          0          0          0
 23        152    9913124          0          0          0          0    9913053         71          0          0          0
 24         89    9913082          0          0          0          0    9913053         29          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   18.426s ( 1607.693 blocks/s, 100.481 Mb/s)

Attachment 12:

R8_8

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - November 2018
 *** ERROR: READ I/O error:       5002
                   blocks:      29623
          ADC data format:    2975396 (     114.5 Hz)
        Other data format:  238748284 (    9187.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:  237913266 (    9155.3 Hz)
                           FEE64 disc:      55432 (       2.1 Hz)
                             MBS info:     779586 (      30.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:          2 (       0.0 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:    25986.471 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.000                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.000                0.000
 14                0.000                0.000
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.000                0.000
 19                0.000                0.000
 20                0.000                0.000
 21                0.000                0.000
 22                0.000                0.000
 23                0.000                0.000
 24                0.000                0.000
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1     134034    9966618          0          0          0          0    9913052      53566          0          0          2
  2     216203    9913277          0          0          0          0    9913052        225          0          0          0
  3         84    9913112          0          0          0          0    9913052         60          0          0          0
  4        114    9913181          0          0          0          0    9913052        129          0          0          0
  5    2118344    9913102          0          0          0          0    9913052         50          0          0          0
  6     503593   10692674          0          0          0          0    9913052         36     779586          0          0
  7         85    9913102          0          0          0          0    9913053         49          0          0          0
  8         93    9913117          0          0          0          0    9913053         64          0          0          0
  9        218    9913217          0          0          0          0    9913053        164          0          0          0
 10        230    9913294          0          0          0          0    9913053        241          0          0          0
 11         79    9913162          0          0          0          0    9913053        109          0          0          0
 12         95    9913091          0          0          0          0    9913053         38          0          0          0
 13        248    9913085          0          0          0          0    9913053         32          0          0          0
 14        257    9913120          0          0          0          0    9913053         67          0          0          0
 15         81    9913053          0          0          0          0    9913053          0          0          0          0
 16         89    9913098          0          0          0          0    9913053         45          0          0          0
 17        280    9913108          0          0          0          0    9913053         55          0          0          0
 18        257    9913106          0          0          0          0    9913053         53          0          0          0
 19        100    9913123          0          0          0          0    9913053         70          0          0          0
 20        137    9913137          0          0          0          0    9913053         84          0          0          0
 21        266    9913131          0          0          0          0    9913053         78          0          0          0
 22        268    9913170          0          0          0          0    9913053        117          0          0          0
 23        152    9913124          0          0          0          0    9913053         71          0          0          0
 24         89    9913082          0          0          0          0    9913053         29          0          0          0
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   18.746s ( 1580.223 blocks/s,  98.764 Mb/s)

Attachment 13:

11.png Original size: 1284x1027

Attachment 14:

12.png Original size: 1284x1027

Attachment 15:

13.png Original size: 1284x1027

Attachment 16:

Drop attachments here...

ELOG V3.1.4-unknown
