Friday 14th June

Authors: TD, DK, CB

08:40

elog appears to be down.  Relevant screenshots are in /tmp/june14/ so please upload when we can access

Julabo chiller 75% M-H markers
  Room Temp +24.5 C deg, dew point +8.1 deg C, Room humidity 35.2%

Pulser, ASIC settings as yesterday (copy/paste)

ASIC settings 2019May19-17.54.03
      slow comparator 0xa

BNC PB-4 Pulser
      Amplitude 90,000
      x5 attenuator IN
      Frequency 25Hz range
      t_r 100ns, tau_d 50us
      - polarity
      Delay MIN, tail pulse

DAQ continues OK
  Statistics as before.  nnaida19 counter appears to have overflowed and wrapped around
    See stats.png

  System-wide checks OK, except nnaida7 fails ADC calibration as before

Biases and leak currents reasonable -- see biases.png

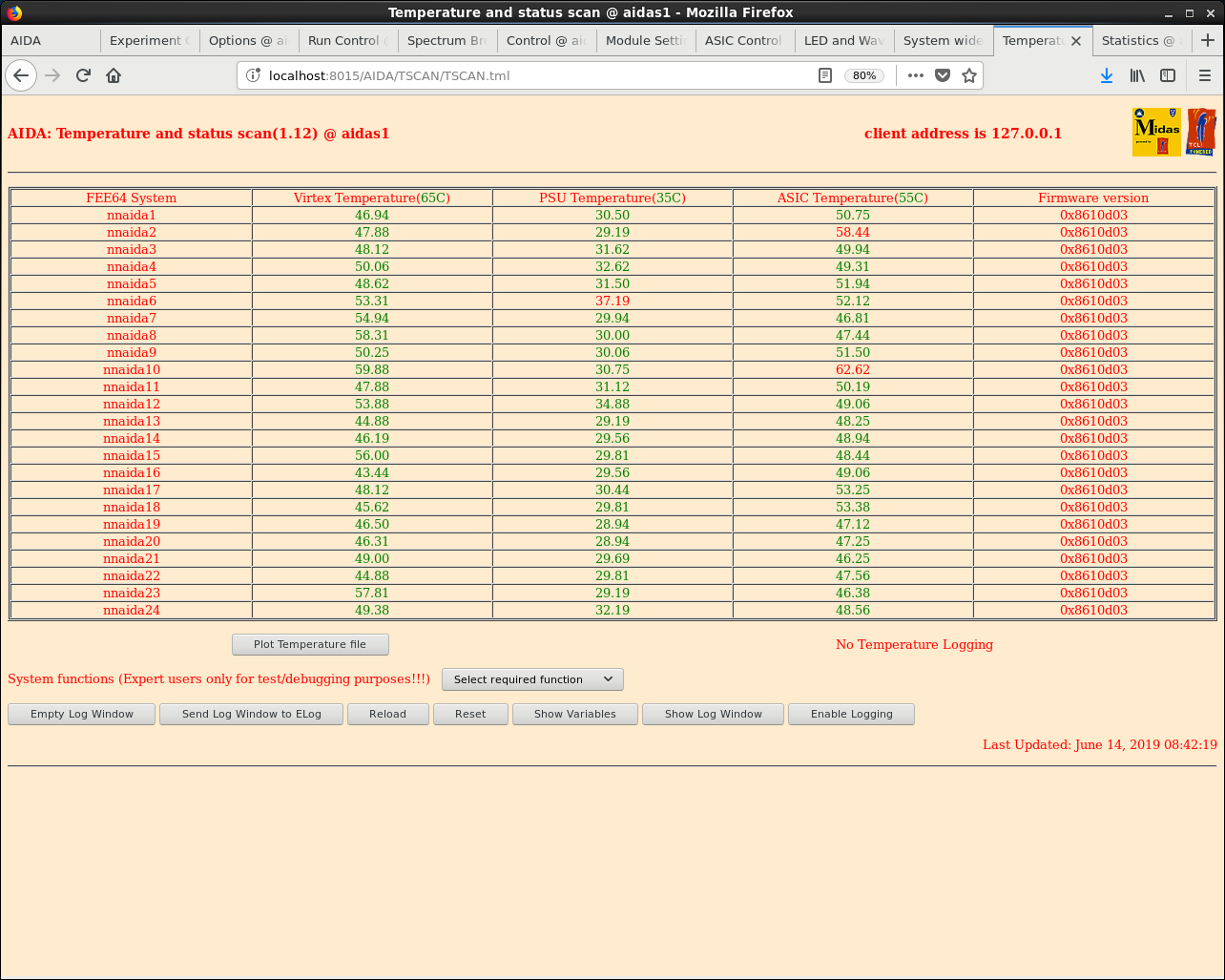

FEE64 temperatures okay, see fee-temps.png

Merger looks okay, ~600k items / sec; see merger.png

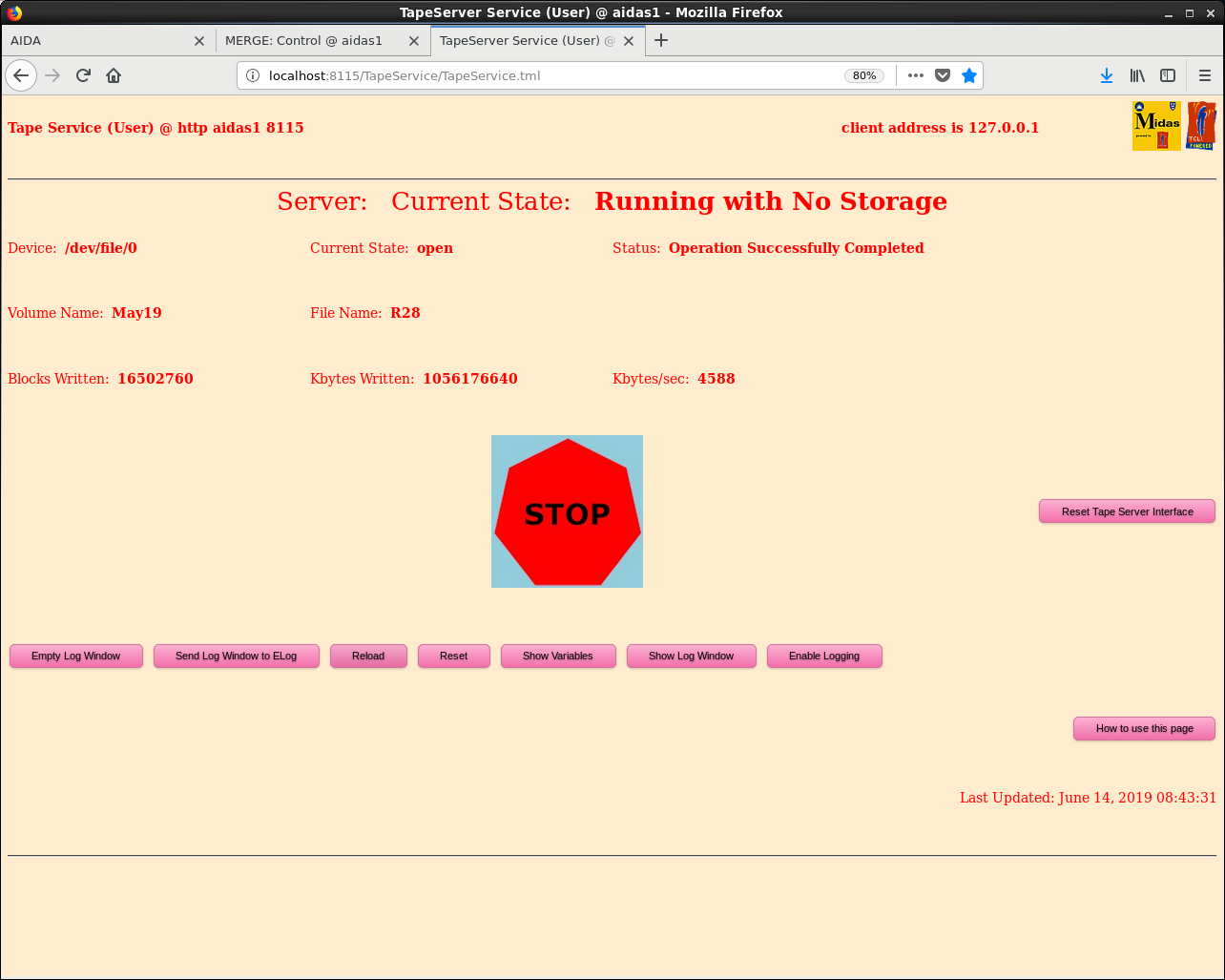

TapeServer as before, around 4.5 Mbytes/sec; see tapeserver.png

13:52

Pulser, ASIC settings same as this morning

DAQ continues OK

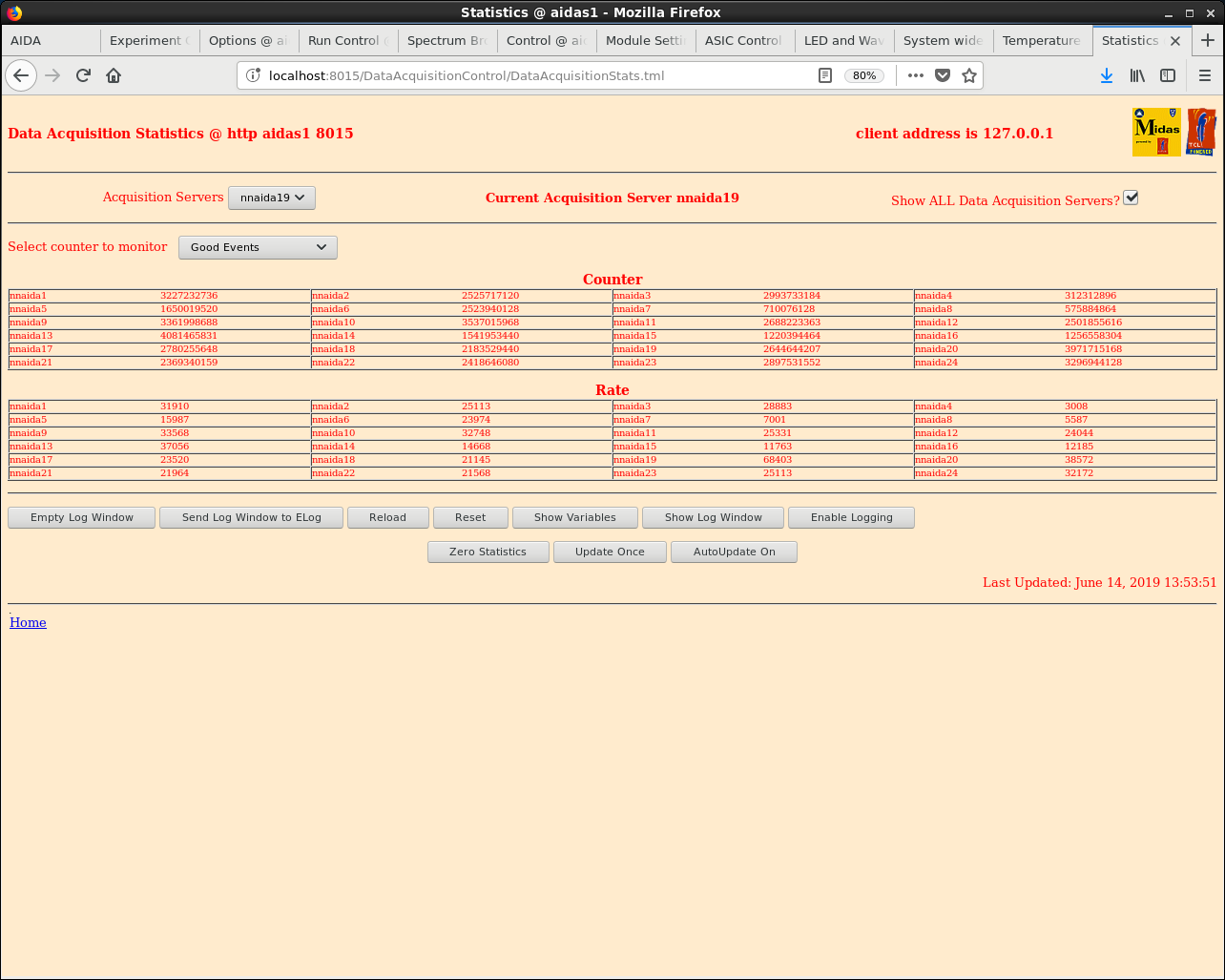

   Statistics as before. See attach 190614_1354_stats. Counts RESET.

System-wide checks OK, except nnaida7 fails ADC calibration as before

Bias and leak currents OK. See attach 190614_1356_bias

FEE64 temperatures OK, see attach 190614_1357_temps

Merger keeps running at ~560k items /s; see 190614_1359_merger
   TapeServer as before. See 190614_tape

17:24 AIDA DAQ crashed by DTAS touching the clock function generator
      Function generator set at 50MHz square high +5V low 0V

18:38 problem loading ASIC settings - mismatch in slow comparator threshold and shaping time
      performed save/restore with 2019Jun13-08.56.35 - all looks ok now

      System wide checks ok except nnaida7 fails adc calibration

FEE64 temperatures ok - attachment 12

good event statistics ok - attachment 13

bias/leakage currents ok - attachment 14

18:38 for reals

DAQ Stopped
      R30_0 opened writing to disk

      Was to test DTAS sync whilst writing to file
18:43 DAQ stopped on file R30_0

18:45 DAQ restarted on file R31 with no writing to disk

21:50 DAQ found crashed (Valencia group believe it crashed around 20:00)

Trying to reset FEEs resulted in an error message attachment 15 and 16

Each FEE was rebooted using telnet to avoid a power cycle
      System reset after reboot

System wide checks ok
      Check ASIC control

FEE temps ok

DAQ Started again
      On startup FEEs 17, 20, 22 and 23 were all about 150k
      All relate to DSSD0
      Pressed on kapton and noise went down.

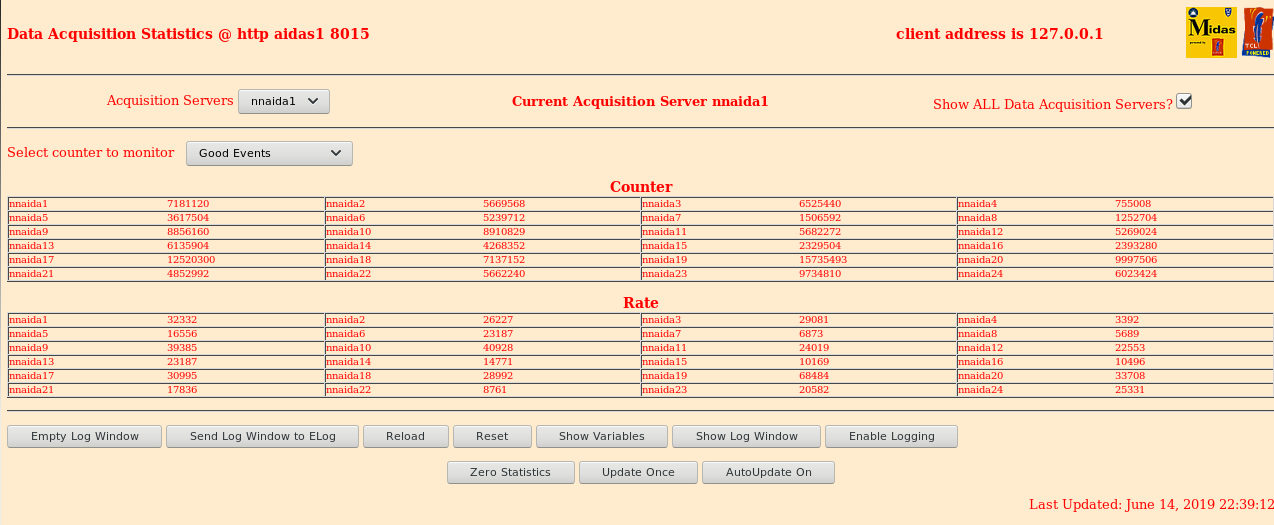

Statistics now good

22.45 Review /var/log/messages and observe nnaida15 rebooted at 19.27 - reason unknown
      This probably explains why DAQ stopped.

Jun 14 19:27:32 aidas1 dhcpd: DHCPDISCOVER from 00:04:a3:2a:f3:ac via p2p2
Jun 14 19:27:32 aidas1 dhcpd: DHCPOFFER on 10.1.2.15 to 00:04:a3:2a:f3:ac via p2p2
Jun 14 19:27:32 aidas1 dhcpd: DHCPREQUEST for 10.1.2.15 (10.1.2.250) from 00:04:a3:2a:f3:ac via p2p2
Jun 14 19:27:32 aidas1 dhcpd: DHCPACK on 10.1.2.15 to 00:04:a3:2a:f3:ac via p2p2
Jun 14 19:27:32 aidas1 rpc.mountd[2868]: authenticated mount request from 10.1.2.15:784 for
/data10/XilinxLinux/ppc_4xx/rfs/nnaida15 (/data10/XilinxLinux/ppc_4xx/rfs)
Jun 14 19:27:59 aidas1 rpc.mountd[2868]: authenticated mount request from 10.1.2.15:864 for /MIDAS@aidas
(/MIDAS@aidas)

22.53 ADC data synchronised - attachment 17

23.05 zero DAQ statistics
      zero all histograms

23.20 Check ASIC Control x1

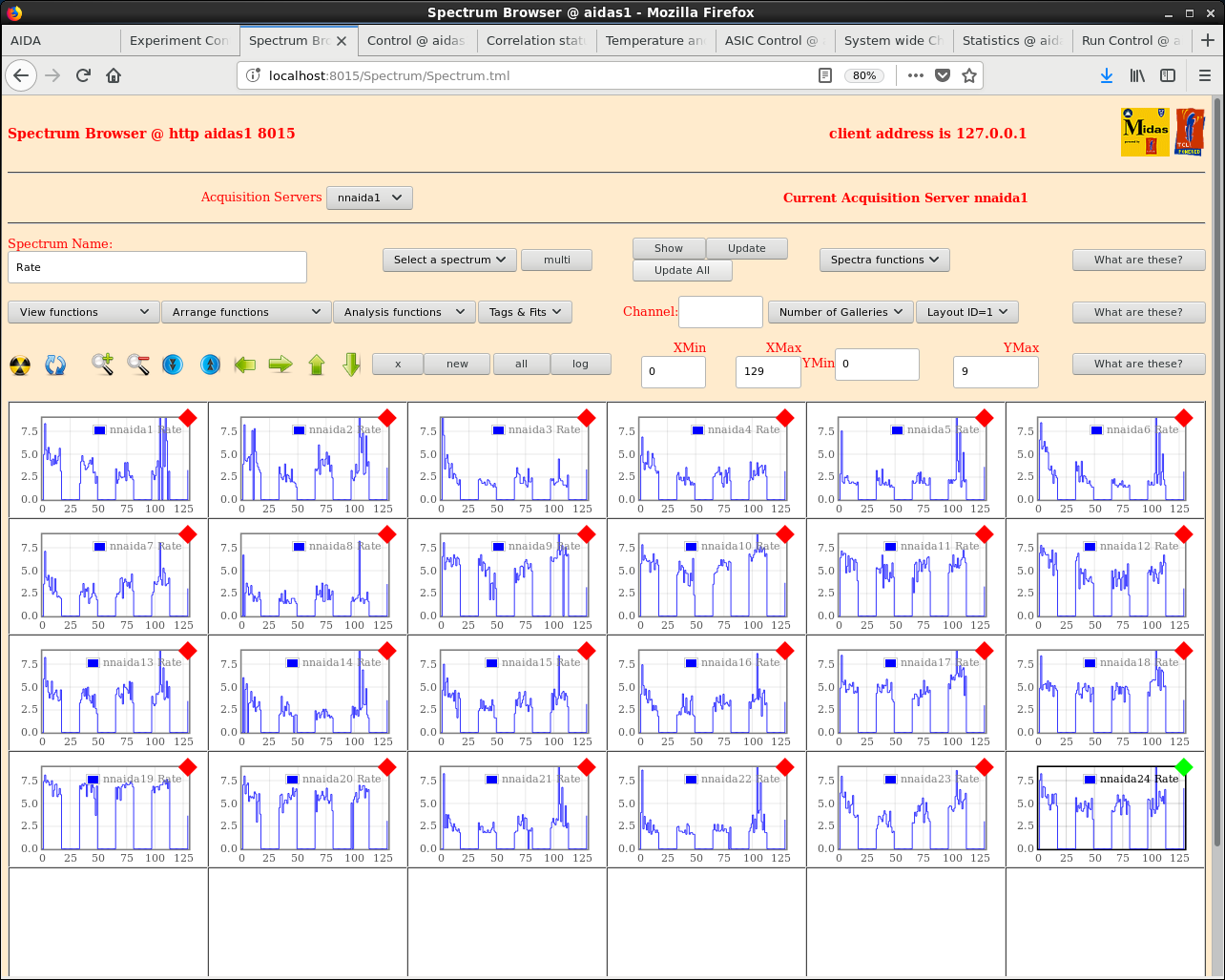

      FEE64 Rate spectra - attachment 18

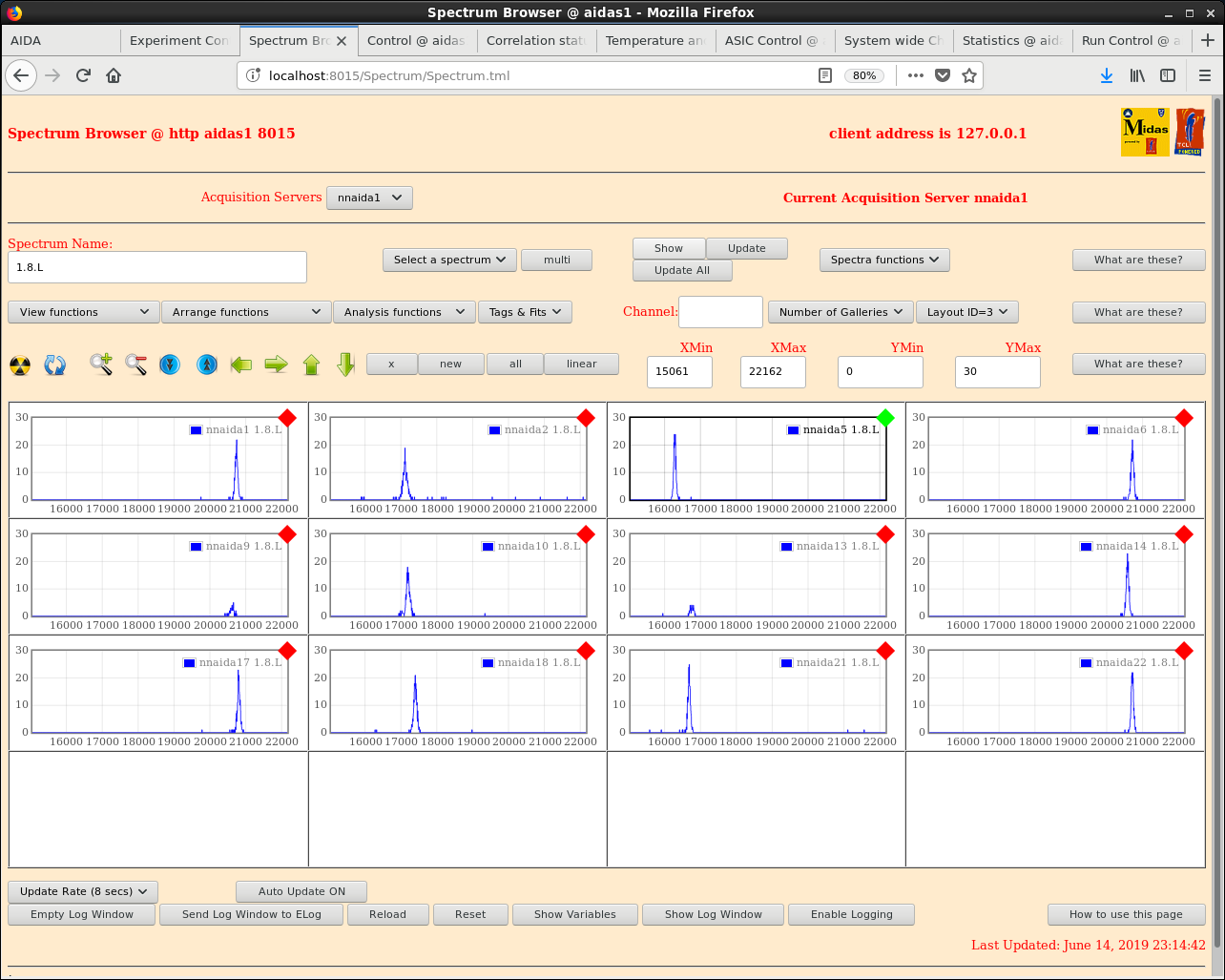

1.8.L spectra - see attachments 19 & 20
      nnaida1 81 ch FWHM, nnaida3 77 ch FWHM

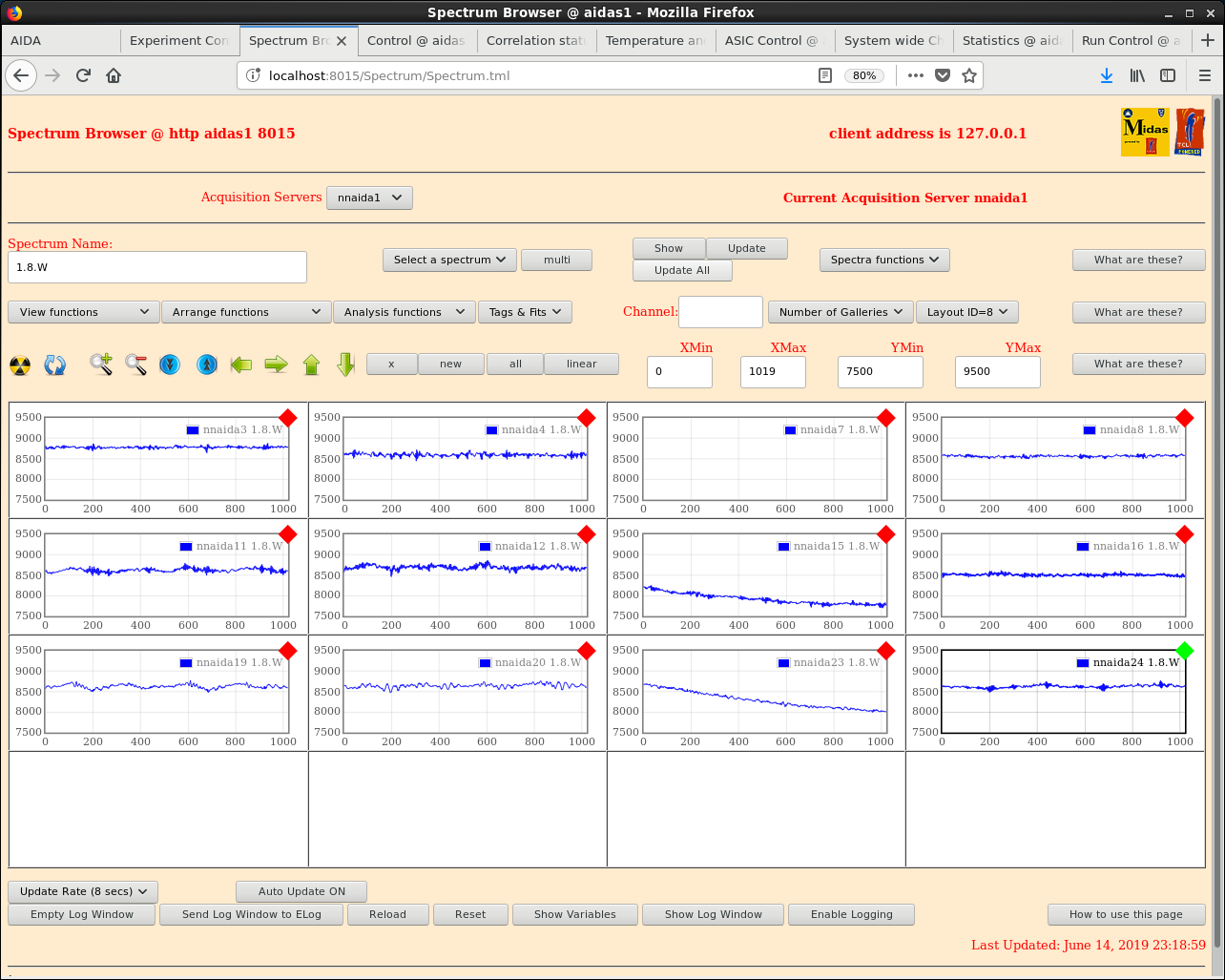

p+n FEE64s 1.8.W spectra 20us FSR - attachment 21
      n+n FEE64s 1.8.W spectra 20us FSR - attachment 22

23.36 DAQ start file May19/R34_0

DTAS+AIDA correlation test using gamma ray sources

Correlation scaler reset issued during R34_0

ASIC settings 2019Jun13-08.56.35

BNC PB-4 Pulser
      Amplitude 90,000
      x5 attenuator IN
      Frequency 25Hz range
      t_r 100ns, tau_d 50us
      - polarity
      Delay MIN, tail pulse

23.53 DAQ stop file May19/R34_2

nnaida15 did not stop - state unknown - reboot nnaida15

This did not work - unable to reset nnaida15

Closed all FireFox broweser tabs, stopped all servers and restarted

00.14 DAQ start

ASIC settings 2019Jun13-08.56.35

BNC PB-4 Pulser
      Amplitude 90,000
      x5 attenuator IN
      Frequency 25Hz range
      t_r 100ns, tau_d 50us
      - polarity
      Delay MIN, tail pulse

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

190614_1354_stats.png Original size: 1284x1027

Attachment 2:

190614_1356_bias.png Original size: 1004x342

Attachment 3:

190614_1357_temps.png Original size: 1284x1027

Attachment 4:

190614_1359_merger.png Original size: 1284x1027

Attachment 5:

190614_tape.png Original size: 1284x1027

Attachment 6:

biases.png Original size: 1002x347

Attachment 7:

fee-temps.png Original size: 1284x1027

Attachment 8:

merger.png Original size: 1284x1027

Attachment 9:

stats.png Original size: 1284x1027

Attachment 10:

tapeserver.png Original size: 1284x1027

Attachment 11:

temp2.png Original size: 1284x1027

Attachment 12:

stats.png Original size: 1284x1027

Attachment 13:

bias.png Original size: 1004x342

Attachment 14:

errorCode.txt

STATE for nnaida1 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida1:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida1:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout $timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida2 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida2:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida2:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout $timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida3 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida3:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida3:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout $timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida4 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida4:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida4:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout $timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida5 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida5:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida5:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout $timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida6 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida6:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida6:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout $timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida7 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida7:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida7:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout $timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState"
    ("eval" body line 1)
    invoked from within
"eval ::SOAP::invoke ::SOAP::_DataAcquisitionControlClient__GetState $args"
    (procedure "DataAcquisitionControlClient__GetState" line 1)
    invoked from within
"DataAcquisitionControlClient__GetState"
STATE for nnaida8 returned with an error
connect failed
NONE
connect failed
    while executing
"::http::geturl http://nnaida8:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" encoding="UTF-8"..."
    ("eval" body line 1)
    invoked from within
"eval [list ::http::geturl $url] $args"
    (procedure "::http::geturl_followRedirects" line 4)
    invoked from within
"::http::geturl_followRedirects http://nnaida8:8015/DataAcquisitionControlServer -headers {} -type text/xml -timeout 20000 -query {<?xml version="1.0" ..."
    ("eval" body line 1)
    invoked from within
"eval ::http::geturl_followRedirects [list $url]  -headers [list $local_headers]  -type text/xml  -timeout $timeout  -query [list $request]  $local_pro..."
    (procedure "::SOAP::Transport::http::xfer" line 61)
    invoked from within
"$transport $procVarName $url $req"
    (procedure "::SOAP::invoke" line 18)
    invoked from within
"::SOAP::invoke ::SOAP::_DataAcquisitionControl
