00.00 Shift Change

DAQ continues ok

AIDA file RIBF147/R2_697
      DTAS run 118
      BigRips run 2048

BNC PB-4 Pulser
      Amplitude 90,000
      x5 attenuator IN
      Frequency 25Hz range, variable min. c. 2.5Hz
      t_r 100ns, tau_d 50us
      - polarity
      Delay MIN, tail pulse

0.3mm Al degrader

00.15 System wide checks all ok *except* naida7 fails ADC calibration

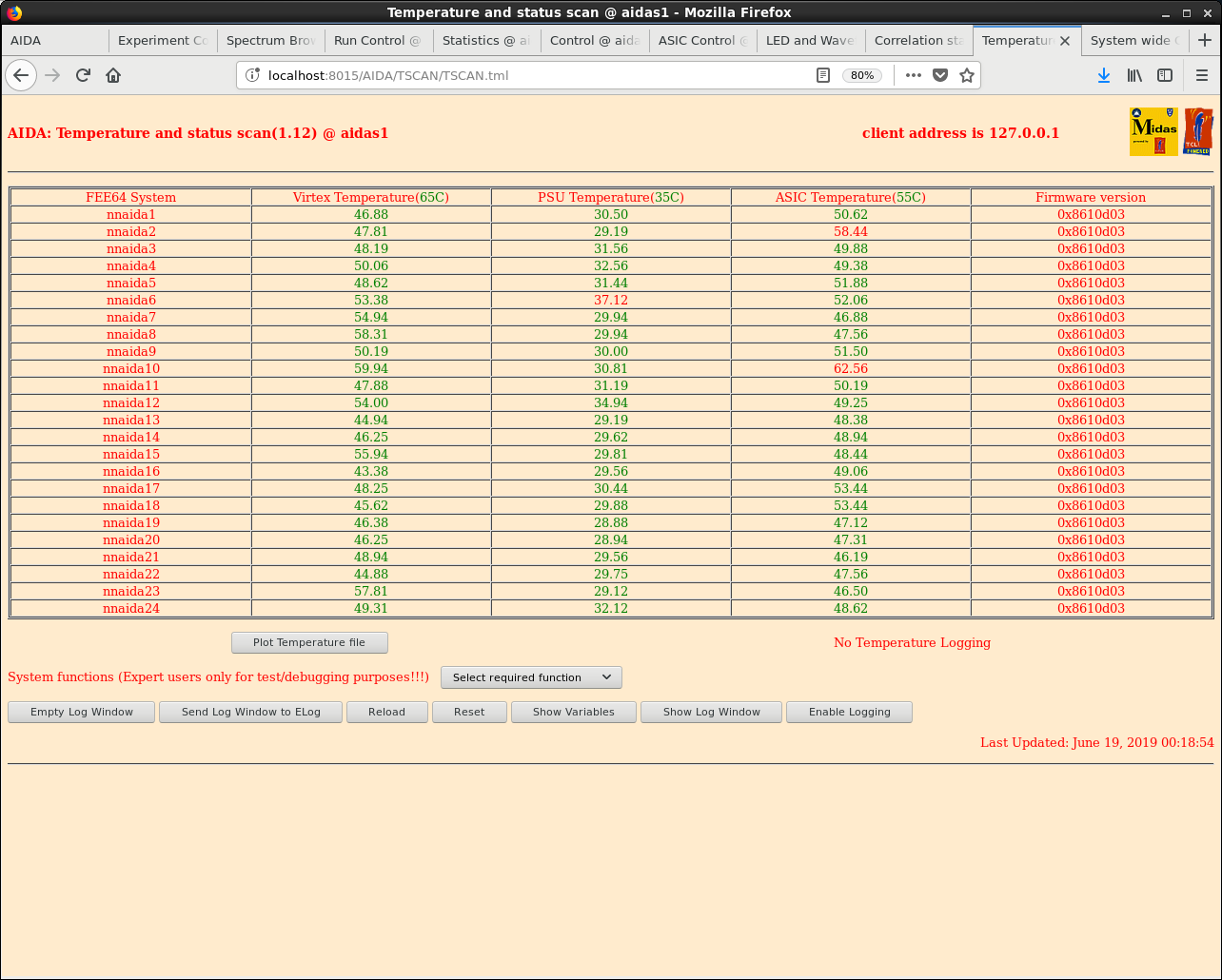

00.19 FEE64 temperatures ok - attachment 1

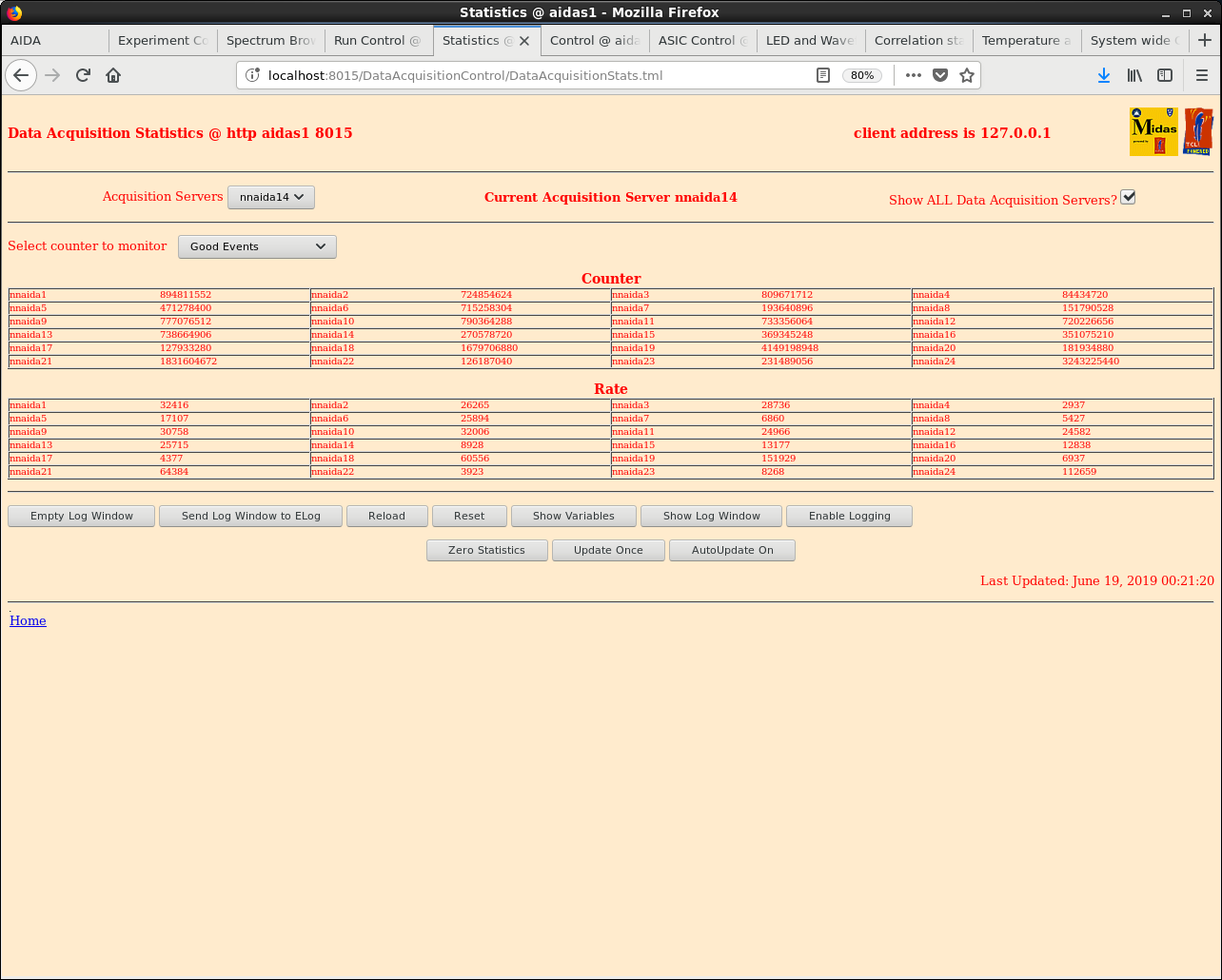

good event statistics ok - attachment 2

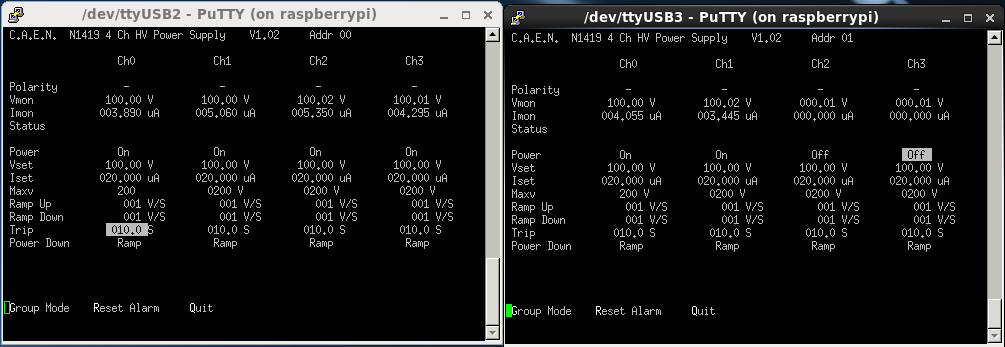

detector bias/leakage currents ok - attachment 3

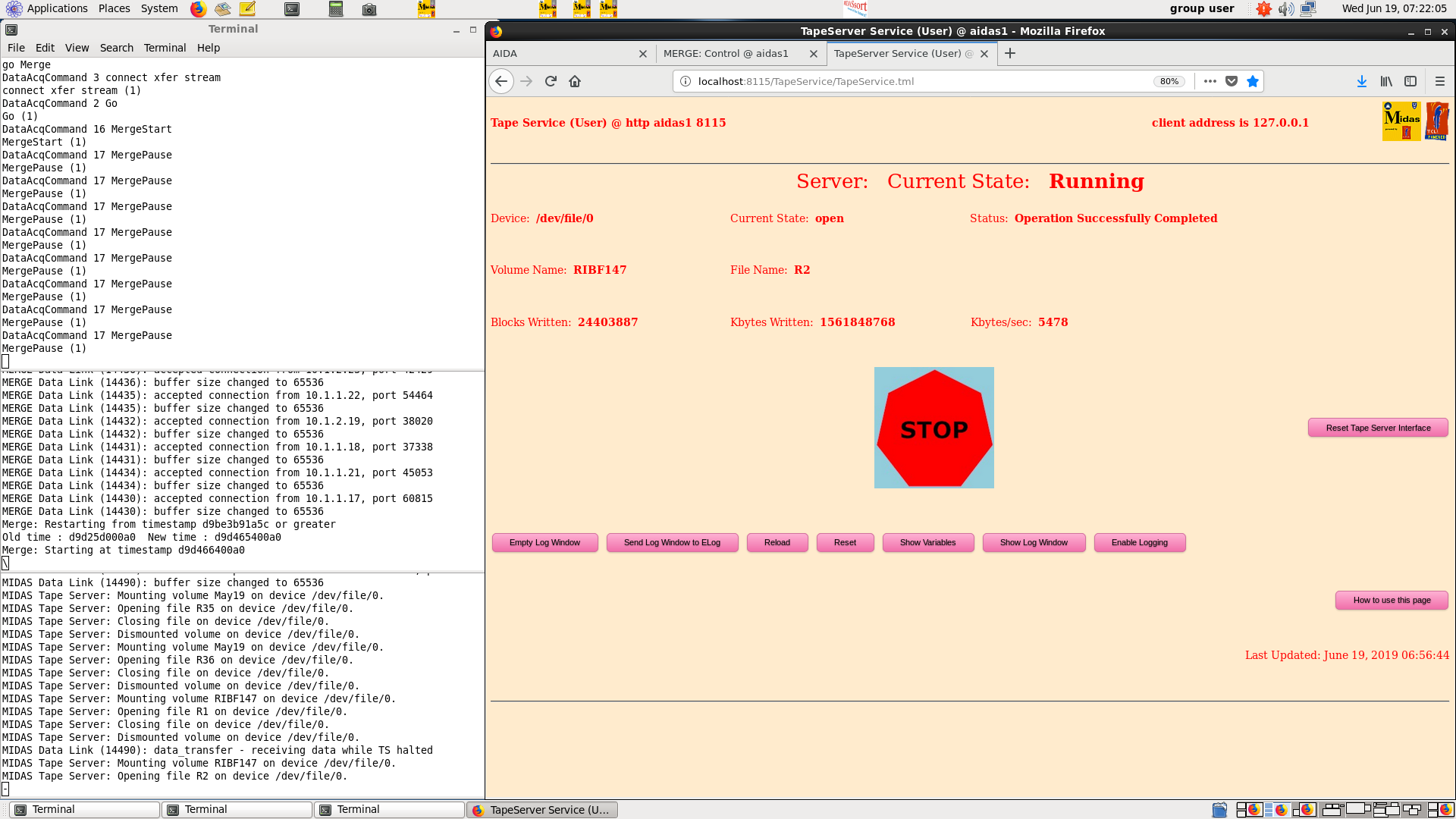

tape service ok - attachment 4

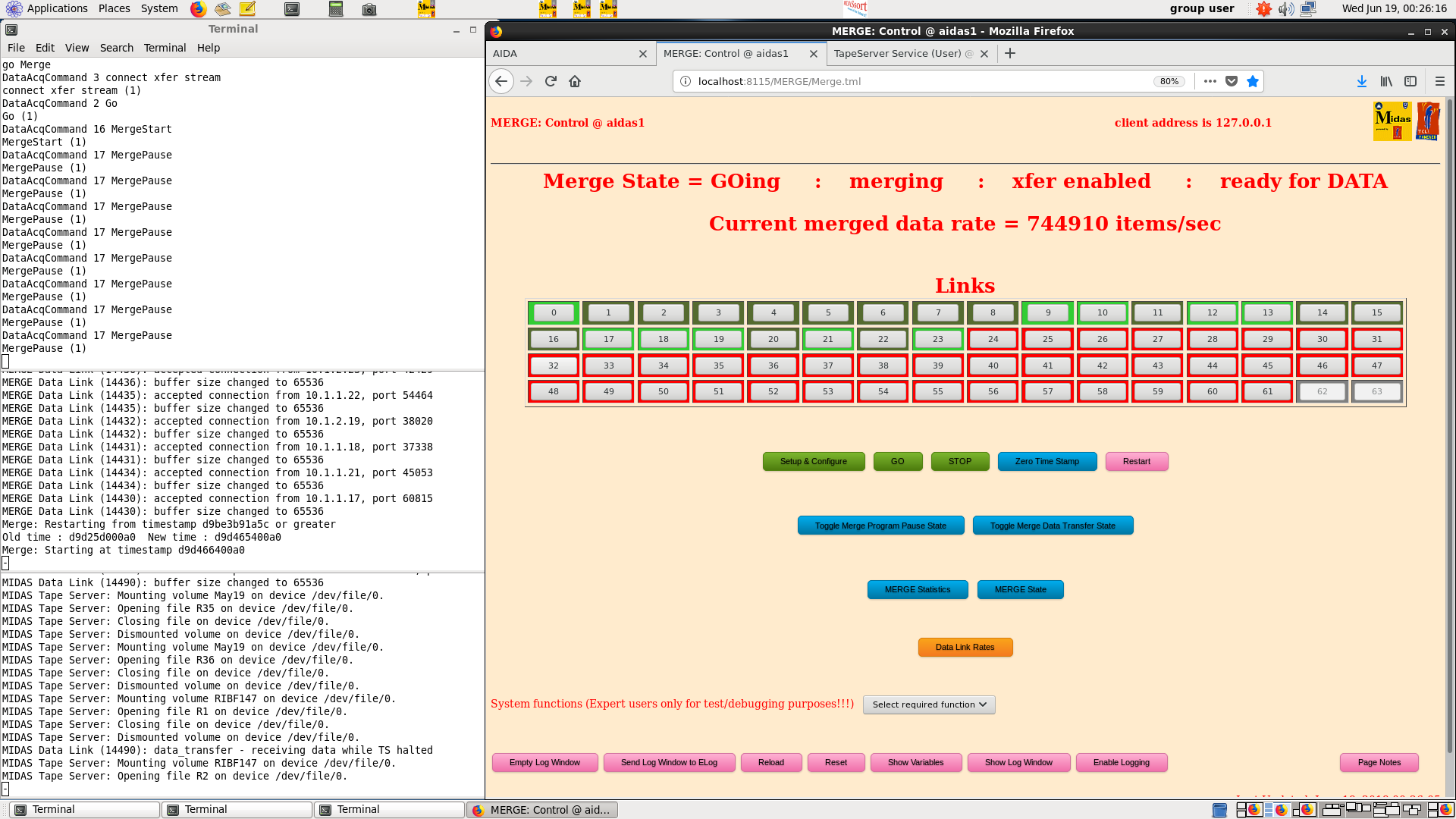

merger ok - attachment 5

01.19 DTAS stop/start (verified with DTAS2019 ELOG)

DTAS Stop: 01:19
      DTAS run: 121
      AIDA run: 708
      BigRIPS run: 2049

DTAS Start: 01:19
      DTAS run: 122
      AIDA run: 708
      BigRIPS run: 2049

01.46 Primary beam at 120 pnA; implants around 250 cps at F11

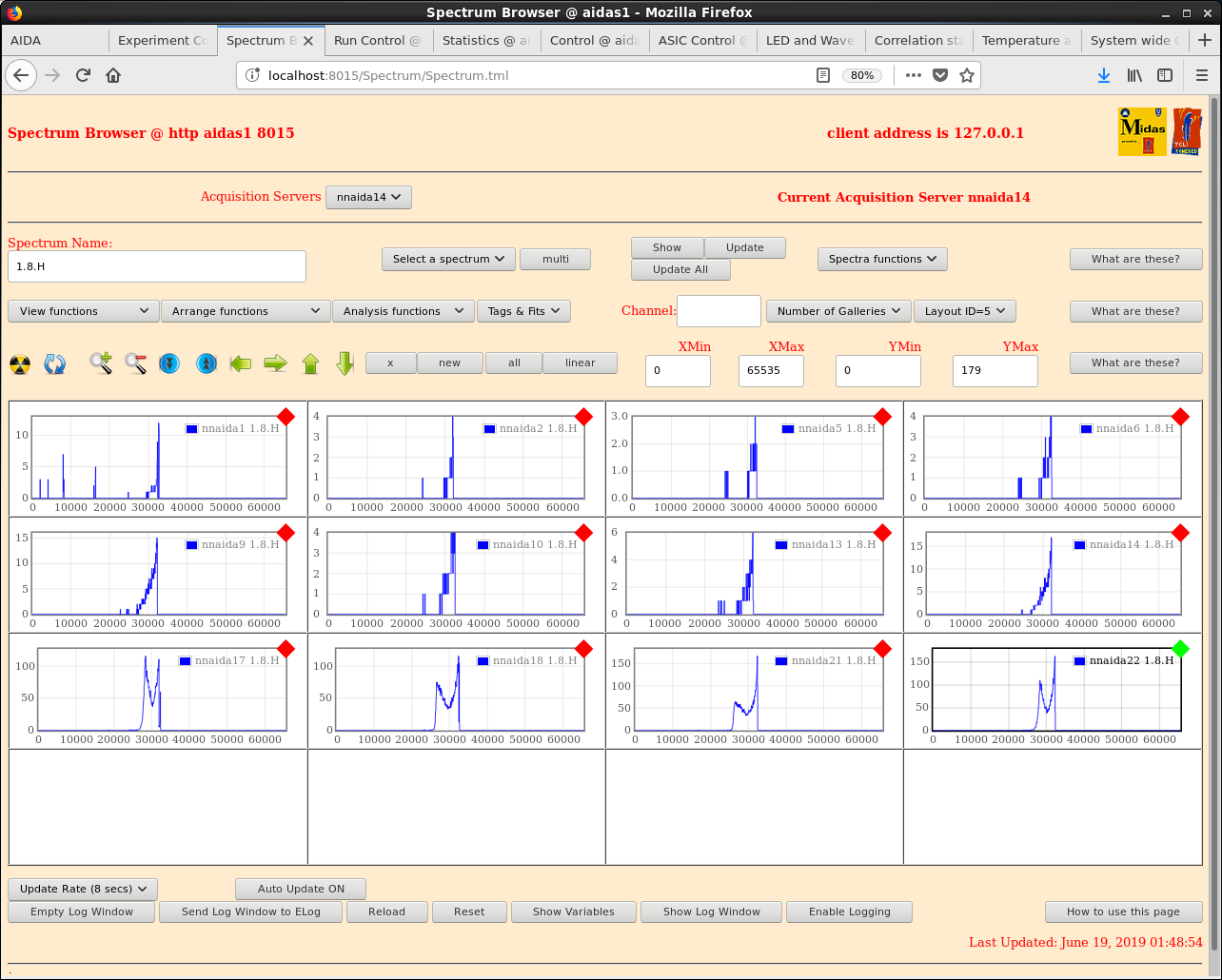

01.48 High Energy Spectra (1.8.H) for front and back strips, respectively (attachments 6 & 7)

02.35 HEC XY hit pattern - implants mostly in DSSD2 - attachment 8

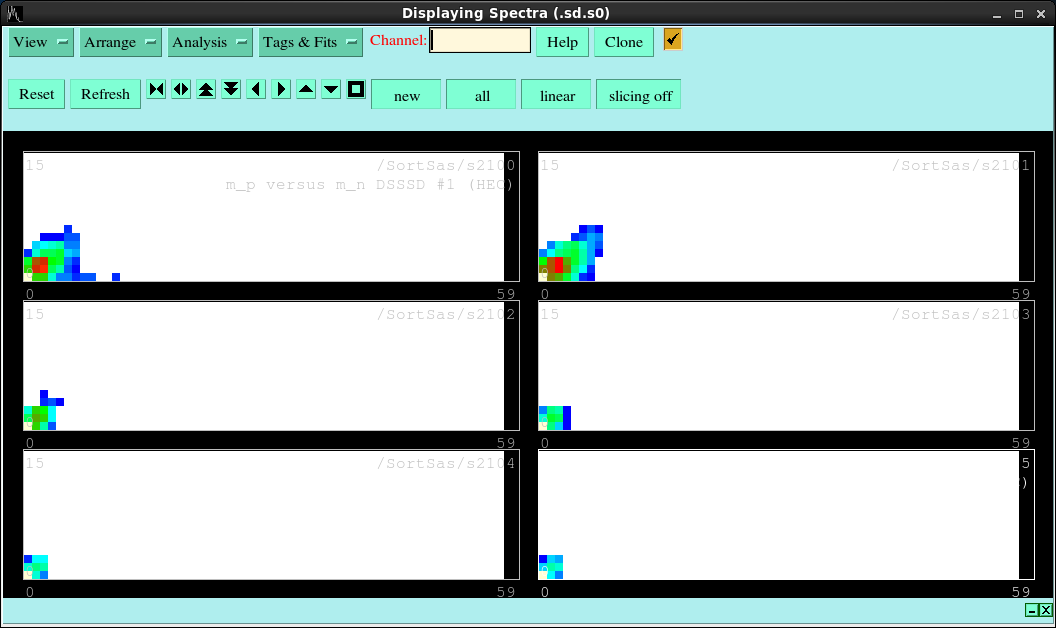

      HEC multiplicity n vs p - attachment 9

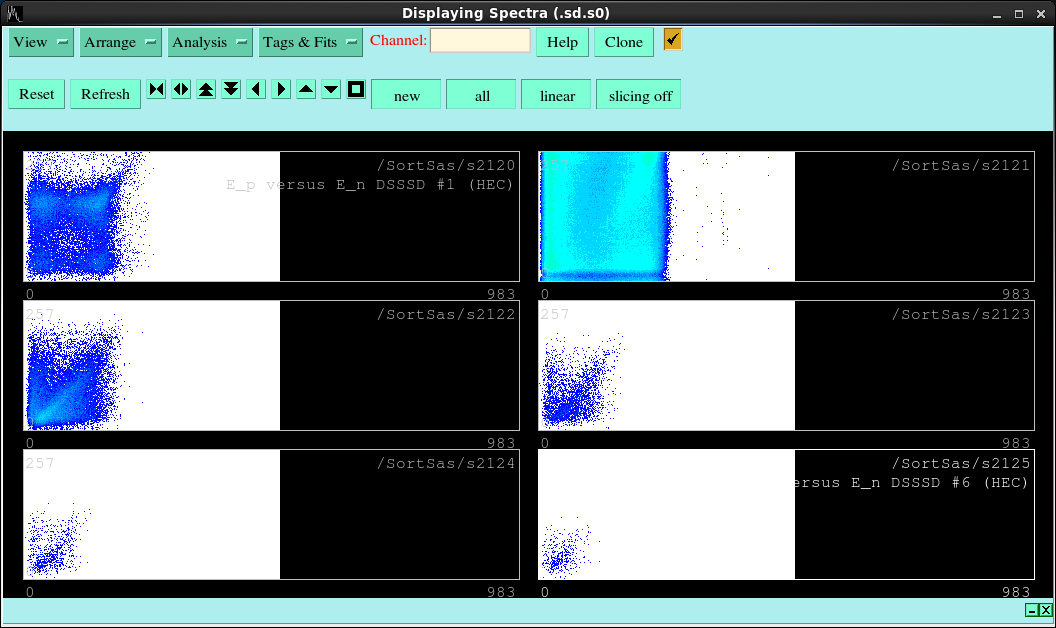

      HEC Ey vs Ex - attachment 10
      Implant - decay time vs Energy - attachment 11

02.46 zeroed all histograms, online sort stats zeroed

02.49 HEC XY hit pattern - ~3 minutes after zeroing - attachment 12

02.52 Primary beam at 120 pnA; implants around 250 cps at F11

03.20 analyser output file R2_726 - attachment 13
      no timewarps
      ~1s deadtime on nnaida19
      ~0.8s deadtime on nnaida24
      0s for rest

03.23 DTAS stop run 125
      AIDA file R2_728
      BigRIPS run 2049

DTAS start run 126
      AIDA file R2_728
      BigRIPS run 2050

03.28 Check ASIC control

04.16 HEC XY hit pattern - less implants than expected - attachment 14

HEC XY hit pattern - change refresh rate to 10s.... looks ok. Sorry Tom! - attachment 15

04.26 FEE64 temperatures ok - attachment 16

04.28 System wide checks all ok *except* naida7 fails ADC calibration

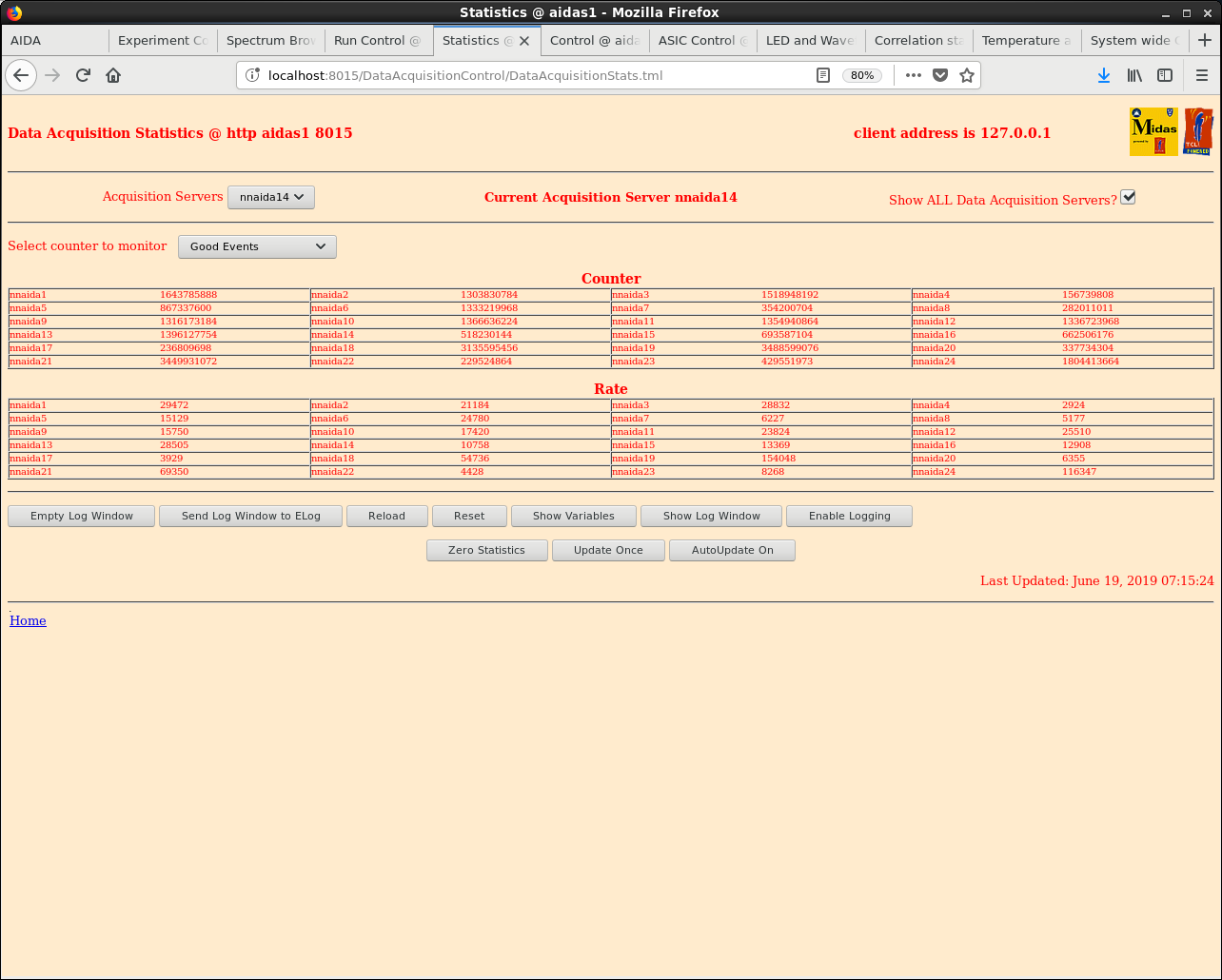

good event statistics ok - attachment 17

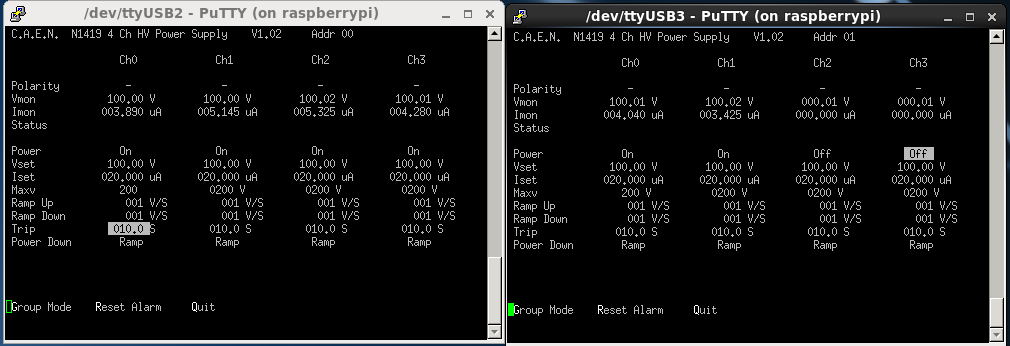

detector bias/leakage currents ok - attachment 18

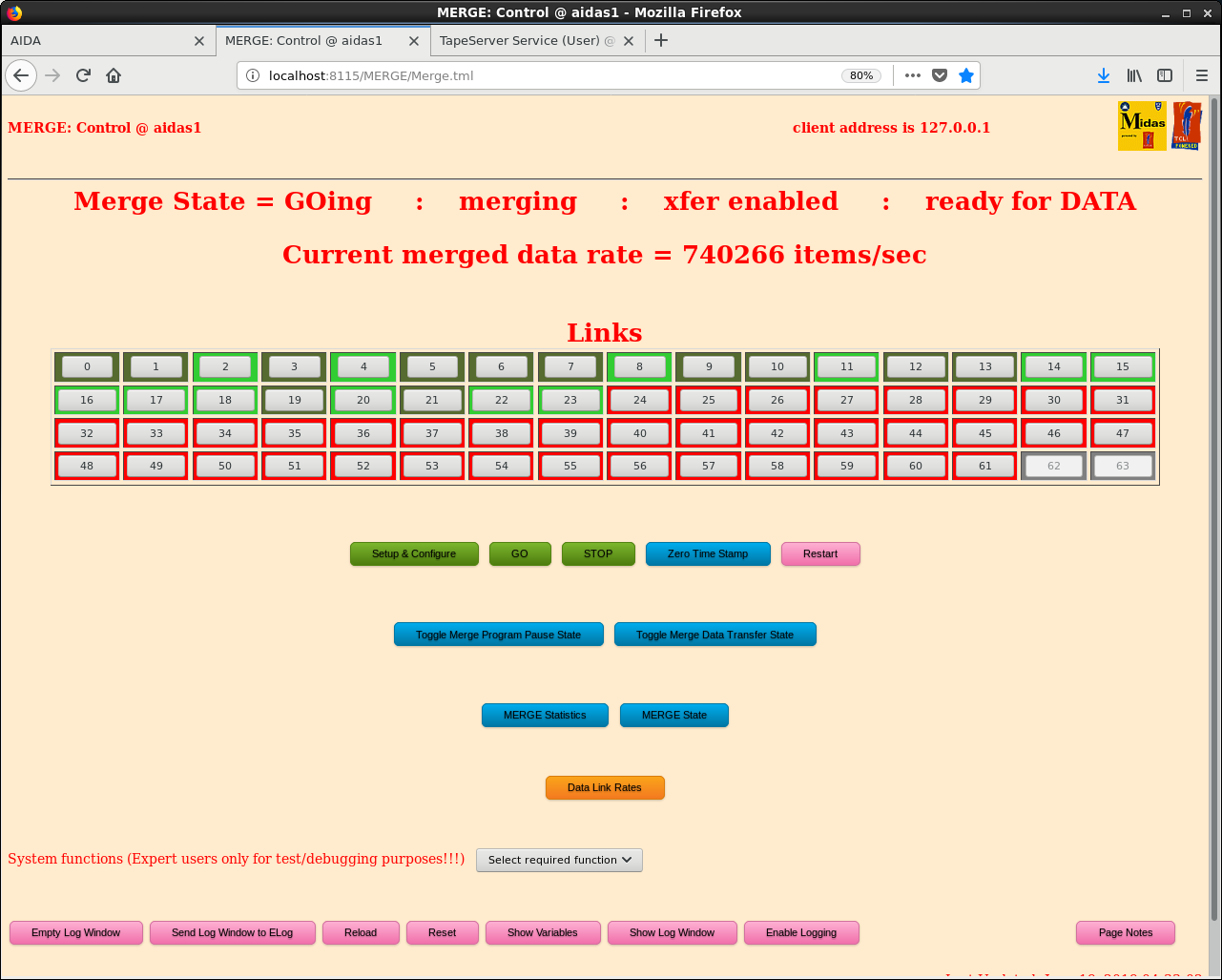

merger & TapeServer ok - attachments 19 & 20

05.32 Primary beam at 120 pnA; implants around 250 cps at F11

05.36 DTAS stop run 129
      AIDA file R2_749
      BigRIPS run 2050

05.40 DTAS send sync pulse AIDA file R2_750

05.43 DTAS start run 130
      AIDA file R2_751
      BigRIPS run 2051

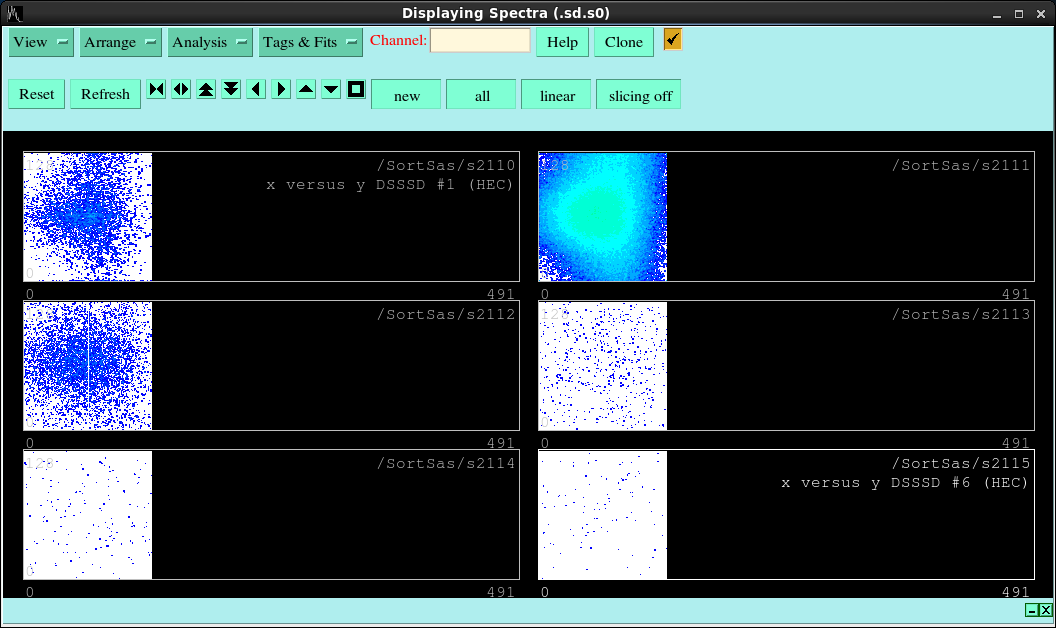

06.31 HEC XY hit pattern - implants mostly in DSSD2 - attachment 21

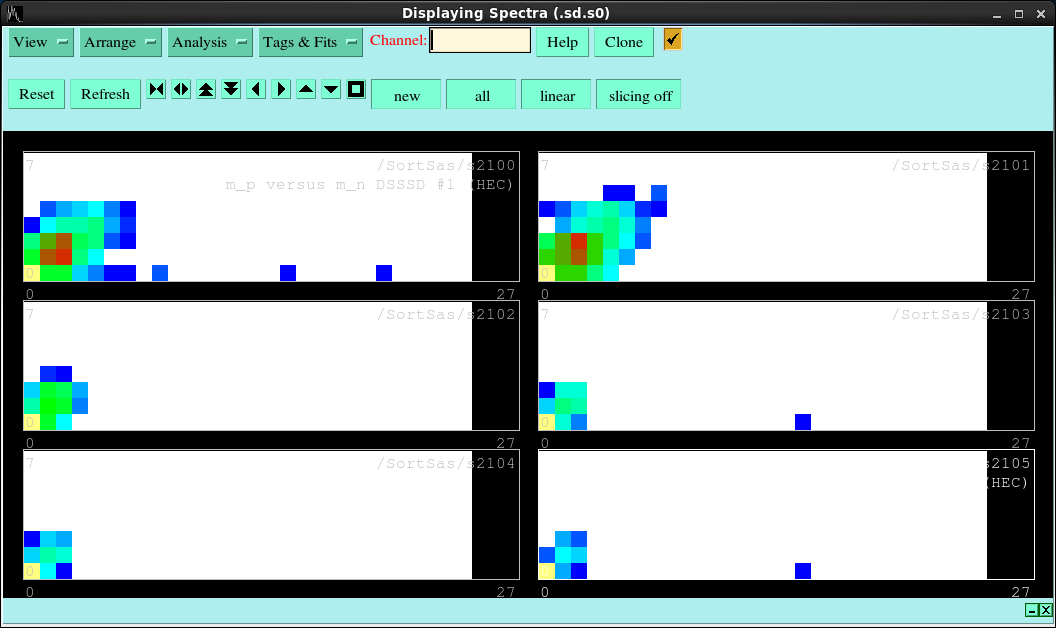

      HEC multiplicity n vs p - attachment 22
      HEC Ey vs Ex - attachment 23
      Implant - decay time vs Energy - attachment 24

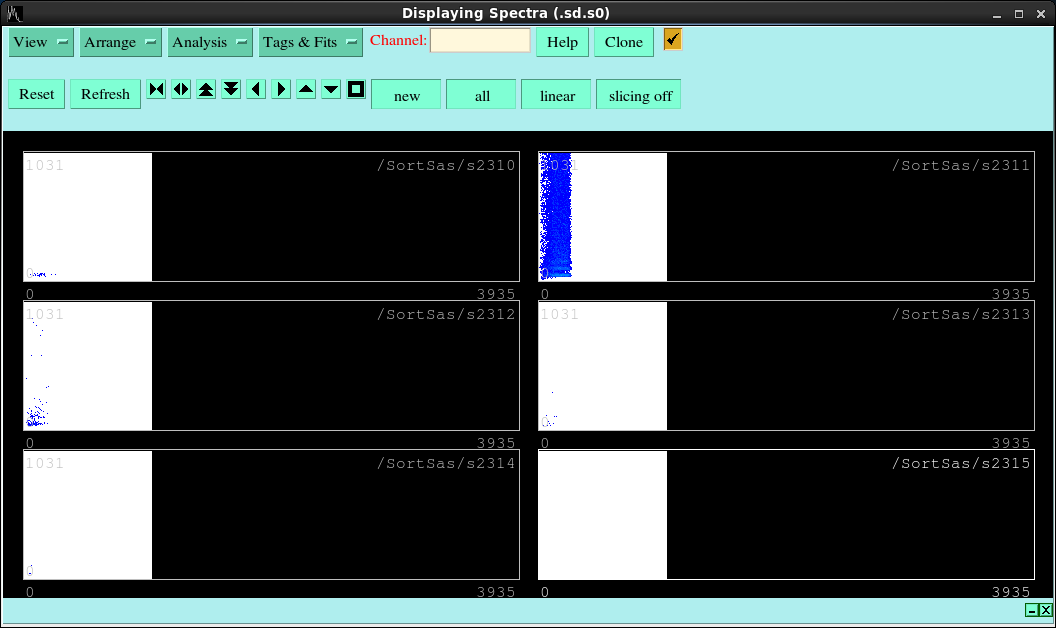

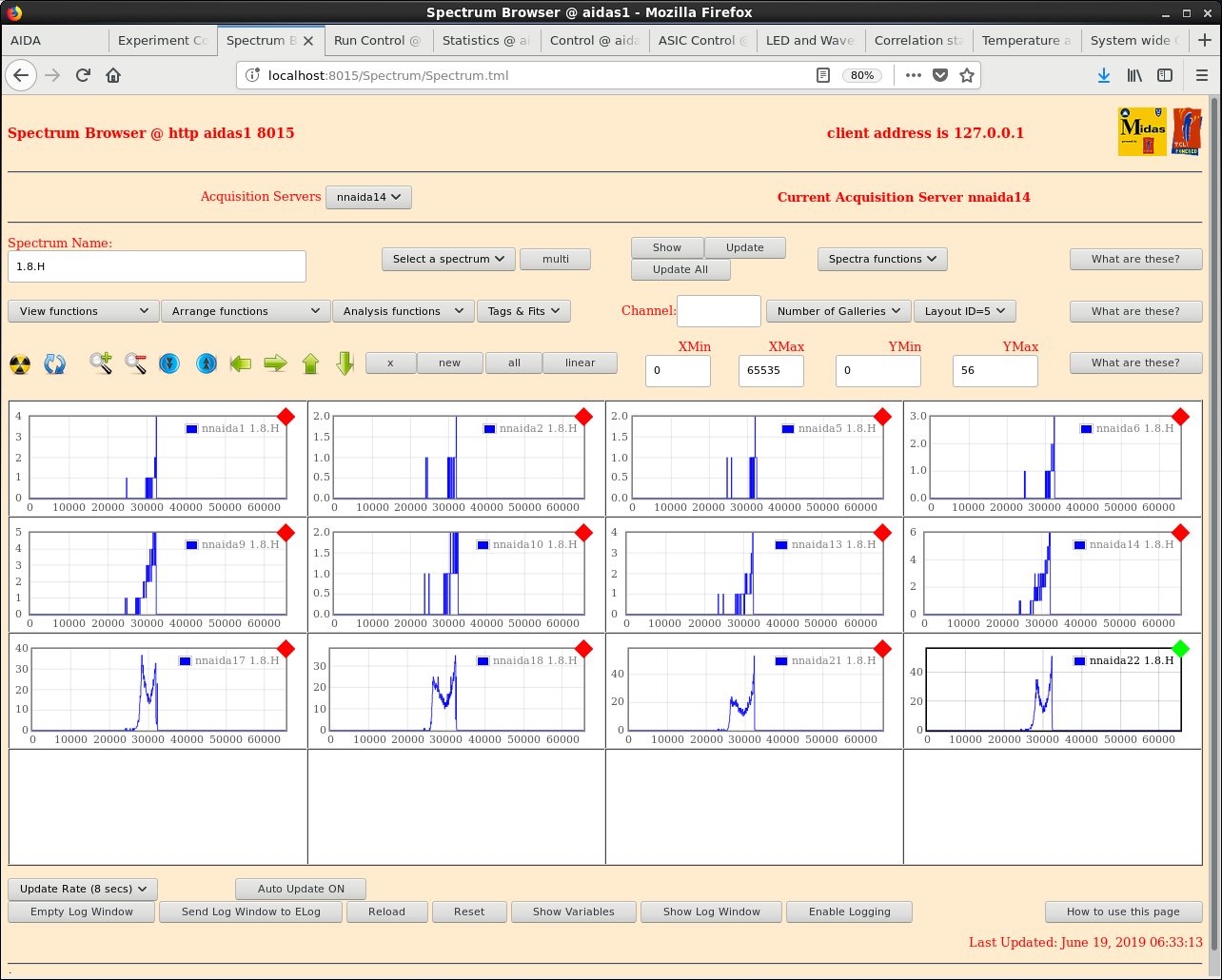

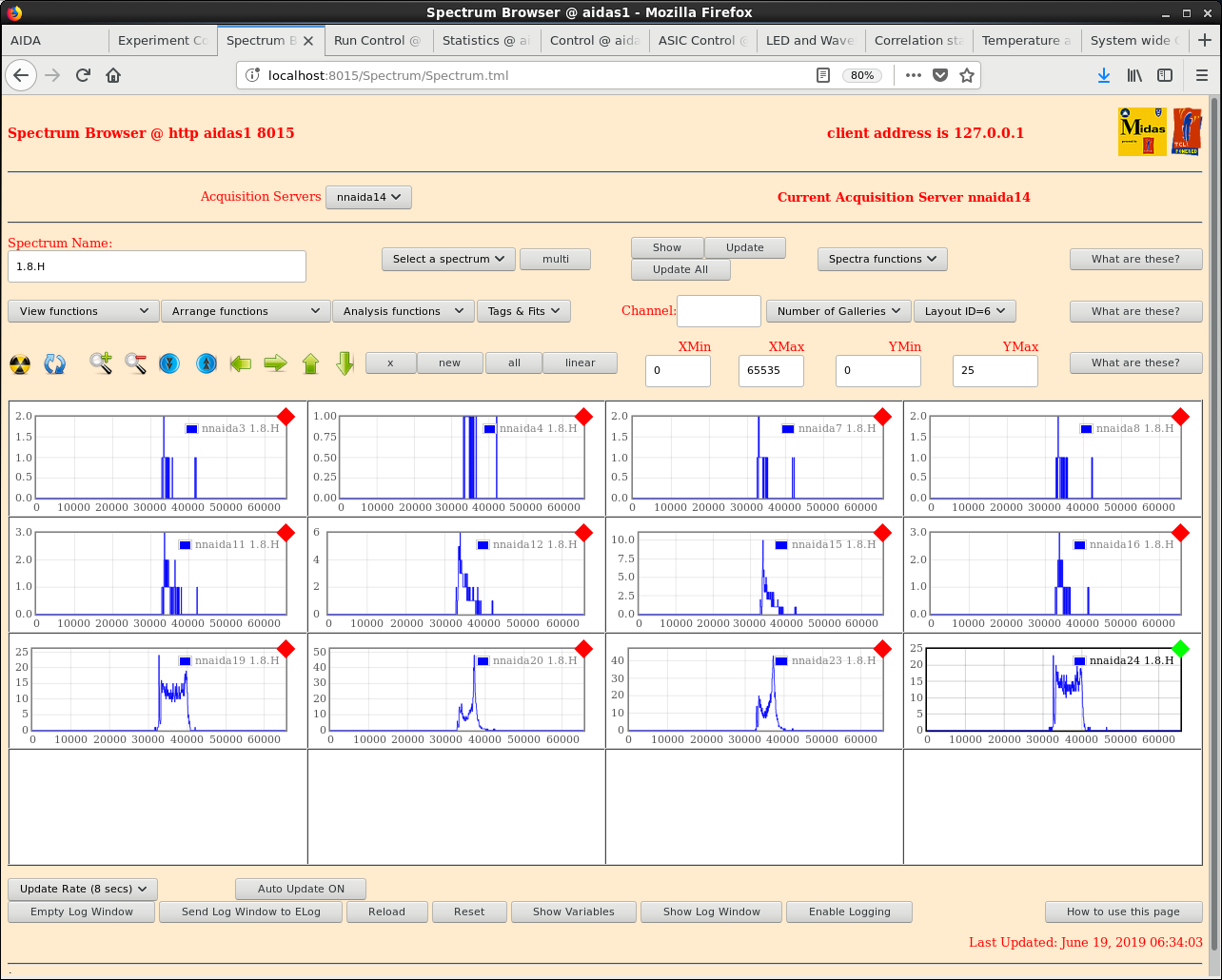

06.34 High Energy Spectra (1.8.H) for front and back strips, respectively (attachments 25 & 26)

06.36 3.20 analyser output file R2_731 - attachment 27
      no timewarps
      ~1.7s deadtime on nnaida19
      ~0.8s deadtime on nnaida24
      0s for rest

07.19 System wide checks all ok *except* naida7 fails ADC calibration

good event statistics ok - attachment 28

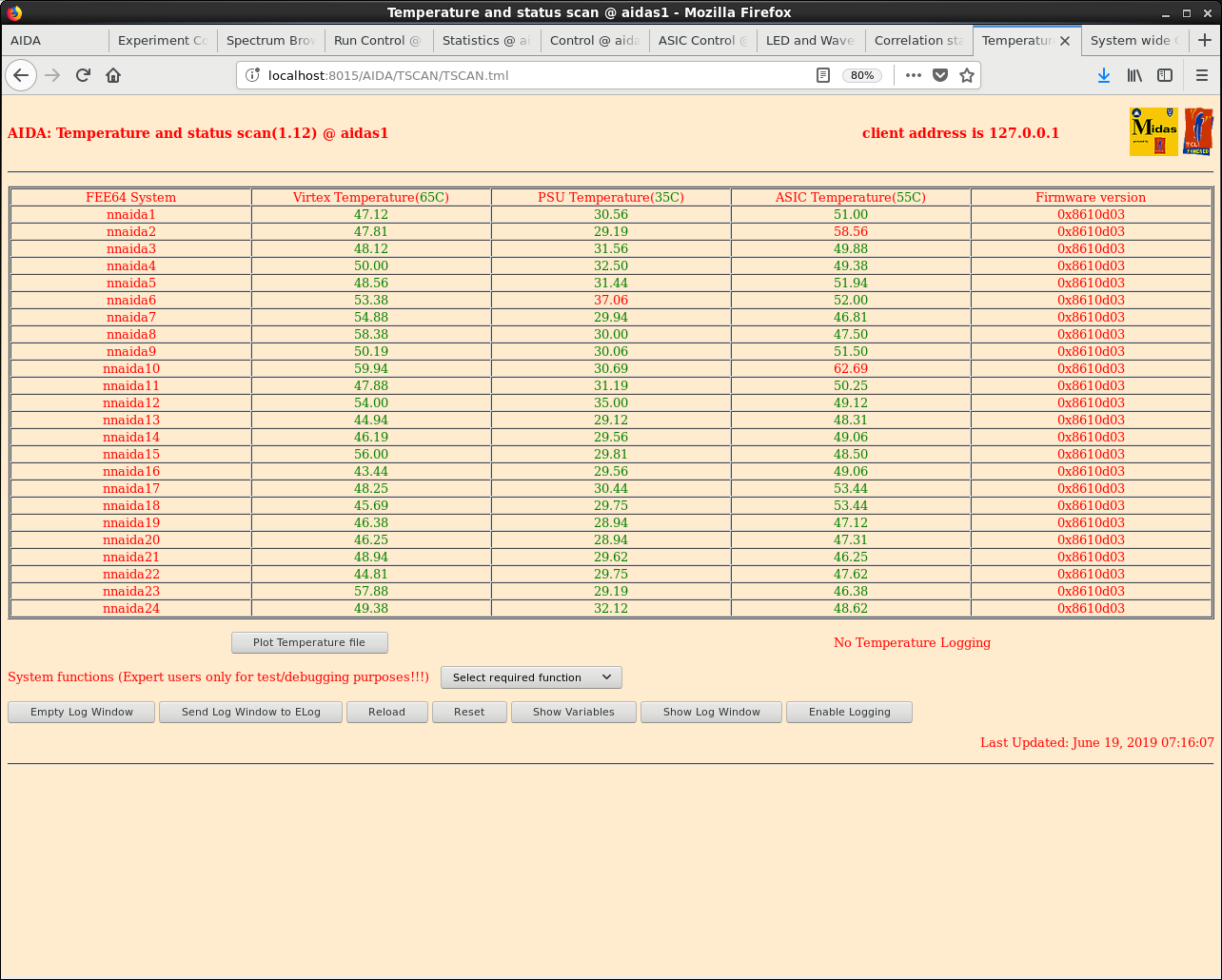

FEE64 temperatures ok - attachment 29

detector bias/leakage currents ok - attachment 30

07.21 Merger & TapeServer ok - attachments 31 & 32

07.30 DTAS stop run 132
      AIDA file R2_768
      BigRIPS run 2051

DTAS start run 133
      AIDA file R2_768
      BigRIPS run 2052

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

0019temp.png Original size: 1284x1030

Attachment 2:

0021_stats.png Original size: 1284x1030

Attachment 3:

0022bias.png Original size: 1005x347

Attachment 4:

0025tape.png Original size: 1920x1080

Attachment 5:

0026_merger.png Original size: 1920x1080

Attachment 6:

190619_0149_frontH.png Original size: 1284x1030

Attachment 7:

190619_0150H.png Original size: 1284x1030

Attachment 8:

190619_0230_XY.png Original size: 1056x628

Attachment 9:

190619_0231_mult.png Original size: 1056x628

Attachment 10:

190619_0232_ExEy.png Original size: 1056x628

Attachment 11:

190619_0234_Edt.png Original size: 1056x628

Attachment 12:

190619_0248_XY.png Original size: 1056x628

Attachment 13:

R2_726

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - May 2019
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  253678367 (  693819.3 Hz)
        Other data format:    7441633 (   20353.1 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:         53 (       0.1 Hz)
                               RESUME:         53 (       0.1 Hz)
                              SYNC100:    3346493 (    9152.8 Hz)
                           FEE64 disc:    4084066 (   11170.1 Hz)
