10.37 Post - beam, AIDA & DTAS run only
      DTAS stop run 164
      AIDA file R2_1012

10.54 DTAS start run 165
      AIDA file R2_1015
      DTAS begins calibration with 24Na source

11.06 DAQ continues running OK
      All system wide checks ok *except* nnaida7 fails ADC calibration

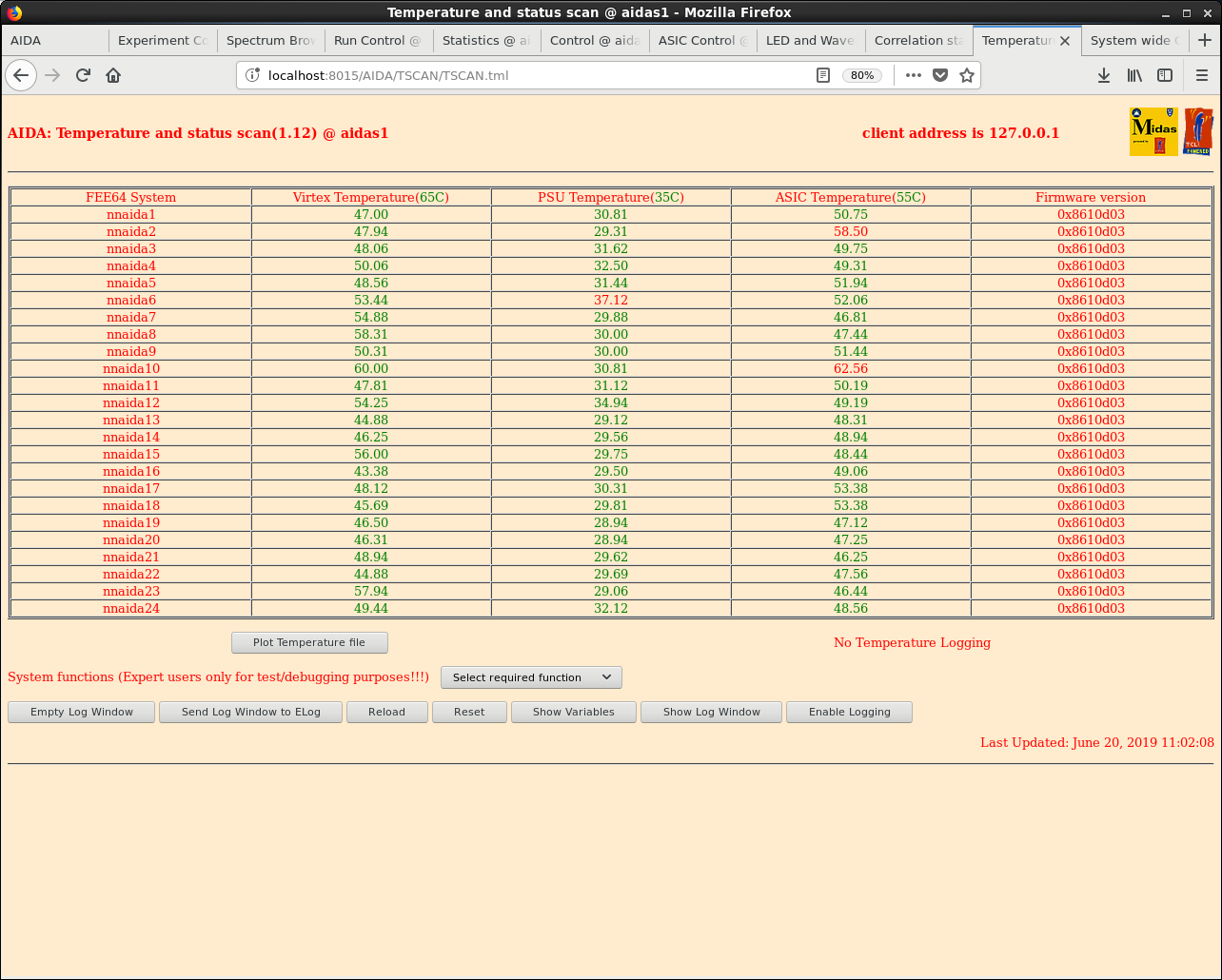

      FEE64 temperature OK - see attach 1

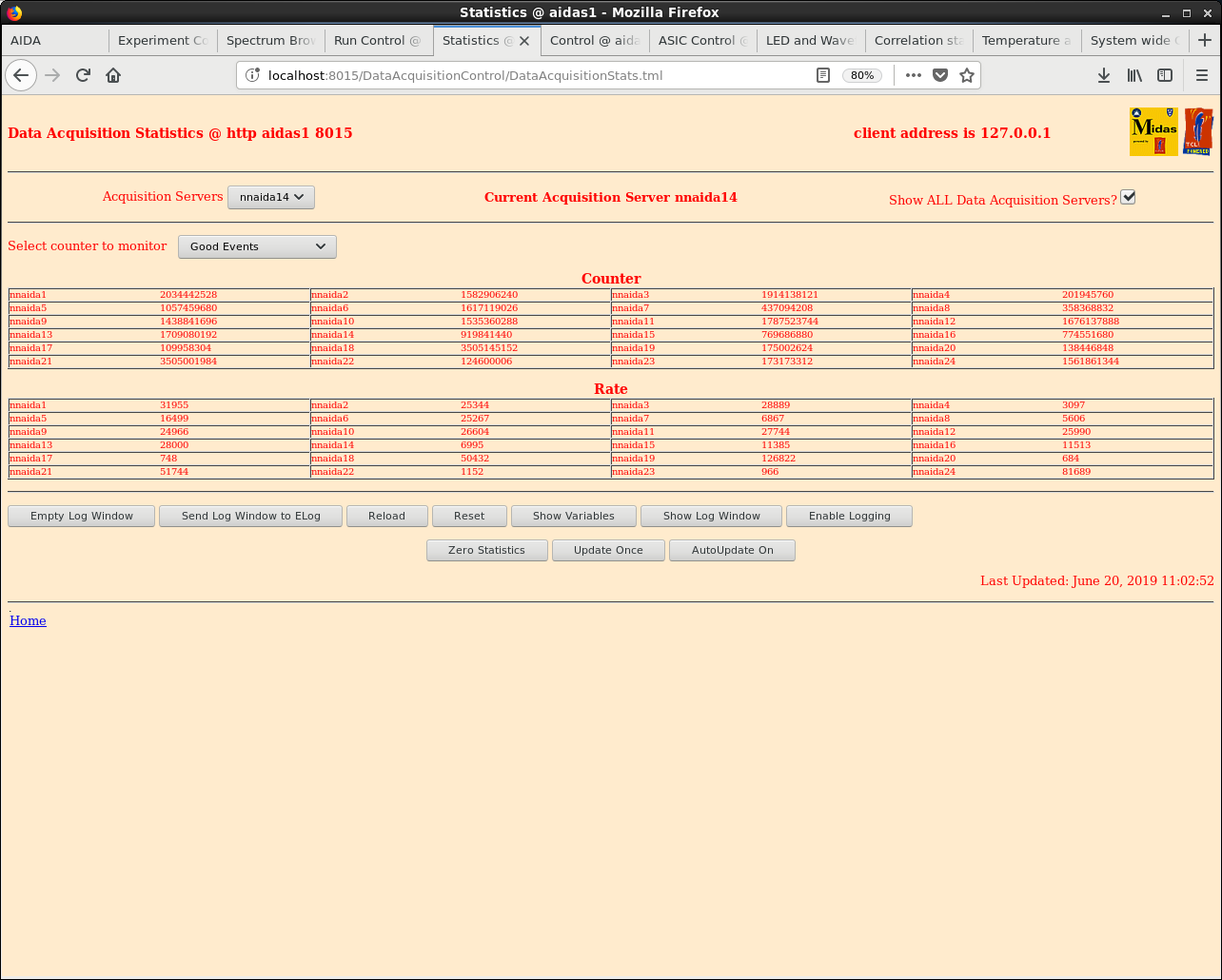

      Good events rate OK - see attach 2

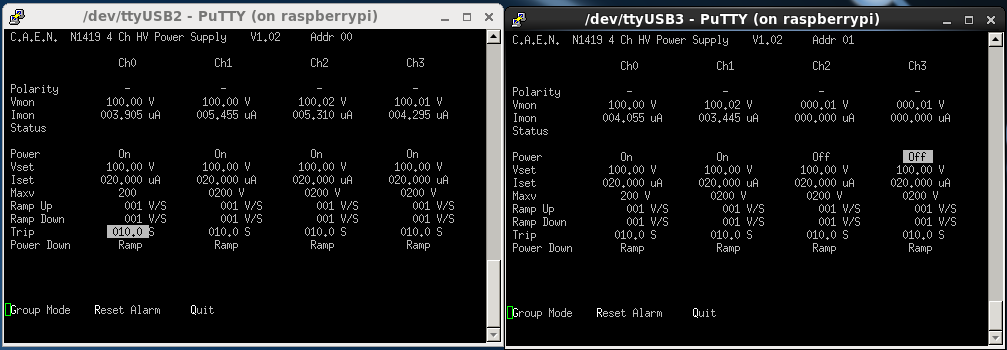

      Leakage currents OK - see attach 3

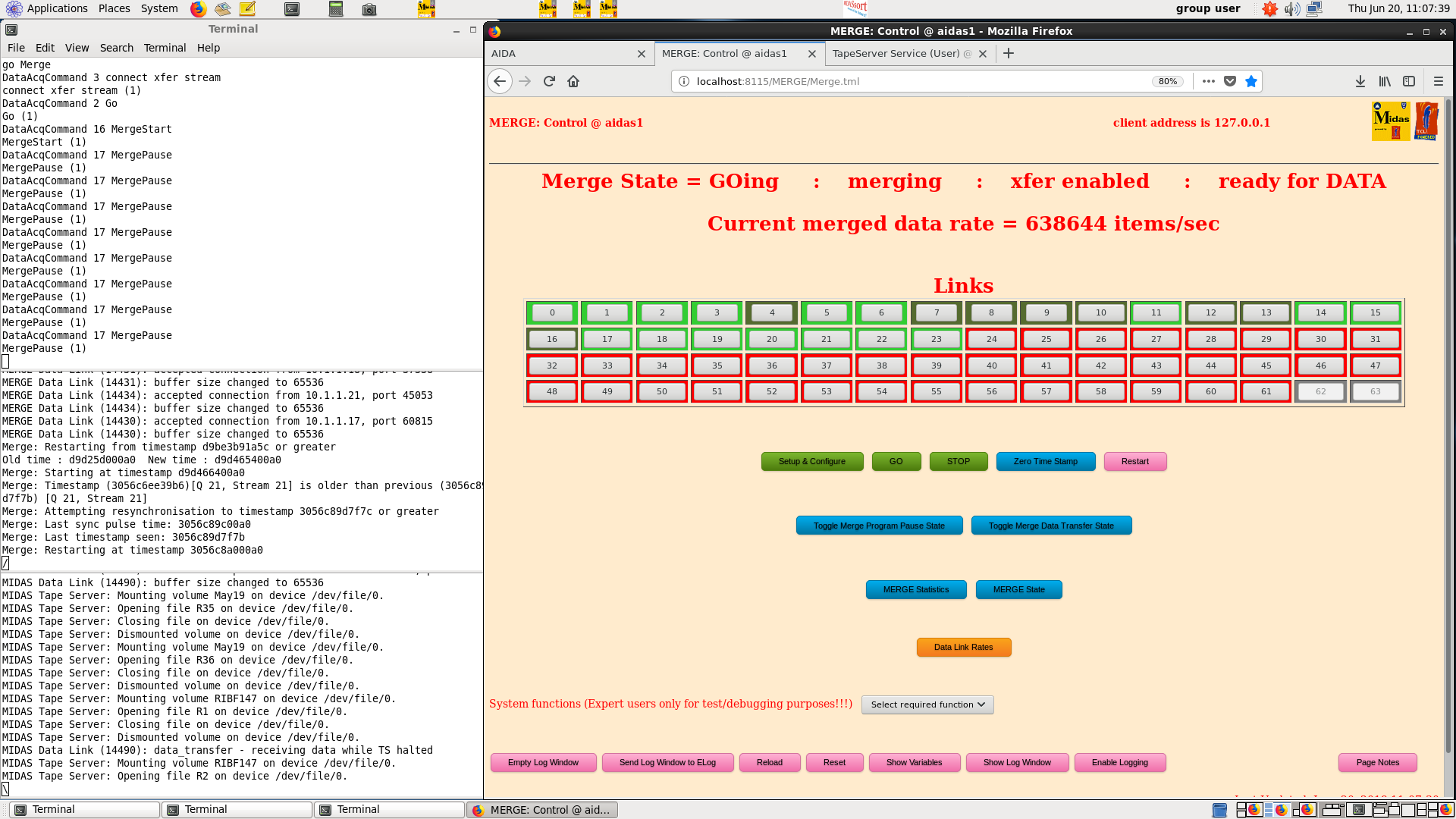

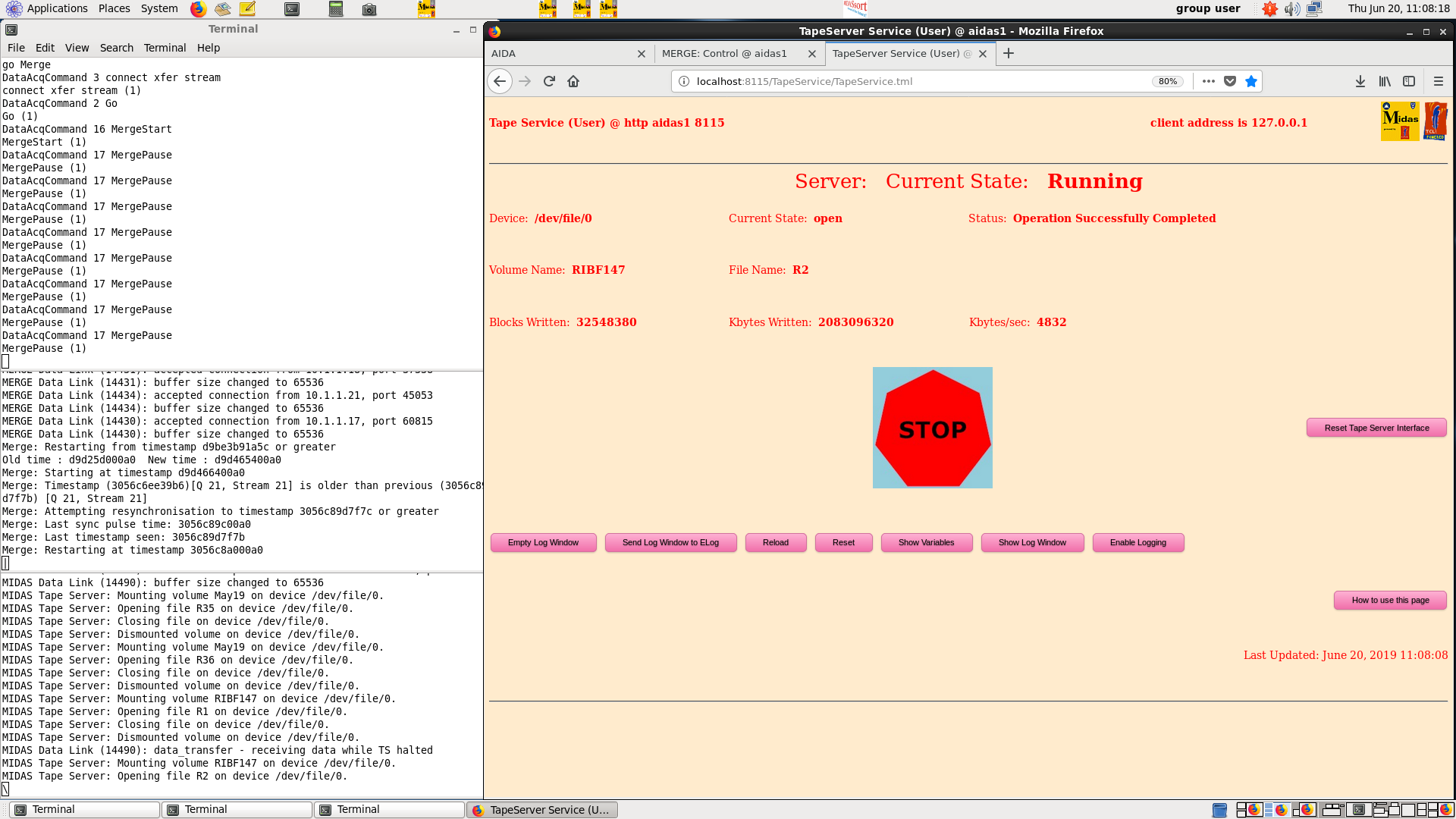

      Merger & Tape server OK - see 4 & 5

11.47 DTAS stop run 166
      AIDA file R2_1022

12.03 DTAS start run 167
      AIDA file R2_1025
      Caesium measurement

13.18 DTAS stop run 169
      AIDA file R2_1035

14.59 DTAS opens file run 172
      AIDA file R2_1049

14.57 DAQ continues OK file RIBF147/R2_352

postrun background and gamma source tests

ASIC settings 2019Jun13-08.56.35
      DSSSD#1 slow comparator 0x1d
      DSSSD#2 slow comparator 0x8

BNC PB-4 Pulser
      Amplitude 90,000
      x5 attenuator IN
      Frequency 25Hz range, variable min. c. 2.5Hz
      t_r 100ns, tau_d 50us
      - polarity
      Delay MIN, tail pulse

all system wide checks OK *except* nnaida7 fails ADC calibration

detector biases & leakage currents OK - see attachments 6 & 7

FEE64 temperatures OK - see attachment 8

good event statistics - OK - see attachment 9
      11x <20k 22x < 50k 23x <100k
      Merger - 1x Q 21 error  see attachment 10
      TapeServer OK - see attachment 11

p+n FEE64s 1.8.W spectra 20us FSR - attachment 12
      n+n FEE64s 1.8.W spectra 20us FSR - attachment 13

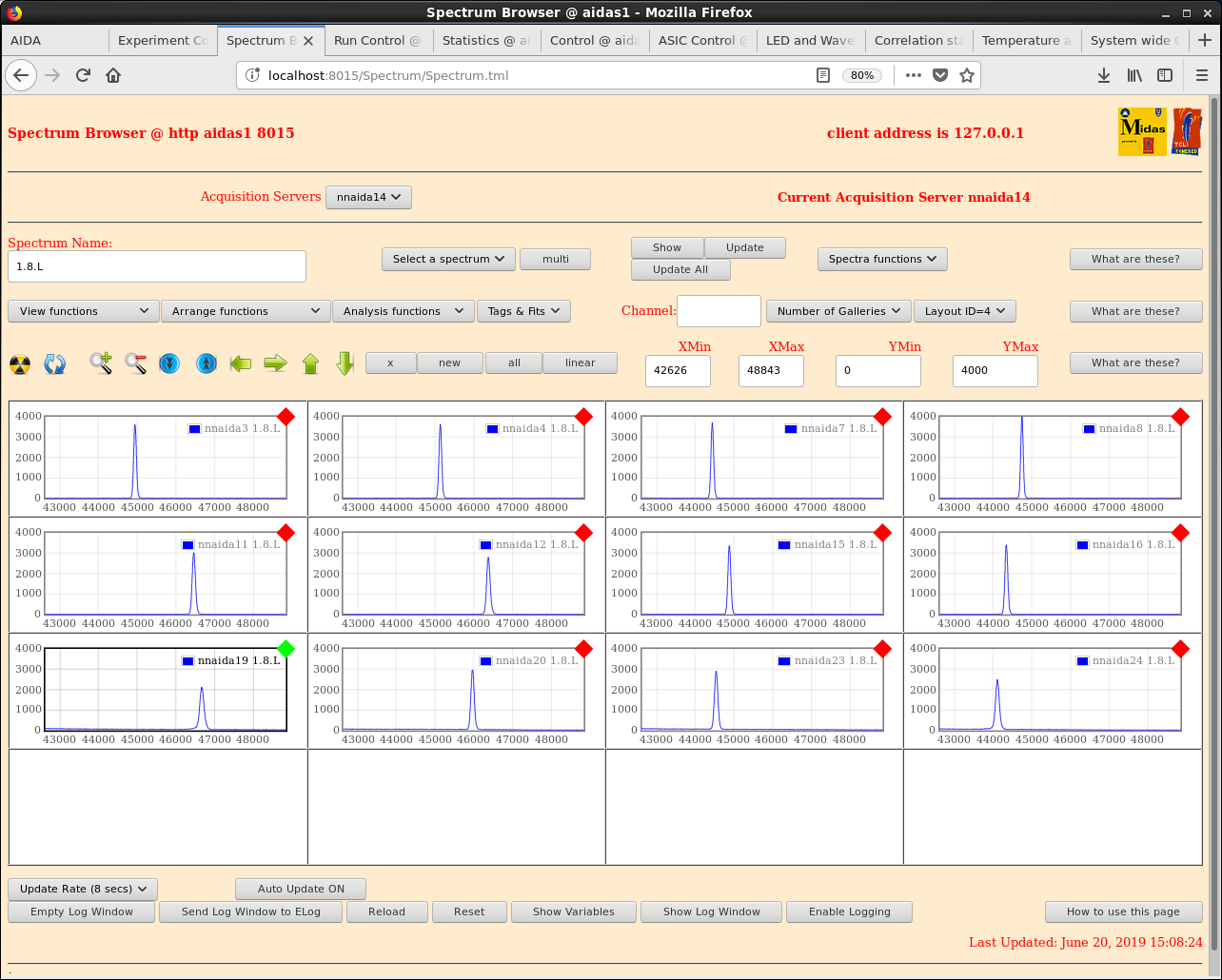

      1.8.L spectra - see attachments 14 & 15
      nnaida1 78 ch FWHM, nnaida3 81 ch FWHM
      1.8.H spectra - see attachments 16 & 17

FEE64 Rate spectra - attachment 18
      Check ASIC Control x1

11.04 analysis of file RIBF147/R2_1051 - attachment 19
      deadtime <<1% all FEE64s *except* nnaida19 ~2%
      no timewarps

16.00 AIDA file R2_1058
      DTAS sends sync pulse
      DTAS having issues with DAQ speed

16.30 DTAS stop 175
      AIDA file R2_1062

16.32 pulser walkthrough start

BNC PB-4 Pulser
      Amplitude 90,000
      x5 attenuator IN
      Frequency 250Hz range, variable min. c. 25Hz
      t_r 100ns, tau_d 50us
      - polarity
      Delay MIN, tail pulse

      90000 - 10000 in 10000 steps walkthrough file R3 - see attachments 20 & 21

12000 - 2000 in 2000 steps walkthrough file R5 - see attachments 22 & 24

ignore file R4

17.08 pulser walkthrough end

22.57 DAQ stop
      AIDA file TapeData/RIBF147/R6_49
      DTASD stop on run 191

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

200619_1102_temp.png Original size: 1284x1030

Attachment 2:

200619_1104_stats.png Original size: 1284x1030

Attachment 3:

200619_1105_bias.png Original size: 1007x350

Attachment 4:

200619_1108_tape.png Original size: 1920x1080

Attachment 5:

200619_merger.png Original size: 1920x1080

Attachment 6:

1.png Original size: 502x344

Attachment 7:

2.png Original size: 502x344

Attachment 8:

3.png Original size: 1284x1030

Attachment 9:

4.png Original size: 1284x1030

Attachment 10:

5.png Original size: 1920x1080

Attachment 11:

6.png Original size: 1281x1027

Attachment 12:

7.png Original size: 1284x1030

Attachment 13:

8.png Original size: 1284x1030

Attachment 14:

9.png Original size: 1284x1030

Attachment 15:

10.png Original size: 1284x1030

Attachment 16:

11.png Original size: 1284x1030

Attachment 17:

12.png Original size: 1284x1030

Attachment 18:

13.png Original size: 1284x1030

Attachment 19:

R2_1051

 *** MIDAS TDR format 3.3.0 AIDA data analyser - TD - May 2019
 *** ERROR: READ I/O error:       5002
                   blocks:      32000
          ADC data format:  256904340 (  614306.9 Hz)
        Other data format:    4215660 (   10080.4 Hz)
 Sample trace data format:          0 (       0.0 Hz)
         Undefined format:          0 (       0.0 Hz)
   Other data format type:      PAUSE:        139 (       0.3 Hz)
                               RESUME:        139 (       0.3 Hz)
                              SYNC100:    3825228 (    9146.8 Hz)
                           FEE64 disc:     377608 (     902.9 Hz)
                             MBS info:      12546 (      30.0 Hz)
                           Other info:          0 (       0.0 Hz)

   ADC data range bit set:       7316 (      17.5 Hz)

                Timewarps:        ADC:          0 (       0.0 Hz)
                                PAUSE:          0 (       0.0 Hz)
                               RESUME:          0 (       0.0 Hz)
                              SYNC100:          0 (       0.0 Hz)
                           FEE64 disc:          0 (       0.0 Hz)
                             MBS info:          0 (       0.0 Hz)
                            Undefined:          0 (       0.0 Hz)
                         Sample trace:          0 (       0.0 Hz)

 *** Timestamp elapsed time:      418.202 s
 FEE  elapsed dead time(s) elapsed idle time(s)
  1                0.015                0.000
  2                0.000                0.000
  3                0.000                0.000
  4                0.000                0.000
  5                0.000                0.000
  6                0.000                0.000
  7                0.000                0.000
  8                0.000                0.000
  9                0.000                0.000
 10                0.000                0.000
 11                0.000                0.000
 12                0.000                0.000
 13                0.078                0.068
 14                0.051                0.052
 15                0.000                0.000
 16                0.000                0.000
 17                0.000                0.000
 18                0.093                0.000
 19                7.748                8.001
 20                0.000                0.000
 21                1.031                0.894
 22                0.000                0.000
 23                0.000                0.000
 24                0.297                0.197
 25                0.000                0.000
 26                0.000                0.000
 27                0.000                0.000
 28                0.000                0.000
 29                0.000                0.000
 30                0.000                0.000
 31                0.000                0.000
 32                0.000                0.000

 *** Statistics
 FEE  ADC Data Other Data     Sample  Undefined      Pause     Resume    SYNC100       Disc        MBS      Other   HEC Data
  0          0          0          0          0          0          0          0          0          0          0          0
  1   13018301     173200          0          0          1          1     159526      13672          0          0        174
  2   10438182     177400          0          0          0          0     159532      17868          0          0        138
  3   11863694     176925          0          0          0          0     159532      17393          0          0        350
  4    1151086     174418          0          0          0          0     159532      14886          0          0        572
  5    6660739     176396          0          0          0          0     159532      16864          0          0        145
  6   10243923     184898          0          0          0          0     159532      12820      12546          0        173
  7    2720078     173383          0          0          0          0     159532      13851          0          0        491
  8    2178256     176590          0          0          2          2     159532      17054          0          0        227
  9   10525945     171879          0          0          0          0     159532      12347          0          0        143
 10   11088721     177812          0          0          0          0     159532      18280          0          0        127
 11   11074988     177157          0          0          0          0     159532      17625          0          0        286
 12   10308570     174519          0          0          0          0     159532      14987          0          0        281
 13   11807143     175249          0          0          3          3     159503      15740          0          0        128
 14    3169424     172743          0          0          1          1     159513      13228          0          0        133
 15    4588746     175988          0          0          0          0     159532      16456          0          0        373
 16    4704282     176411          0          0          0          0     159532      16879          0          0        296
 17     142876     170458          0          0          0          0     159532      10926          0          0        774
 18   21567746     177682          0          0         12         12     159500      18158          0          0        128
 19   52571627     178303          0          0        103        103     156583      21514          0          0        140
 20     124873     172079          0          0          0          0     159532      12547          0          0       1198
 21   22019030     177978          0          0         13         13     159139      18813          0          0        112
 22     302446     173507          0          0          0          0     159532      13975          0          0        541
 23     252630     173047          0          0          0          0     159532      13515          0          0        161
 24   34381034     177638          0          0          4          4     159420      18210          0          0        225
 25          0          0          0          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0          0          0          0

 *** Timewarps
 FEE       ADC      Pause     Resume    SYNC100       Disc        MBS  Undefined    Samples
  0          0          0          0          0          0          0          0          0
  1          0          0          0          0          0          0          0          0
  2          0          0          0          0          0          0          0          0
  3          0          0          0          0          0          0          0          0
  4          0          0          0          0          0          0          0          0
  5          0          0          0          0          0          0          0          0
  6          0          0          0          0          0          0          0          0
  7          0          0          0          0          0          0          0          0
  8          0          0          0          0          0          0          0          0
  9          0          0          0          0          0          0          0          0
 10          0          0          0          0          0          0          0          0
 11          0          0          0          0          0          0          0          0
 12          0          0          0          0          0          0          0          0
 13          0          0          0          0          0          0          0          0
 14          0          0          0          0          0          0          0          0
 15          0          0          0          0          0          0          0          0
 16          0          0          0          0          0          0          0          0
 17          0          0          0          0          0          0          0          0
 18          0          0          0          0          0          0          0          0
 19          0          0          0          0          0          0          0          0
 20          0          0          0          0          0          0          0          0
 21          0          0          0          0          0          0          0          0
 22          0          0          0          0          0          0          0          0
 23          0          0          0          0          0          0          0          0
 24          0          0          0          0          0          0          0          0
 25          0          0          0          0          0          0          0          0
 26          0          0          0          0          0          0          0          0
 27          0          0          0          0          0          0          0          0
 28          0          0          0          0          0          0          0          0
 29          0          0          0          0          0          0          0          0
 30          0          0          0          0          0          0          0          0
 31          0          0          0          0          0          0          0          0
 32          0          0          0          0          0          0          0          0

 *** MBS Timewarps
 FEE
  0          0
  1          0
  2          0
  3          0
  4          0
  5          0
  6          0
  7          0
  8          0
  9          0
 10          0
 11          0
 12          0
 13          0
 14          0
 15          0
 16          0
 17          0
 18          0
 19          0
 20          0
 21          0
 22          0
 23          0
 24          0
 25          0
 26          0
 27          0
 28          0
 29          0
 30          0
 31          0
 32          0

 *** Program elapsed time:   73.590s (  434.843 blocks/s,  27.178 Mb/s)

Attachment 20:

20.png Original size: 1284x1030

Attachment 21:

21.png Original size: 1284x1030

Attachment 22:

22.png Original size: 1284x1030

Attachment 23:

23.png Original size: 1284x1030

Attachment 24:

Drop attachments here...

ELOG V3.1.4-unknown
