Entry time:
Wed Apr 12 12:32:13 2023
Author
*
:
Subject
*
:

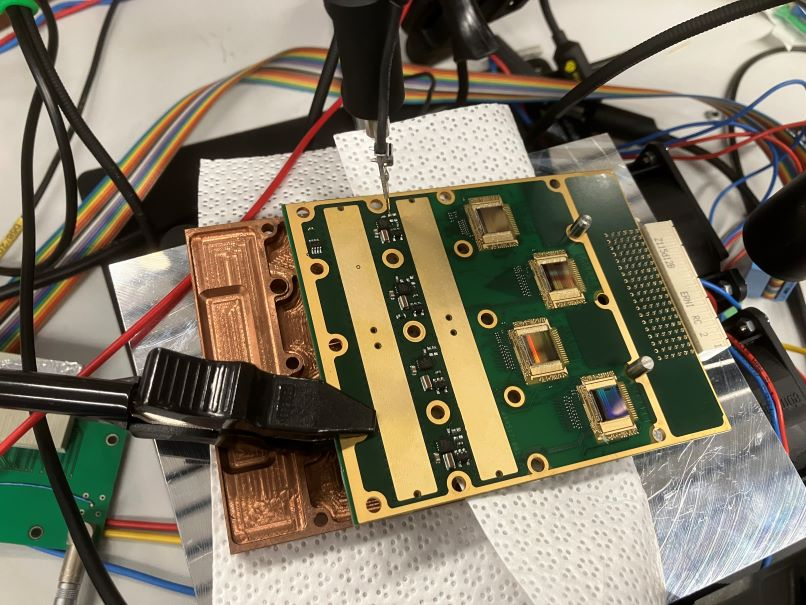

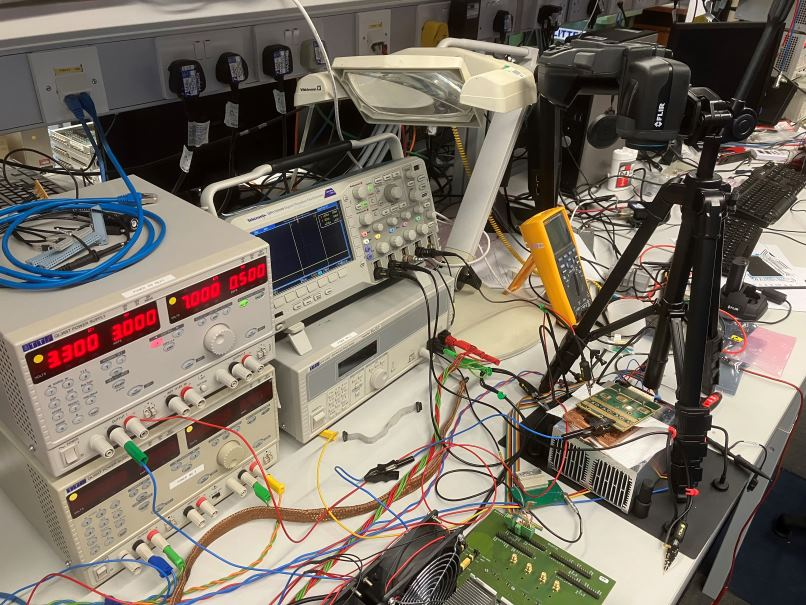

<p>I have taken videos with an Infrared camera of the power being supplied to one isolated ASIC on a mezzanine.</p> <p>The power supply is a bench supply with current limit set to 3A.</p> <p>The centre of the ASIC glowed white hot for a short time and then the whole ASIC shows as hot. Ths the short is on the ASIC and not the bond wires IMO.</p> <p>I am unable to globally publish the videos at present as I only have a private google drive account.</p> <p>Please contact Tom Davinson for further details.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 806x605
Attachment 2:
Original size: 806x605
Attachment 3:
