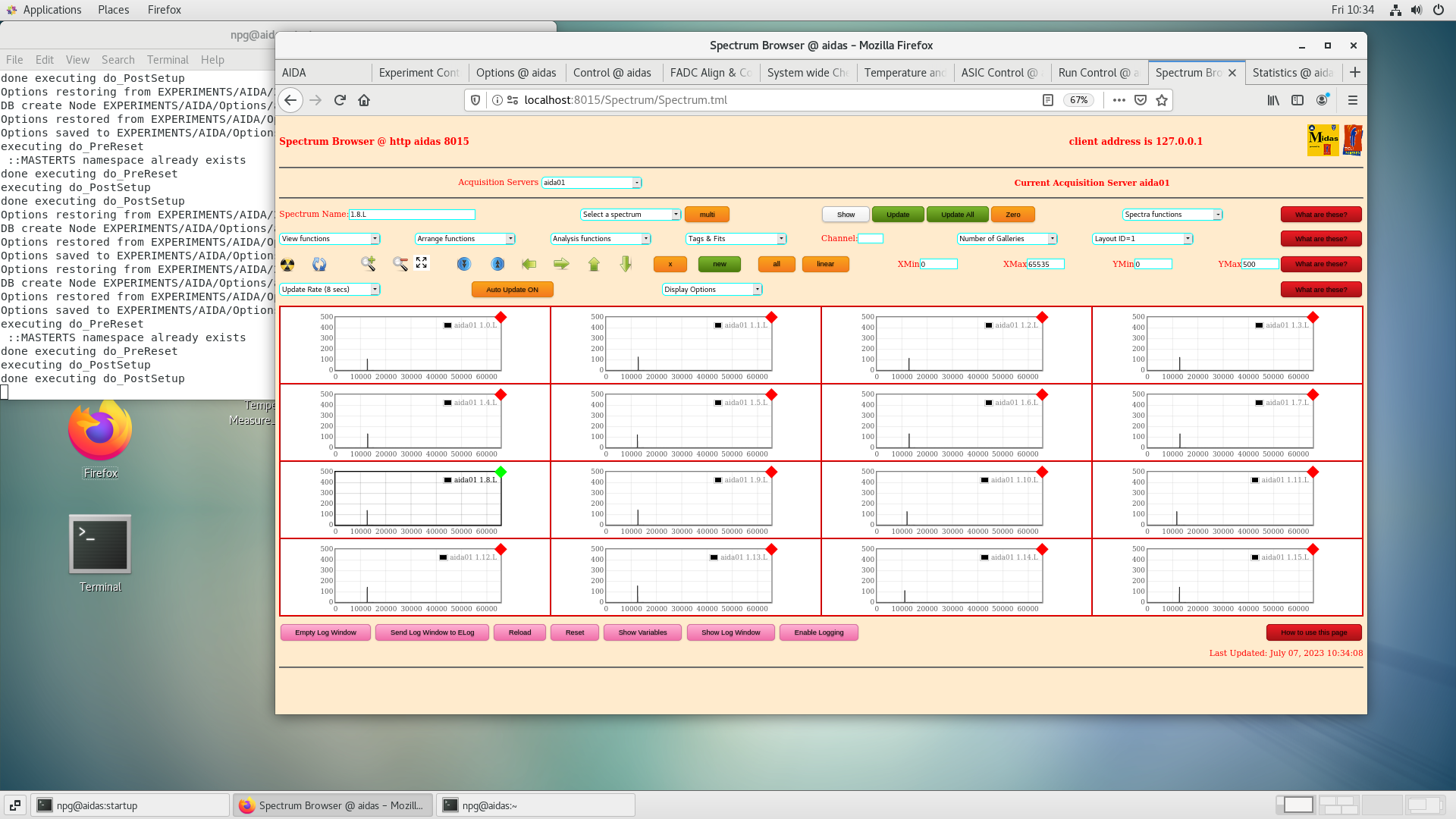

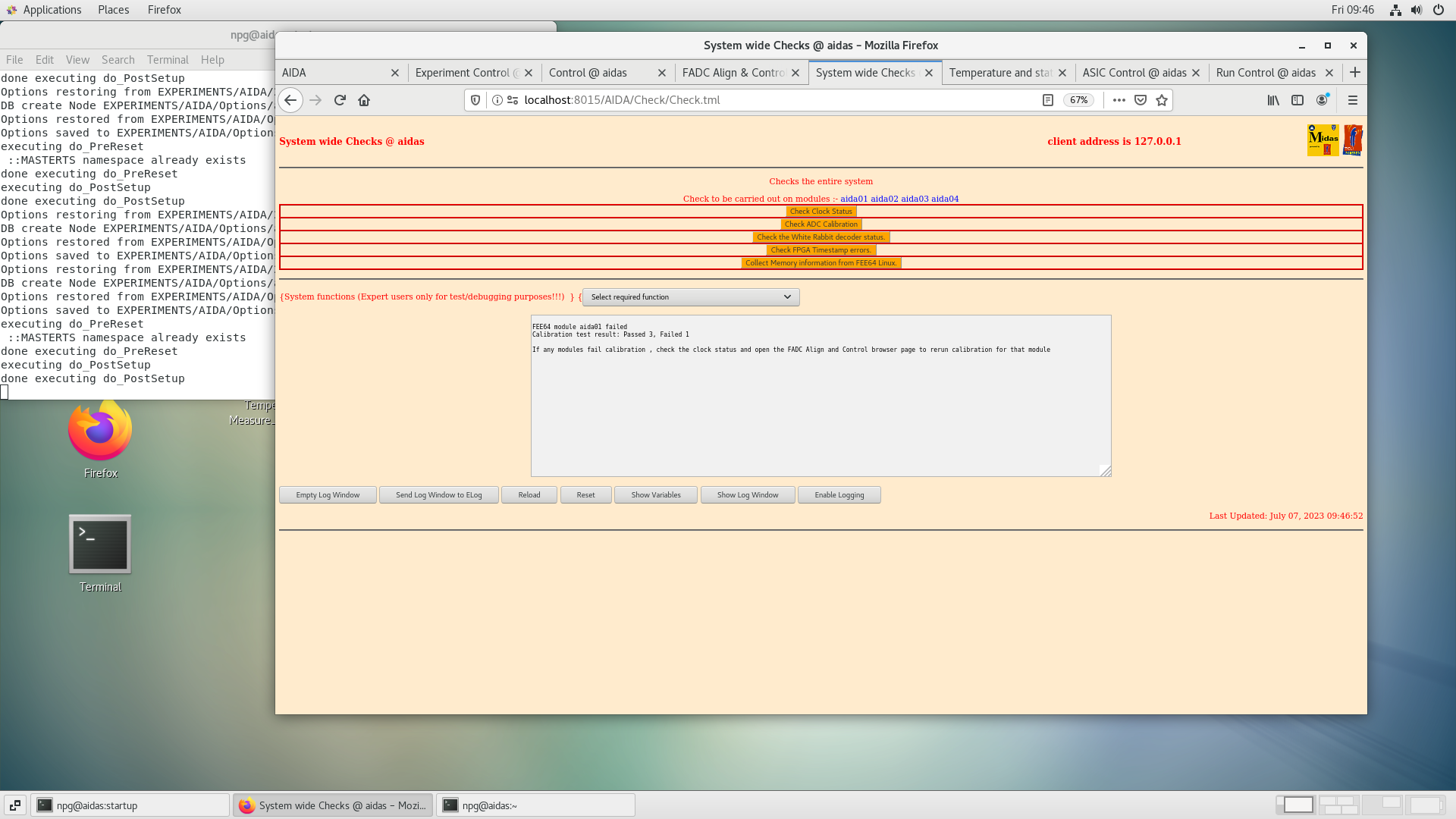

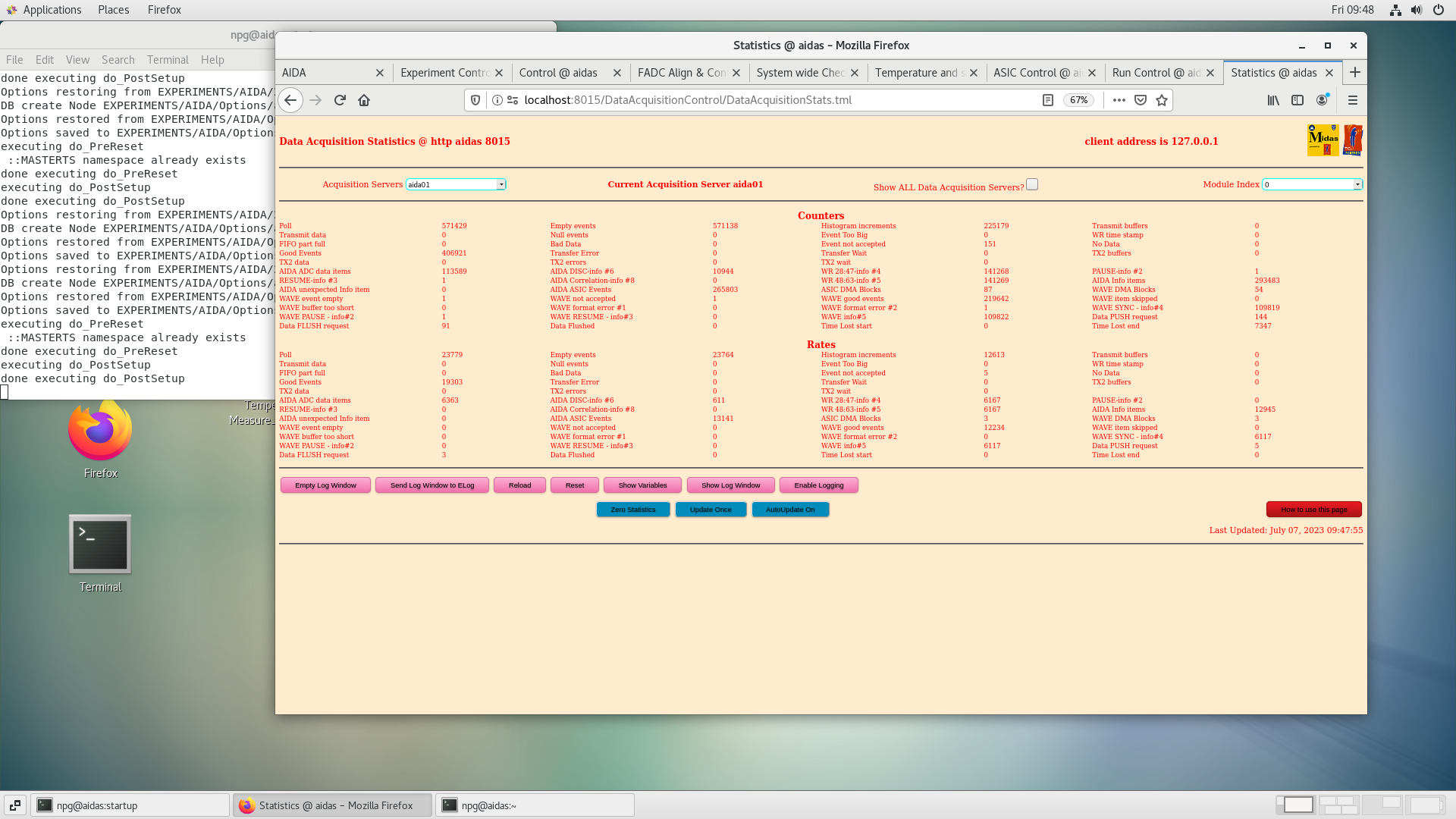

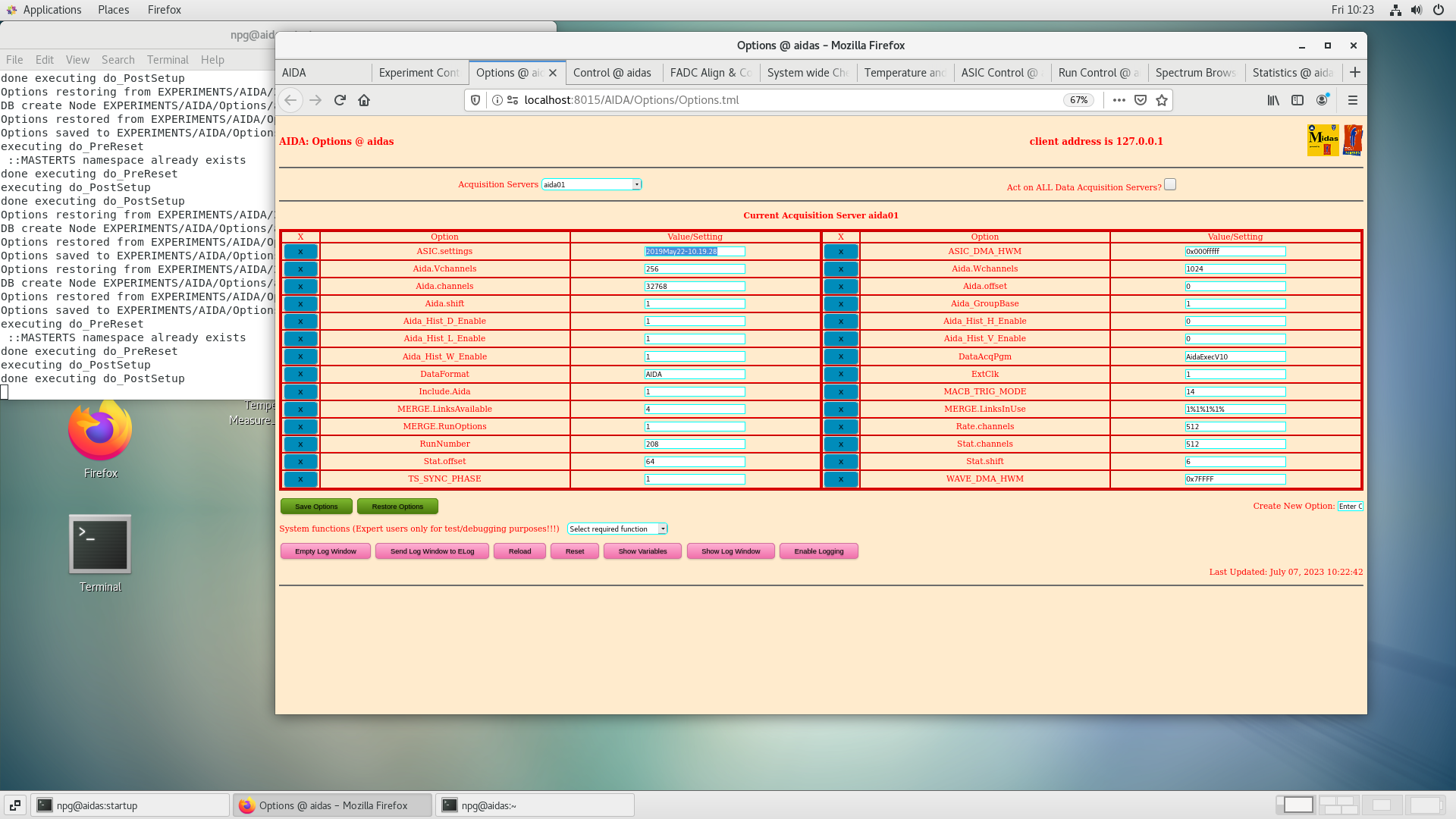

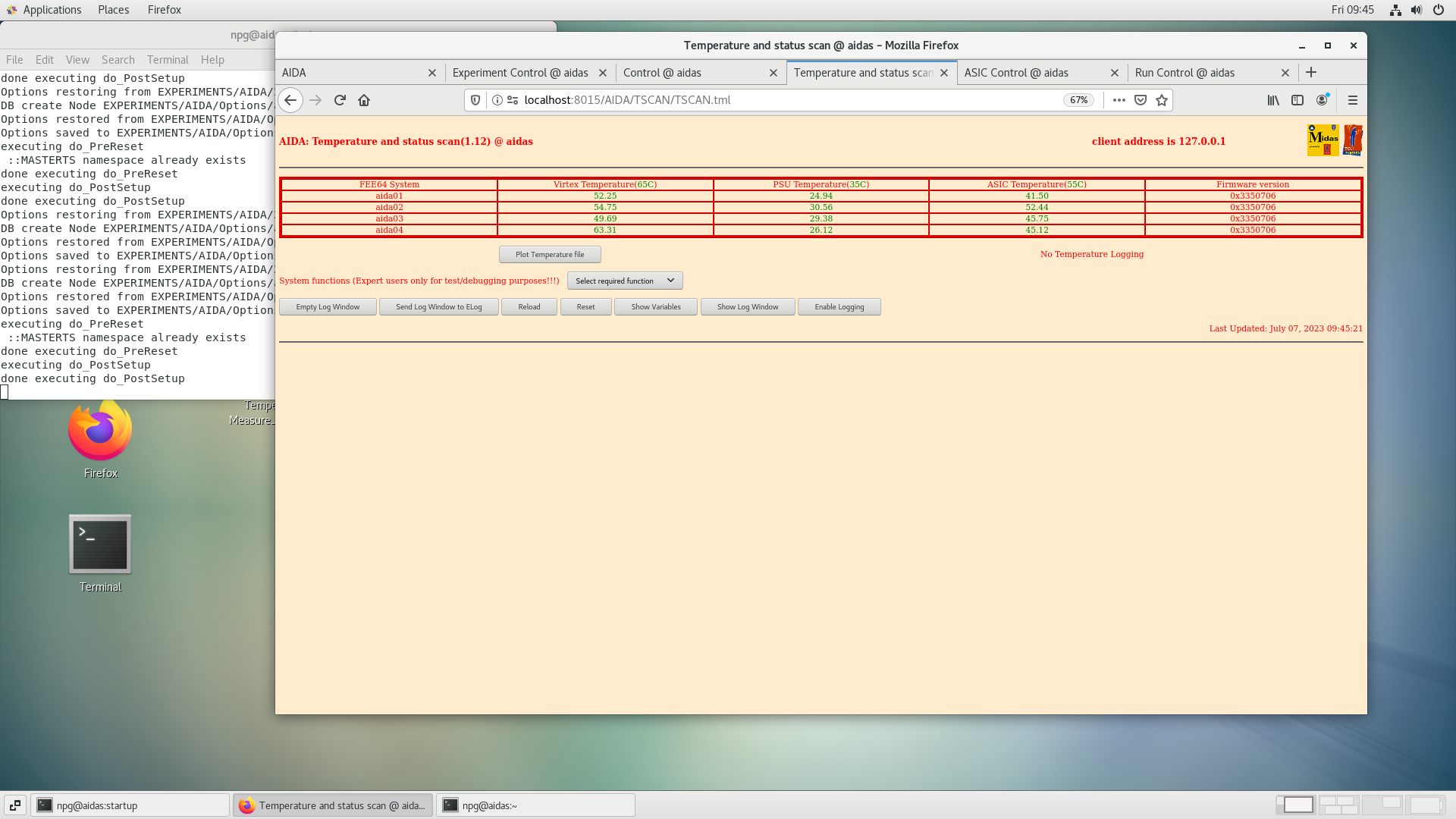

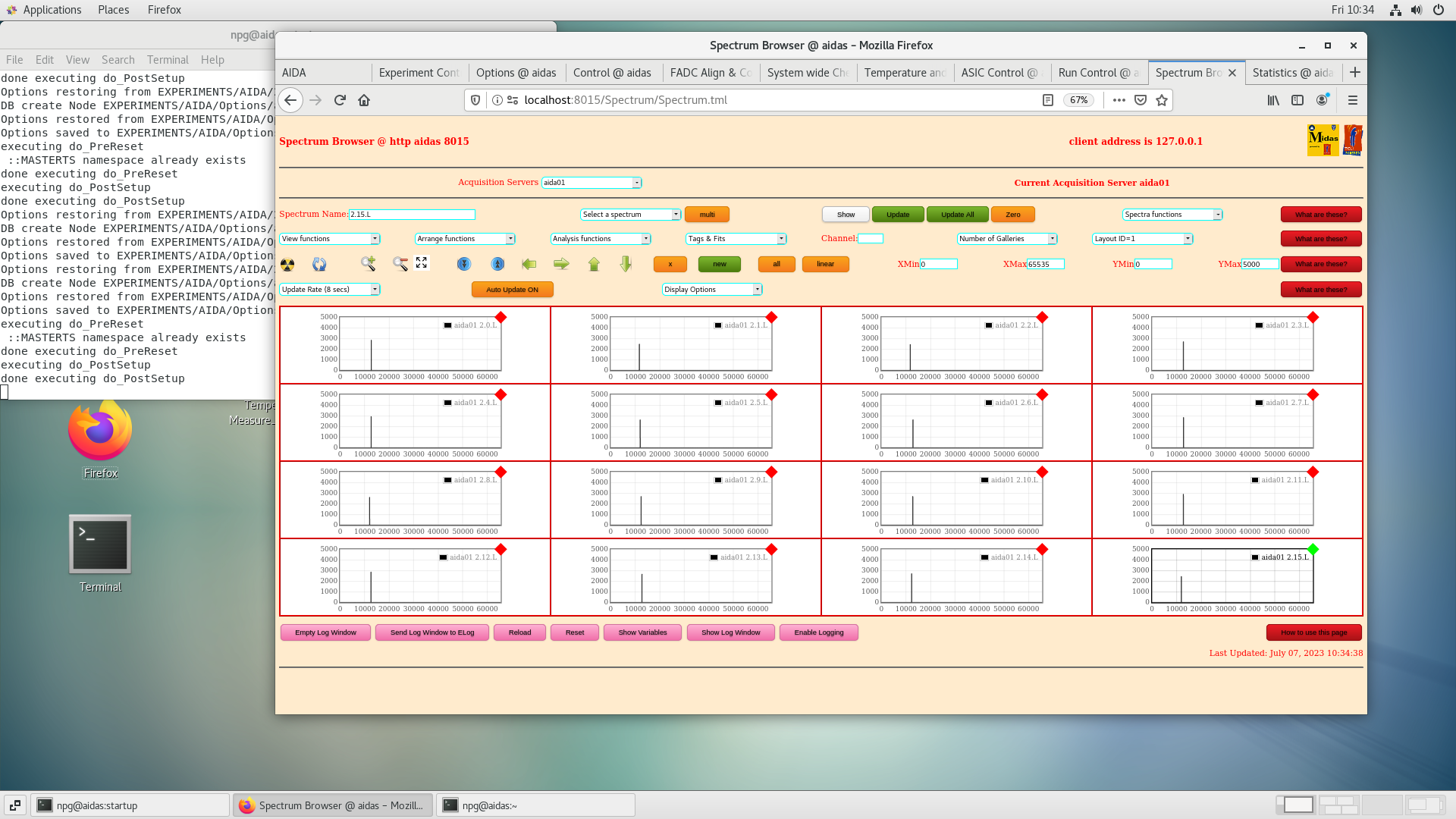

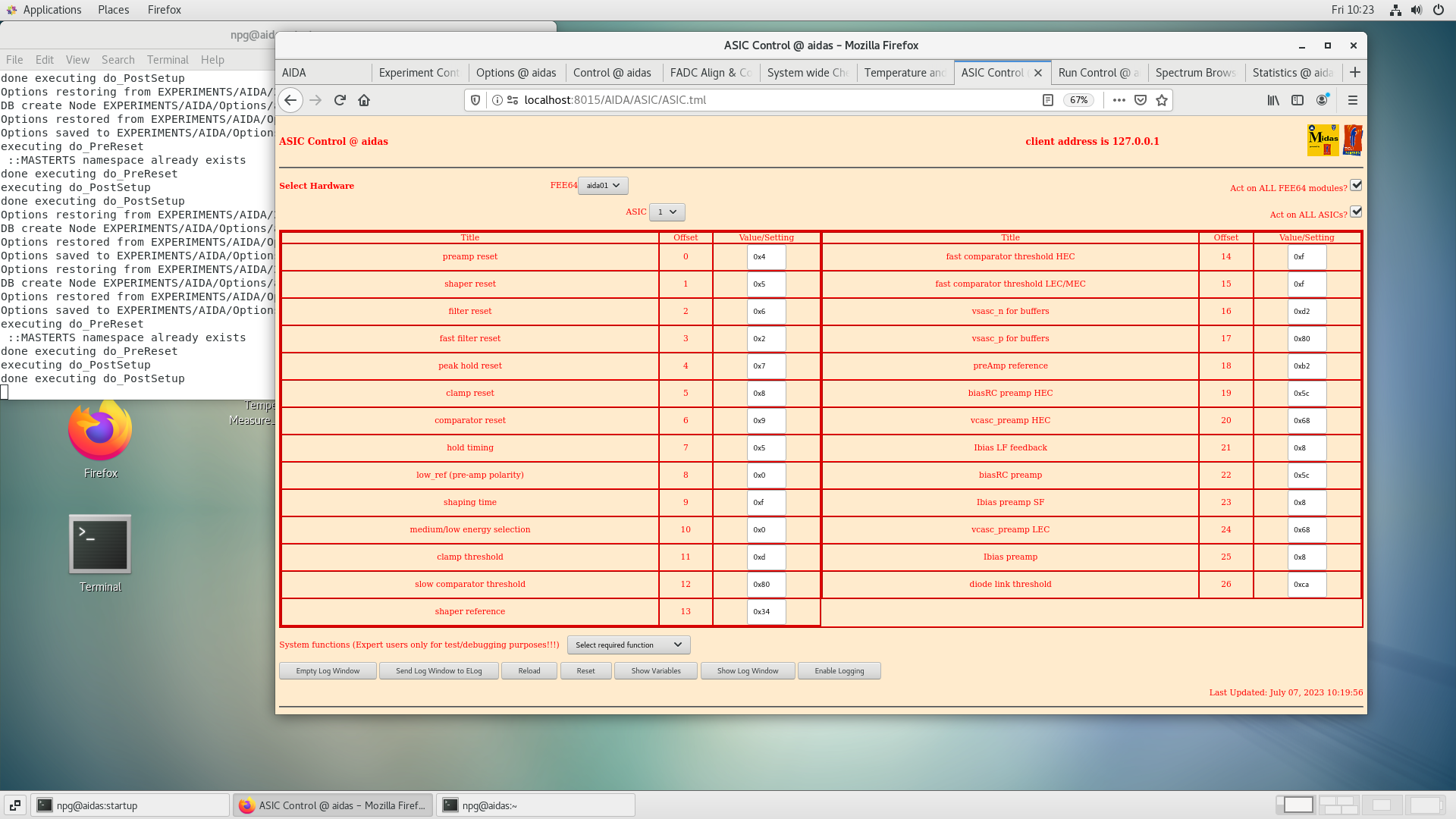

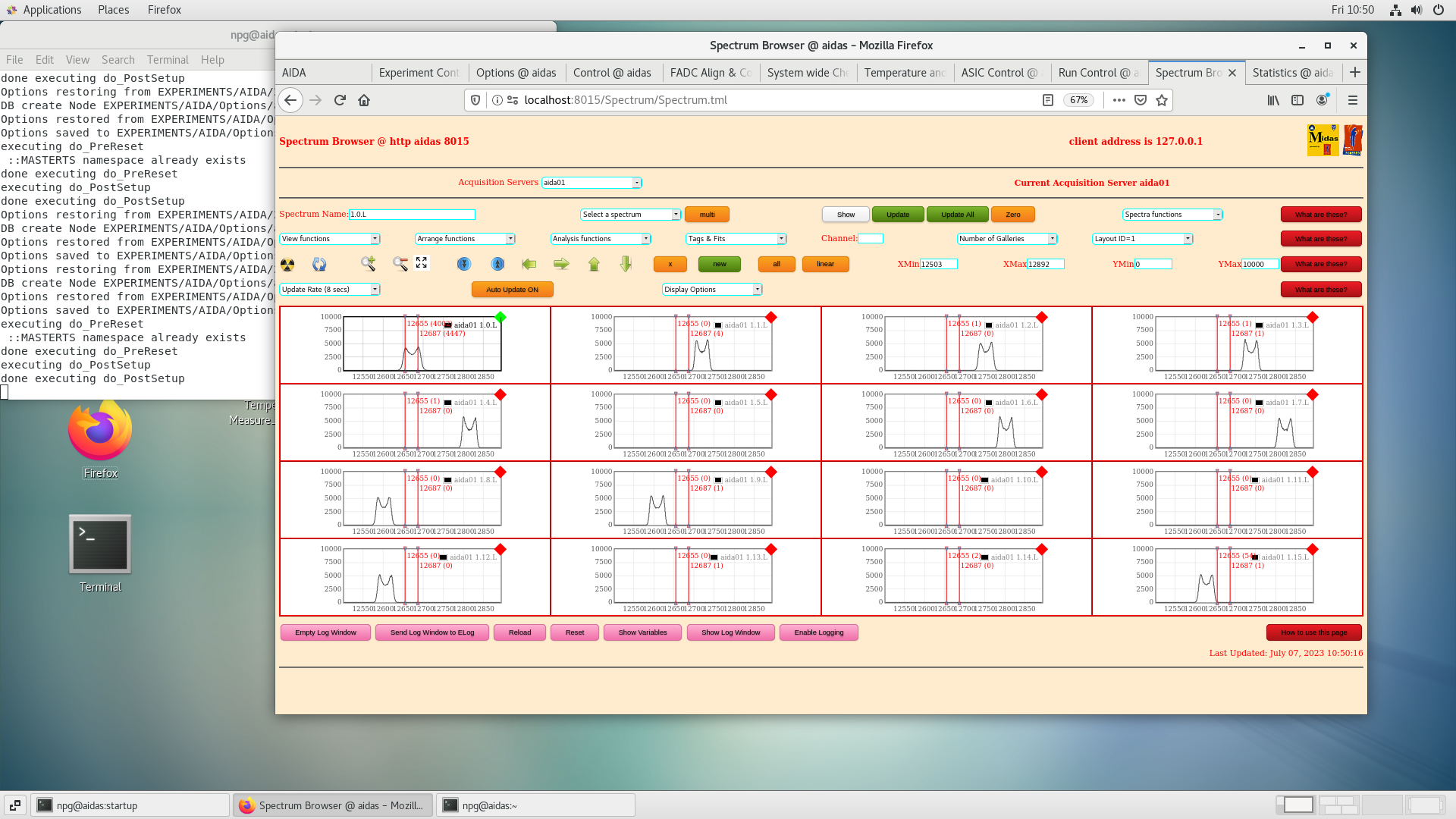

Test of AIDA FEE64 d8:80:39:41:f6:ee ( aida01 ) - HDMI connector replaced. Cooling plate fitted - no base plate. ISOL test station STFC DL, T9 Pulser BNC PB-5 Amplitude 0.5V Attenuation x1 Polarity + Frequency 100Hz Tail pulse, decay time 1ms Delay 250ns (min) ASIC settings 2019May22-10.19.28 - attachment 1 Slow comparator 0x80 Options - attachment 2 Adaptor PCB - PJCS FEE64 temperatures OK - attachments 3 System wide checks - attachments 4-9 FEE64 module aida01 global clocks failed, 6 Clock status test result: Passed 3, Failed 1 FEE64 module aida01 failed Calibration test result: Passed 3, Failed 1 Timestamp RAM values OK? Statistics OK - attachments 10-11 Good WAVE events reported? LEC spectra - attachments 12-15 Data observed for all channels of all ASICs - double peaking observed - may be due to incomplete FEE64 assembly? See attachment 17 Hit/HitRate spectra - attachment 16 OK *except* 1.2.L fast comparator missing no WAVE data
