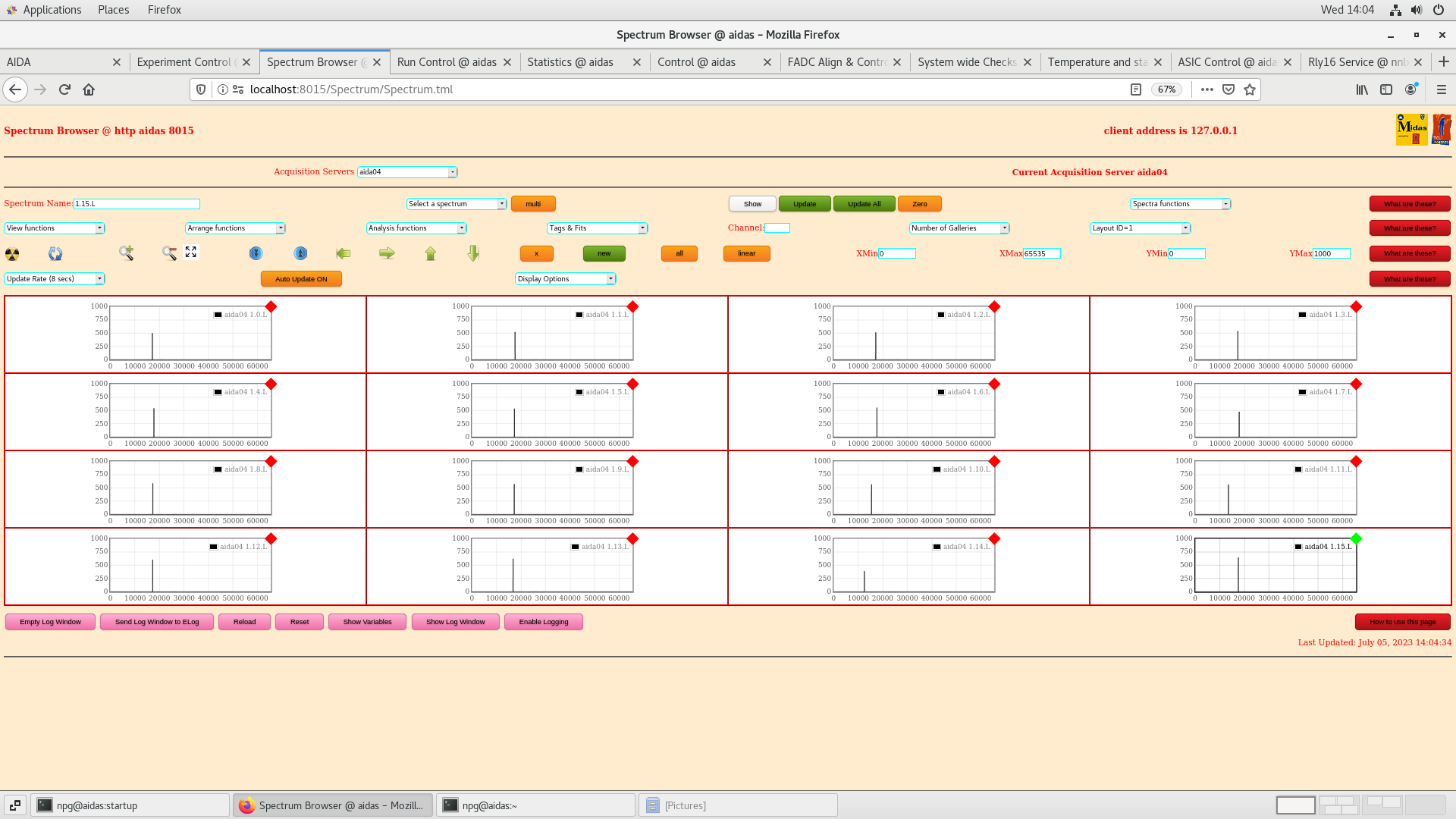

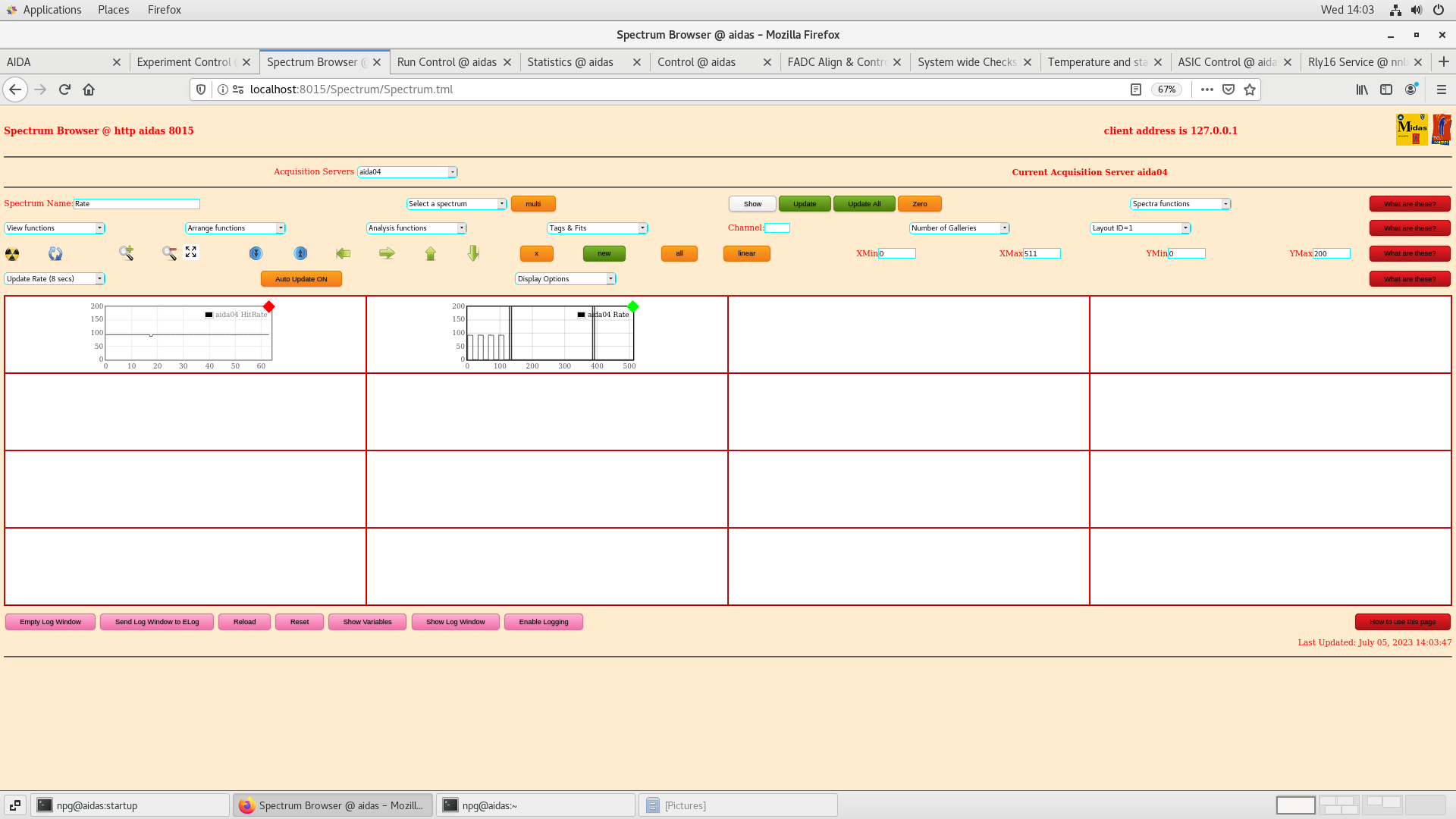

Test of AIDA FEE64s ISOL test station STFC DL, T9 Pulser BNC PB-5 Amplitude 1.0V Attenuation x1 Polarity + Frequency 100Hz Tail pulse, decay time 1ms Delay 250ns (min) ASIC settings 2019May22-10.19.28 Slow comparator 0x80 Adaptor PCB - PJCS FEE64 temperatures OK System wide checks OK Statistics OK Hit/HitRate spectra OK LEC spectra OK Data observed for all channels of all ASIC #1-4 Pulser peak widths *.8.L Wave spectra OK Data observed for all channels of all ASIC #1-4 Date/time FEE64 MAC Pulser peak width Status (channels FWHM) 6.7.23 17:50 d8:80:39:41:d8:2a 17,17,16,15 OK 6.7.23 11:20 d8:80:39:41:b4:0b 7,7,7,7 OK 6.7.23 10:03 d8:80:39:41:d0:0e 12,12,12,12 OK 5.7.23 15.31 d8:80:39:41:d7:cc 6,6,6,6 OK 5.7.23 14:04 d8:80:39:41:a0:71 12,11,11,12 OK Rate/Hitrate, *.*.L and *.*.W spectra - attachments 1-10 5.7.23 13:18 d8:80:39:42:0d:16 13,15,14,14 OK 5.7.23 12:43 d8:80:39:41:ee:71 17,17,15,16 OK 6.7.23 11:00 d8:80:39:42:0d:0b 17,15,16,15 https://elog.ph.ed.ac.uk/AIDA/870 Mezzanine replaced - ASIC #2 address bit #2 always on? ASIC #2 fail or mezzanine-FEE64 connection issue? 7.7.23 09:46 d8:80:39:41:f6:ee https://elog.ph.ed.ac.uk/AIDA/869 HDMI replaced - not fully assembled - LEC fast comparator ASIC #1 channel #2 missing. ADC does not calibrate. HDMI issue? OK FEE64s - attachment 11
