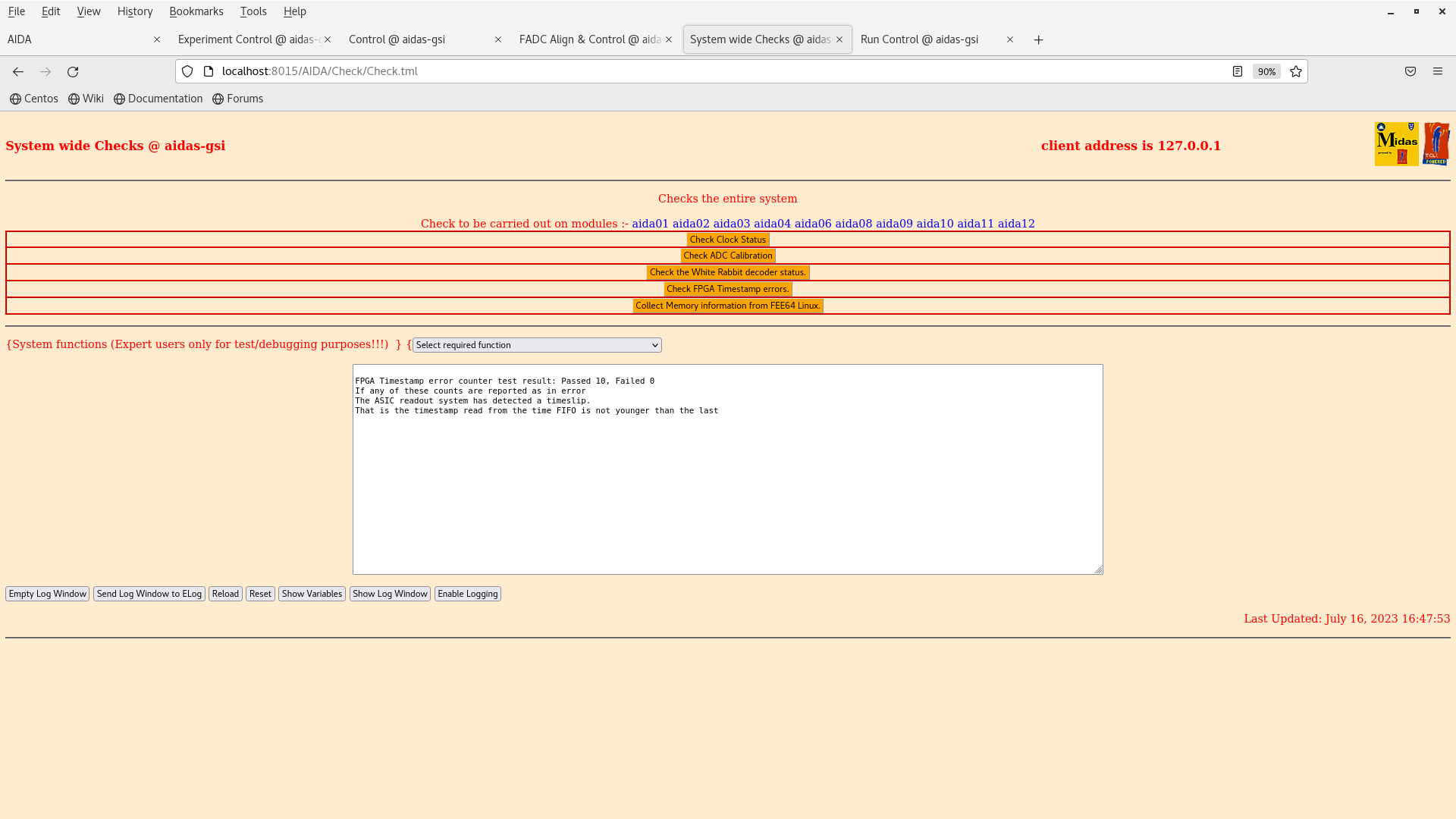

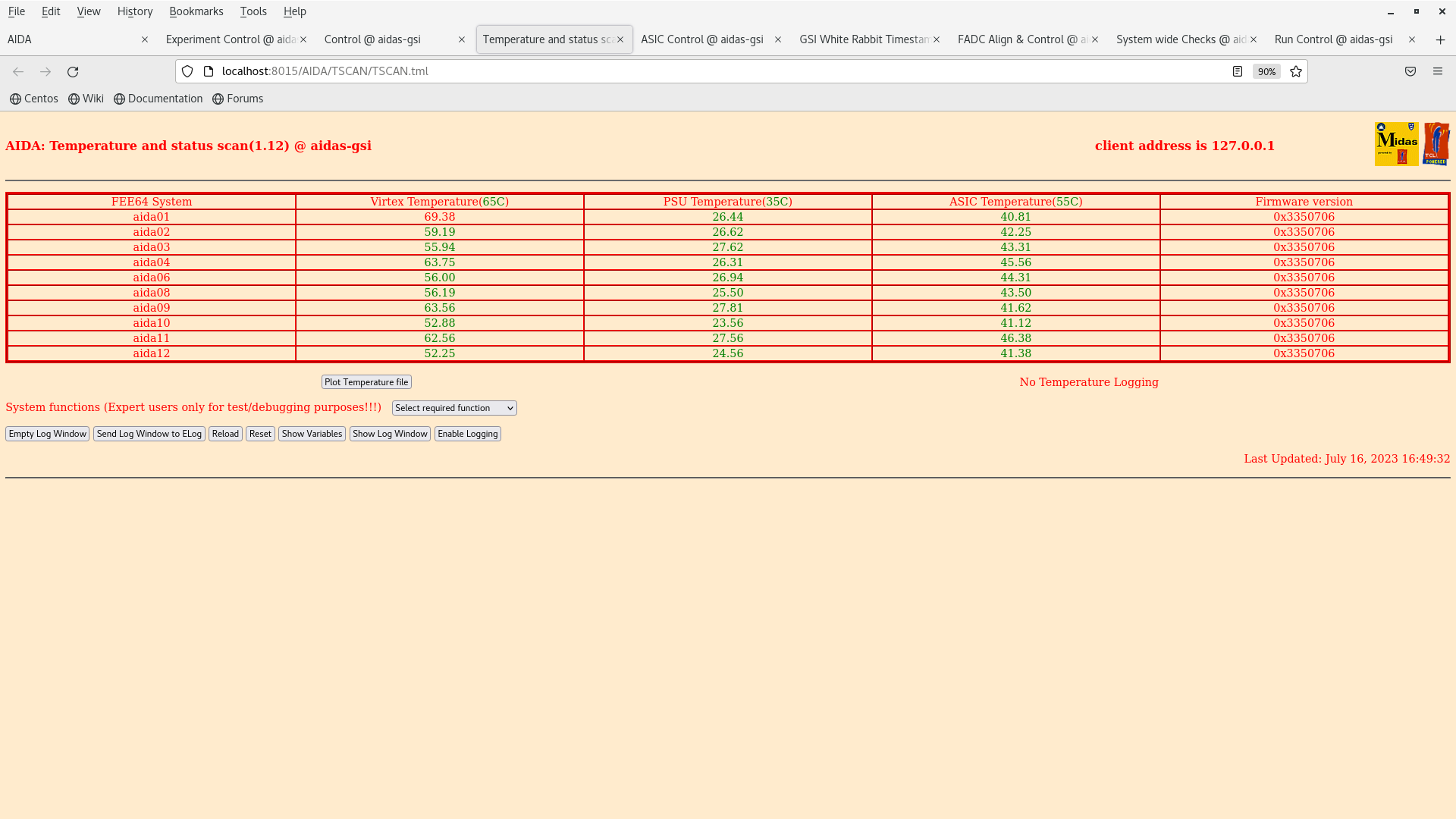

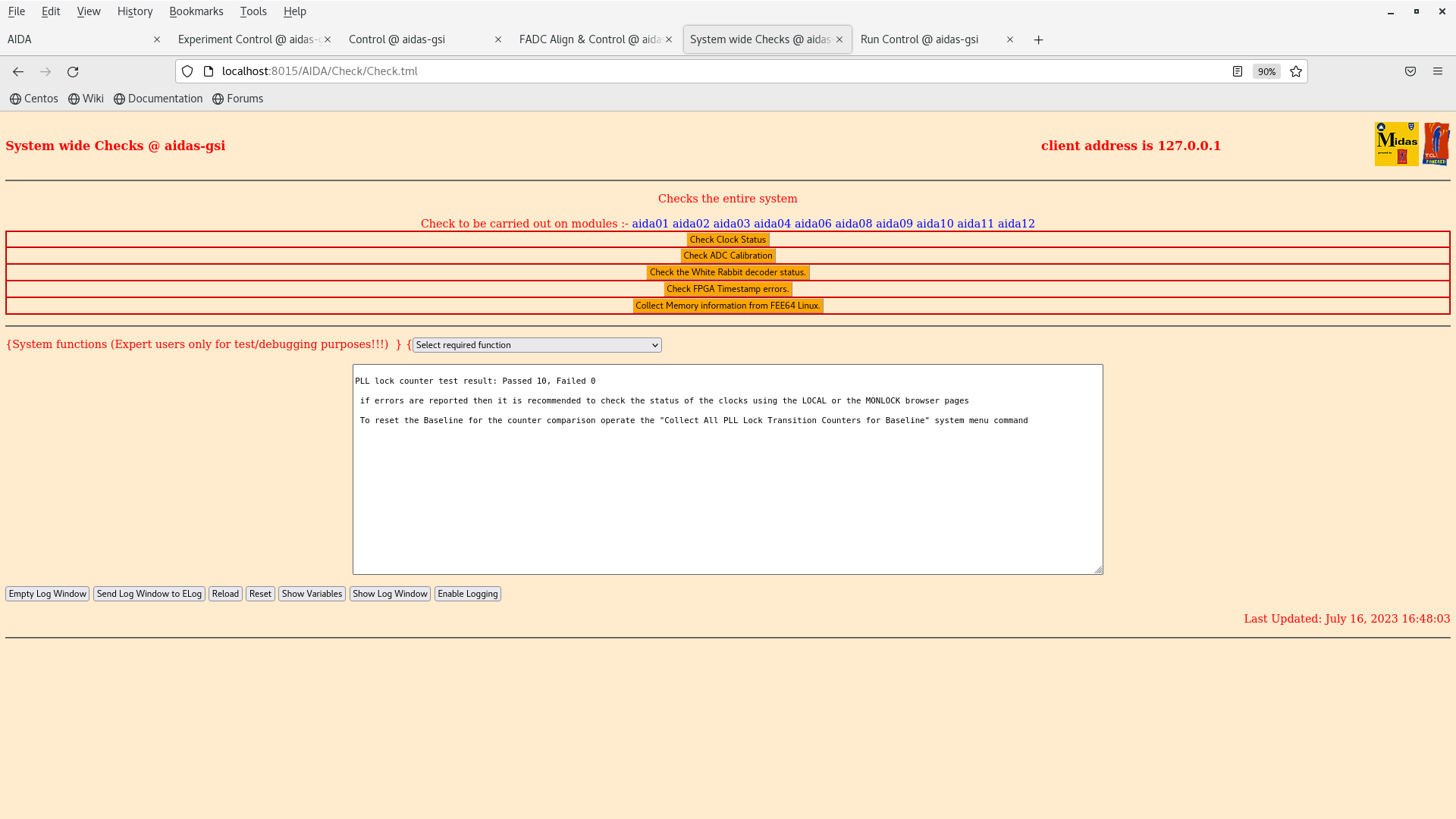

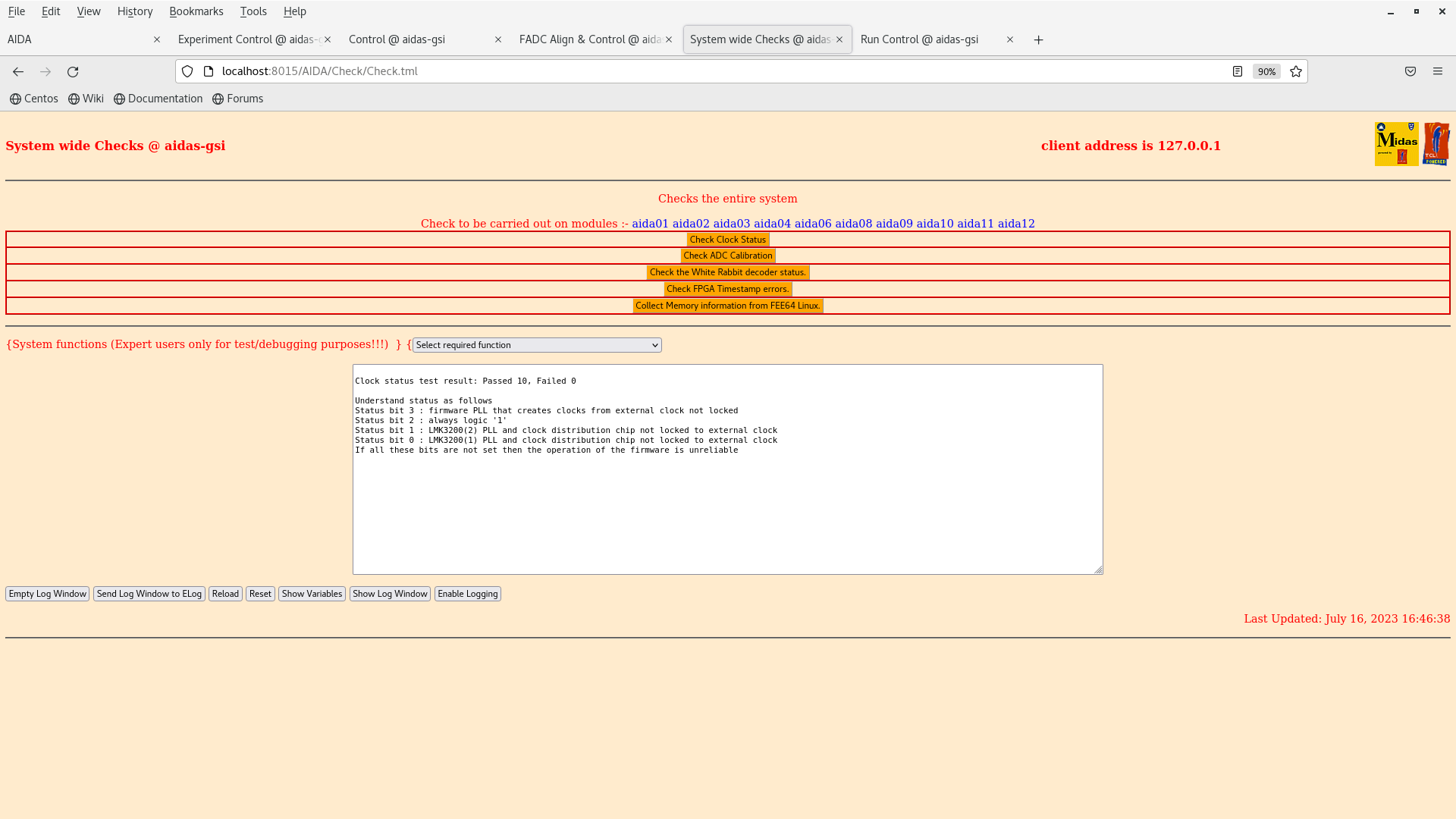

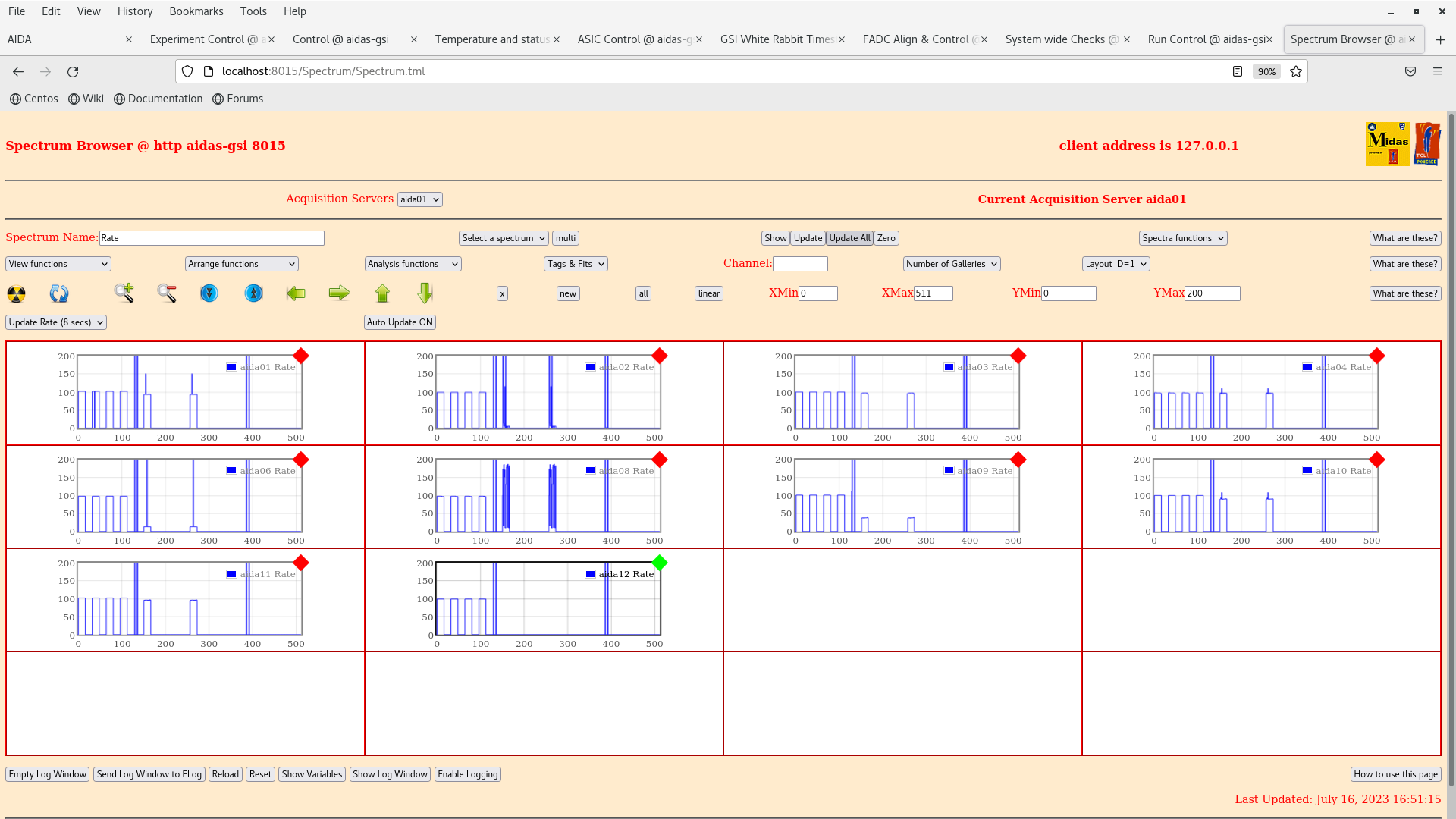

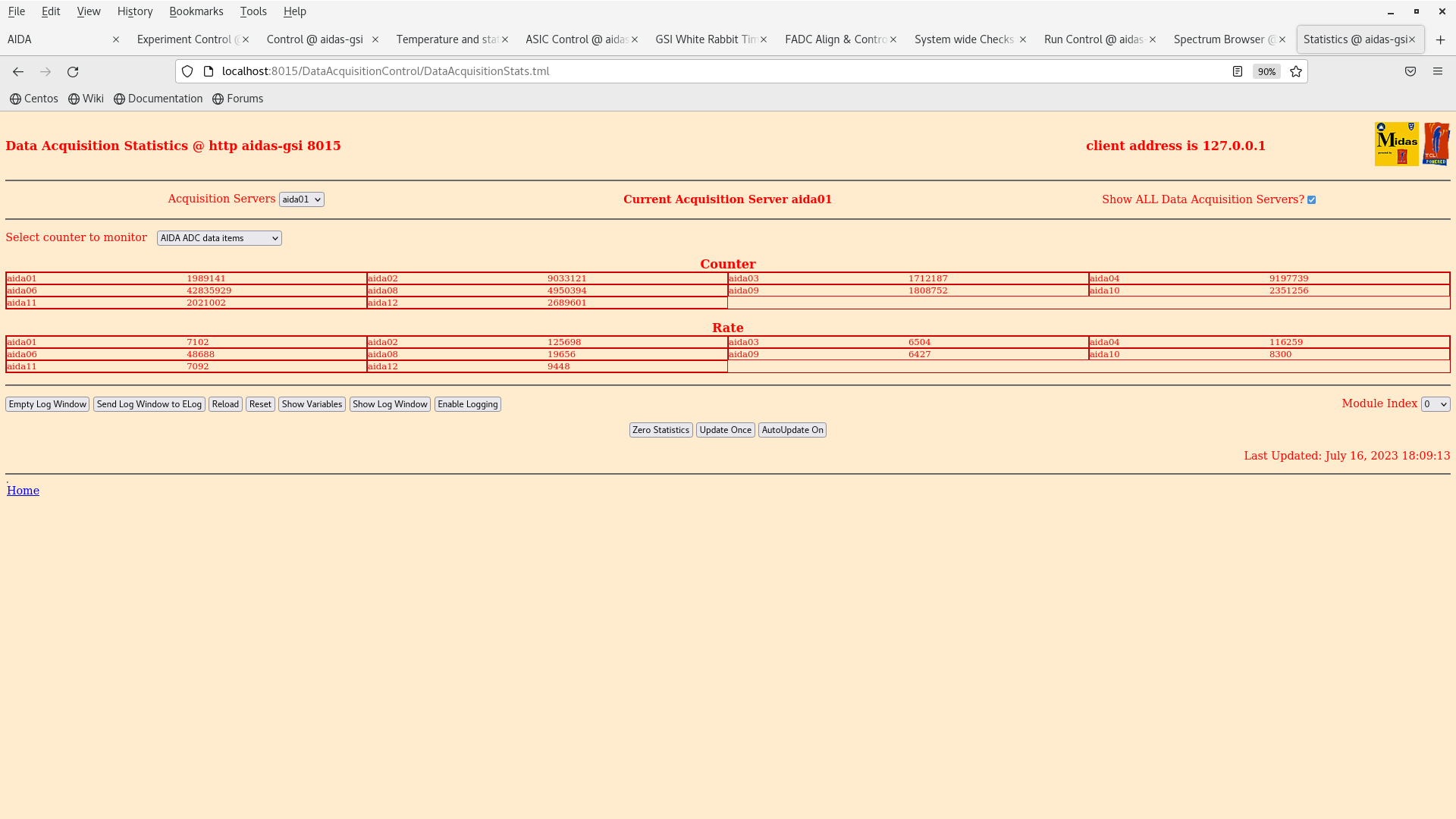

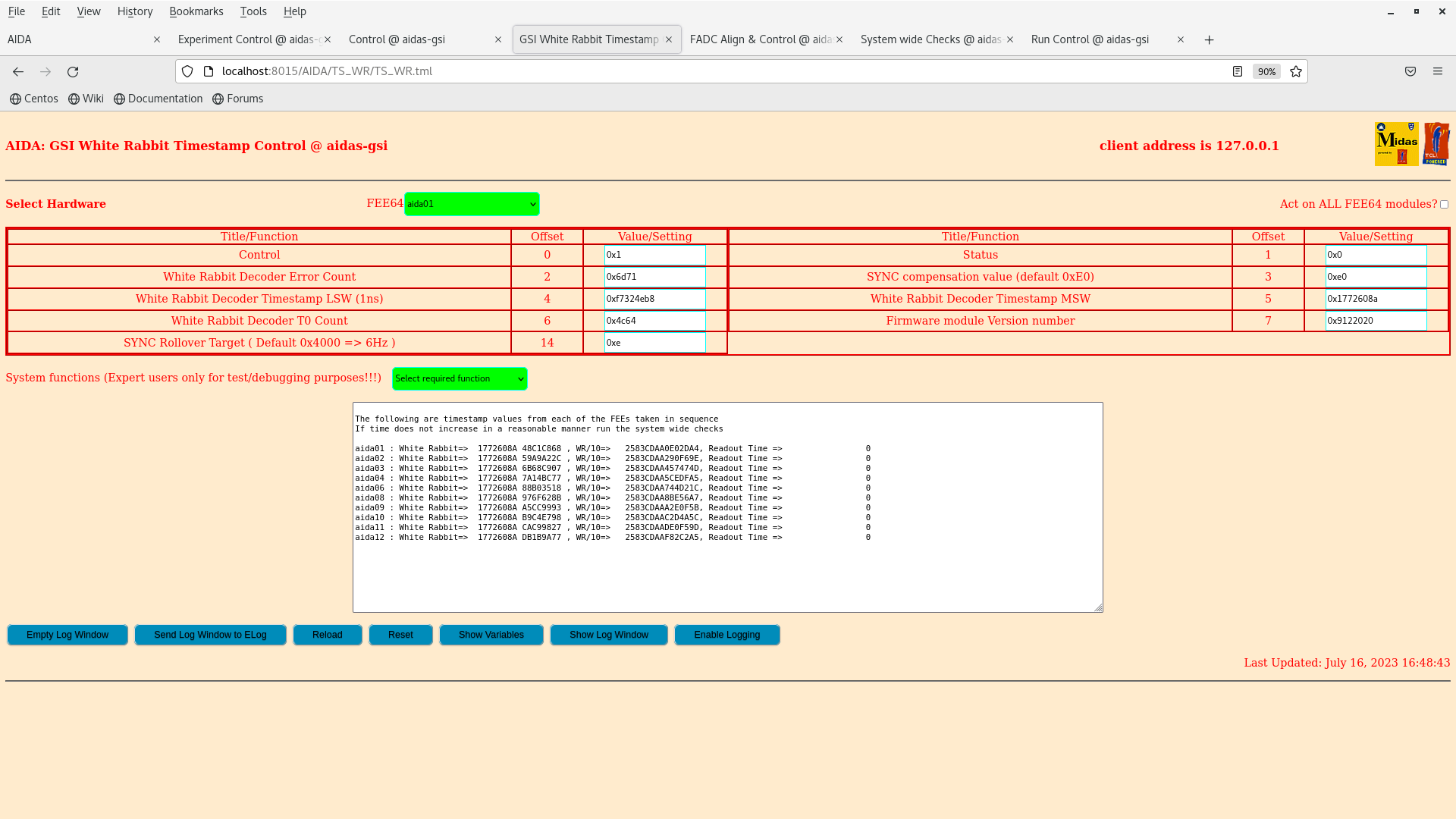

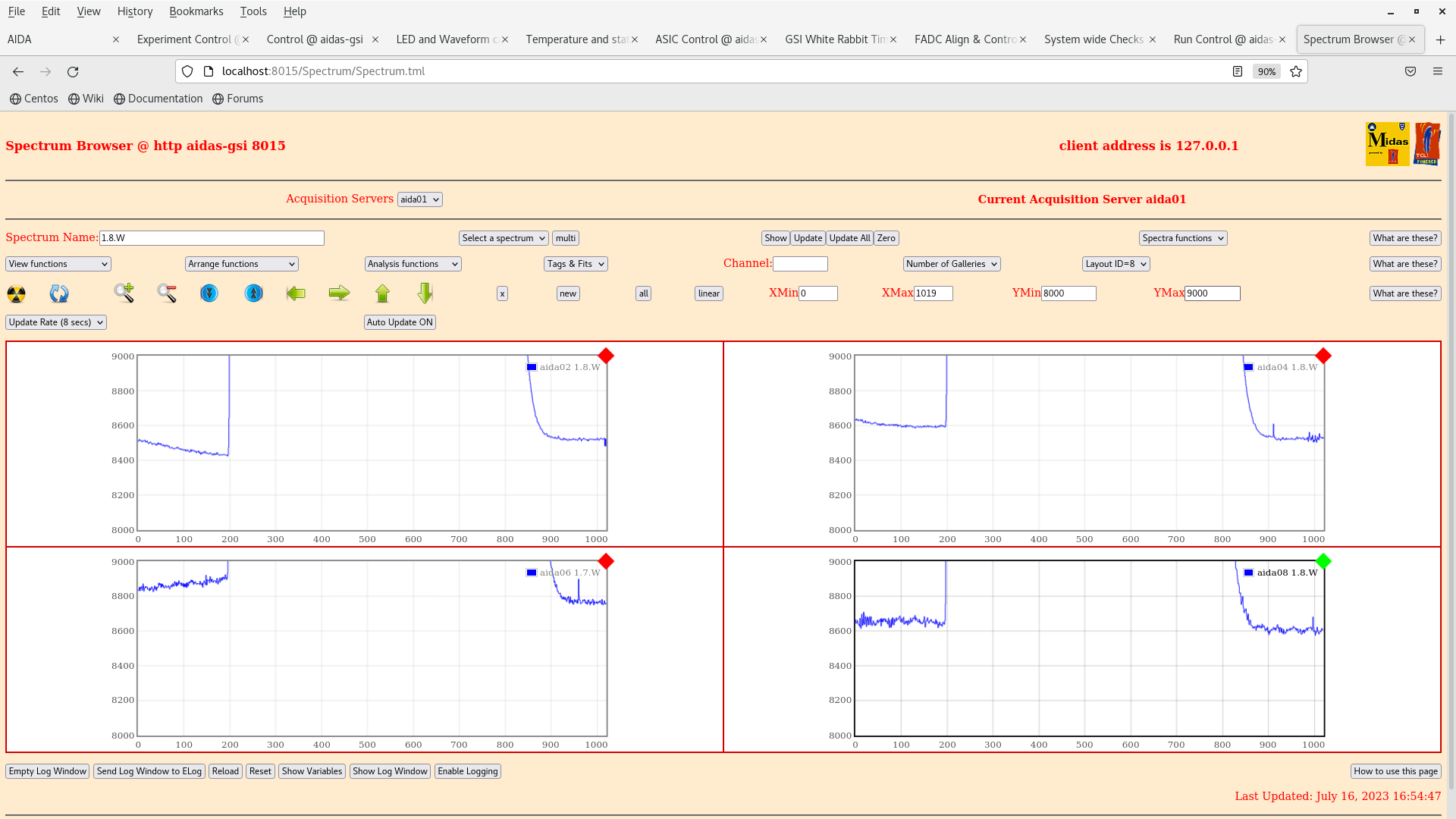

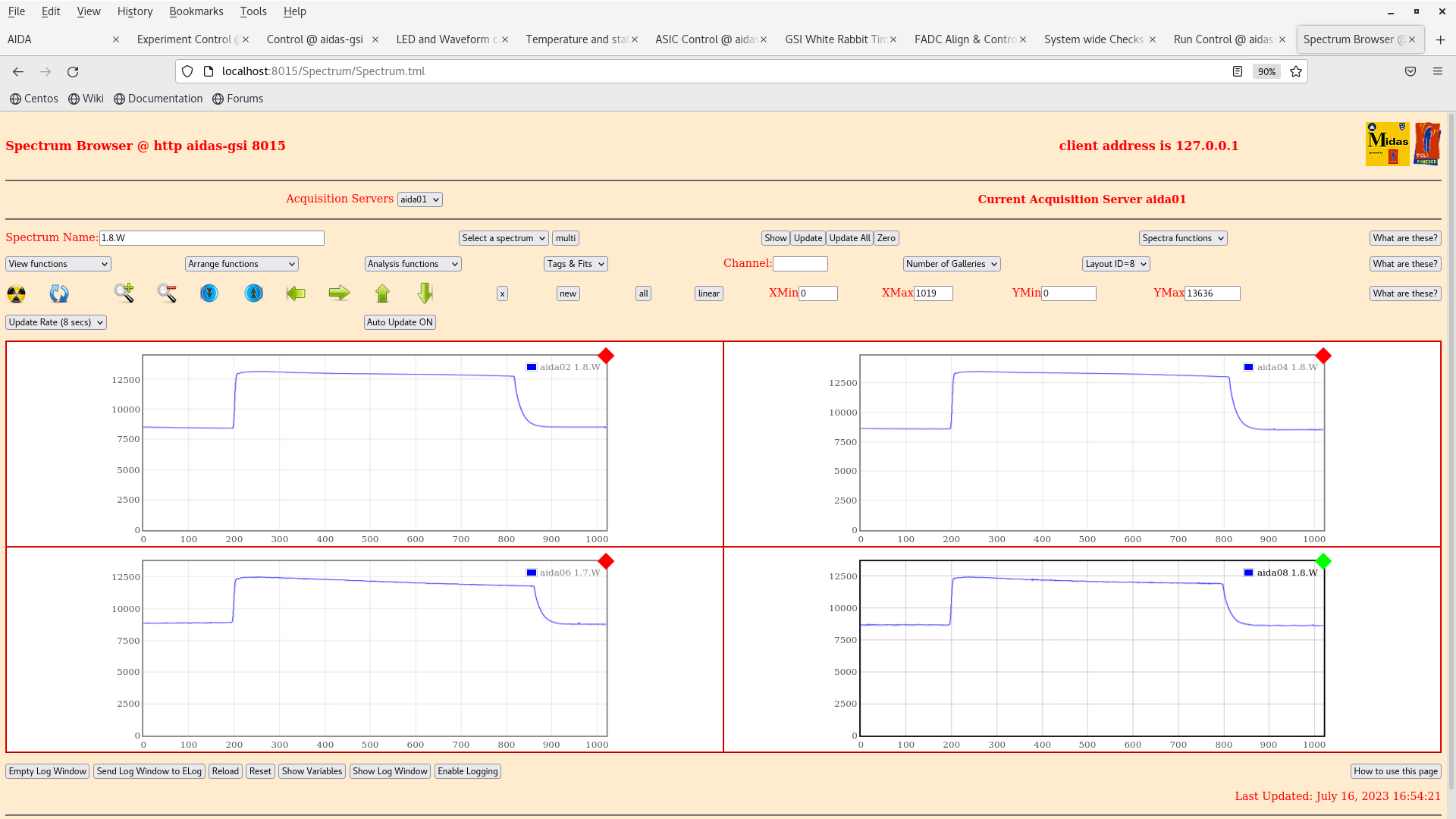

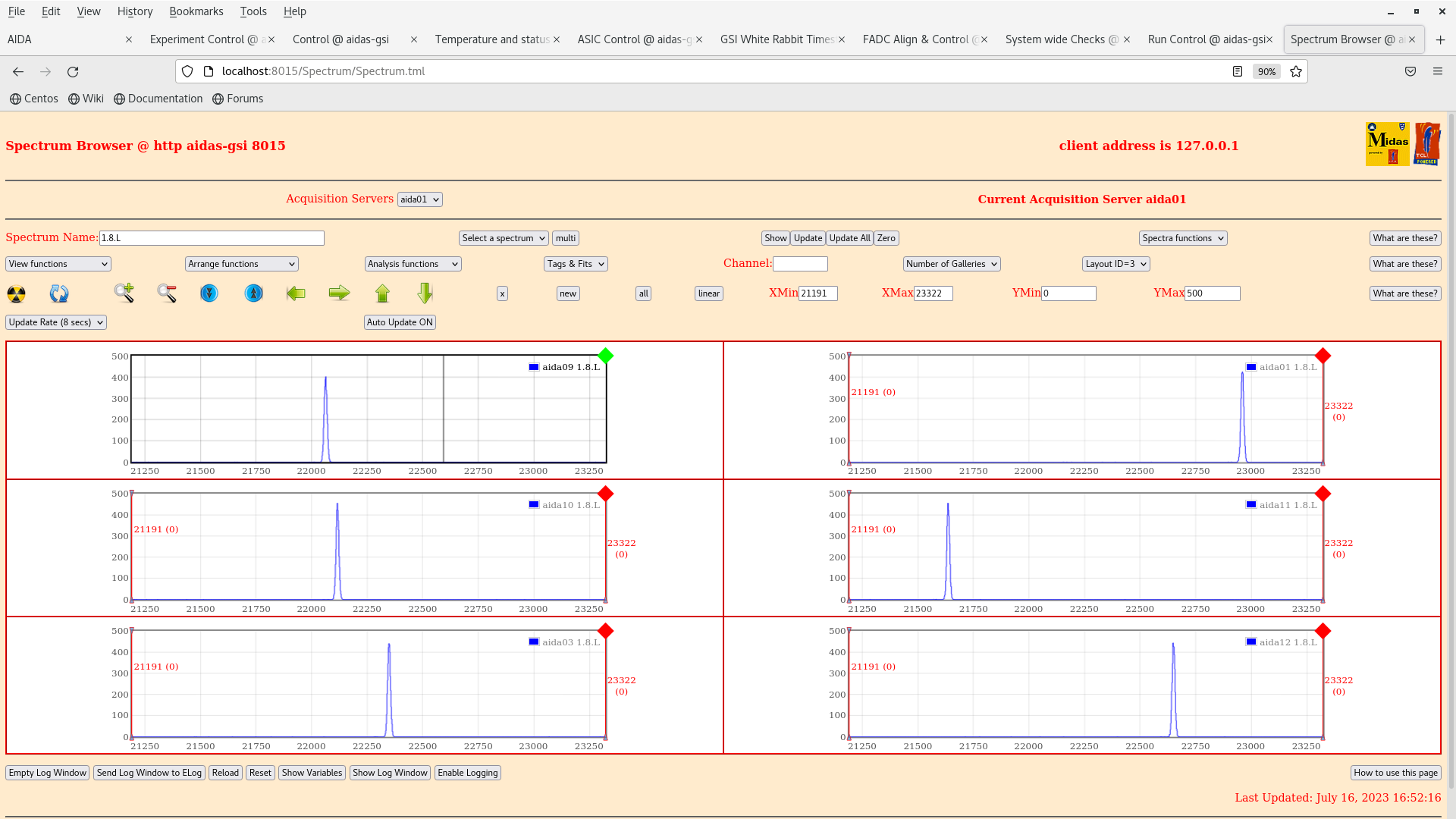

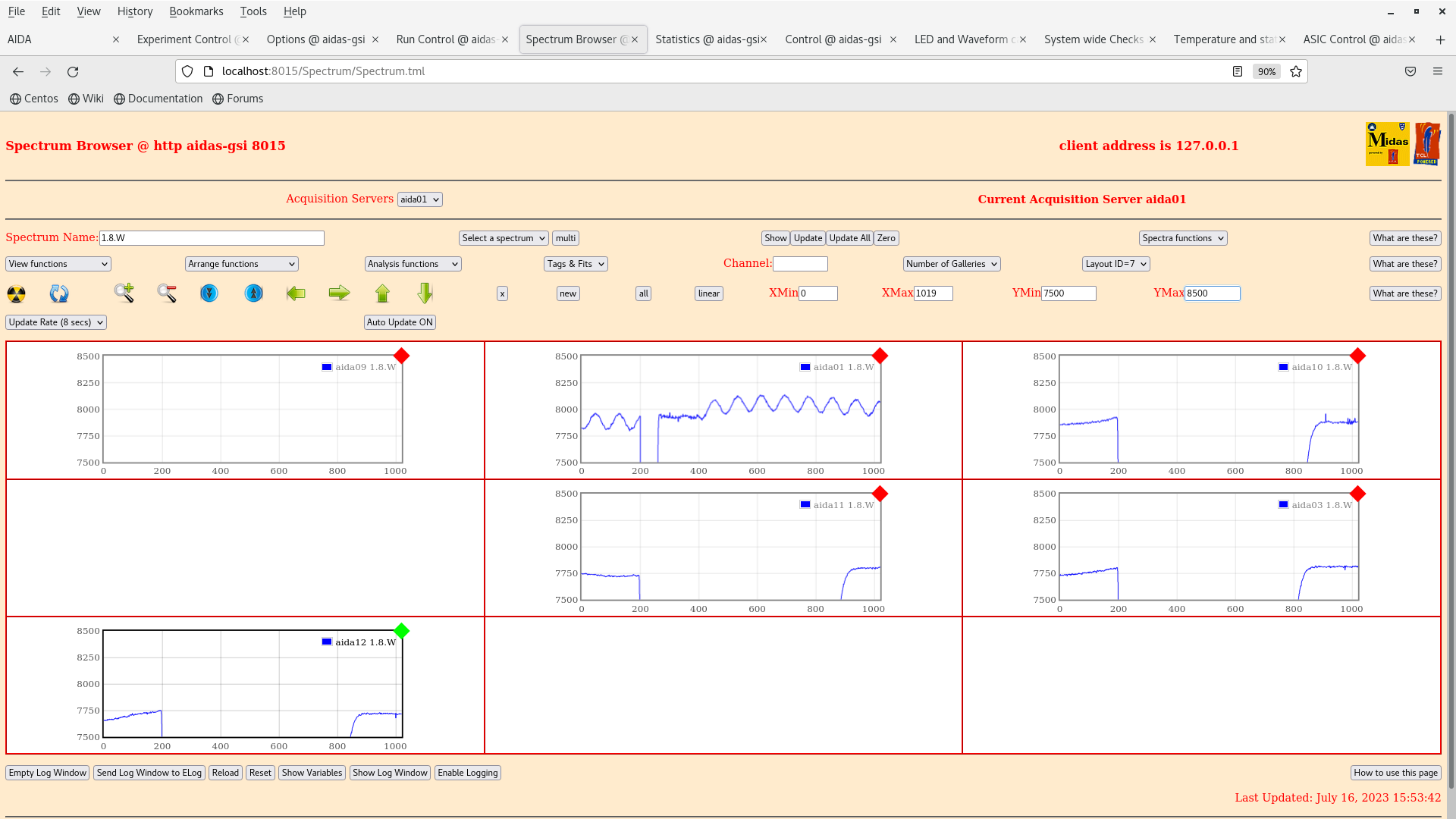

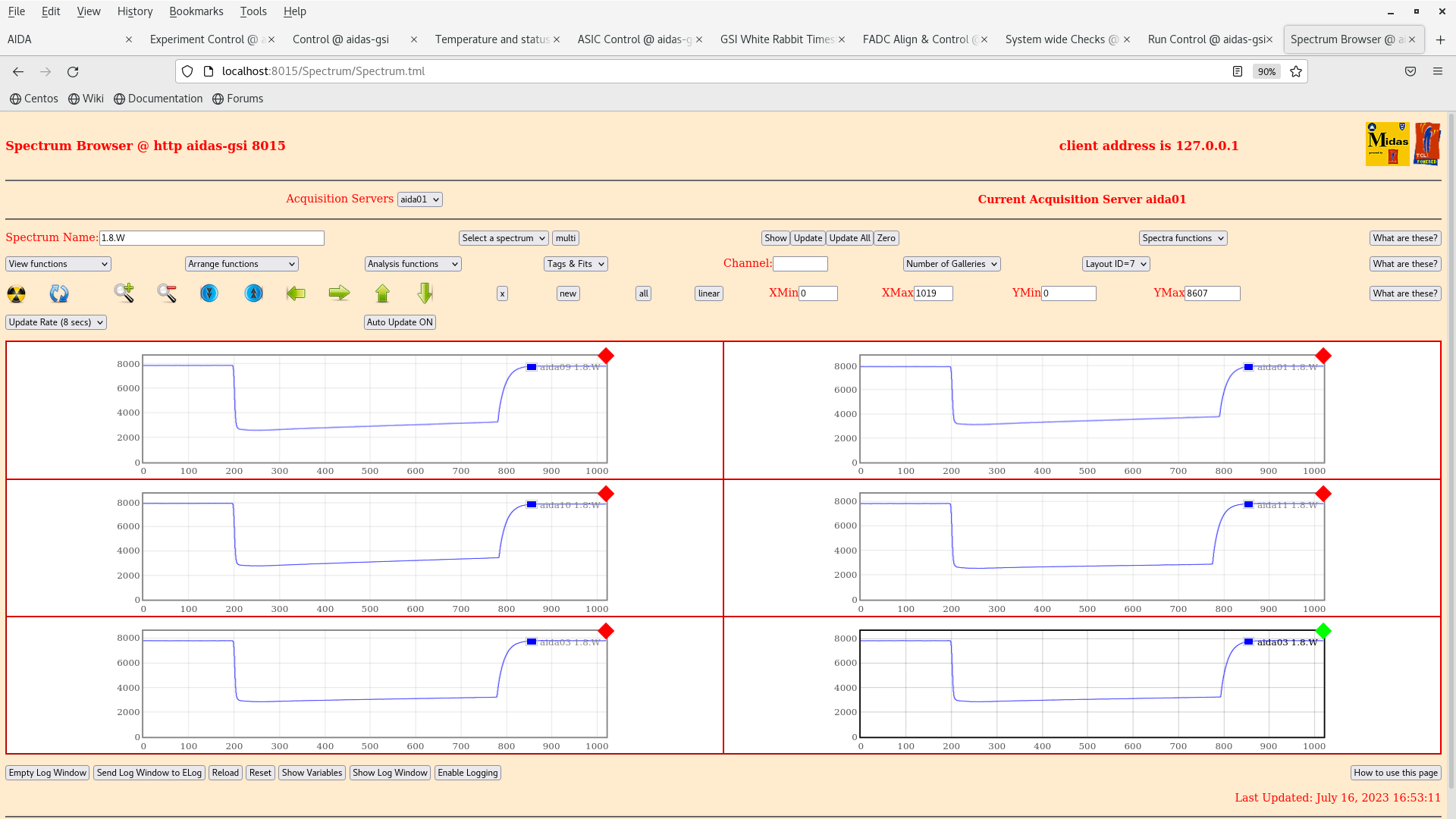

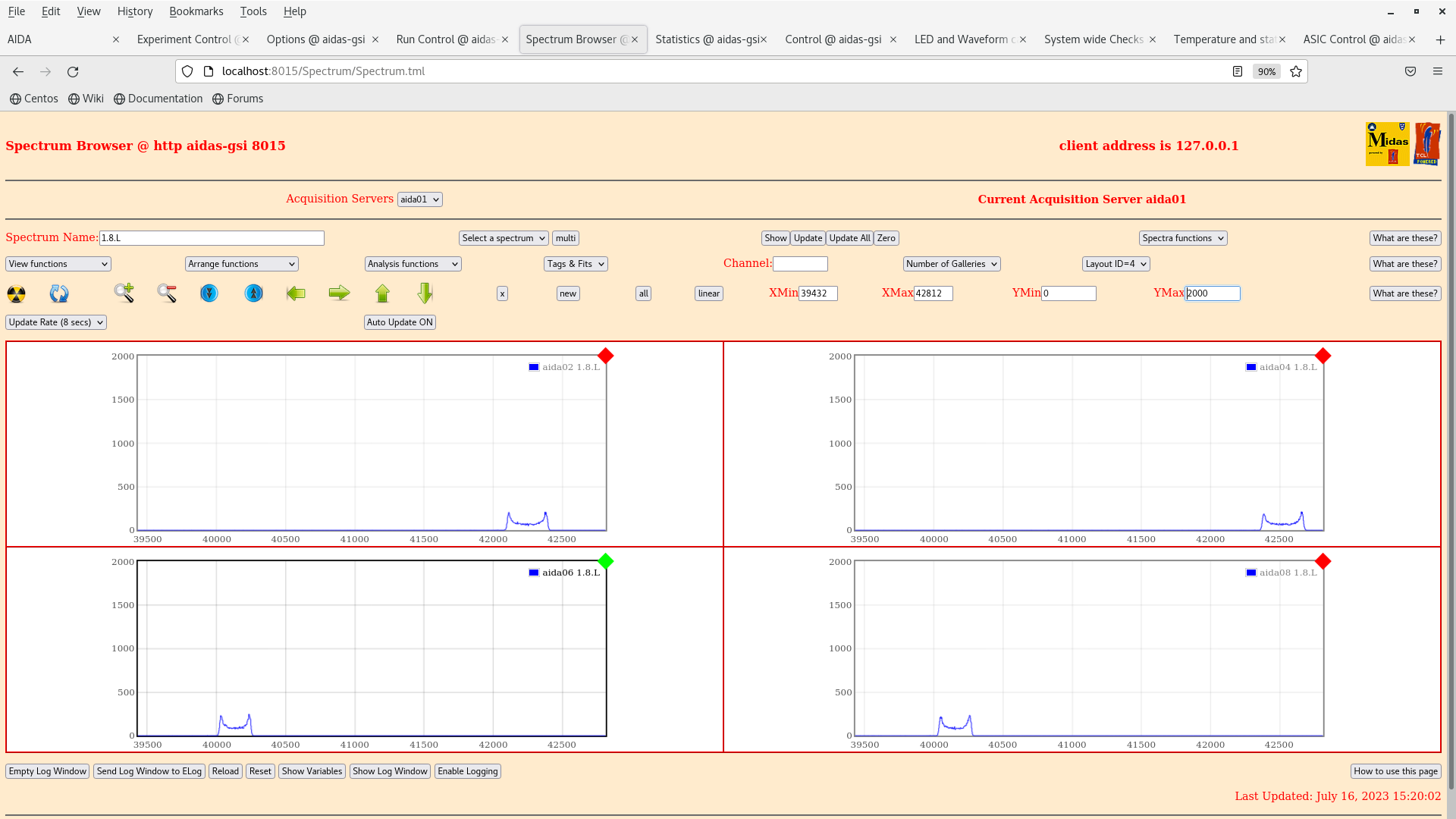

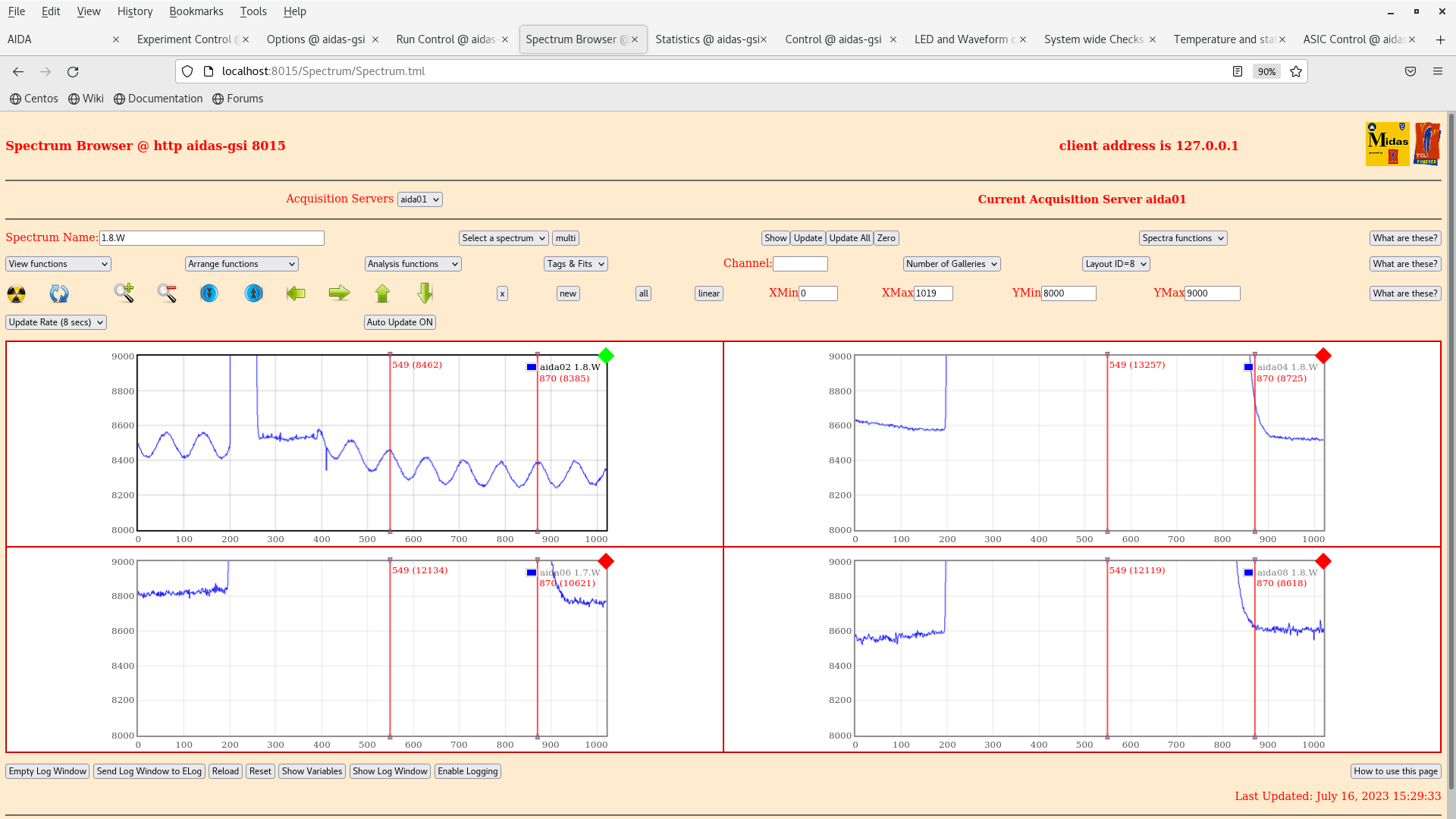

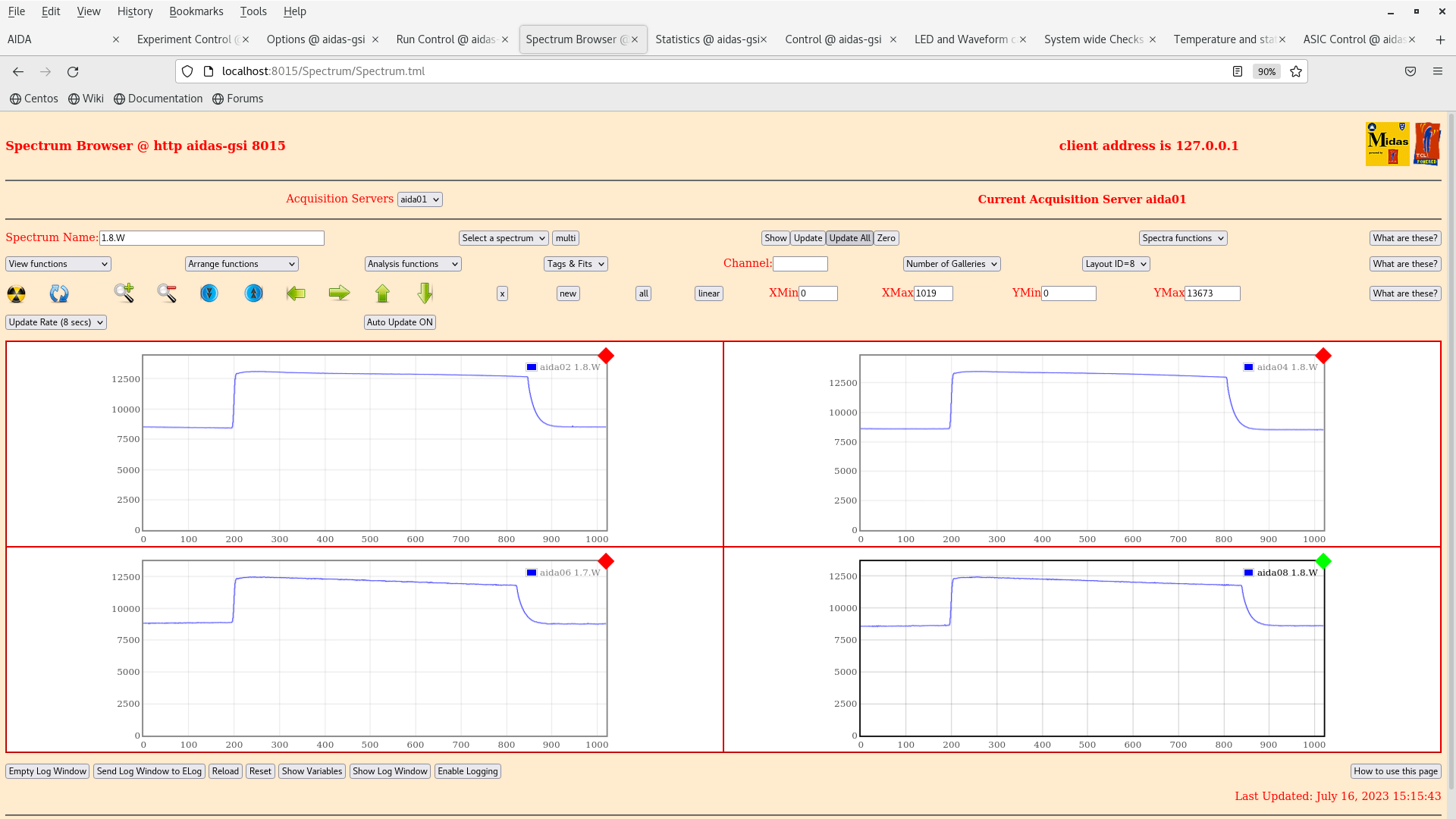

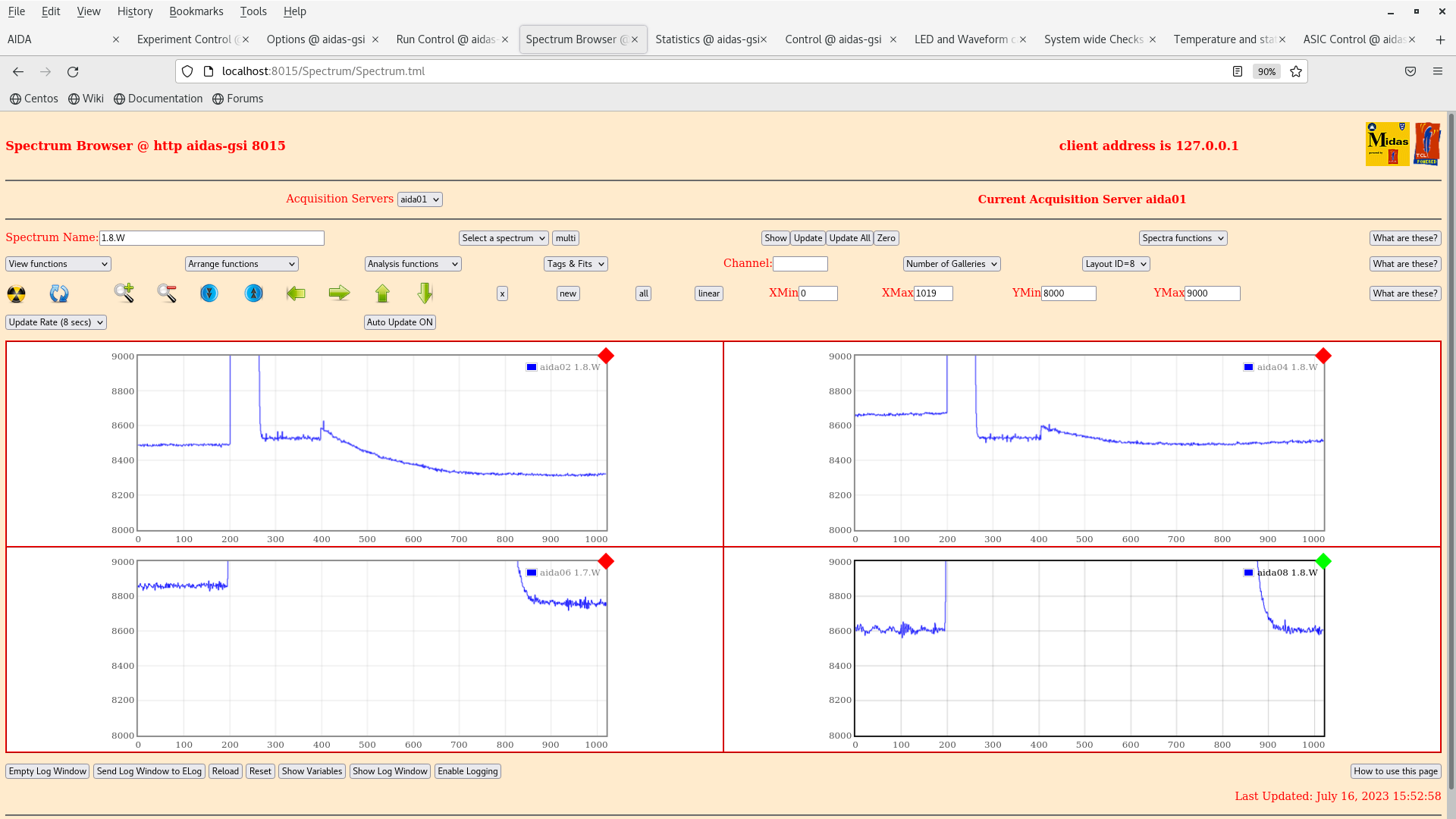

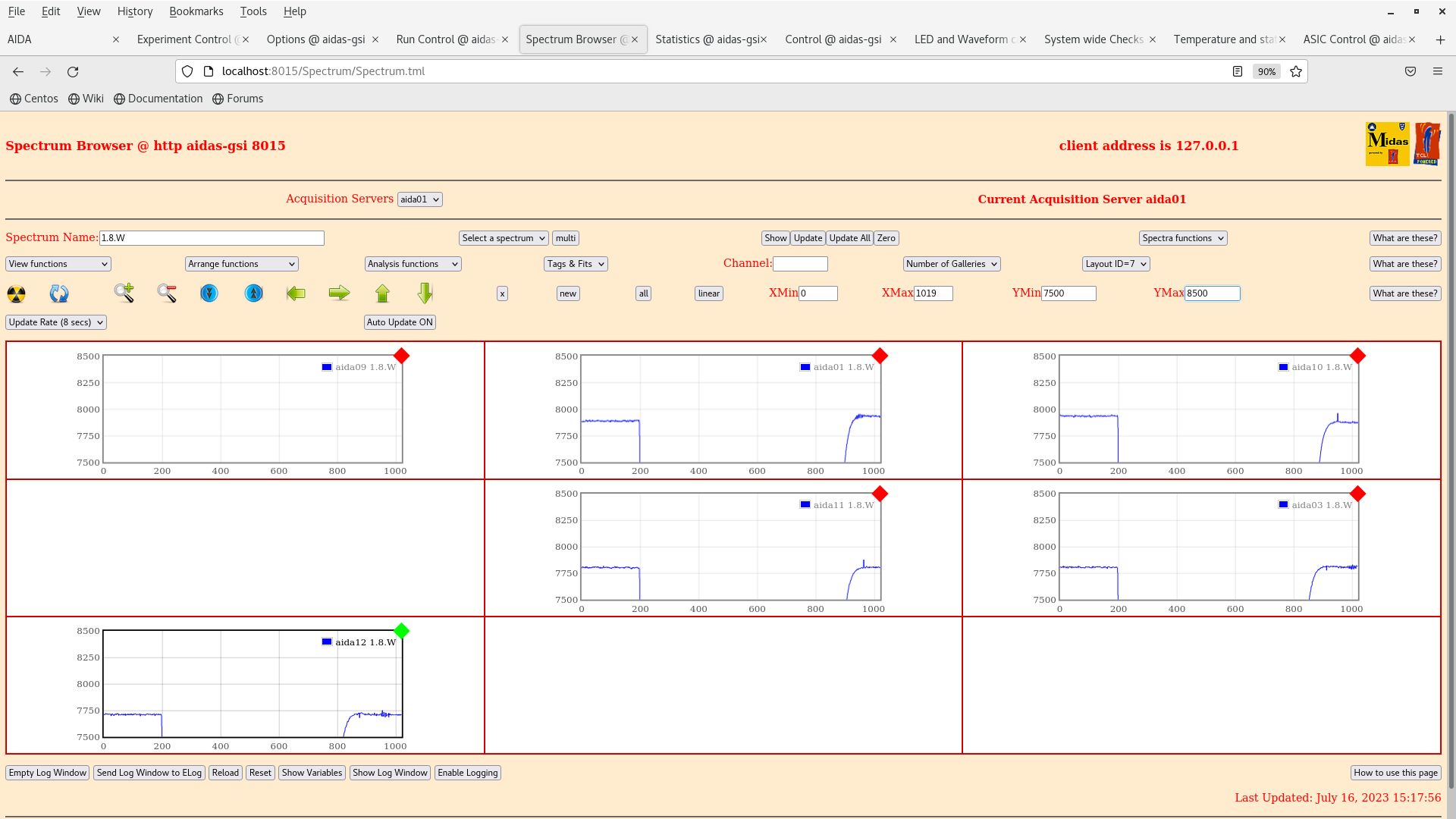

15.20 All ERNI pins of aida01 adaptor PCB OK => FEE64 #1 ASIC #2 channel #5 issue faulty test C? faulty ASIC channel? Fitted drain wire from aida06 & aida08 adaptor PCBs to FEE64 cooling plates n+n FEE64 1.8.W spectra 20us FSR - attachments 1-2 p+n FEE64 1.8.W spectra 20us FSR - attachments 3 p+n FEE64 1.8.L spectra - attachment 4 aida01 1.8.L pulser peak width 15 ch FWHM n+n FEE64 1.8.L spectra - attachment 5 double peak spectra Significant improvement in noise for aida06 & aida08 but still not as good as aida02 & aida04. Some additional extrinsic noise observed for aida02 & aida04. No change in 1.8.L spectra n+n FEE64 1.8.W spectra aida02 200us FSR, other FEE64s 20us FSR - attachments 6 baseline sinusoid observed - 4T = 320 samples = 64us = 15.6kHz 15:50 BNC PB-5 switch polarity + to - switch BNC cables from BNC PB-5 and EG&G Ortec 534 outputs for test +/- Attachments 7-8 baseline sinusoid observed for p+n *not* n+n FEE64 1.8.W spectra suggests issue is EG&G Ortec 534 Restore original cabling 16.55 Swap aida09 HDMI cable from MACB #4 port 1 to MACB #5 port 1 - power cycle and restart - no change - aida09 clock not locked Replace aida09 HDMI with *new* HDMI cable to MACB # 4 port 1 - power cycle and restart - aida09 clock locked FEE64 temperatures OK - attachment 9 System wide checks - attachments 10-15 OK *except* cannot calibrate aida12 ADCs per FEE64 rate spectra - attachment 16 p+n FEE64 1.8.L spectra - attachments 17 aida01 1.8.L pulser peak width 15 ch FWHM n+n FEE64 1.8.L spectra - attachments 18 double peak spectra p+n FEE64 1.8.W spectra 20us FSR - attachments 19-20 n+n FEE64 1.8.W spectra 20us FSR - attachments 21-22 17.10 n+n FEE64 1.8.W spectra 200us FSR BNC PB-5 decay time 50us - attachment 23 BNC PB-5 decay time 1ms - attachment 24 18.05 ADC data item stats slow comparator 0x64 -> 0xa BNC PB-5 pulser frequency 100Hz so expect rate of ADC data items per FEE64 to be c. 6.4kHz attachment 25 - aida06 & aida08 ground from FEE64 cooling plate to adaptor PCB fitted, test - connected to aida02, aida04, aida06 & aida08 attachment 26 - aida06 & aida08 ground from FEE64 cooling plate to adaptor PCB fitted, test - disconnected from aida02, aida04, aida06 & aida08 attachment 27 - aida06 & aida08 ground from FEE64 cooling plate to adaptor PCB not fitted, test - disconnected from aida02, aida04, aida06 & aida08 Rev A adaptors require grounding (as expected). Output of EG&G Ortec 534 produces c. 15kHz sinsusoid at test input - cable length/capacitative load?
