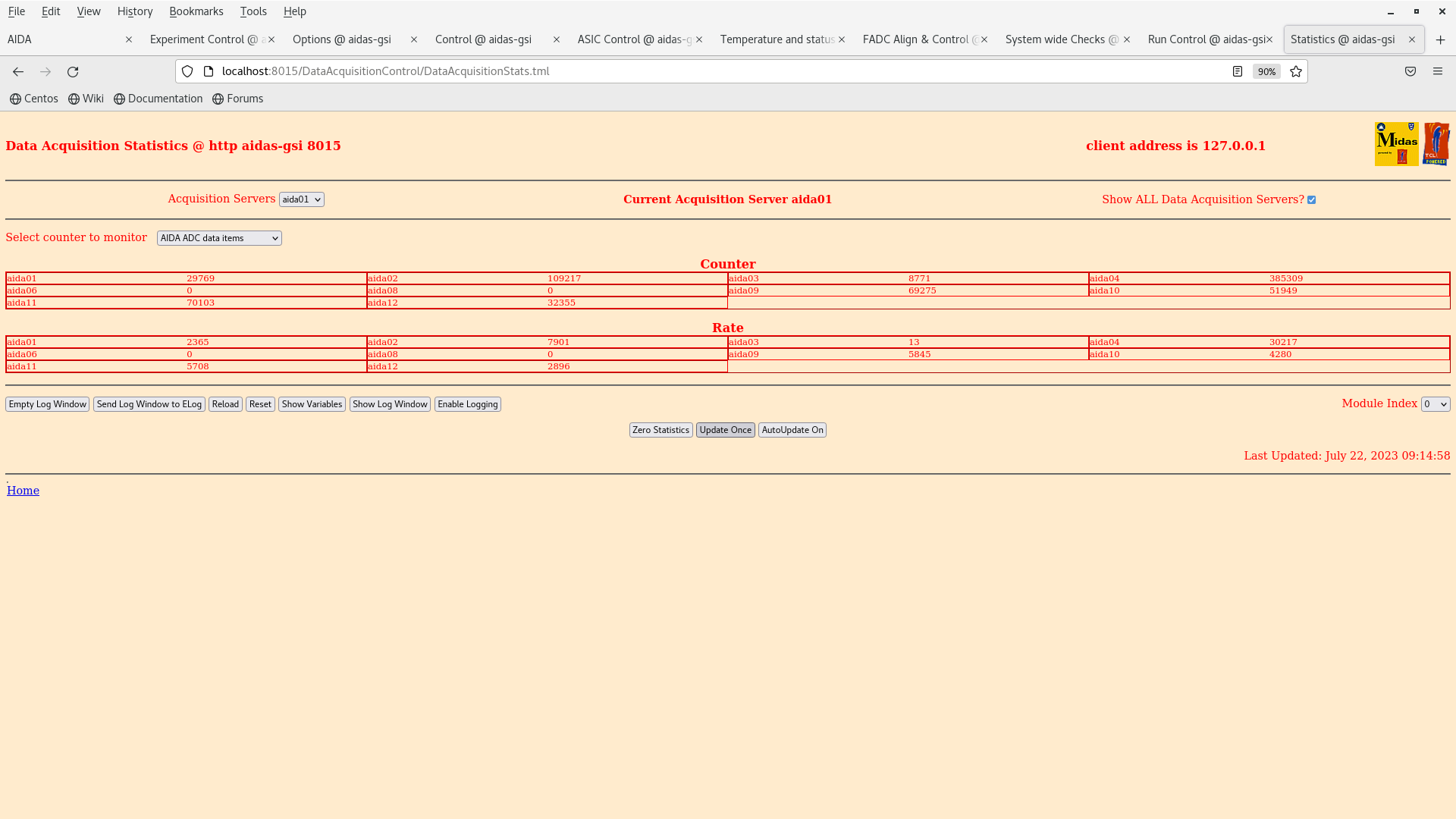

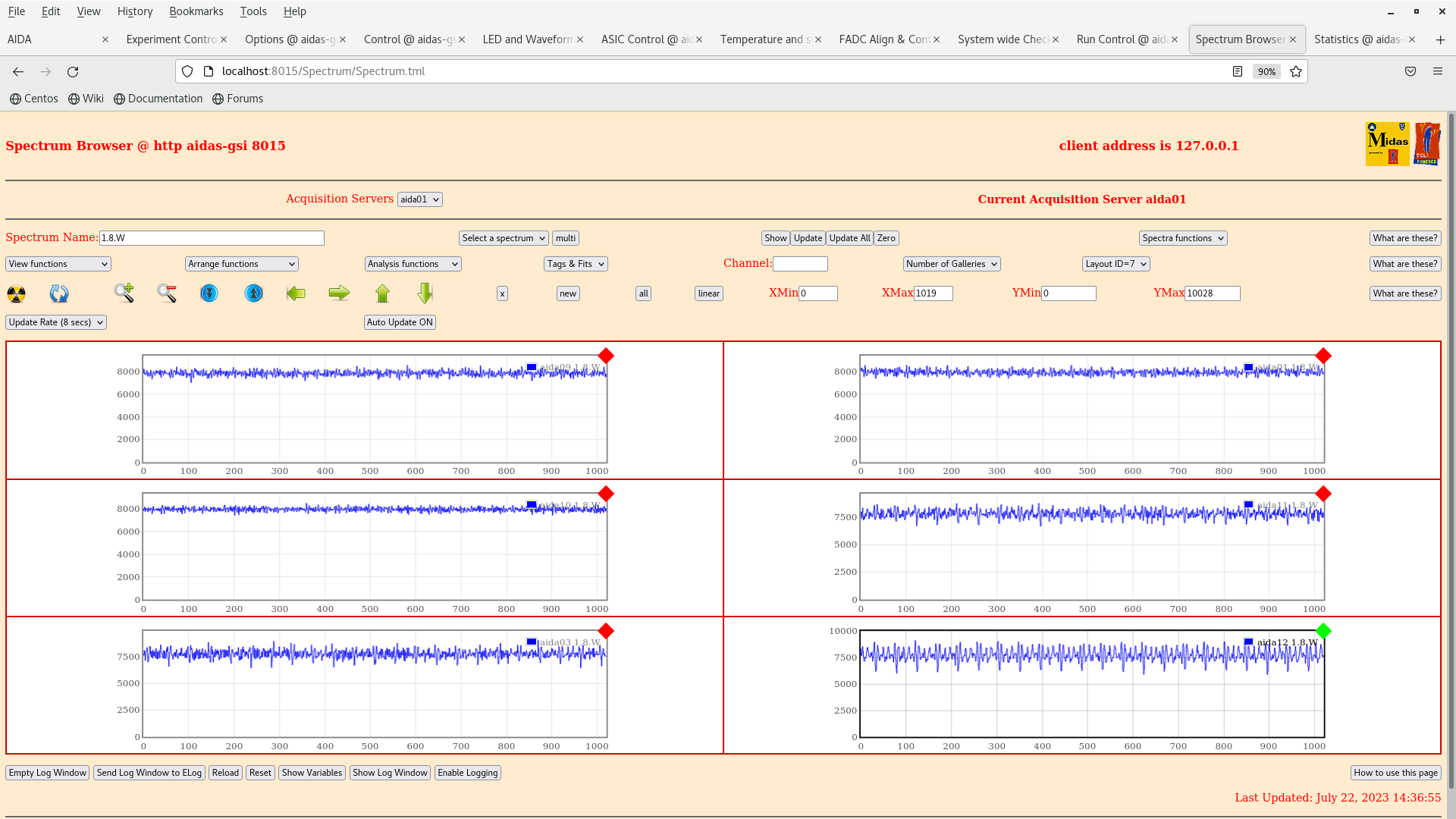

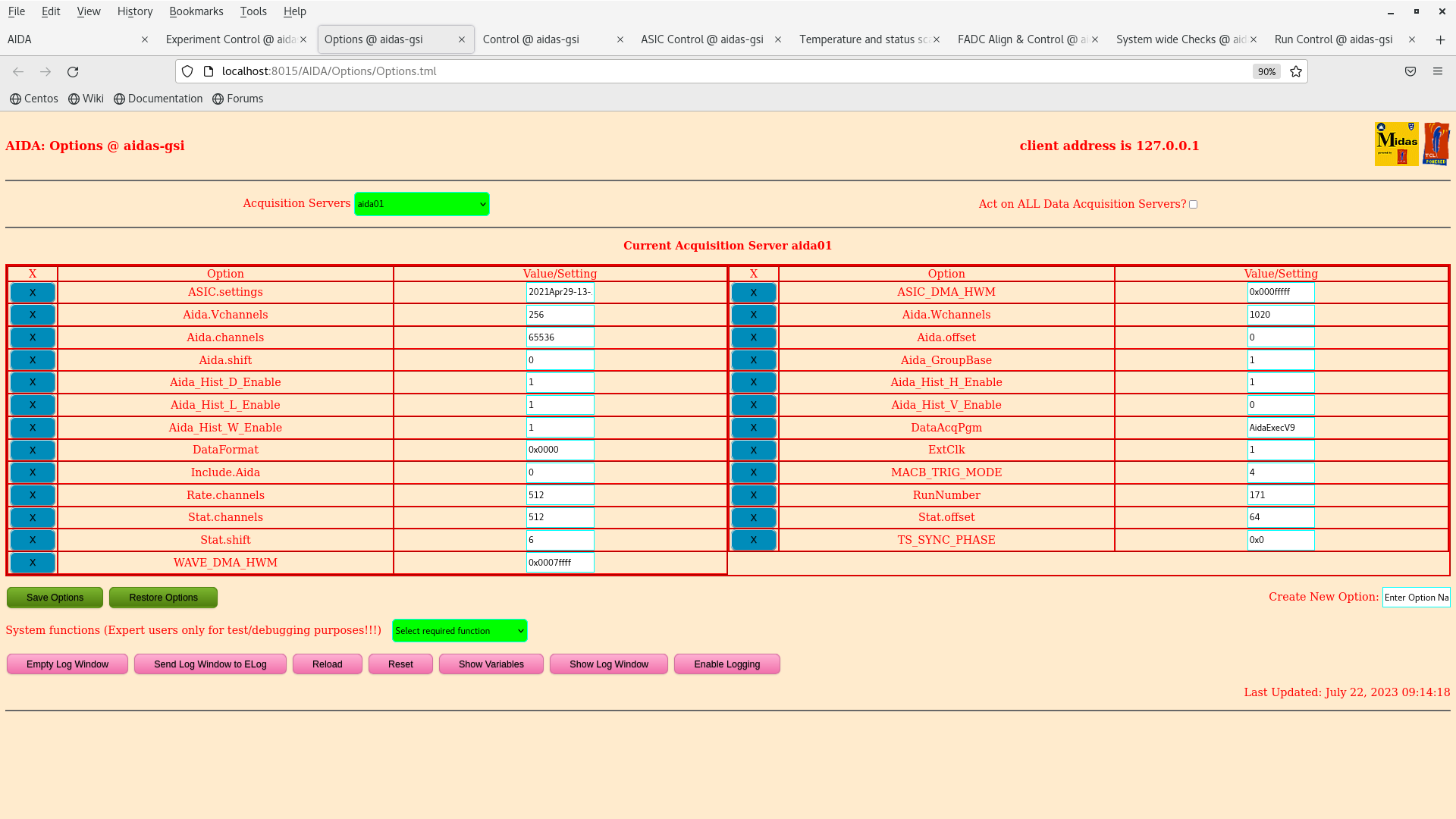

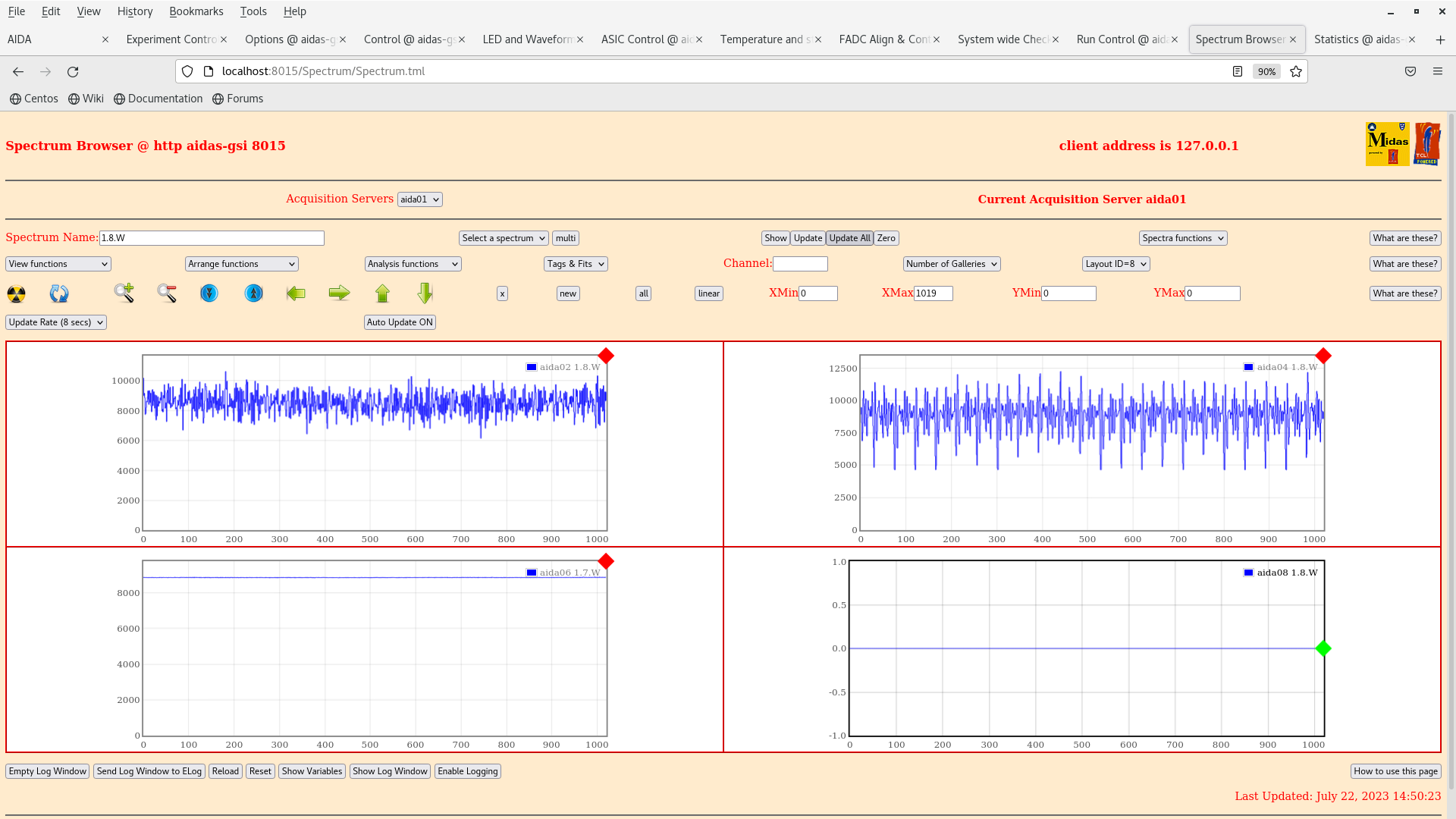

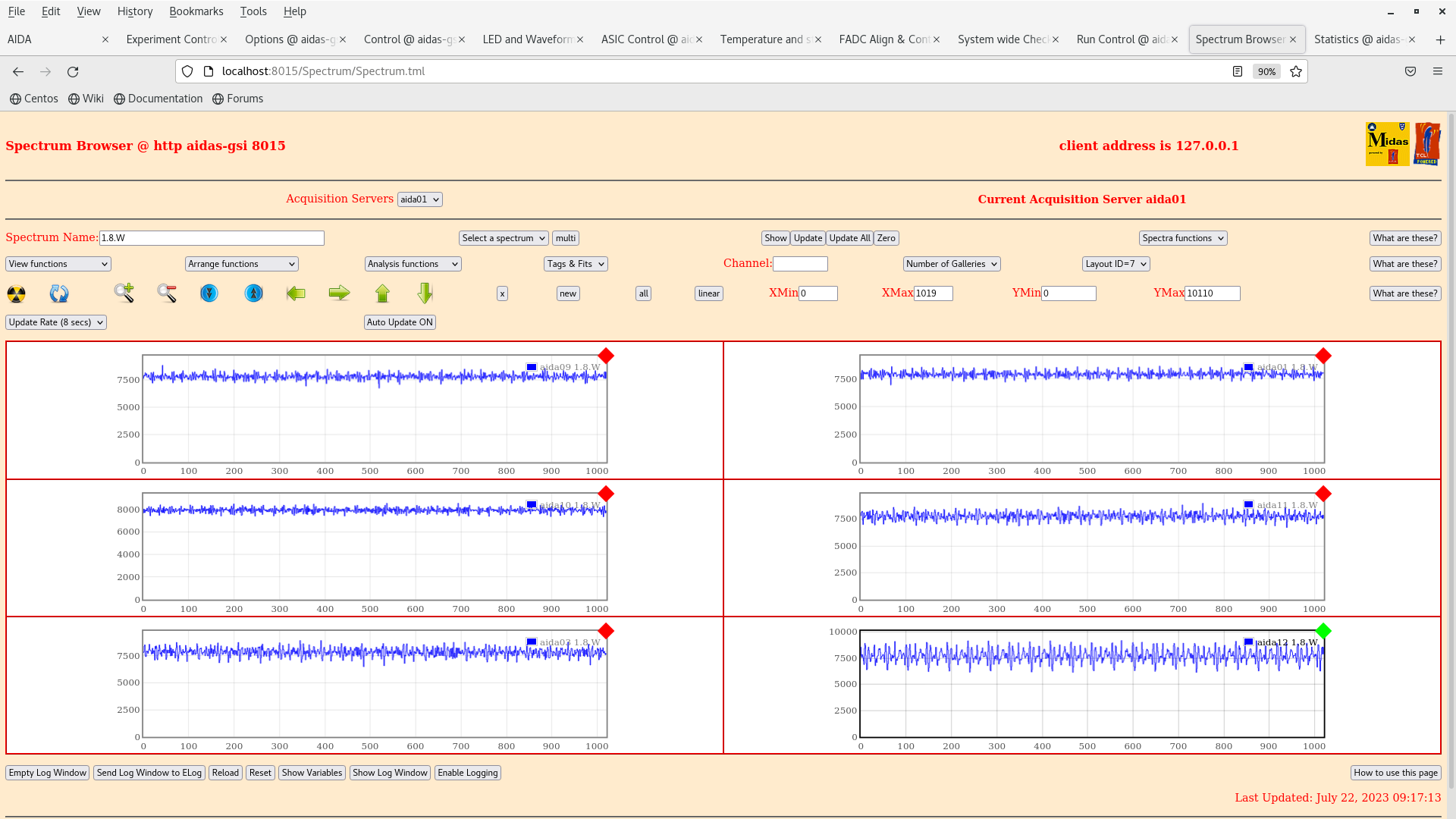

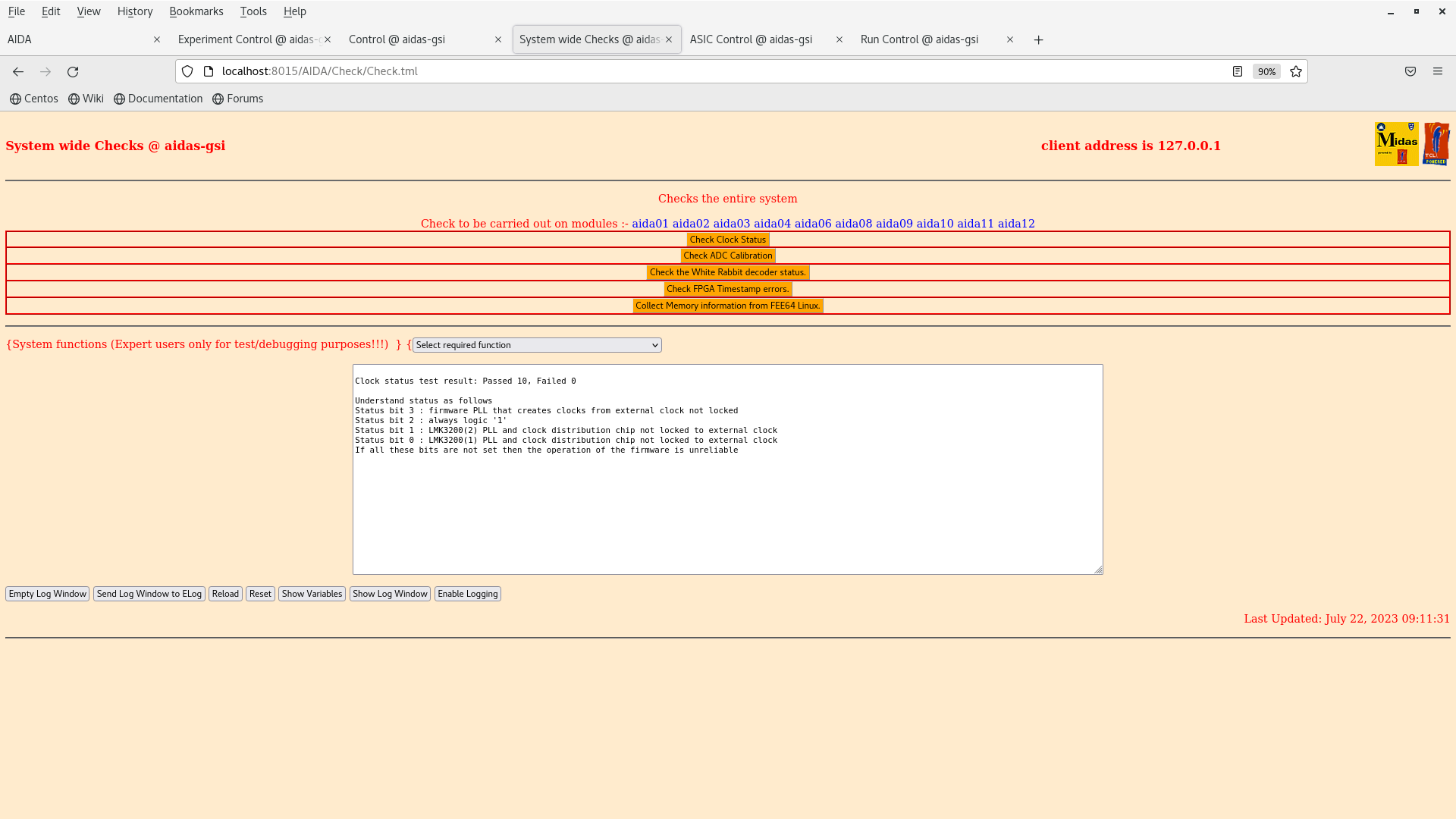

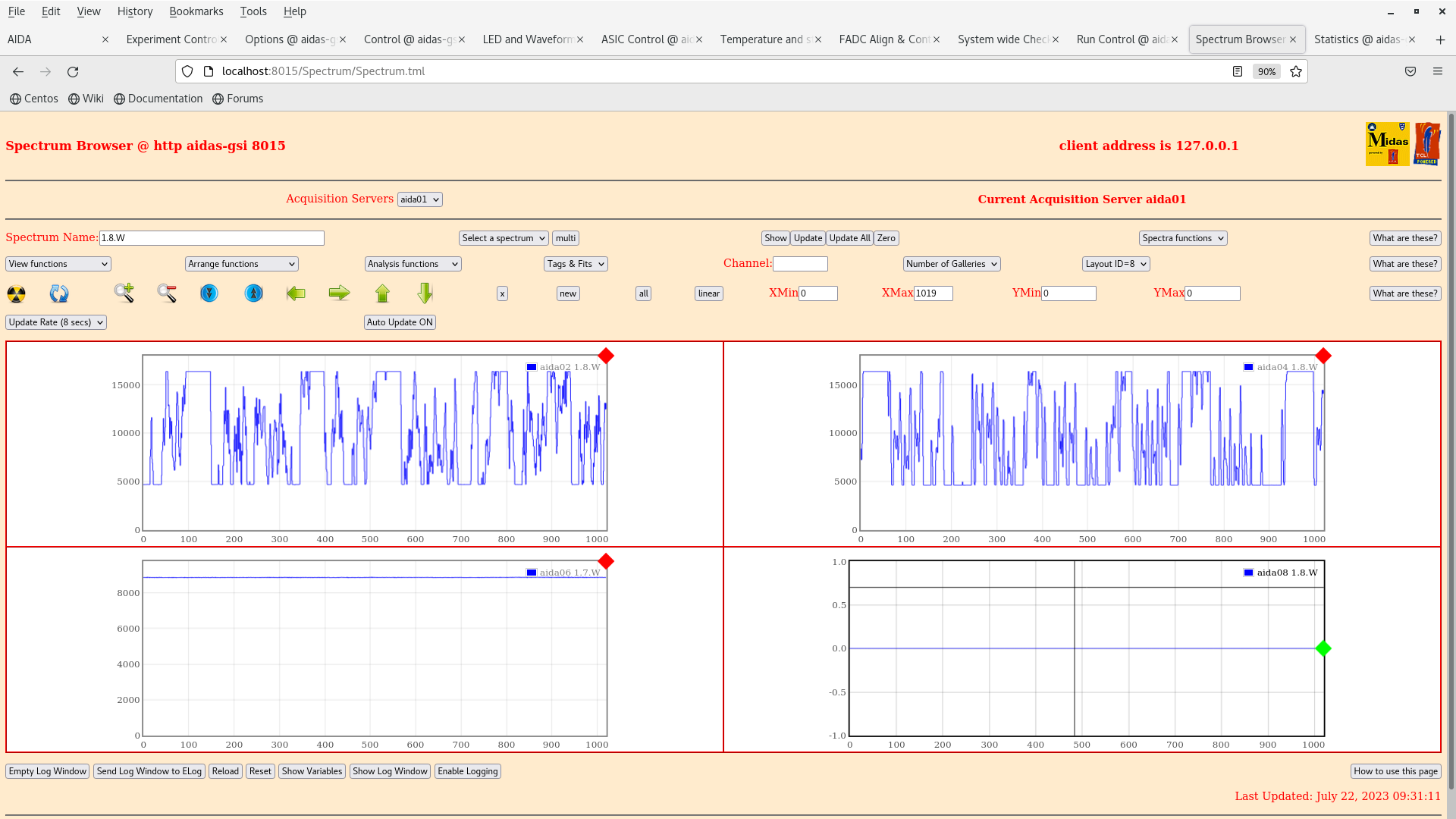

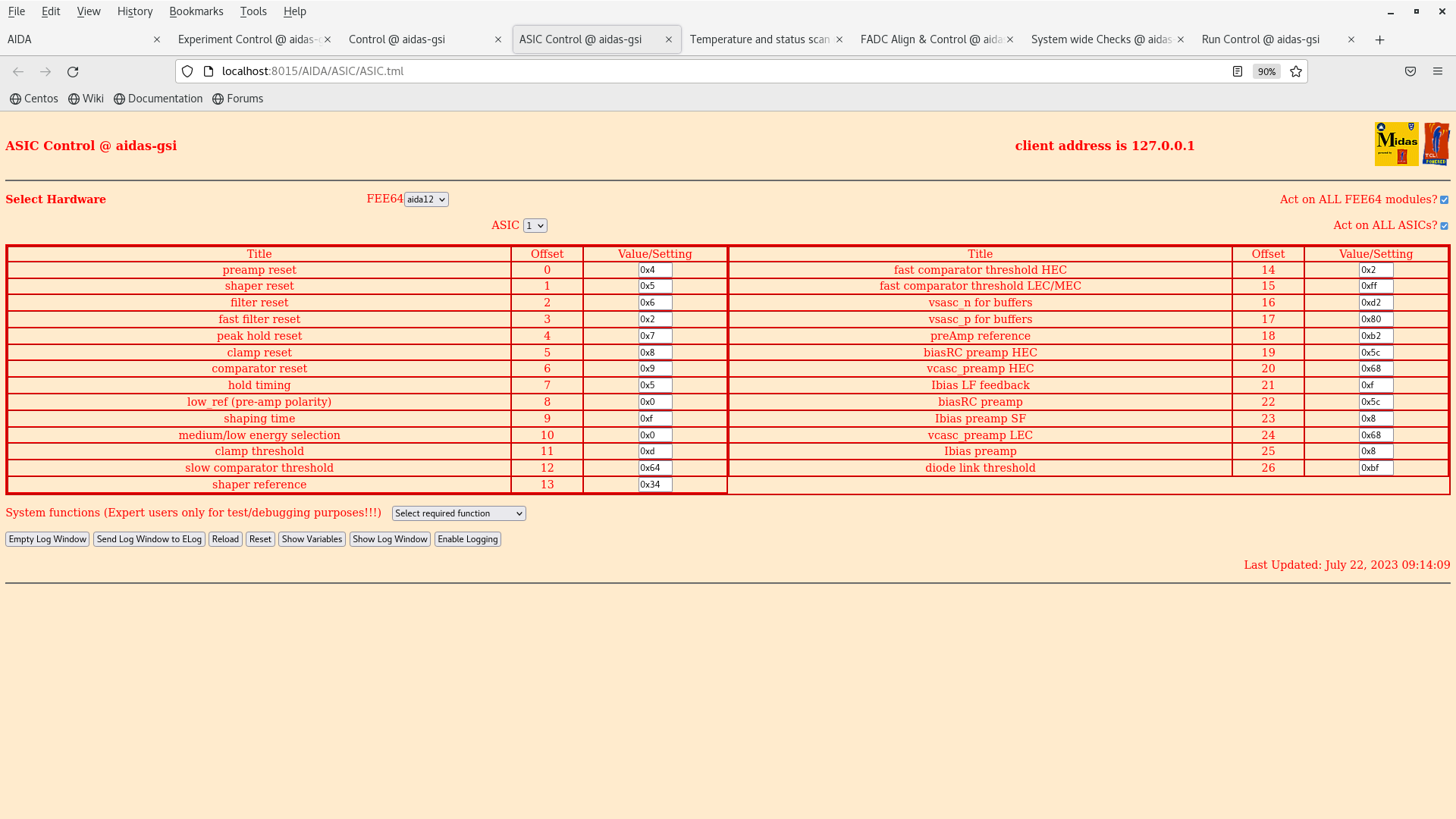

09.20 CAEN N1419ET Floating outputs Channel #3 + polarity, Channels #0-2 - polarity Channel #3 - HV cable #1 + bias - core aida04, braid aida12, LK1 ( HV local ground ) fitted aida12, aida03, aida11 bias bonds aida01 and aida09 probably broken aida03 LK3 ( DSSSD PCB ground ) fitted AIDA Half rev A adaptor PCBs aida06 & aida08 - not connected to ribbon cable/test/HV DSSSD #1 - adaptor PCB ribbon cable drain wires connected to respective adaptor PCB ground DSSSD #2 ( not installed ) adaptor PCB ribbon cable and ribbon cable drain wires floating AIDA Half rev B adaptor PCBs DSSSD#1 - FEE64 cooling plate - adaptor PCB ground *not* connected AIDA Half rev A adaptor PCBs aida06 & aida08 - not connected to ribbon cable/test/HV - FEE64 cooling plate - adaptor PCB ground fitted ground to AIDA support frame *not* connected test + / test - *not* connected DSSSD#1 3208-3/-21/-22 bias +120V leakage current +17.13uA - attachments 1-14 per FEE64 1.8.W spectra - 200us FSR - attachments 1-2 per FEE64 1.8.W spectra - 20us FSR - attachments 3-4 bias +100V leakage current +8.35uA - attachments 15-17 per FEE64 1.8.W spectra - 200us FSR bias +0V leakage current +0uA - attachments 18-20 per FEE64 1.8.W spectra - 200us FSR 14.25 bias +100V leakage current +10.83uA - attachments 21-22 per FEE64 1.8.W spectra - 200us FSR CAEN channel #3 cable moved from cable tray to floor 14.50 bias +100V leakage current +11.15uA - attachments 23-24 per FEE64 1.8.W spectra - 200us FSR CAEN N1419ET moved to Weiner NIM bin LHS 19" rack channel #3 cable across floor to AIDA stand HV cables channels #0-2 disconnected
