Entry time:
Wed Aug 2 15:39:52 2023
Author
*
:
Subject
*
:

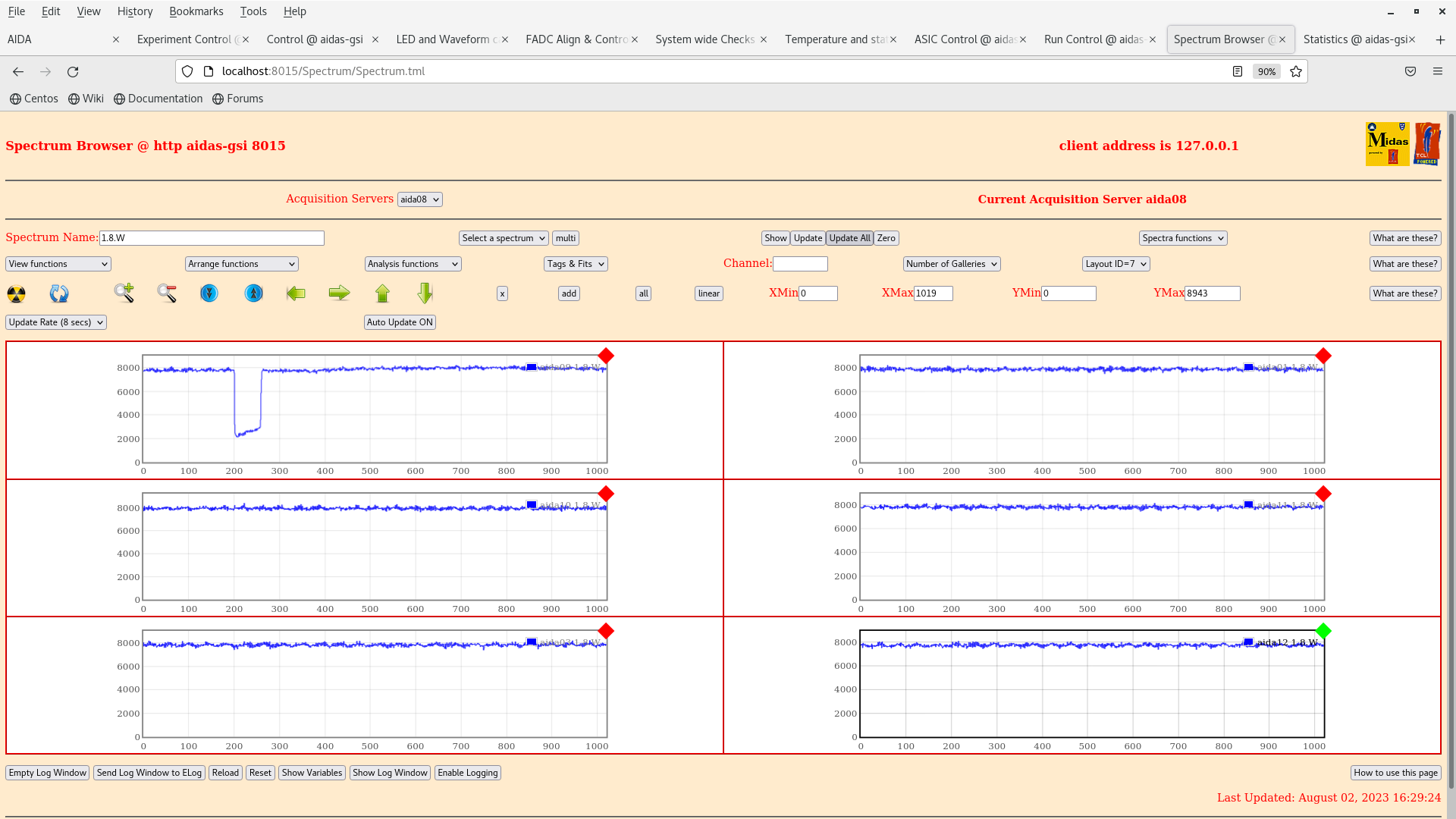

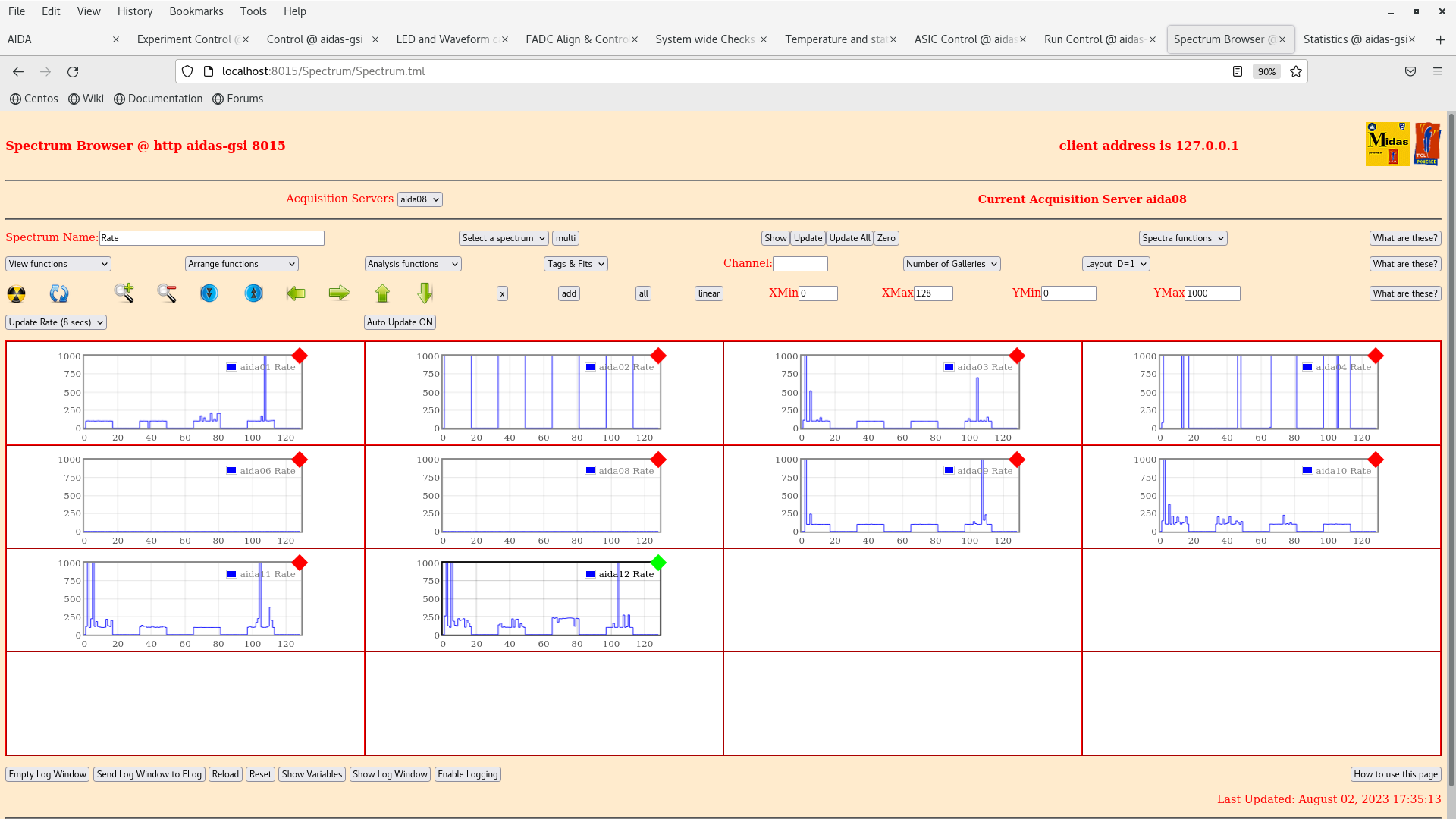

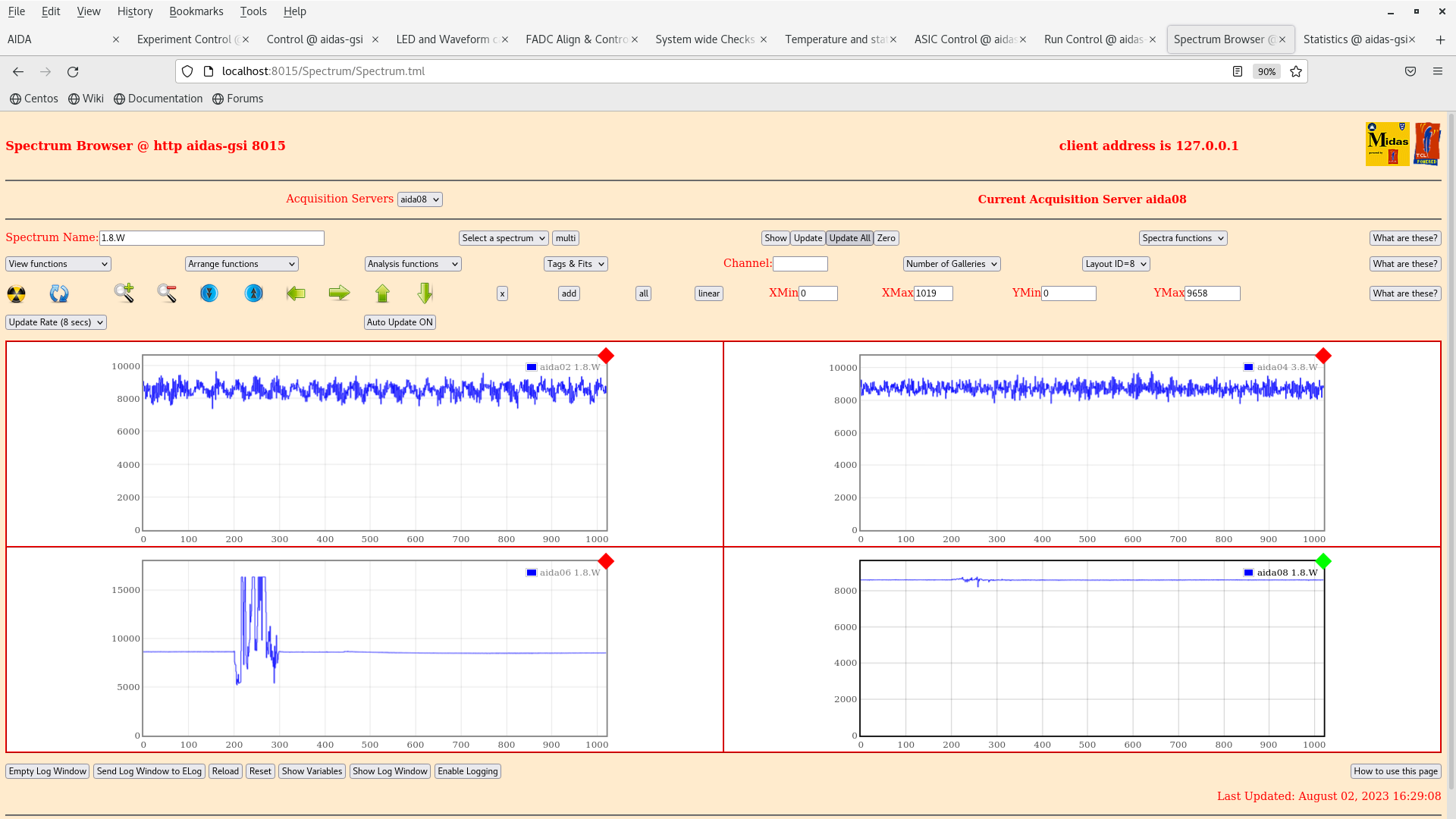

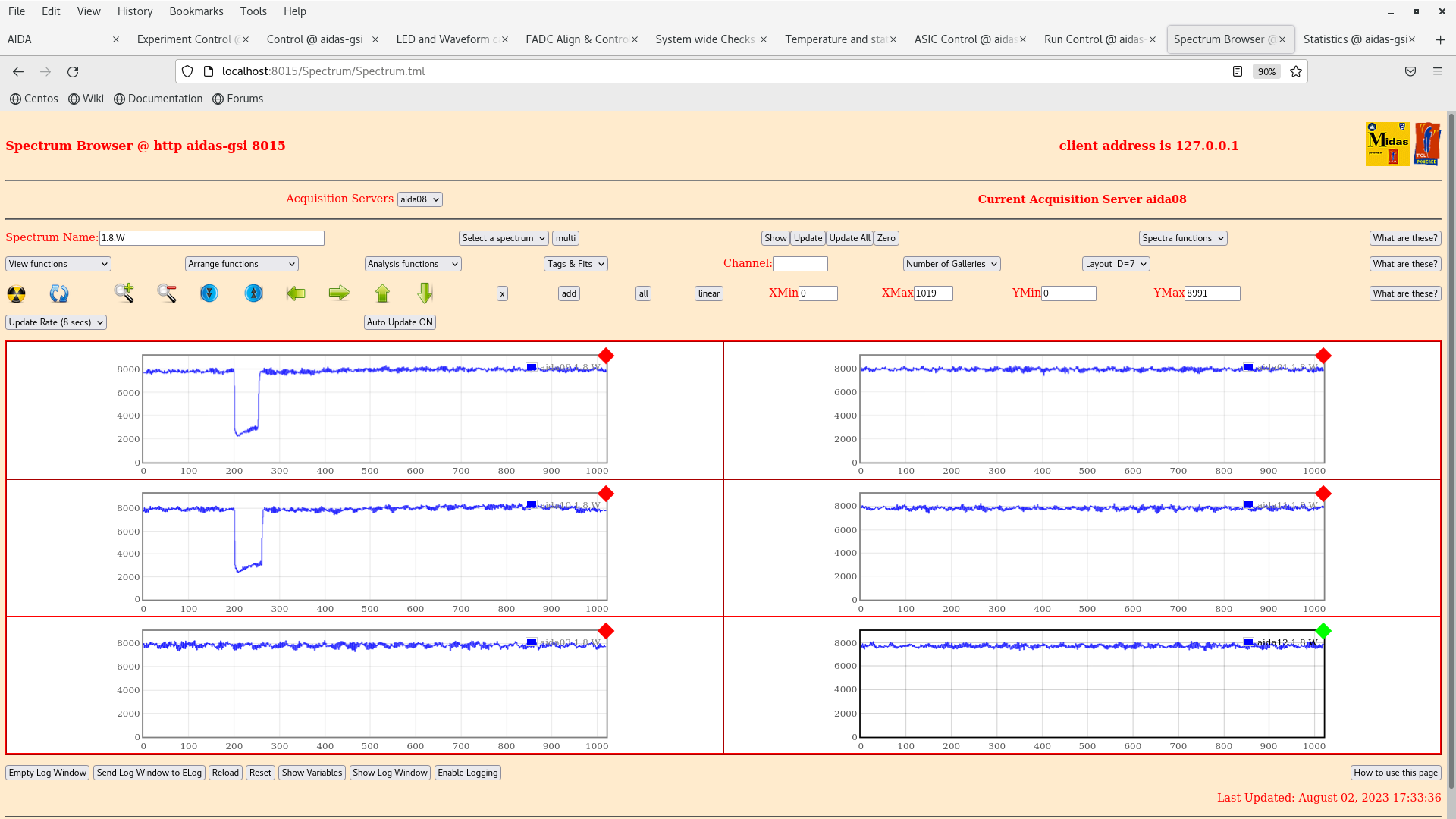

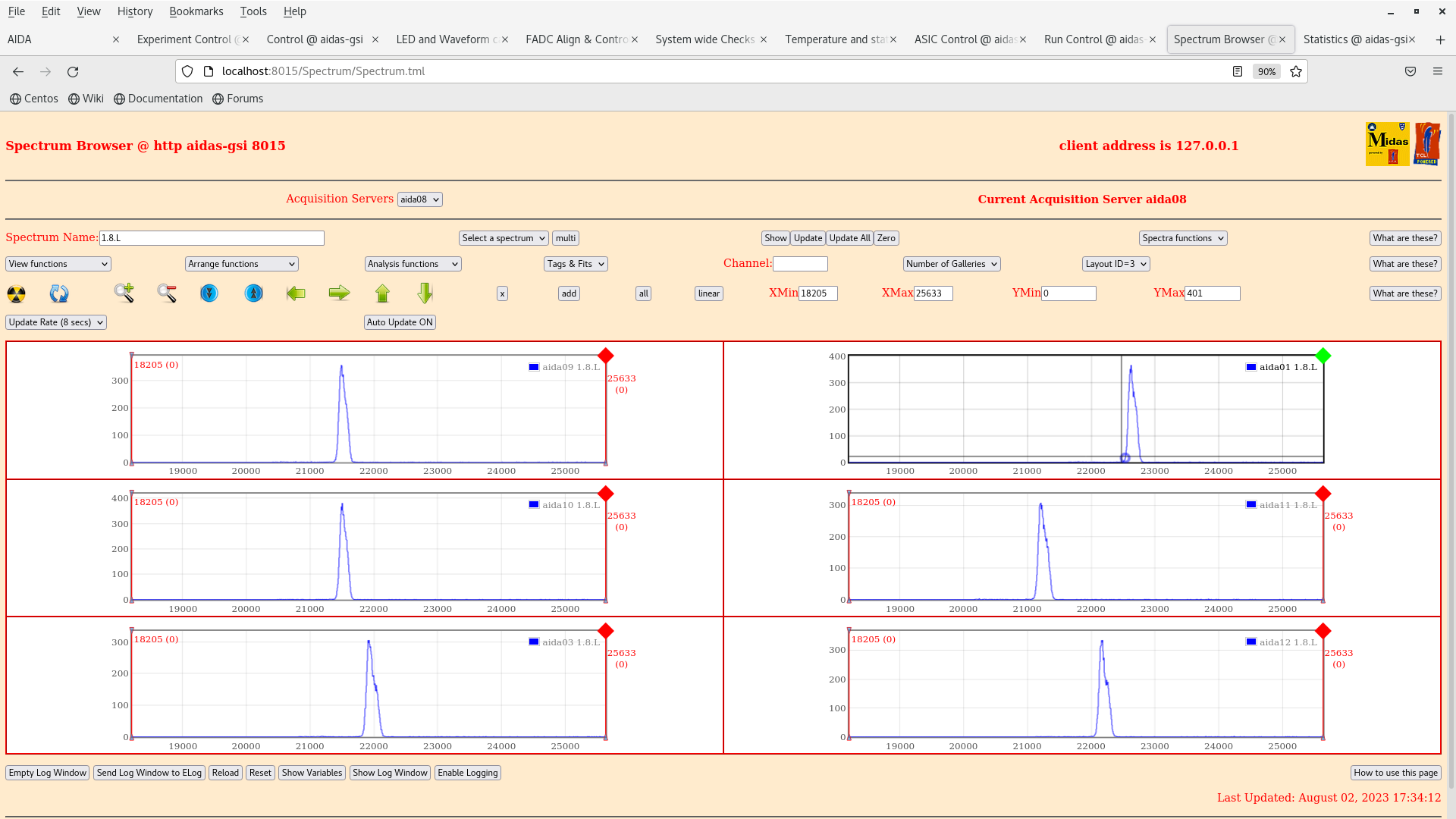

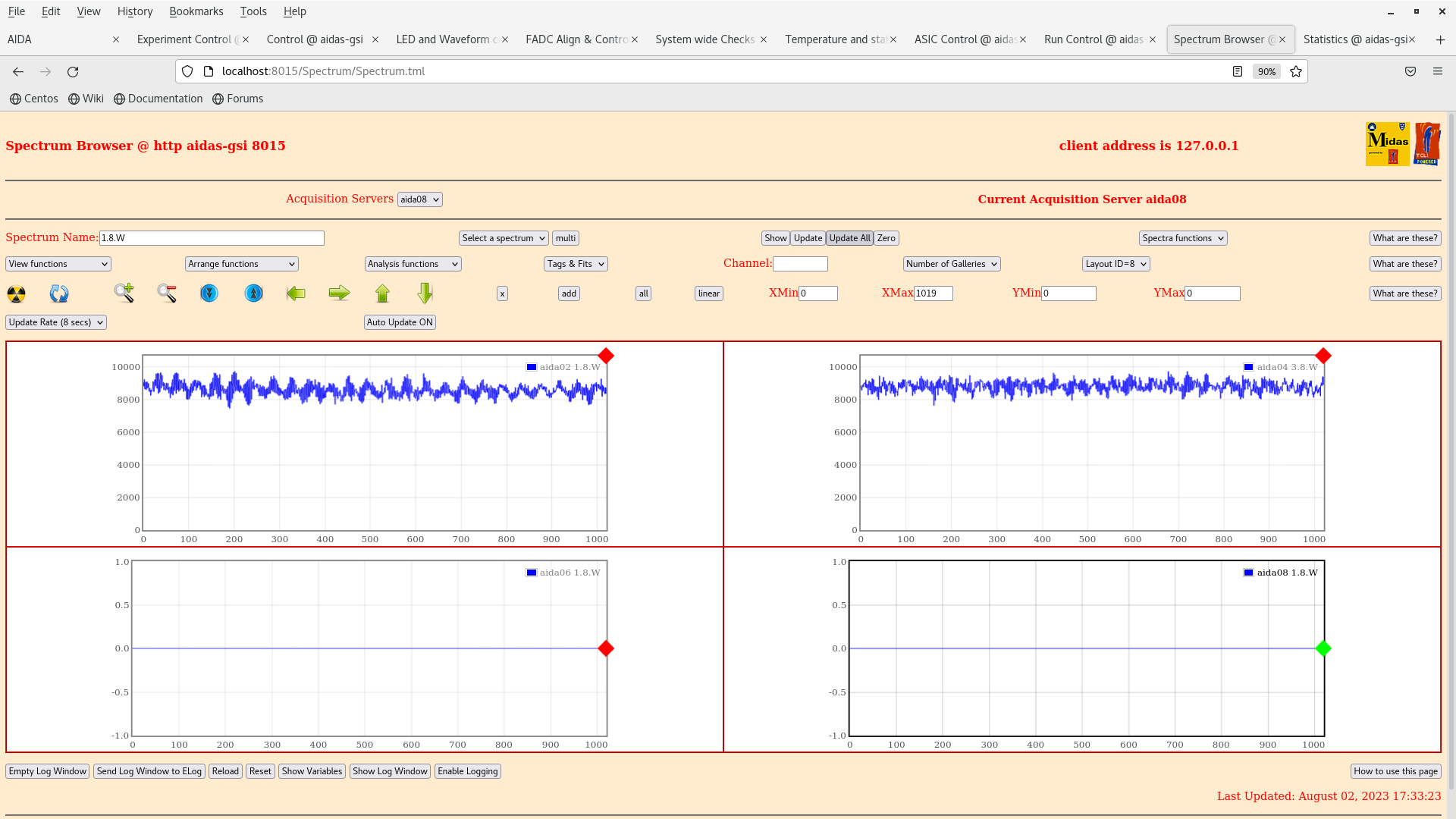

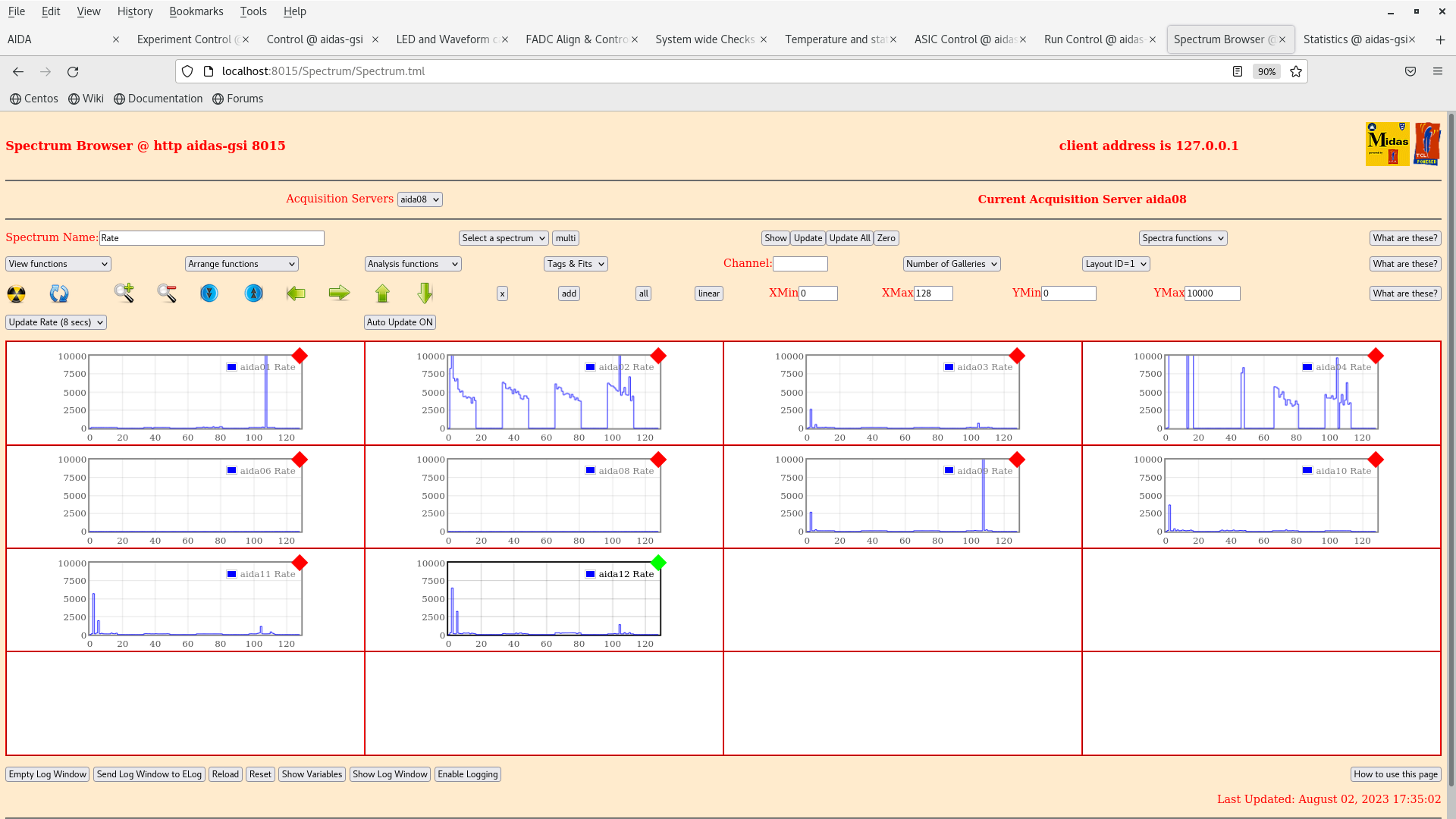

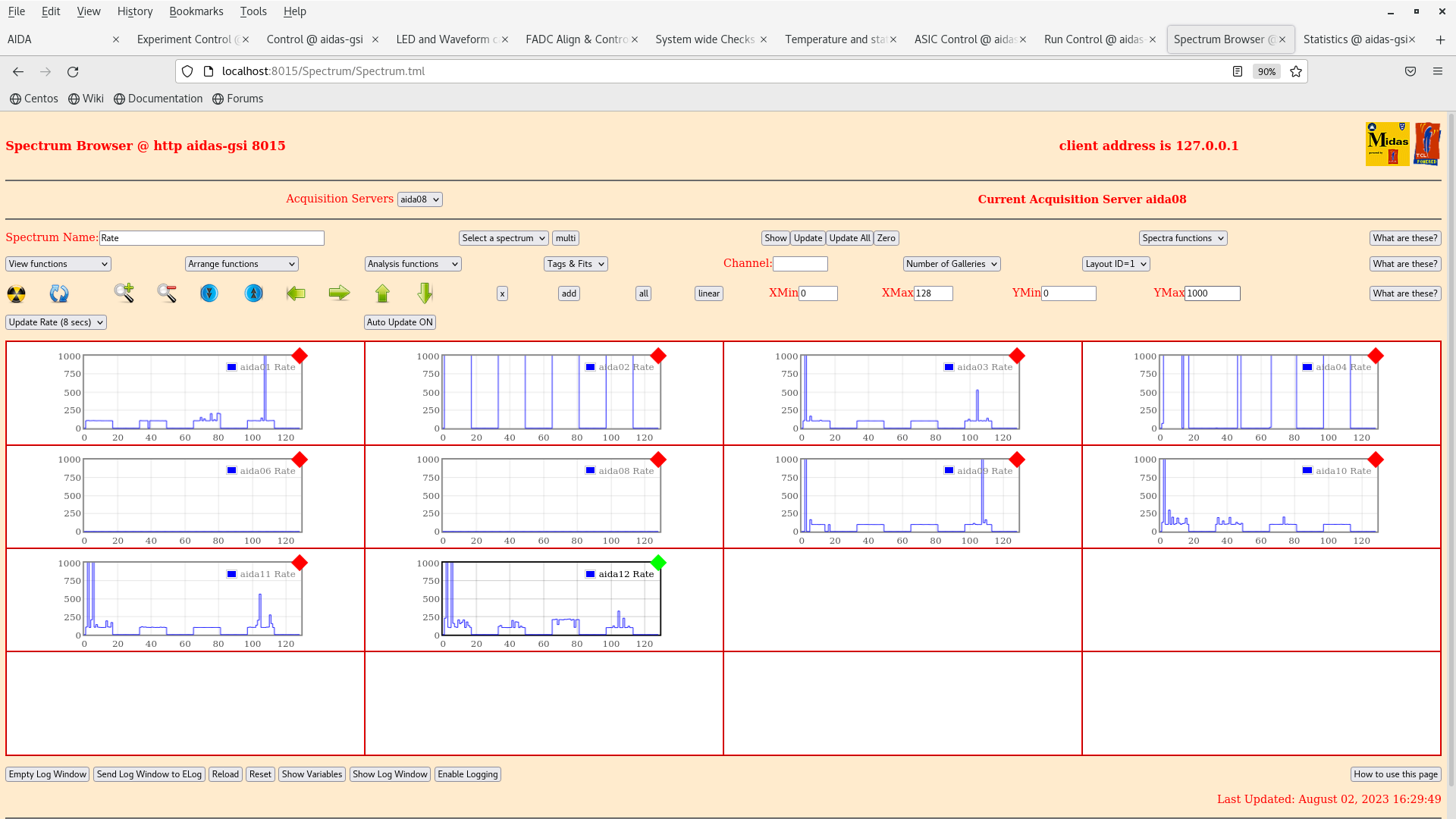

16.22 Add LK1 to aida01 DSSSD bias -100V leakage current -7.950uA Slow comparator 0x14 per FEE64 1.8.W spectra 200us FSR - attachments 2-3 ADC data item stats - attachment 4 per FEE64 rate spectra - attachment 1 Noise worse for n+n FEE64s esp. aida04 17.28 Ground Al base plate to aida02 FEE64 adaptor PCB - appears to be marginally worse than without ground per p+n FEE64 1.8.L spectra - attachments 8-9 aida01 pulser peak width 116 ch FWHM per FEE64 1.8.W spectra 200us FSR - attachments 10-11 per FEE64 rate spectra - attachment 6-7 ADC data item stats - attachment 5
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 1920x1080
