Entry time:
Mon Aug 21 13:17:54 2023
Author
*
:
Subject
*
:

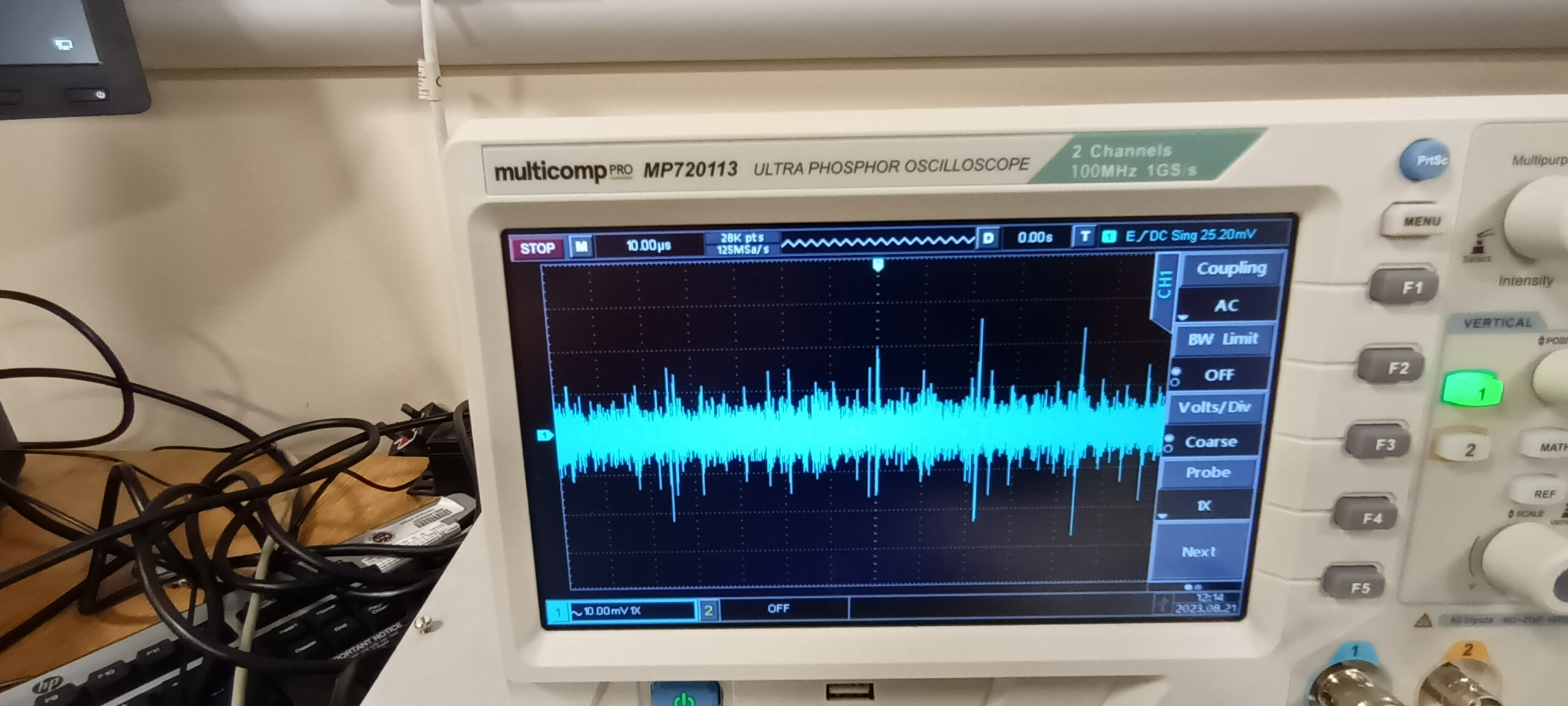

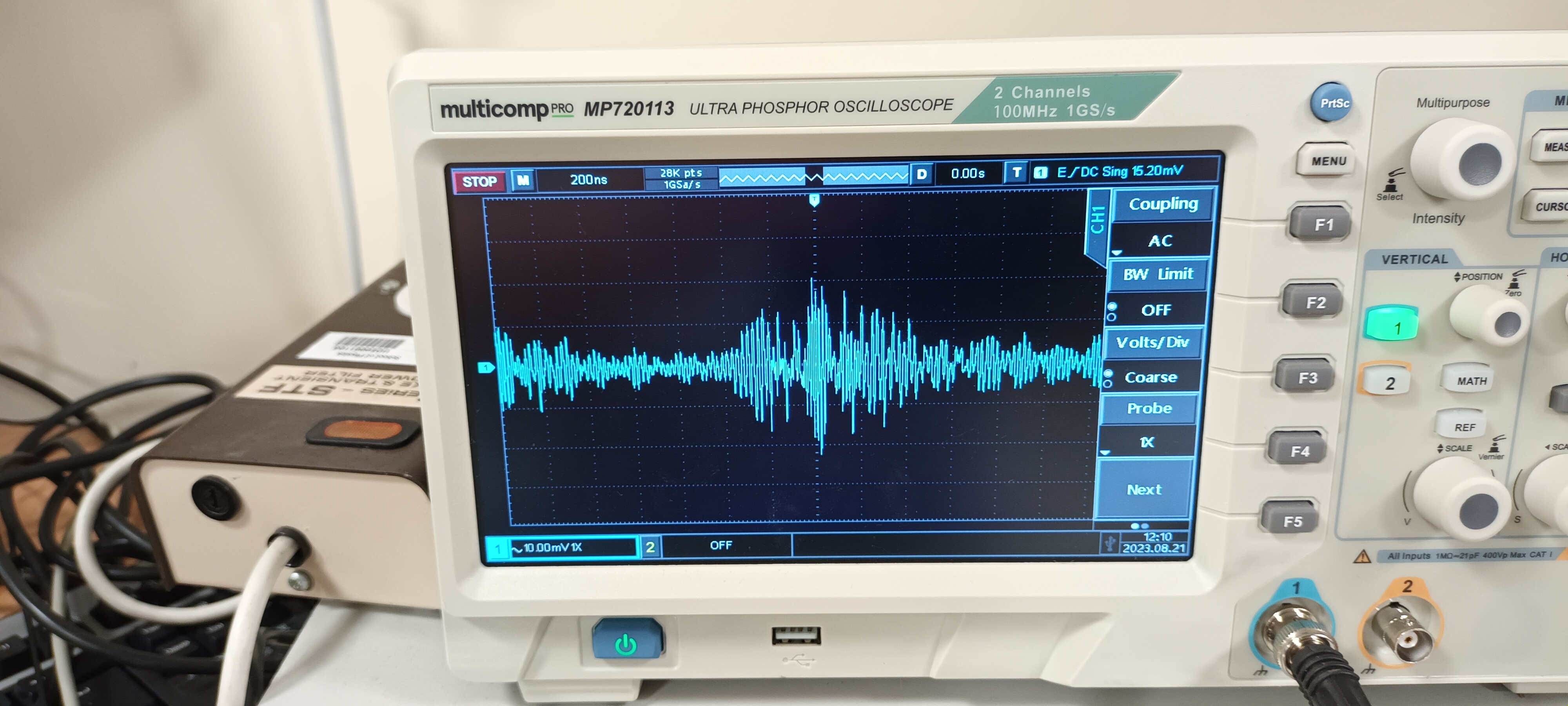

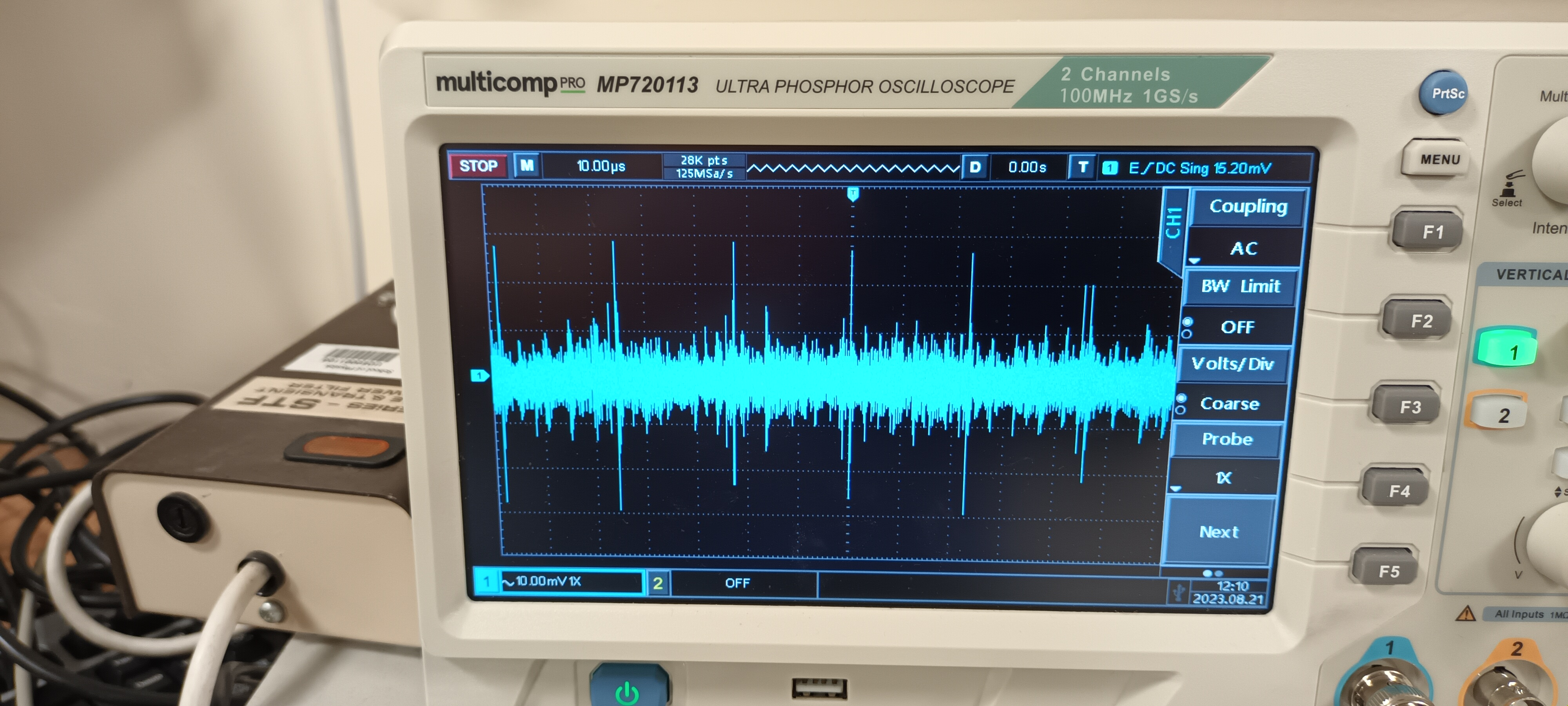

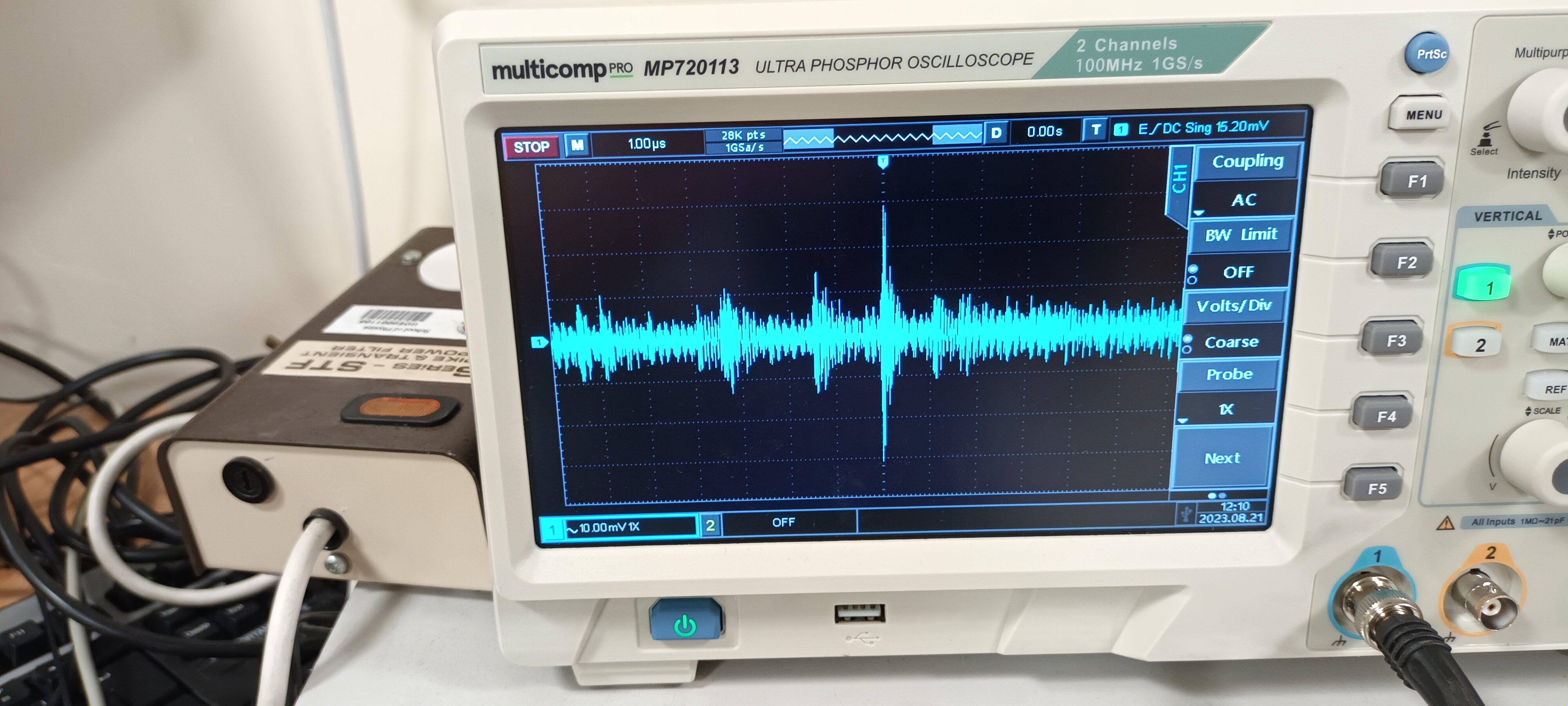

Silena 7710 - see attachment 1 Bias -60V Without ac mains filter - attachments 2-6 DSO ch#1 AC/1M - y: 10mV/div x: 100ns, 200ns, 1us, 2us & 10us/div With ac mains filter - attachments 7-11 ( see https://elog.ph.ed.ac.uk/nToF/67 attachments 2 & 3 ) DSO ch#1 AC/1M - y: 10mV/div x: 100ns, 200ns, 1us, 2us & 10us/div Conclusion - Claud Lyons Ltd STF Series Surge & Transient Power Filter makes little observable difference to HF noise transients observed
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4000x1800
Attachment 2:
Original size: 4000x1800
Attachment 3:
Original size: 4000x1800
Attachment 4:
Original size: 4000x1800
Attachment 5:
Original size: 4000x1800
Attachment 6:
Original size: 4000x1800
Attachment 7:
Original size: 2560x1152
Attachment 8:
Original size: 2560x1152
Attachment 9:
Original size: 2560x1152
Attachment 10:
Original size: 2560x1152
Attachment 11:
Original size: 2560x1152
