Entry time:
Sat Sep 30 12:14:52 2023
Author
*
:
Subject
*
:

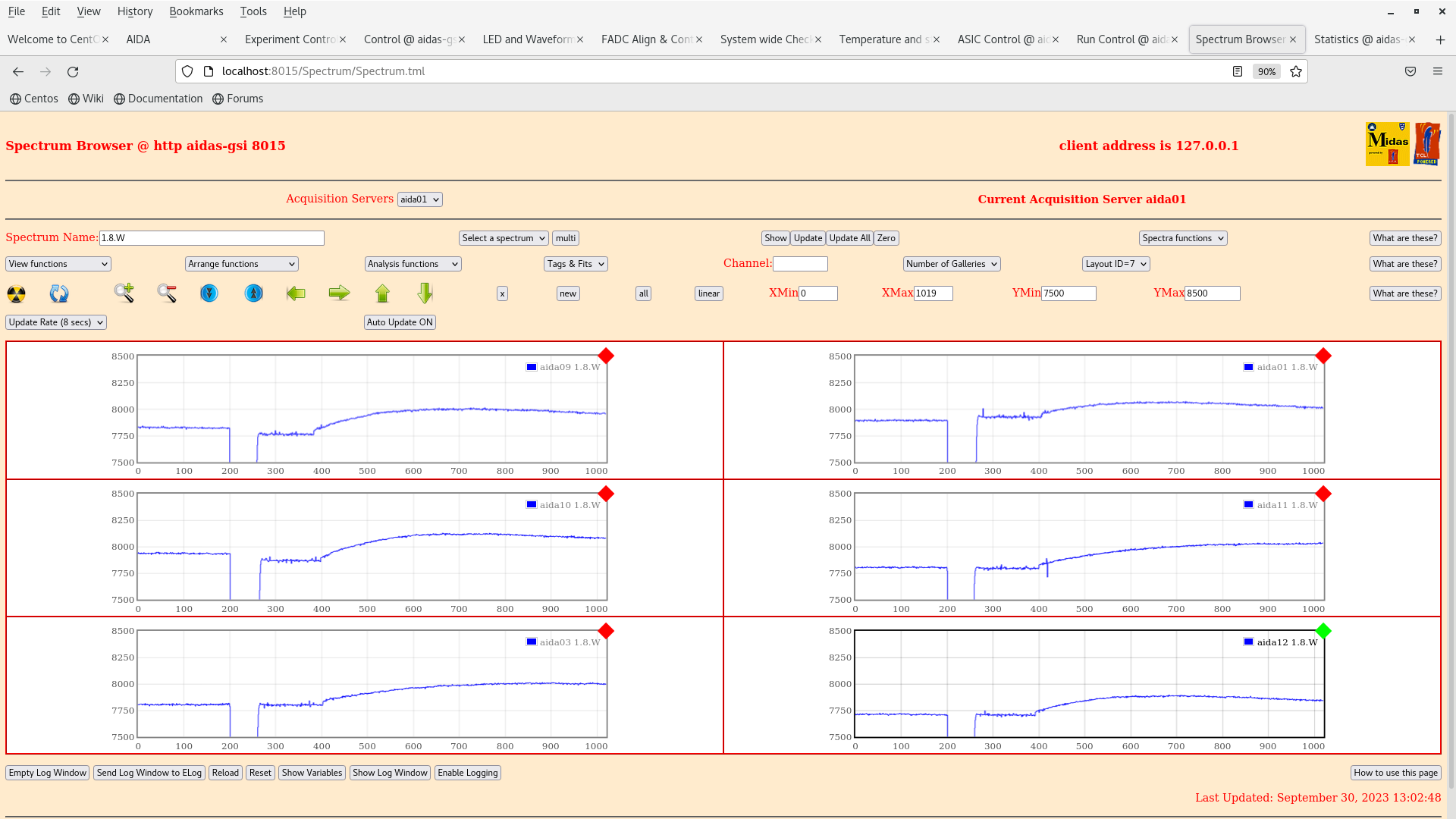

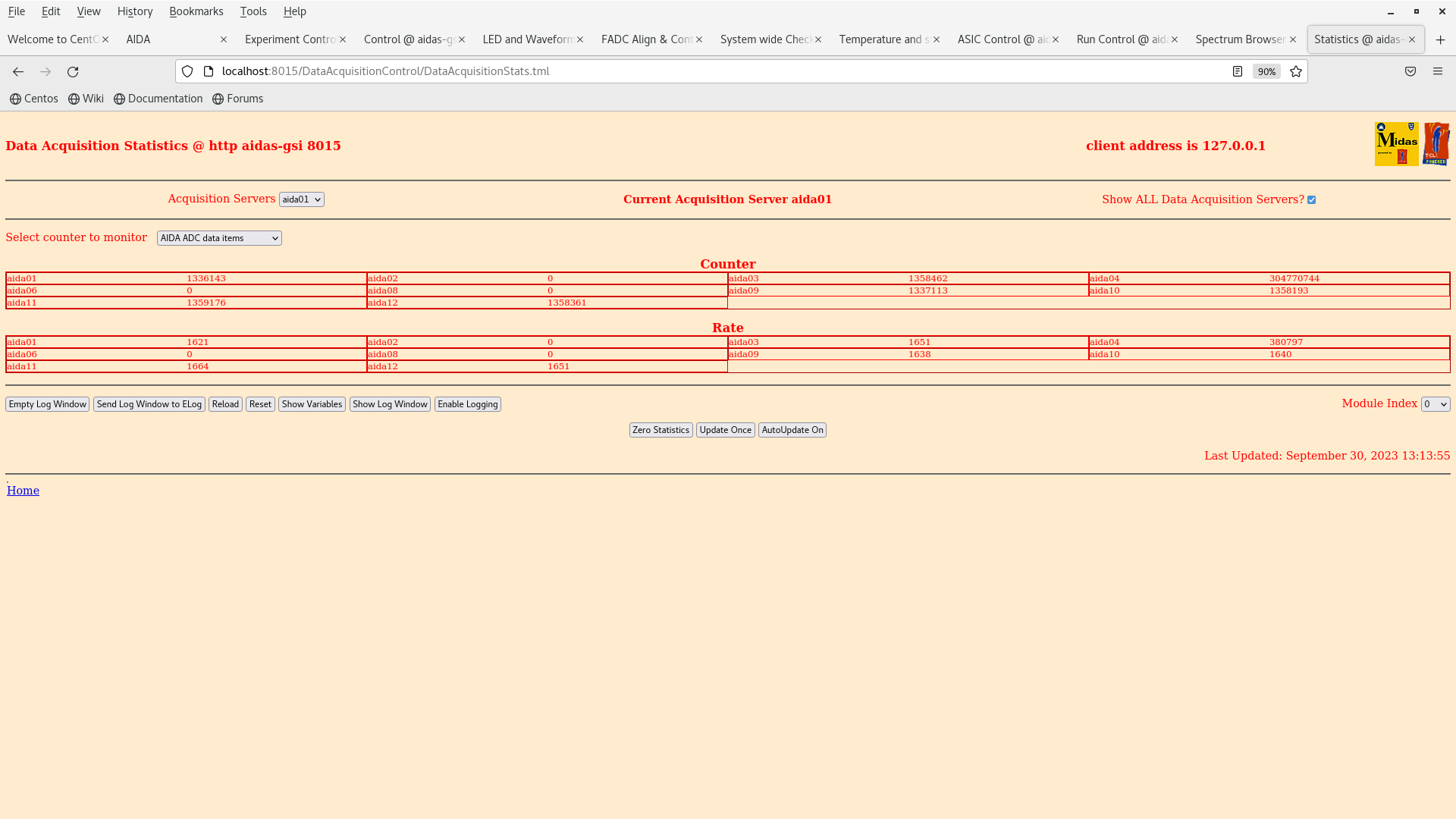

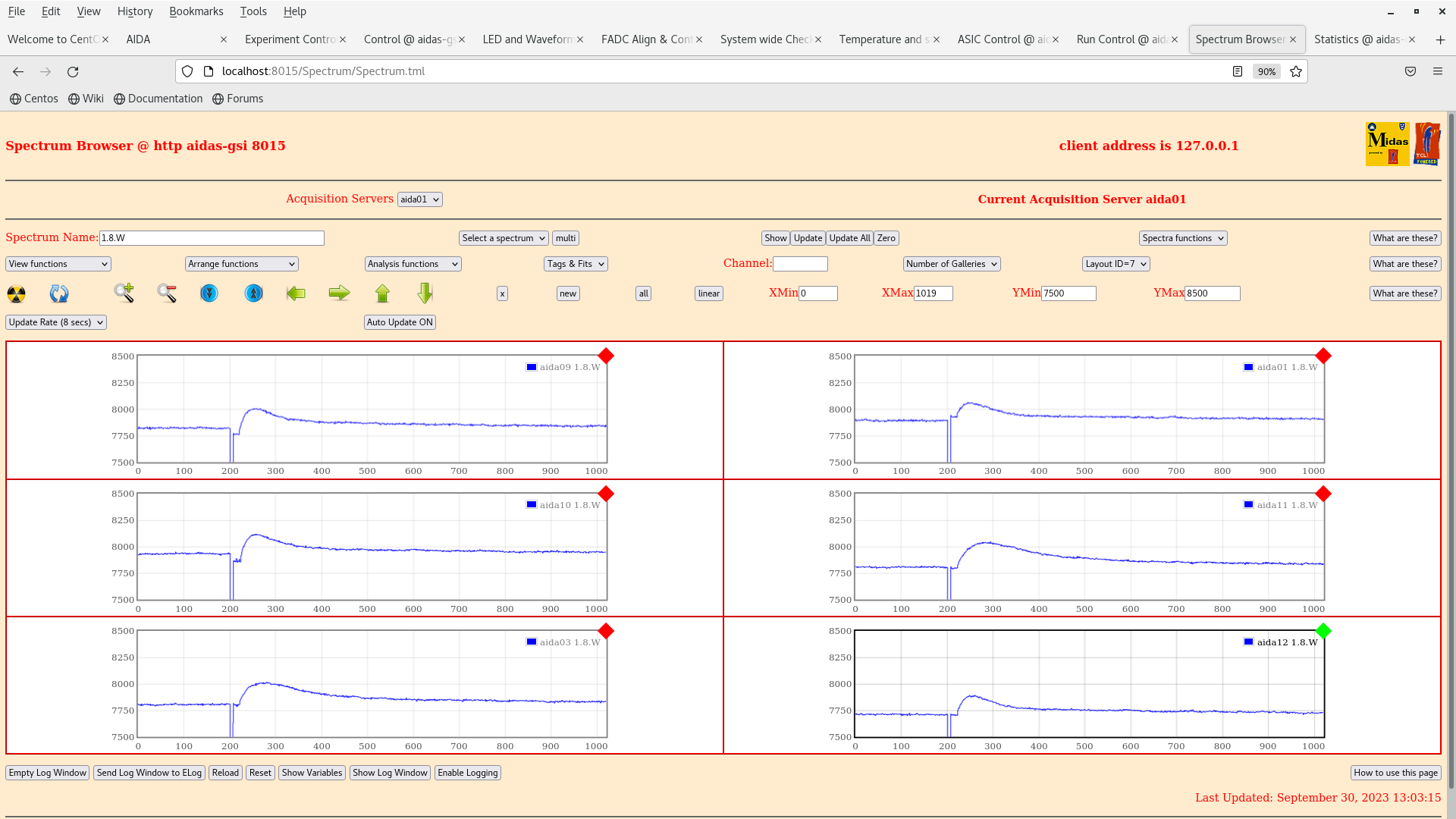

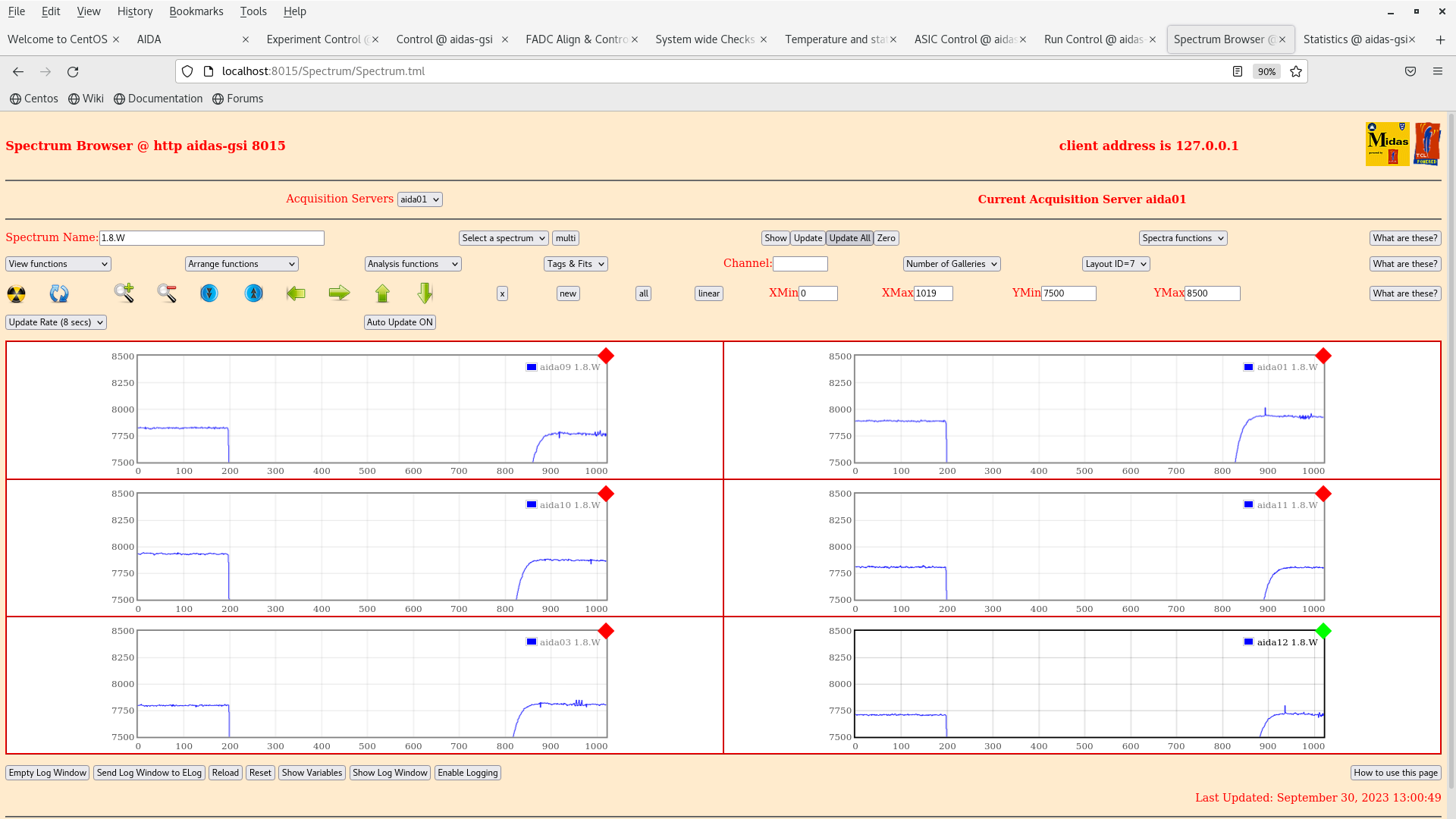

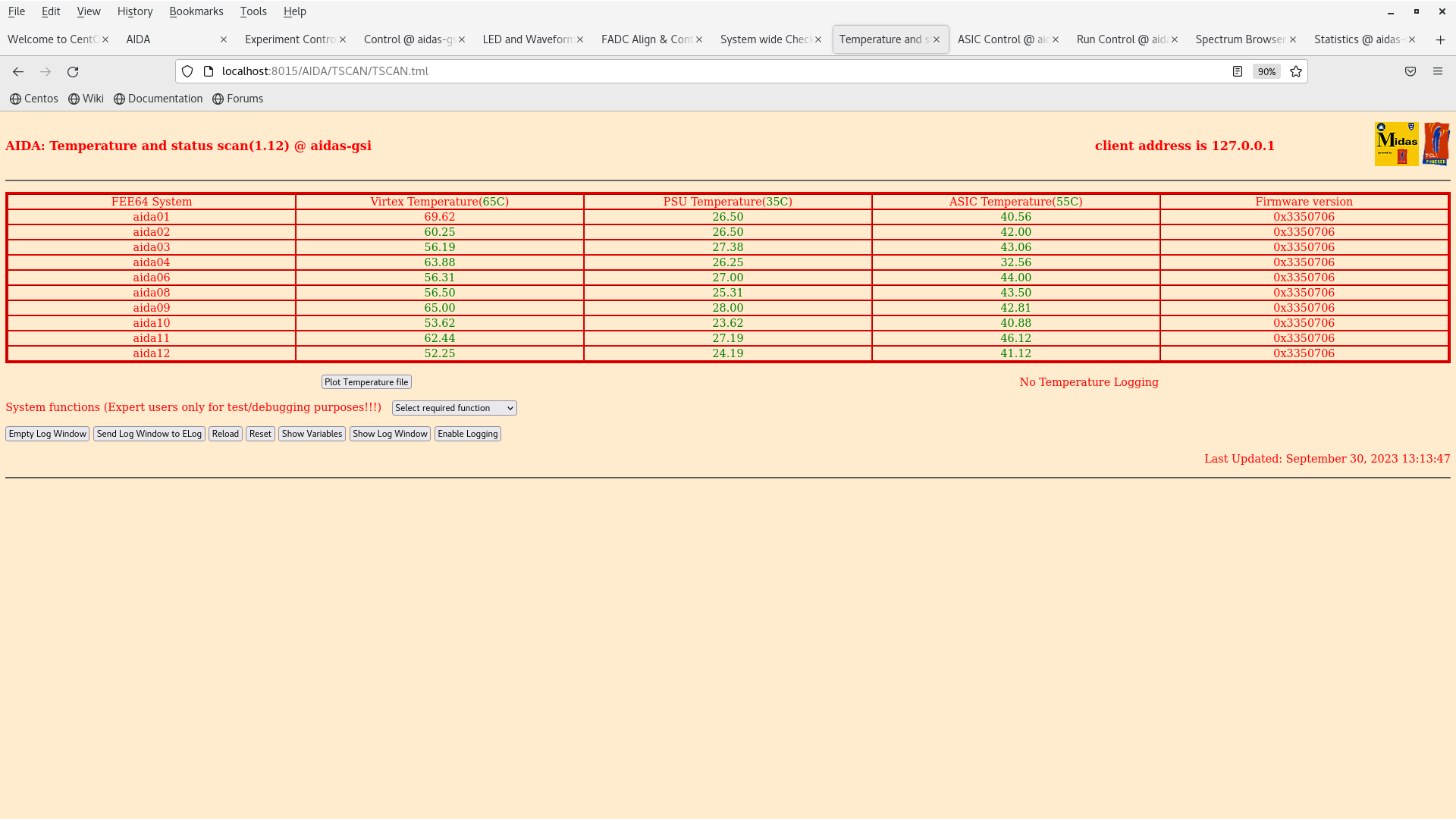

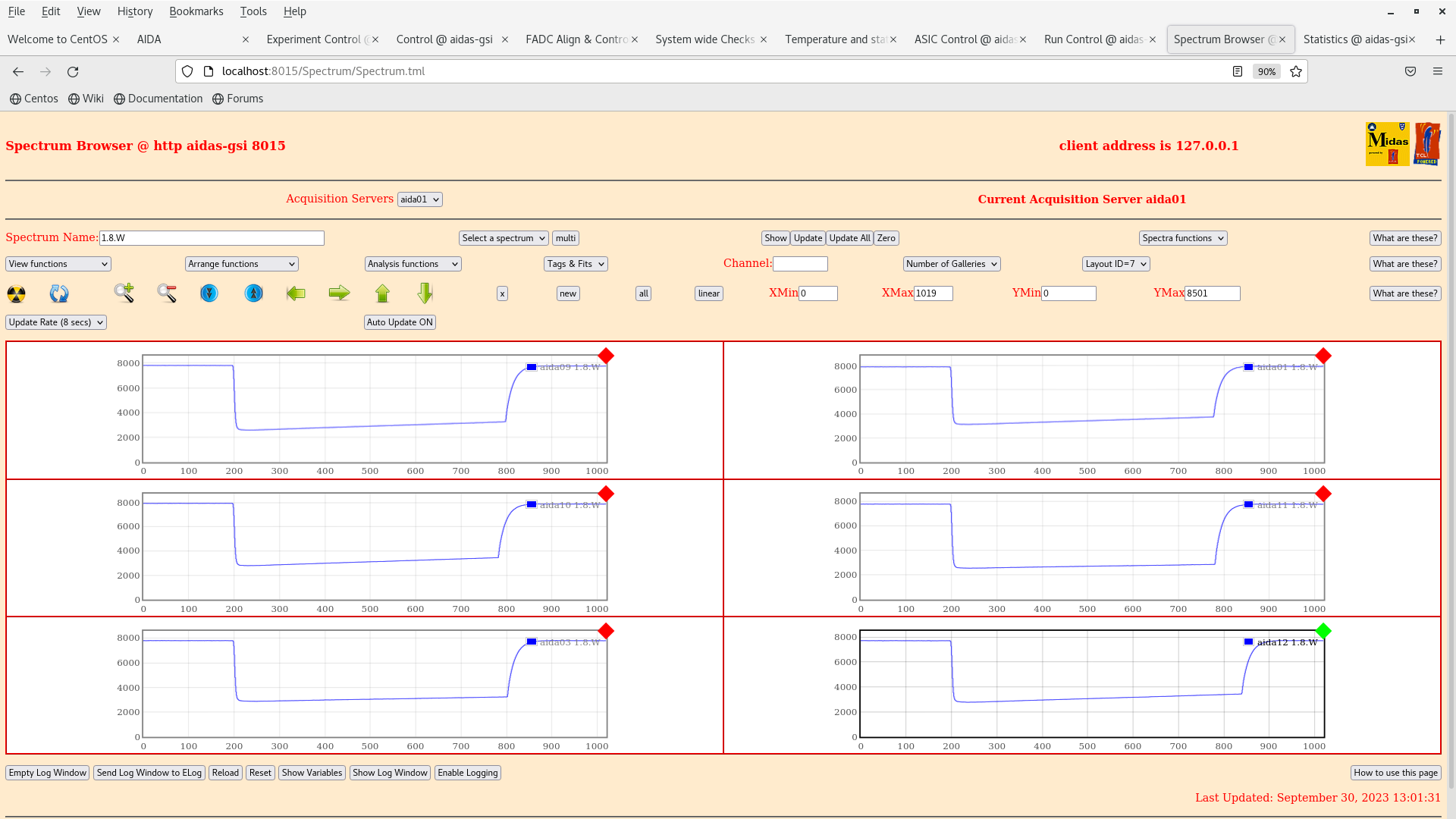

12.54 Power up All system wide checks OK per FEE64 p+n 1.8.W spectra - attachments 5-10 20us, 200us and 2000us FSR per FEE64 p+n 1,8.L spectra - attachment 3 aida01 pulser peak width 15 ch FWHM per FEE64 Rate spectra - attachment 4 BNC PB-5 pulser Amplitude 10.0V Attenuation x10 Decay 1ms Frequency 25Hz Polarity + ( n+n Ohmic test input from EG&G Ortec 534 Sum & Invert Amplifier not connected ) Clamp ON ASIC settings 2021Apr29-13-16-00 slow comparator 0x64 FEE64 temperatures OK - see attachment 2 ADC data item stats OK - see attachment 1 MSL type BB18 24cm c 8cm DSSSD 3208-3/-21/-22 p+n junction side - 21 Ohm resistnace between bias pins n+n Ohmic side - 152 Ohm resistance between bias pins => all bias bond wires OK
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
