Entry time:
Tue Oct 3 09:14:59 2023
Author
*
:
Subject
*
:

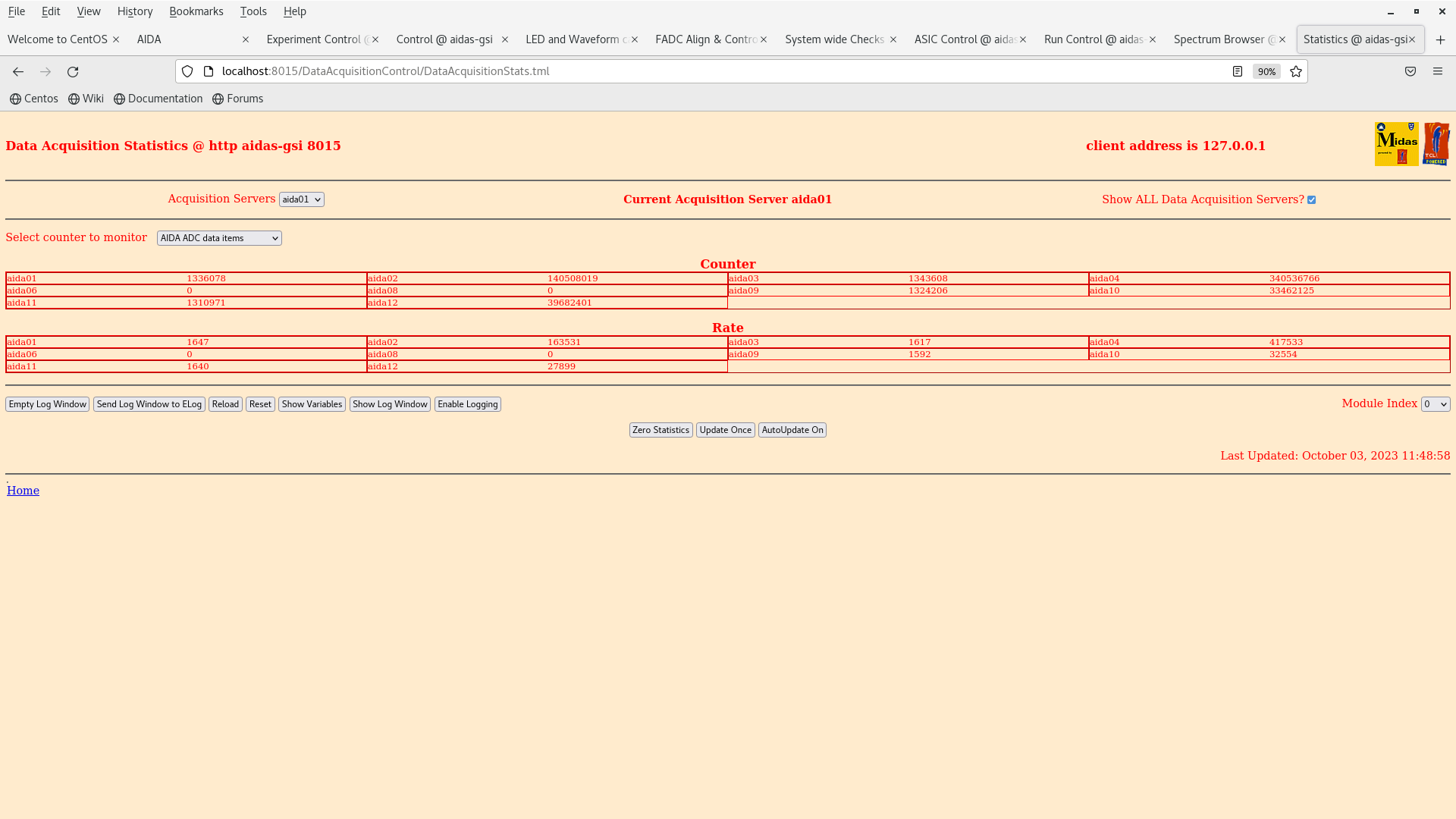

09.45 Power up 10.15 Bias +60V +5.95uA 10.22 Bias +60V +5.60uA 10.21 Bias +100V +21.1uA unstable 10.27 Bias +80V +10.1uA unstable 10.37 Bias + 60V +5.70uA stable 11.02 Bias +60V +5.78uA stable 11.22 CAEN N1419ET floating output ( internal LK removed ) Bias +100V +6.35uA 11.26 Bias +100V +10.59uA slowly increasing 11.39 Bias +100V +10.39uA unstable Slow comparator 0x64 observe high ADC data item stats for aida10 & aida12 - attachment 1 - expected rate 25Hz x 64 = 1600 - problem with this wafer and/or adaptor PCBs? N.B. aida04 asic #1 is u/s and running at very high rates N.B. rates in aida10 & aida12 dominated by a few hot channels ( not the usual suspects ) - attachment 2 12.00 Bias +100V +13.0uA unstable 12.20 Bias +100V 12.535uA unstable
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
