Entry time:
Sun Oct 8 14:51:59 2023
Author
*
:
Subject
*
:

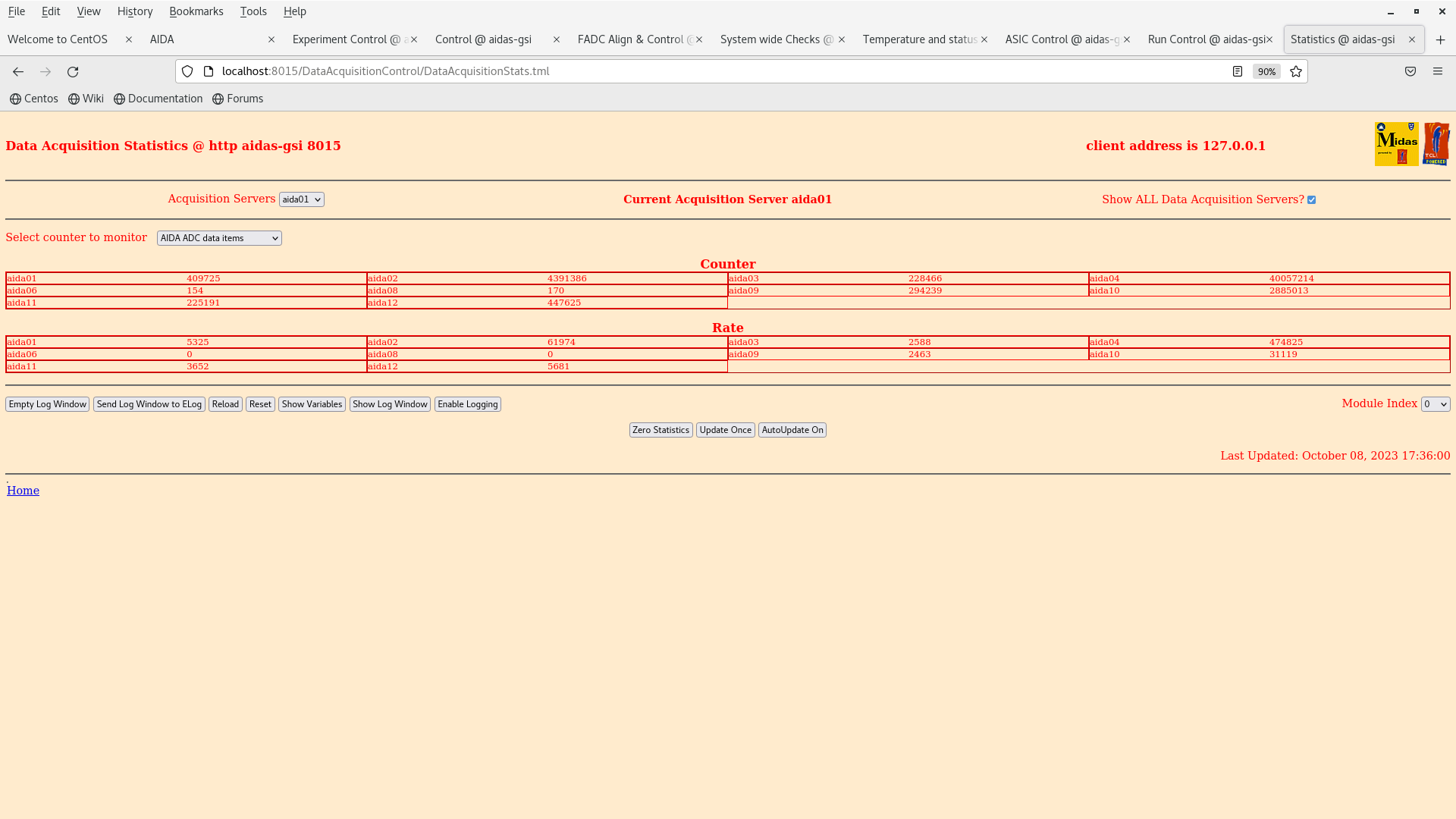

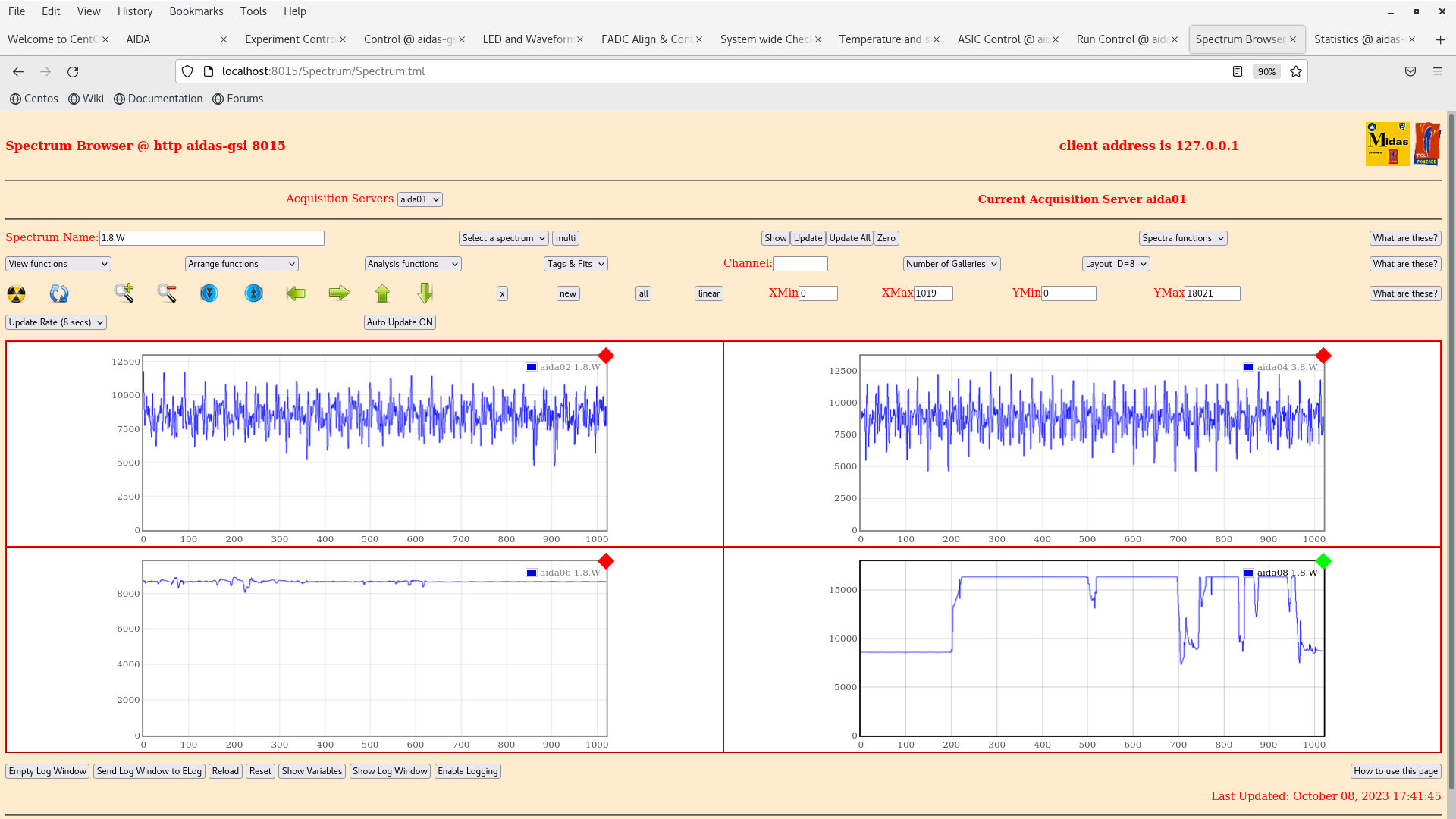

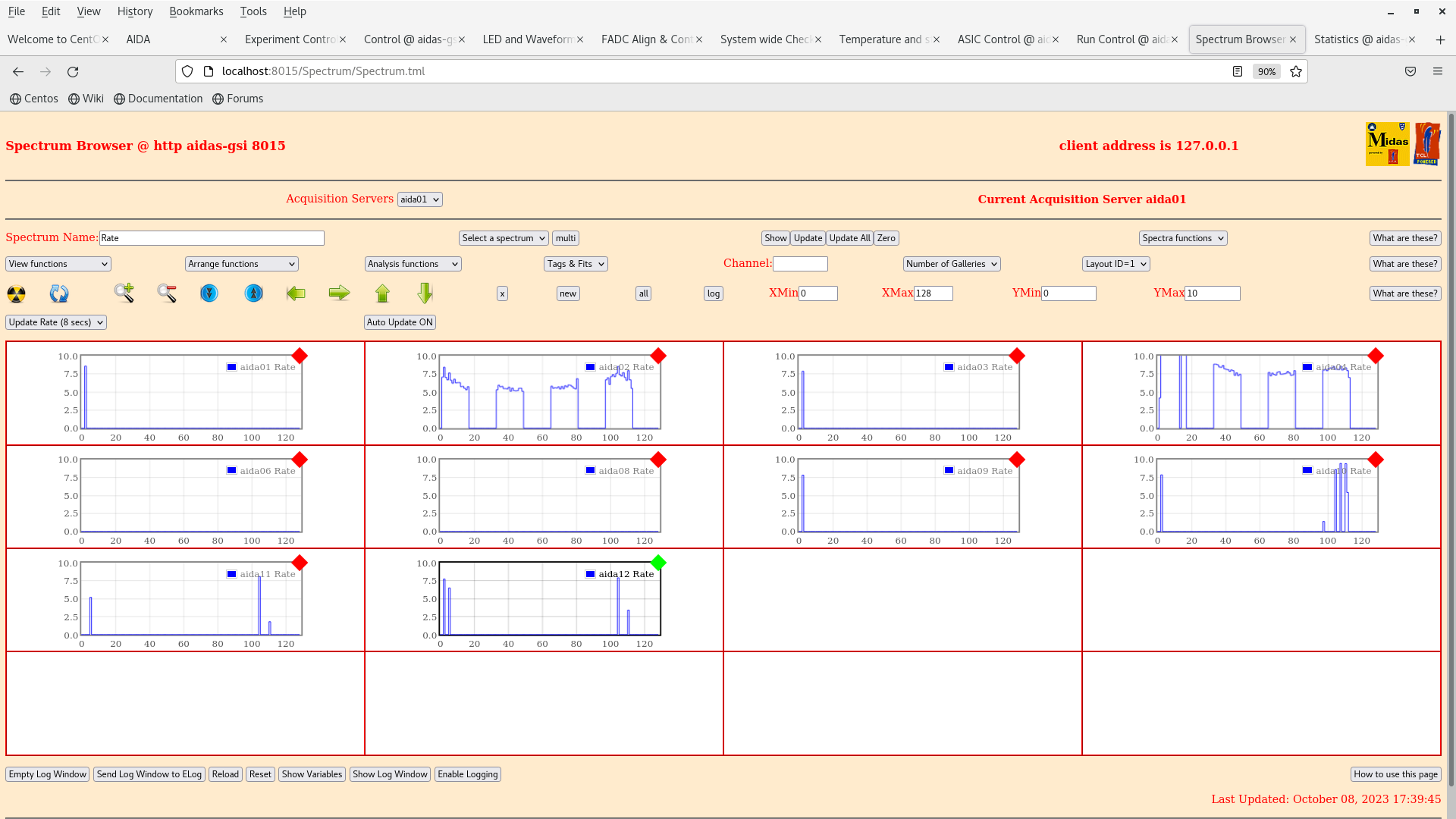

Slow comparator 0xf DSSSD HV +120V +6.400uA - attachment 3 per FEE64 Rate spectra - attachment 1 ADC data item stats - attachment 2 test + disconnected at start of chain aida10, aida1 ... aida12 ADC data item stats - attachment 4 per FEE64 Rate spectra - attachment 5 No difference observed DSSSD HV +130V +6.455uA - attachment 7 DSSSD HV +160V +6.605uA - attachment 6 per FEE64 1.8.W spectra - 2ms FSR - attachments 8 & 9 per FEE64 Rate spectra - attachments 10 & 11 ADC data item stats - attachment 12 Depletion+30V bias = 160V - no change to n+n noise, increased noise more generally 17.30 power off, HV off test + daisy chain removed from aida10, aida01 ... aida12 power on slow comparator 0x64 DSSSD bias +120V +6.455uA - attachment 13 ADC data item stats - attachment 14 per FEE64 Rate spectra - attachments 15 & 16 1.8.W spectra - 20us & 200us FSR - attachments 17 & 18 extrinsic noise worse but restricyted to a few hot channels slow comparator 0xf per FEE64 Rate spectra - attachment 19 18.40 DSSD HV to aida04 ( standard coaxial cable ), N1419ET floating output HV chain aida12, auda03, aida11 aida03 LK1 and LK3 fitted slow comparator 0x64 DSSSD bias +120V +6.435uA - attachment 20 ADC data item stats - attachment 21 per FEE64 Rate spectra - attachments 22-24 1.8.W spectra - 200us FSR - attcahments 25 & 26 extrinsic noise worse esp. n+n Ohmic side p+n rates dominated by hot channels
