Entry time:

Mon Oct 9 09:03:10 2023

Author*:

Subject*:

09.55 Water pressure and temp OK
      Power on

All system wide checks OK

DSSSD HV +120V +5.600uA - attachment 1

CAEN N1419ET floating output
      standard coaxial cable to aida04, HV daisy chain aida12, aida03 & aida11
      aida03 LK1 & LK3 fitted

test + & - daisy chains removed

FEE64 temps OK - attachment 2

      slow comparator 0x64
      ADC data item stats - attachment 3

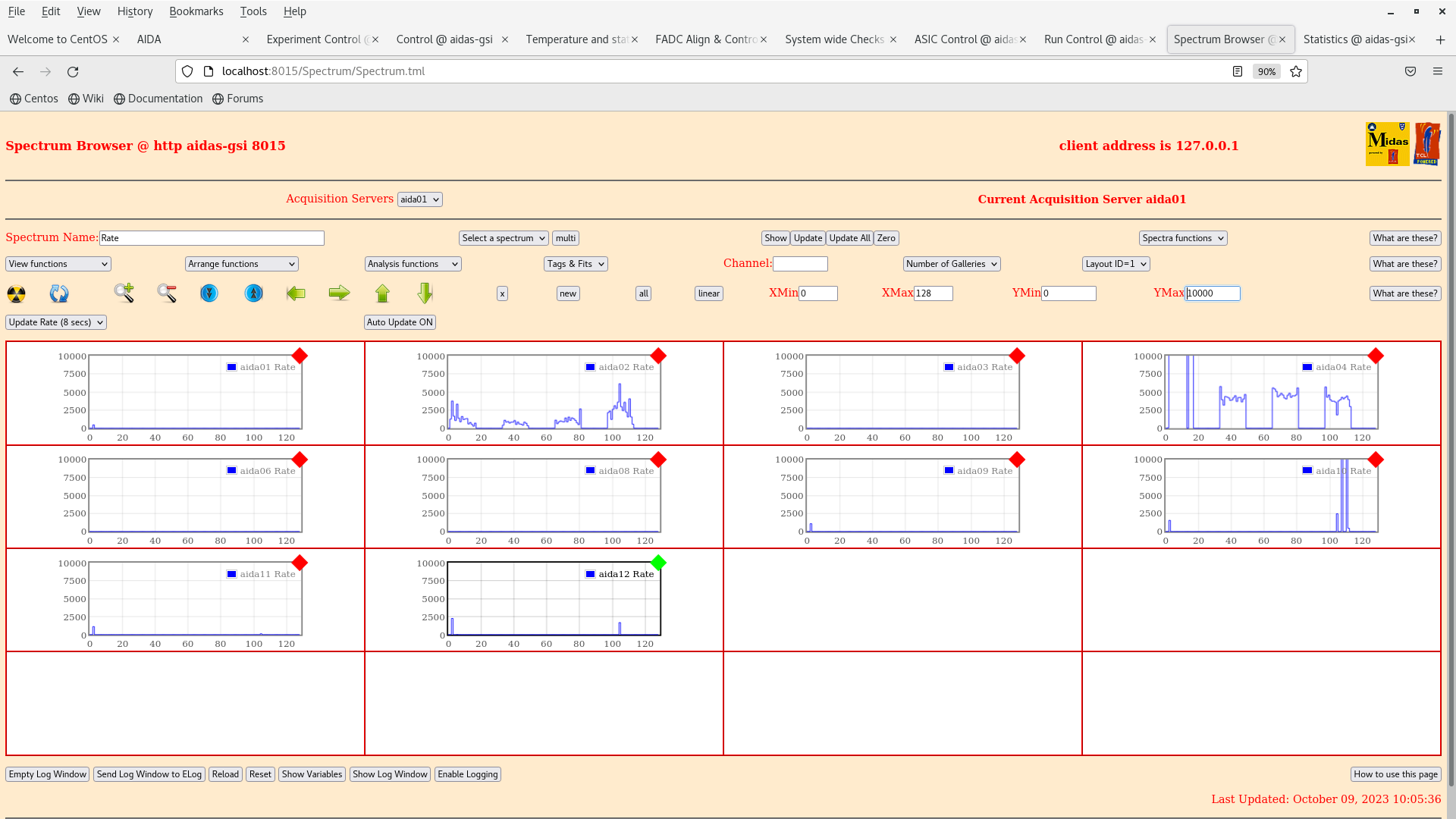

per FEE64 Rate spectra - attachments 4-6

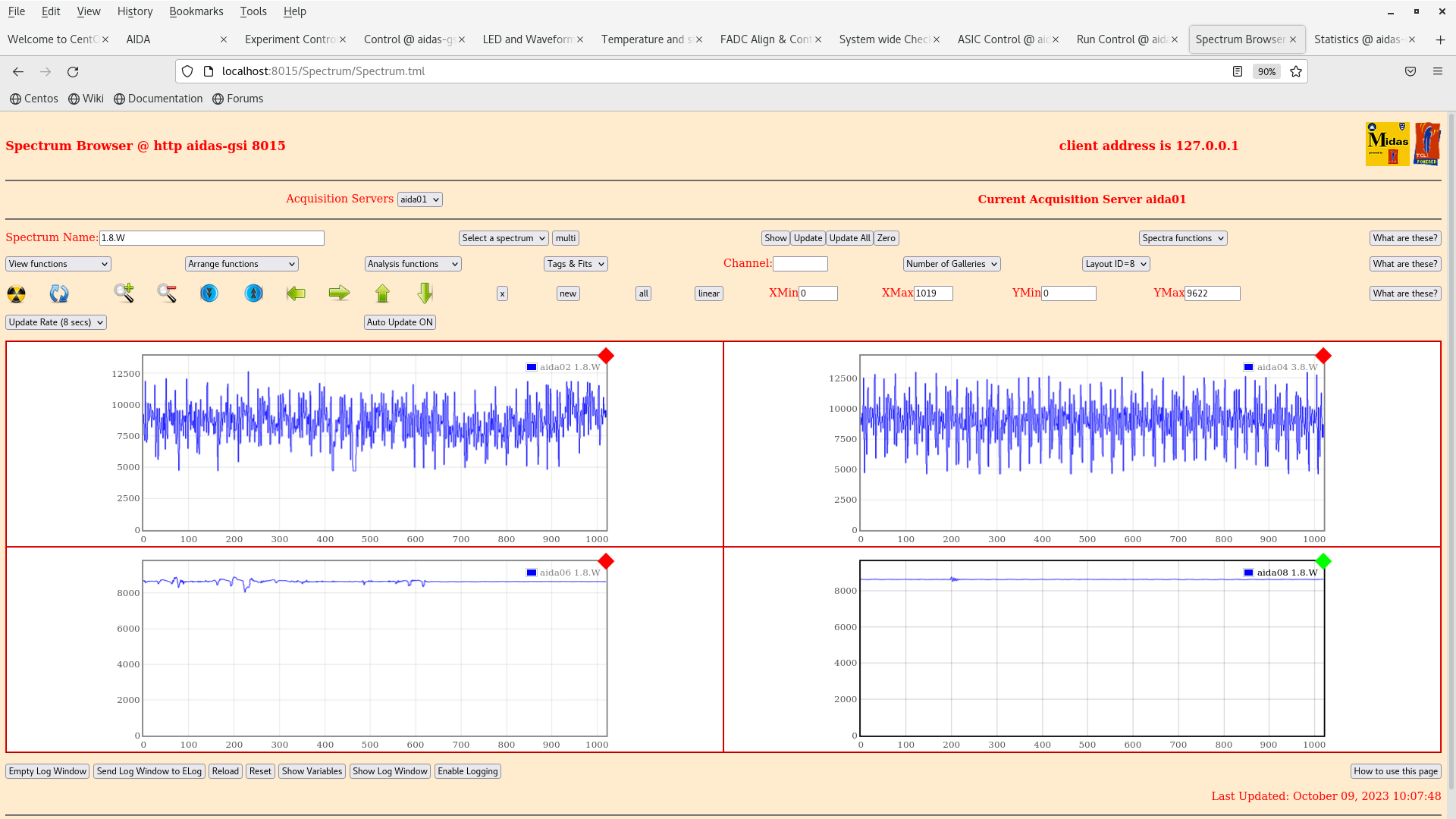

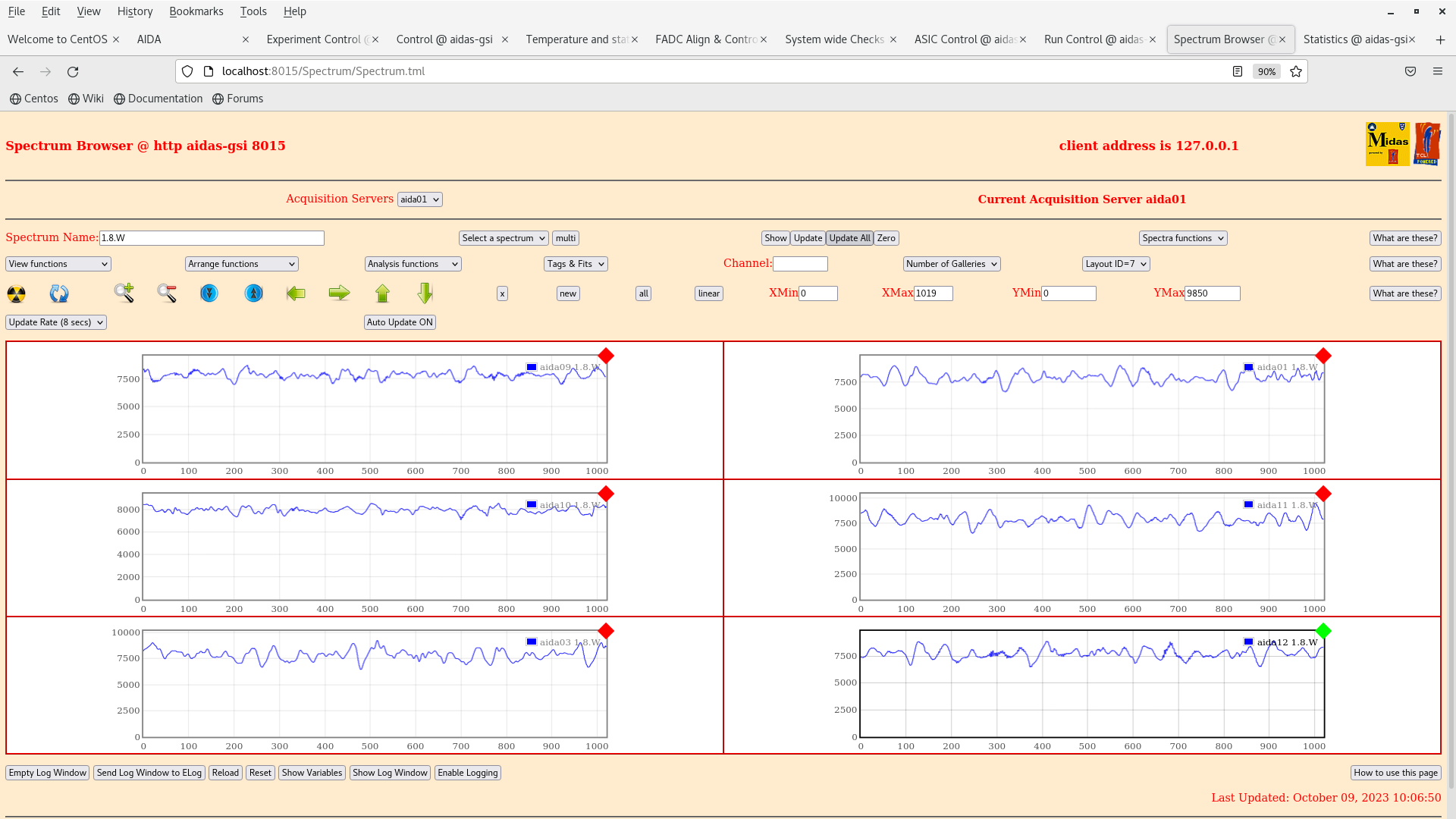

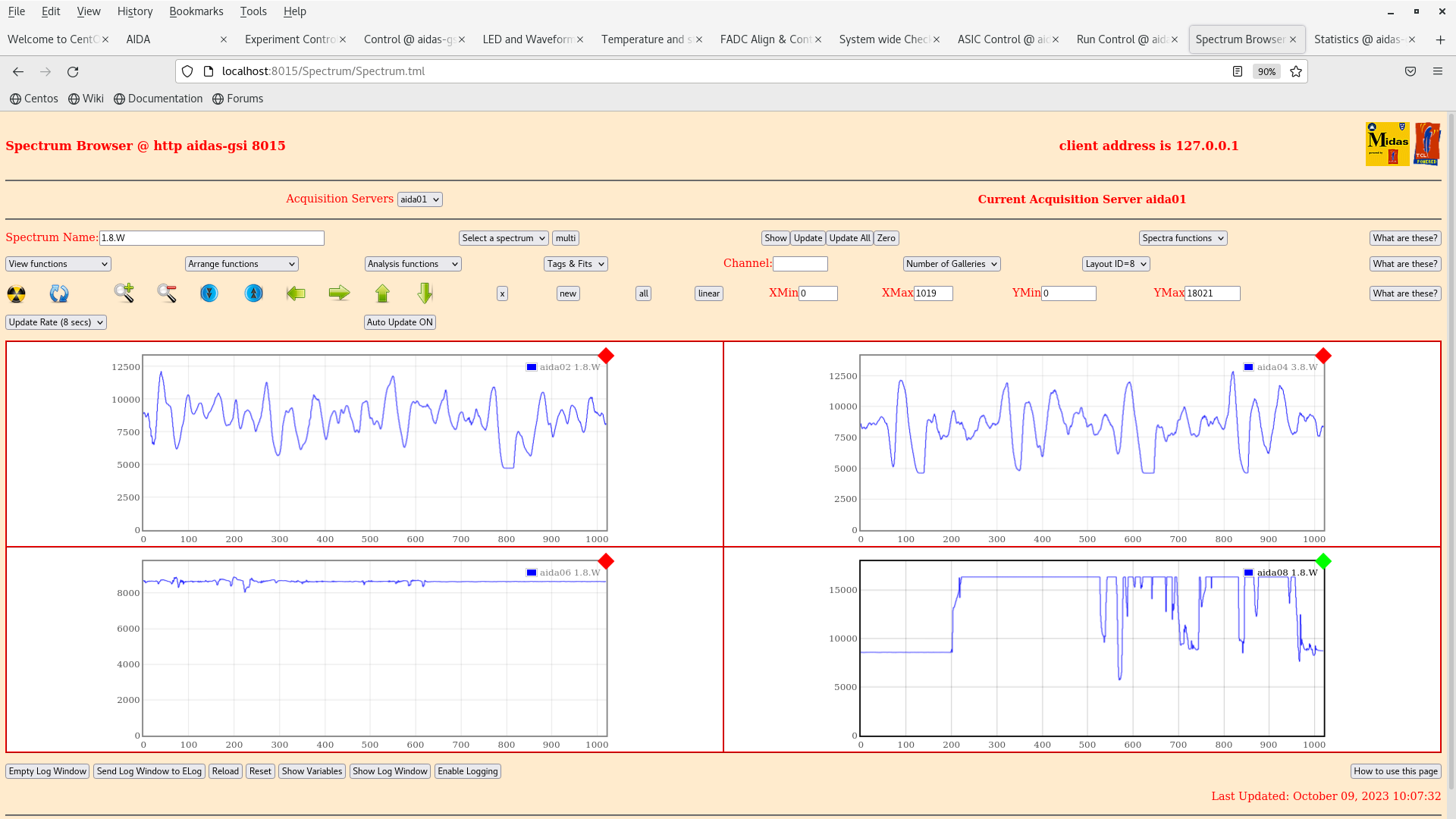

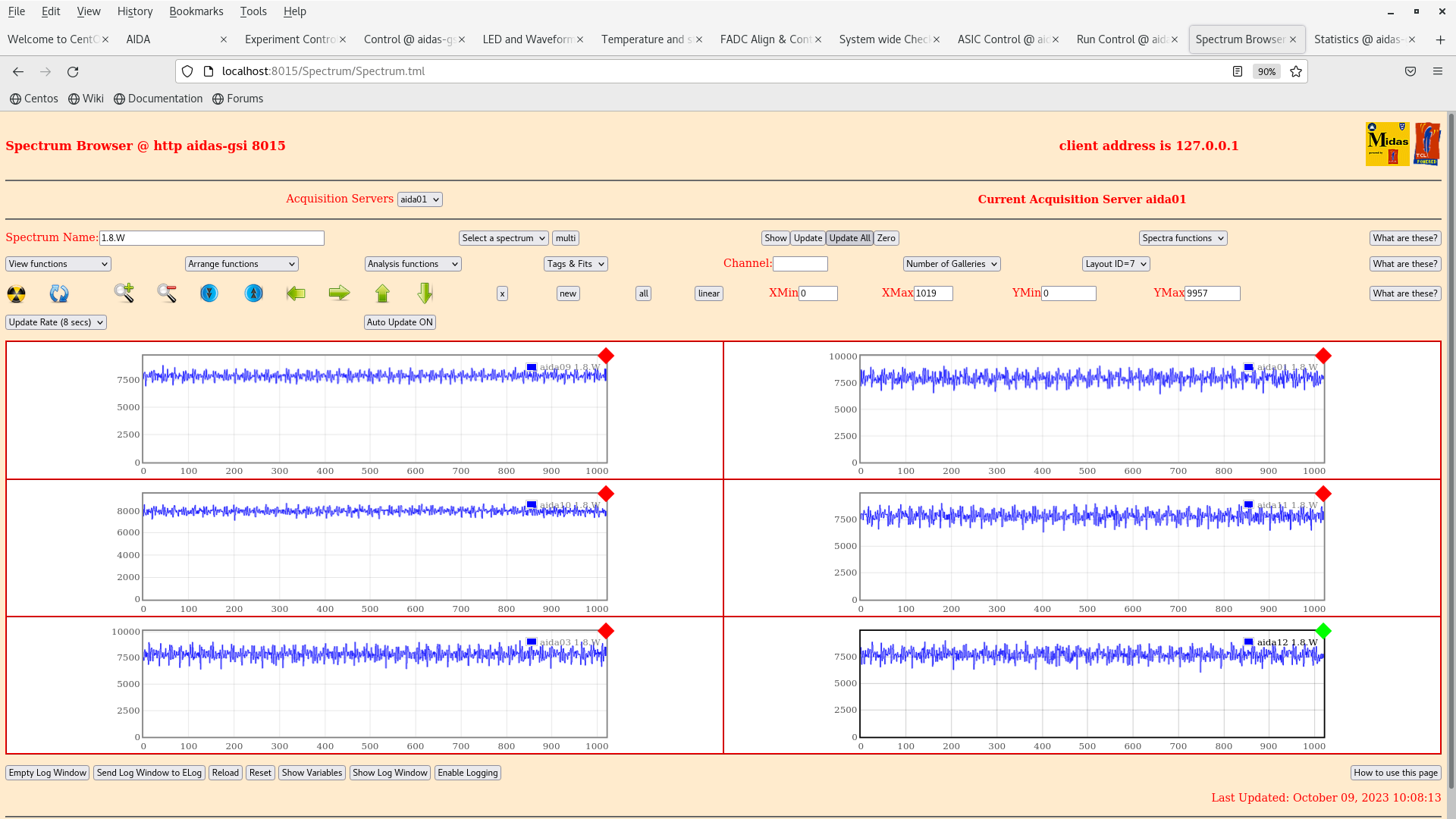

1.8.W spectra - 20us & 200us FSR - attachments 7-10

11.00 CAEN N1419ET floating -> gnd output ( via internal LK )
      standard coaxial cable to aida04
      aida03 LK1 & LK3 fitted

test + daisy chain removed, test - daisy chain aida02 - aida04

DSSSD HV +120V +5.955uA - attachment 11

slow comparator 0x64
      ADC data item stats - attachment 12

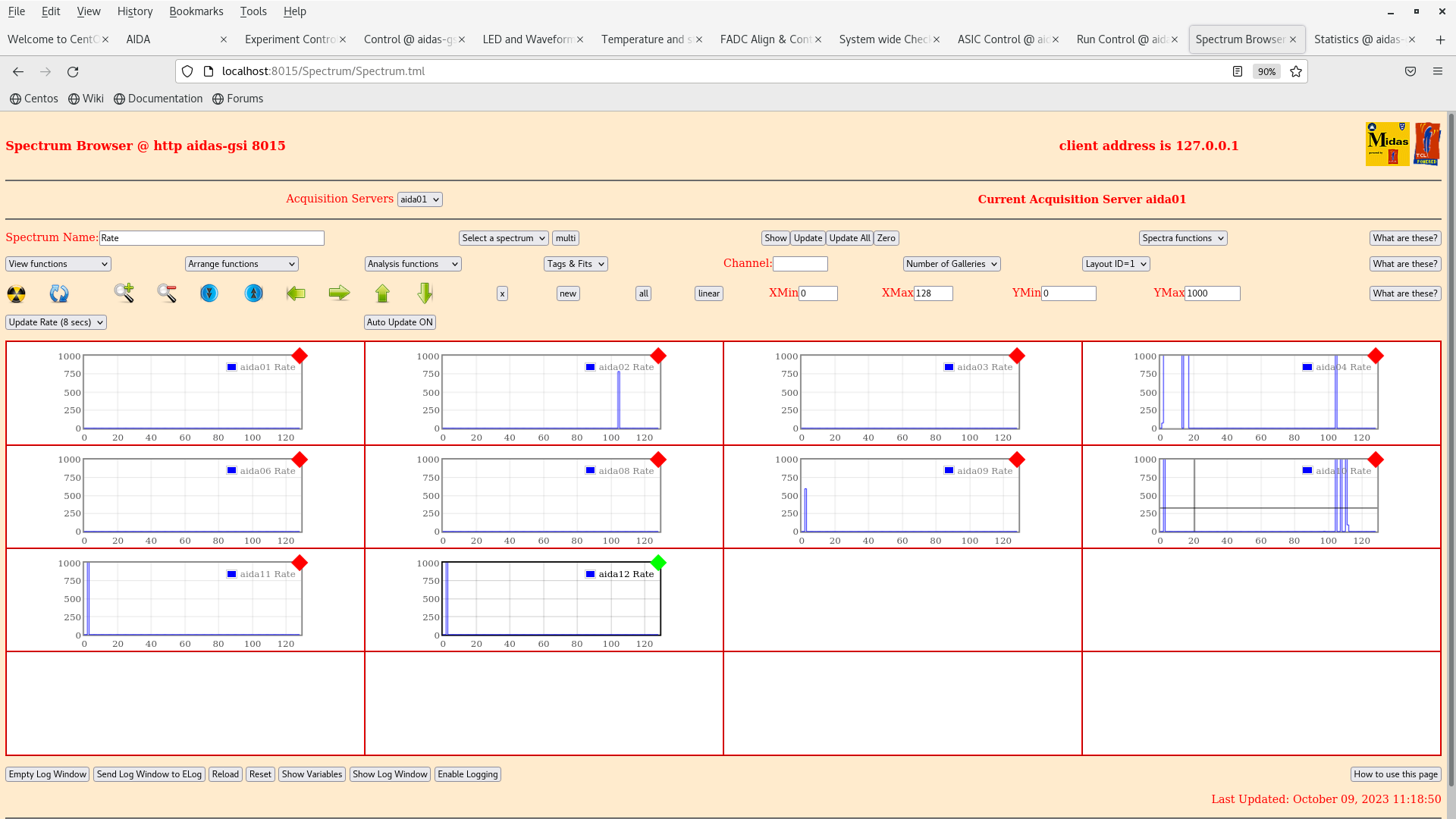

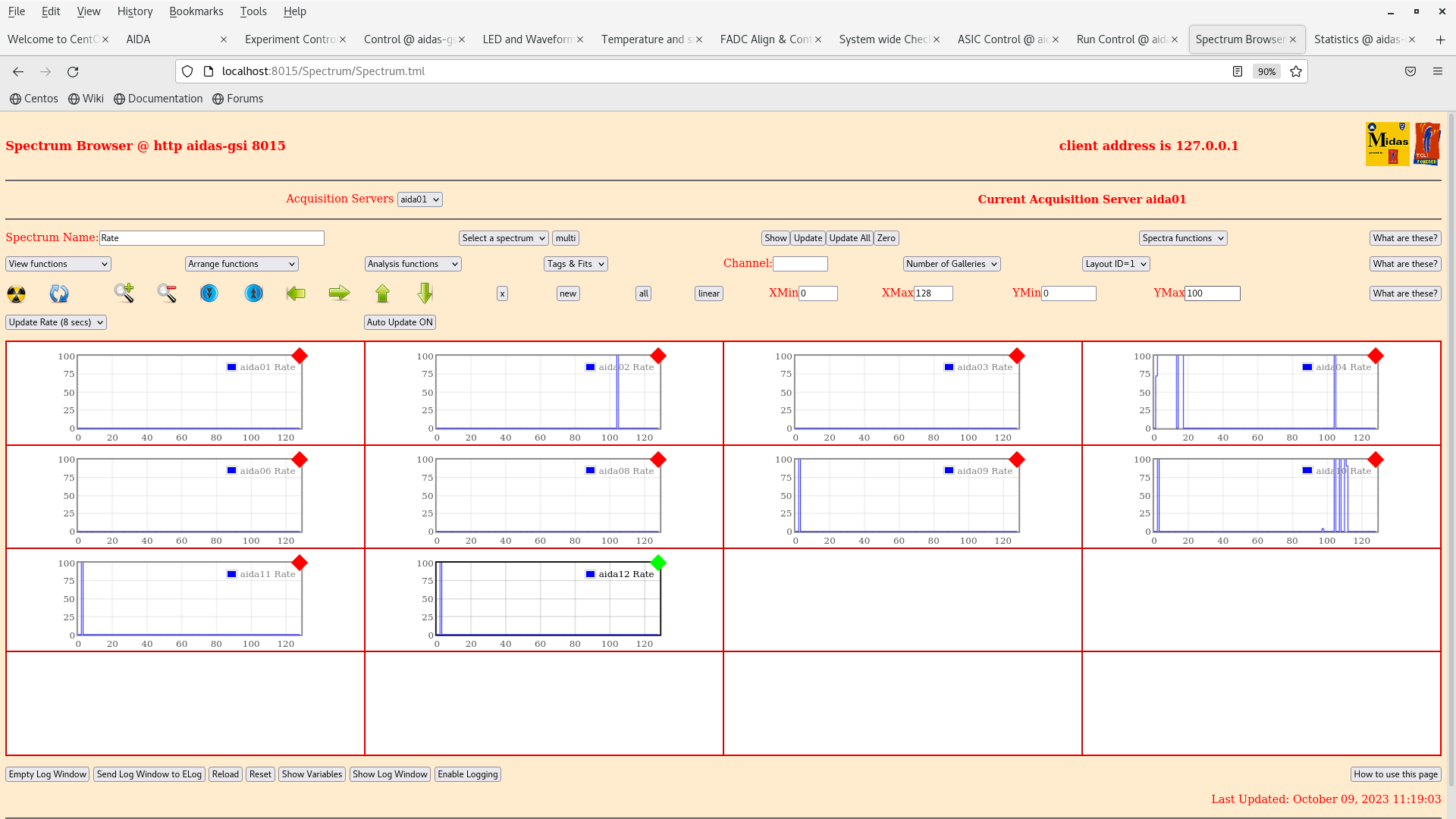

per FEE64 Rate spectra - attachments 13 & 14

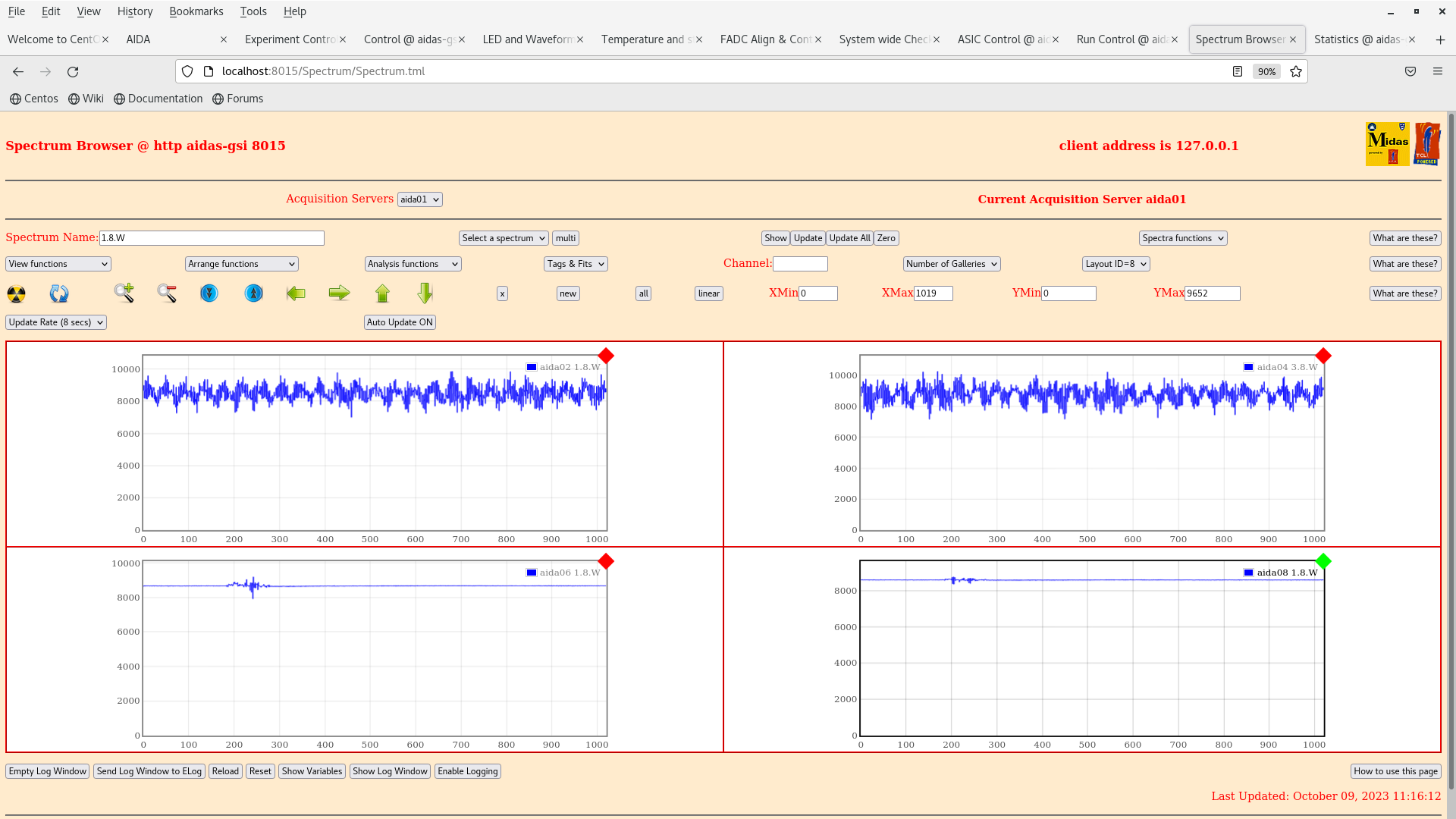

1.8.W spectra - 200us FSR - attachments 15 & 16

Overall, significant improvement in extrinsic noise for both p+n and n+n sides

slow comparator 0xf
      ADC data item stats - attachment 17

per FEE64 Rate spectra - attachment 18

11.50 LK1 fitted to aida12, aida03 & aida11

DSSSD HV +120V +6.030uA - attachment 19

slow comparator 0xf
      ADC data item stats - attachment 20

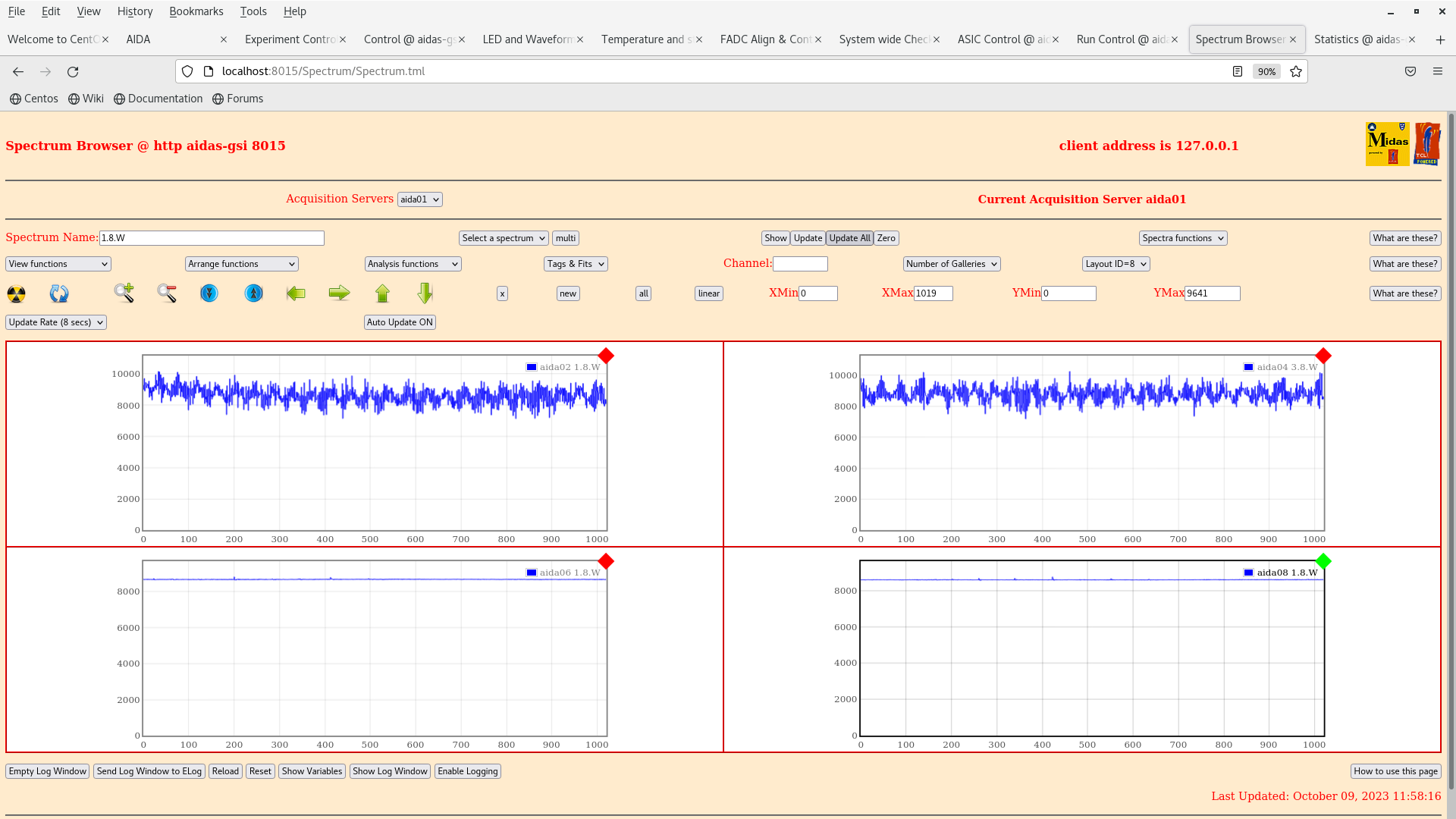

1.8.W spectra - 200us FSR - attachments 21 & 22

Incremental improvement in extrinsic noise for both p+n and n+n sides

12.20 LK1 fitted to aida12, aida03 & aida11, HV daisy chain aida12, aida03 & aida11 removed

DSSSD HV +120V +6.125uA - attachment 23

slow comparator 0xf
      ADC data item stats - attachment 24

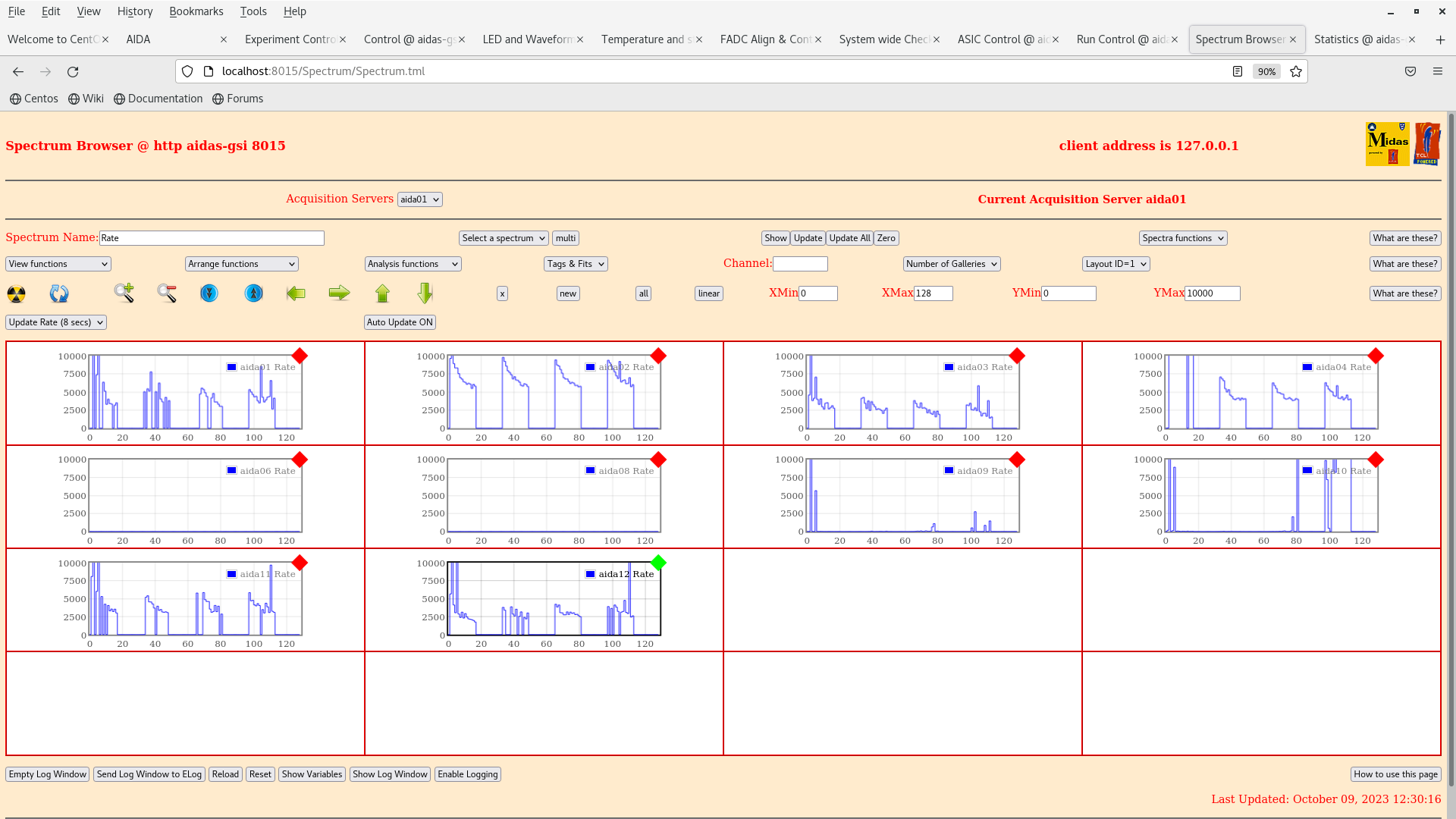

1.8.W spectra - 200us FSR - attachments 25 & 26

Little observable difference

12.40 test - daisy chain removed

slow comparator 0xf
      ADC data item stats - attachment 29

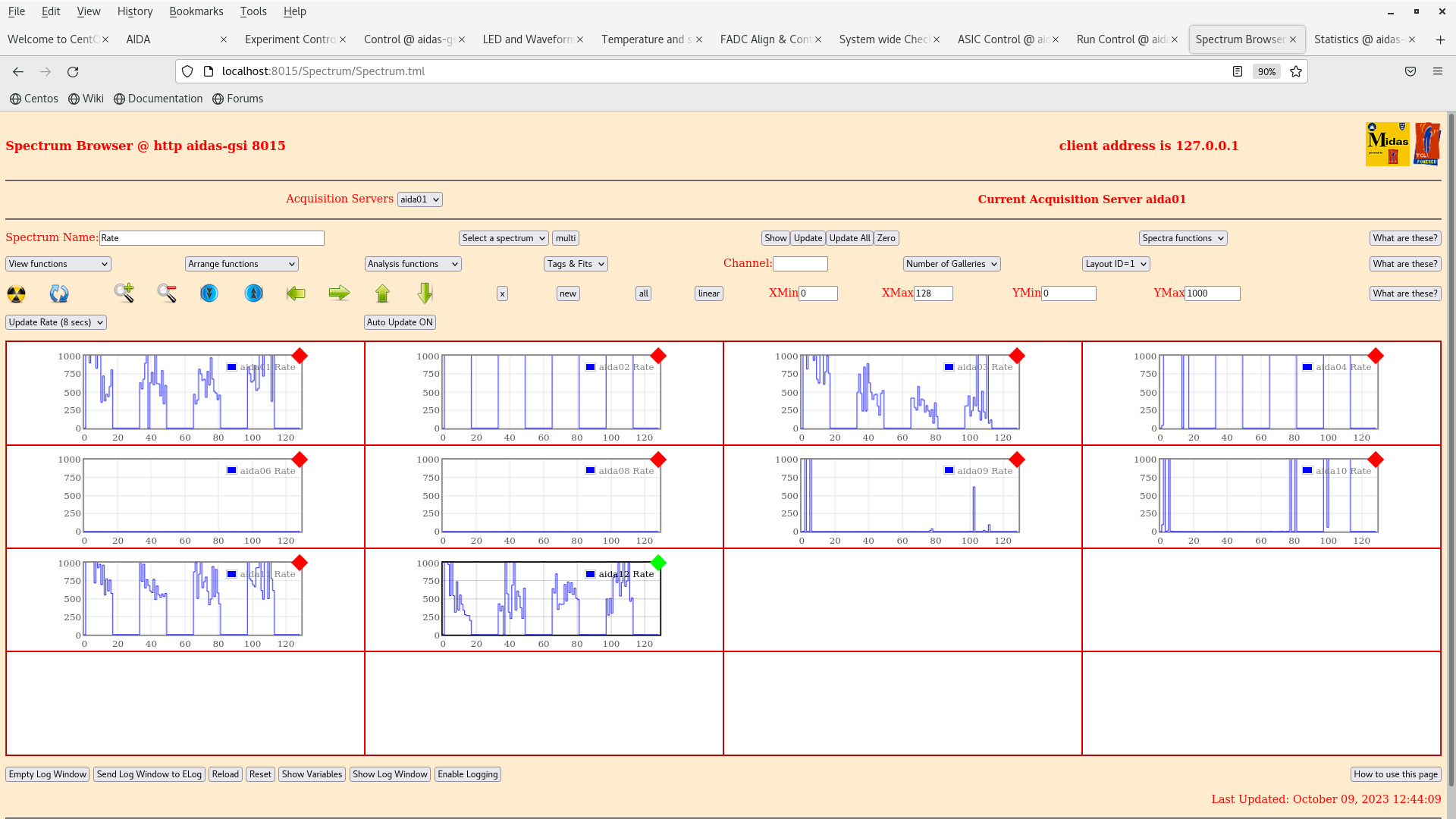

per FEE64 Rate spectra - attachments 30 & 31

1.8.W spectra - 200us FSR - attachments 32 & 33

Further improvement in extrinsic noise observed for both p+n and n+n sides

14.00 additional ThorLab inline filter added to HV coaxial to aida04

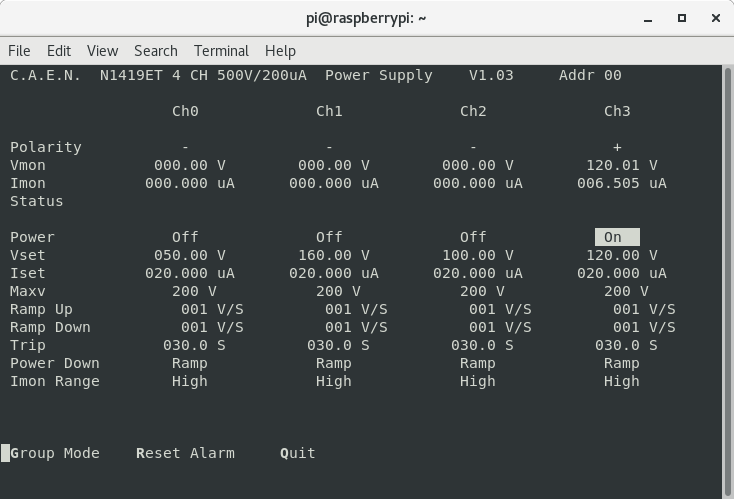

DSSSD HV +120V +6.505uA - attachment 34

slow comparator 0xf
      ADC data item stats - attachment 35

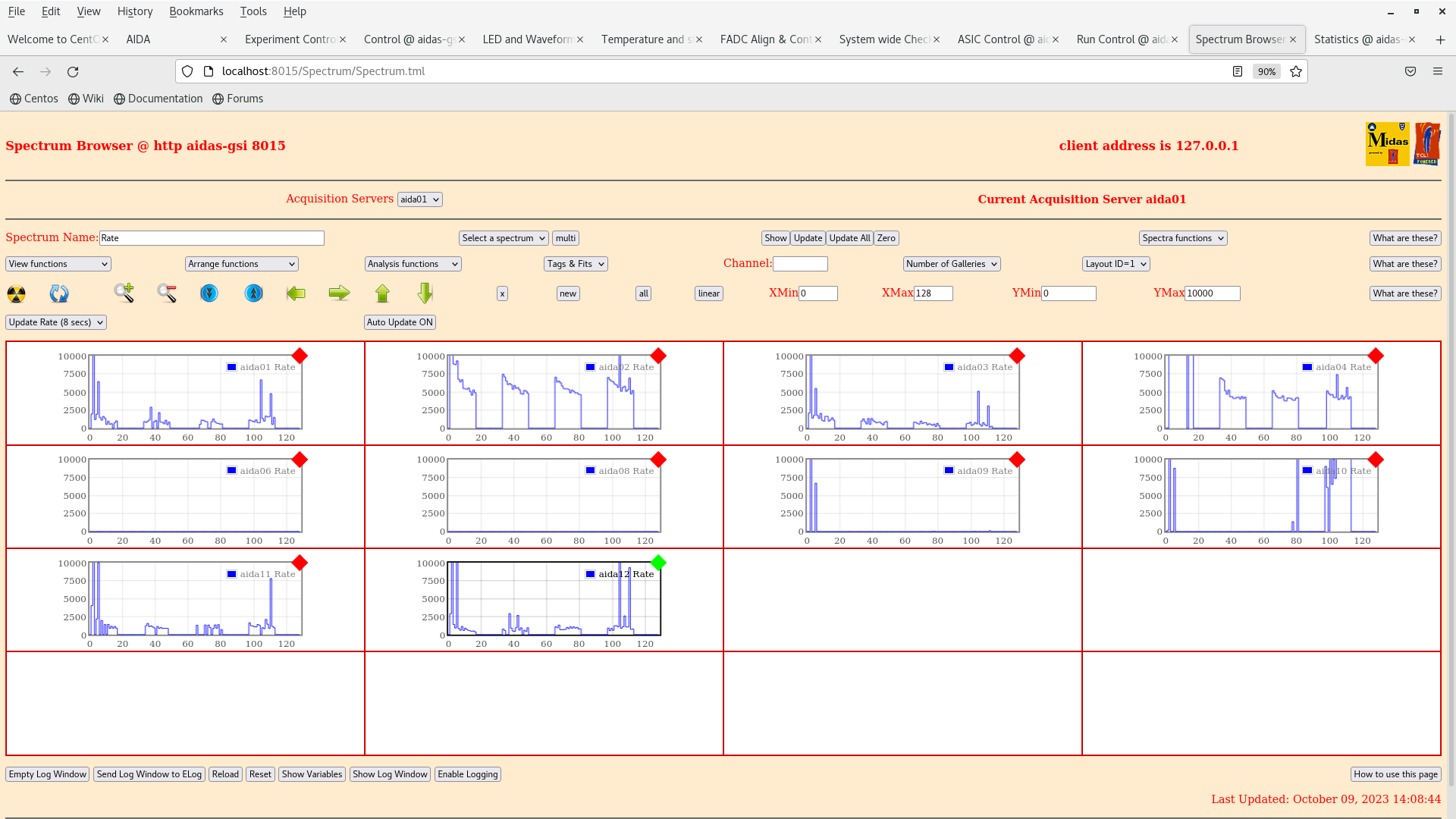

per FEE64 Rate spectra - attachments 36

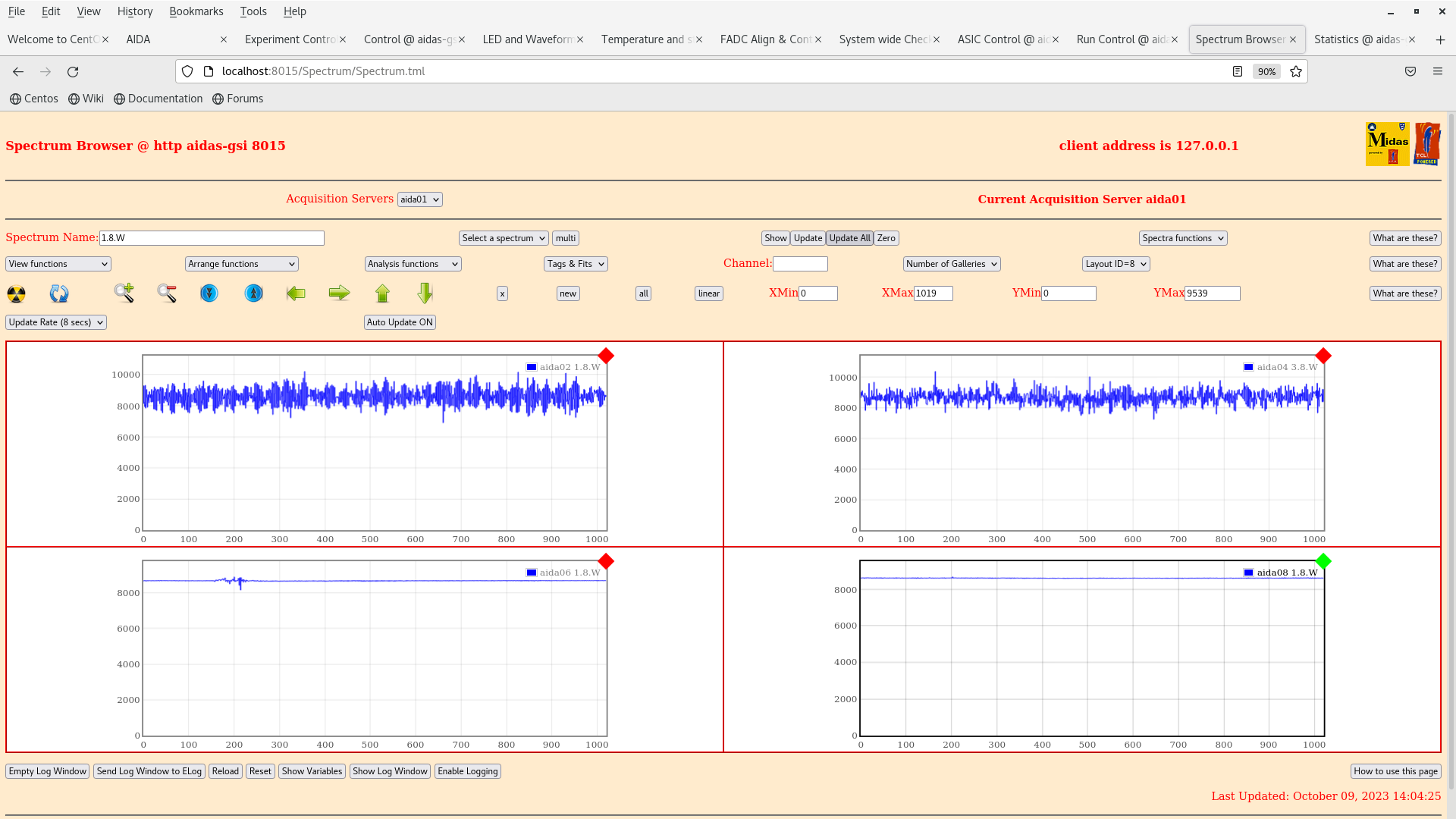

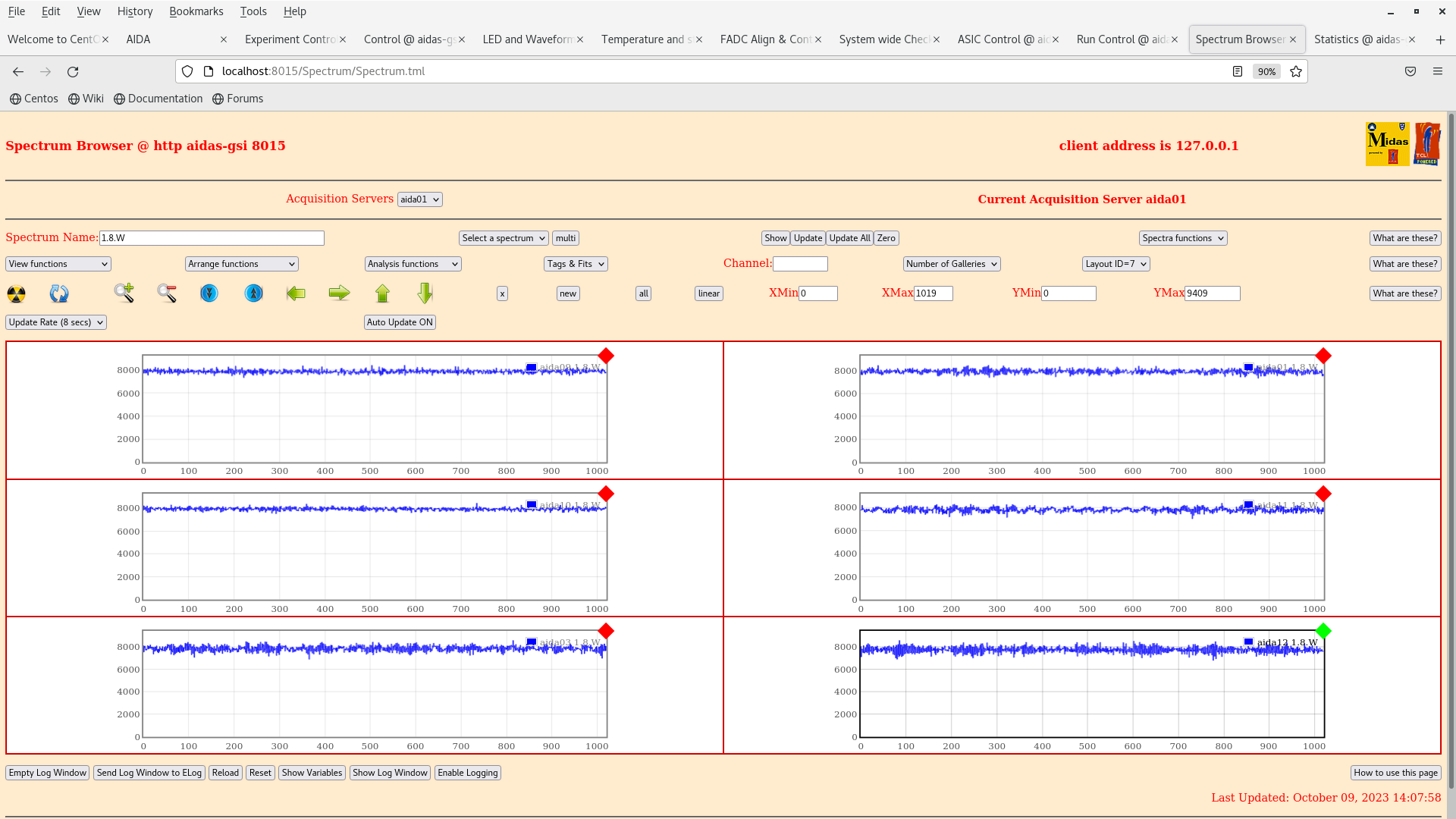

1.8.W spectra - 200us FSR - attachments 37 & 38

Little observable difference

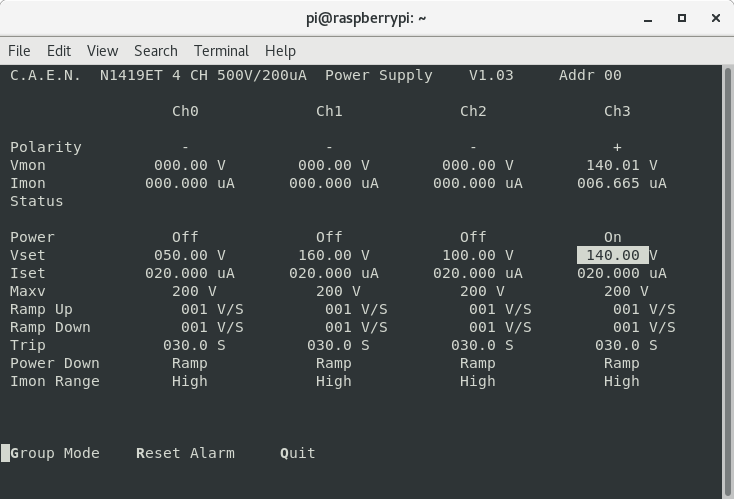

14.15 DSSSD HV +140V +6.685uA - attachment 39
      1.8.W spectra - 200us FSR - attachment 40

DSSSD HV +160V +6.765uA - attachment 41

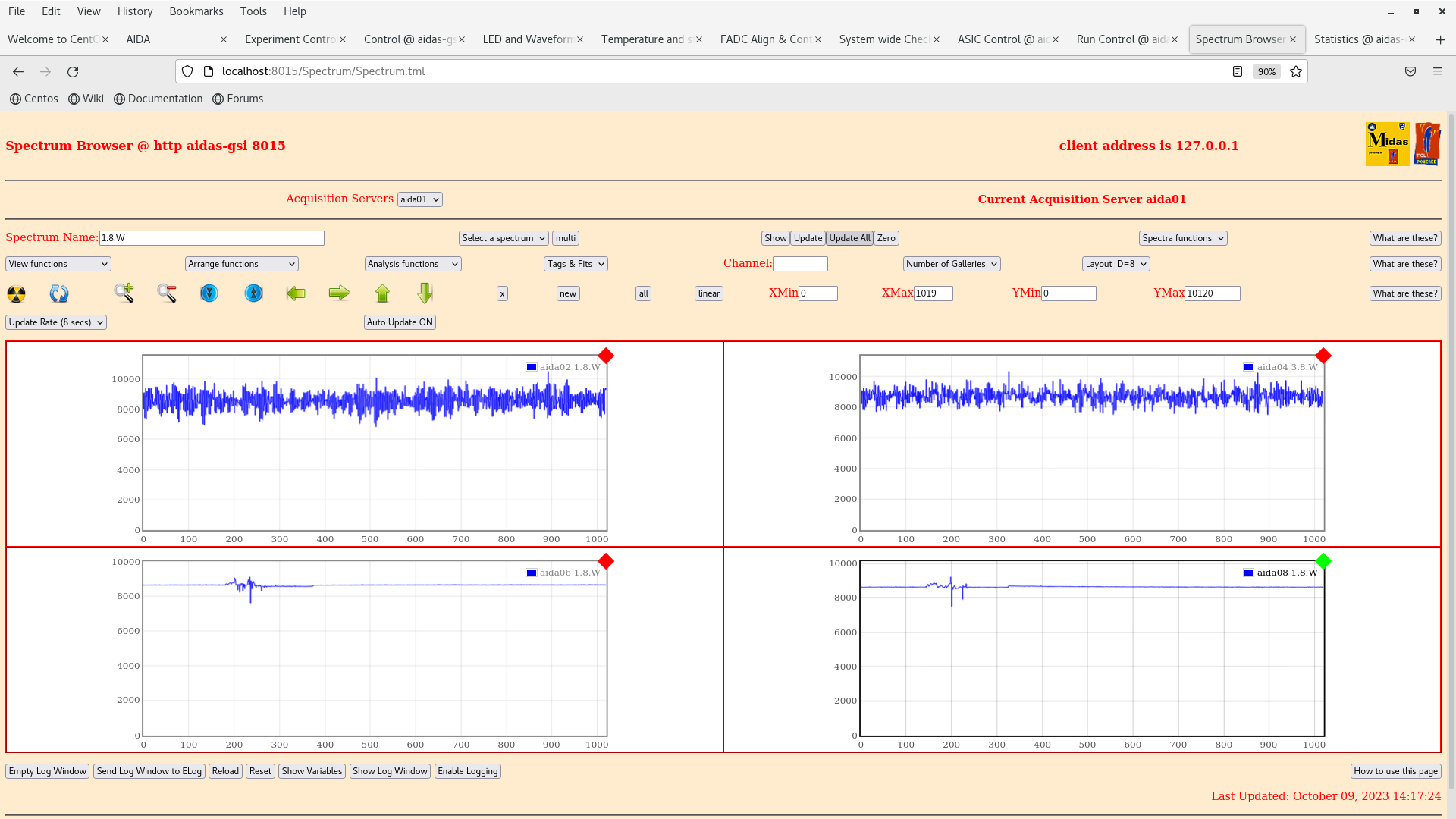

      1.8.W spectra - 200us FSR - attachment 42

additional detector HV to dep+30V ( 160V ) mkaes little difference to n+n noise

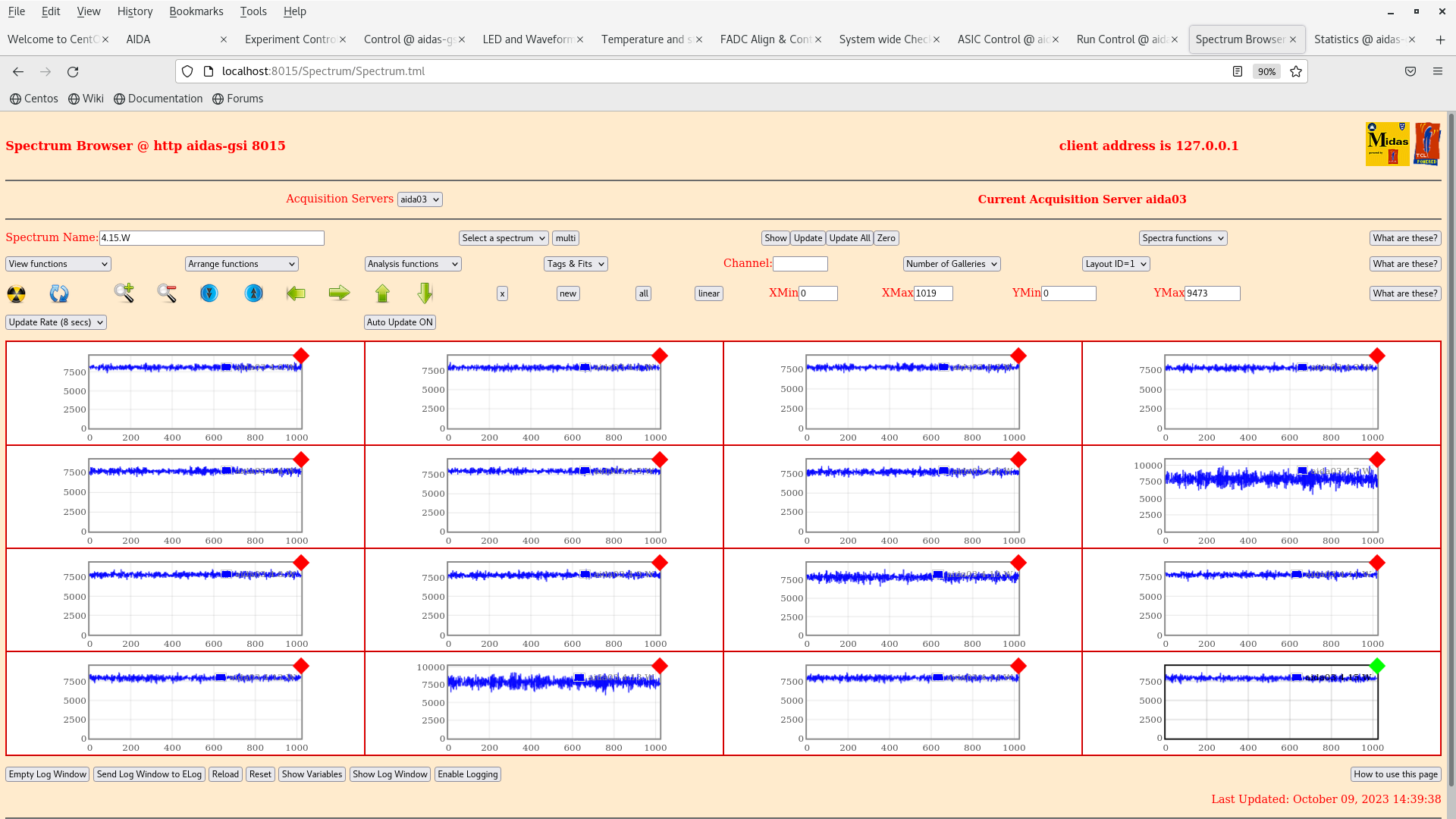

14.45 per FEE64 4.*.W spectra - 200us FSR
      n+n aida02 aida04 - attachments 43 & 44

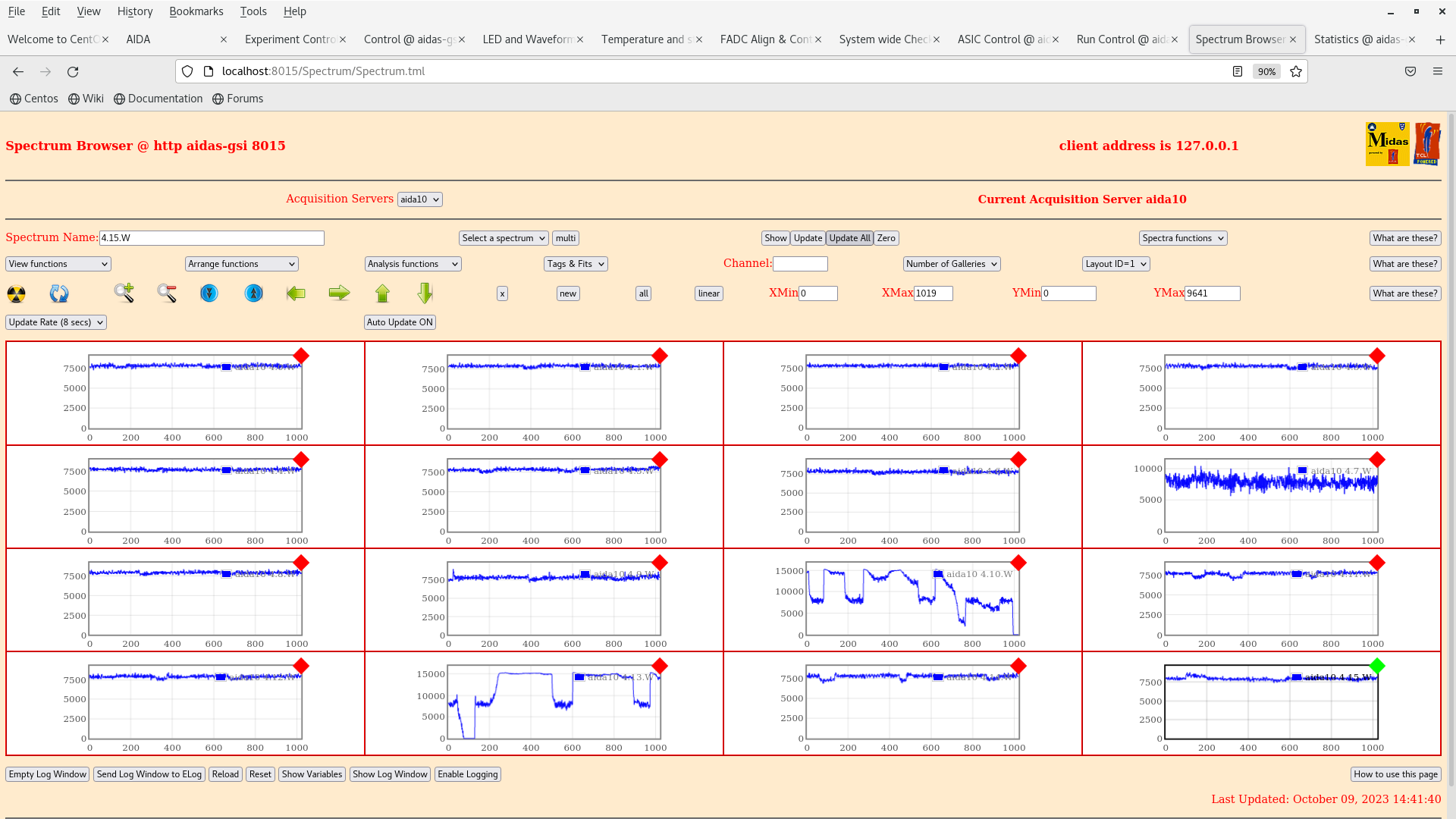

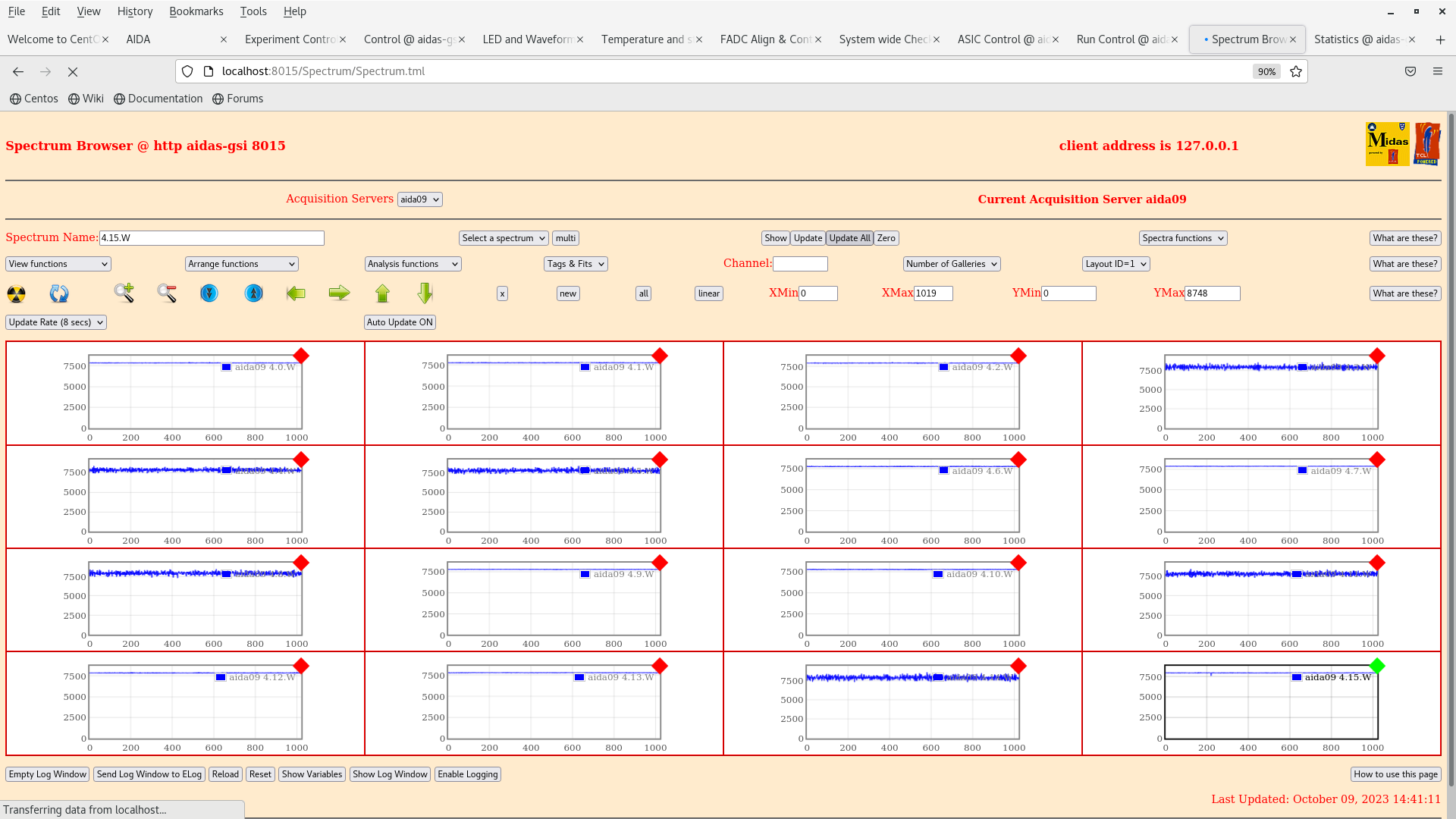

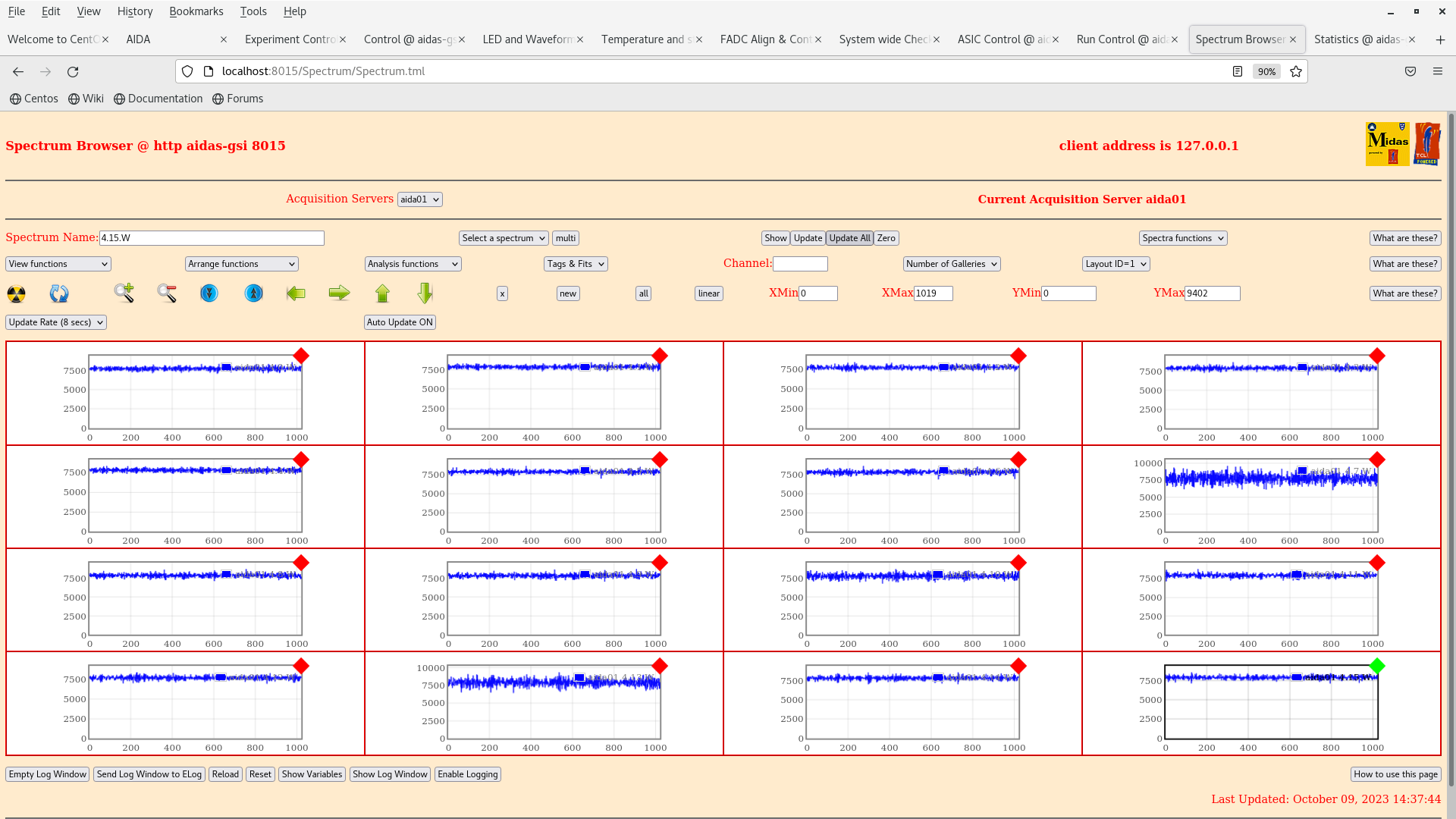

      p+n aida10, aida01, aida09 - attachments 45-47
      p+n aida12, aida03, aida11 - attachments 48-50

aida09 missing strips? cable?
      aida10 large transients for edge strips
