09.38 Water flow & temp OK
      Power ON

All system wide checks OK

DSSSD HV +120V +5.585uA - attachment 1

CAEN N1419ET grounded output ( internal LK fitted ) plus ThorLabs inline filter
      standard coaxial cable to aida04, no HV daisy chain aida12, aida03 & aida11
      aida03 LK3 fitted
      aida11, aida03, aida12 LK1 fitted

test + & test - daisy chains removed

FEE64 temps OK - attachment 2

      slow comparator 0x64
      ADC data item stats - attachment 3

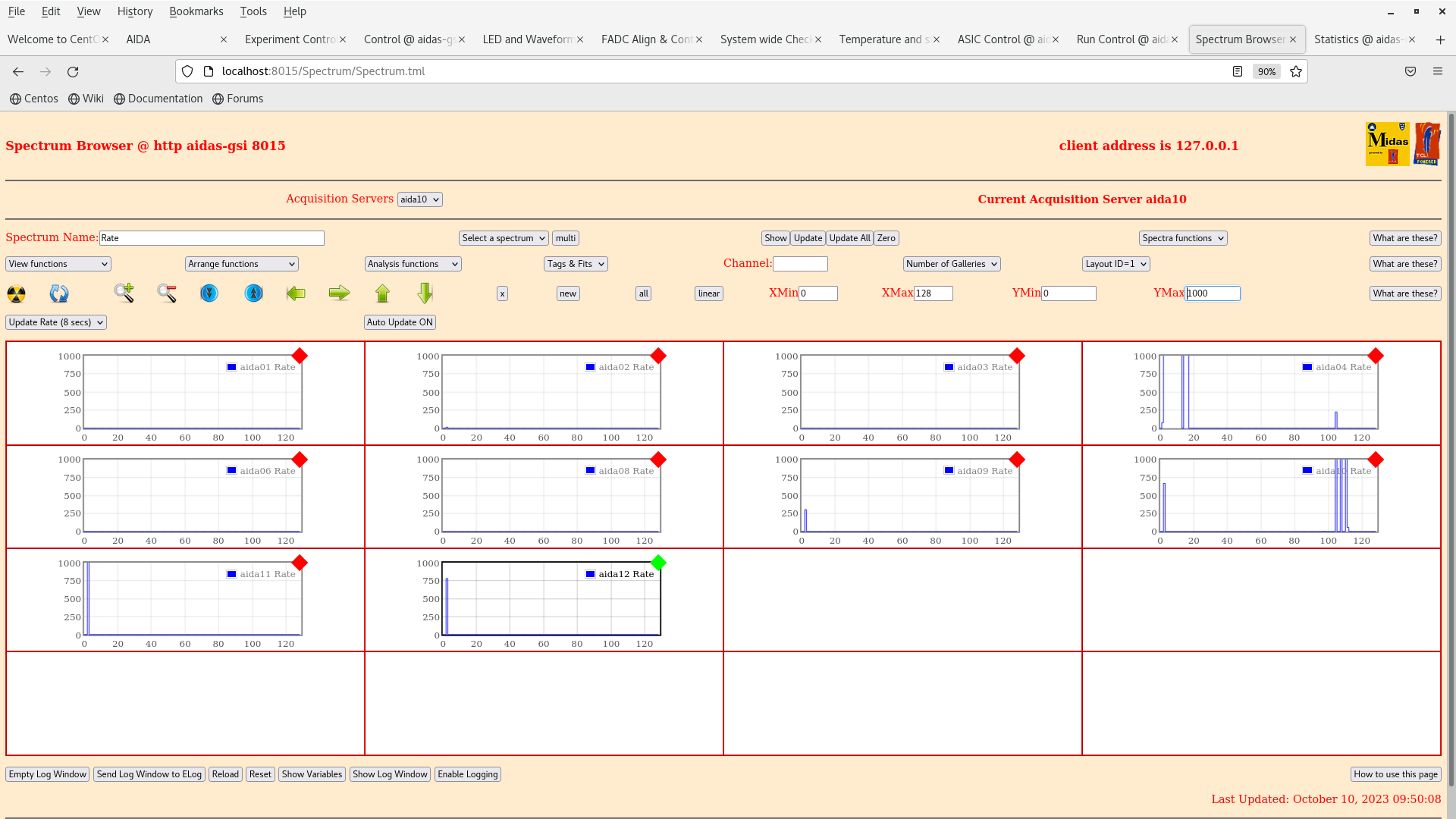

per FEE64 Rate spectra - attachments 4

1.8.W spectra - 200us FSR - attachments 5-8

test + to aida01 *only*

ADC data item stats - attachment 9
      per FEE64 Rate spectra - attachment 10
      aida01 1*L spectra - attachment 11
       pulser peak width 1.8.L 141 ch FWHM

ThorLabs inline filter removed
      ADC data item stats - attachment 12
      per FEE64 Rate spectra - attachment 13
       pulser peak width 1.8.L 136 ch FWHM

14.15 DSSSD HV +120V +6.610uA
      Disconnect aida01 ribbon cable drain wire from adaptor PCB gnd
       aida01 1.8.L pulser peak width 188 ch FWHM - amplitude/structure of noise does not change significantly but observe higher frequency components in addition
      1.8.W p+n spectra - 20us FSR - attachment 14

15.20 Switch from HV + to HV - N1419ET ch 3 to ch 2
      HV coaxial cable chain aida12, aida03, aida11, aida04 LK1 fitted
      aida12, aida03 & aida11 LK1 removed
      Connect aida01 ribbon cable drain wire to adaptor PCB gnd

      DSSSD HV-120V -6.720uA - attachment 15

      ADC data item stats - attachment 16

aida01 1.8.L pulser peak width 138 ch FWHM

      1.8.W spectra - 20us FSR - attachments 17 & 18

Little observable difference between HV - and +, as expected

16.20 Jumper aida04 adaptor PCB gnd to aida12 adaptor PCB gnd

slow comparator 0x64 -> 0xf

ADC data item stats - attachment 20

per FEE64 Rate spectra - attachment 21 & 24

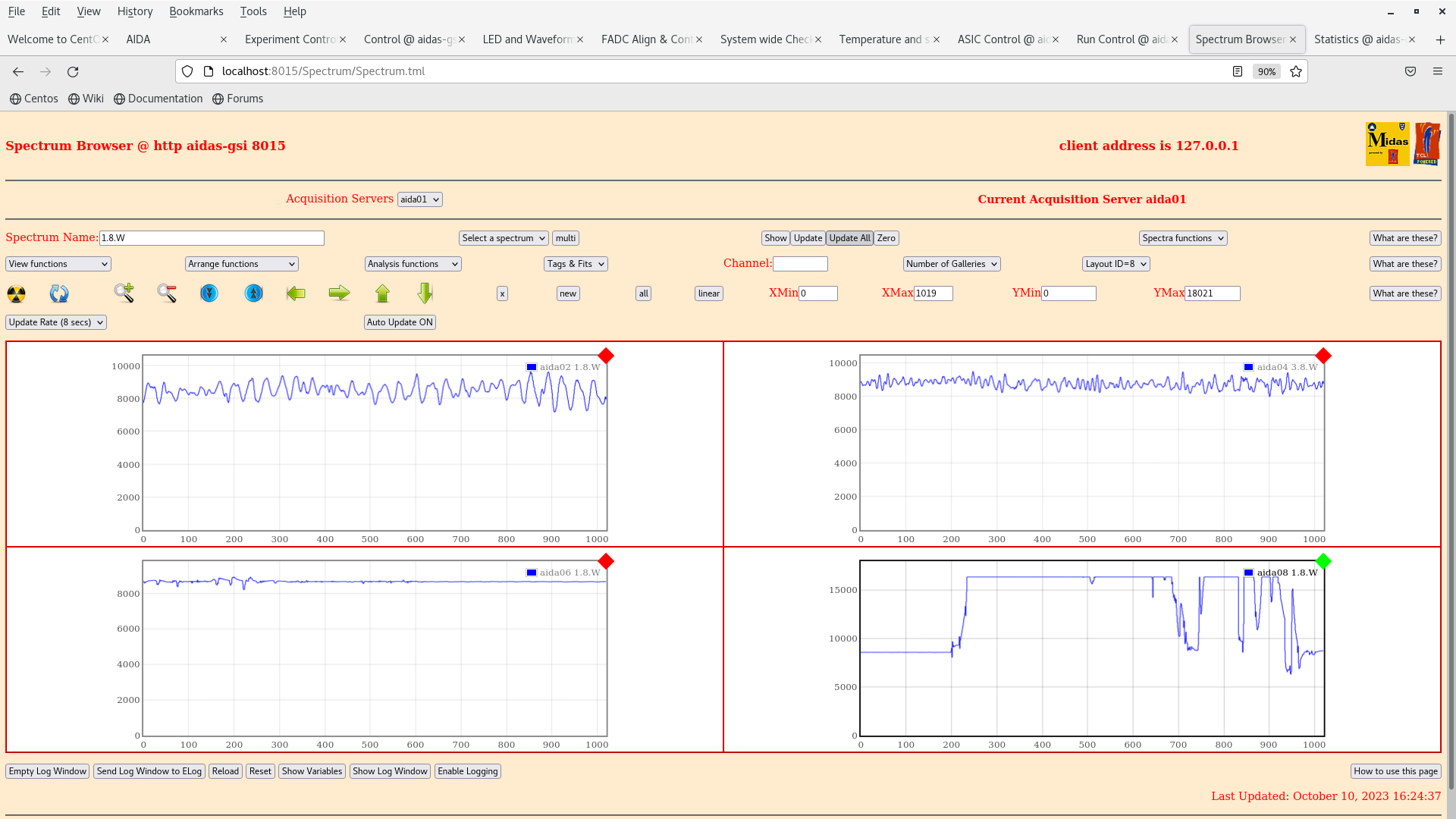

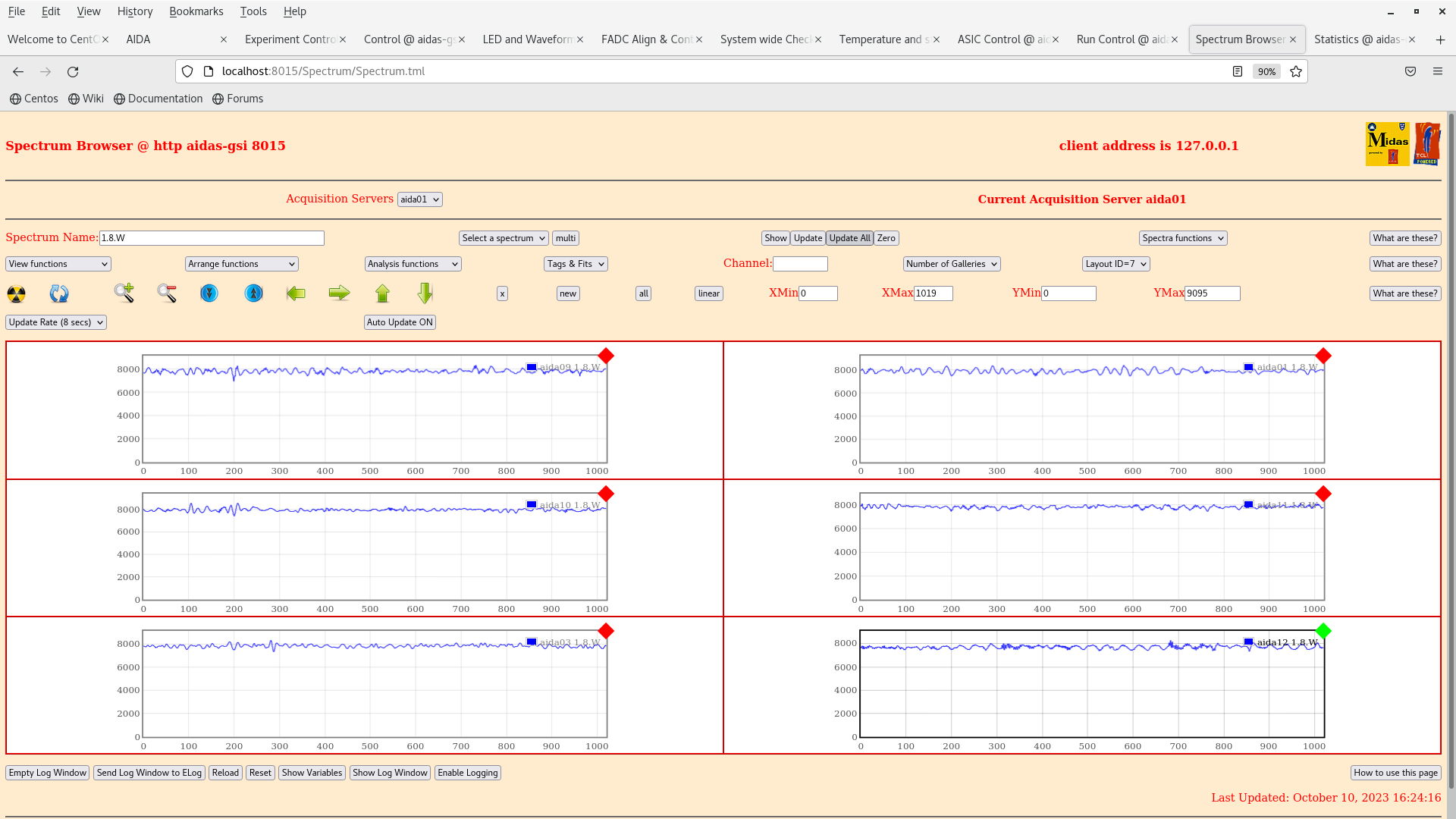

1.8.W spectra - 20us FSR - attachments 22 & 23

             aida01 1.8.L pulser peak width 99 ch FWHM

17.00 Ground cable from aida04 gnd to aida12 gnd

ADC data item stats - attachment 25

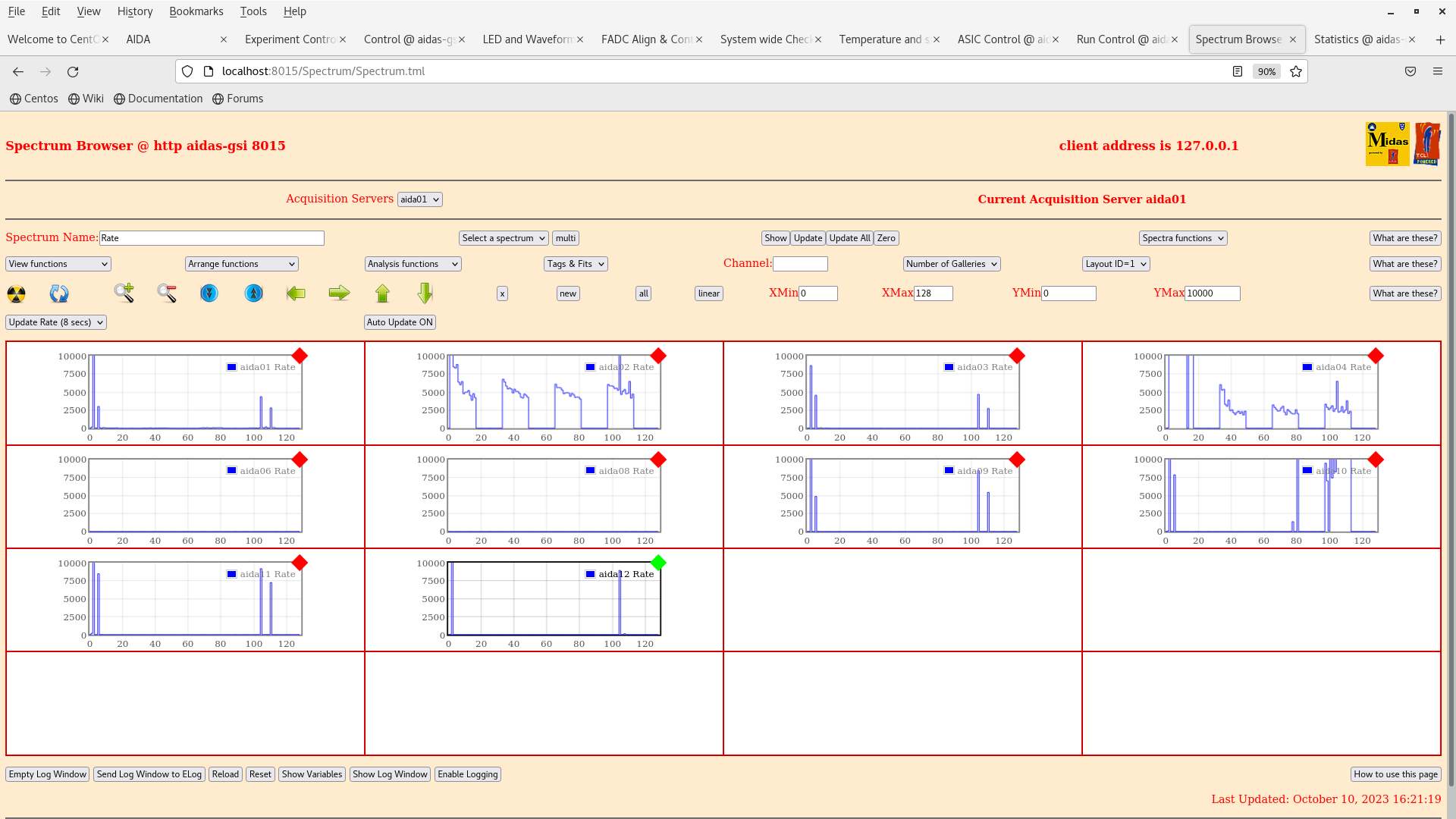

per FEE64 Rate spectra - attachment 26 & 27

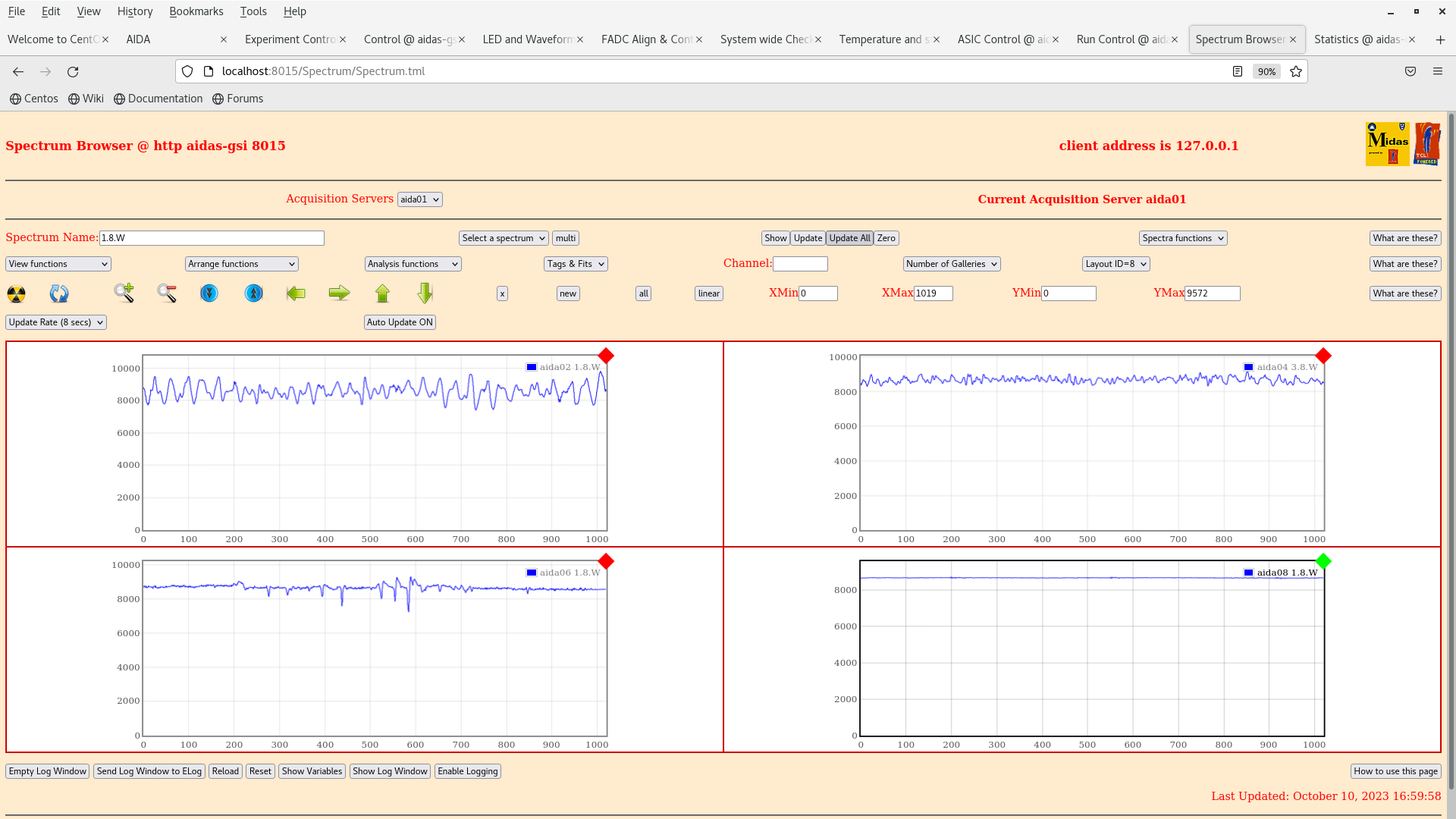

1.8.W spectra - 20us FSR - attachments 28 & 29

             aida01 1.8.L pulser peak width 97 ch FWHM

17.20 Ground cable from aida04 gnd to aida12 gnd to aida02 gnd

slow comparator 0xf ~ 150keV

ADC data item stats - attachment 30

per FEE64 Rate spectra - attachment 31

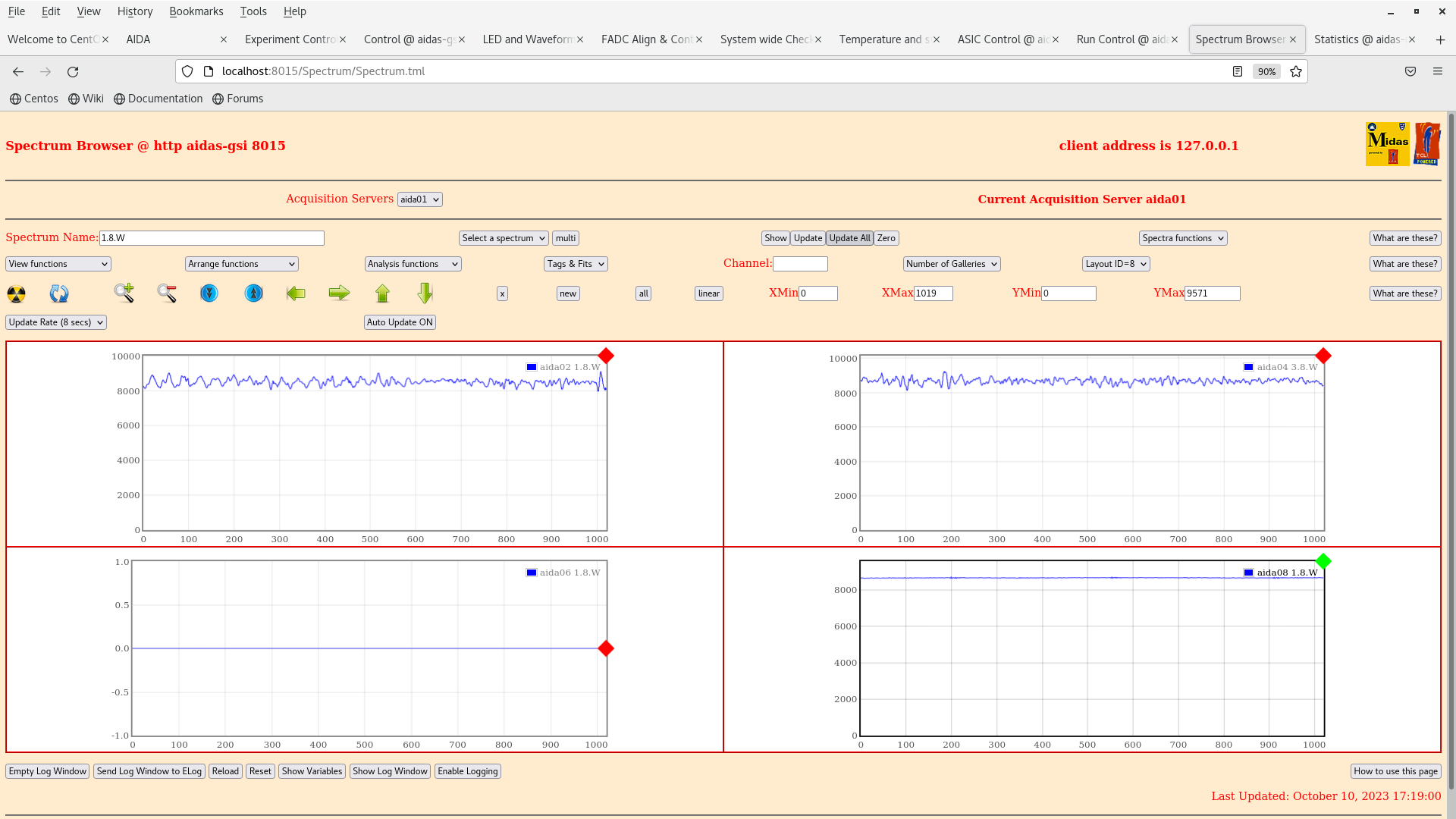

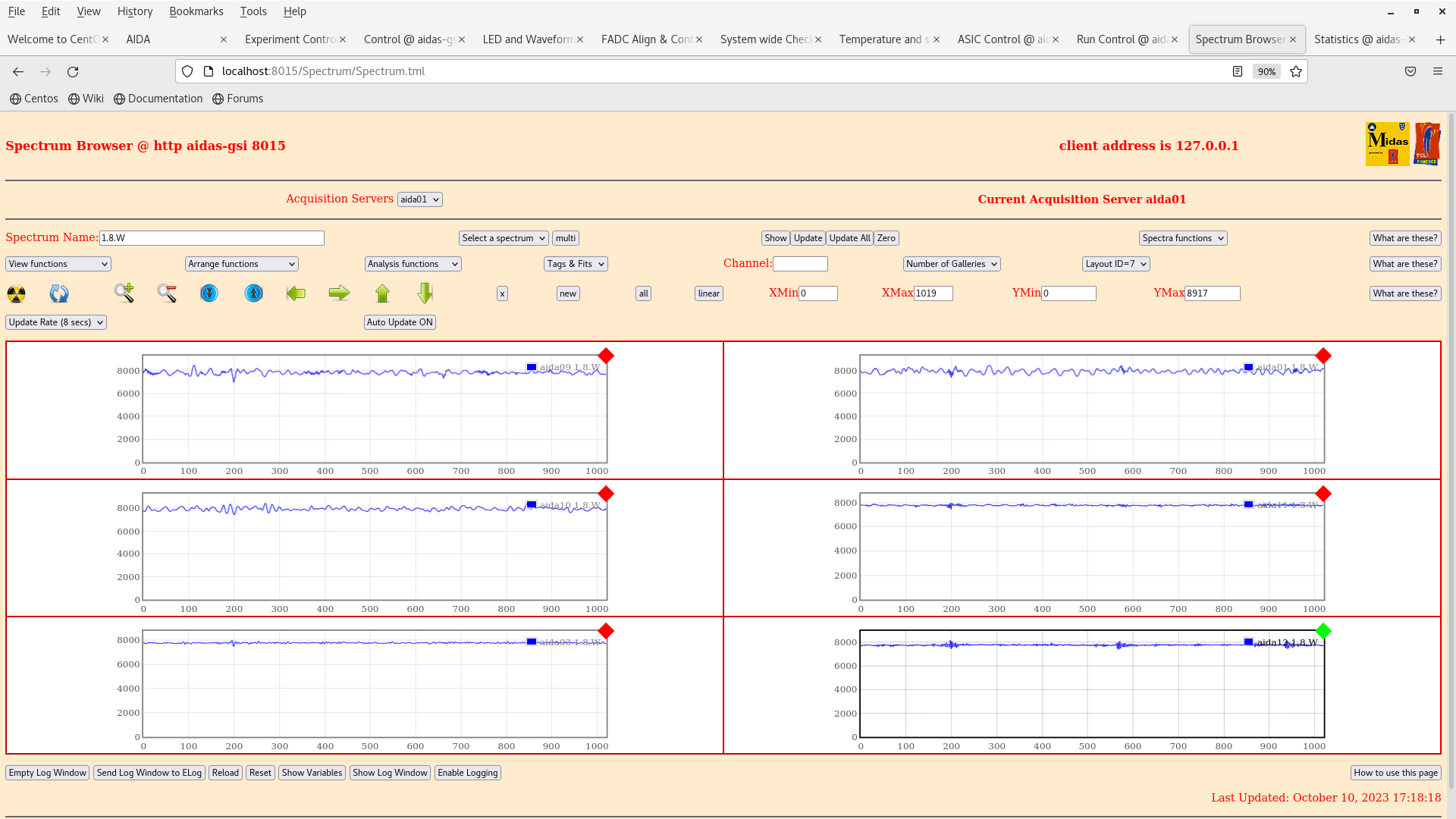

1.8.W spectra - 20us FSR - attachments 32 & 33
      1.8.W spectra - 200us FSR - attachments 32 & 33

             aida01 1.8.L pulser peak width  85 ch FWHM ~  65keV FWHM => 5s threshold 138keV
             aida12 1.8.L pulser peak width  58 ch FWHM ~  44keV FWHM => 5s threshold  93keV
             aida02 1.8.L pulser peak width 133 ch FWHM ~ 100keV FWHM => 5s threshold 212keV

Rate spectra are consistent with these estimates, i.e. observe ~zero rate for p+n channels ( except hot channels ) and low ( ~100-200Hz rate per channel ) for n+n channels

p+n noise aida12, aida03, aida11 excellent
     for aida10, aida01 & aida09 good - can probably be improved to match aida12 etc
     significant improvement observed for n+n side

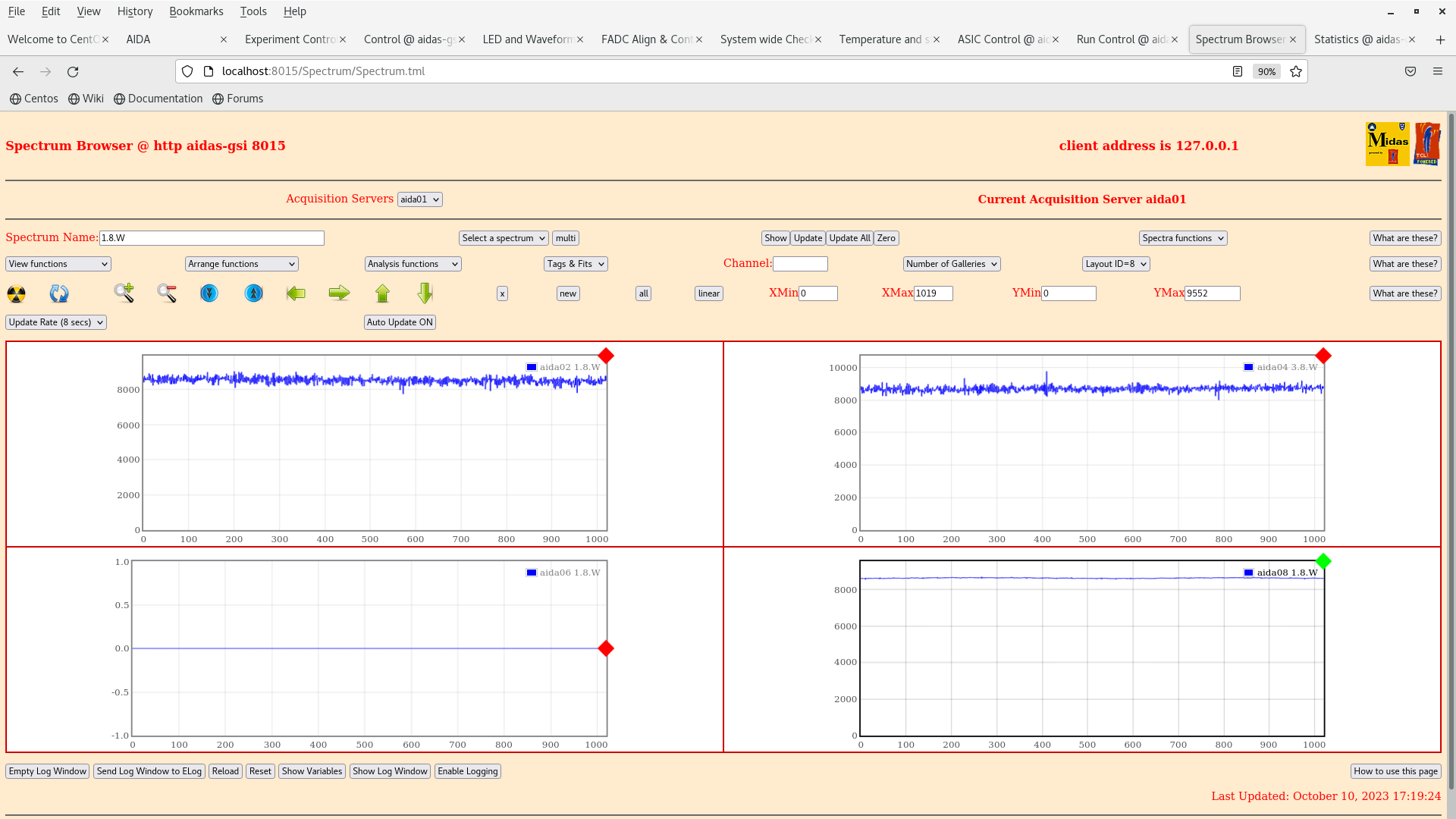

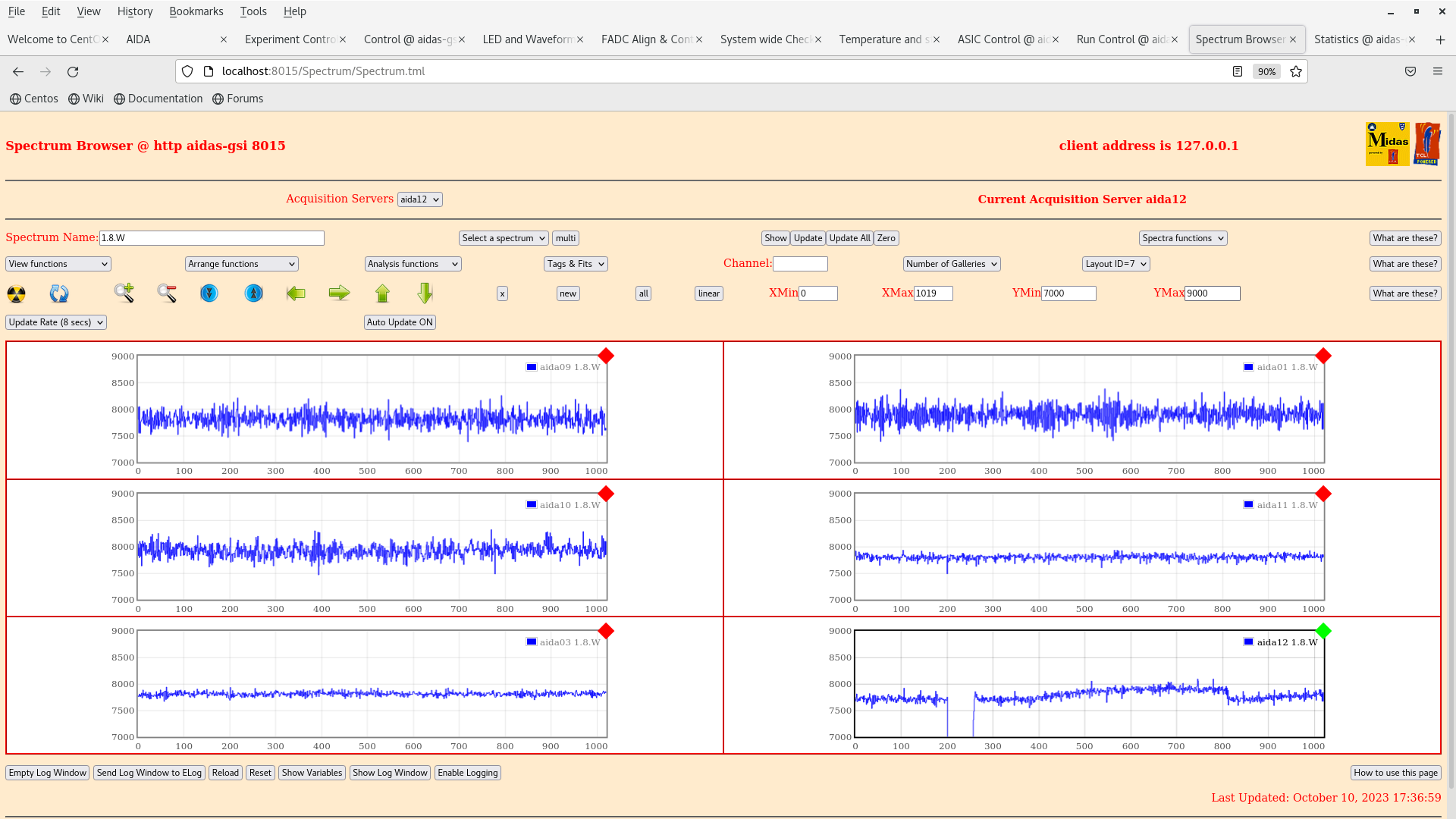

aida12 *.*.W spectra - attachments 34-37

per p+n FEE64 1.8.W spectra - 200us FSR - expanded scale - attachment 38
