Entry time:
Wed Oct 11 16:53:20 2023
Author
*
:
Subject
*
:

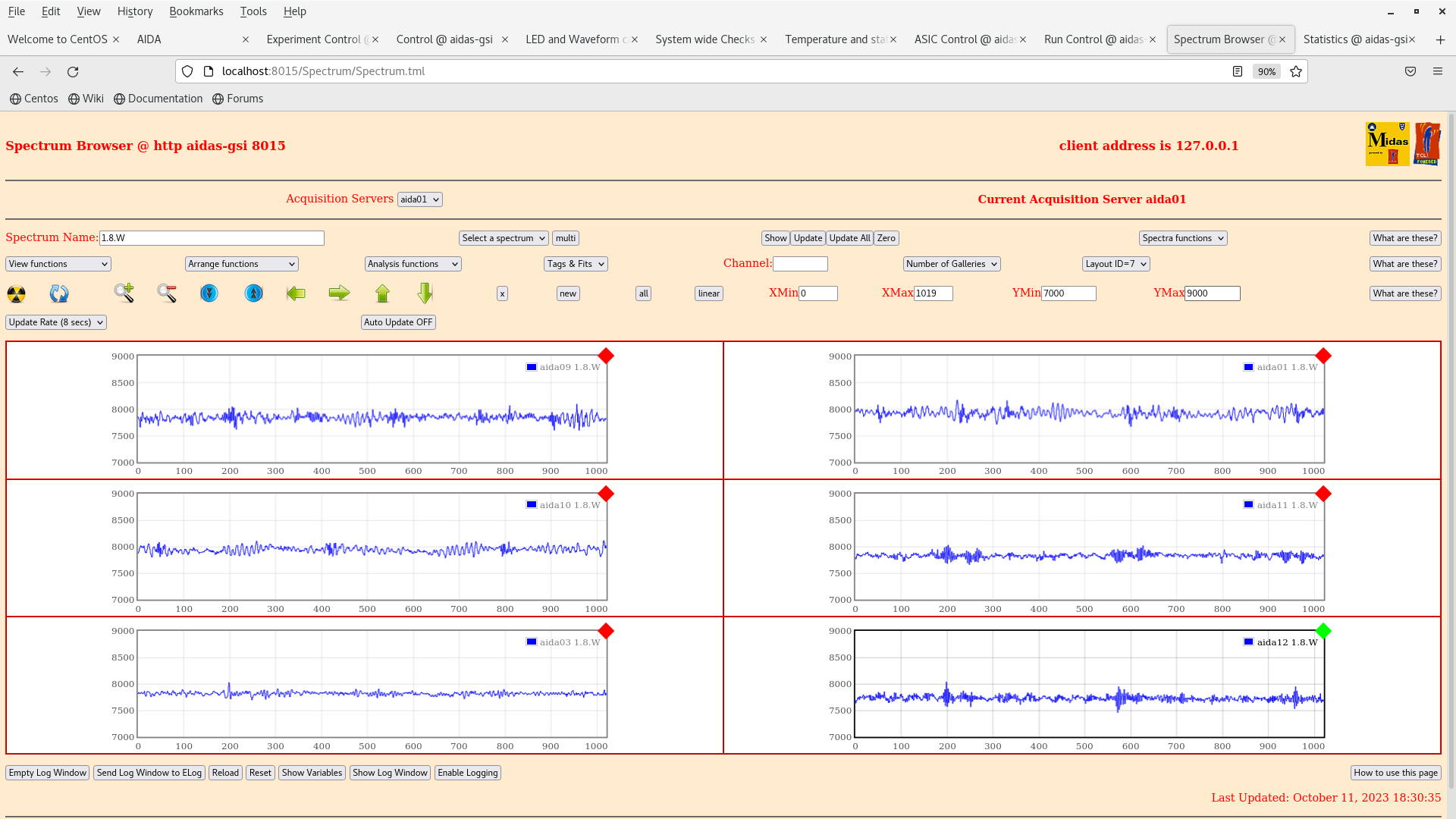

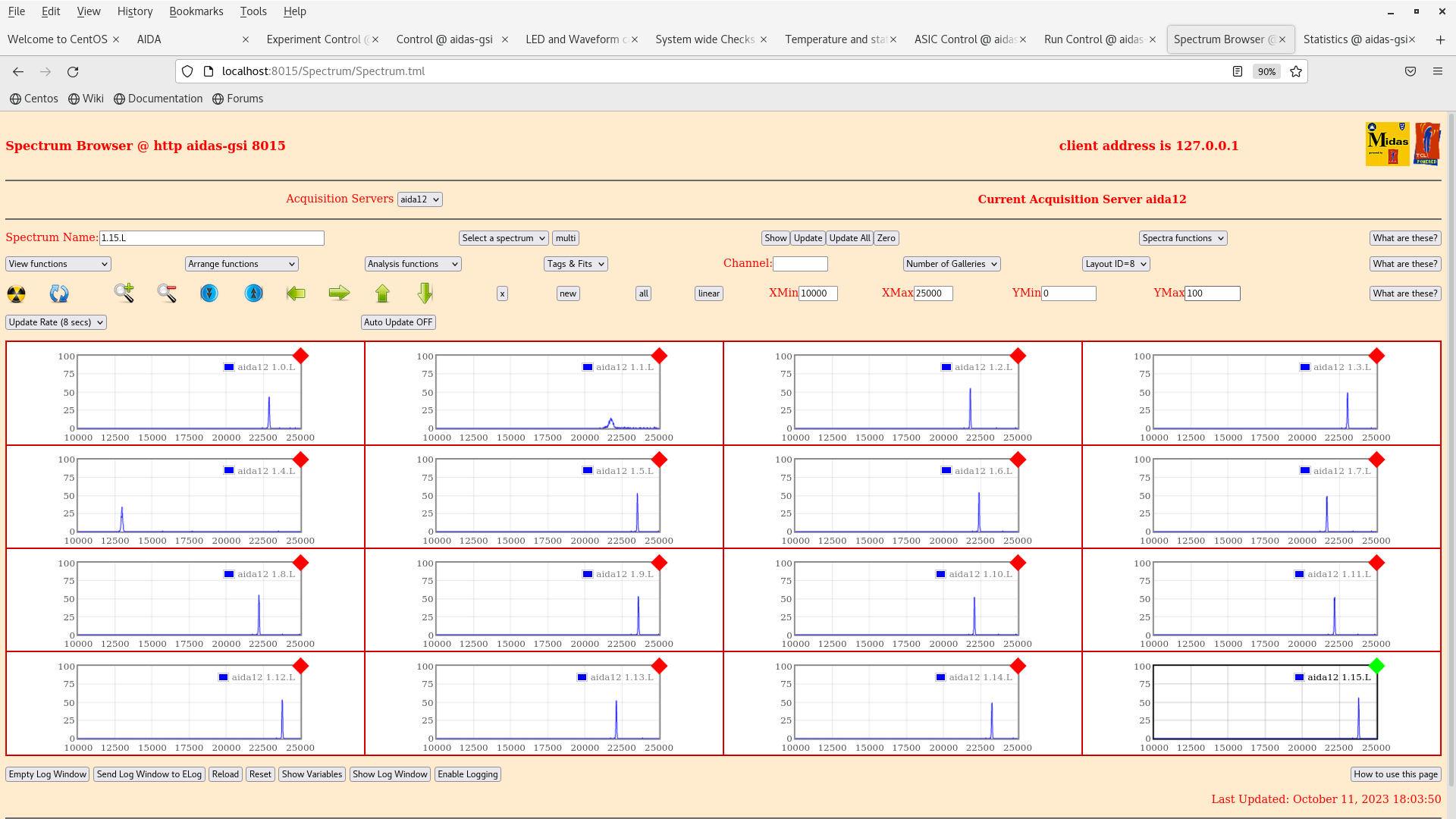

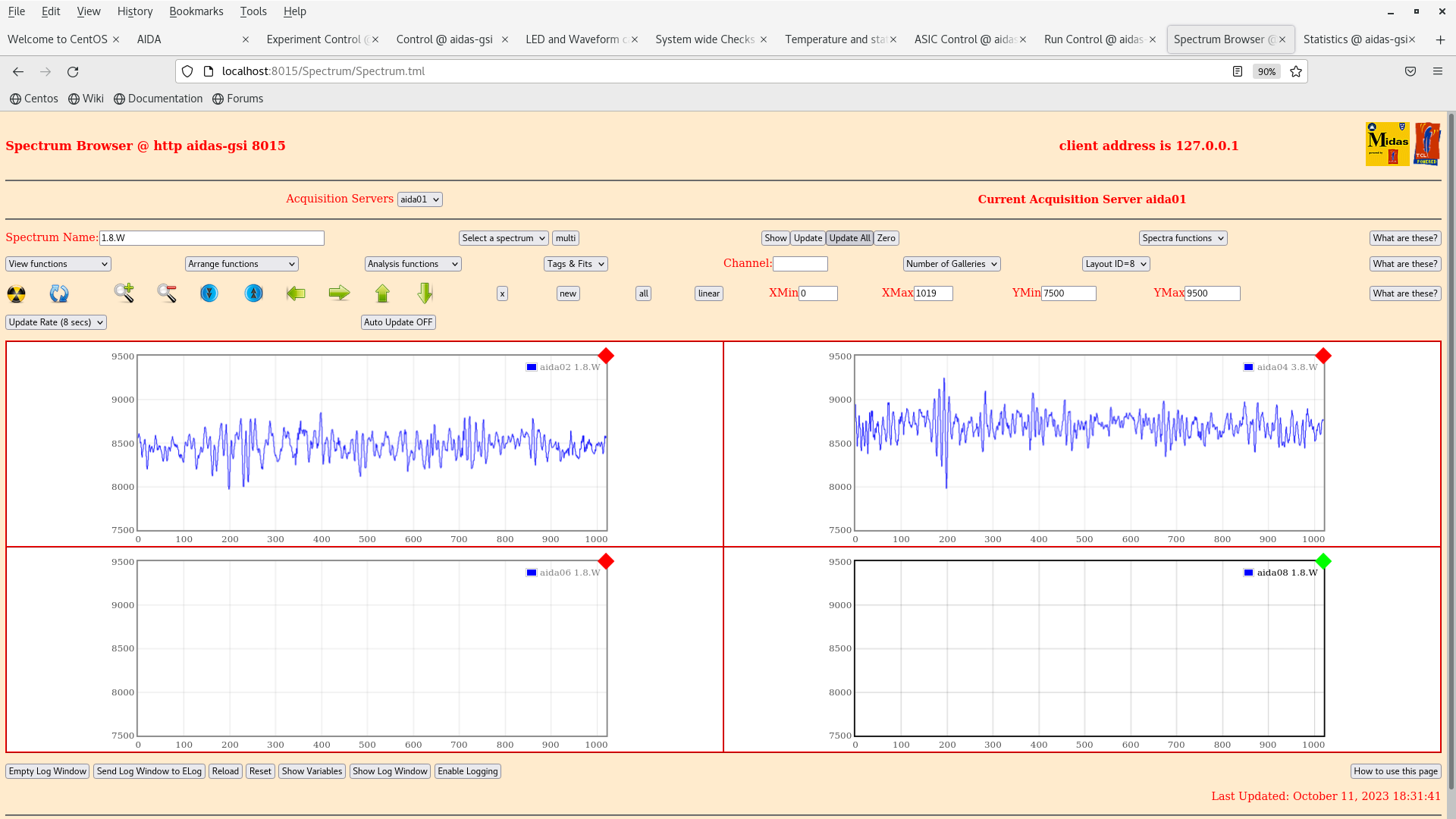

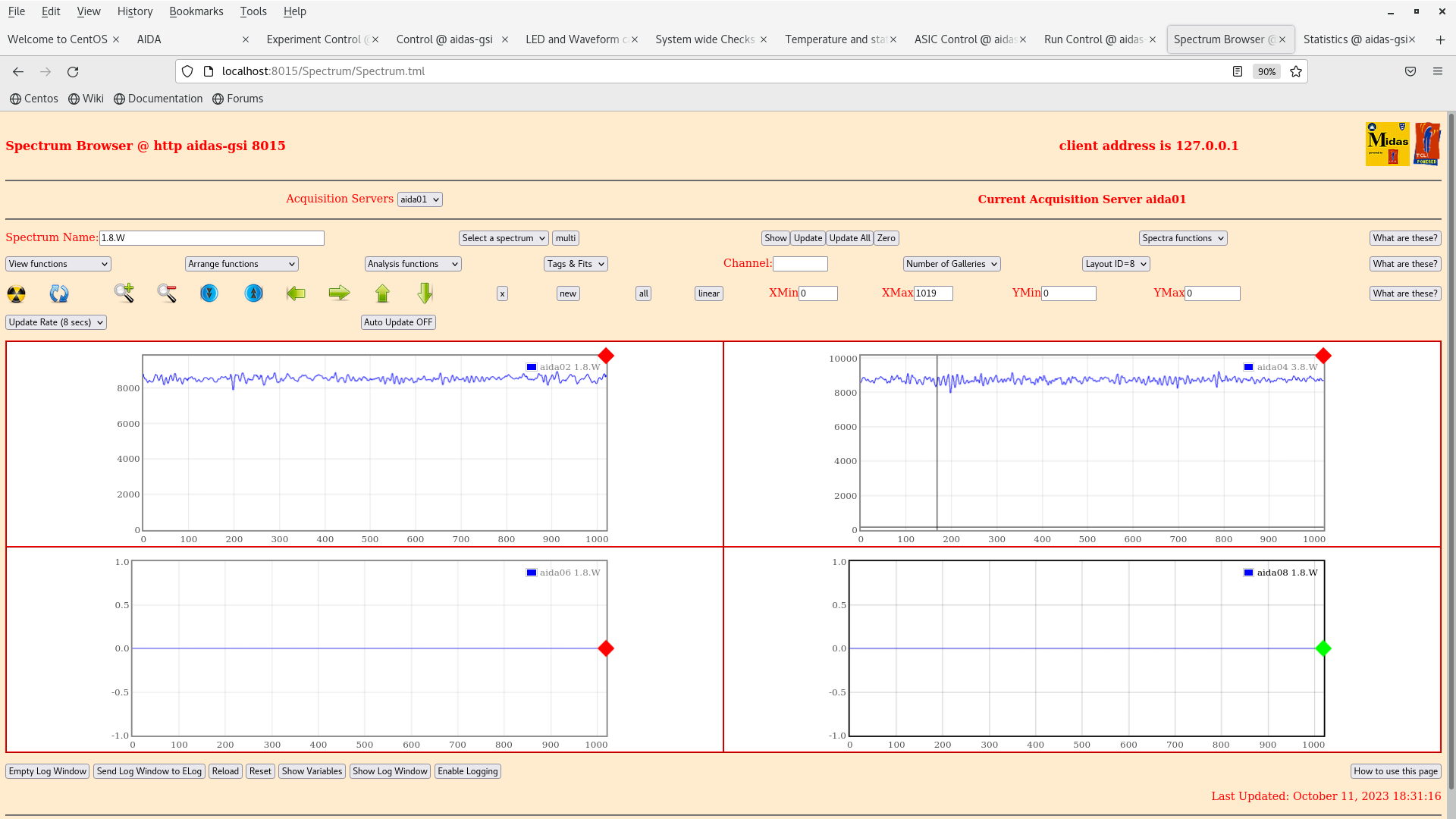

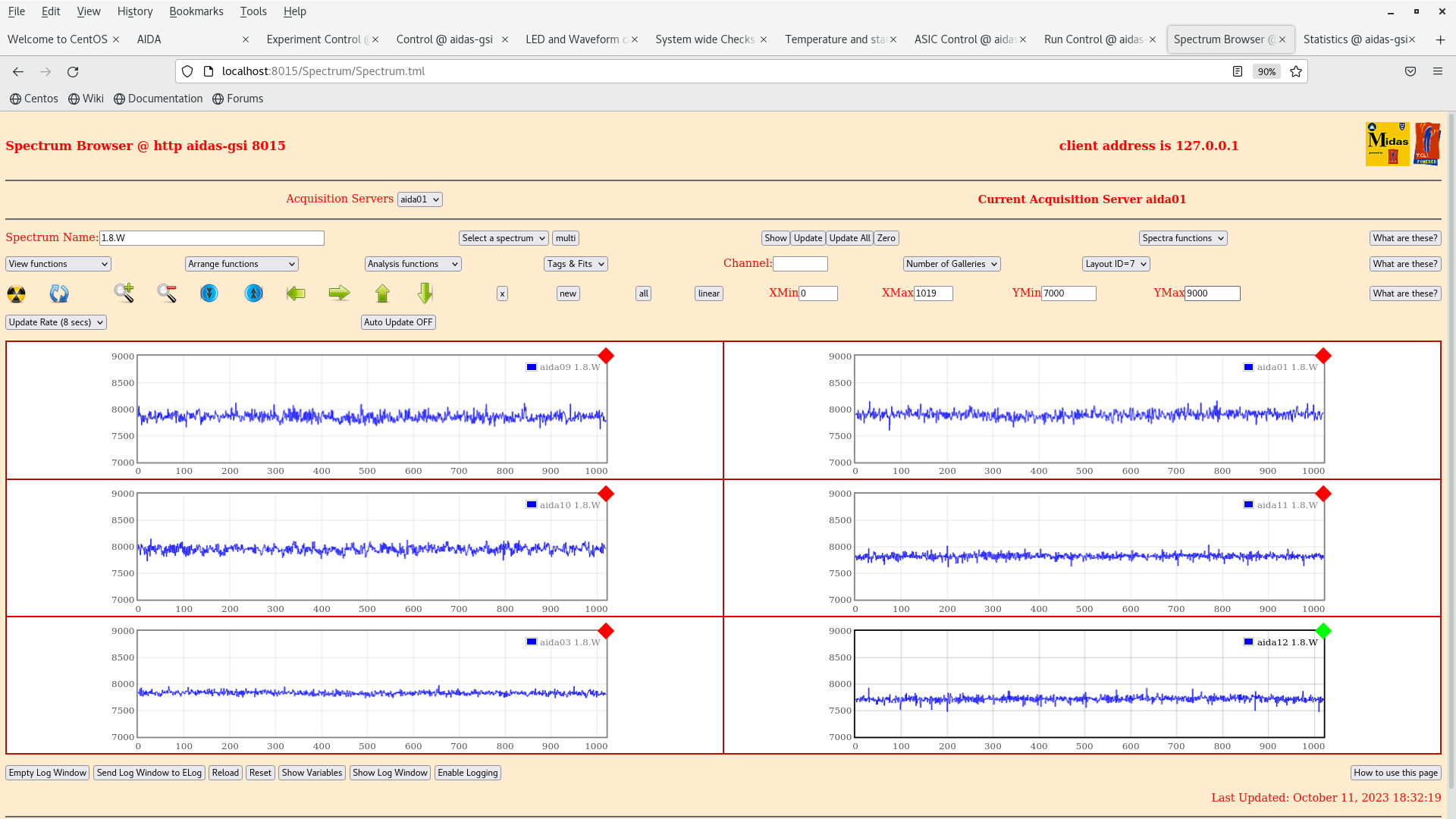

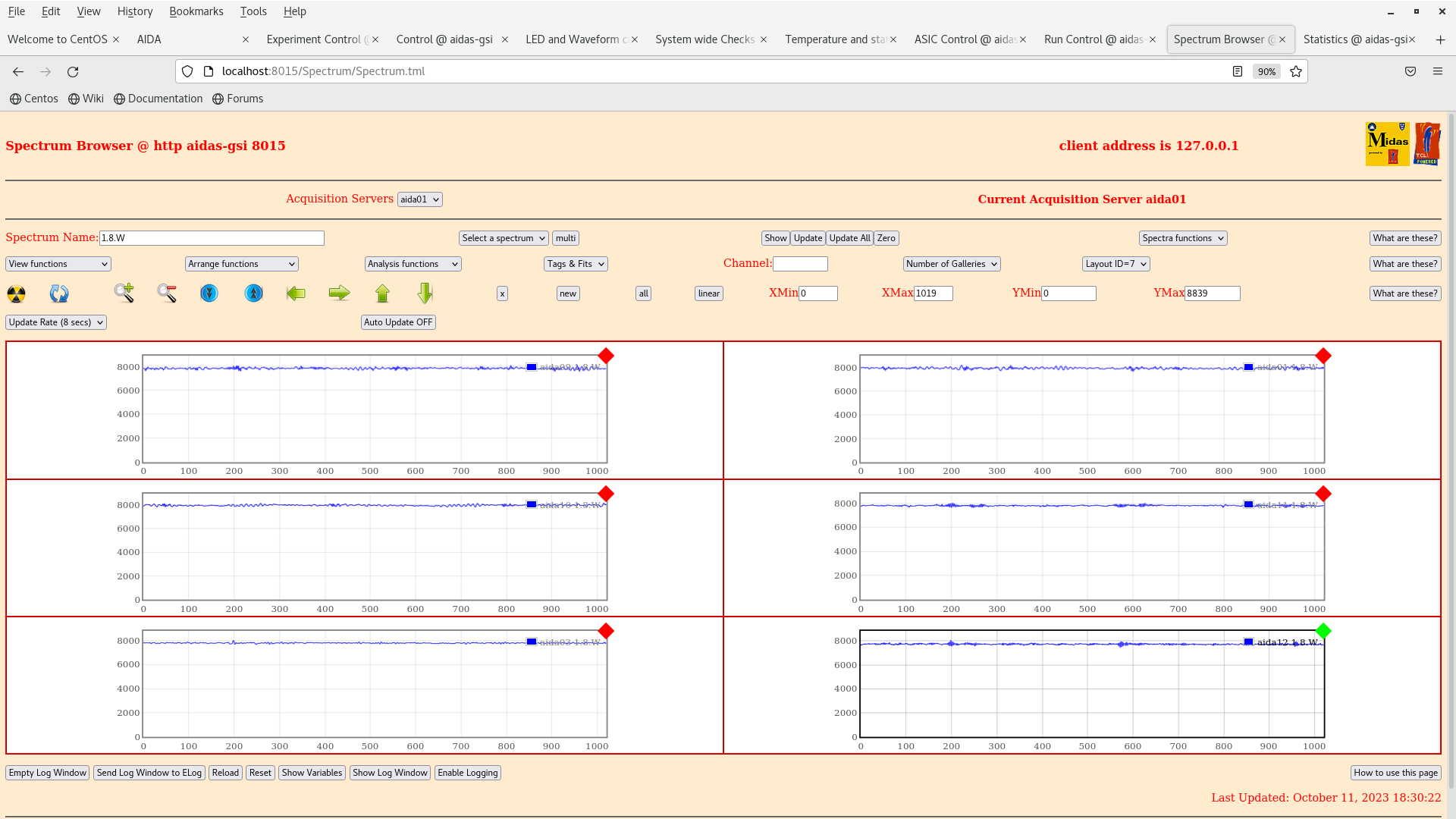

CAEN N1419ET ch 2 - all outputs non-floating ( internal LK fitted ) Standard coaxial HV cable chained to aida12, aida03, aida11, aida09, aida01 & aida10 aida04 LK1 ( local gnd ) fitted ground cable from aida04 adaptor PCB ground to aida12 to aida02 aida03 LK3 ( PCB gnd ) fitted BNC PB-5 amplitude 10.0V attenuation x10 decay time 1ms polarity + frequency 25Hz test + direct from PB-5 to aida12 *only* slow comparator 0xf DSSSD bias -150V -7.280uA aida12 1.8.L pulser peak width 55 ch FWHM aida12 *.*.L spectra - attachments 1-4 All channels have similar pulser peak widths to 1.8.L *except* 1.1.L, 1.4.L, 4.7.L & 4.13.L ( hot channels ) and 2.2.L, 2.9.L & 2.12.L no pulser peak test + direct from PB-5 to aida01 *only* aida01 1.8.L pulser peak width 70 ch FWHM aida01 *.*.L spectra - attachments 5-8 All channels have similar pulser peak widths to 1.8.L *except* 1.1.L, 1.4.L, 4.7.L & 4.13.L ( hot channels ) per FEE64 1.8.W spectra - 20us FSR - attachments 9-12 per FEE64 1.8.W spectra - 200us FSR - attachments 13 & 14
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 1920x1080
Attachment 12:
Original size: 1920x1080
Attachment 13:
Original size: 1920x1080
Attachment 14:
Original size: 1920x1080
