Entry time:
Thu Oct 19 10:39:20 2023
Author
*
:
Subject
*
:

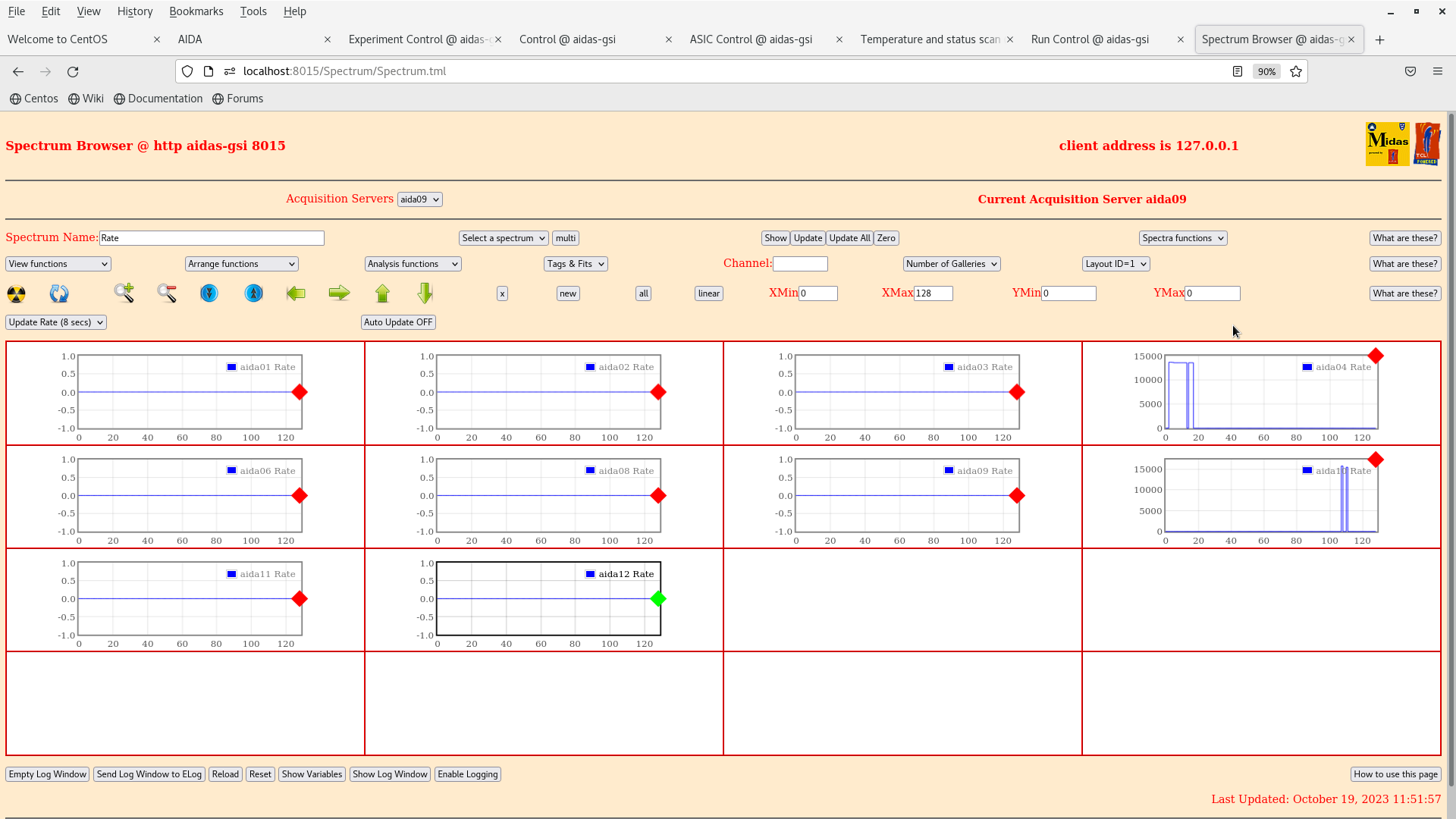

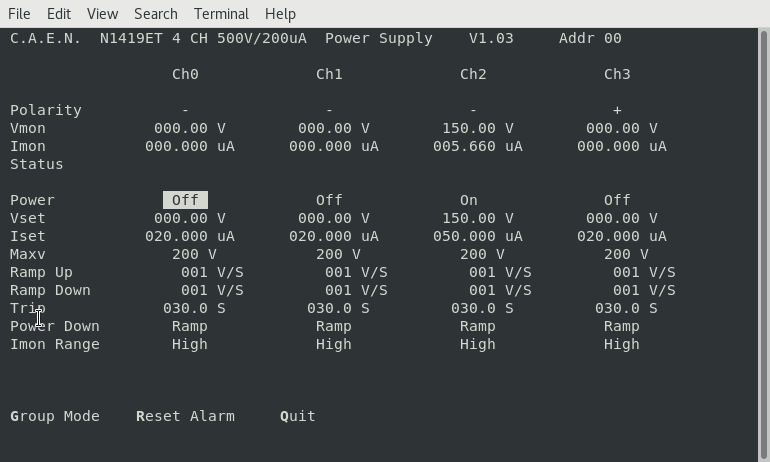

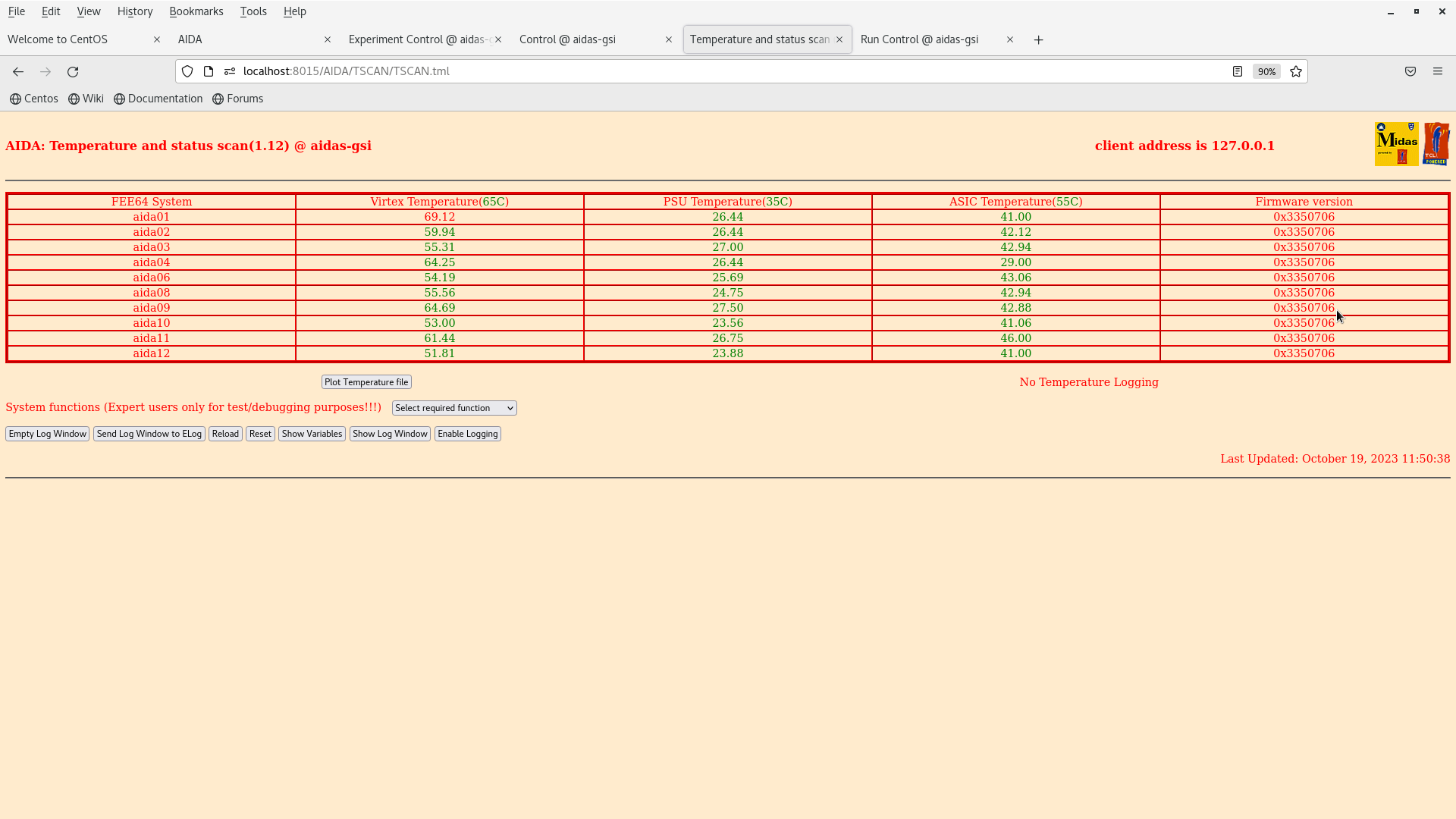

Water Temp: 20 C - Flow felt on pipe AIDA interlock OVERRIDE One USB Hub for the FEE64 TTYs was unplugged on cable tray, replugged in (may fix Pi_Monitor) Bias DSSD (Ch 3) Leakage current stays at 17 uA during ramp up. At 150 V it quickly drops back to 6 uA Fig 1 Current FEE mapping p+n aida09 aida01 aida10 aida11 aida03 aida12 n+n aida02 aida04 Unused aida06 aida08 Due to merger need 8 FEEs 1-8 to merge properly will temporarily renumber for 1 DSSSD test - Will revert to this numbering for experiment! Power up with unchanged configuration to test Fee Temps OK Figure 2 Start DAQ at 0x64 threshold (1 MeV) Most channels 0 rate (expected) ASIC01 of AIDA4 very hot 2 channels in aida10 very hot Figure 3 Pulser OFF and only connected to aida11 aida03 aida12 LOCAL operation at present 10V/10X level, positive tail, 25 Hz STOP and Power off to renumber New mapping for now: p+n aida05 aida01 aida06 aida07 aida03 aida08 n+n aida02 aida04 aida09 ---> aida05 aida10 ---> aida06 aida11 ---> aida07 aida12 ---> aida08 - Backup dhcpd.conf -> dhcpd.conf231019 Update to only first 8 fees only turn on Relay 1 Update MIDAS Tcl /MIDAS/config/TclHttpd/aidas-gsi@8015/startup.Tcl list aida01... aida08 new folder /home/npg/LayOut/GSI_triple_test_renumber copy to /tmp - Reboot MIDAS and Power on Relay 1 Power OFF Reboot dhcp! Anydesk Connection Lost?? Make new DB key 2023Oct19-13.46.30 Copy aida01/CONTENTS (p+n) to aida06 and aida08 Cannot update Options http://localhost:8015/AIDA/Options/Options.tml ? Error 500 Figure 4 Load settings manually and check-load ASIC TODO: Manually change files, or? GO ADC items + rates figures 5, 6 Restart Merger xfer Links (bad) Netvar -> Inquire Registers NetVar.MERGE.RunOptions WRITE 1 Merger now shows xfer Links => Merger Merger GO Open file BG18OCT23 R1 STOP DAQ Data Xfer #1 Enable GO DAQ See merger links all GSI_triple_test_renumber Enable output to data storage xfer Links => Merger => storage See tape rate: 3 MB/s (!) Also start MBS on x86l-119 (new AIDA FDR) and try MBS relay rate seen in MBS Figure 8 - Accumulated statistics for ca 3 hours Figs 9, 10 - ADC spectra System turned off and DSSSD biased down for end of work day, due to water issue
