Entry time:
Mon Nov 6 17:30:44 2023
Author
*
:
Subject
*
:

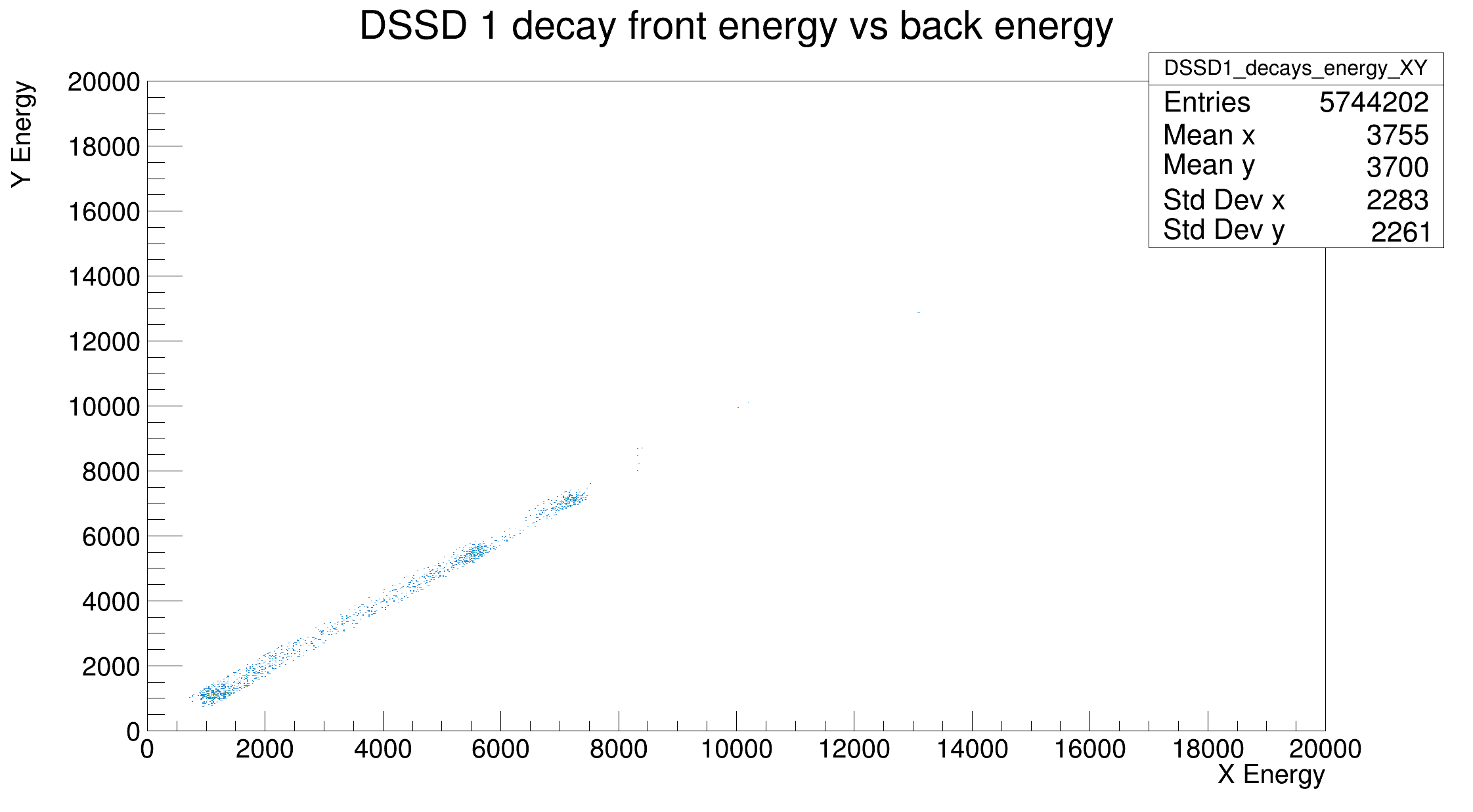

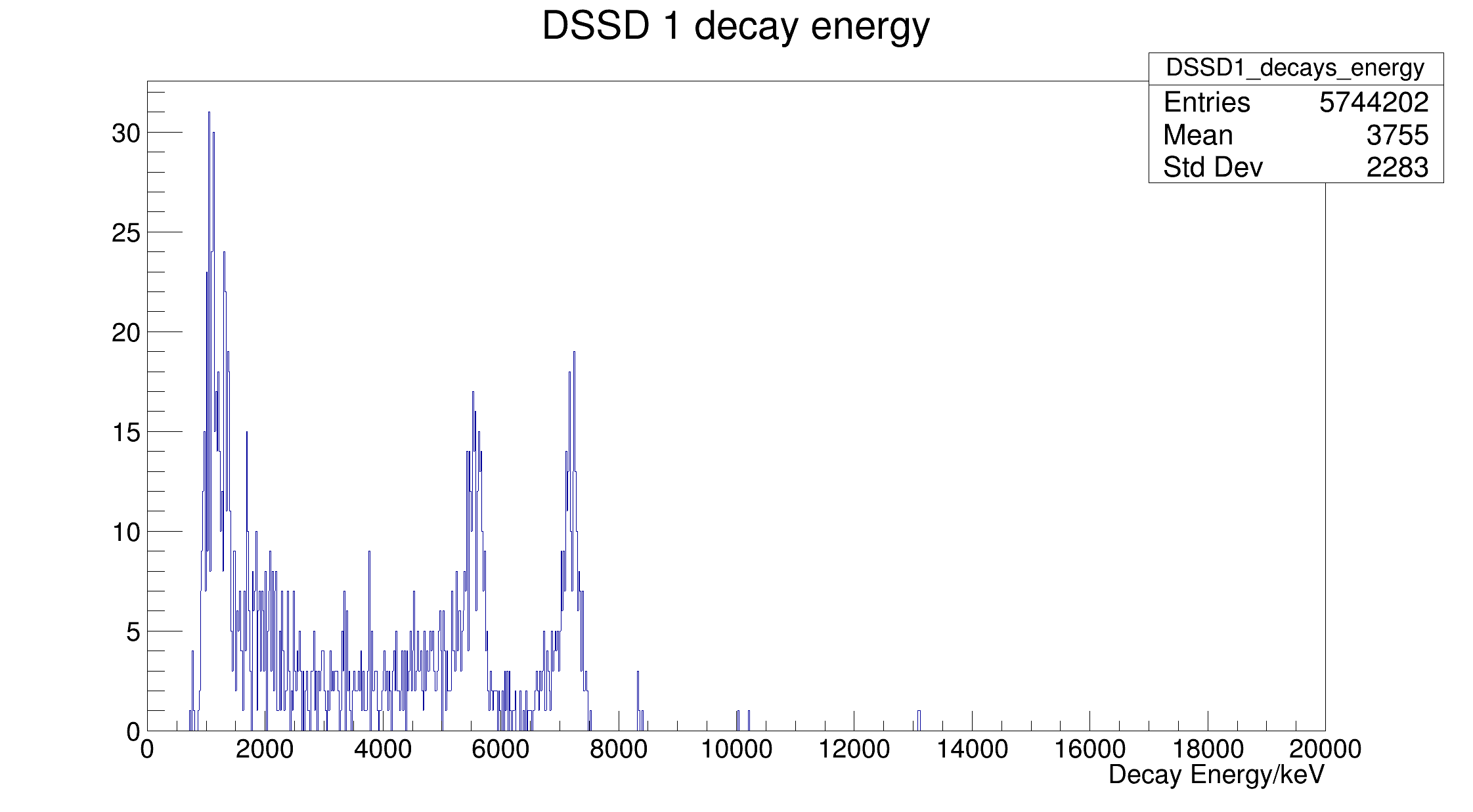

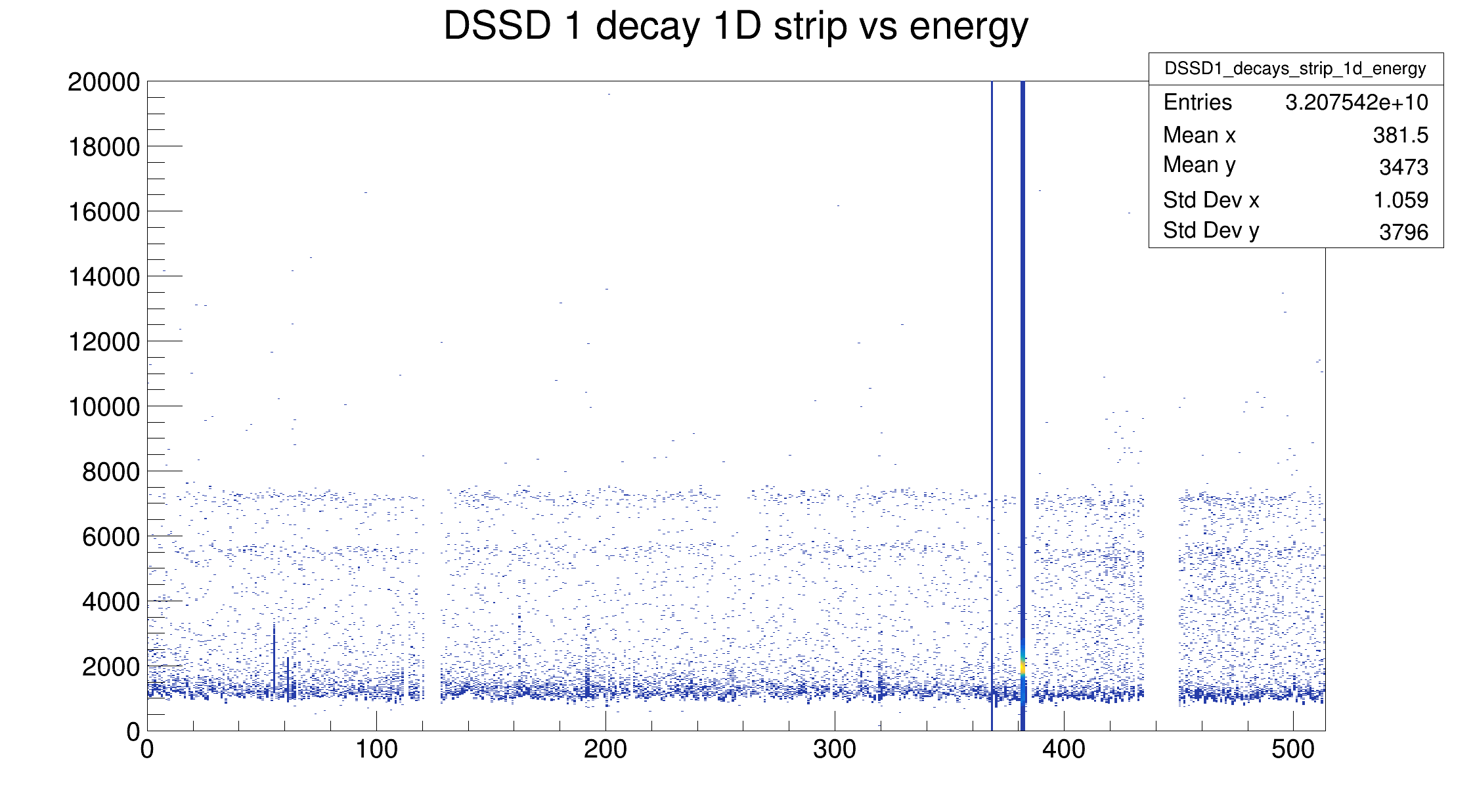

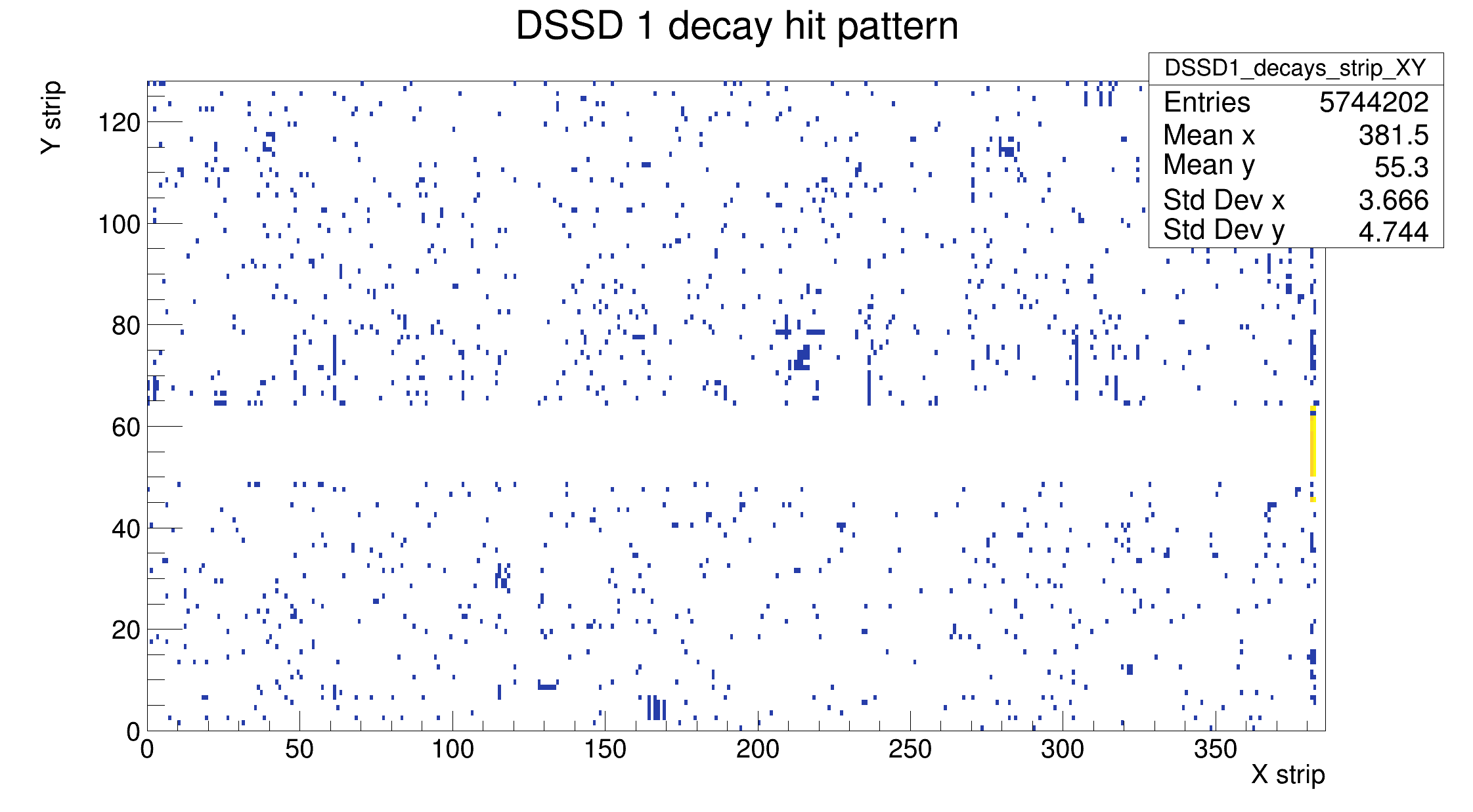

Analysis of tape folder /TapeData/BG18OCT23 Using Go4 https://github.com/cej25/DESPEC_NOV23 Figure 1: Hit pattern (XY) Figure 2: Energy 1D Spectra, alpha peaks visible Figure 3: Energy X vs Energy Y Figure 4: 1D Strip (0-386 = X 0-386, 386-512 = Y 0-128) and Energy Some gaps at 112-114, 121-128 = aida05 Hot channels at 368, 381, 382 = aida06 (high rate seen) Gap at 435-450 = aida04 (ASIC#4 which is faulty) Generally 1-10 counts per strip, 1 ch wide gaps may be statistics or issues
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 2243x1237
Attachment 2:
Original size: 2243x1237
Attachment 3:
Original size: 2243x1237
Attachment 4:
Original size: 2243x1237
