Entry time:
Sat Nov 18 02:28:26 2023
Author
*
:
Subject
*
:

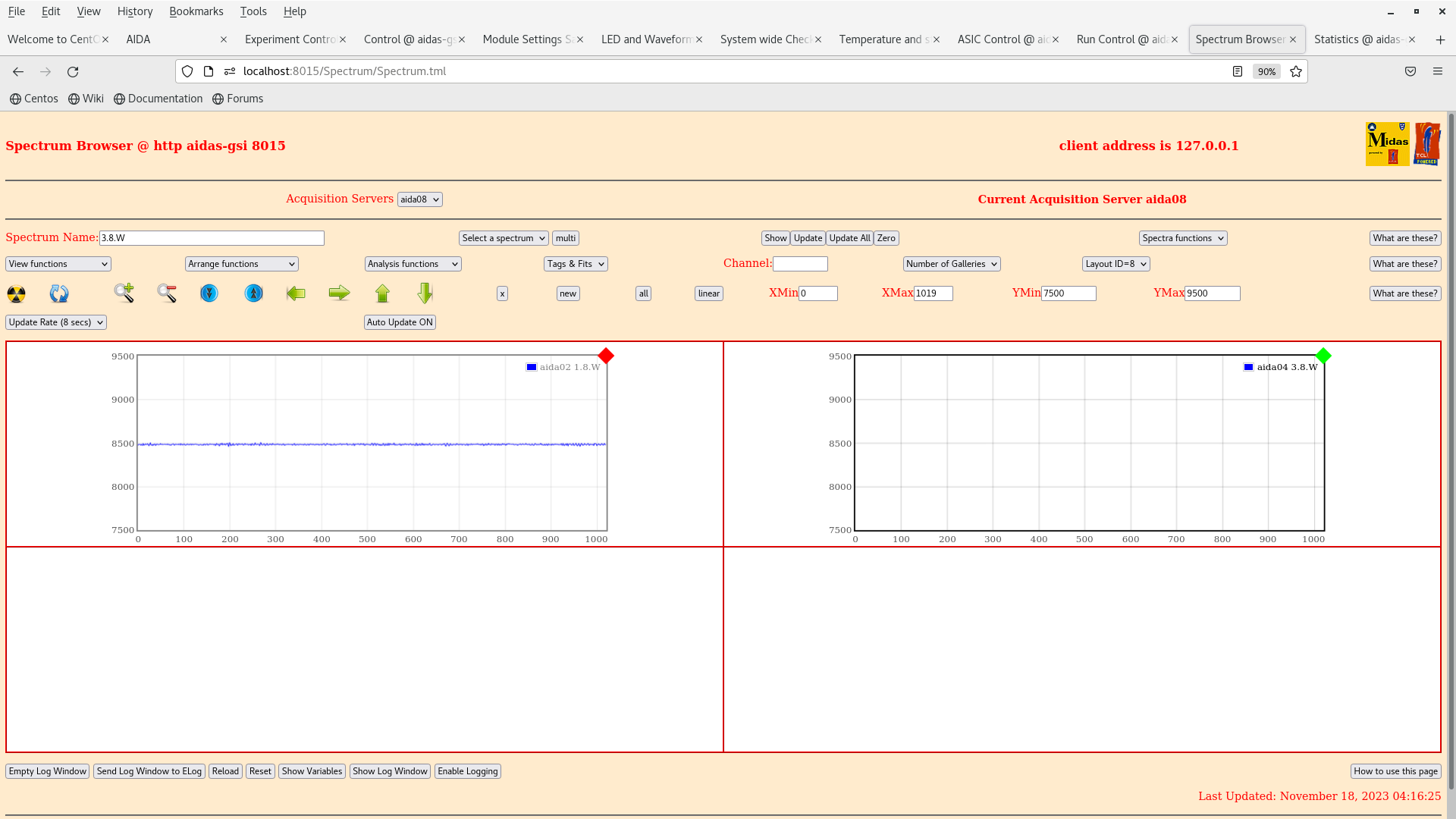

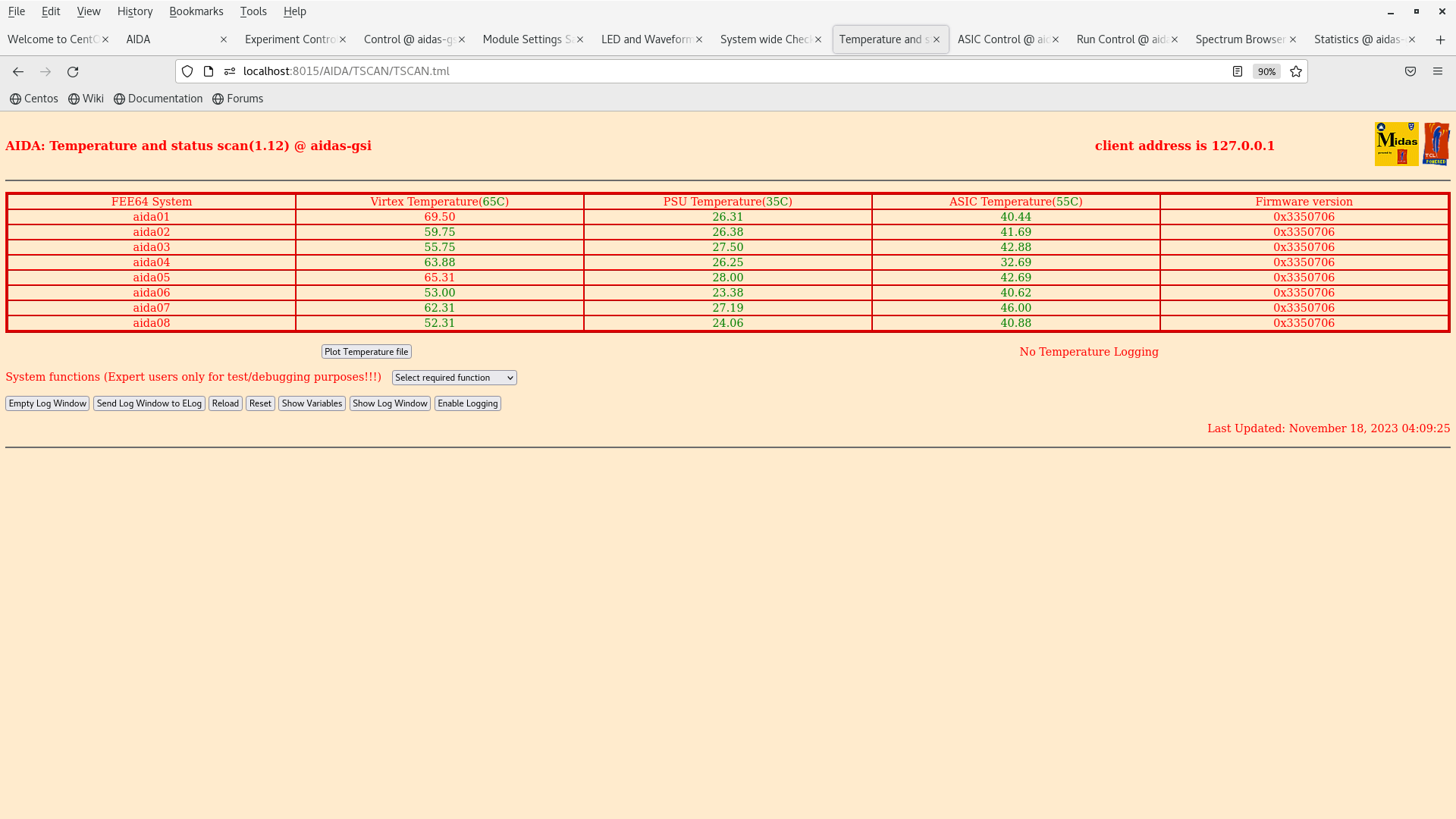

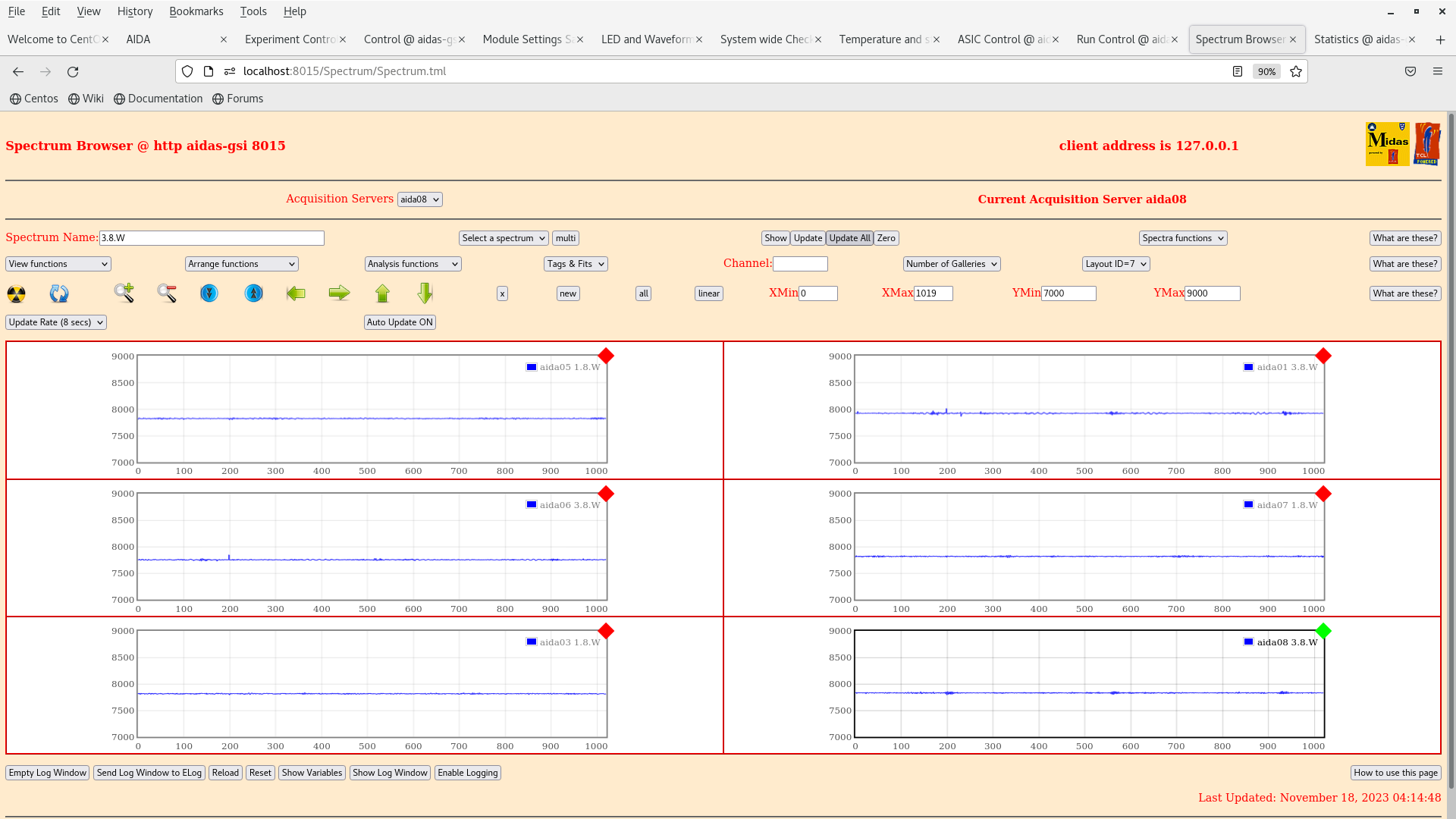

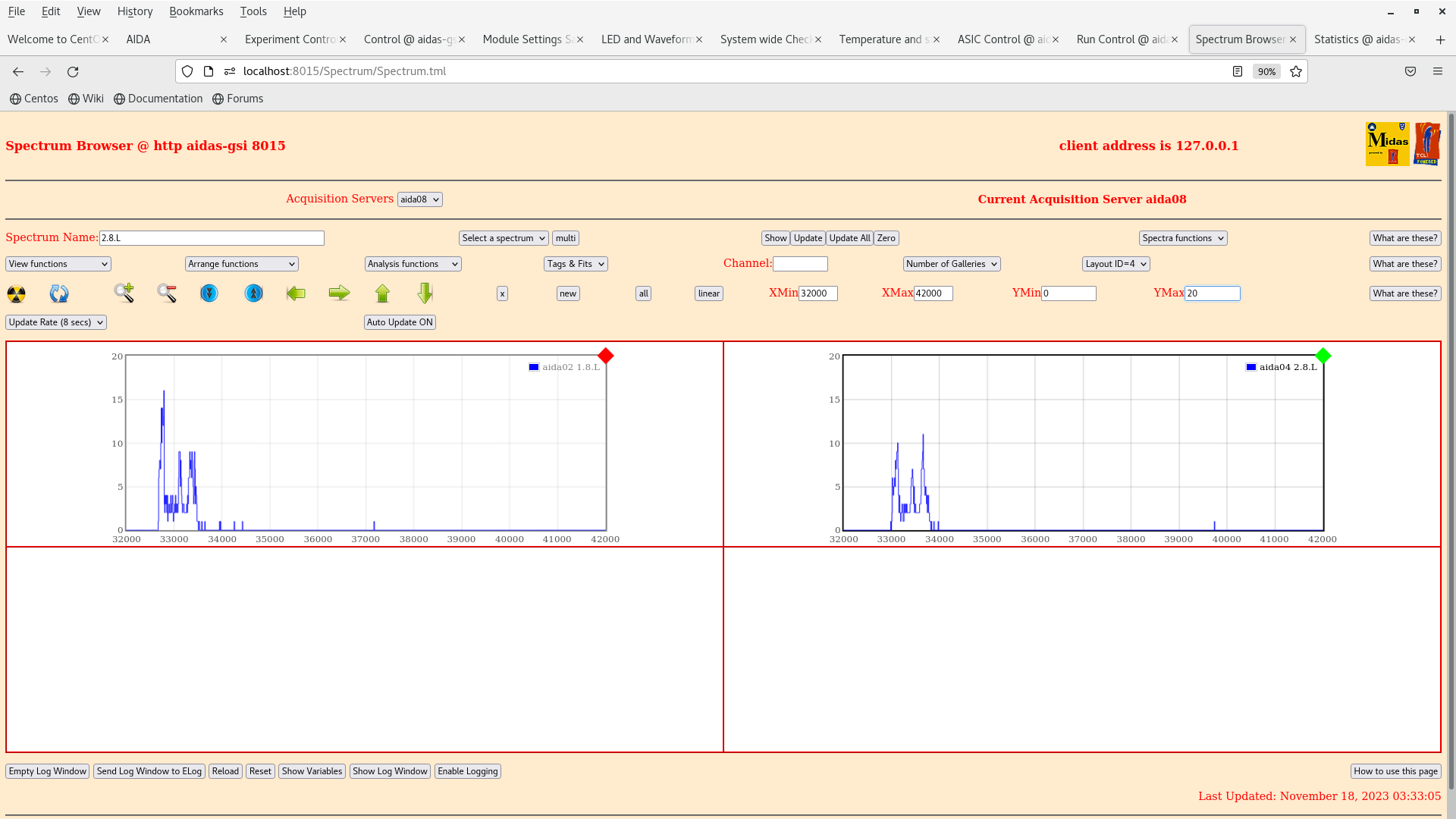

03.20 c. 3k per spill 13N beam to S4 Observe scatter of events at all energies for LEC Switch LE -> MEC aida02 & aida04 slow comparator 0xf -> 0x3 ( c.1.5MeV ) All other ( p+n ) FEE64s slow comparator 0xa ( c. 5MeV ) For c. 700MeV/u 14N + 6cm s.steel -> c. 350MeV/u 14N -> c. 30MeV energy loss in 1mm Silicon, c. 45MeV energy loss in 3mm plastic per n+n FEE64 1.8L spectra - attachment 1 observe 3x peaks above threshold - different Z fragments? per FEE64 Stat spectra 04.10 DSSSD bias -150V leakage current -5.380uA - attachment 3 FEE64 temps OK - attachment 4 ADC data item stats - attachment 5 per FEE64 Stat spectra - attachment 6 per FEE64 1.8.L spectra - attachments 7-8 per FEE64 1.8.W spectra - 20us FSR - attachments 9-10 05.03 aida02 & aida04 slow comparators 0x3 -> 0xa All spectra zero'd c. 06.30 Beam tests end DAQ stopped. DSSSD HV OFF. AIDA power OFF.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 770x499
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
