Entry time:
Tue Nov 21 13:56:59 2023
Author
*
:
Subject
*
:

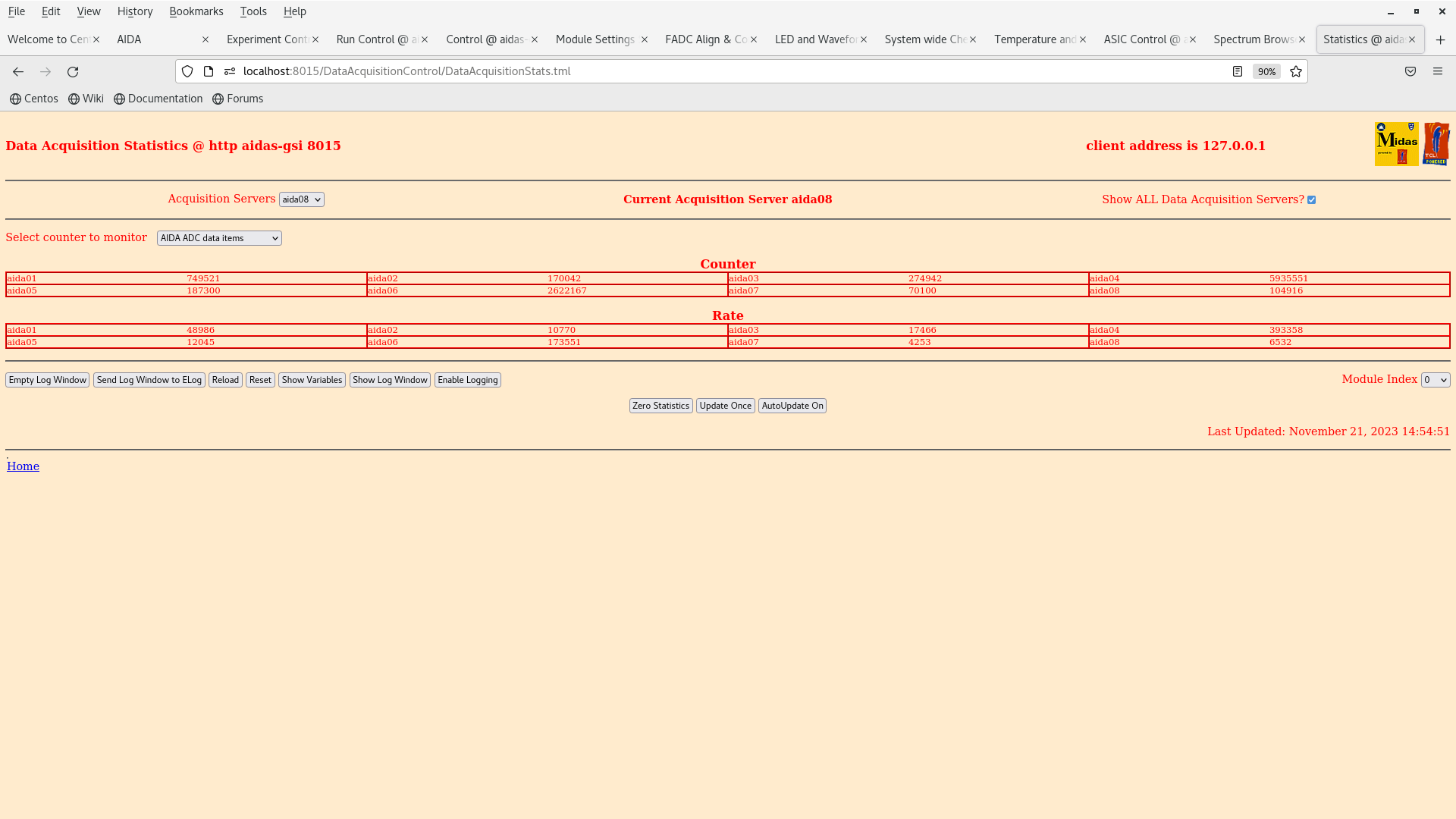

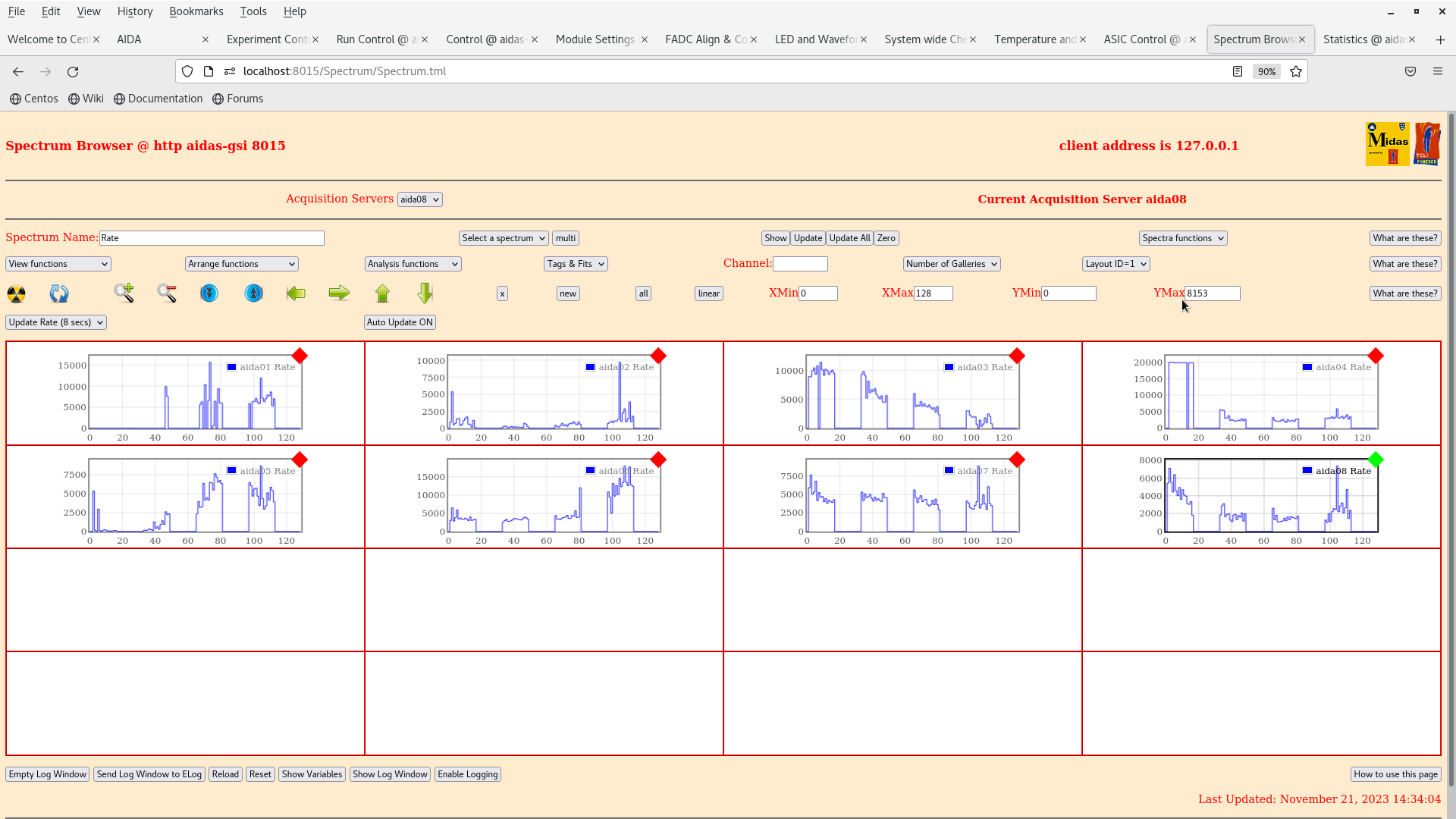

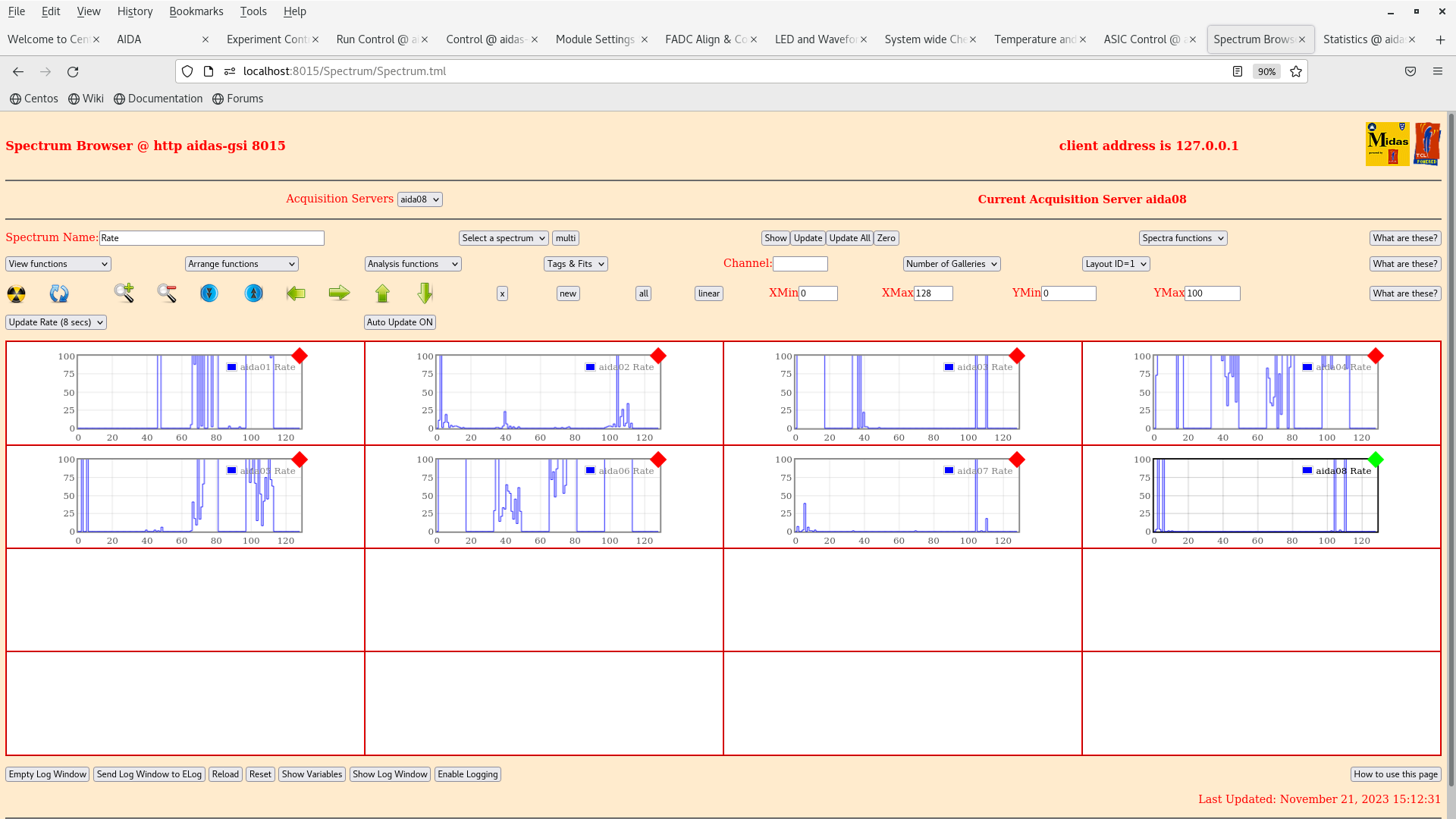

Connect the BB7 on top of the snout to the former aida05 (FEE above aida01) Also remove copper busbar that is unused Power on AIDA... rates terrible (attachment 1) Reground AIDA stand to platform base ... small improvement but nothng major Decide to power OFF, recheck all connections, aida02 ERNI maybe a bit loose, otherwise all good. Remove BB7 to try to restore status quo ante Power on again and rates much improved (attachments 2 & 3) Looks similar to attachment 44 on Aida test 17/11/23 -> Back to status quo? 15:05 : BB7 put back on the snout and connected (ground + HV) No significant change has been noticed (attachments 4 & 5) Attach cables 14 to FEE that BB7 is connected - then will configure DHCP for aida09 Start up aida, configure as before. AIDA09 appears but is not configured (ASIC settings just copied from aida08 for now) Rates on aida look OK still (attachment 6) HV (attachment 7) Temps (attachment 8)
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1080
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1080
Attachment 7:
Original size: 770x462
Attachment 8:
Original size: 1920x1080
