Entry time:
Wed Dec 6 16:32:03 2023
Author
*
:
Subject
*
:
Honeywell HSS-DPS sensor is faulty - attachments 1 & 2 Replace with Sontay Condensation Prevention Switch - attachments 3 & 4 Wiring Honeywell Sontay V+(*) red V+(*) red GND blue 0V blue COM green COM black DRY yellow N/O yellow Honeywell V+ 24V ac/dc +/- 20% Sontay V+ 24V dc +/-5%, 24V ac +/-10% V+ measured as +16.5V dc with DMM Interlock still not working - V value too low ? - Honeywell DRY not equivalent to Normally Open ?
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry

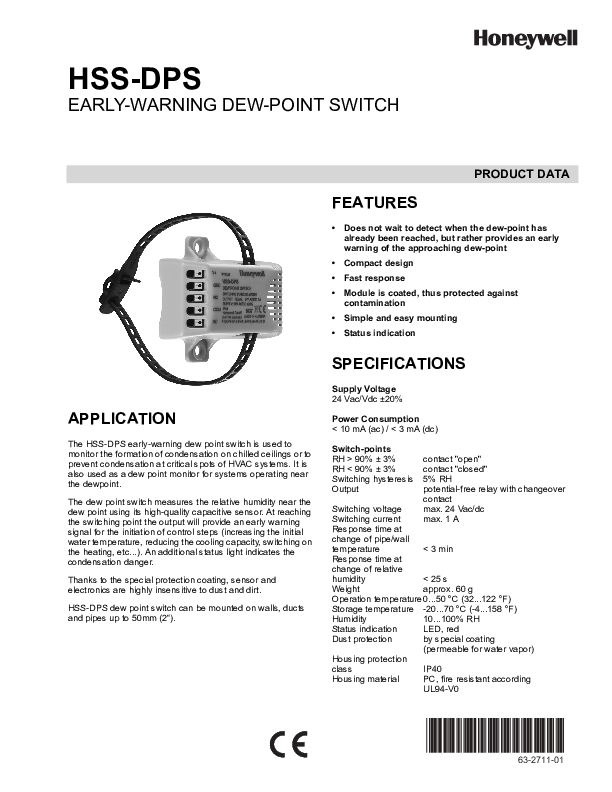

Attachment 1:
Honeywell_HSS-DPS_63-2711.pdf
Original size: 612x792
Attachment 2:
Original size: 4000x1800
Attachment 3:
Original size: 4000x1800
Attachment 4:
Original size: 4000x1800
