Entry time:
Thu Dec 7 17:30:36 2023
Author
*
:
Subject
*
:

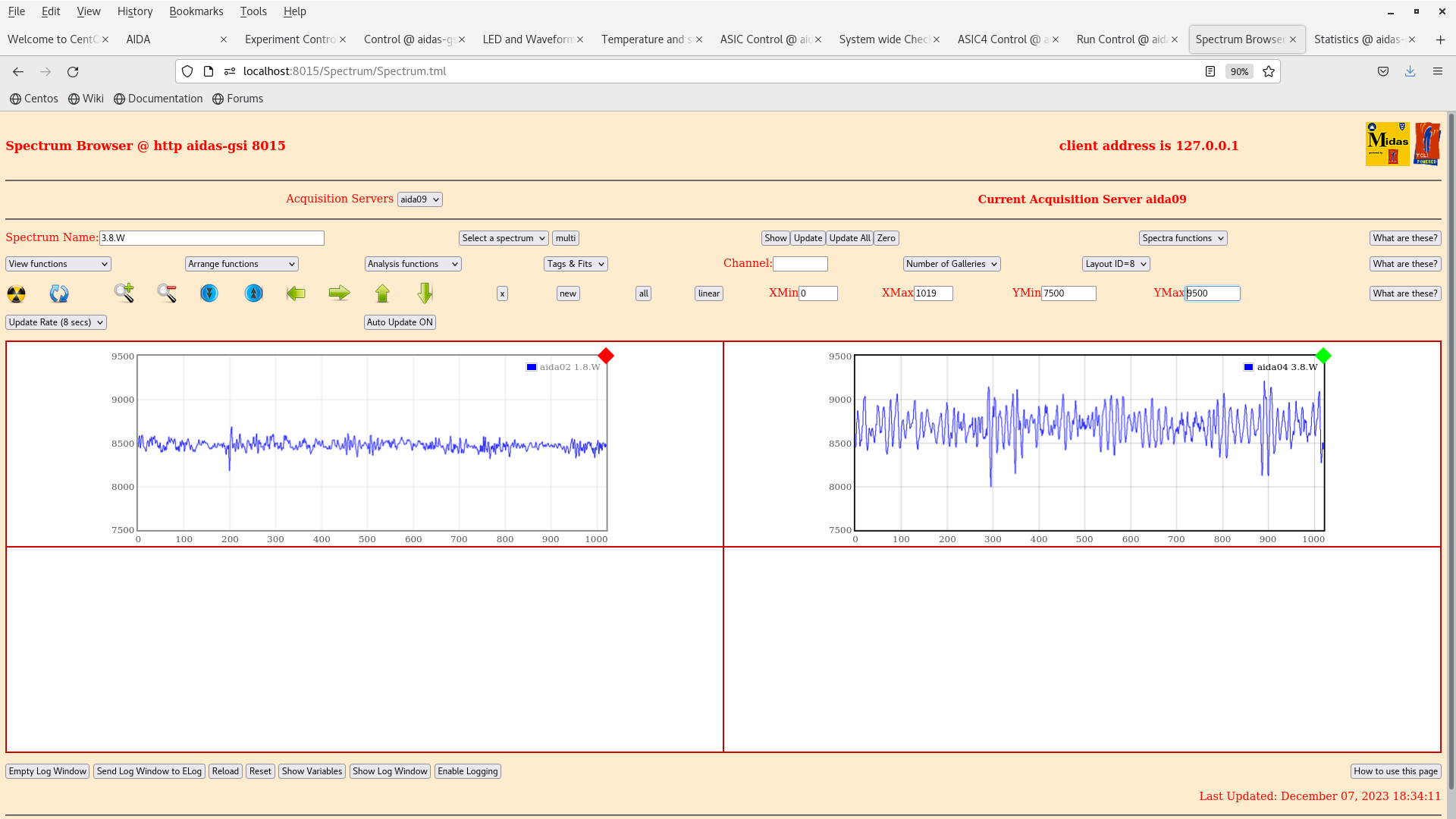

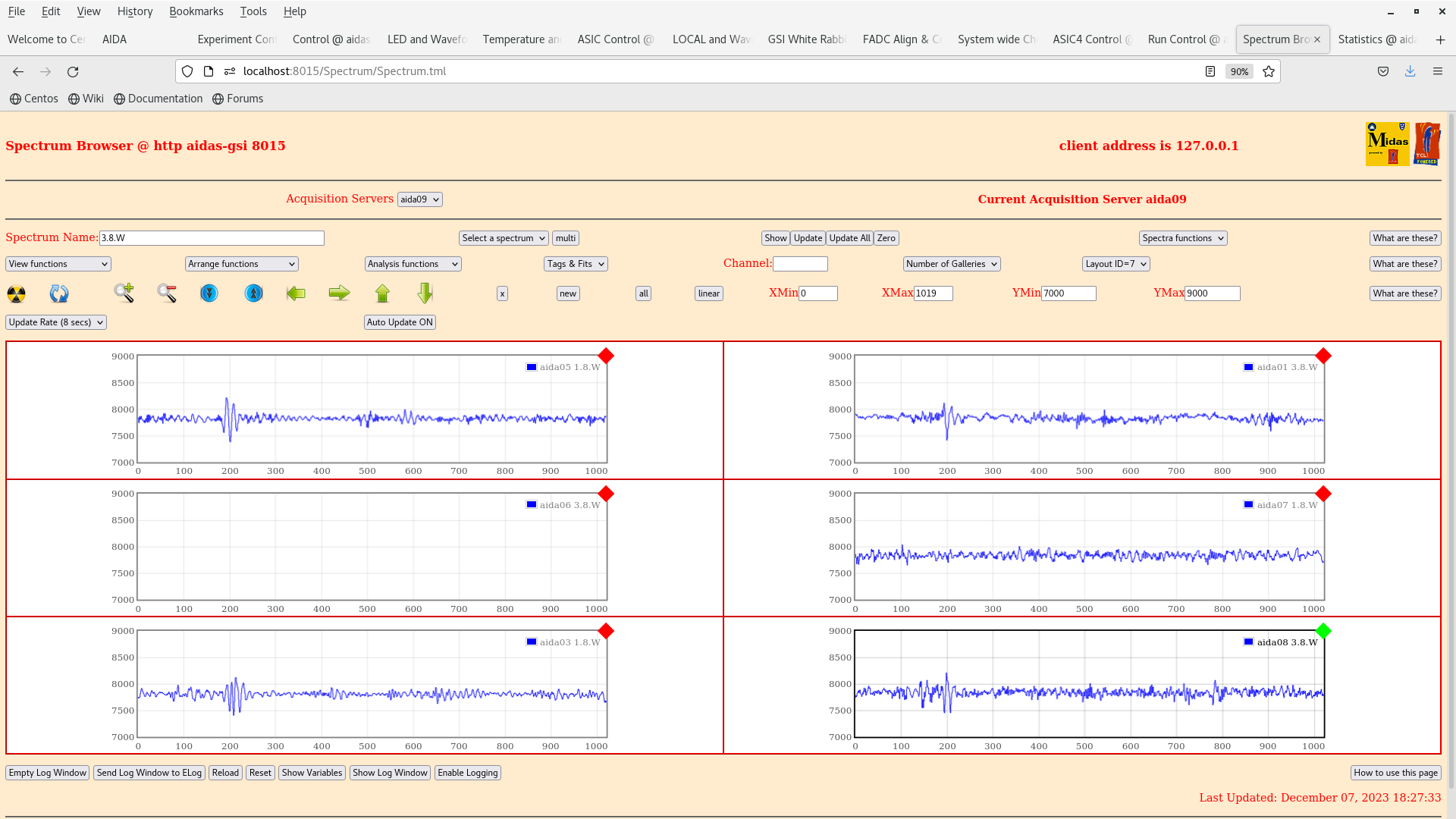

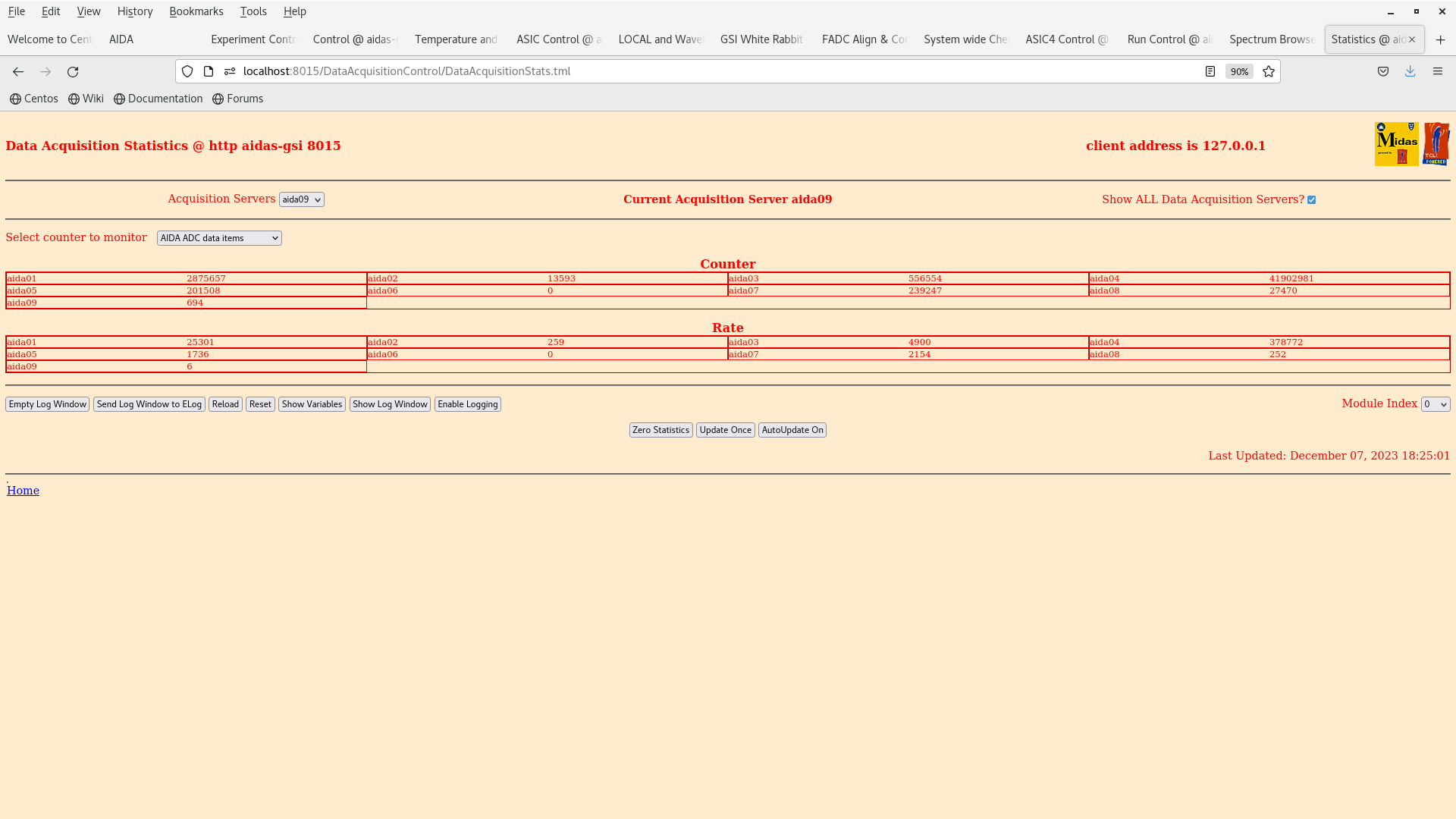

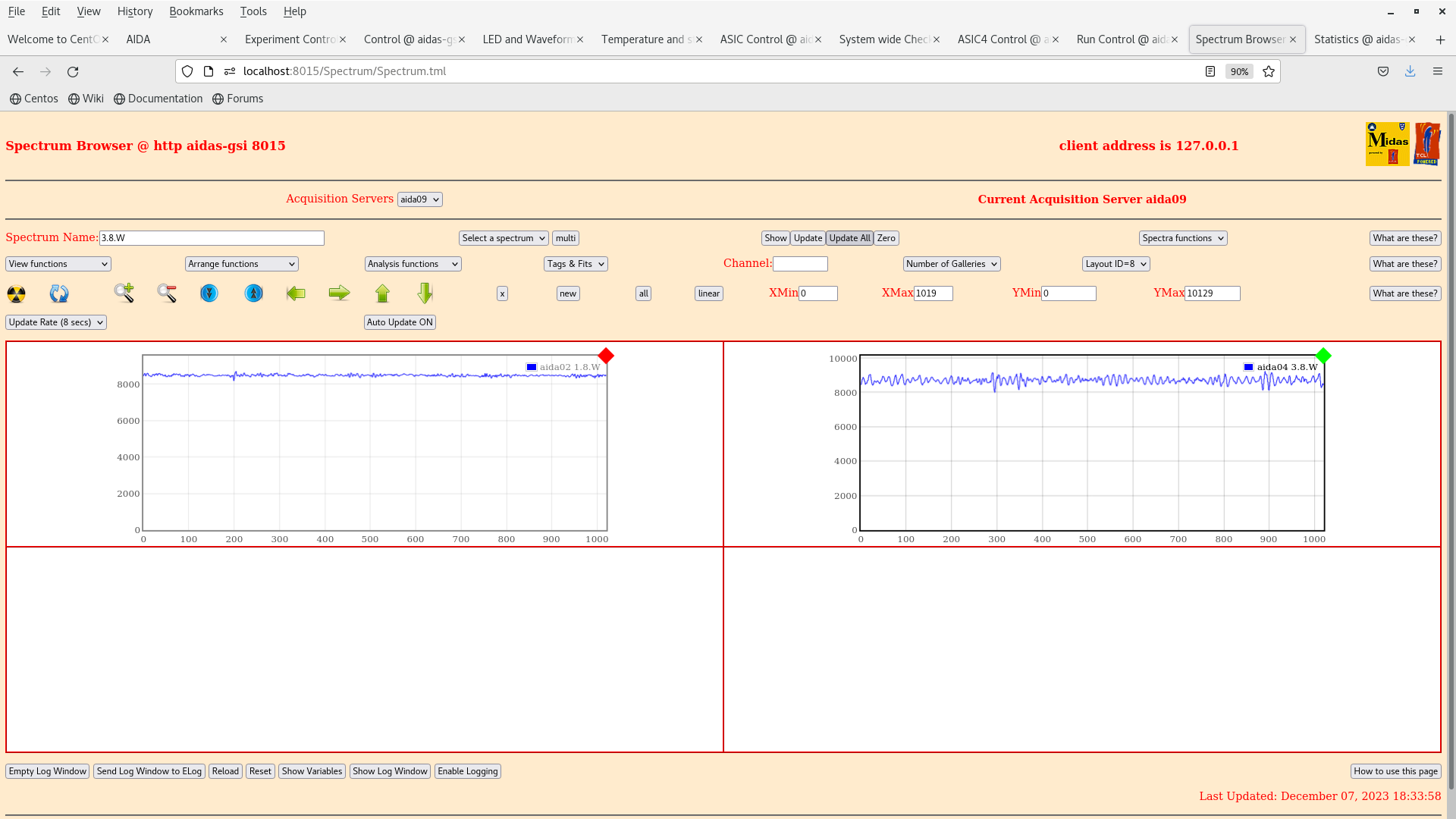

Stack re-assembled - upstream to downstream - 'upstream' bPlast - no spacer - black cloth optical screen on steel frame ( c. 1.5cm diamond hole lower left side in direction of beam ) - std 9mm spacer - MSL type BB18(DS)-1000 24cm x 8cm 3208-3/3208-21/3208-22 - std 9mm spacer - MSL type BB7(DS)-1000 3542-13 ( approx central wrt BB18 ) bPlast cables screened 3M 1245 + Kapton film + drain wire bPlast cables currently floating bPlast driver PCBs disconnected FEE64 aida06 adaptor PCB currently disconnected ASIC settings 2023Nov16-18.55.20 BNC PB-5 pulser - not connected DSSSD bias -150V -5.13uA - attachment 1 FEE64 temperatures Ok - attachment 2 All system wide checks OK ADC data item stats OK - attachment 3 Note *very* low rate in aida02 ( n+n Ohmic side ) p+n 1.8.W spectra - 20 us FSR - attachments 4 & 5 per FEE64 rate spectra - attachment 6 n+n 1.8.W spectra - 20us FSR - attachments 6 & 7 AIDA To Do replace aida04 pulser walkthrough
