Entry time:
Fri Dec 8 11:32:44 2023
Author
*
:
Subject
*
:

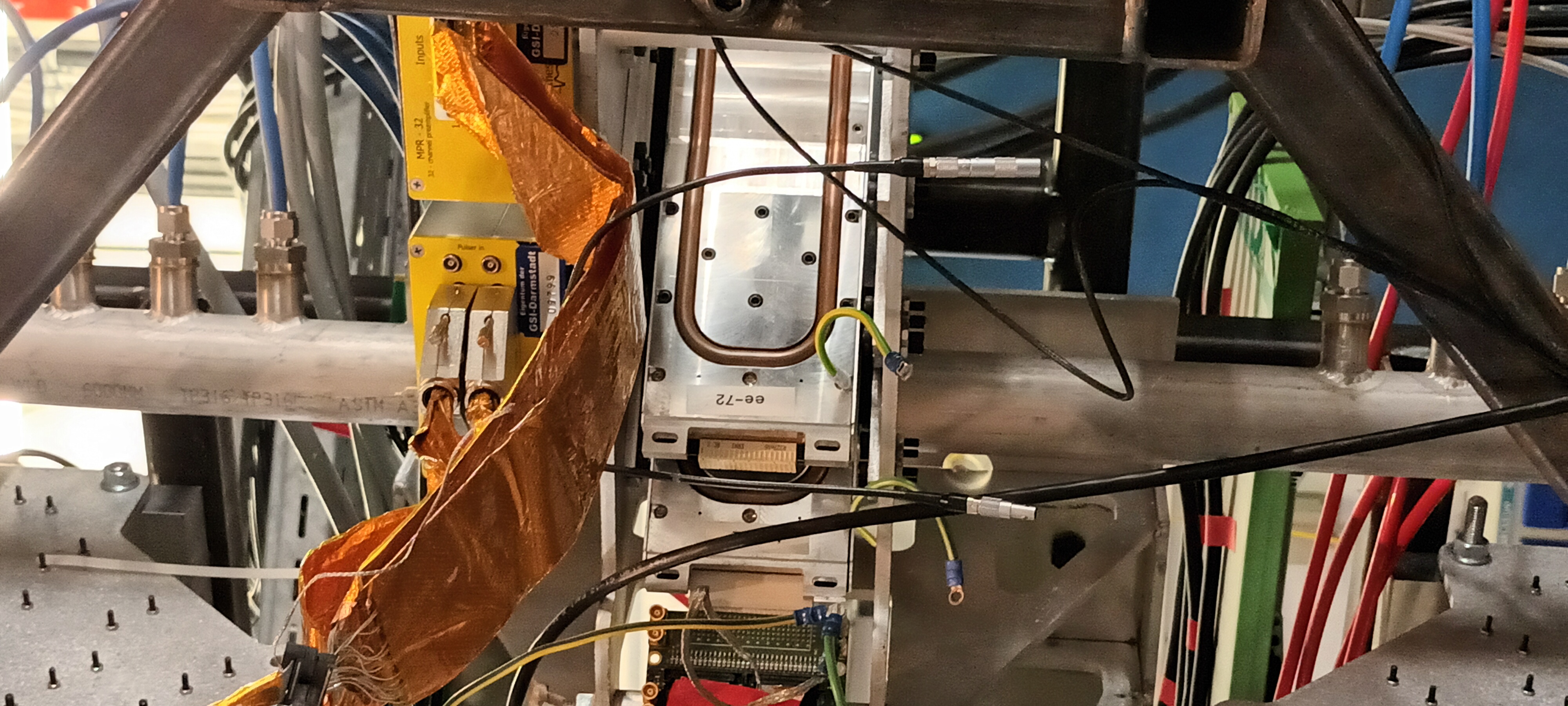

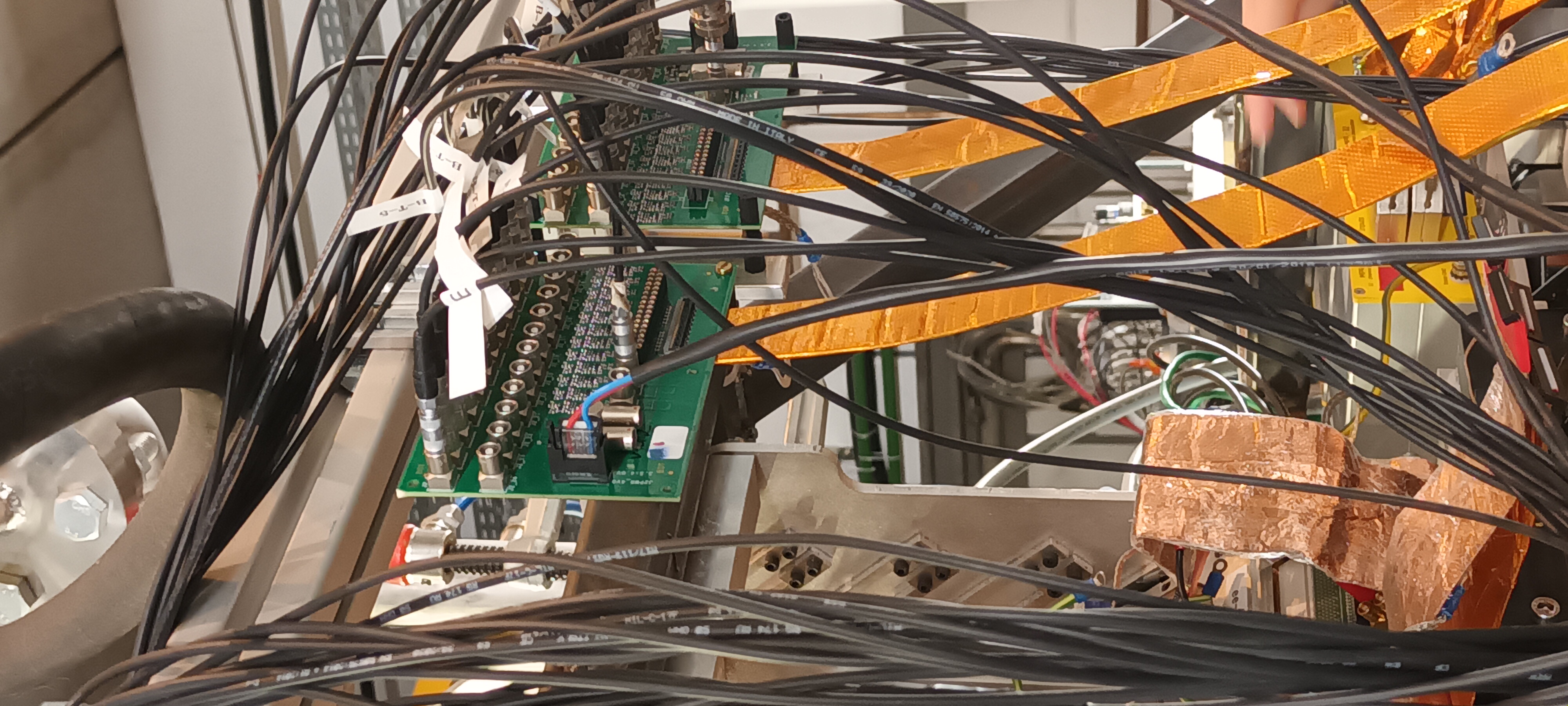

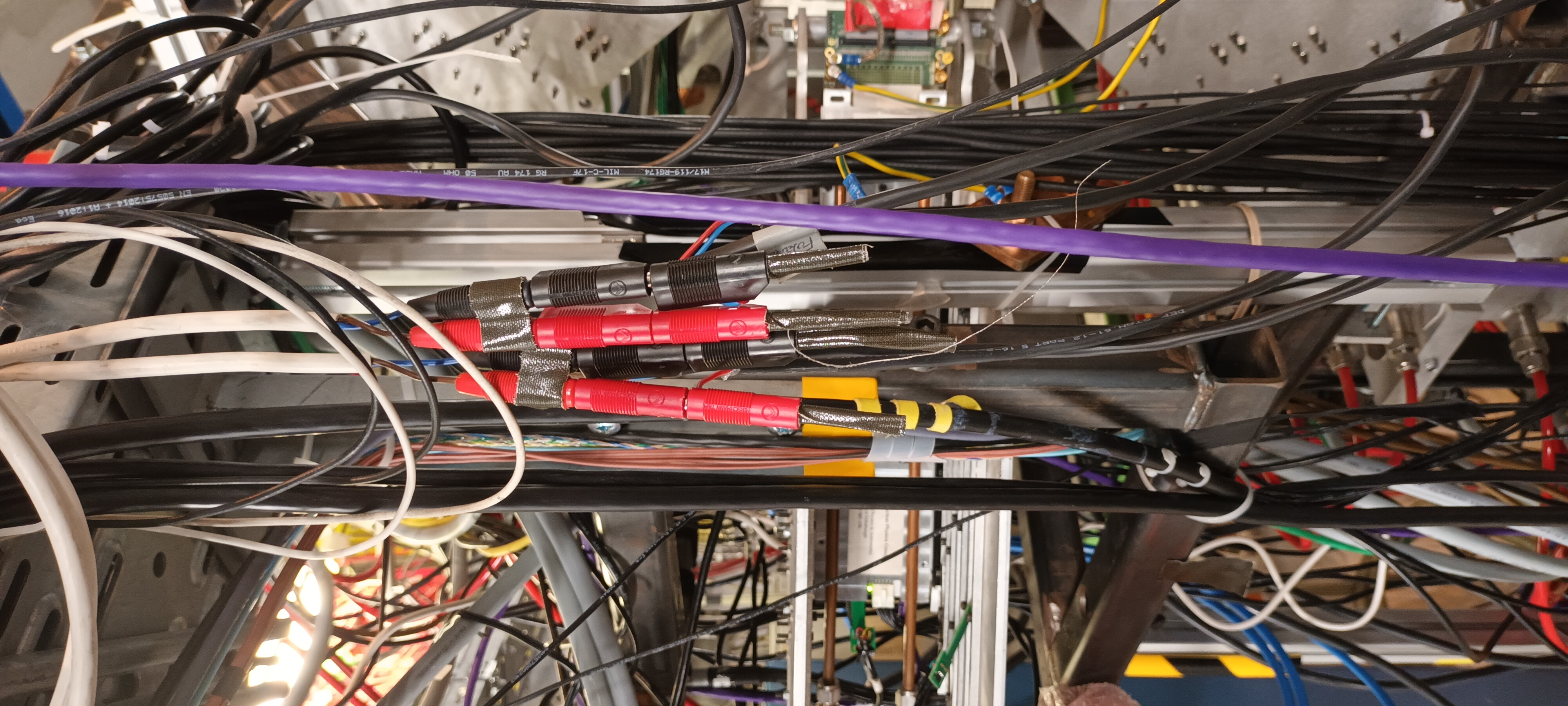

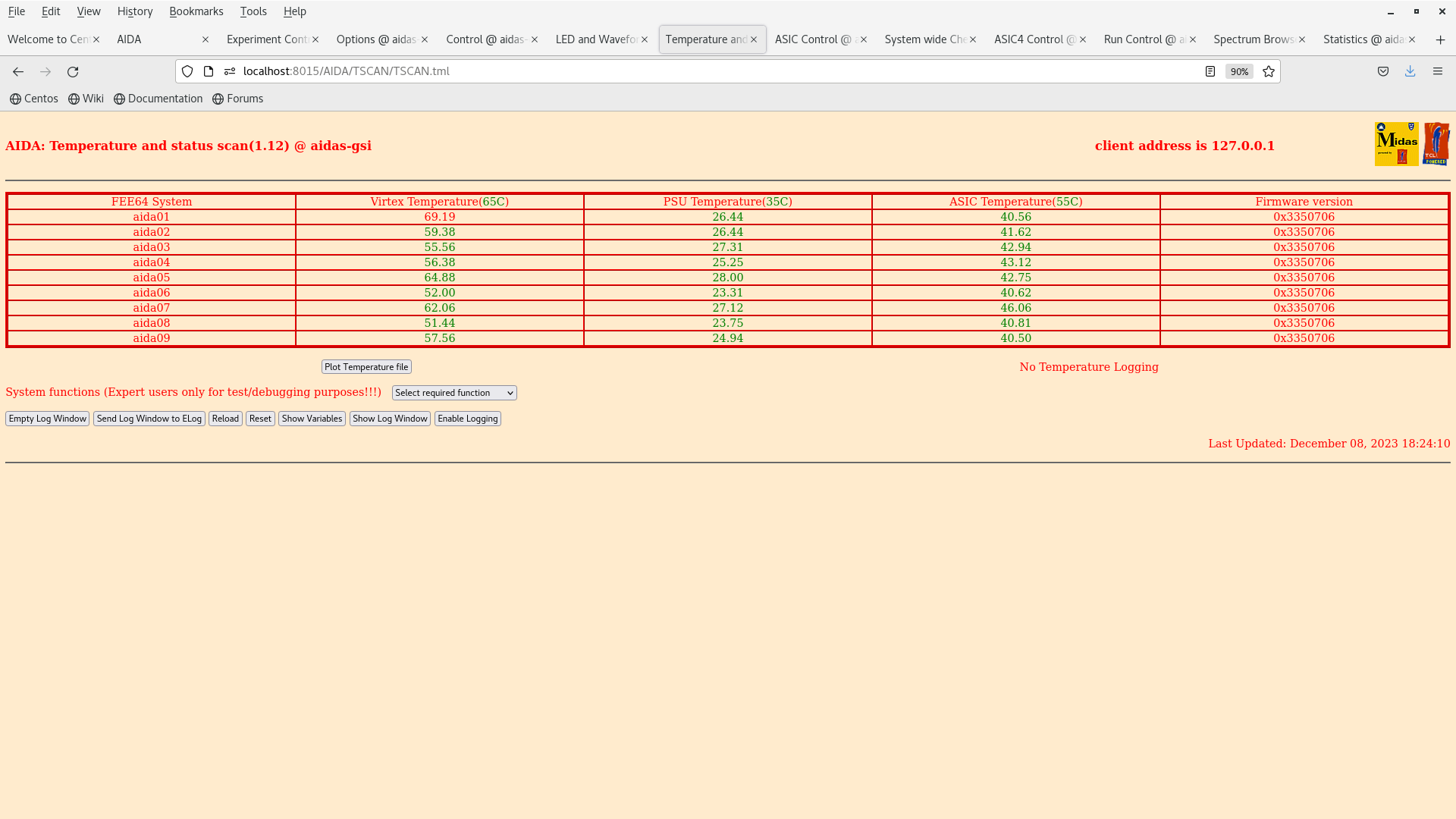

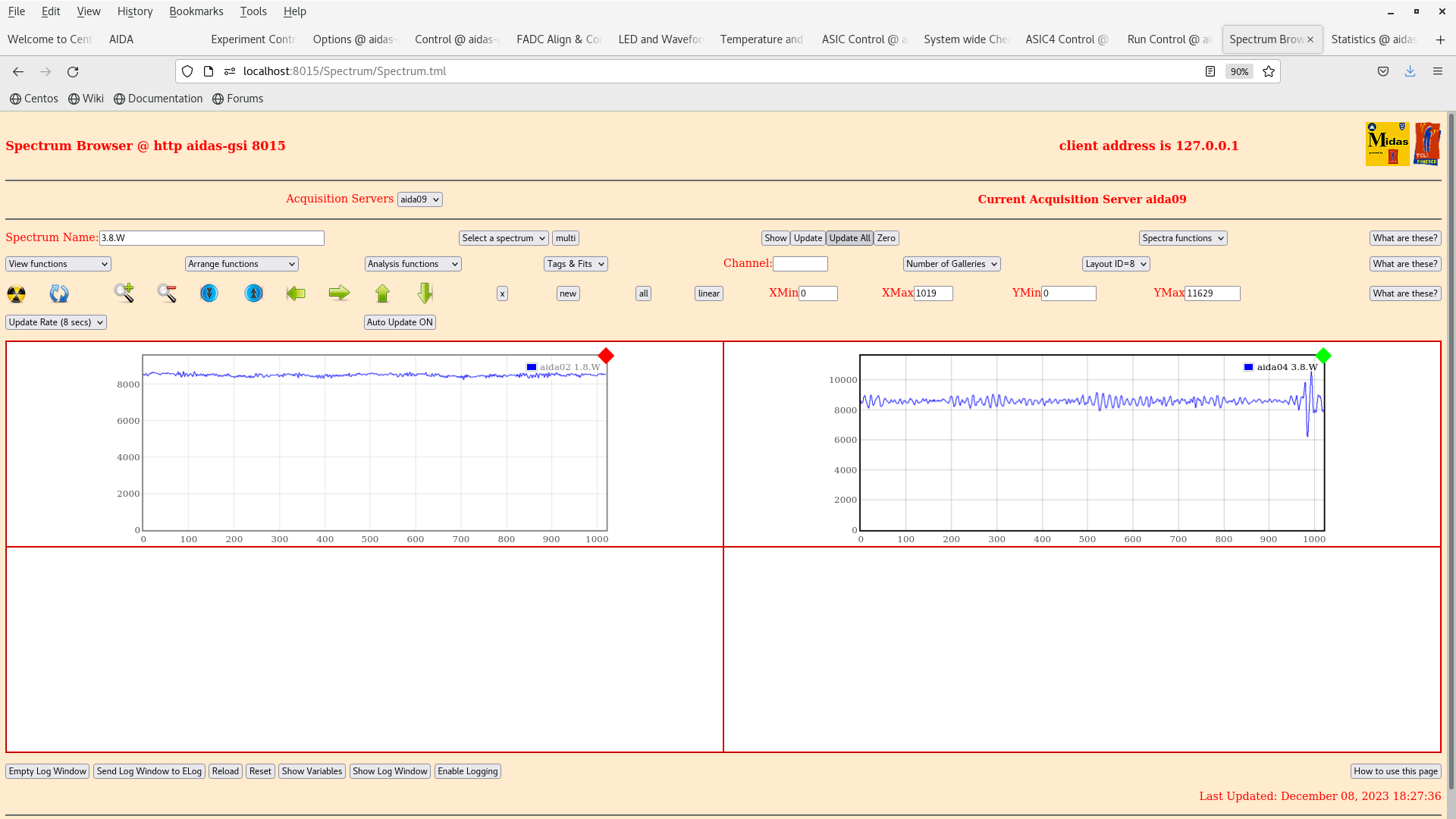

Change n+n FEE64 aida04 d8:80:39:41:f6:b7 asic #1 faulty aida04 MAC from d8:80:39:41:f6:b7 to d8:80:39:41:ba:2b restart dhcpd ( systemctl restart dhcpd ) DSSSD bias -150V -5.17uA - attachment 1 FEE64 temperatures OK - attachment 2 All system wide checks OK ADC data item stats - attachment 3 High rates observed in all FEE64s *except* aida01 & aida04 => aida04 asics #1-4 OK CC/VP have commenced cabling bPlast - will await completion of install to review noise n+n 1.8.W spectra - 20 us FSR - attachments 5 per FEE64 rate spectra - attachment 4 18:20 AIDA noise status test bPlast - cabling complete, power on - all sides BB7 Mesystec preamps connected, power off, no detector HV DSSSD bias -150V -5.355uA - attachment 6 FEE64 temperatures OK - attachment 7 All system wide checks OK ADC data item stats - attachment 8 Rates c. 10-20k mostly dominated by a few 'hot' channels per FEE64 rate spectra - attachments 9 & 10 p+n 1.8.W spectra - 20us FSR - attachment 11 bPlast using 152Eu source for test - signal observed aida01 3.8.W may be recoil electron from Compton event n+n 1.8.W spectra - 20 us FSR - attachment 12 Some photos of bPlast & BB& preamp/cabling attached re-bPlast note that cables screened 3M 1245 + Kpaton + drain wire -> drain wires *not* connected to ground PSU ch 4 not ground referenced
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 770x499
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 734x499
Attachment 7:
Original size: 1920x1080
Attachment 8:
Original size: 1920x1080
Attachment 9:
Original size: 1920x1080
Attachment 10:
Original size: 1920x1080
Attachment 11:
Original size: 1920x1080
Attachment 12:
Original size: 1920x1080
Attachment 13:
Original size: 4000x1800
Attachment 14:
Original size: 4000x1800
Attachment 15:
Original size: 4000x1800
Attachment 16:
Original size: 4000x1800
Attachment 17:
Original size: 4000x1800
Attachment 18:
Original size: 4000x1800
