Entry time:

Tue Apr 1 15:34:16 2025

Author*:

Subject*:

Tests of new AIDA ASIC mezzanines - 2024 production batch

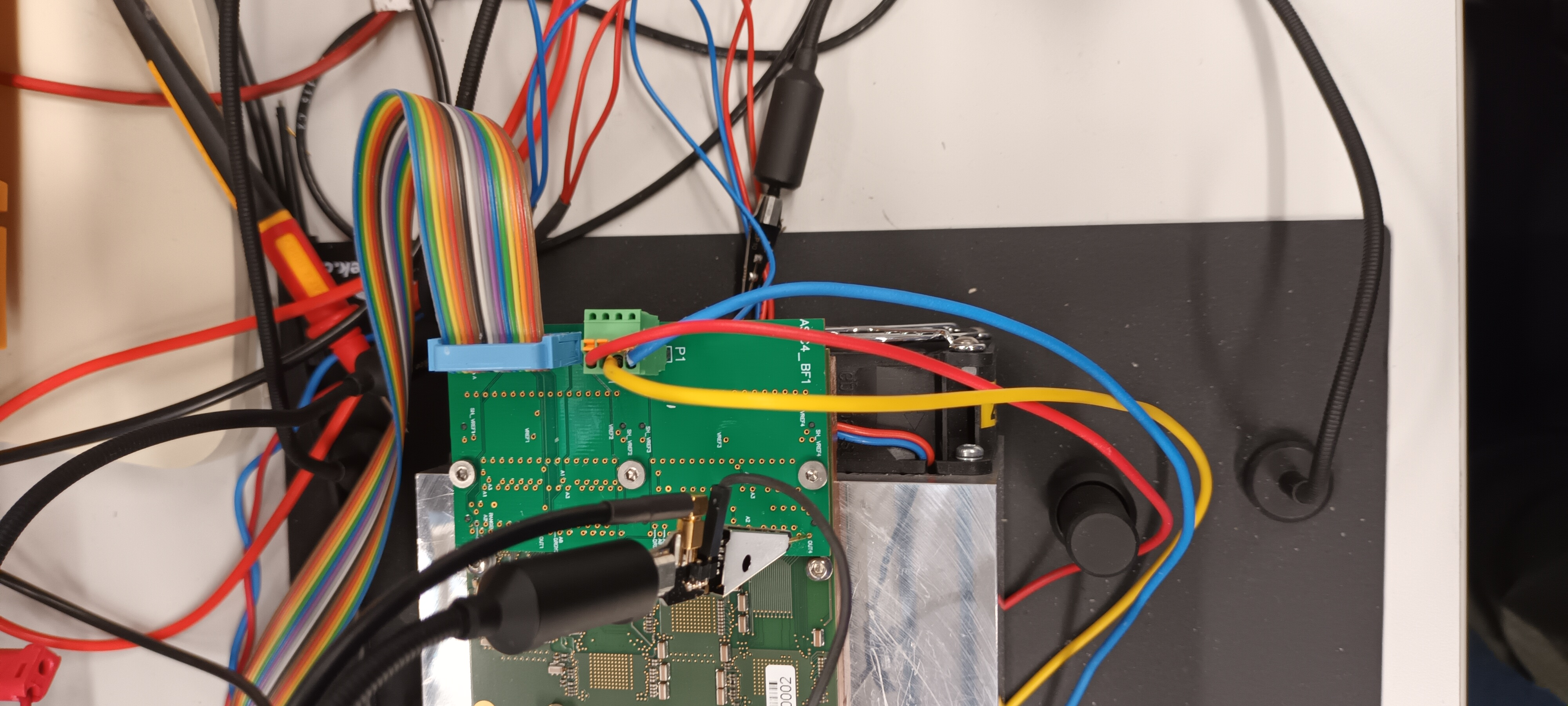

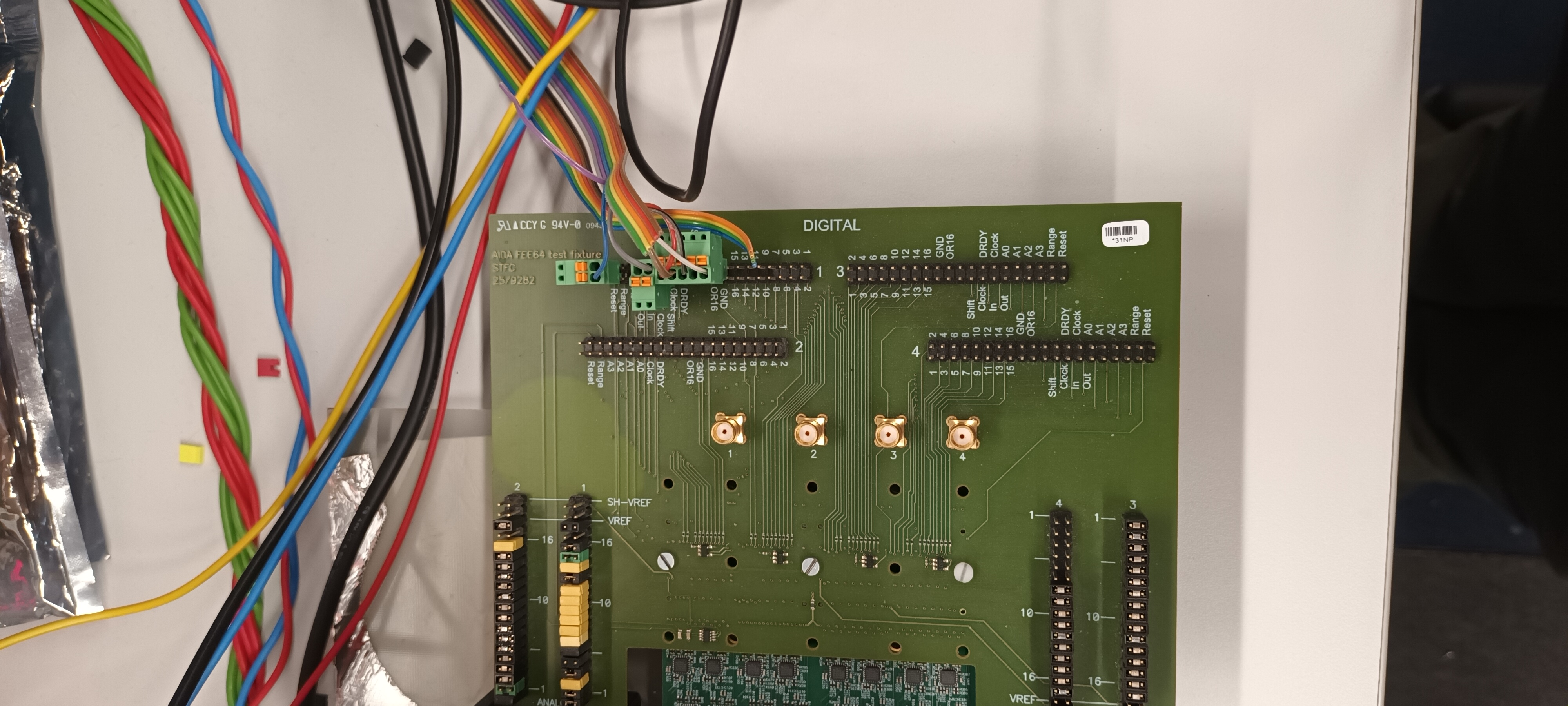

Using nnlycca4/MezzX PCB test bench T9, STFC DL - attachments 1 & 2

nnlycca4 193.62.115.228

BNC PB-4 Pulser
Amplitude ?9000
Attenuator x5 IN
Frequency 25Hz
Polarity +
t_r 50ns
tau_d 200us
Delay MIN
Ref INT

Output amplitude (DSO hi Z input) c. 500mV

MACB
Program switch = 1

Power on sequence - 1 2 3 Mezzanine - attachment 3
1 - FEE64 and ASIC mezzanine cooling fans
2 - FEE64 +6.2V/+6.8A
3 - FEE64 -6.5V/-0.69A, +8V/+0.88A
4 - Mezzanine +5V/+1.7A +7V/+0.03A

At power up ASIC mezzanine +5V/+2.1A which decreases to +5V/+1.7A following DAQ SETUP

Pulser to *all* inputs via test adaptor PCB (PJCS design)

Examples of test signals as follows:

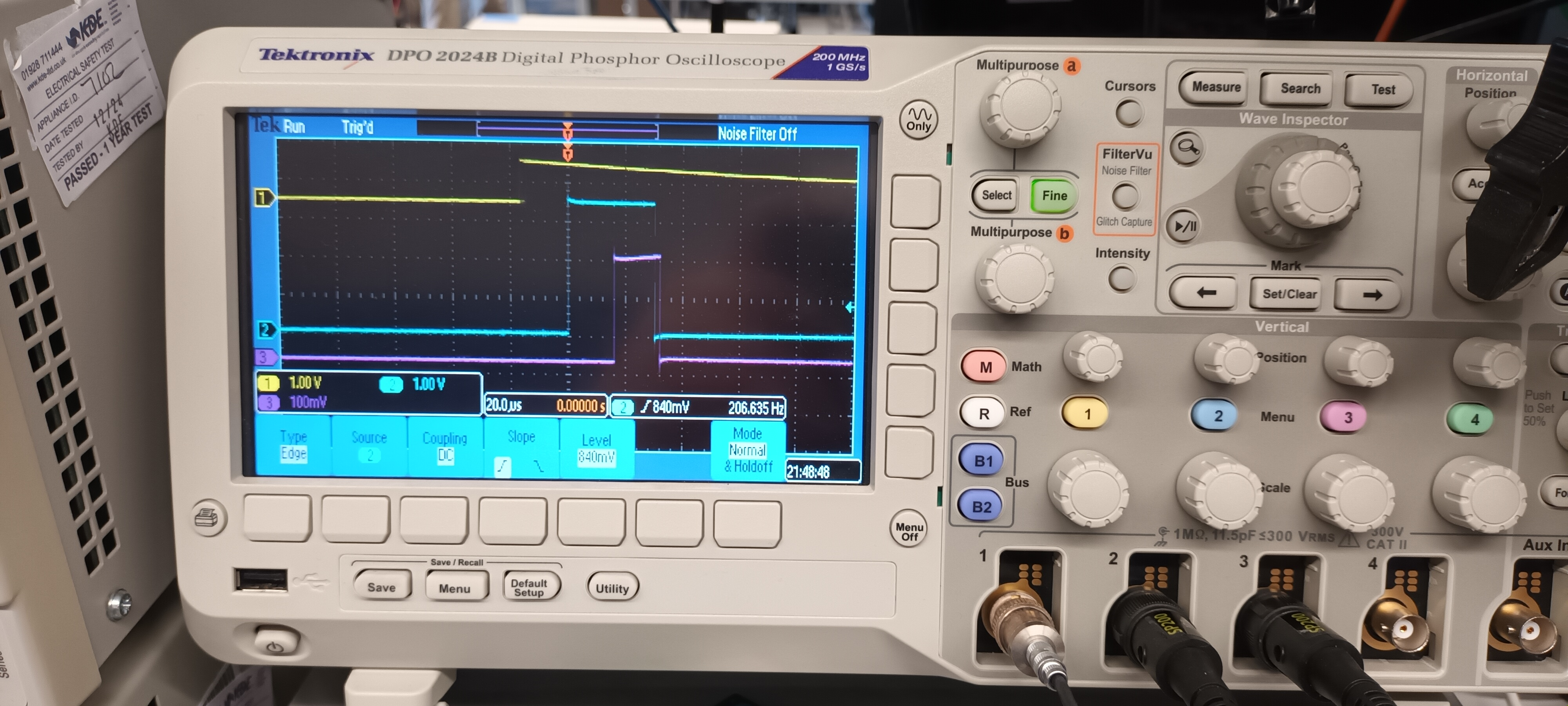

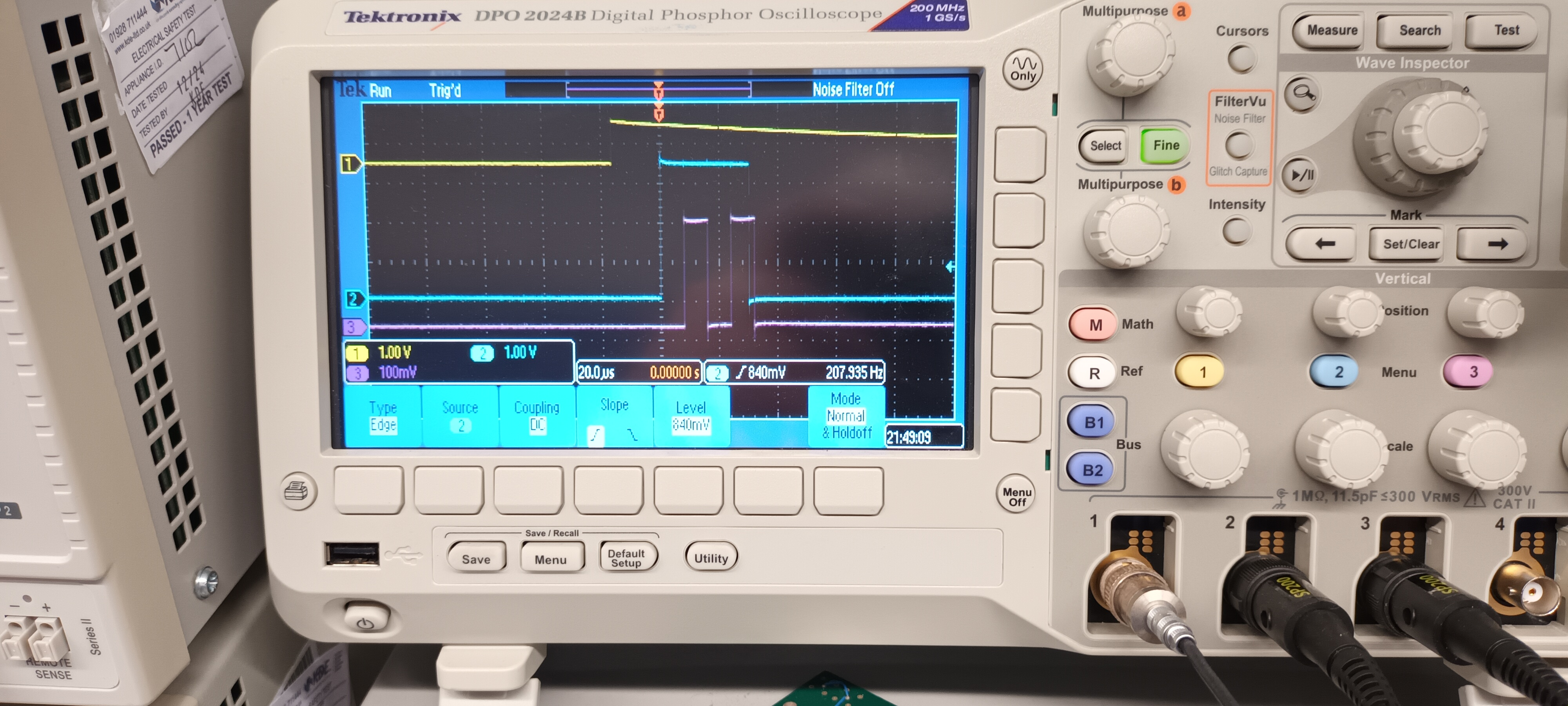

Data Ready DRDY (blue), Address bits A0-A3 (magenta), pulser (yellow) - attachments 4-7

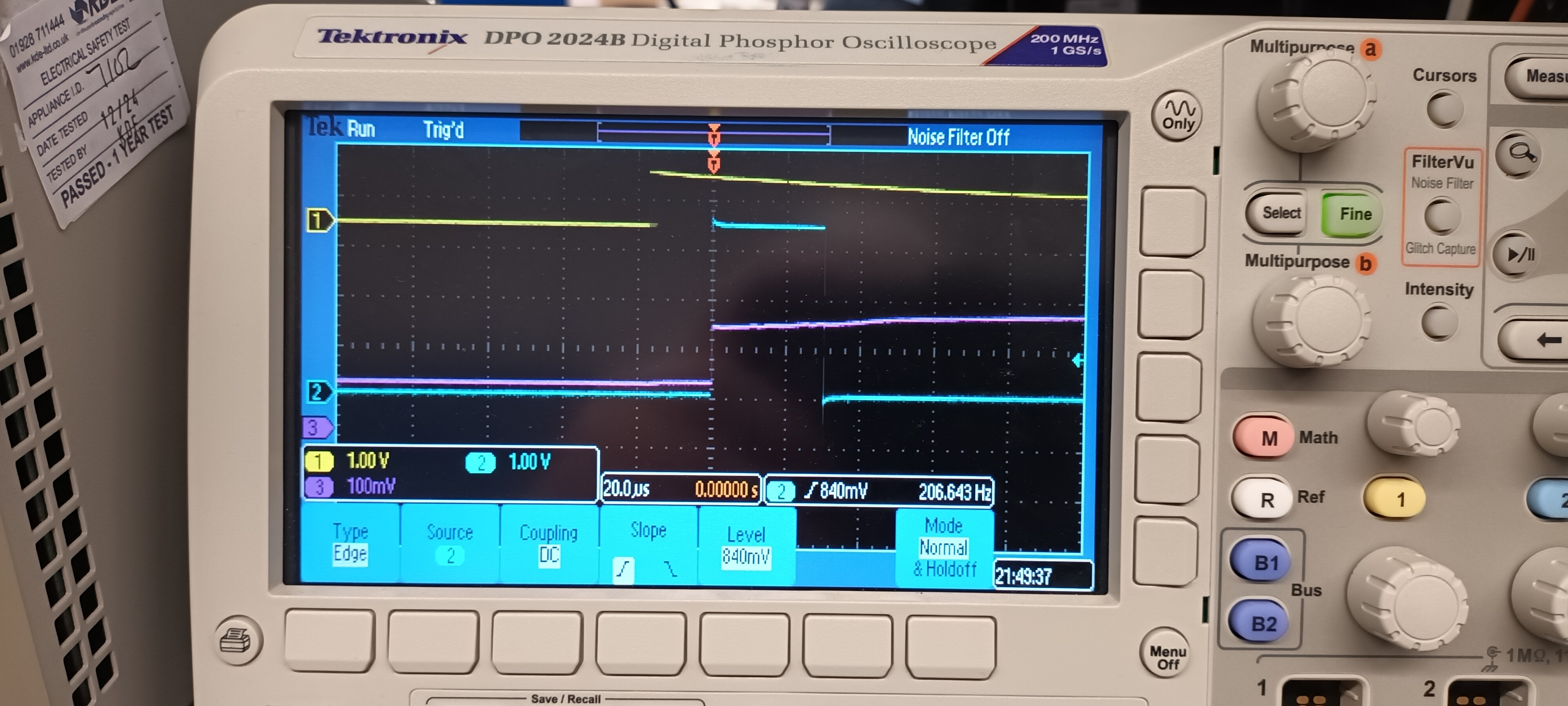

MUX Out (magenta) - attachment 8

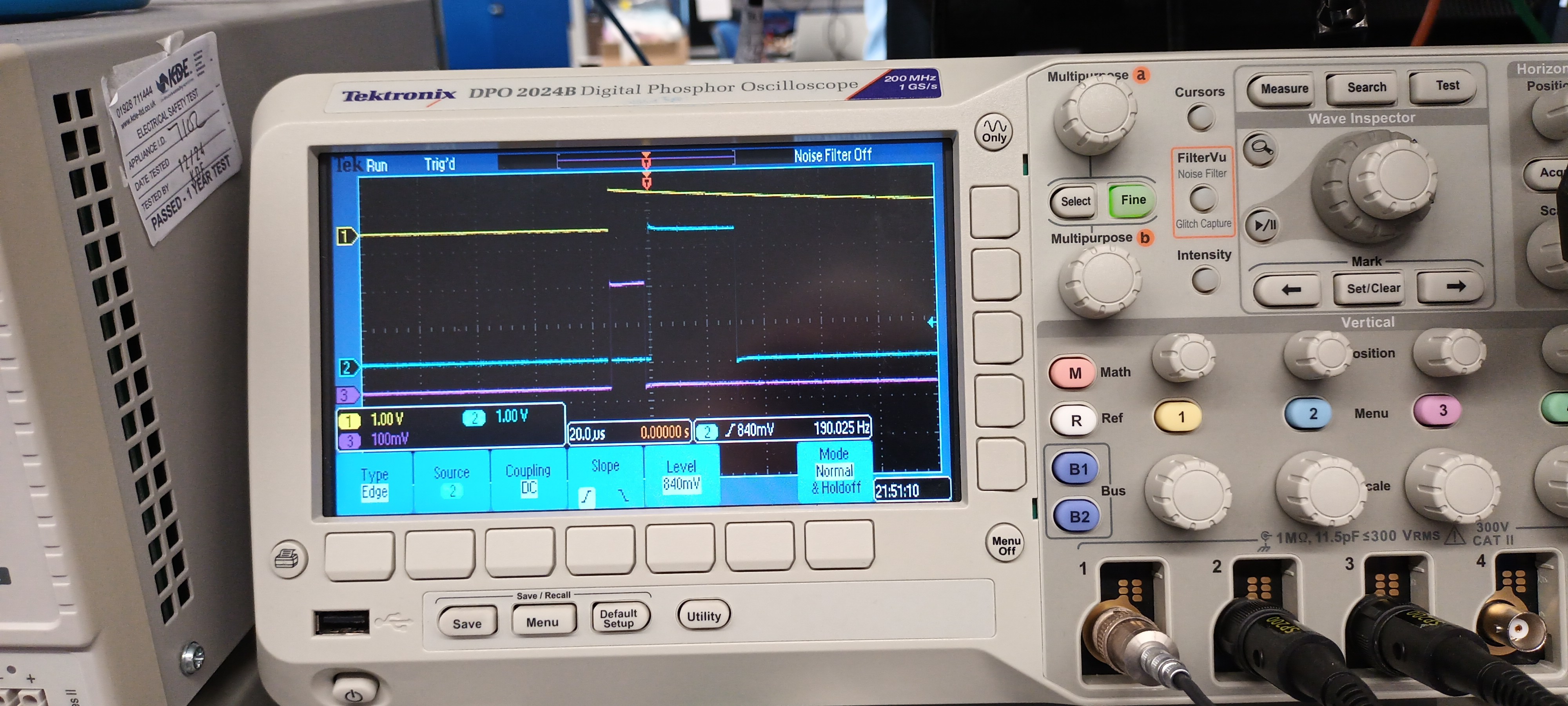

LEC fast comparator (magenta) - attachment 9

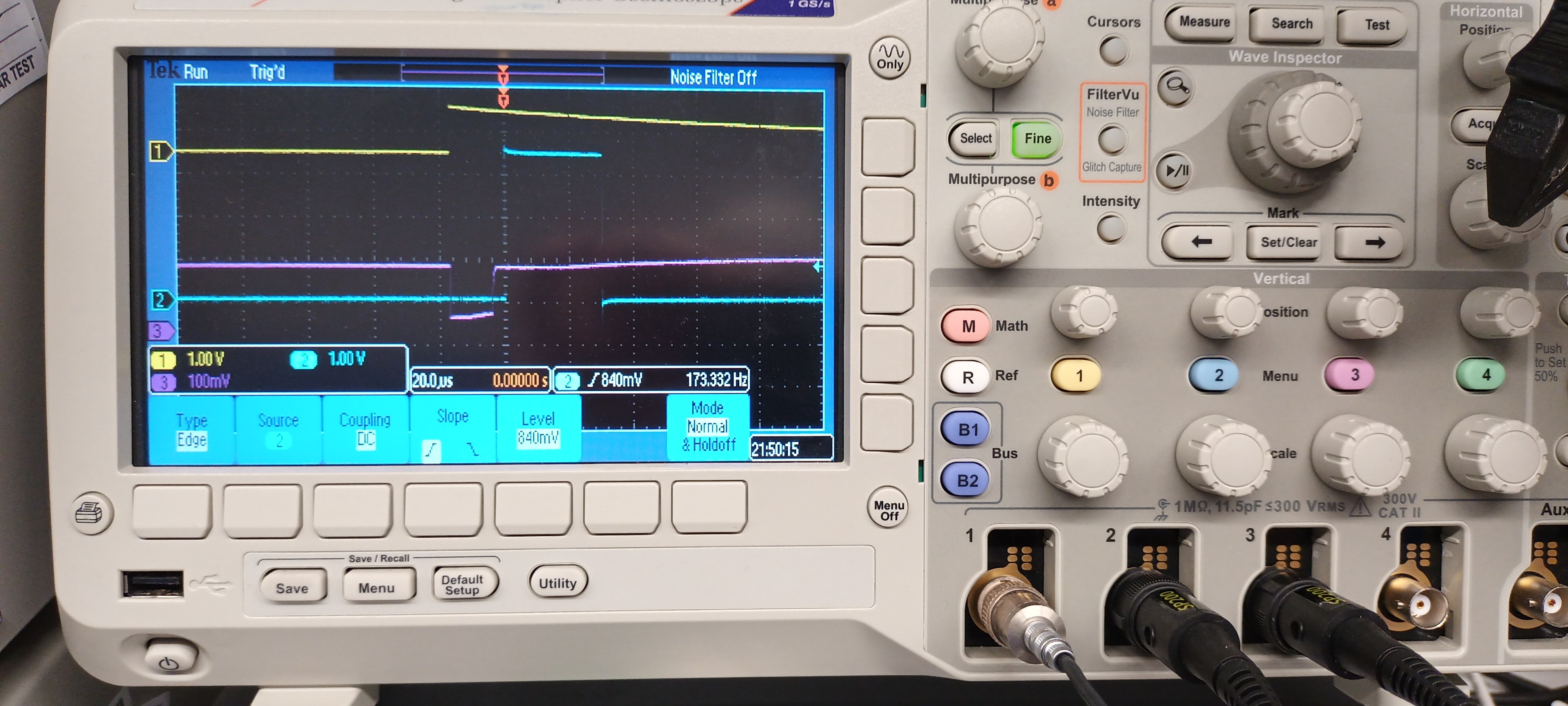

Preamp output (magenta) - attachment 10

Following power up and the boot of the embedded PowerPC processor

DAQ RESET
DAQ SETUP
DAQ GO
Start ASIC Readout
*multiple* Check ASIC Load for ASIC #2 (note this check loads all ASICs)

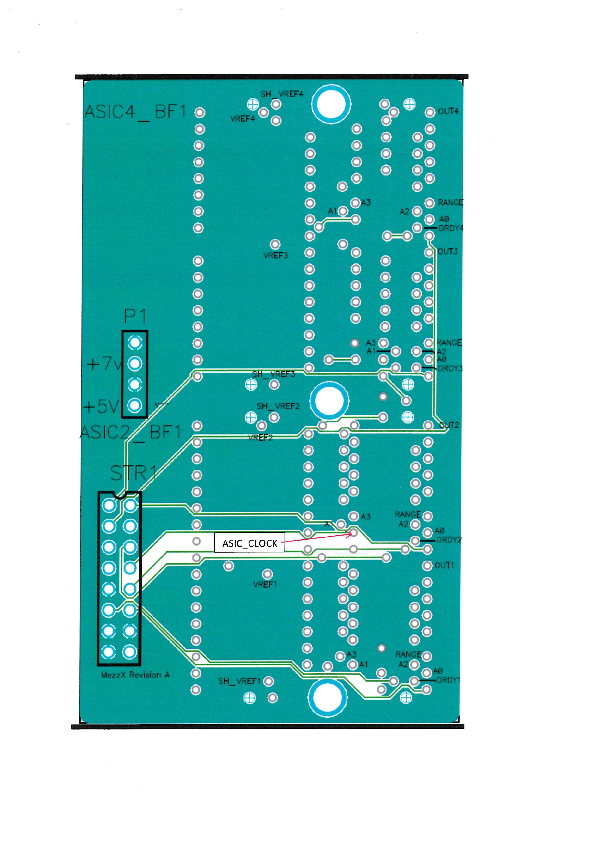

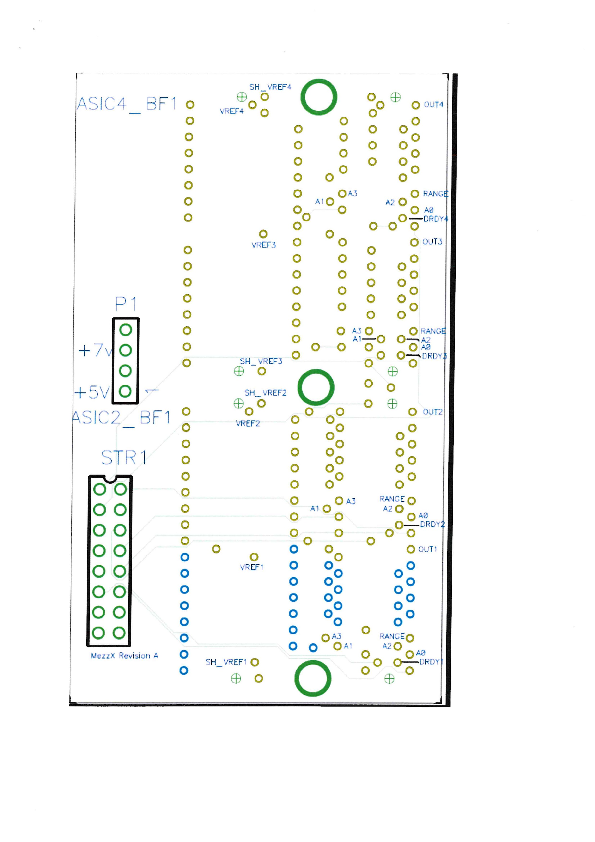

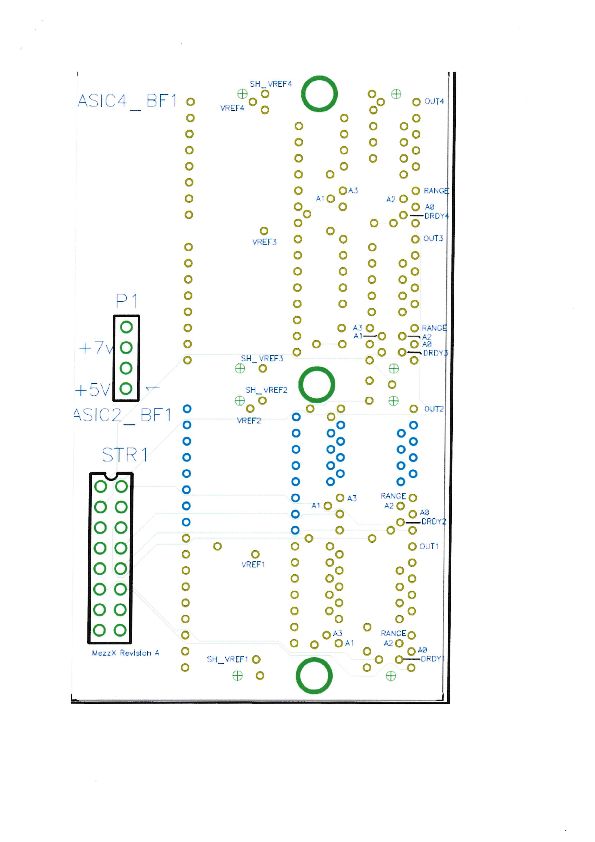

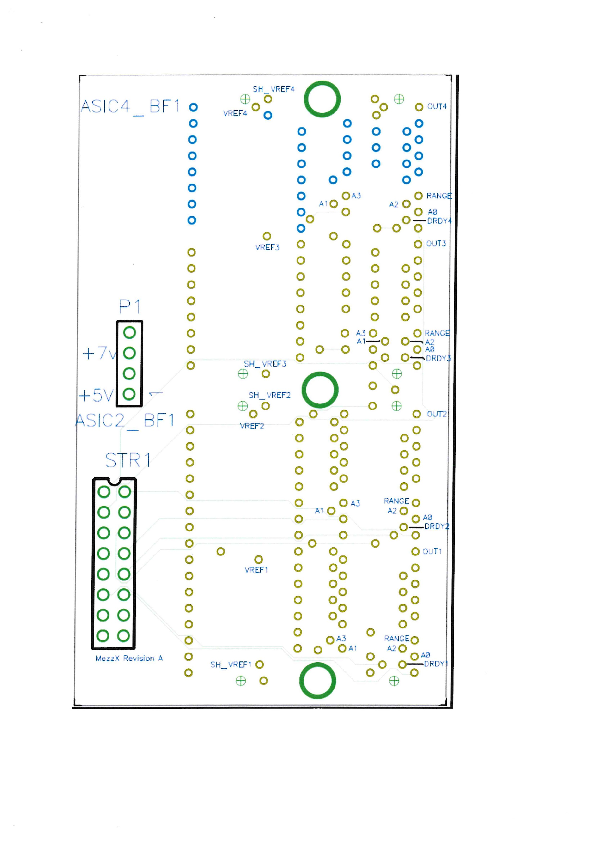

Use DSO scope probe at MezzX PCB test points - attachment 11

All ASICs of the following ASIC mezzanines tested OK

Batch 0216240101
-0009

Batch 0213110101
-0002

Batch 0324390101 (*new* batch 2024/Q4)

-0010
-0011
-0019
