Entry time:
Tue Nov 8 02:49:19 2016
Author
*
:
Subject
*
:

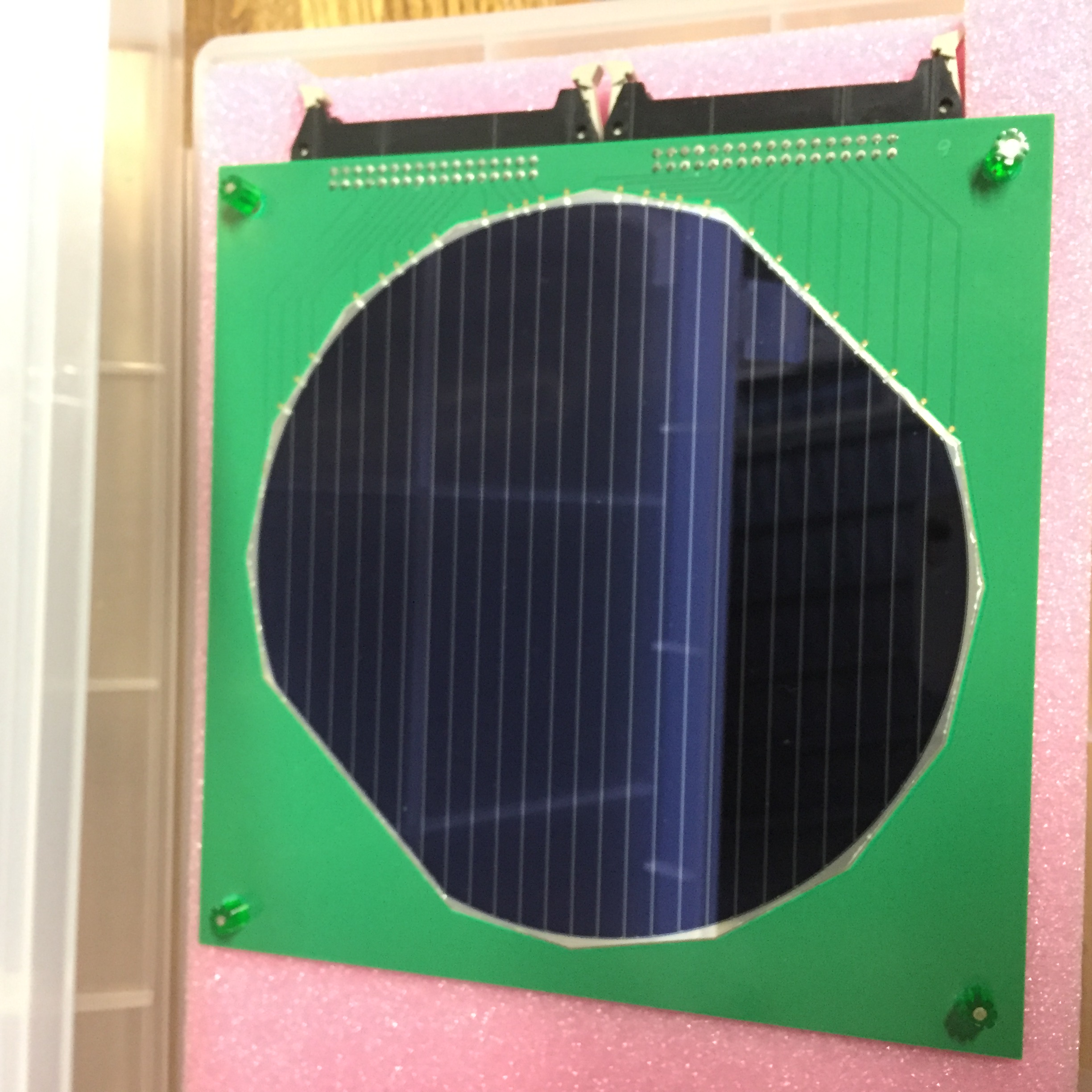

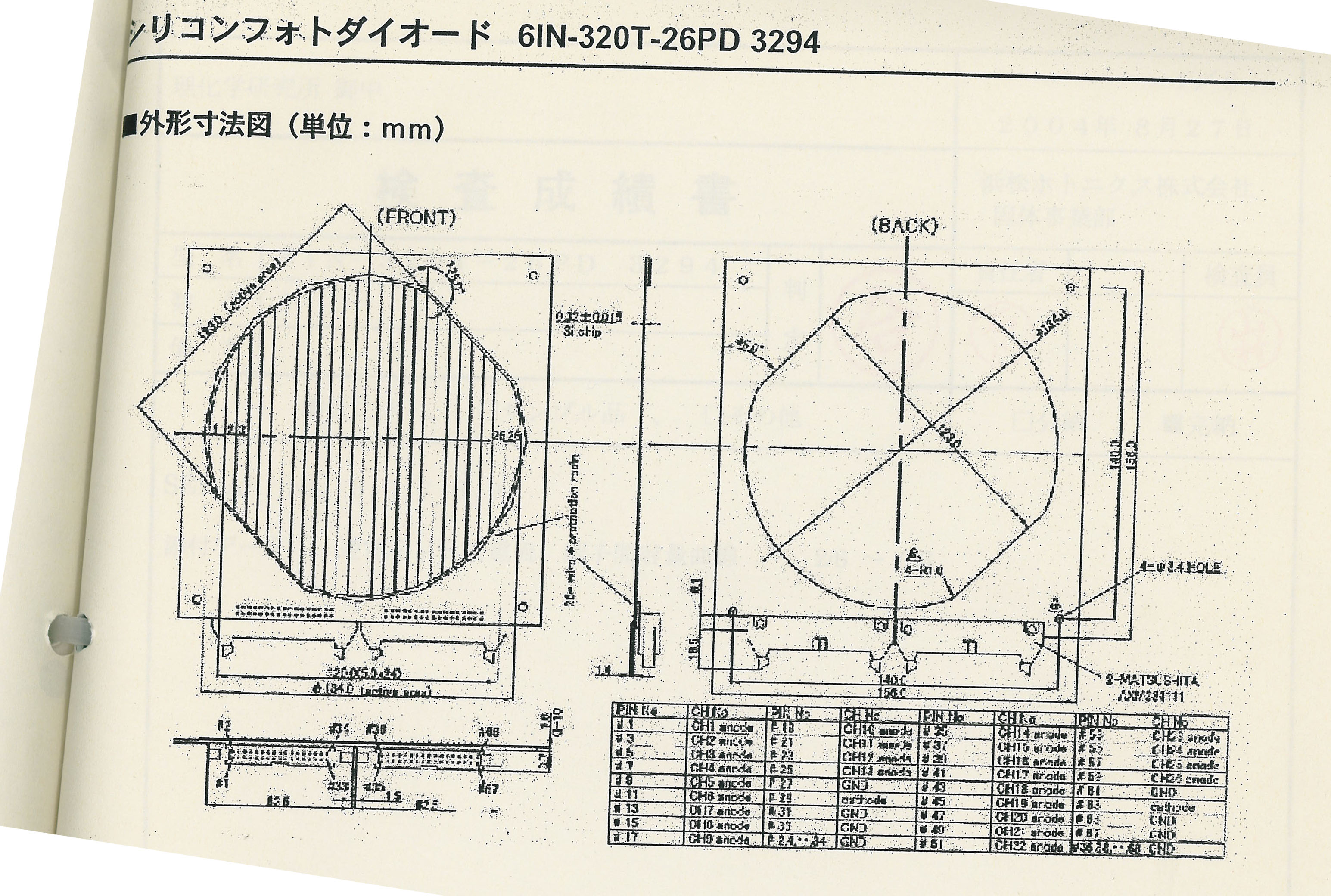

The specification and picture of the dE silicon detector is shown in the attached photos. The detector has an effective area of 134 x 123 mm and 320 micrometer thick There are 26 vertical strips. They are combined into 2 readout channels (top and bottom which respect to the orientation of the detector in BRIKEN)
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 3127x2396
Attachment 2:
Original size: 3090x2081
Attachment 3:
Original size: 2448x2448
