Tue Mar 28 06:56:15 2017
Author
*
:
Subject
*
:

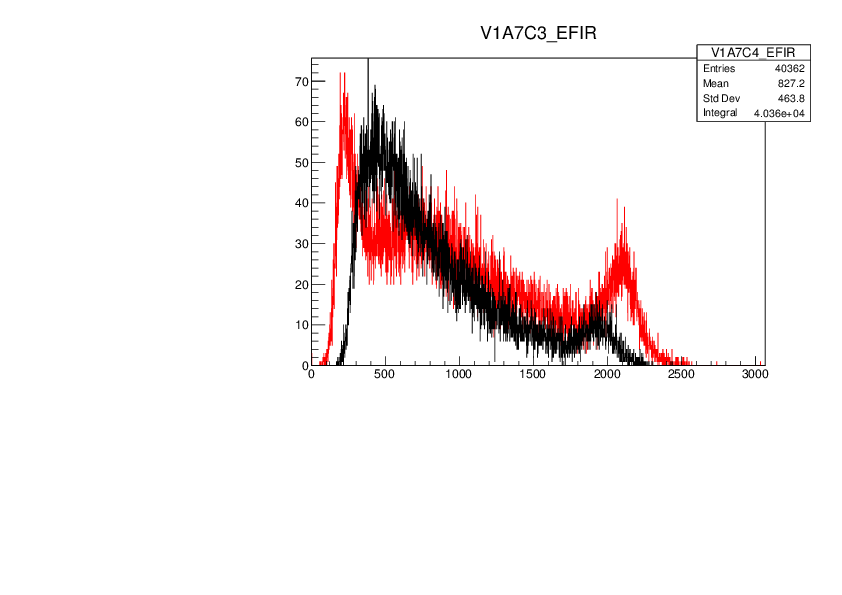

Calibration of new F11 plastic (see photo) The new plastic is 1mm thick instead of 0.2mm used last year. Dimensions:120mm x 100mm x 1mm HV applied: -1800V Anode signal connected to Ortec 474 TFA Gain: 20 x minimum; Int: 200ns; Diff: 100ns; Invert 60 Co source THIS WAS WRONG! POLARITY OF SIGNALS WAS REVERSED. *************************************************************** *File: 170328_1507_F11PL_60Co.root *See attached wrong picture 170328_1507_F11_PL_RandL.pdf (R:Red, L:Black) * *Calibration (Gain=20): *V1C7C3_EFIR (R): Peak(<E>=1.25MeV):2077.1 -> a1=0.0006028 MeV/u *V1C7C4_EFIR (R): Peak(<E>=1.25MeV):1924.0 -> a1=0.0006507 MeV/u *************************************************************** CORRECT SPECTRUM: File: 170328_1838_F11PLCal.root Picture: 170328_1838_F11PLCal.pdf ************************************************************* Stopping power calculation (SRIM): 50 MeV/A 40Mg: S=102*1.184=120.8 MeV/mm 100 MeV/A 40Mg: S=102*0.7129= 72.7 MeV/mm (Later: according LISE simulations energy loss of 40Mg is 88MeV) What is the energy loss of the "light" particles?
