Entry time:

Thu Jun 15 03:40:17 2017

Author*:

Subject*:

A scaning with 252Cf along the Z-axis of the neutron detector is carried out. The setup is similar to the scaning carried out in October 2016.

Observations:

- Clovers are put inside the detector without voltage.

- AIDA detector is out of the moderator.

- Position in Z is given with respect to the moderator side opposite to AIDA.

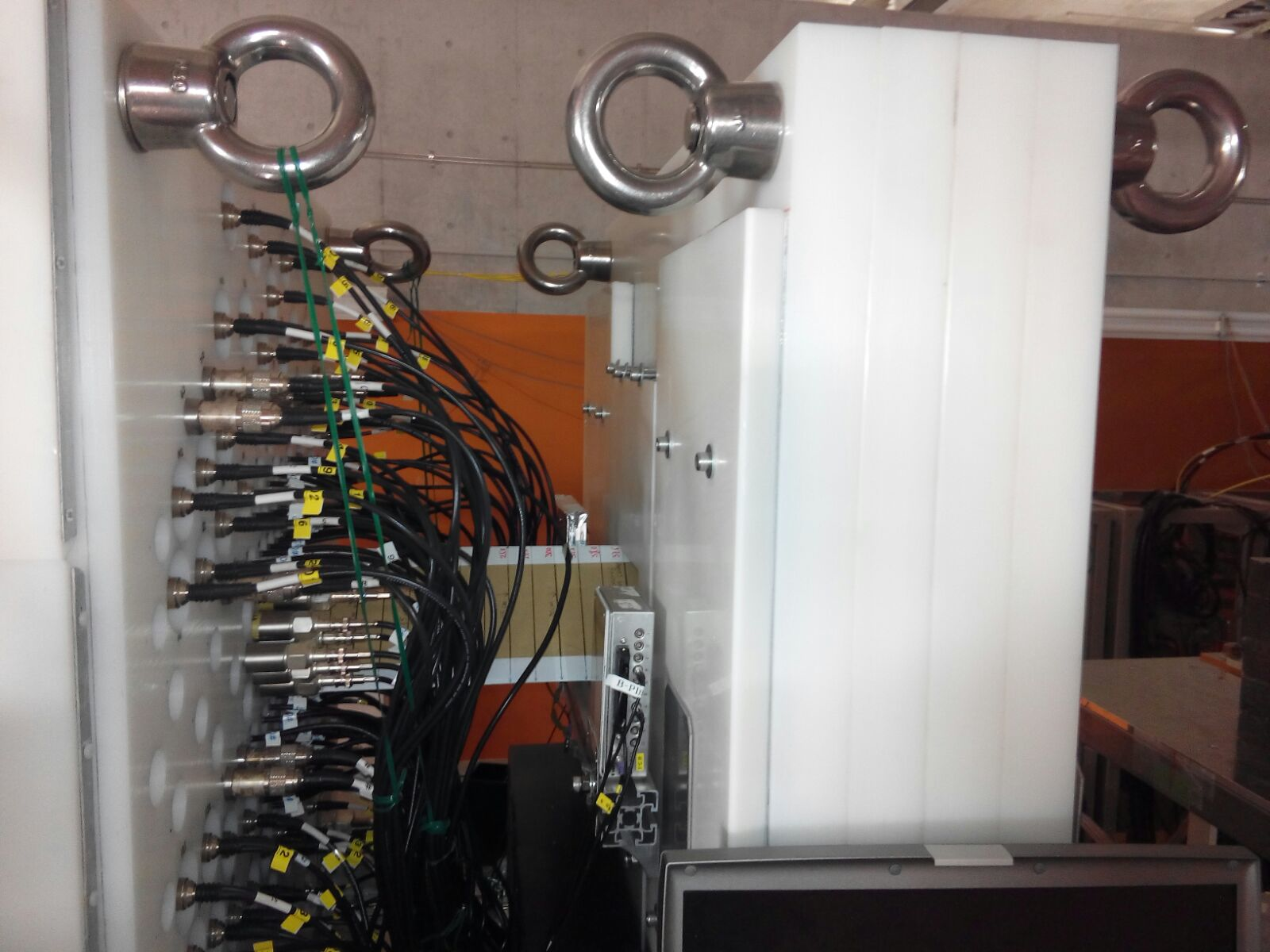

- The shielding for in-beam neutrons is mounted. It corresponds to HDPE 2.5cm + 1mm Cd + 20cm HDPE. The distance moderator to shieldind is 34.6mm

- There are two additional neutron sources in the Hall, aprox 10m from the detector. One 241AmBe (30mC) and 244Cm/O13 (500mC). Both sources produce an increase of the neutron background up to approx1n/s (x10 higher).

- Datafiles are located in the&nbsp;dac computer, path:

/data/1706FinalCalibrations/170615_Zscanning

<hr />
MEASUREMENTS

Configuration file:&nbsp;170615_Conf_BrikenFull_AfterCrisis.xlsx

0) A background measurement is carried out previous to the Zscan.

FILE: 170615_1100_Bkg.root

1) Z=25mm; &nbsp;Start 11:13 &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; Stop 11:23

FILES: &nbsp; 170615_1113_Zscan_252Cf_25mm_000.dlt,&nbsp;170615_1113_1123_Zscan_252Cf_25mm.root

2) Z=50mm; &nbsp;Start &nbsp; &nbsp; &nbsp;11:25&nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp;11:34

FILES: &nbsp;170615_1125_Zscan_252Cf_50mm_001.dlt,&nbsp;170615_11125_1134_Zscan_252Cf_50mm.root

3) Z=75mm; &nbsp;Start &nbsp; &nbsp; 11:37 &nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp;11:46

FILES: &nbsp;170615_1137_Zscan_252Cf_75mm_002.dlt, &nbsp; &nbsp;170615_1137_1146_Zscan_252Cf_75mm.root

4) Z=100mm; &nbsp;Start 13:25 &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp; 13:33

FILES: &nbsp; &nbsp;170615_1325_Zscan_252Cf_100mm_003.dlt &nbsp; &nbsp; &nbsp;170615_1325_1333_Zscan_252Cf_100mm.root

5) Z=125mm; &nbsp;Start &nbsp; &nbsp; &nbsp; 13:36 &nbsp; &nbsp; &nbsp;Stop &nbsp; 13:44

FILES: &nbsp; &nbsp;170615_1335_Zscan_252Cf_125mm_004.dlt &nbsp;&nbsp;170615_1335_1344_Zscan_252Cf_125mm.root

6) Z=150mm; &nbsp;Start &nbsp; &nbsp; &nbsp; 13:51 &nbsp; &nbsp; &nbsp;Stop &nbsp; 13:59

FILES: &nbsp; &nbsp;170615_1351_Zscan_252Cf_150mm_005.dlt &nbsp; &nbsp; &nbsp; 170615_1351_1359_Zscan_252Cf_150mm.root

7) Z=175mm; &nbsp;Start &nbsp; &nbsp; 14:01 &nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp; 14:09

FILES: &nbsp; &nbsp;170615_1401_Zscan_252Cf_175mm_006.dlt &nbsp; &nbsp;170615_1401_1409_Zscan_252Cf_175mm.root

8) Z=200mm; &nbsp;Start &nbsp; &nbsp; 14:12 &nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp; 14:21

FILES: &nbsp; &nbsp;170615_1412_Zscan_252Cf_200mm_007.dlt &nbsp; &nbsp; &nbsp; &nbsp;170615_1412_1421_Zscan_252Cf_200mm.root

9) Z=225mm; &nbsp;Start &nbsp; &nbsp; 14:24 &nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp; 14:31

FILES: &nbsp; &nbsp;170615_1424_Zscan_252Cf_225mm_008.dlt &nbsp; &nbsp; &nbsp;&nbsp;170615_1424_1431_Zscan_252Cf_225mm.root

10) Z=250mm; &nbsp;Start &nbsp; &nbsp; &nbsp;14:33 &nbsp; &nbsp; &nbsp; Stop &nbsp; 14:40

FILES: &nbsp; &nbsp;170615_1433_Zscan_252Cf_250mm_009.dlt &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;170615_1433_1440_Zscan_252Cf_250mm.root

11) Z=275mm; &nbsp;Start &nbsp; &nbsp;14:43 &nbsp; &nbsp; &nbsp; &nbsp; Stop &nbsp; 14:50

FILES: &nbsp; &nbsp;170615_1443_Zscan_252Cf_275mm_010.dlt &nbsp; &nbsp; &nbsp; &nbsp;170615_1443_1450_Zscan_252Cf_275mm.root

12) Z=300mm; &nbsp;Start &nbsp; &nbsp; &nbsp;14:54&nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp; 15:01

FILES: &nbsp; &nbsp;170615_1454_Zscan_252Cf_300mm_011.dlt &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;&nbsp;170615_1454_1501_Zscan_252Cf_300mm.root

13) Z=325mm; &nbsp;Start &nbsp; &nbsp; &nbsp;15:04 &nbsp; &nbsp; &nbsp; Stop &nbsp; 15:11

FILES: &nbsp; &nbsp;170615_1504_Zscan_252Cf_325mm_012.dlt &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;170615_1504_1511_Zscan_252Cf_325mm.root

14) Z=350mm; &nbsp;Start &nbsp; &nbsp; &nbsp;15:14 &nbsp; &nbsp; &nbsp; Stop &nbsp; 15:22

FILES: &nbsp; &nbsp;170615_1514_Zscan_252Cf_350mm_013.dlt &nbsp; &nbsp; &nbsp;&nbsp;170615_1514_1522_Zscan_252Cf_350mm.root

15) Z=375mm; &nbsp;Start &nbsp; &nbsp;15:24&nbsp; &nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp; 15:31

FILES: &nbsp; &nbsp;170615_1524_Zscan_252Cf_375mm_014.dlt &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;170615_1524_1531_Zscan_252Cf_375mm.root

16) Z=400mm; &nbsp;Start &nbsp; &nbsp; 15:34 &nbsp; &nbsp; &nbsp; &nbsp;Stop &nbsp; 15:41

FILES: &nbsp; &nbsp;170615_1533_Zscan_252Cf_400mm_015.dlt &nbsp;170615_1533_1541_Zscan_252Cf_400mm.root

17) Z=425mm; &nbsp;Start &nbsp; &nbsp; 15:44&nbsp; &nbsp; &nbsp; &nbsp; Stop &nbsp; 15:57

FILES: &nbsp; &nbsp;170615_1543_Zscan_252Cf_425mm_016.dlt &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;&nbsp;170615_1543_1557_Zscan_252Cf_425mm.root

18) Z=450mm; &nbsp;Start &nbsp; &nbsp; &nbsp;15:59 &nbsp; &nbsp; &nbsp; Stop &nbsp; 16:08

FILES: &nbsp; &nbsp;170615_1559_Zscan_252Cf_450mm_017.dlt &nbsp; &nbsp; &nbsp;170615_1559_Zscan_252Cf_450mm_017.dlt

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:

WhatsApp_Image_2017-06-15_at_18.11.52.jpeg Original size: 1600x1200
