The PB-5 Pulse generator labeled "Pulser 2" and the 428F Linear Fan in-out labeled "Clover G7" from BRIKEN NIM crate have to be returned to the RIBF electronics pool because the
borrowing time is expired.

For the Pulser 2, the external trigger input and pulse output cables were labeled before removing the module.

- Attachment 1: Original position and cabling of the pulser. The serial number of the pulser is 052010010247
   - Attachment 2: A picture of the crate after removing the pulser.

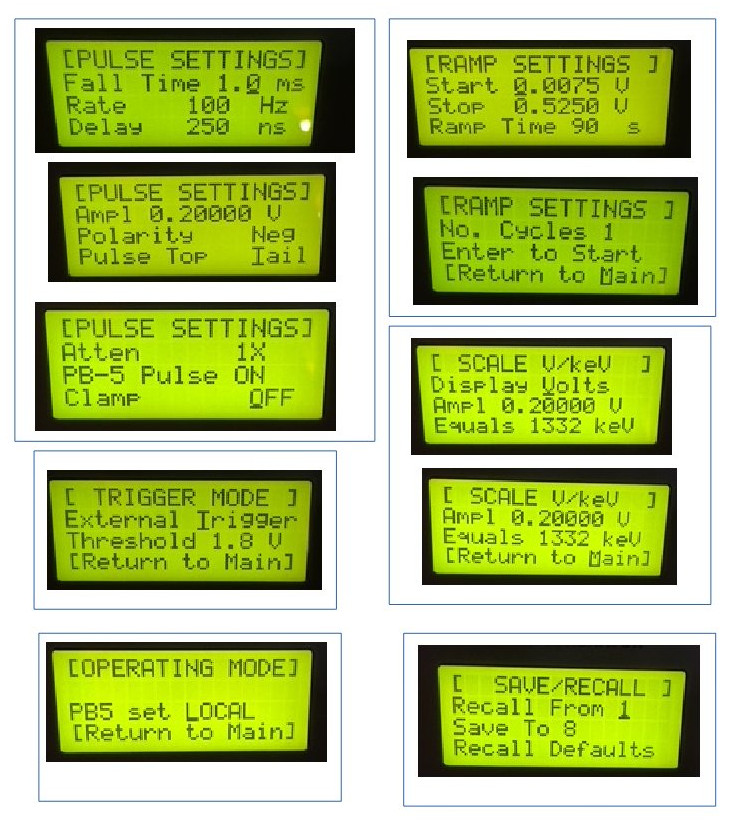

   - Attachment 3: Original Pulser setting.

The Linear Fan in-out was replaced with a new module (same version 428F), which can be used for a long time. The position of the input and output cables in the module were kept
unchanged.

- Attachment 4: Original position and cabling of the Linear Fan in-out module. The serial number of the original module is 051999070282
   - Attachment 5: New Linear Fan in-out module after replacement.
   - Attachment 6: Oscilloscope view of the 10kHZ NIM test input signal (blue) and output signal (yellow) of the old Linear fan in-out module.
   - Attachment 7: Oscilloscope view of the 10kHZ NIM test input signal (blue) and output signal (yellow) of the new Linear fan in-out module.
