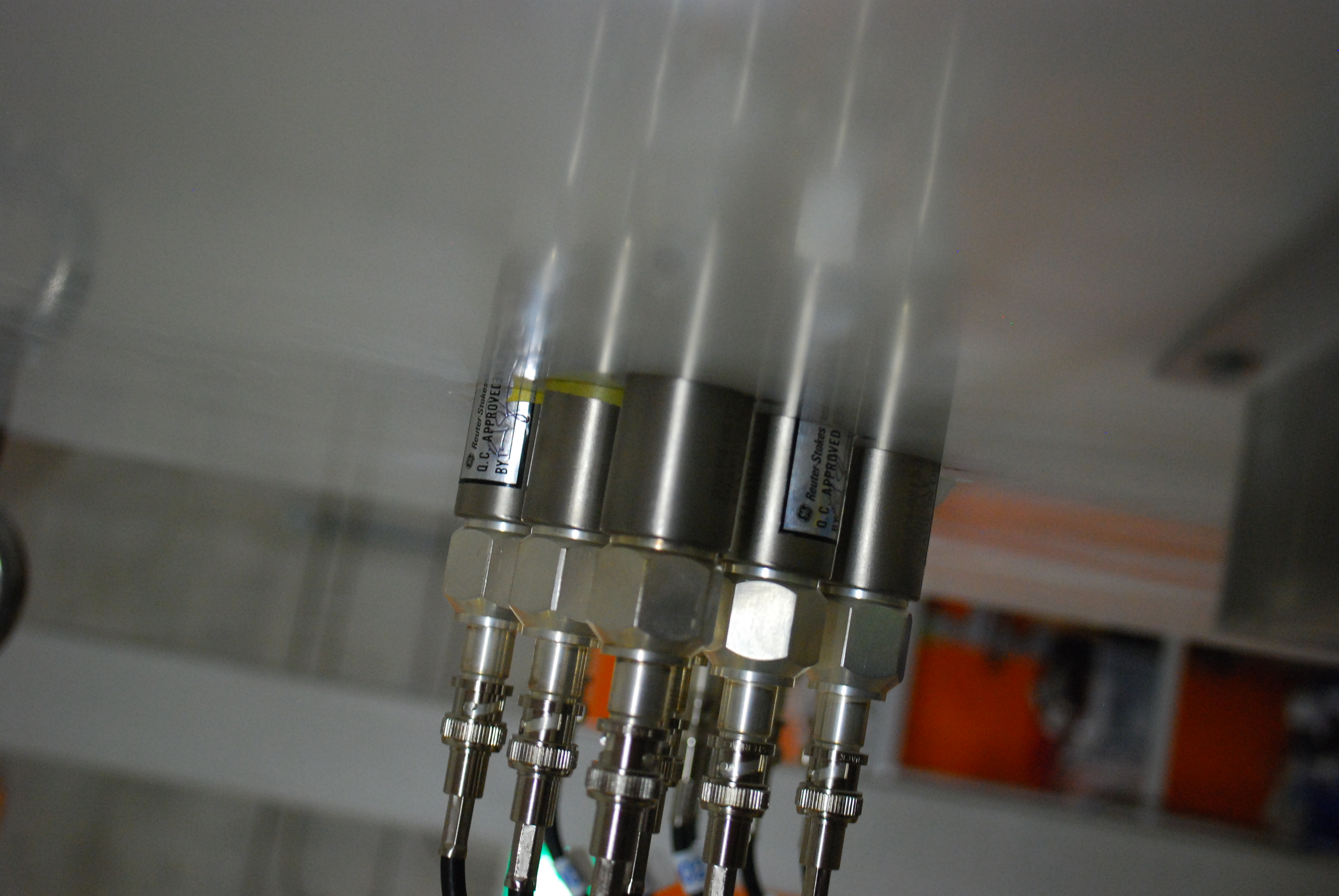

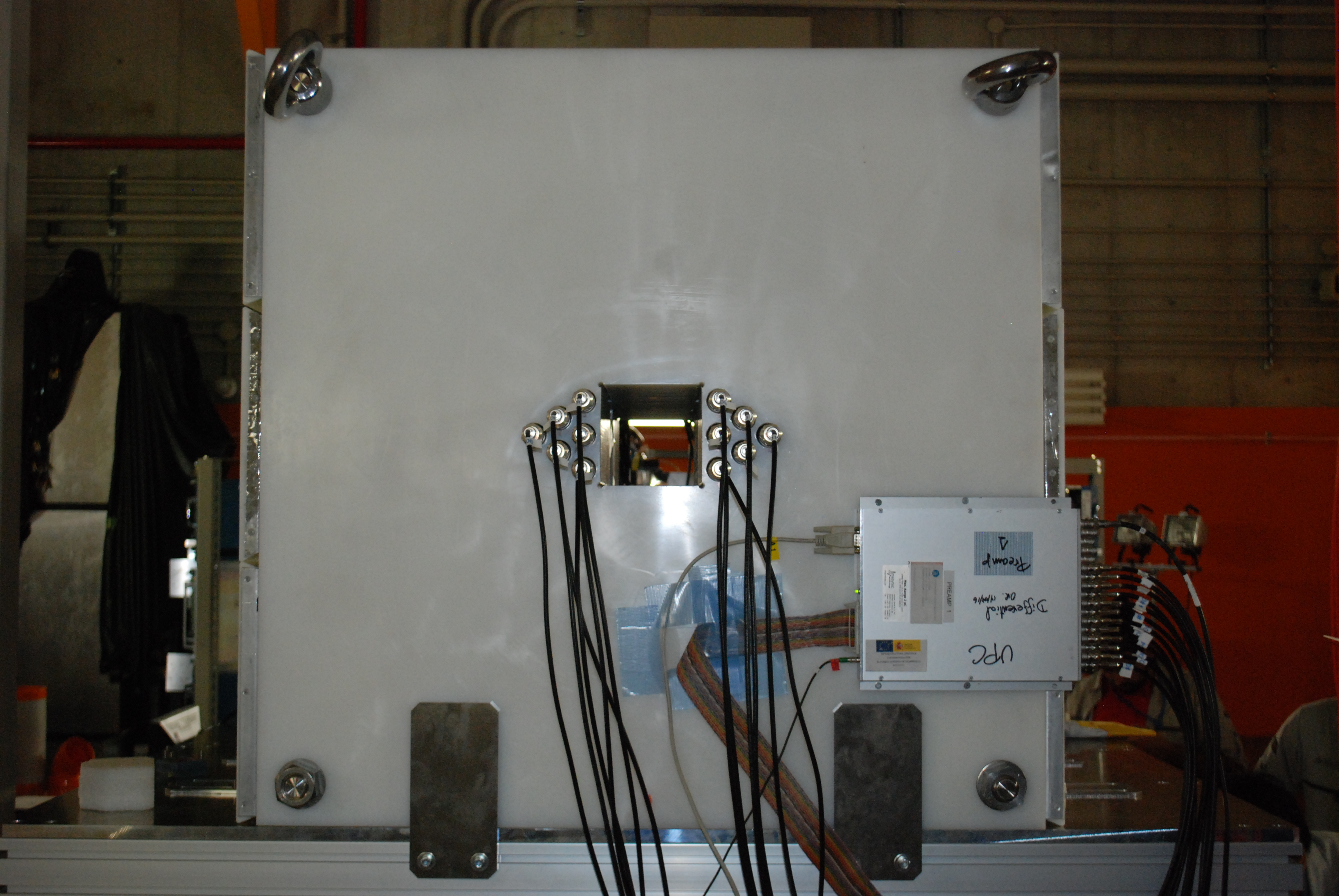

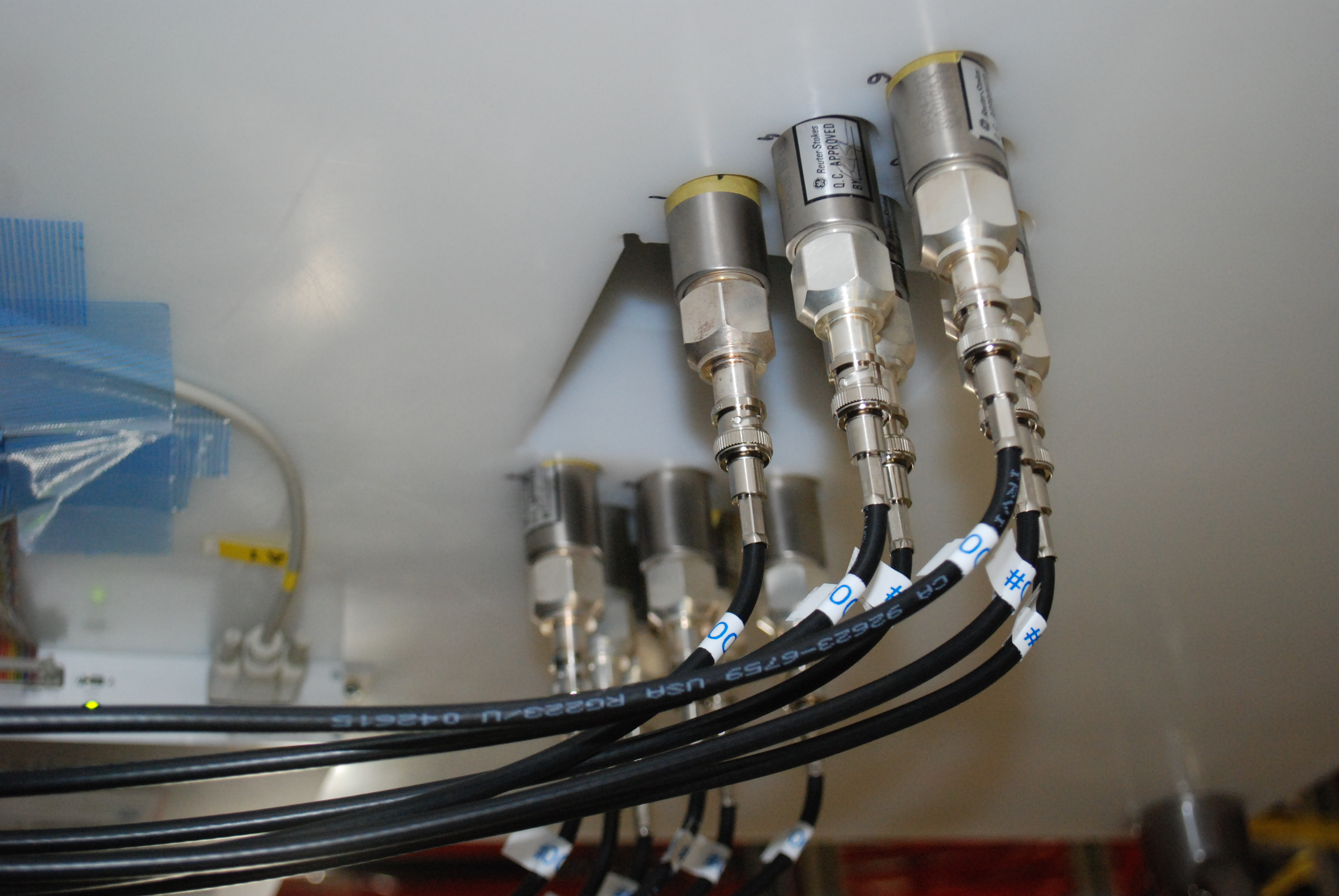

RIKEN tubes on the AIDA side with the SHV right angle connector will protrude by ~95mm in the HYBRID configuration (with CLOVERS). In the current AIDA DSSD configuration there are six detectors occupying 45-50mm at a distance to center of the stack from the black plastic support of ~430mm. The hole for the CLOVER is 110mm. The center of the hole is at 375mm from the PE end. This means that the center of the current stack is only ~15mm beyond the PE in the CLOVER hole, so 1 or 2 of the DSSD will be partially shadowed from the CLOVER detectors. (This do not represent any problem from the neutron detector point of view)
