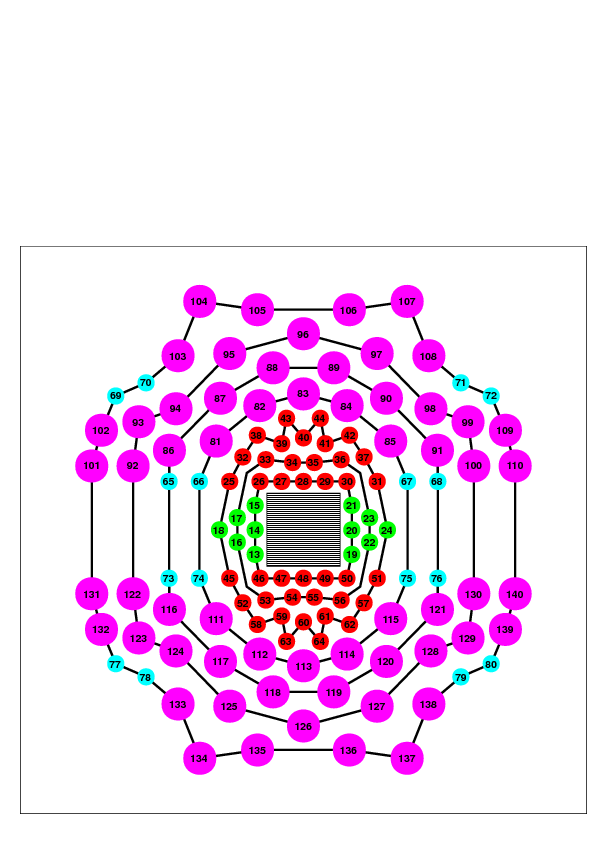

Distribution of connections of tubes in preamplifiers and digitizers Because of the need to use 10 PAs instead of 9 PAs we had to redistribute the signal connections. Now: PA1(RIKEN), PA2(RIKEN), PA3(UPC), PA4(UPC), PA5(UPC) -> V1A1-V1A4 PA6(ORNL1) -> V1A5 PA7(ORNL2) -> V1A6 PA8(ORNL2) -> V2A1,V2A2 PA9(ORNL2) -> V2A3,V2A4 PA10(ORNL2) -> V2A5,V2A6 So V1A1 to V1A4 contain now signals from 2 PAs. We also redistributed the tubes within the PAs We also changed the numbering or RIKEN Tubes. Tube 1 to 12 are now those on the AIDA side (PA1 attached to the PE block) A figure showing the distribution of tubes an numbering is included. Tube 1 is behind tube 19 and so forth. Attached also is an excel file with tube-channel distribution
