Entry time:
Tue Oct 11 15:58:01 2016
Author
*
:
Subject
*
:

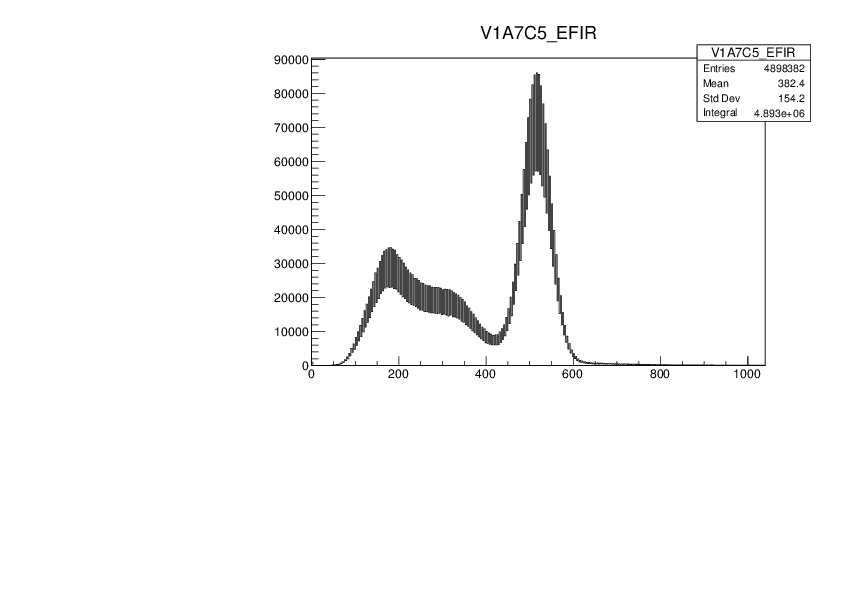

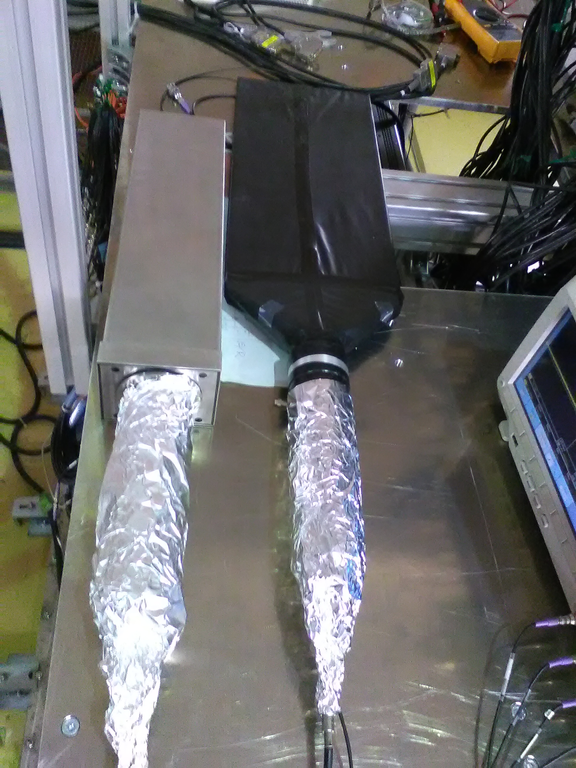

Check of Plastic and NaI veto detectors and DACQ settings Plastic: 10x200x450mm**3, PMT: H1161, HV: -1200V, Anode2 Very small and short signal: width: 20ns, rise: 10ns, amplitude up to 10mV We decided to put an amplifier to have more flexibility Amp: Ortec 474 TFA, G: 10xmax, INT=200ns, DIF: 100ns Signal: width: 200ns, height: 100mV DACQ Trigger & EFIR: P=2, G:2 NaI: 2"x4"x16", PMT: ?, VD: 1410 (ORNL), HV: +800V Signal: width: 400ns height: 15mV DACQ trigger and EFIR: P=20, G=20 File: 161011_2330_PlasticNaI_137Cs.root File: 161011_2335_PlasticNaI_60Co.root Photo of the arrangement. 137Cs spectrum of both detectors.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1944x2592
Attachment 2:
Plastic-137Cs.pdf
Original size: 842x595
Attachment 3:
NaI-137Cs.pdf
Original size: 842x595
