Gamma source close to ORNL2 tube
In order to investigate the origin of the background
component in ORNL tubes extending up to 200keV
we place a strong 137Cs source (D393) in the hole
of He136 close to the tube.

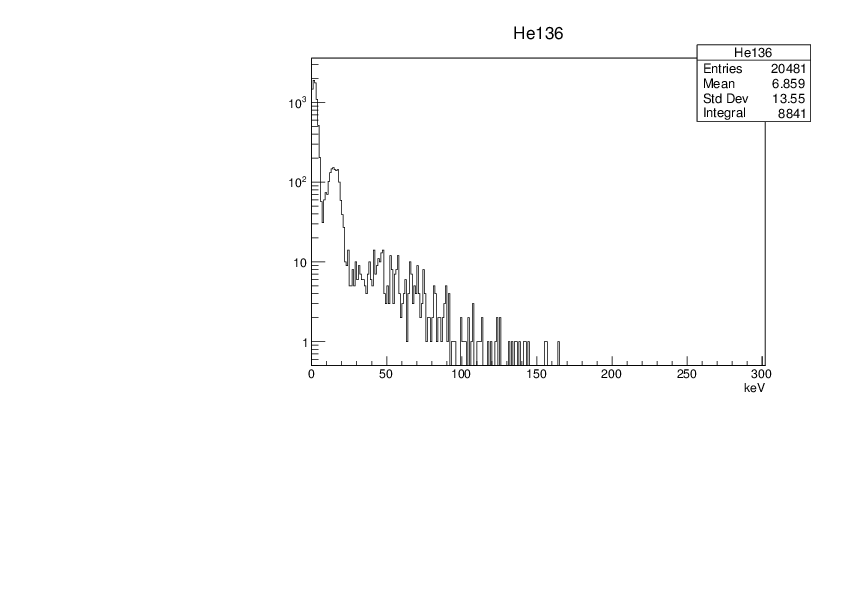

Control measurement (no source): 161012_1200_bck_control.root
With source: 161012_1229_137CsHe136.root
We observe that the induced signals are in the same energy region
as the 3rd noise component. The increase of the rate of signals
with the source is a factor 60.
See figures.
This hints to the origin of this component as due to an increased sensitivity
to gamma-rays (more material?) or internal radioactivity (gamma,beta)
of ORNL tubes. |
