Entry time:
Sat Apr 25 08:25:42 2015
Author
*
:
Subject
*
:

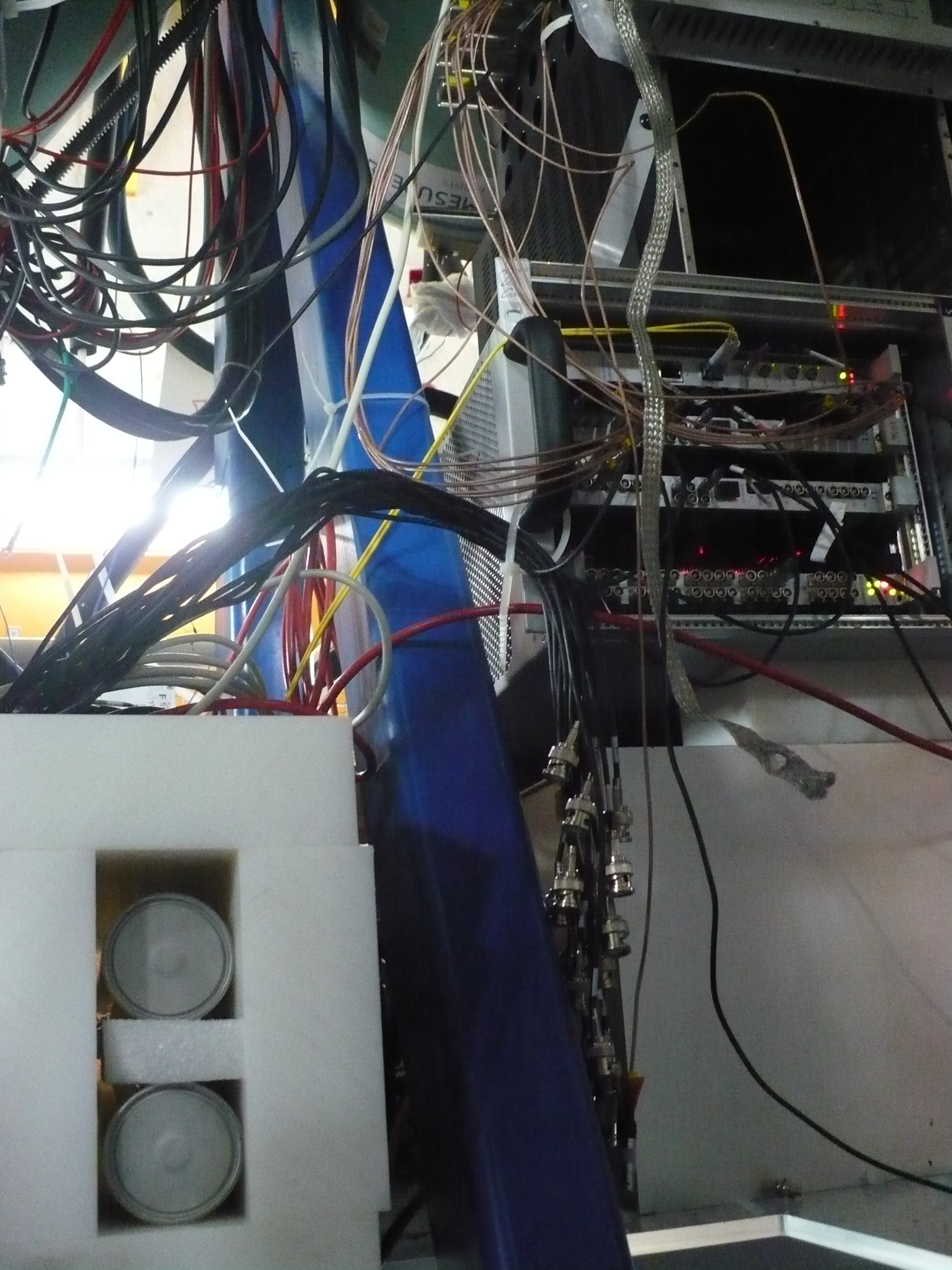

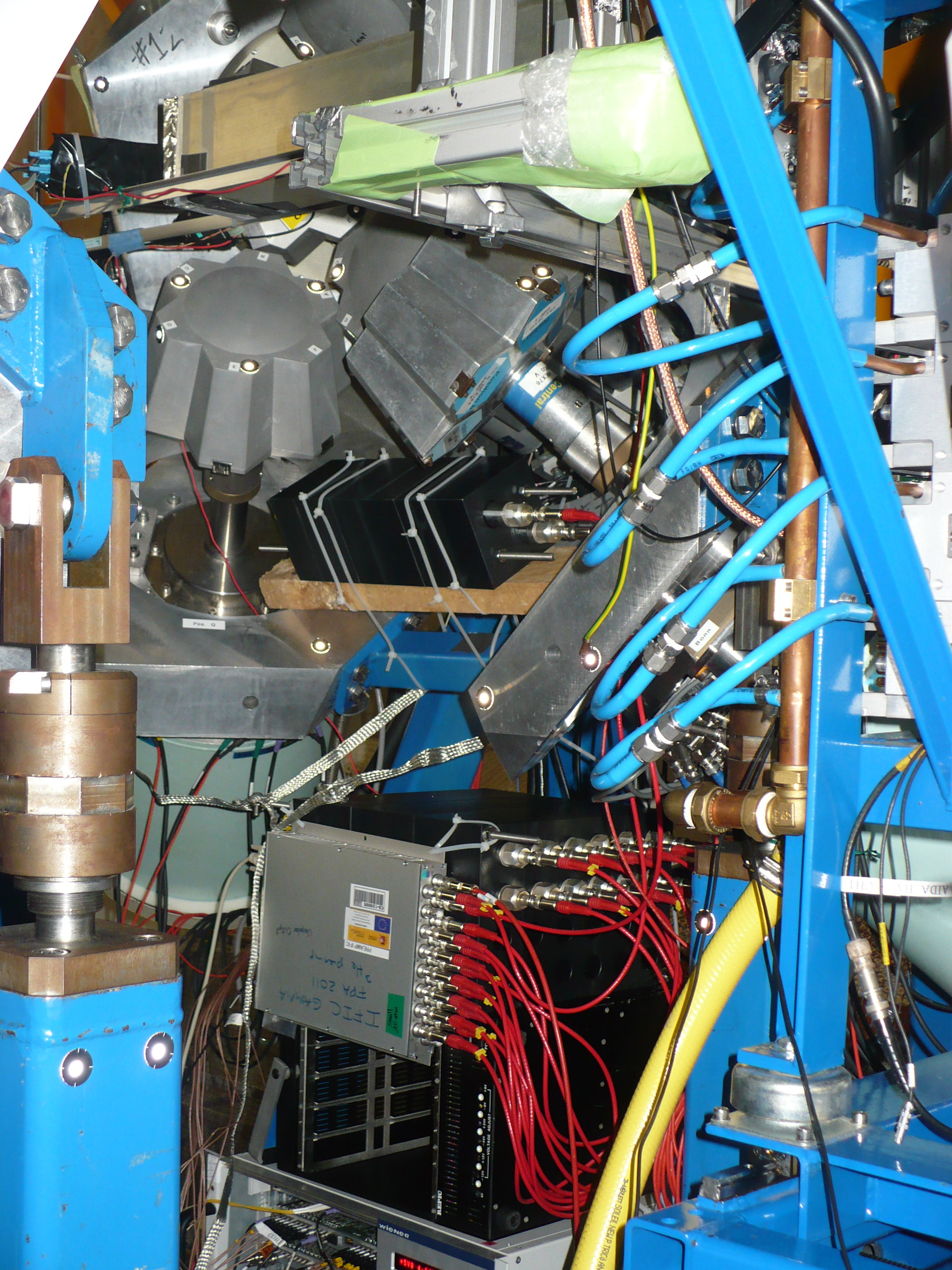

<p>Altogether 16 tubes are mounted for the parasitic detector test (see the attached photos):</p> <p>- two tubes (belonging to RIKEN) are in a 10 cm x 10 cm x 30 cm polyethylene matrix inside Eurica, the distance from AIDA is about 30 cm</p> <p>- 12 tubes (belonging to RIKEN) are in a 20 xm x 30 xm x 30 cm matrix, outside (below) Eurica, at the closest possible place to AIDA, the distance is about 60 cm</p> <p>- further two tubes (ORNL) are at the bottom of the Eurica support, about 1.2 m from the AIDA Silicon.</p> <p>Furthermore, spectra measured using a 252Cf source is attached to this report, too (Jap1Cf-RIKEN tube, Us1Cf-ORNL tube). At the moment a background measurement is running.<a href="150425_082251/P1120020.JPG?lb=BRIKEN"><img border="0" alt="P1120020.JPG" src="150425_082251/P1120020.JPG?lb=BRIKEN&thumb=1" name="att0" id="att0" /></a></p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 2304x3072
Attachment 2:
Original size: 2304x3072
Attachment 3:
Jap1Cf.pdf
Original size: 842x595
Attachment 4:
US1Cf.pdf
Original size: 842x595
