Entry time:
Mon Oct 17 05:21:46 2016
Author
*
:
Subject
*
:

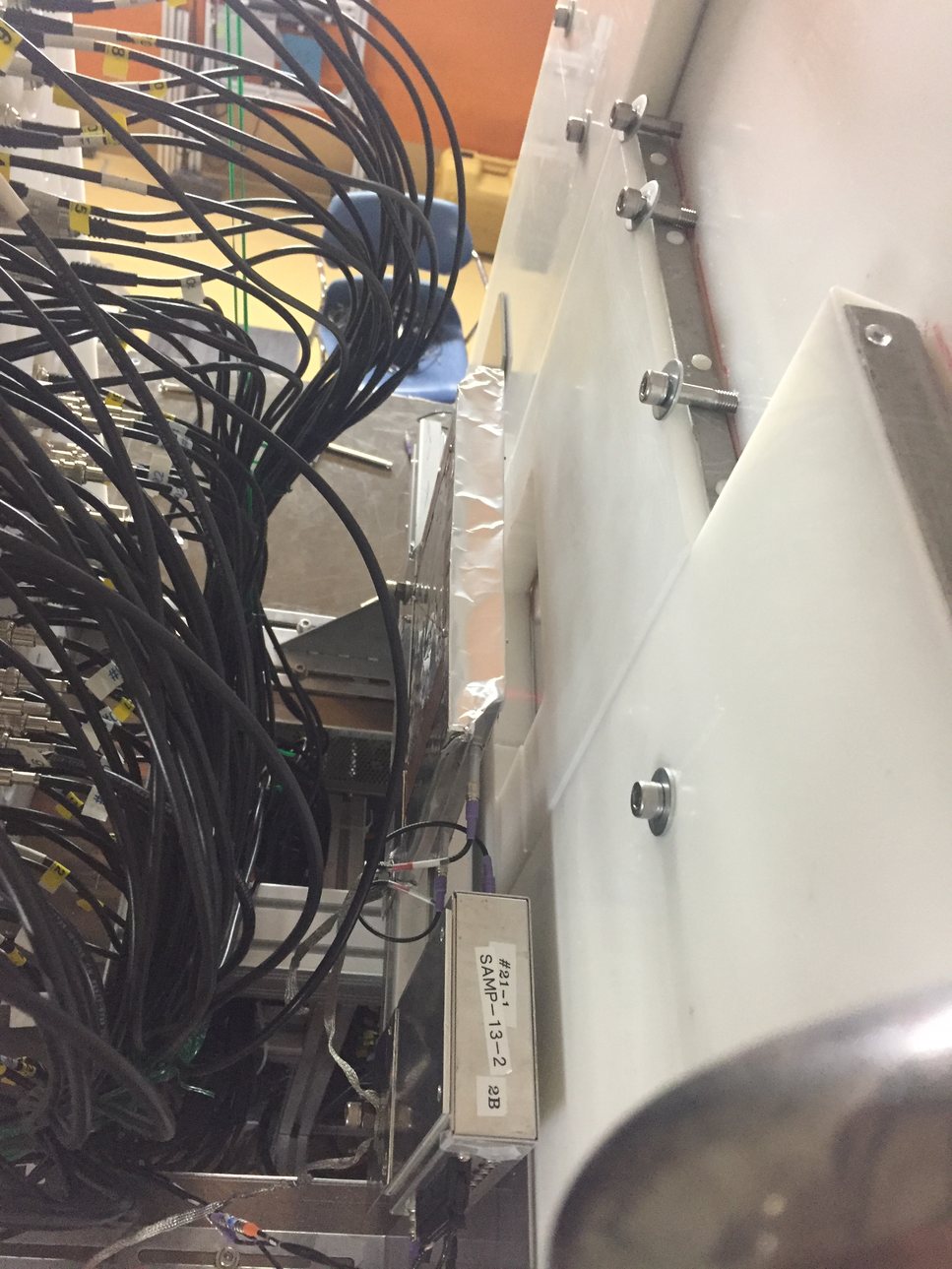

dE detector is mounted onto the back side of the shielding (attached photo: dE_position.JPG) The detector consists of 26 strips. In this setup, the detector is devided into 2 parts corresponding to 2 readout channels. Each part consists of 13 strips joint together. Output signal from a high gain channel of preamplifier with 137Cs source is shown in attachment 137CsTest_ac.JPG.; The white noise is about 2 mV for high gain mode. We will switch to low gain mode during the experiment. * note:there is a 200 mV offset due to the characteristic of the preamplifier (see attachment dc.JPG)
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 3264x2448
Attachment 2:
Original size: 3264x2448
Attachment 3:
Original size: 3264x2448
Attachment 4:
