Entry time:
Wed Oct 13 15:16:12 2021
Author
*
:
Subject
*
:

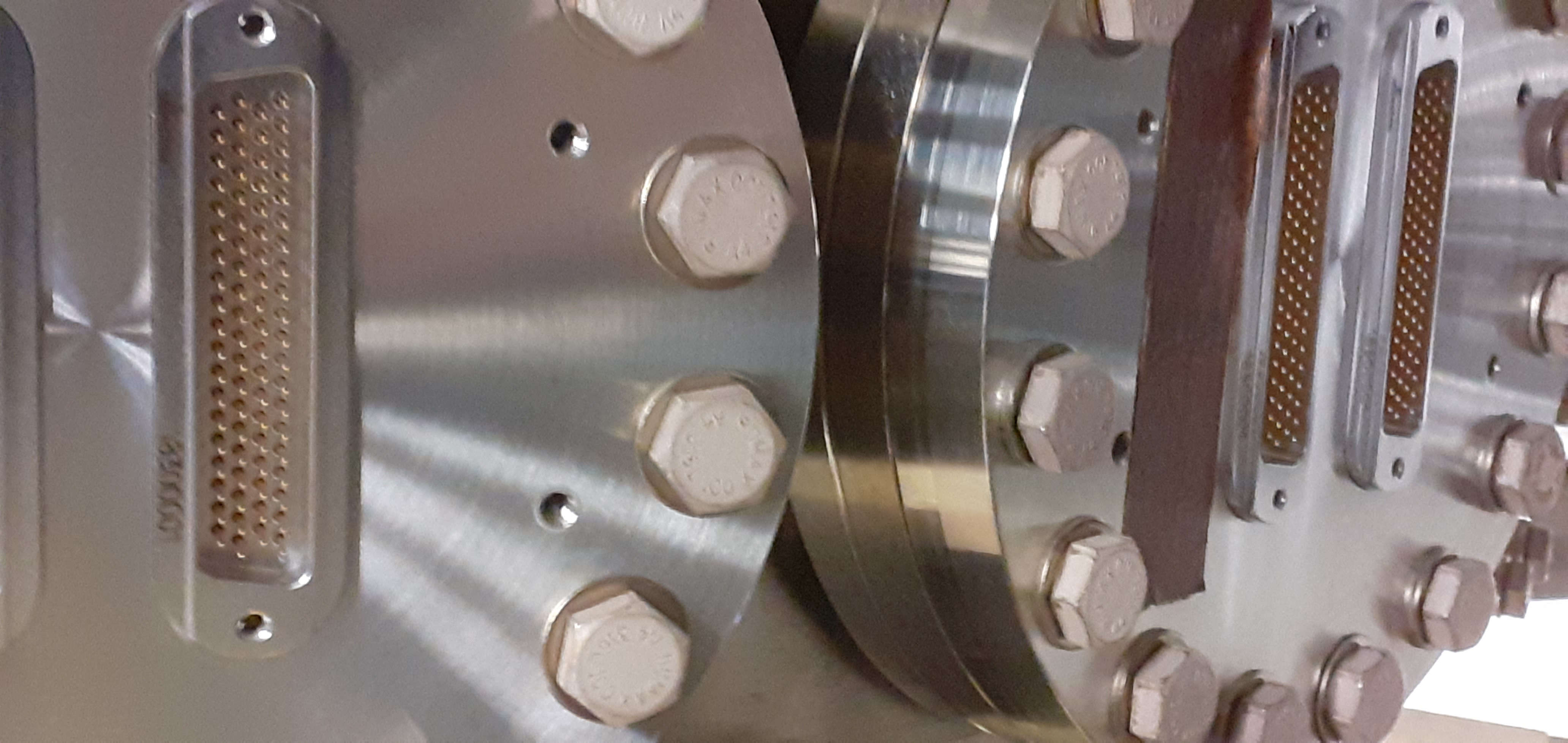

Looking downstream Attachment 1 top right pair 2 bottom right pair 3 bottom left pair 4 top left pair PB "The long sides of the connectors on the 2 lowest flanges should be next to each other and the short side of the connectors should be towards the motors." The orientations of the other flanges do not matter. 'Long' cables to L-R connectors, 'short' cables to U-D connectors.
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4128x1956
Attachment 2:
Original size: 4128x1956
Attachment 3:
Original size: 4128x1956
Attachment 4:
Original size: 4128x1956
