Entry time:
Sun Oct 17 11:48:48 2021
Author
*
:
Subject
*
:

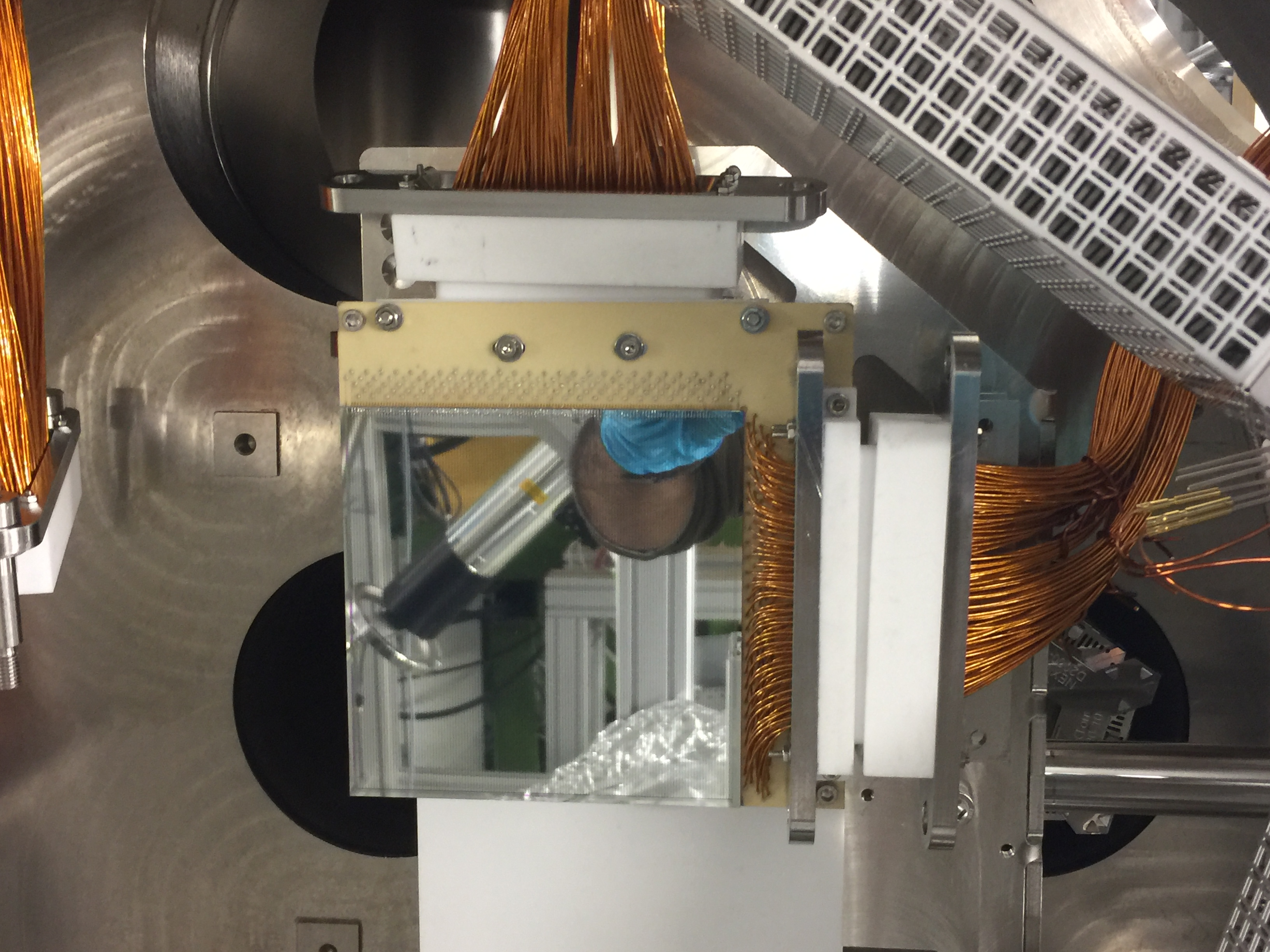

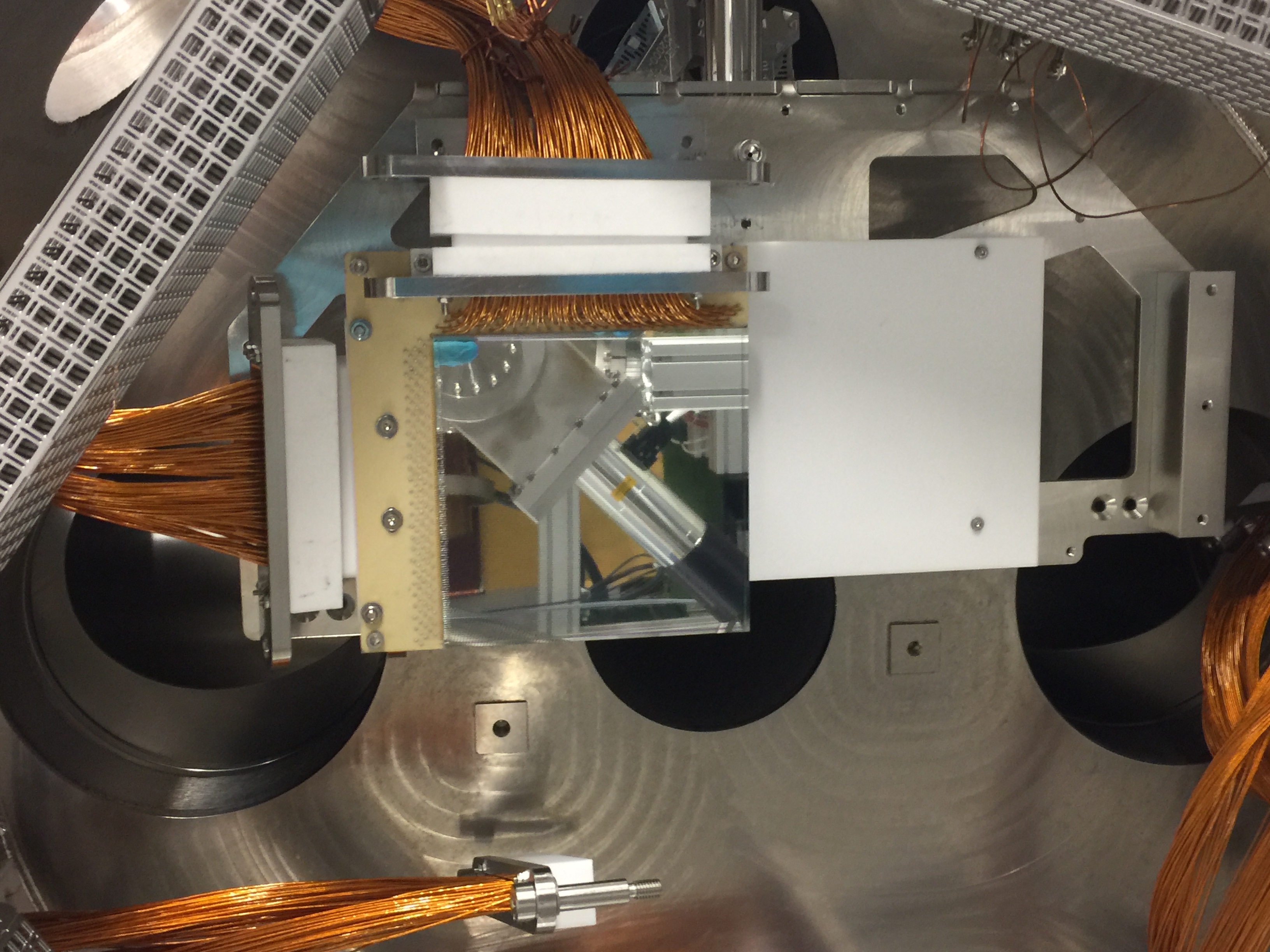

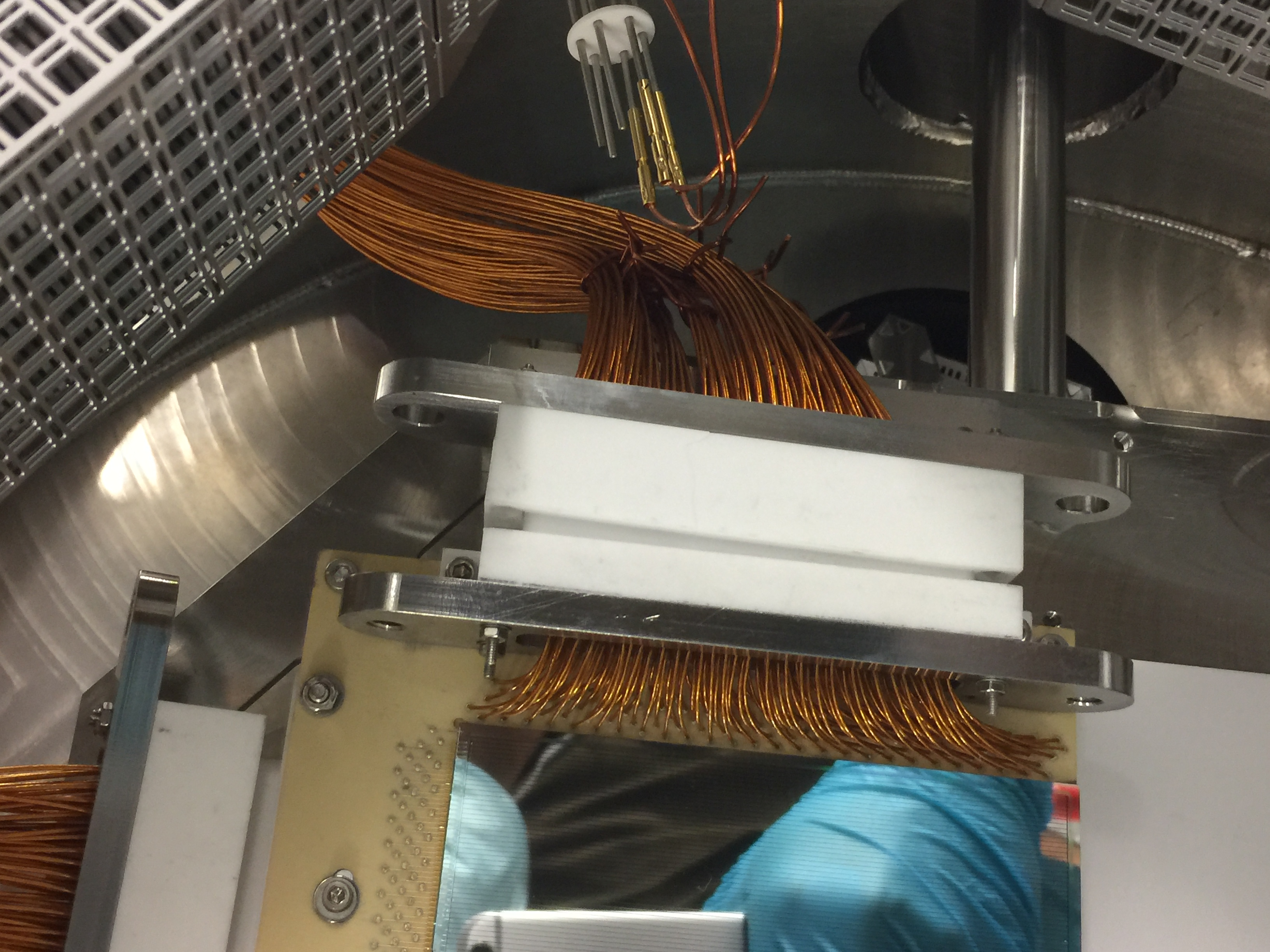

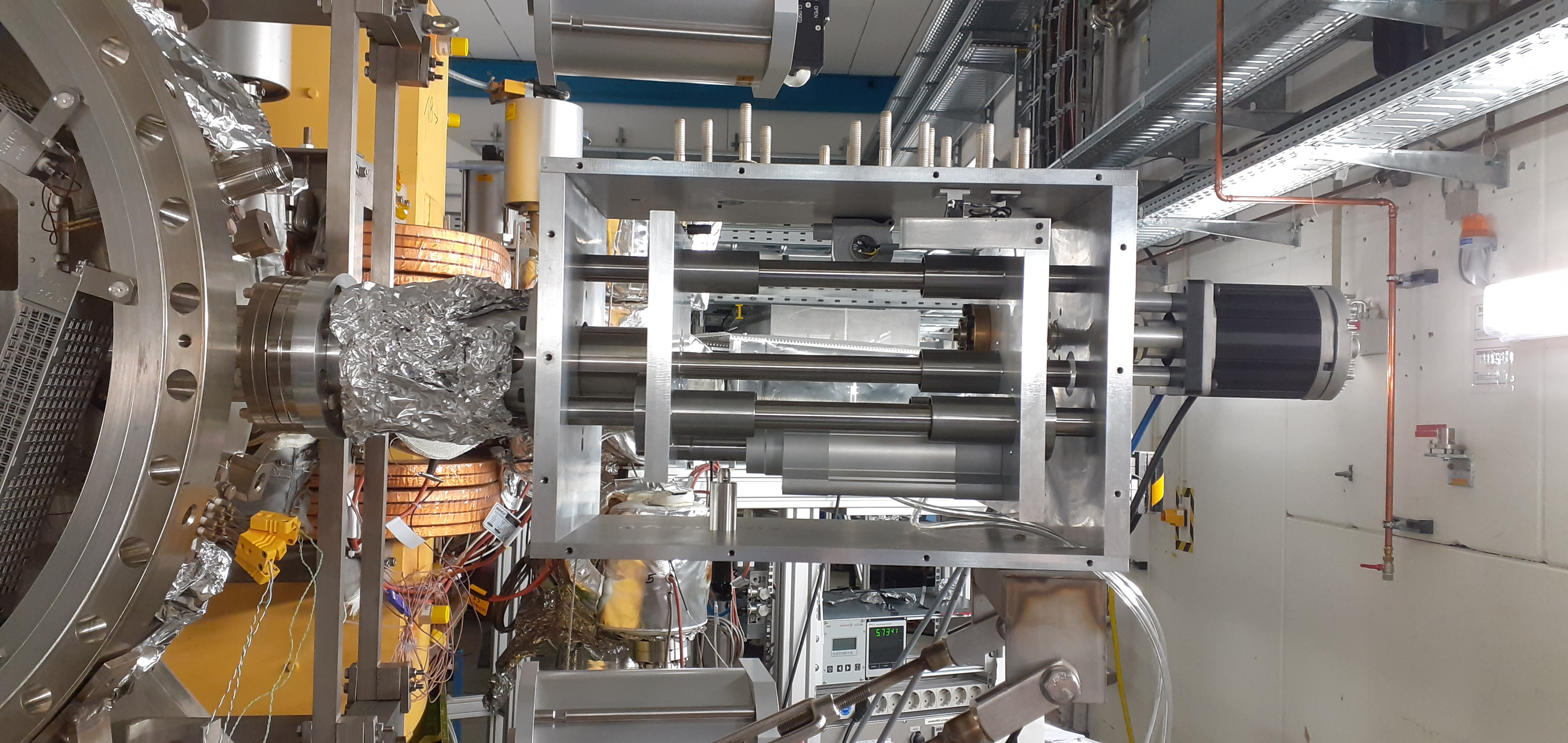

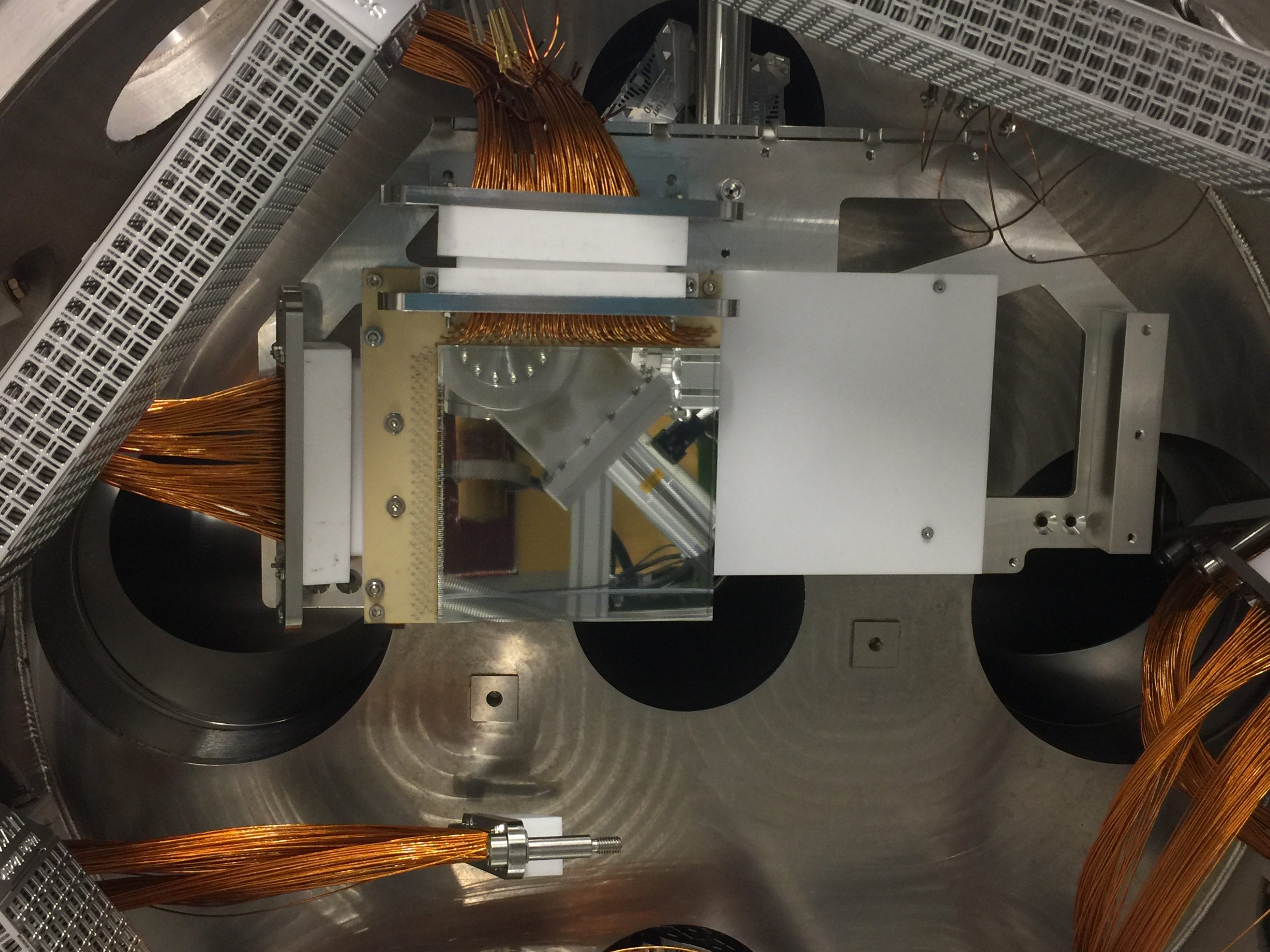

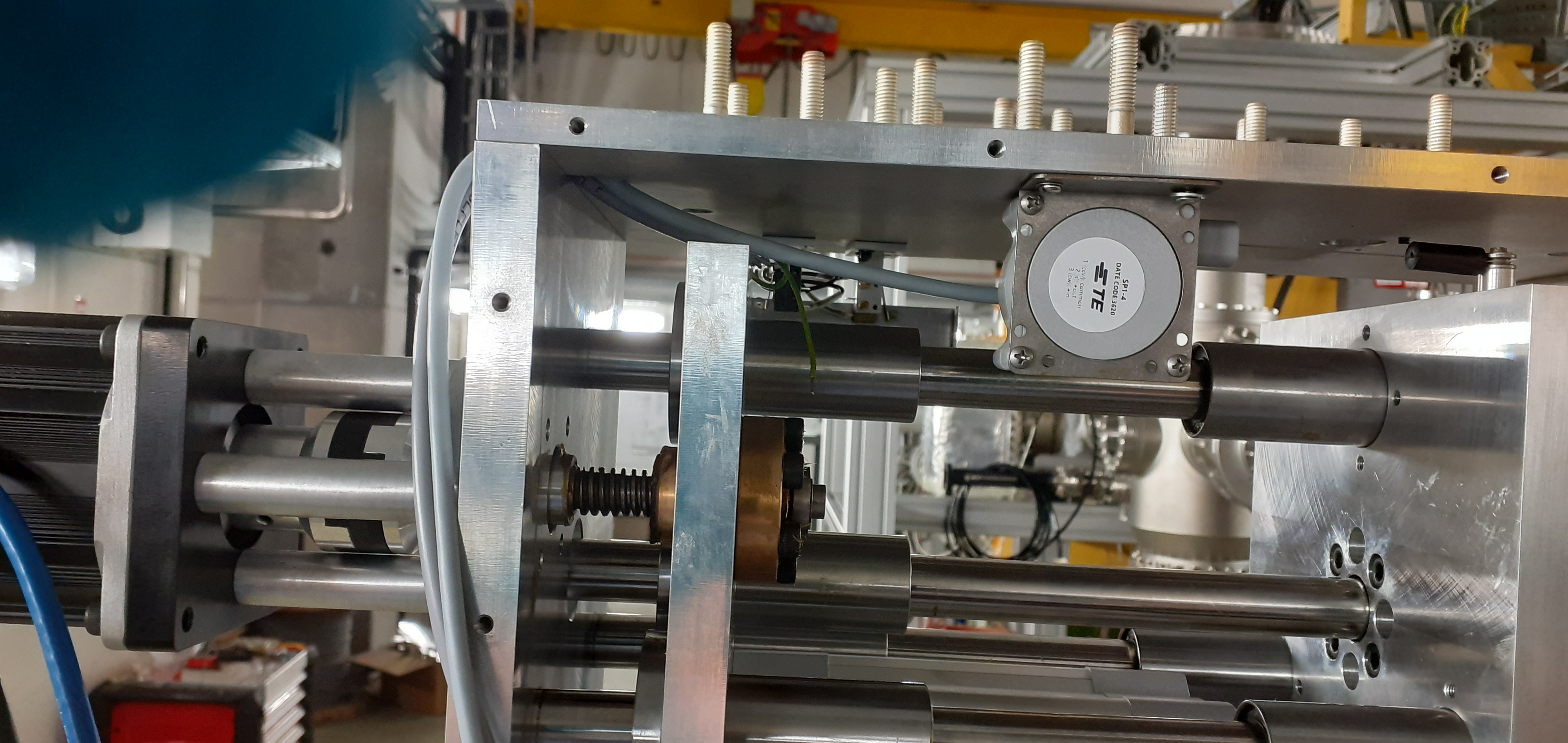

Looking downstream the RHS motor assembly has loose green/yellow (gnd?) see attachment 1 Install blank base plate to trial install in downstream CARME chamber. The rod is just through all of the mounting holes - see attachments 2 & 3 The rod, plate and block are close fitting. The current position of the TC feedthrough is incompatible wit detector movement- the TC feedthrough should be moved. Detector baseplate with 1x DSSSD installed - attachments 4 - 6, Cabling length looks OK. Should move NEG power and TCs to top & bottom DN40 flanges to avoid conflicts with DSSSDs and cabling.
