Entry time:
Thu Nov 11 11:44:58 2021
Author
*
:
Subject
*
:

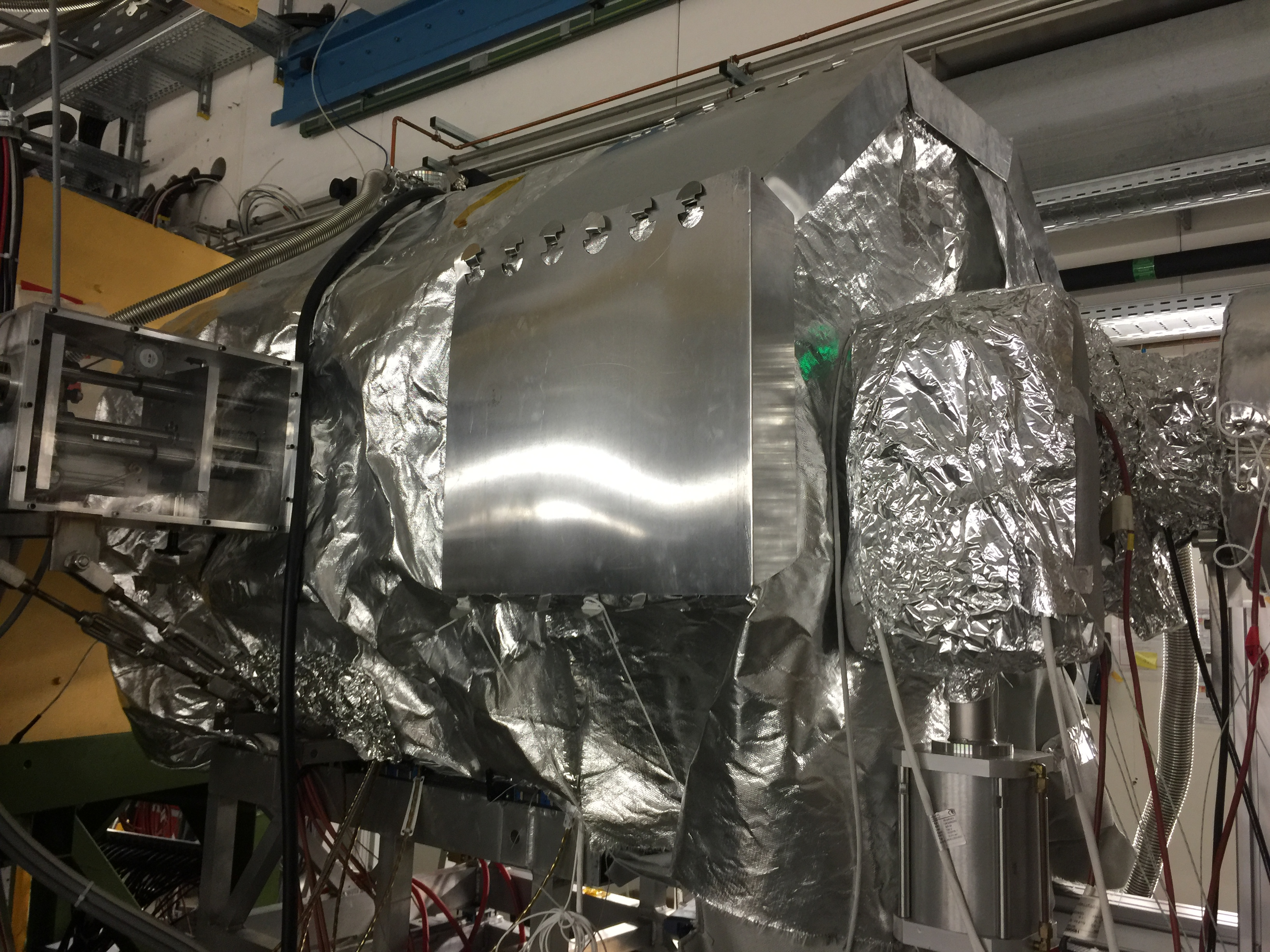

<p>With the help of OG, the baking tent was built. MG started baking around 11:30 am with a rate of 0.2 K/minute.</p> <p>Heating update can be found on: https://web-docs.gsi.de/~lestinsk/baking.php (CARME temperature plot now visible as well - thanks Michael!)</p> <p>where, device - 192.168.207.192 is for CARME.</p> <p>Ch1: CARME chamber long tape (2 kW)</p> <p>Ch2: CF100 flanges exit side</p> <p>Ch3: CF100 bellows exit side</p> <p>Ch5: 200 W (x3) CF 100 flanges</p> <p>Ch6: 40 W CF 100 flange</p> <p>Ch8: VAT 100 gate valve to ring</p> <p>example: in <strong>39:50</strong>, 39 is the temperature and 50 is the set temperature.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 3264x2448
Attachment 2:
Original size: 3264x2448
Attachment 3:
Original size: 3264x2448
Attachment 4:
Original size: 3264x2448
Attachment 5:
Original size: 3264x2448
