Entry time:
Tue Feb 15 21:28:14 2022
Author
*
:
Subject
*
:

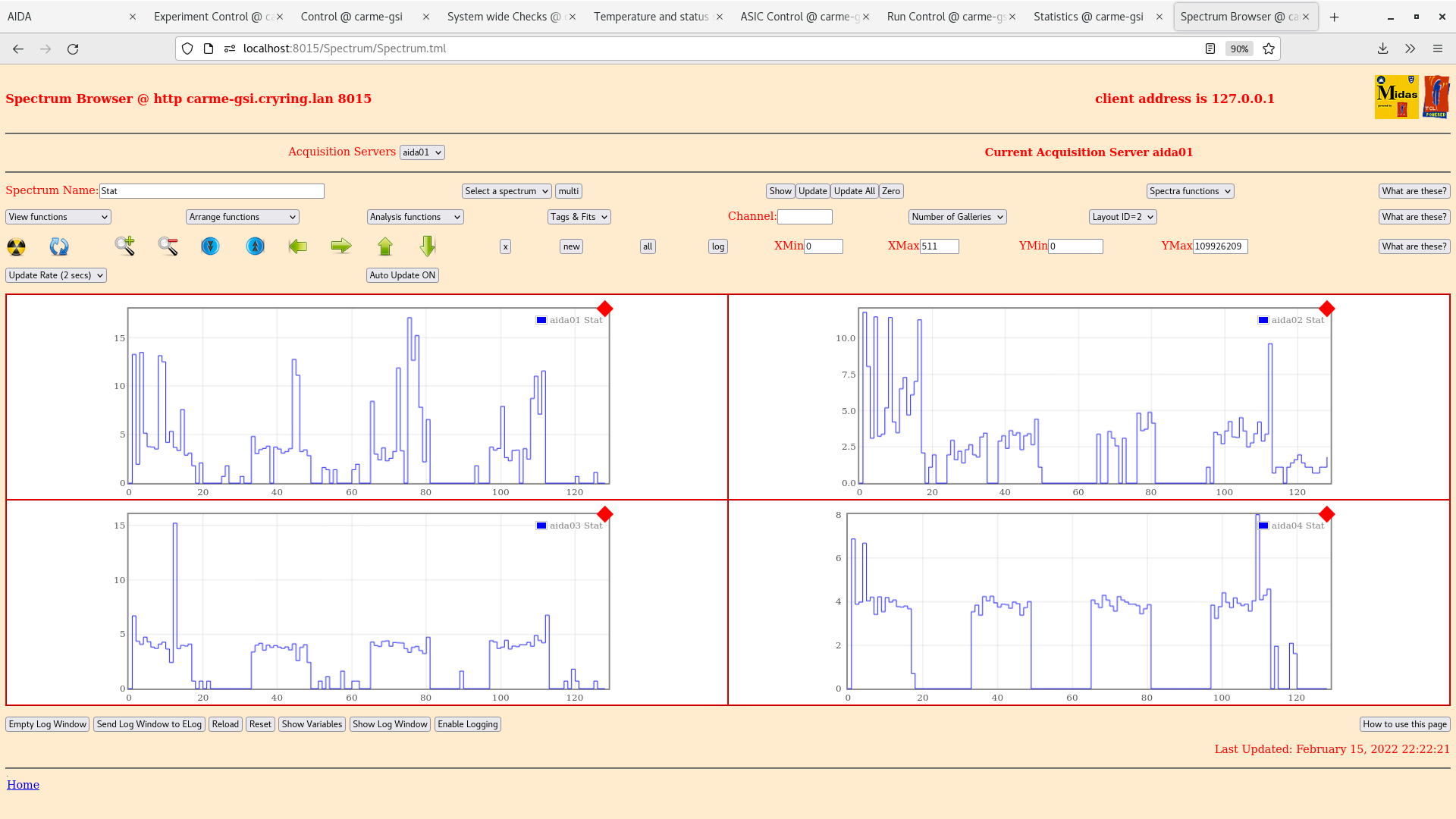

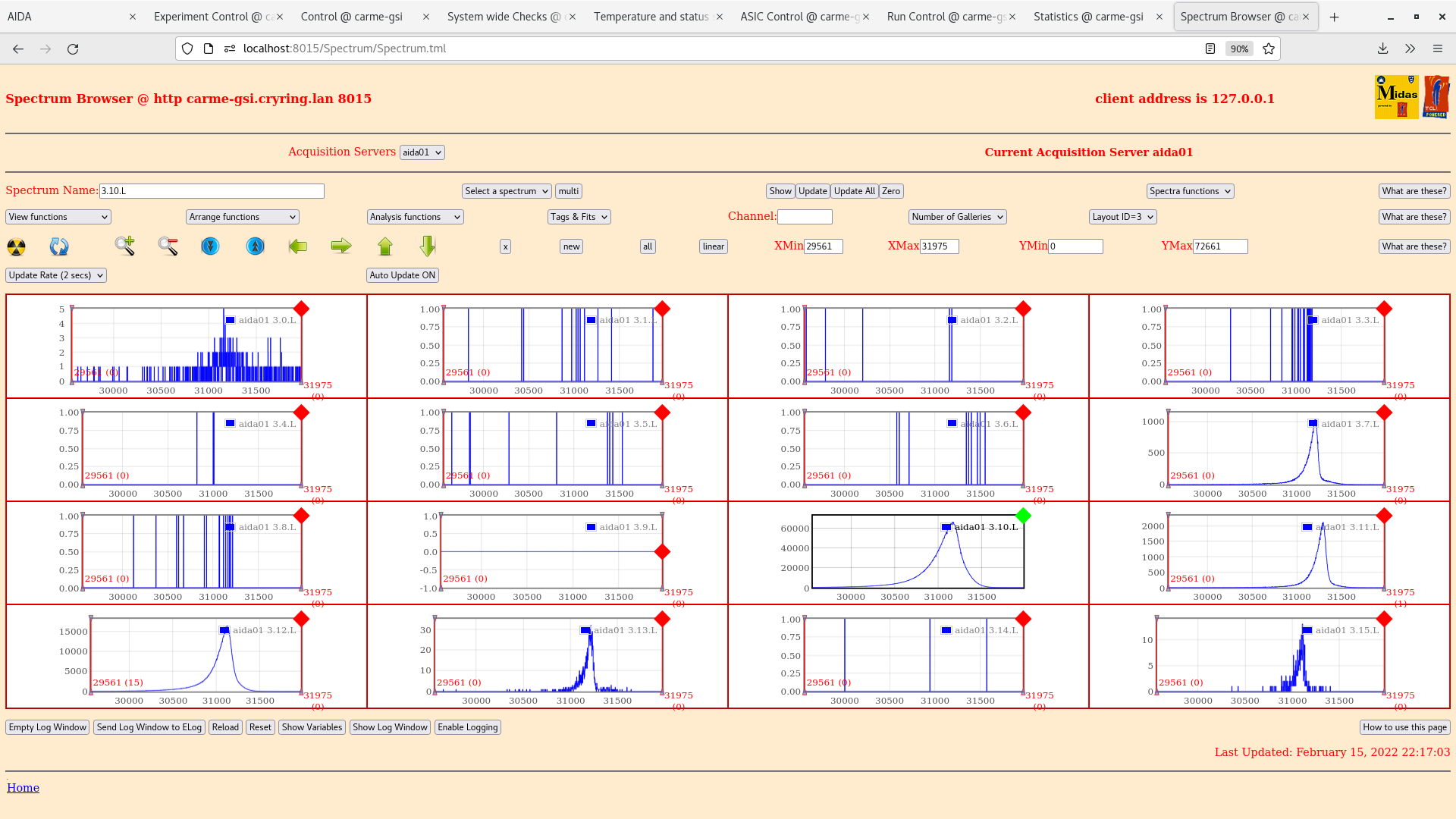

<p>All fees and asics checked to find noisy channels. Channels are listed along with the noise peak height for the low energy plot at 22:00. Run started ~17:45. </p> <p>Attachment 1 shows 3*L for aida01 with x axis zoomed in on noise peak. Attachment 2 shows stat for aida01-04 in log scale. </p> <p><strong>Aida01</strong></p> <ul> <li>1.0L ~3000</li> <li>1.2L ~3500</li> <li>1.7L ~3000</li> <li>1.8L ~2000</li> <li>2.11L ~2000</li> <li>2.12L ~400</li> <li>3.7L ~1000</li> <li>3.10 ~60000</li> <li>3.11L ~2000</li> <li>3.12L ~15000</li> <li>4.12L ~400</li> <li>4.14L ~750 </li> </ul> <p><strong>Aida02</strong></p> <ul> <li>1.0L ~1000</li> <li>1.3L ~750</li> <li>1.7L ~600</li> <li>1.15L ~600</li> <li>4.15 ~125</li> </ul> <p><strong>Aida03</strong></p> <ul> <li>1.11L ~3000</li> </ul> <p>nothing noisy of note on aida04</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Attachment 2:
Original size: 1920x1080
Attachment 3:
