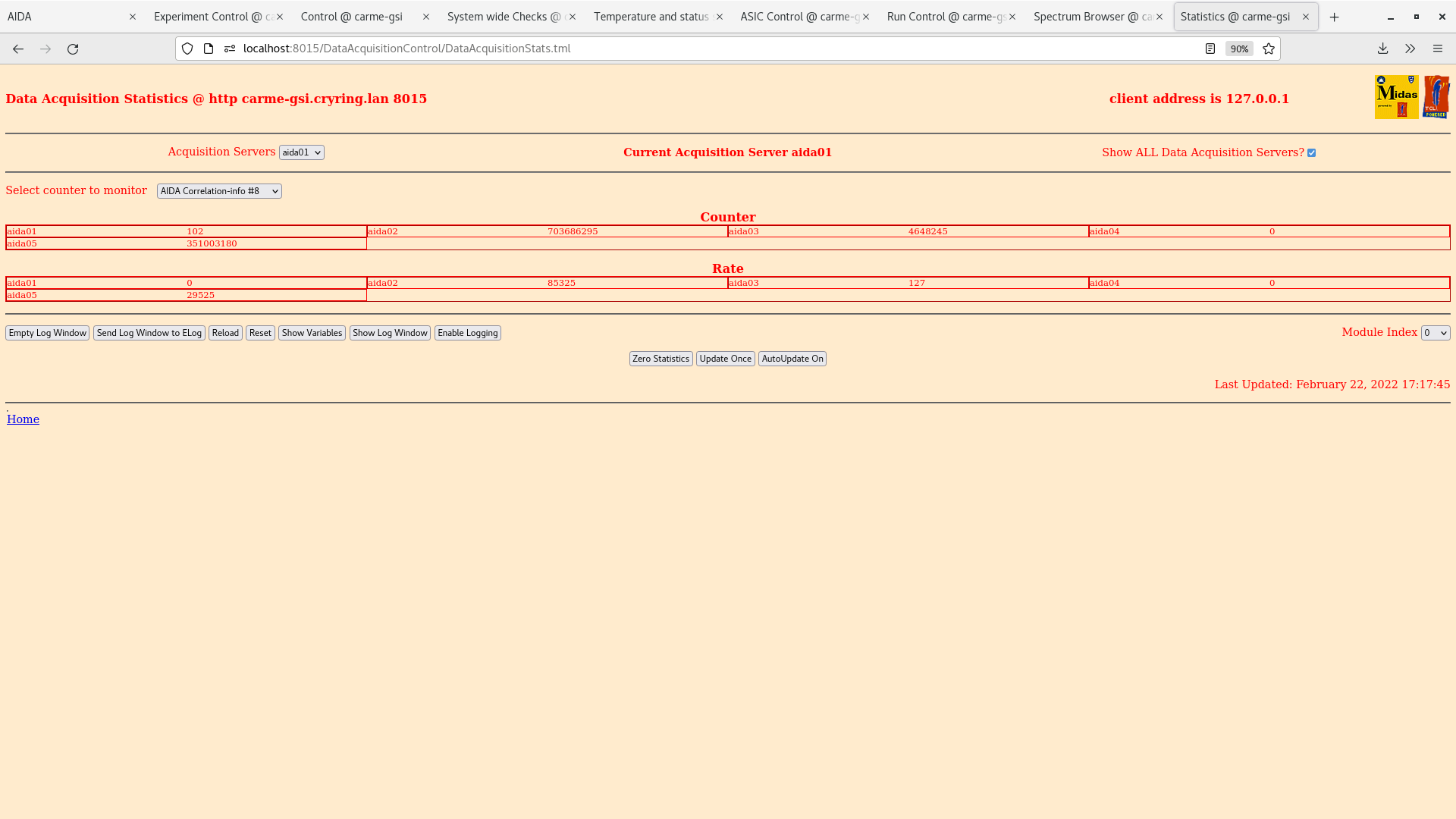

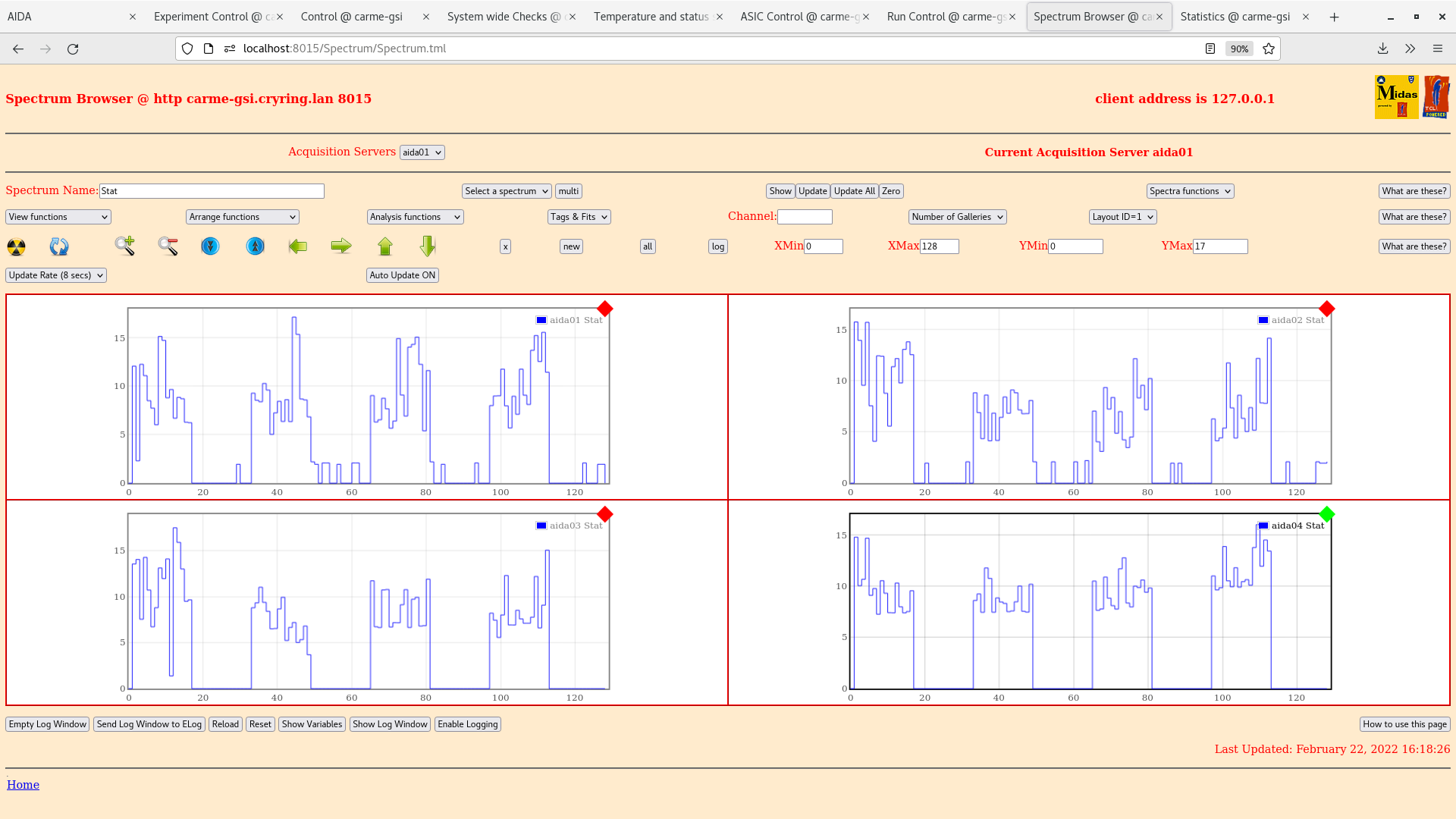

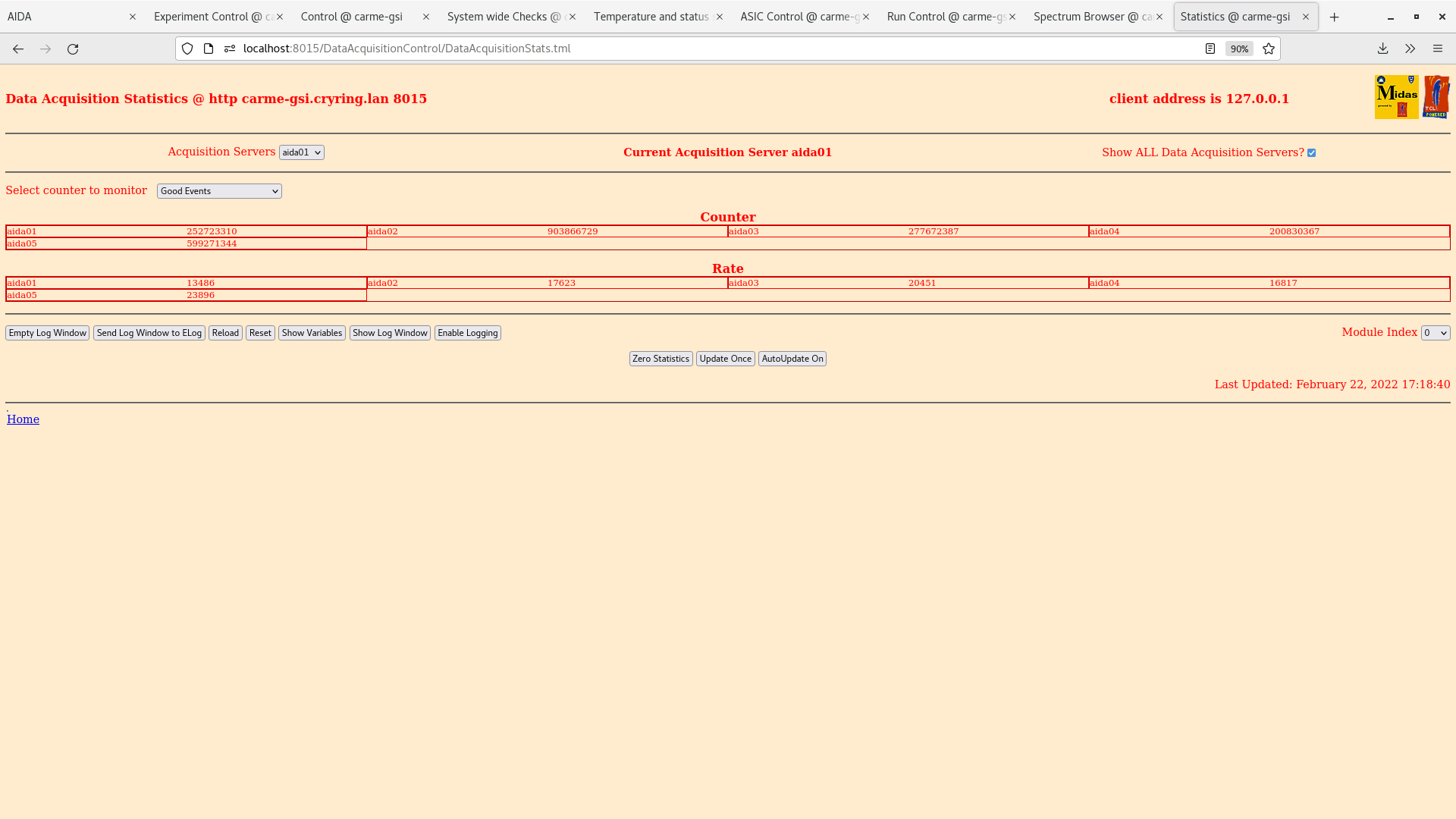

Merger, Tape server (WS3) checks: DONE, writing ~1 1273kB/s, refreshing is fine

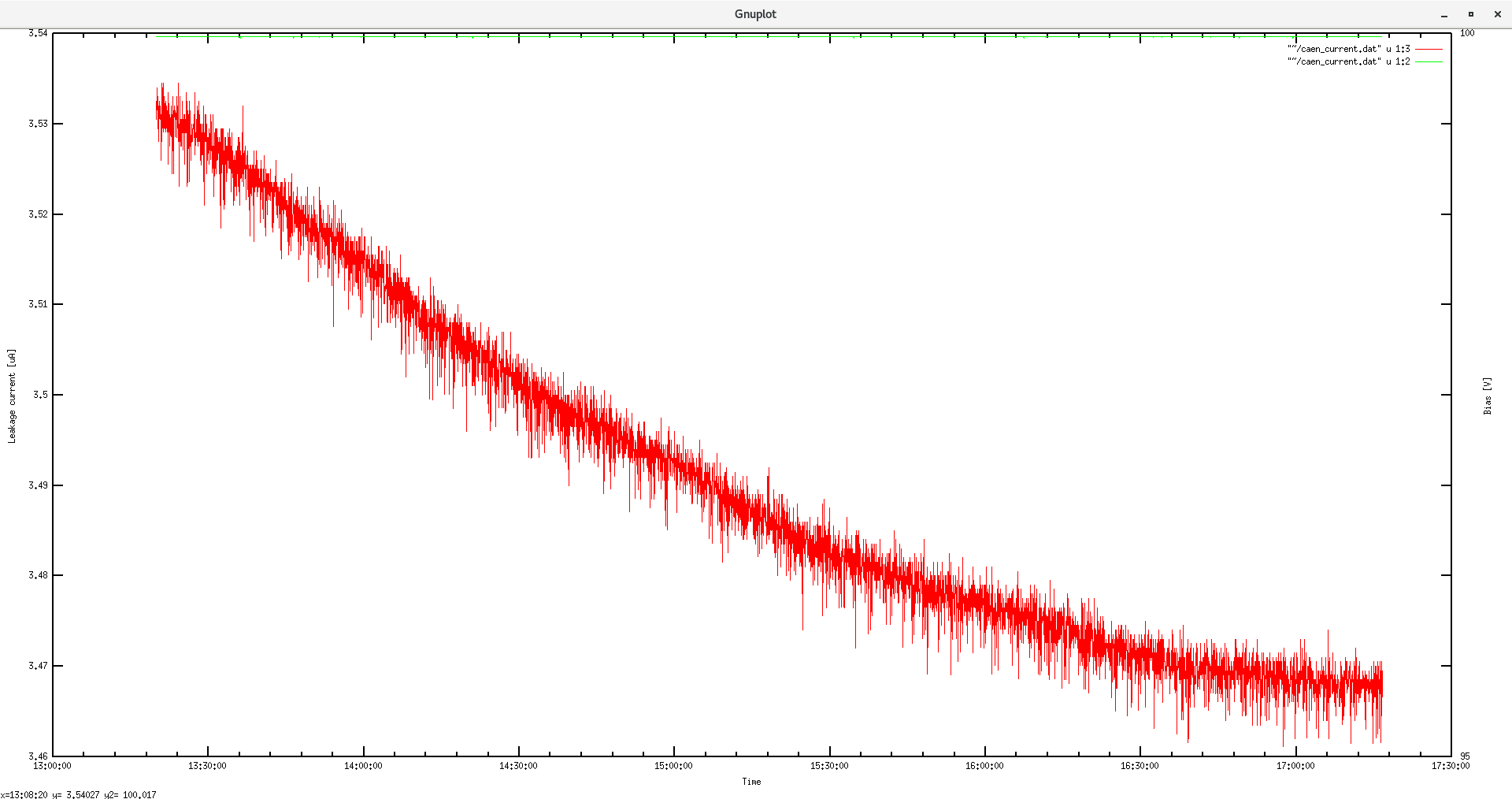

Leakage current (WS4): 3.46 uA , stable current

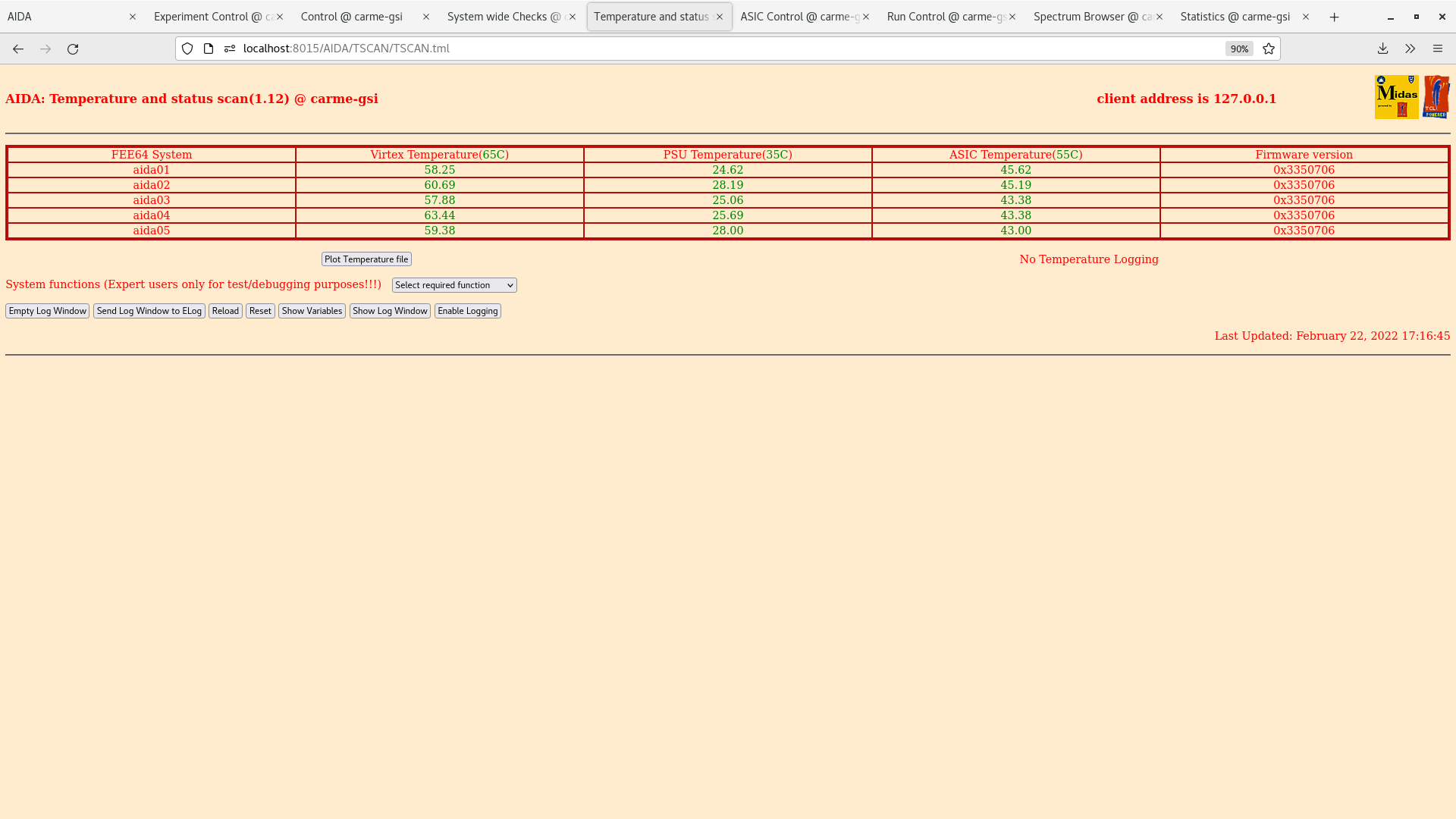

DAQ (WS2): temperature checked,

&nbsp;&nbsp;&nbsp;&nbsp; - clock status:

Clock status test result: Passed 5, Failed 0

Understand status as follows
Status bit 3 : firmware PLL that creates clocks from external clock not locked
Status bit 2 : always logic &#39;1&#39;
Status bit 1 : LMK3200(2) PLL and clock distribution chip not locked to external clock
Status bit 0 : LMK3200(1) PLL and clock distribution chip not locked to external clock
If all these bits are not set then the operation of the firmware is unreliable

&nbsp;&nbsp;&nbsp;&nbsp; -&nbsp; adc calibration:

Calibration test result: Passed 5, Failed 0

If any modules fail calibration , check the clock status and open the FADC Align and Control browser page to rerun calibration for that module

&nbsp;&nbsp; - white rabbit check:

&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;Difference
aida01 fault &nbsp;&nbsp; &nbsp; 0xc228 : &nbsp;&nbsp; &nbsp; 0xc272 : &nbsp;&nbsp; &nbsp; 74 &nbsp;
aida02 fault &nbsp;&nbsp; &nbsp; 0x5e98 : &nbsp;&nbsp; &nbsp; 0x5edf : &nbsp;&nbsp; &nbsp; 71 &nbsp;
aida03 fault &nbsp;&nbsp; &nbsp; 0x92d3 : &nbsp;&nbsp; &nbsp; 0x931d : &nbsp;&nbsp; &nbsp; 74 &nbsp;
aida04 fault &nbsp;&nbsp; &nbsp; 0x7a92 : &nbsp;&nbsp; &nbsp; 0x7adc : &nbsp;&nbsp; &nbsp; 74 &nbsp;
aida05 fault &nbsp;&nbsp; &nbsp; 0xedc0 : &nbsp;&nbsp; &nbsp; 0xedcc : &nbsp;&nbsp; &nbsp; 12 &nbsp;
White Rabbit error counter test result: Passed 0, Failed 5

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

DAQ (WS2): everything ok

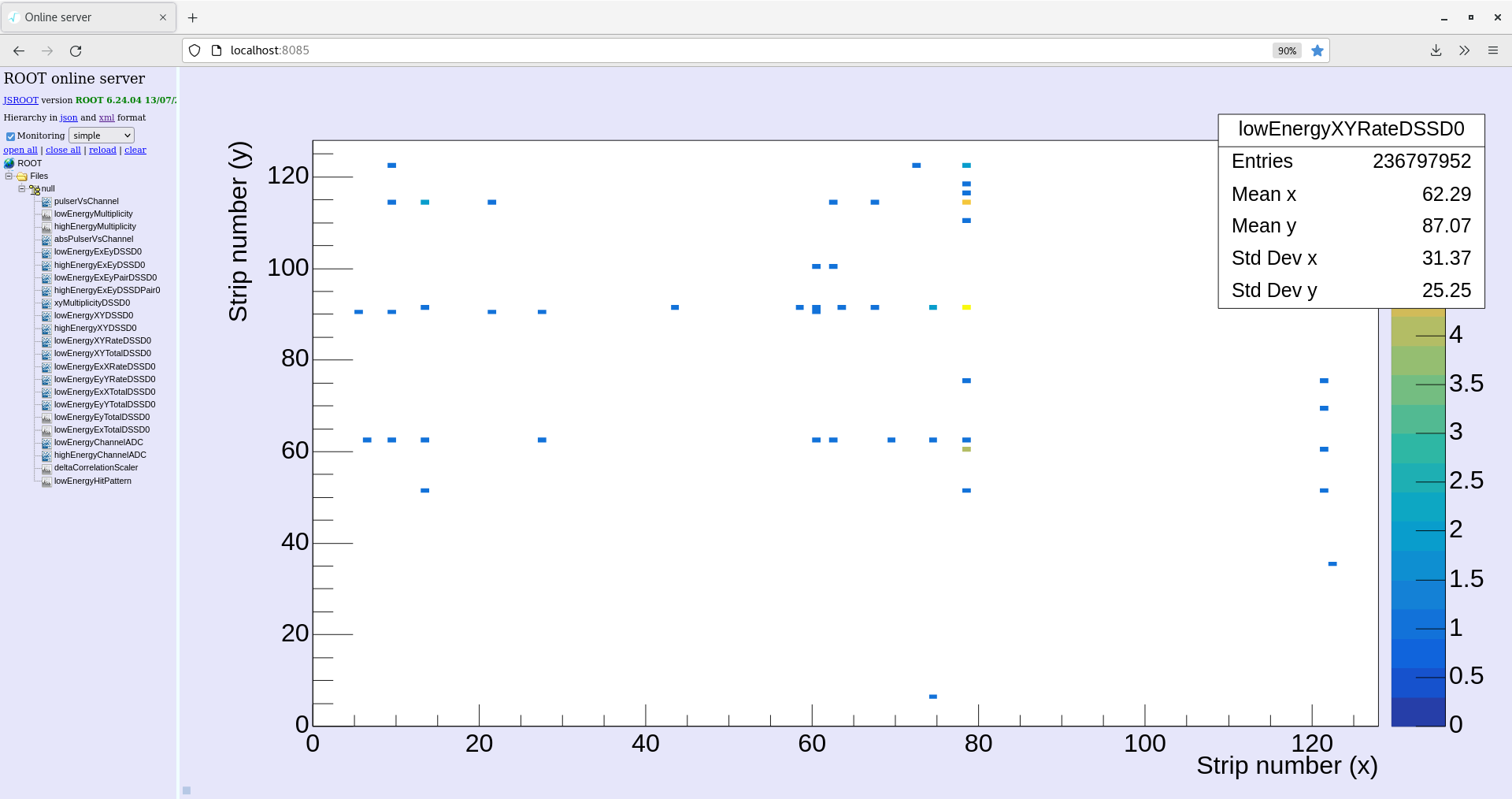

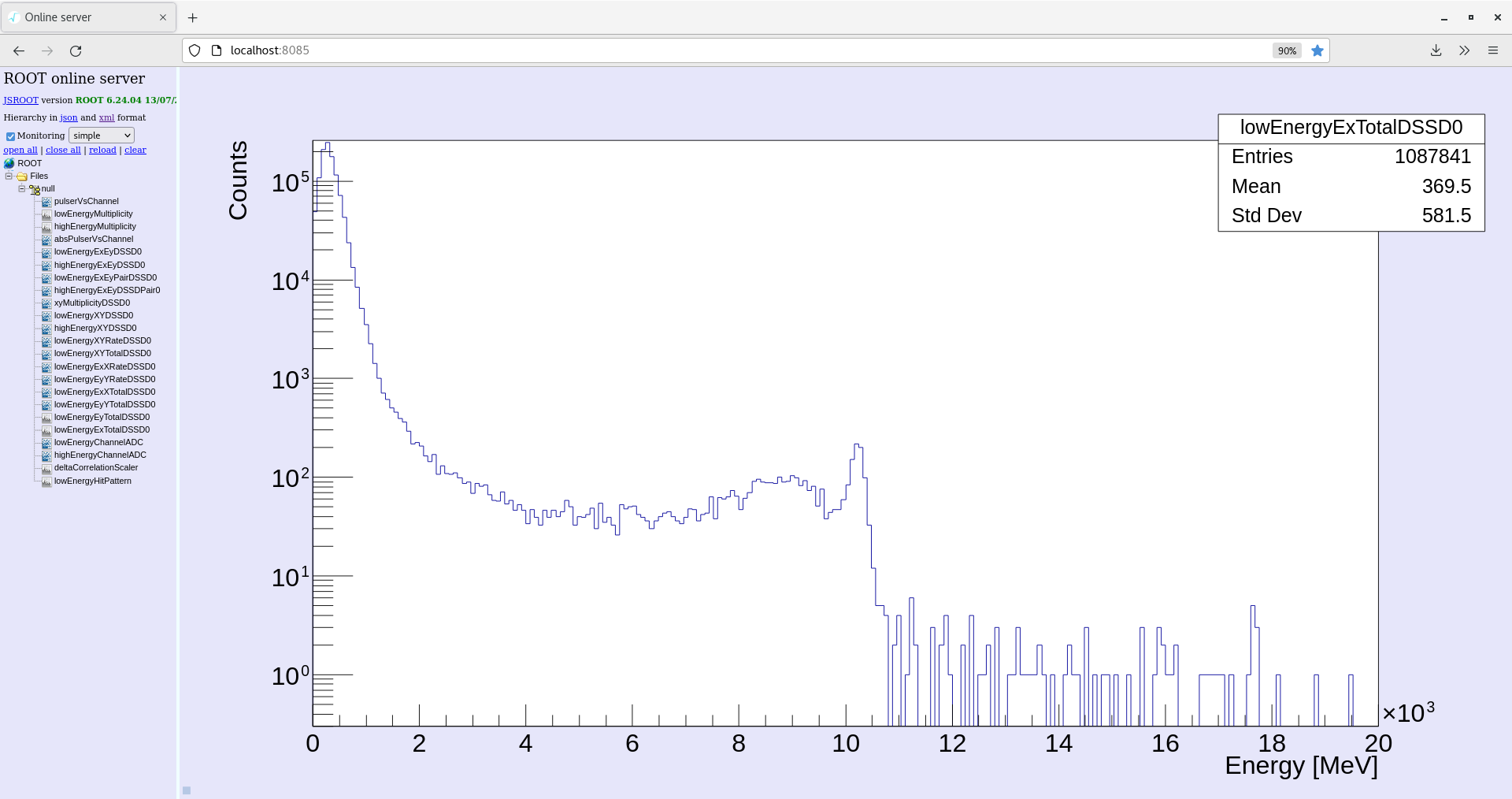

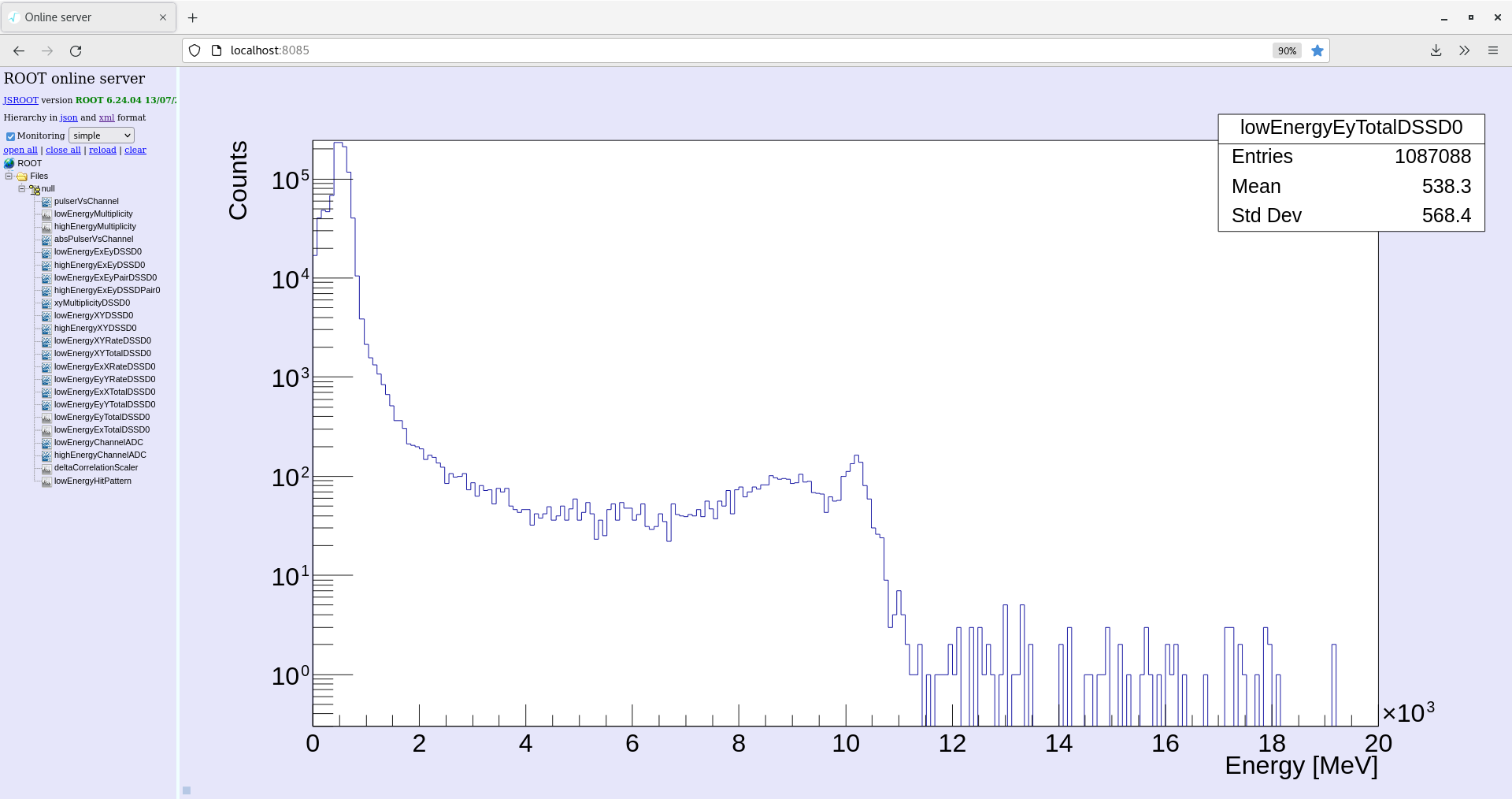

Online monitoring (WS 5): done
