Entry time:
Sun Feb 27 23:17:33 2022
Author
*
:
Subject
*
:

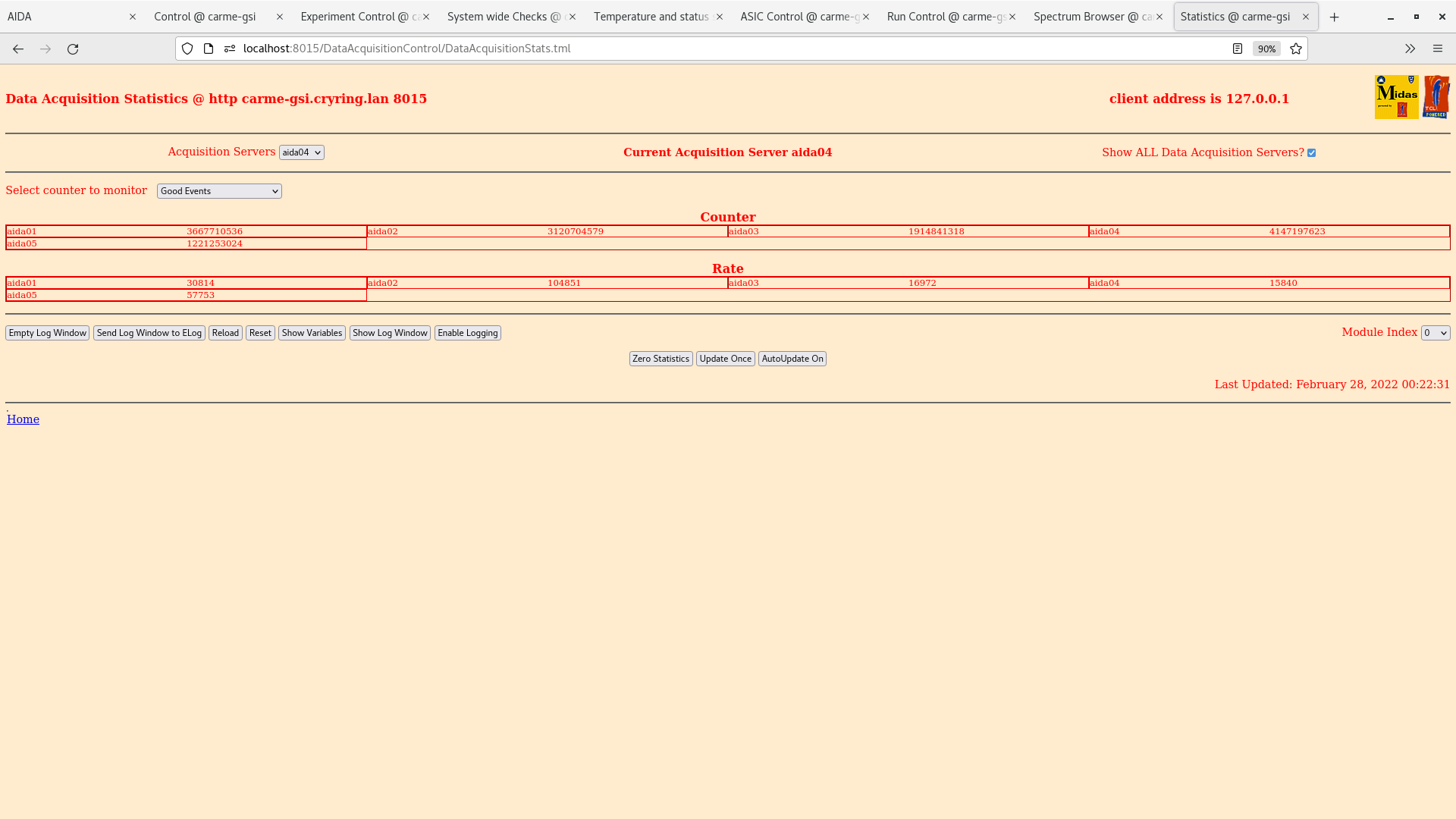

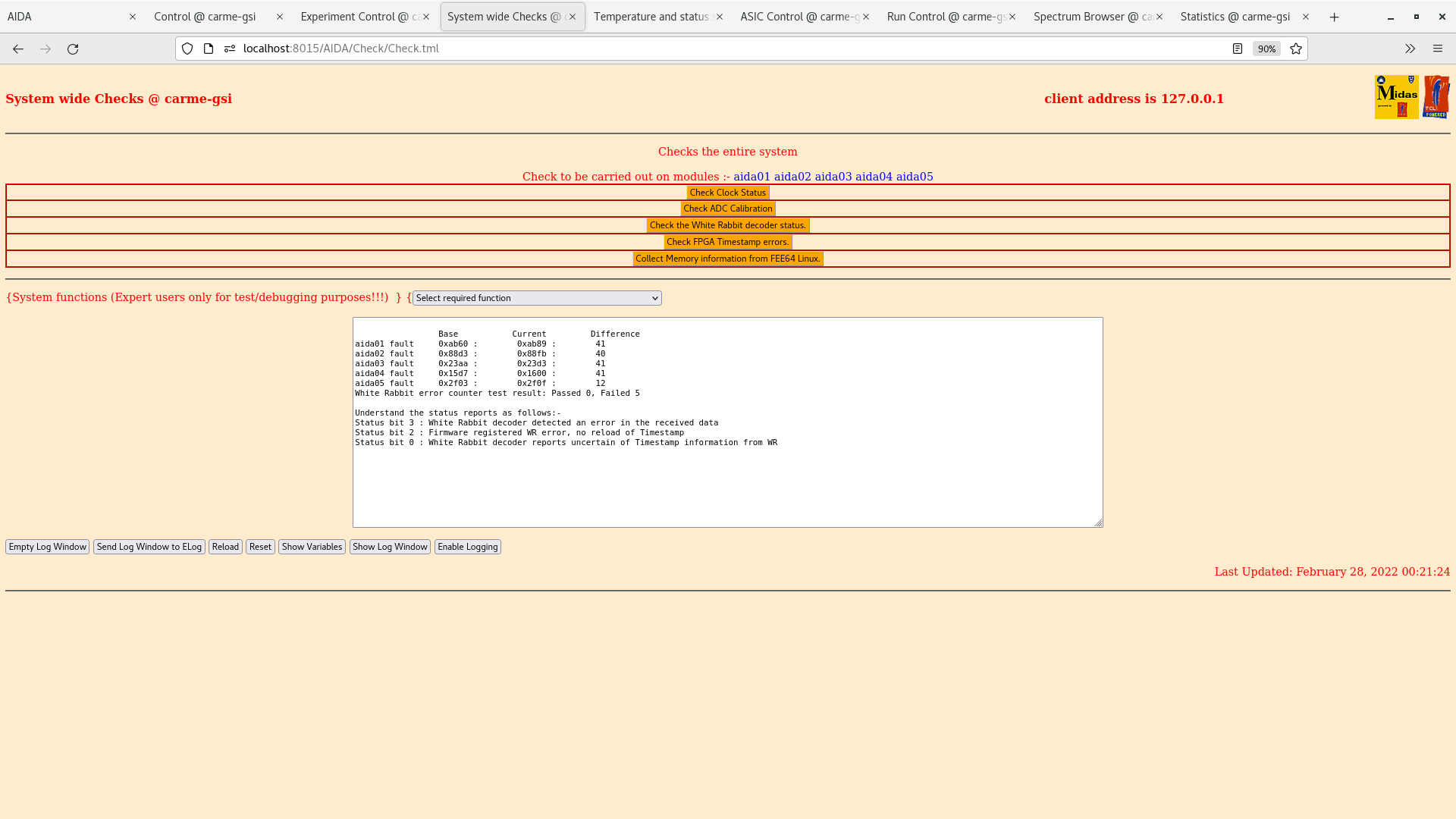

<p>00:20</p> <p>Temperature setpoint 115 K</p> <p>Rutherford rate appears fairly stable. Fluctuations from a max peak of 10^2 to a minimum of ~40 peak hieght. Fluctuates remain lower than at 95 K.</p> <p>Temperatures OK</p> <p>System checks OK - white rabbit attached.</p> <p>Leakage current ~ 3.236 uA</p> <p>Data rate ~1177 kb/sec</p> <p>Merger OK</p> <p>Ring vacuum levels appear to have stablised from previous large fluctuations. Avg ring pressure decreased to 3.8E-10 mbar from 7.5E-10 mbar at start of the shift. (attachment 9)</p> <p>00:51</p> <p>Rutherford rate still stable. Fluctuations have reduced slightly. Min peak height now ~60 counts, max peak ~10^2 counts. (attachment 10)</p> <p>Ring vacuum avg = 3.2 E-10 mbar.</p> <p>E1 pump current ~ 2.4 A</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 1920x1014
Attachment 2:
Original size: 1920x1080
Attachment 3:
Original size: 1920x1080
Attachment 4:
Original size: 1920x1080
Attachment 5:
Original size: 1920x1080
Attachment 6:
Original size: 1920x1014
Attachment 7:
Original size: 1920x1014
Attachment 8:
Original size: 4000x3000
Attachment 9:
Original size: 4000x3000
Attachment 10:
Original size: 1920x1014
