Entry time:

Mon Feb 28 22:34:51 2022

Author*:

Subject*:

23:35

Temperature setpoint = 116 K

Detector position IN, potentiometer reads 34.89 mm

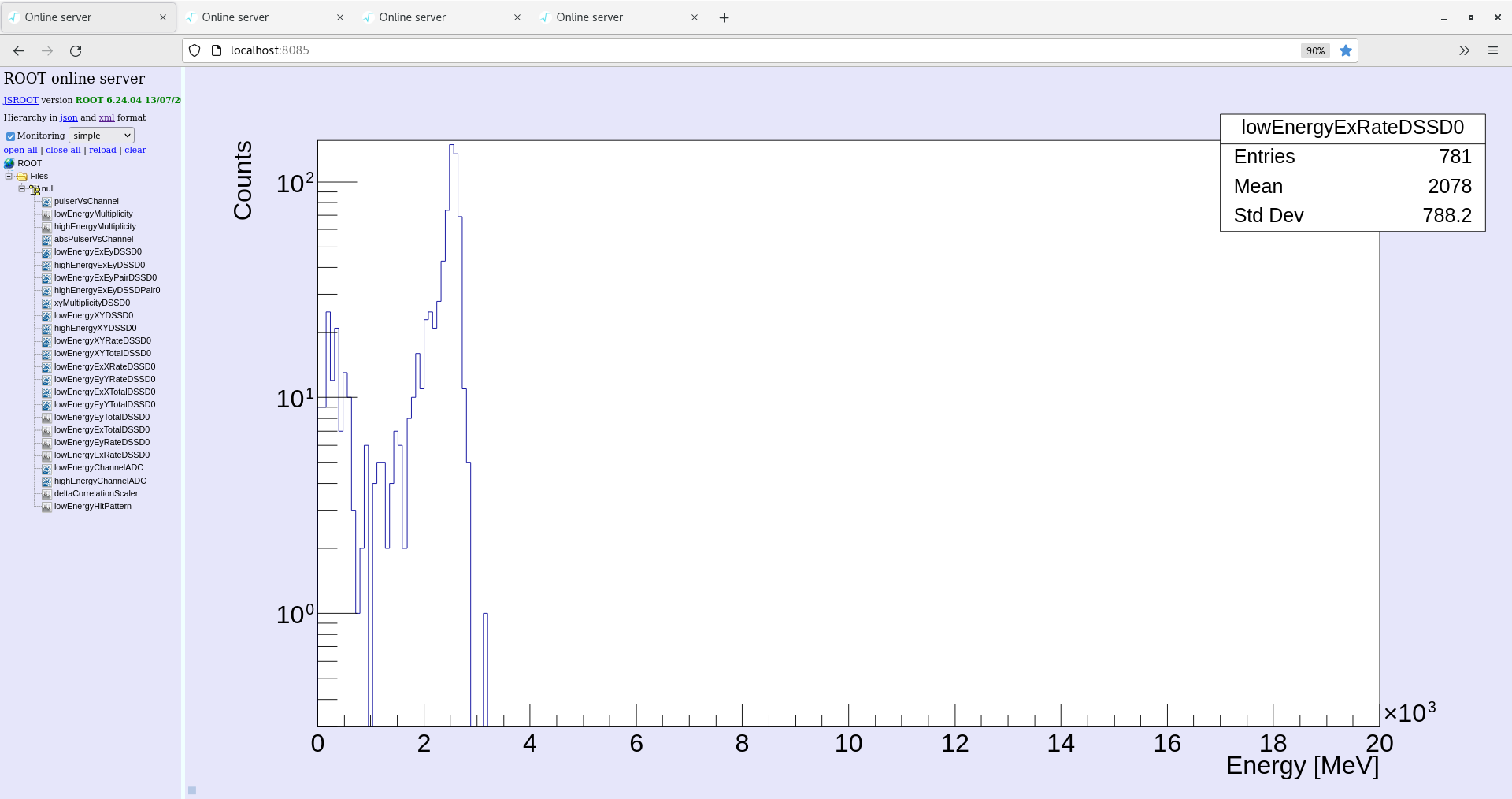

Rutherford rate fluctuates however is consistently aboe 100 counts peak height

Merger OK

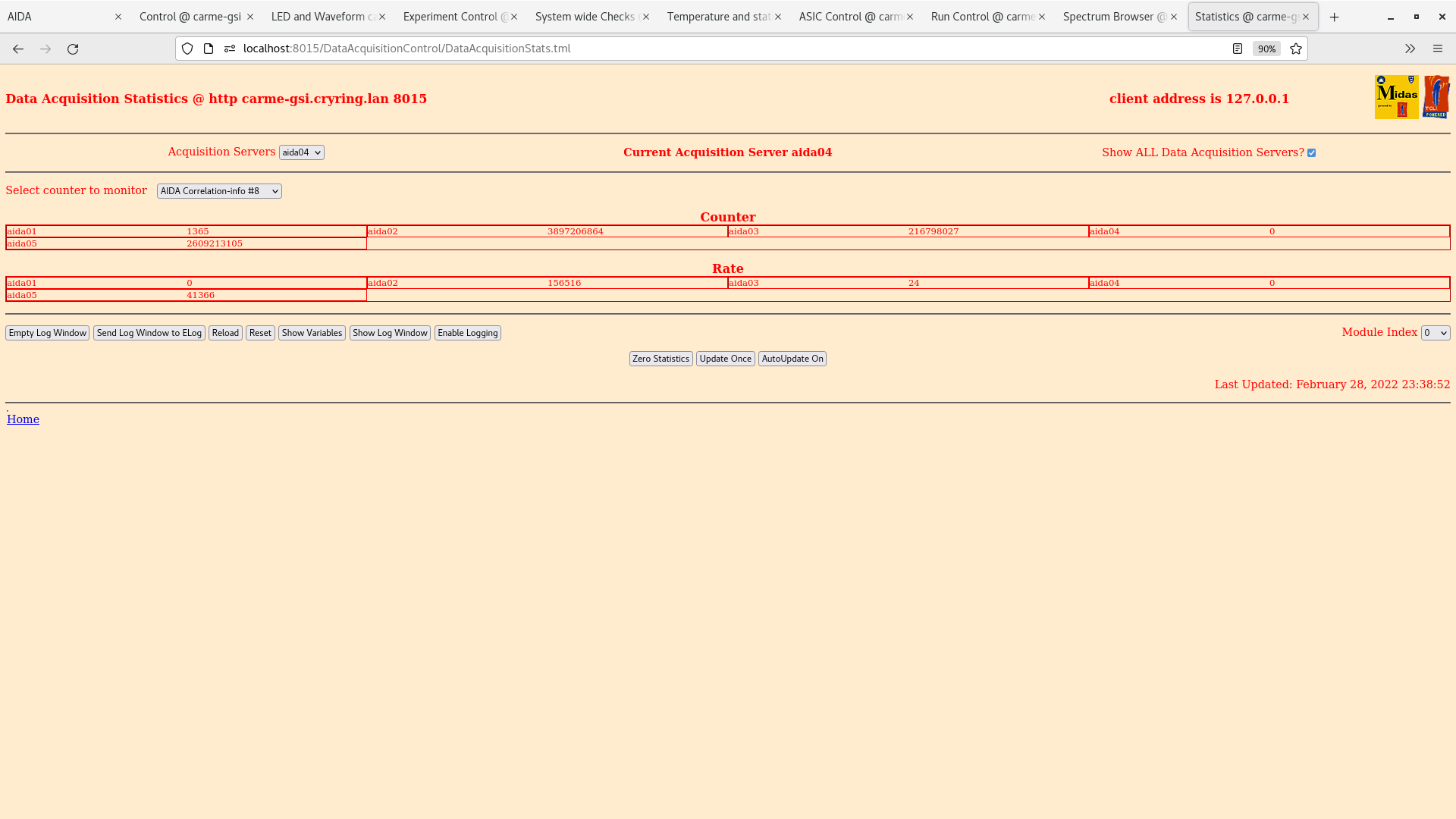

Data rate = 1600 kb/sec

Leakage current = 3.23 uA

Temperatures OK

System checks OK - wr attached

&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;Difference
aida01 fault &nbsp;&nbsp; &nbsp; 0xab60 : &nbsp;&nbsp; &nbsp; 0xab8c : &nbsp;&nbsp; &nbsp; 44 &nbsp;
aida02 fault &nbsp;&nbsp; &nbsp; 0x88d3 : &nbsp;&nbsp; &nbsp; 0x88fe : &nbsp;&nbsp; &nbsp; 43 &nbsp;
aida03 fault &nbsp;&nbsp; &nbsp; 0x23aa : &nbsp;&nbsp; &nbsp; 0x23d6 : &nbsp;&nbsp; &nbsp; 44 &nbsp;
aida04 fault &nbsp;&nbsp; &nbsp; 0x15d7 : &nbsp;&nbsp; &nbsp; 0x1603 : &nbsp;&nbsp; &nbsp; 44 &nbsp;
aida05 fault &nbsp;&nbsp; &nbsp; 0x2f03 : &nbsp;&nbsp; &nbsp; 0x2f0f : &nbsp;&nbsp; &nbsp; 12 &nbsp;
White Rabbit error counter test result: Passed 0, Failed 5

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

&nbsp;

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:
