Entry time:

Tue Mar 1 03:34:28 2022

Author*:

Subject*:

Temperature setpoint = 116 k

Detector IN potentiometer = 34.89 mm

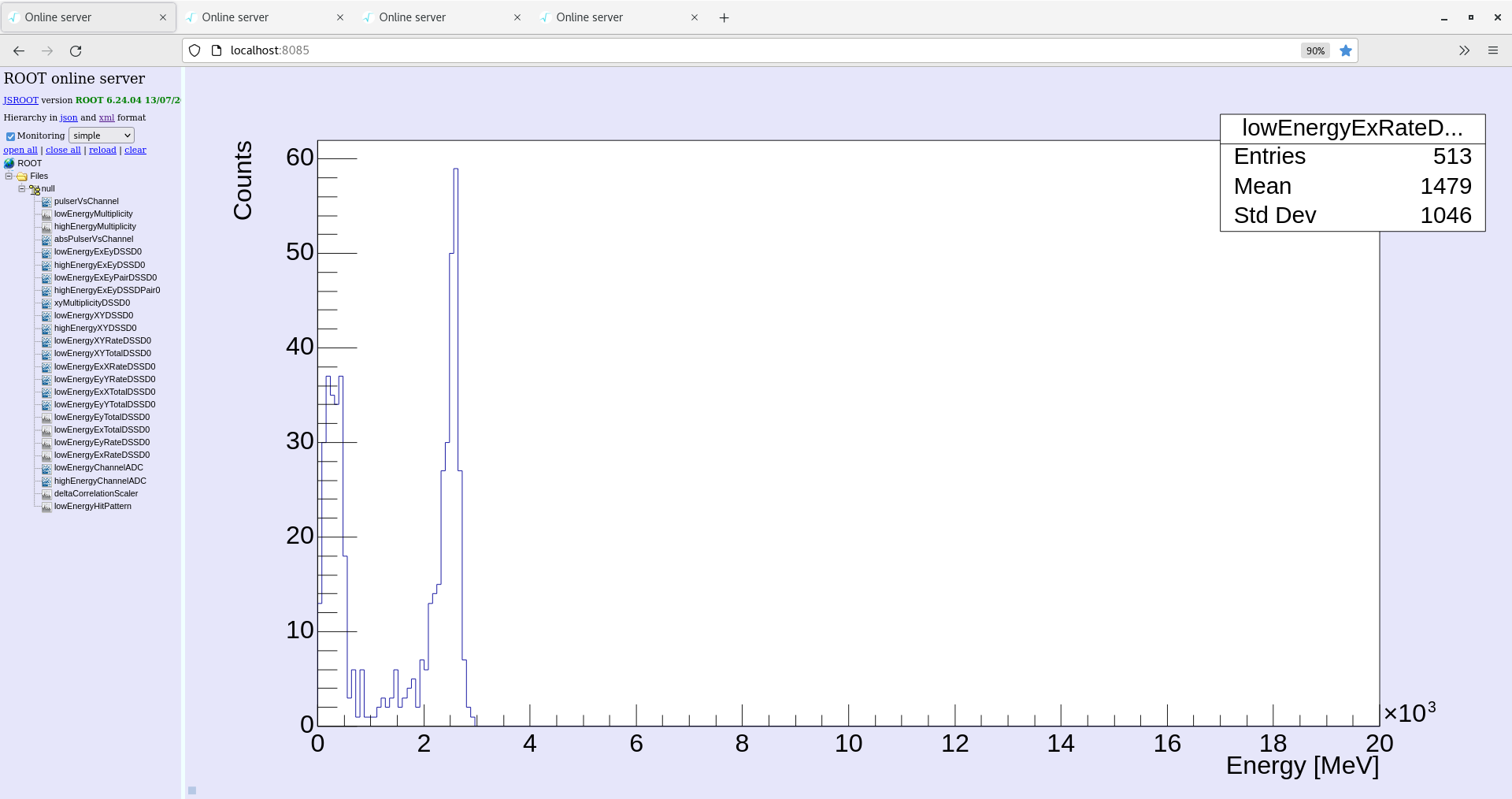

Rutherford rate is reduced from previous entries. Avergae peak height appears to be ~50 counts. Fluctuations in peak height and E4 pressure are quite high. Temperature has been cycled, nozzle position has been optimised and different temperatures have been trialled however density cannot be maintained at a decent level.&nbsp;

Merger OK

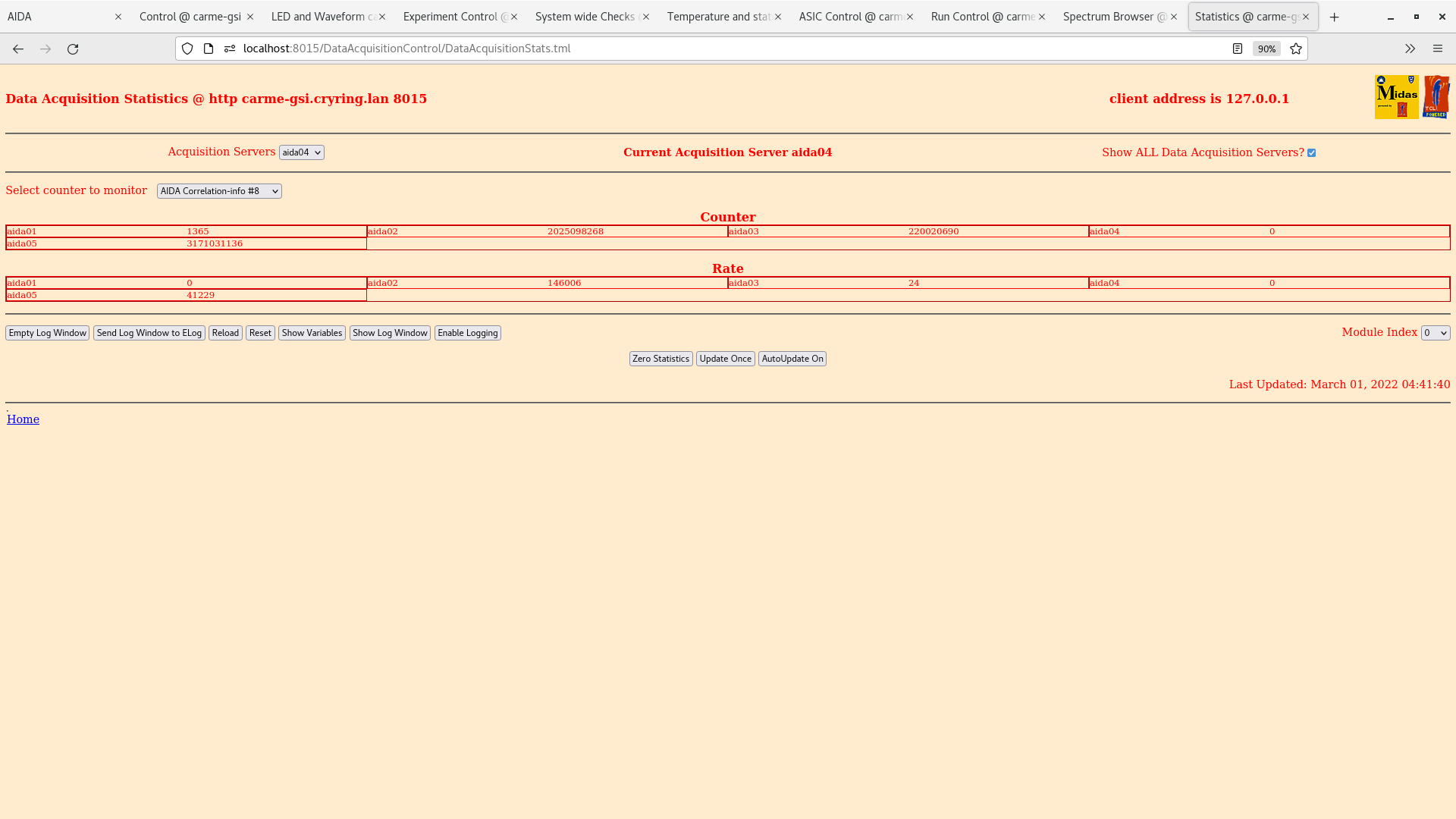

Data rate ~ 1500 kb/sec

Leakage current = 3.2295 uA

Temperatures OK

System checks OK - wr fails

&nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp; Base &nbsp;&nbsp; &nbsp;&nbsp;&nbsp; &nbsp;Current &nbsp;&nbsp; &nbsp;Difference
aida01 fault &nbsp;&nbsp; &nbsp; 0xab60 : &nbsp;&nbsp; &nbsp; 0xab8c : &nbsp;&nbsp; &nbsp; 44 &nbsp;
aida02 fault &nbsp;&nbsp; &nbsp; 0x88d3 : &nbsp;&nbsp; &nbsp; 0x88fe : &nbsp;&nbsp; &nbsp; 43 &nbsp;
aida03 fault &nbsp;&nbsp; &nbsp; 0x23aa : &nbsp;&nbsp; &nbsp; 0x23d6 : &nbsp;&nbsp; &nbsp; 44 &nbsp;
aida04 fault &nbsp;&nbsp; &nbsp; 0x15d7 : &nbsp;&nbsp; &nbsp; 0x1603 : &nbsp;&nbsp; &nbsp; 44 &nbsp;
aida05 fault &nbsp;&nbsp; &nbsp; 0x2f03 : &nbsp;&nbsp; &nbsp; 0x2f0f : &nbsp;&nbsp; &nbsp; 12 &nbsp;
White Rabbit error counter test result: Passed 0, Failed 5

Understand the status reports as follows:-
Status bit 3 : White Rabbit decoder detected an error in the received data
Status bit 2 : Firmware registered WR error, no reload of Timestamp
Status bit 0 : White Rabbit decoder reports uncertain of Timestamp information from WR

Avg ring pressure = 4.4 E-10 mbar

Encoding: HTML ELCode plain
Suppress Email notification Resubmit as new entry

Attachment 1:
