DSSD bias and leakage current values:

-99.99 V

-13.0960&nbsp;uA

Pulsar peak widths (ch FWHM)

aida01 ~ 97

aida02&nbsp;~ 103

aida03&nbsp;~ 134

aida04&nbsp;~ 131

aida05&nbsp;~ 22

Pretty similar to what was found yesterday

&nbsp;

15.30

Per Elog 375

Measured FEE64 voltages are as follows

@ISOL 4&nbsp;AIDA PSU&nbsp; &nbsp;@FEE64 aida05&nbsp; &nbsp; &nbsp; nominal

(top-botttom)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;(right-left)

+6.05V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; +5.26V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;+5V

-6.49V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;-6.26V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; -6V

+7.78V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; +7.46V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;+7V

&nbsp;

Adjusted PowerStax PSU voltage pots of AIDA PSU ISOL 4

@ISOL 4&nbsp;AIDA PSU&nbsp; &nbsp;@FEE64 aida05&nbsp; &nbsp; &nbsp; nominal

(top-botttom)&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;(right-left)

+5.79V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; +4.99V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;+5V

-6.23V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;-6.00V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; -6V

+7.32V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; +7.00V&nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp; &nbsp;+7V

&nbsp;

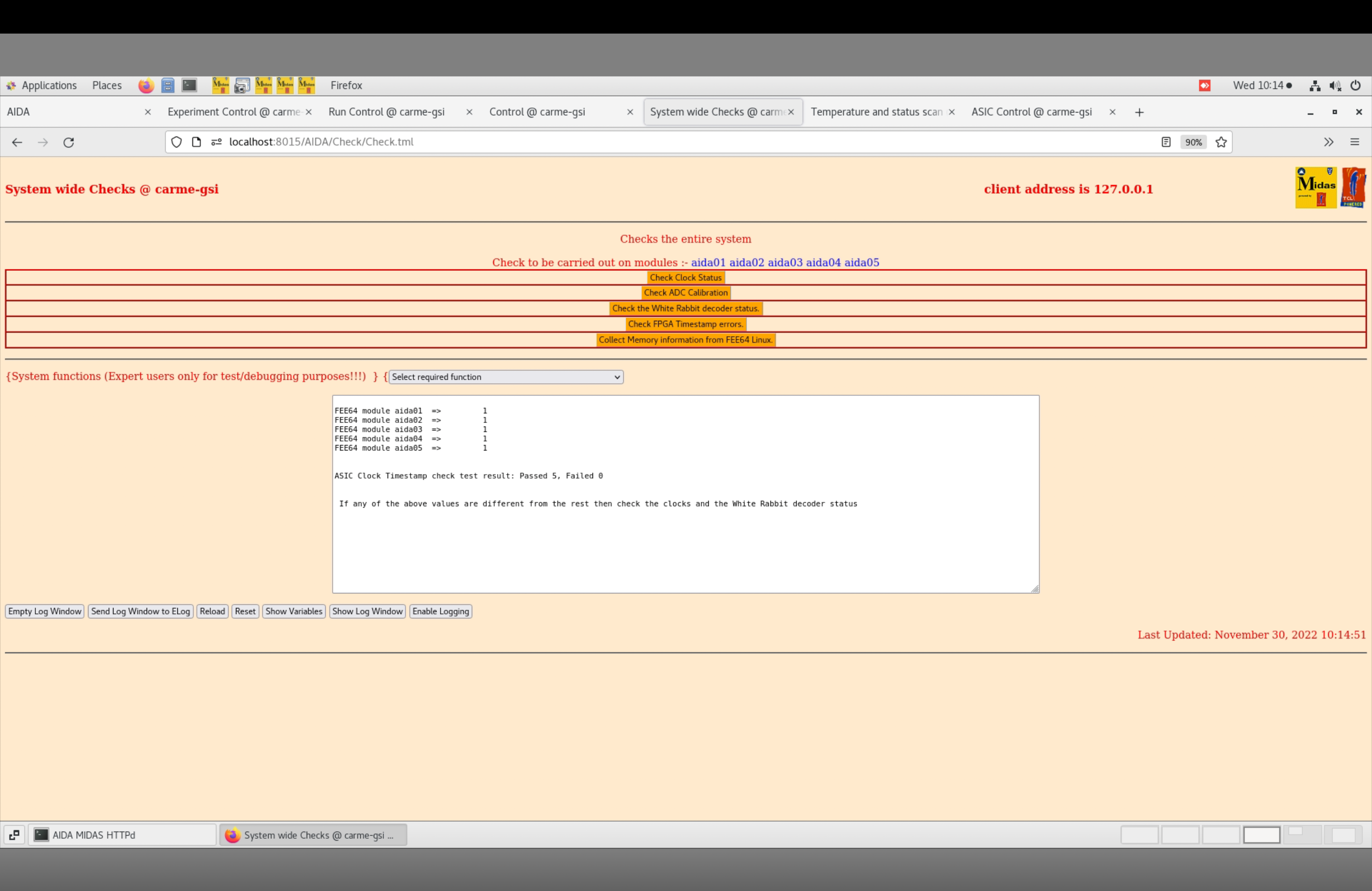

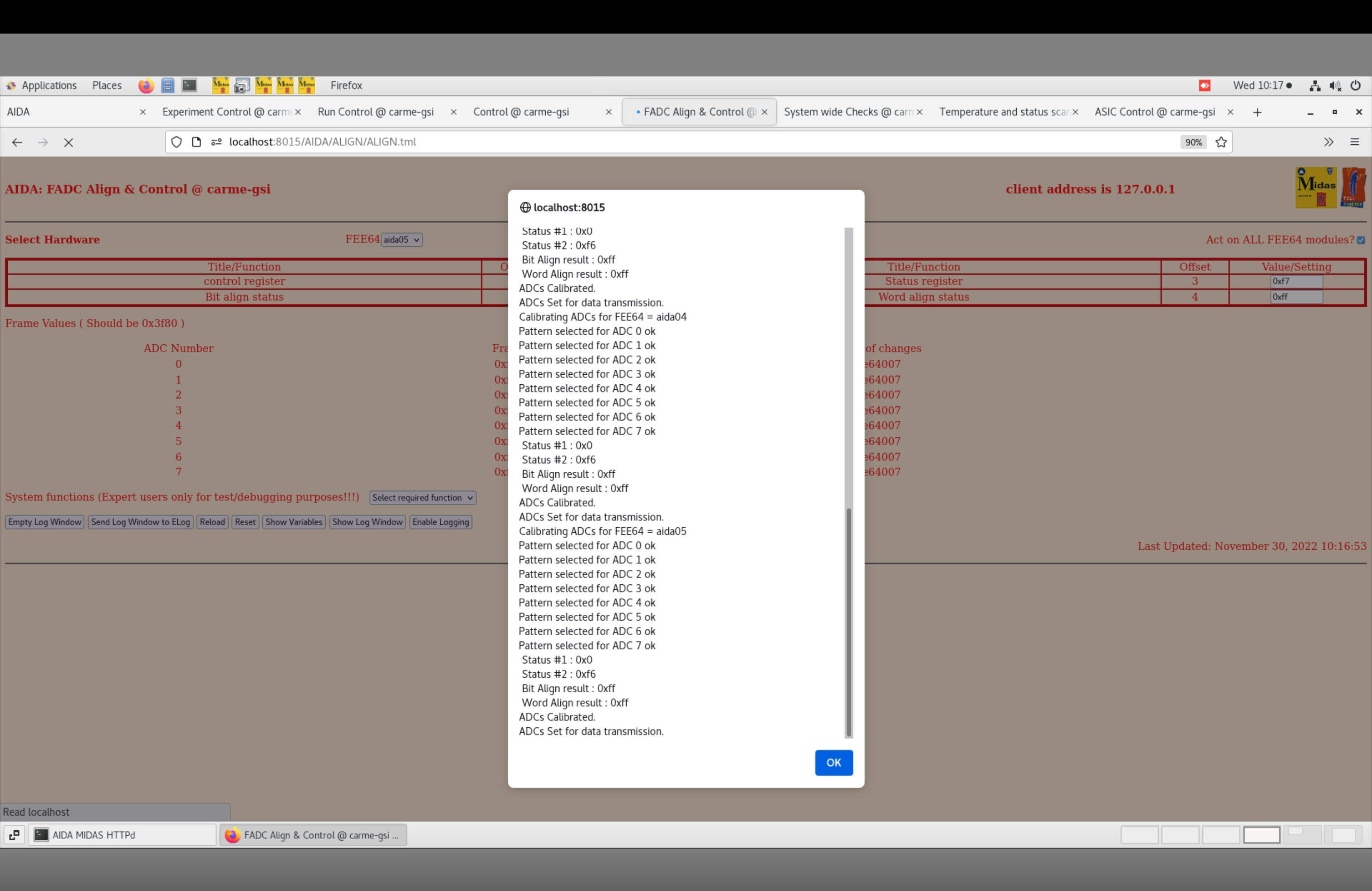

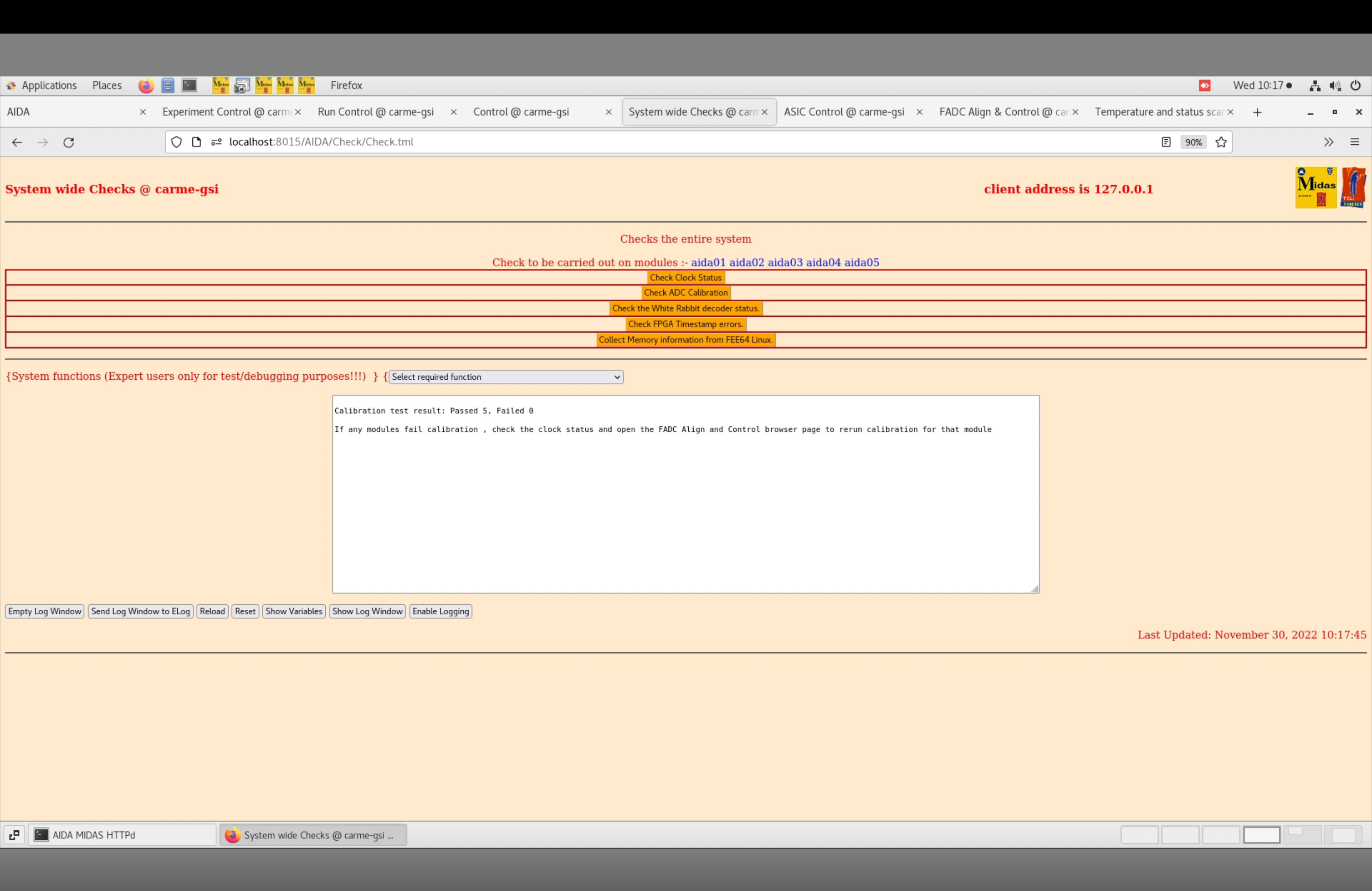

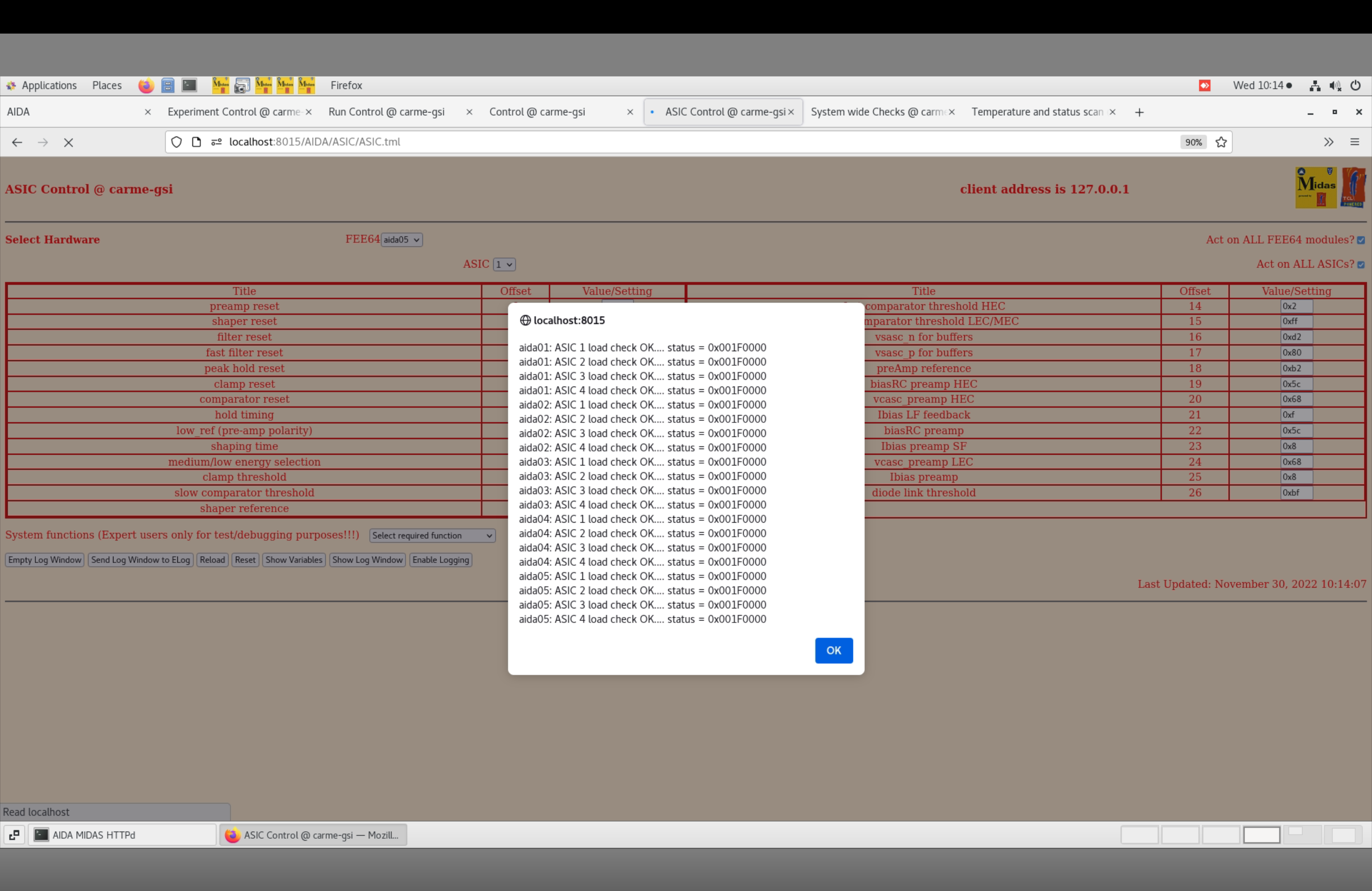

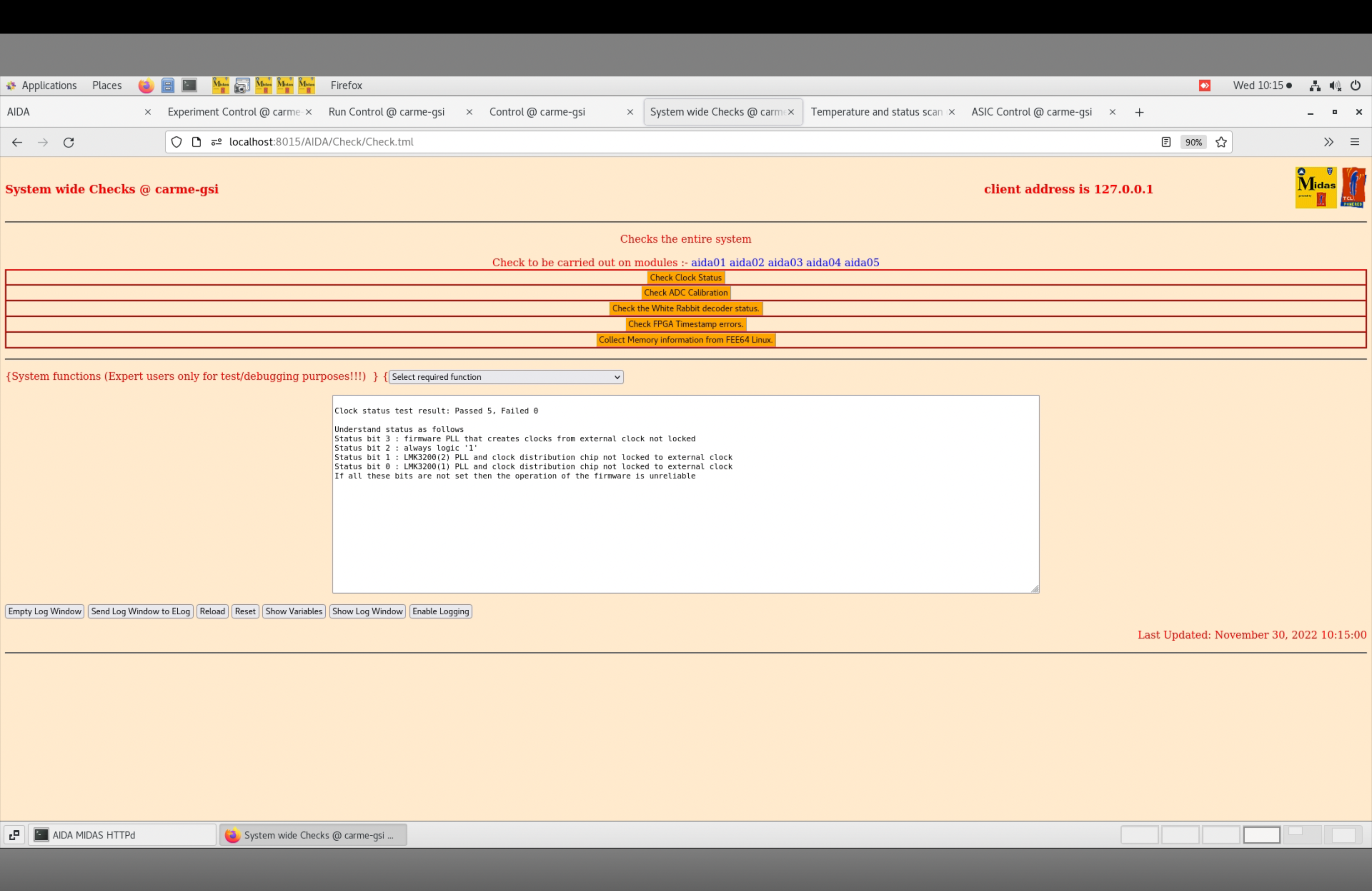

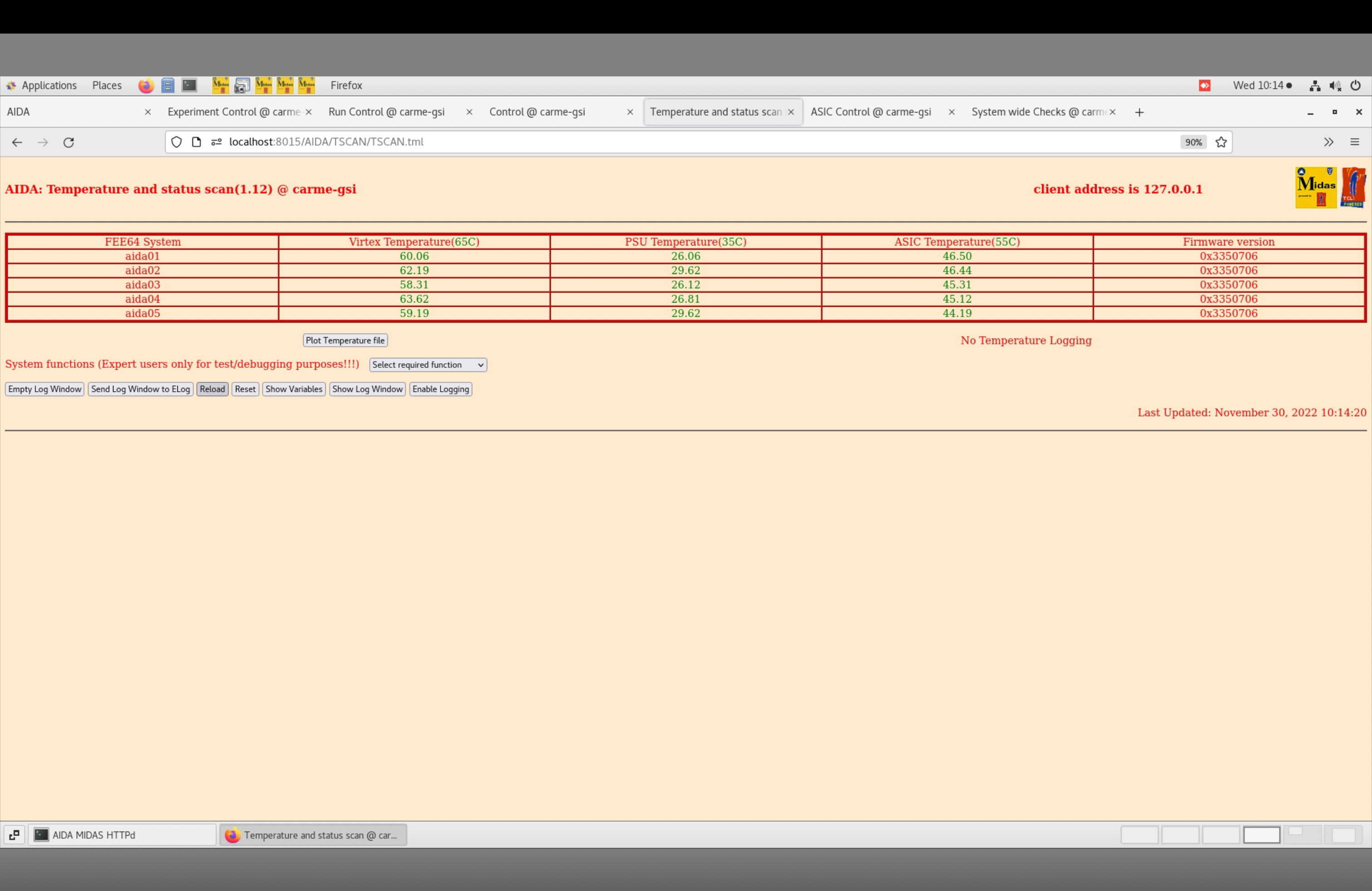

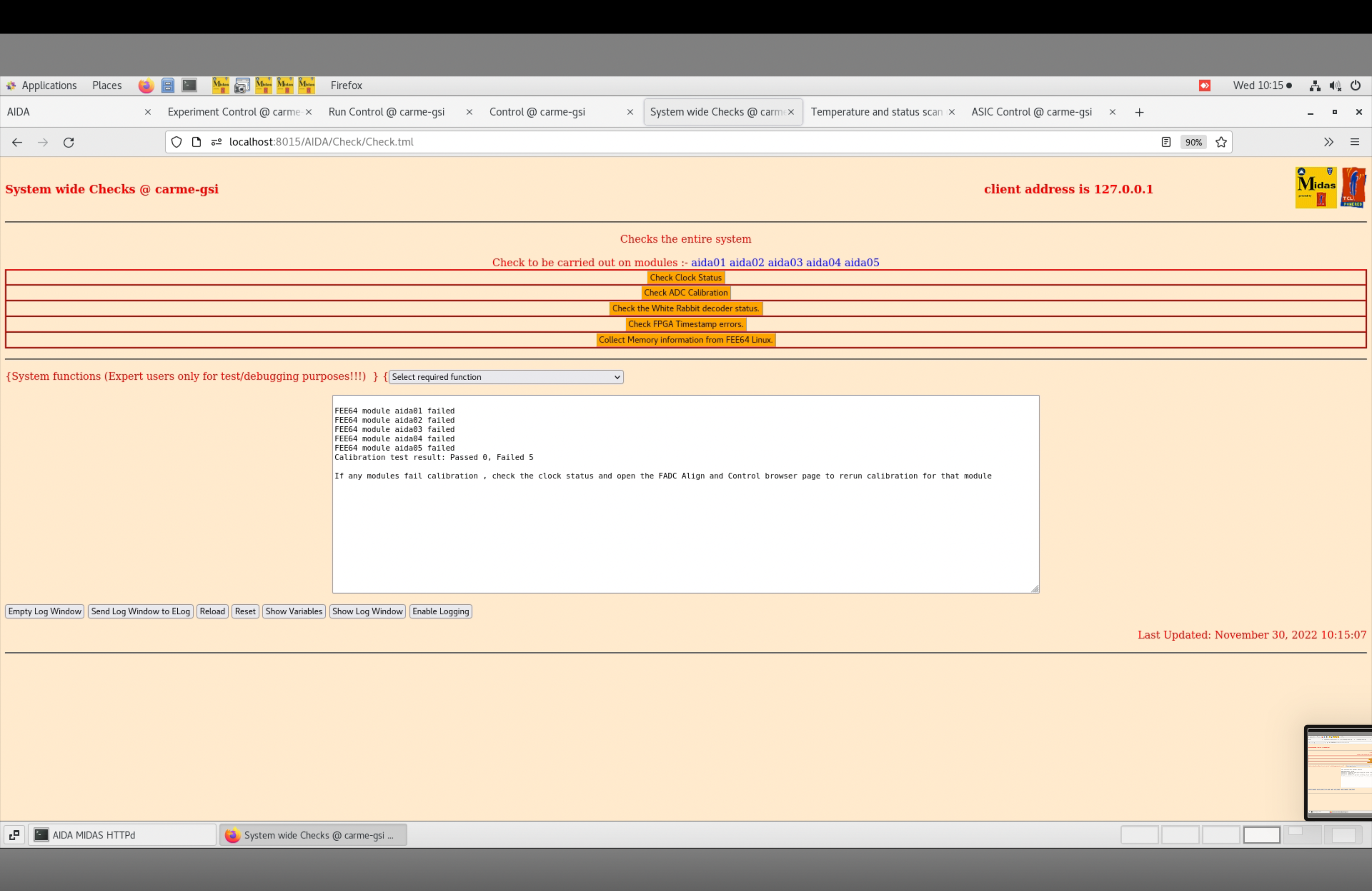

Attatchment 1-12 = BEFORE change

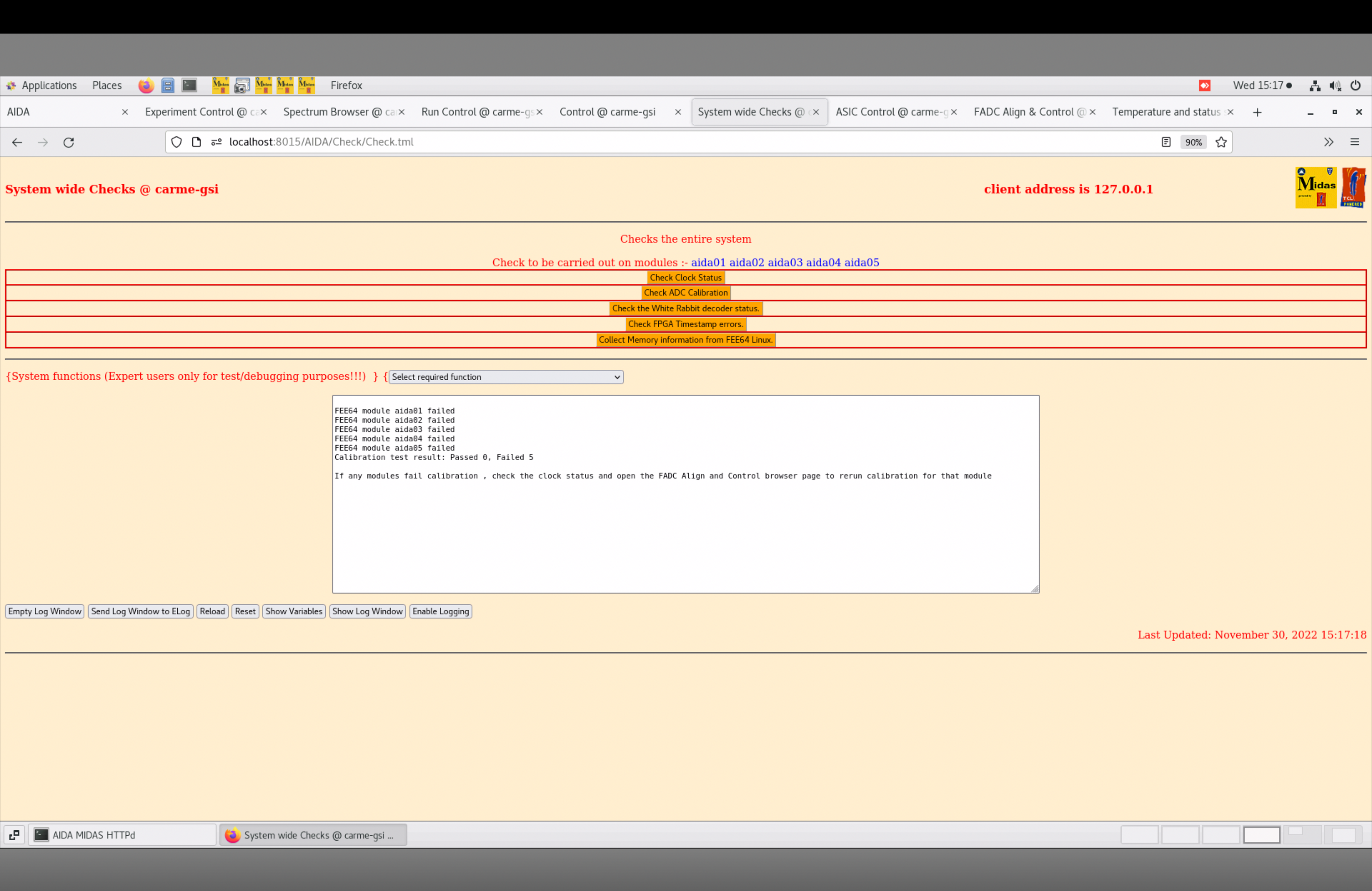

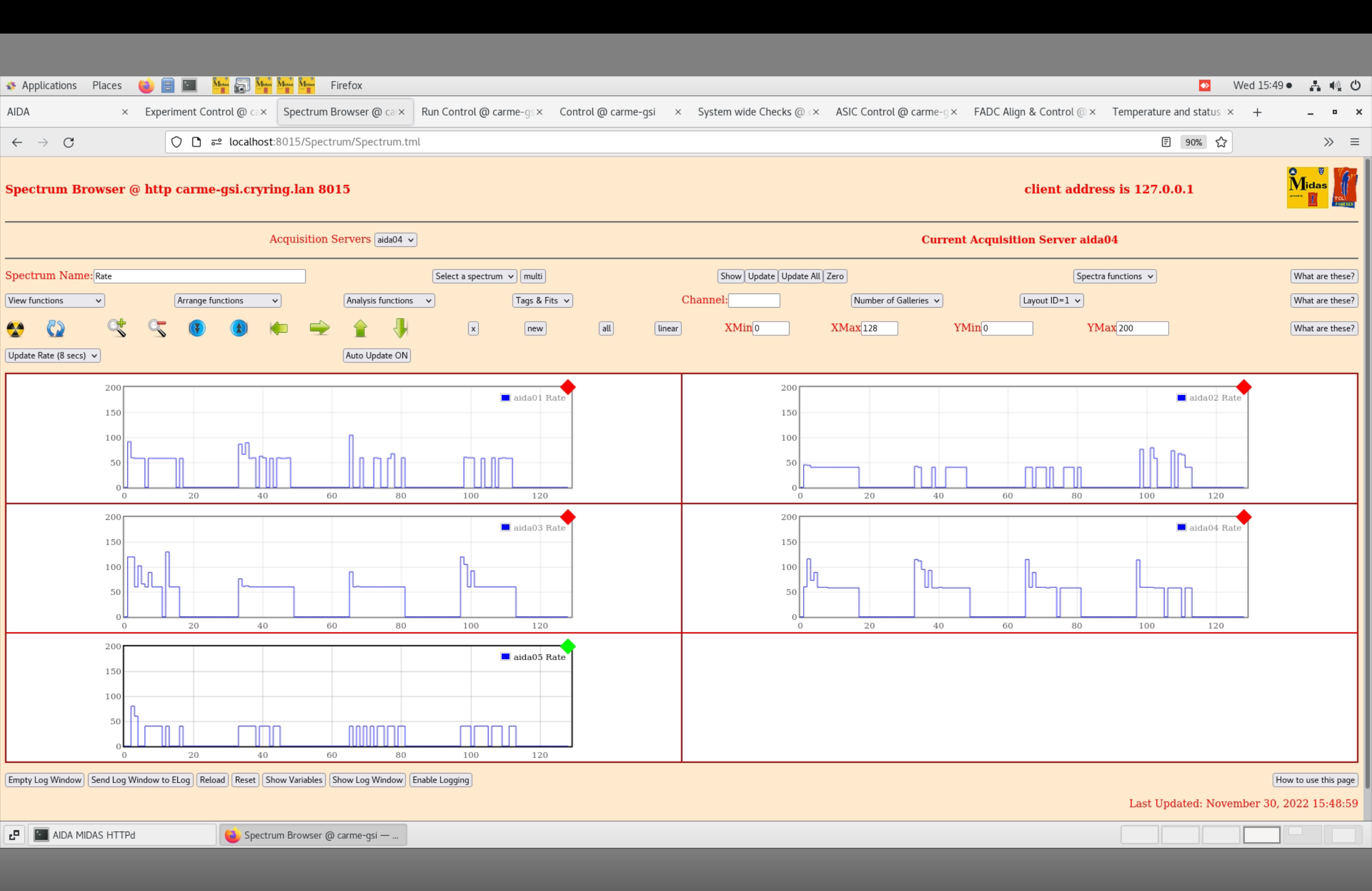

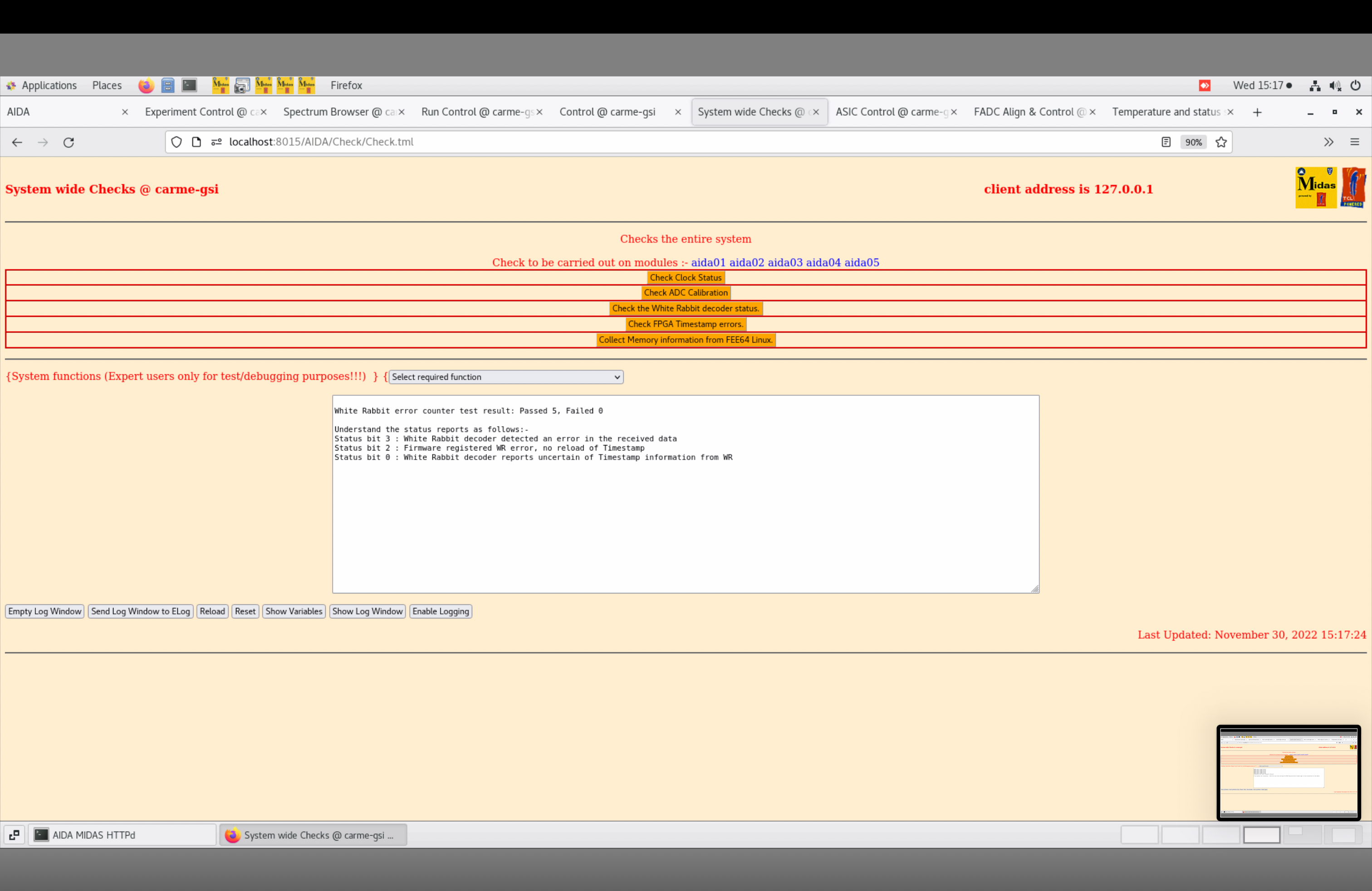

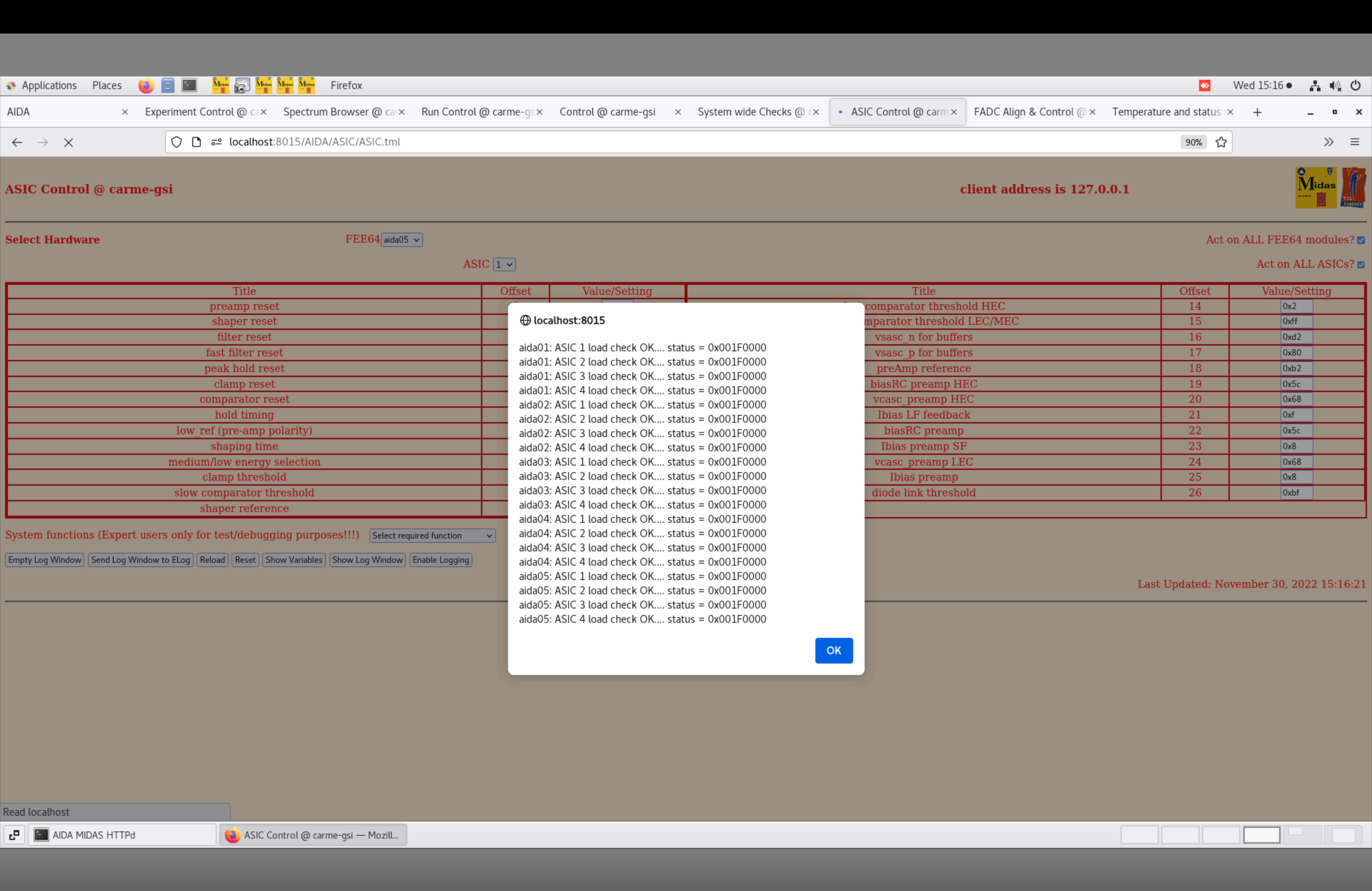

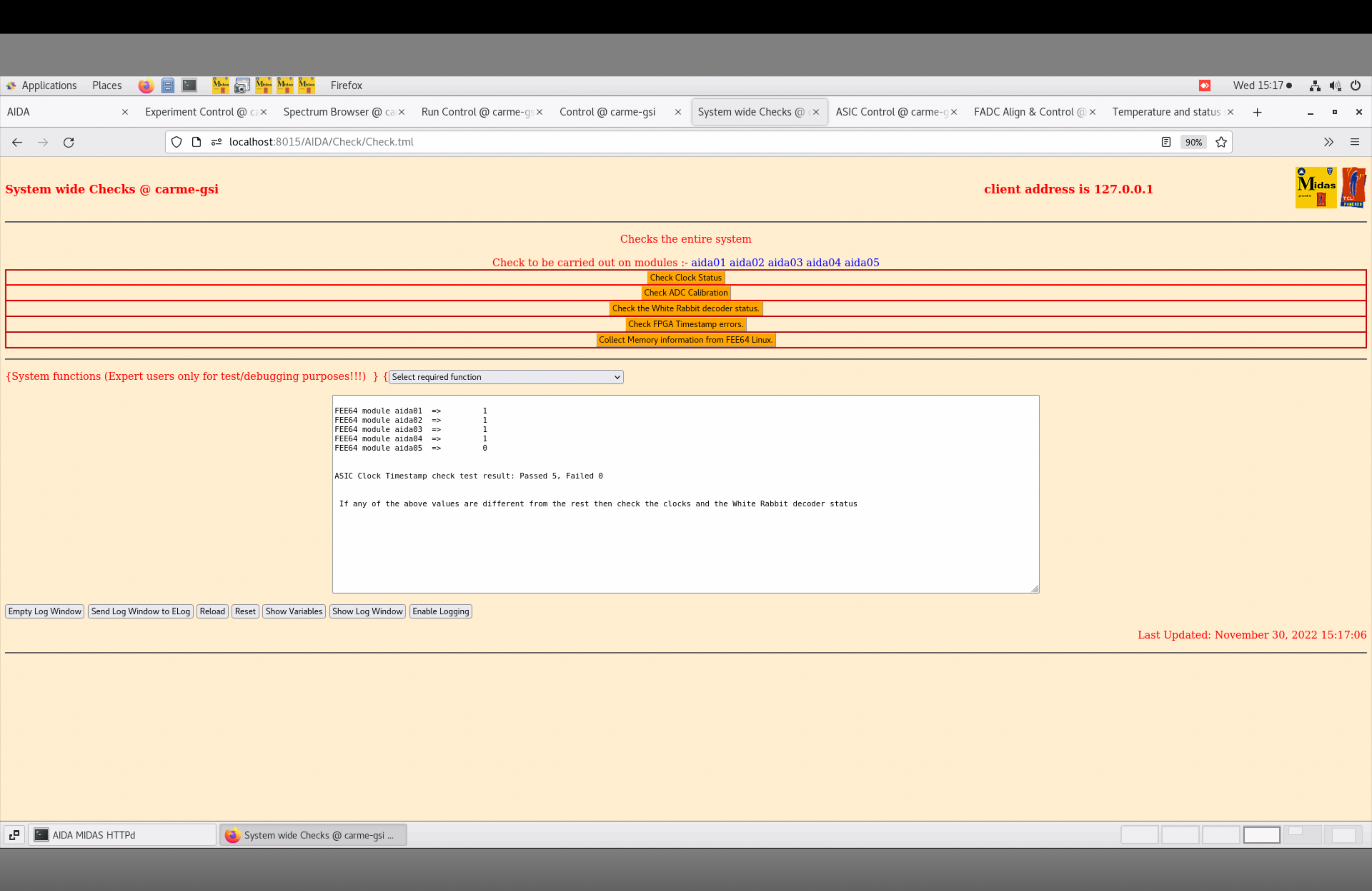

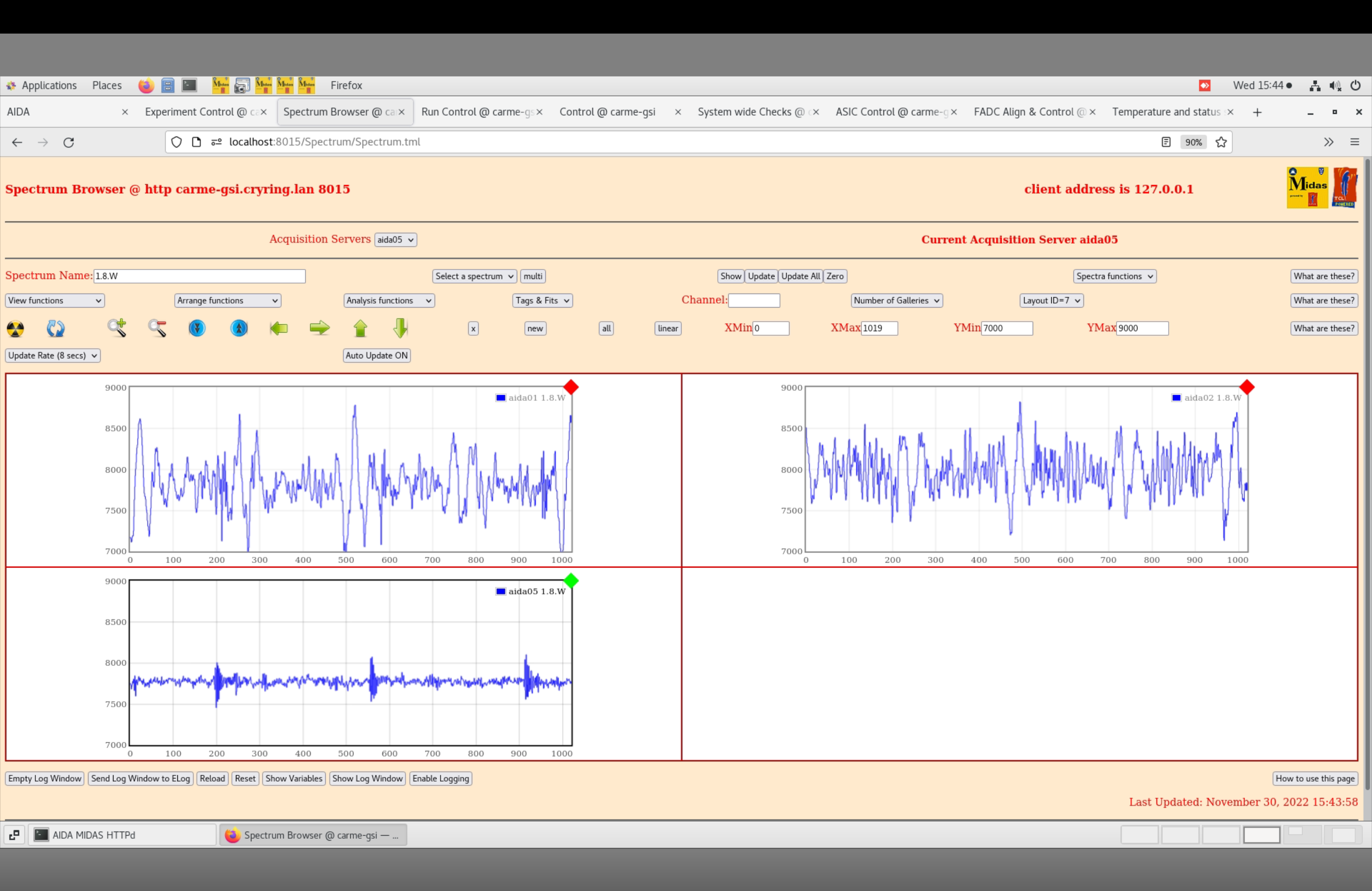

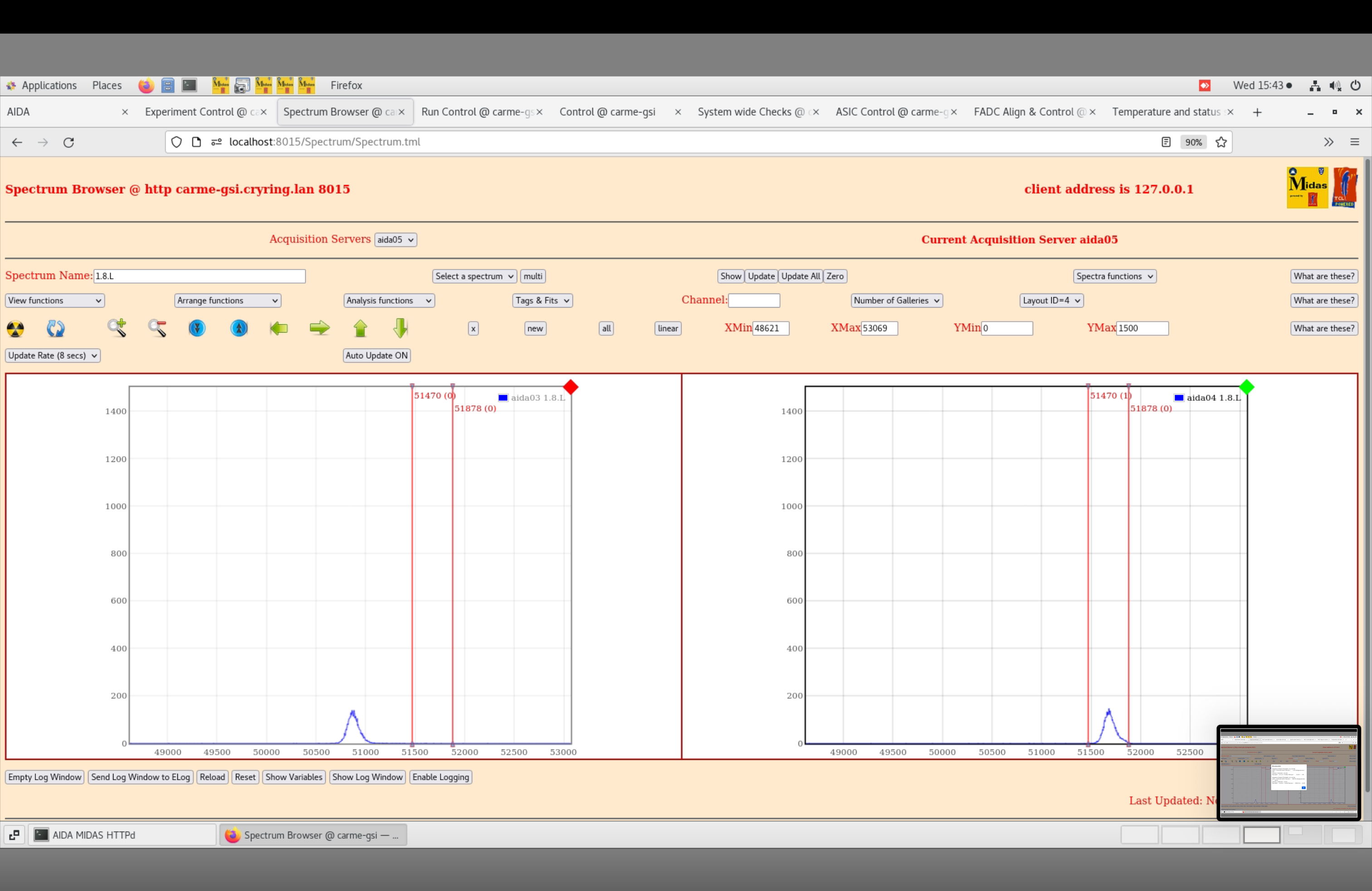

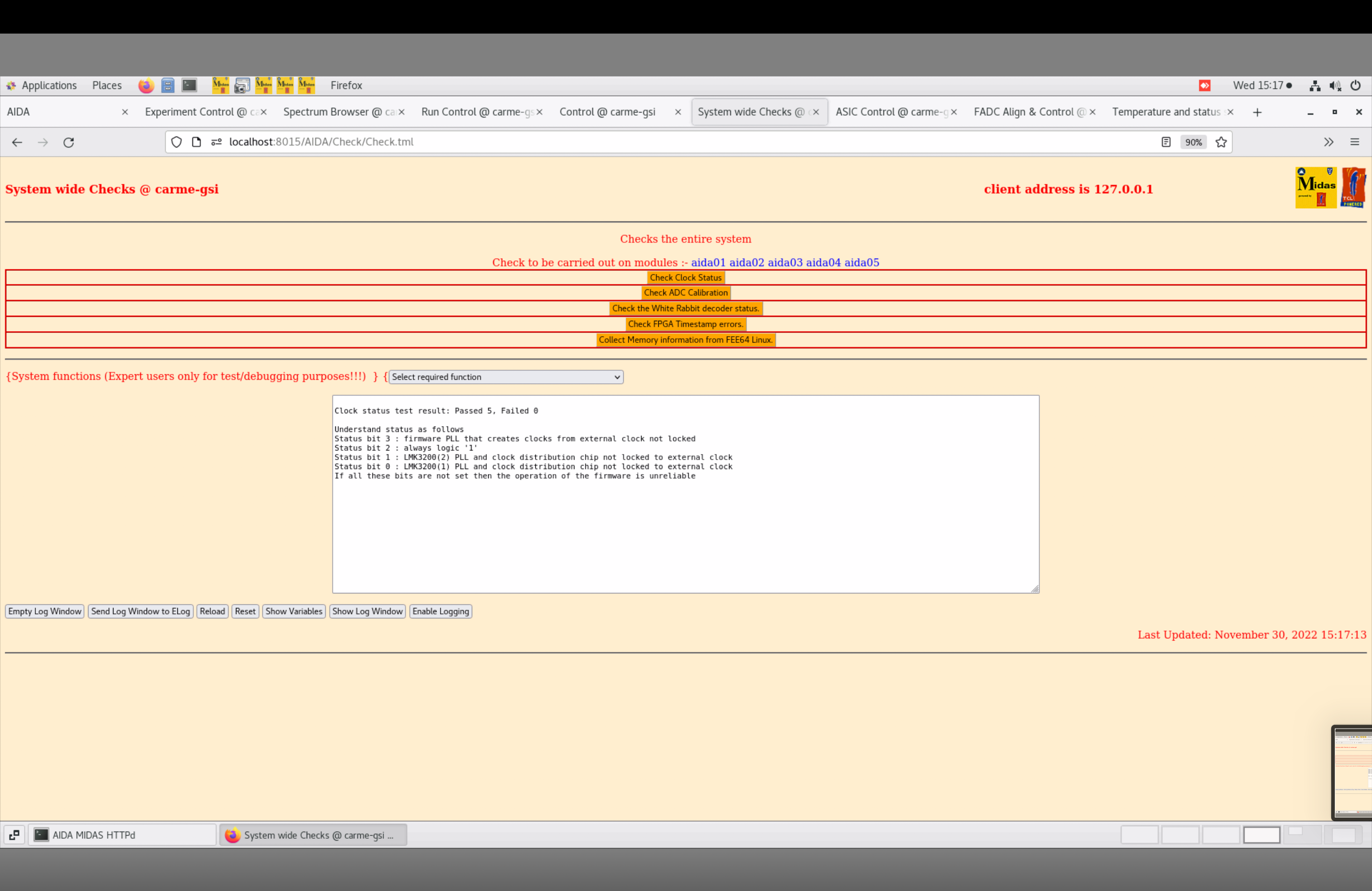

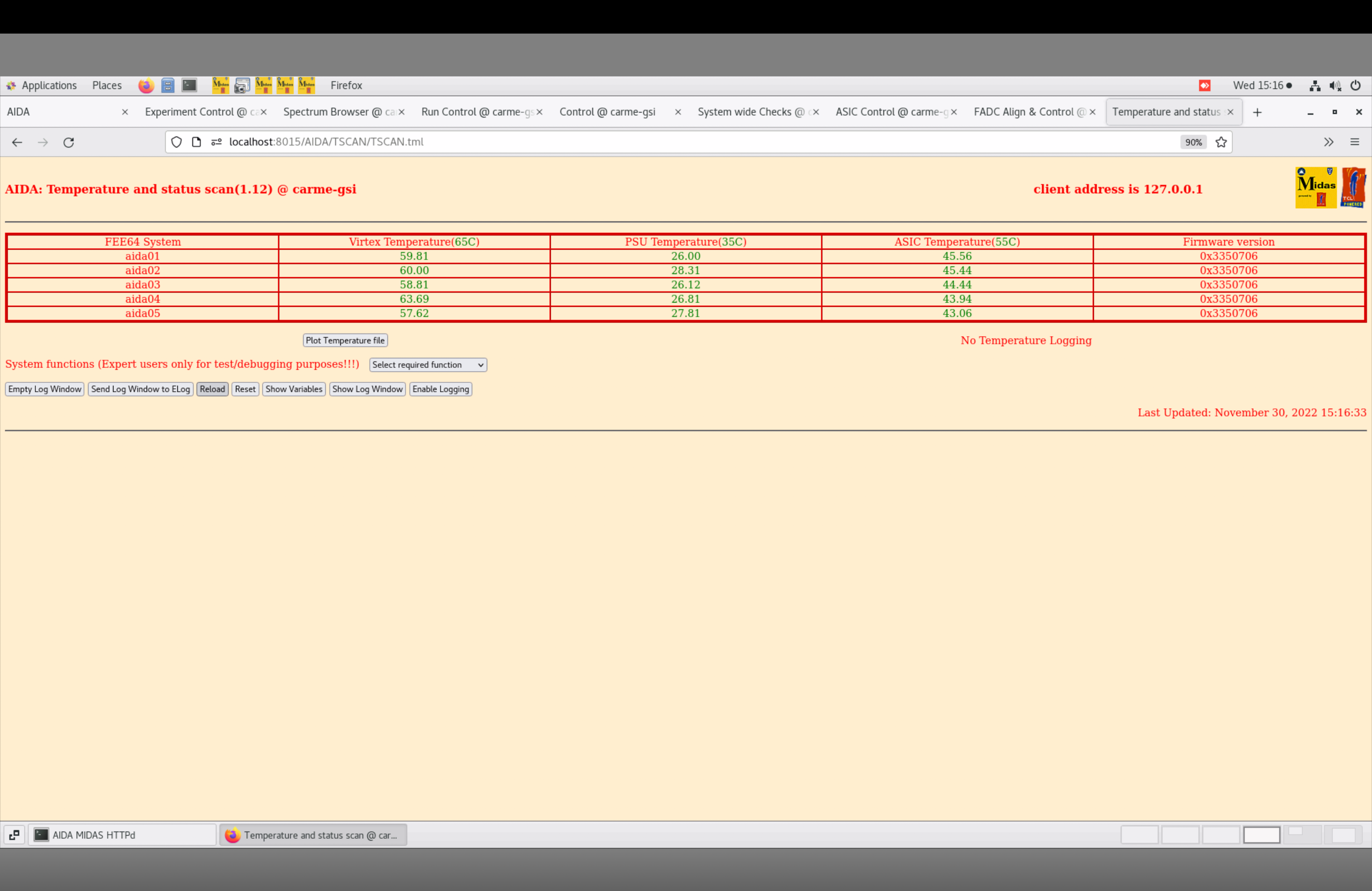

Attatchment 13+ = AFTER change

Pulsar peak widths (ch FWHM) AFTER CHANGE

aida01 ~ 100

aida02&nbsp;~ 96

aida03&nbsp;~ 130

aida04&nbsp;~ 130

aida05&nbsp;~ 22
