Entry time:
Thu Dec 1 08:56:59 2022
Author
*
:
Subject
*
:
<p>Photos of noise observed at each of the AIDA PSU outputs by digital oscillscope.</p> <p>DAQ GOing with waveforms enabled.</p> <p>Connection from AIDA PSU to scope by DMM test probes, twisted cabling, 3mm jack plug/BNC adaptor.</p> <p>Attachment 1,2,3 = +5V</p> <p>Attatchment 4 = -6V</p> <p>Attatchment 5 = +7V</p> <p>Attatchment 6 shows test setup</p> <p> </p> <p>Repeat above test with *all* cables from AIDA PSU to FEE64s disconnected, i.e. no AIDA PSU load.</p> <p>Attachment 7,8,9 = +5V</p> <p>Attatchment 10 = -6V</p> <p>Attatchment 11 = +7V</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4032x3024

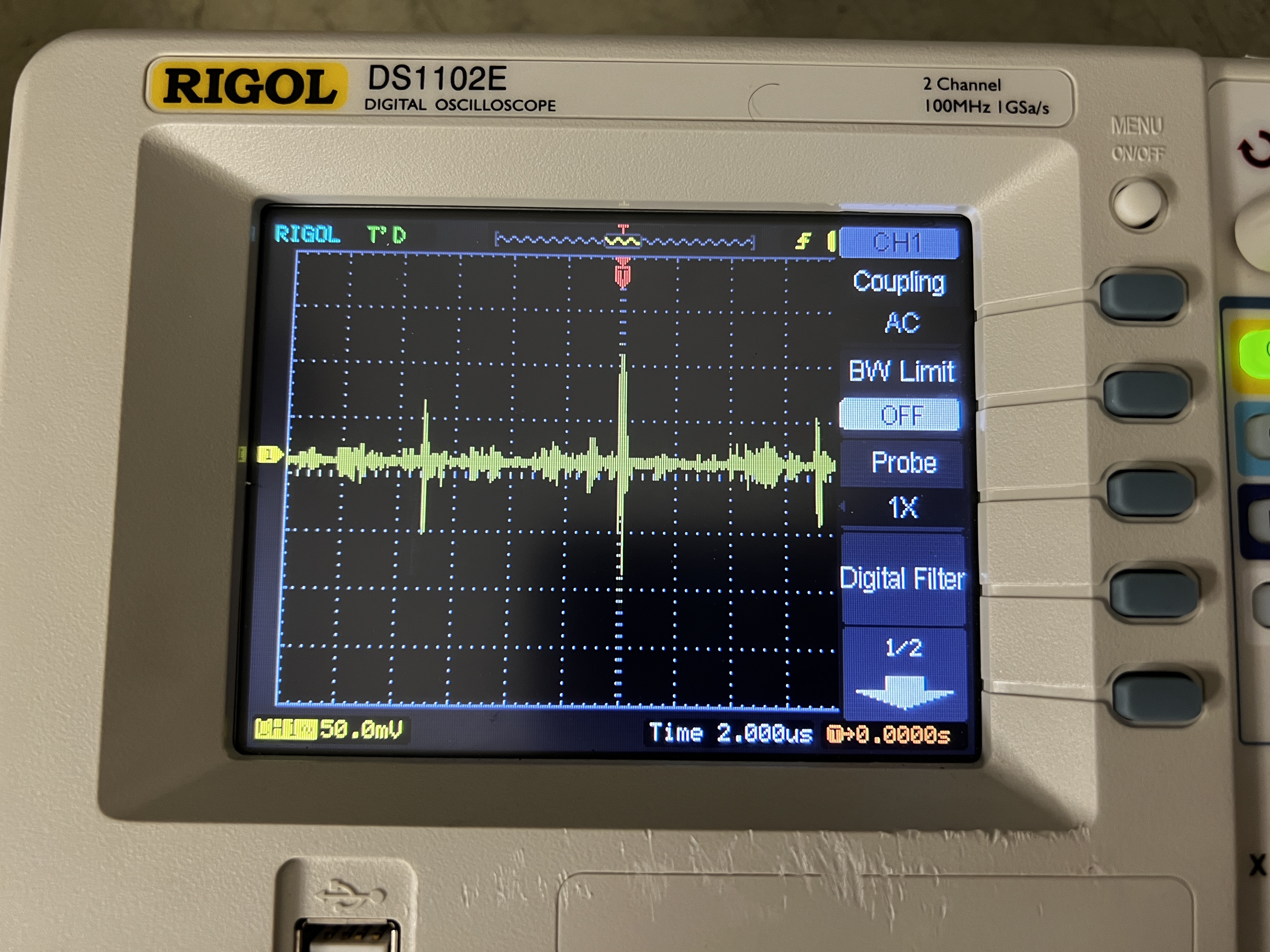

Attachment 2:
Original size: 4032x3024

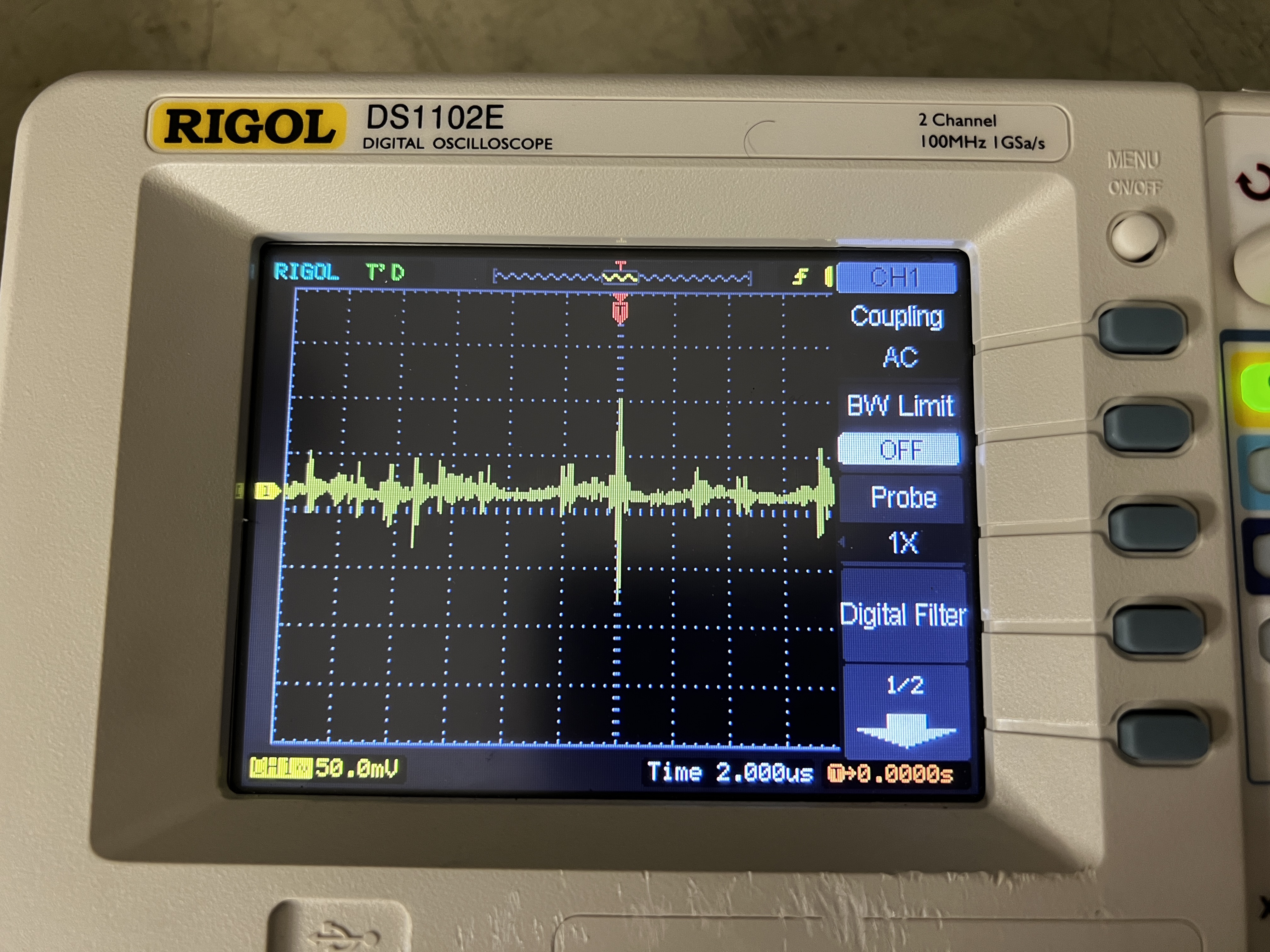

Attachment 3:
Original size: 4032x3024
Attachment 4:
Original size: 4032x3024
Attachment 5:
Original size: 4032x3024
Attachment 6:
Original size: 4032x3024
Attachment 7:
Original size: 4032x3024
Attachment 8:
Original size: 4032x3024
Attachment 9:
Original size: 4032x3024
Attachment 10:
Original size: 4032x3024
Attachment 11:
Original size: 4032x3024
