Entry time:
Thu Dec 8 14:41:19 2022
Author
*
:
Subject
*
:

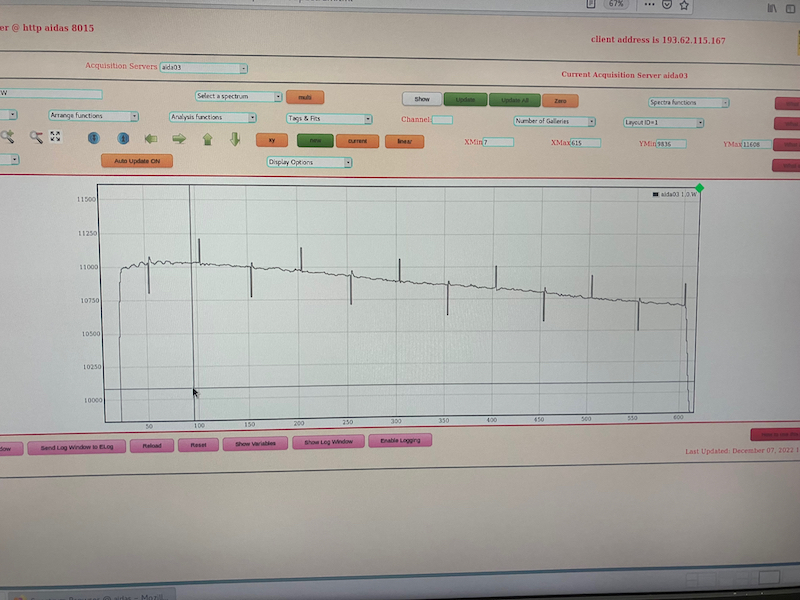

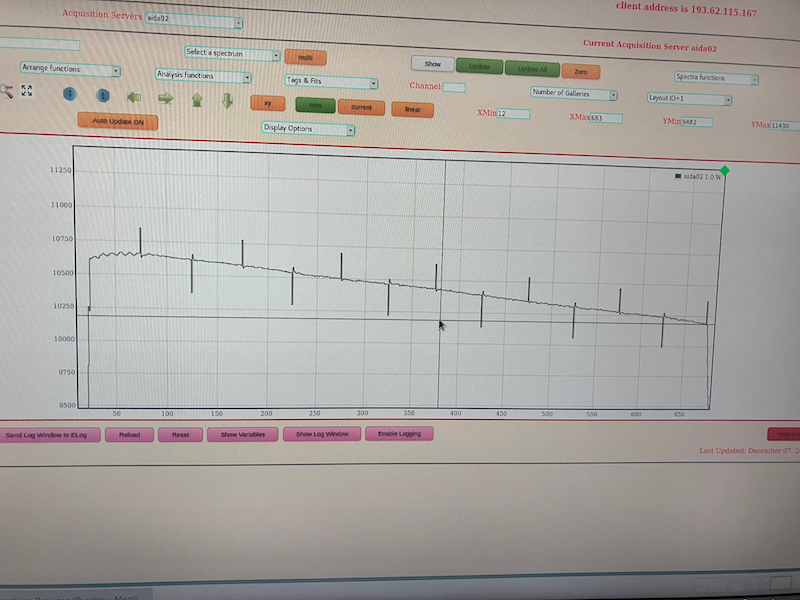

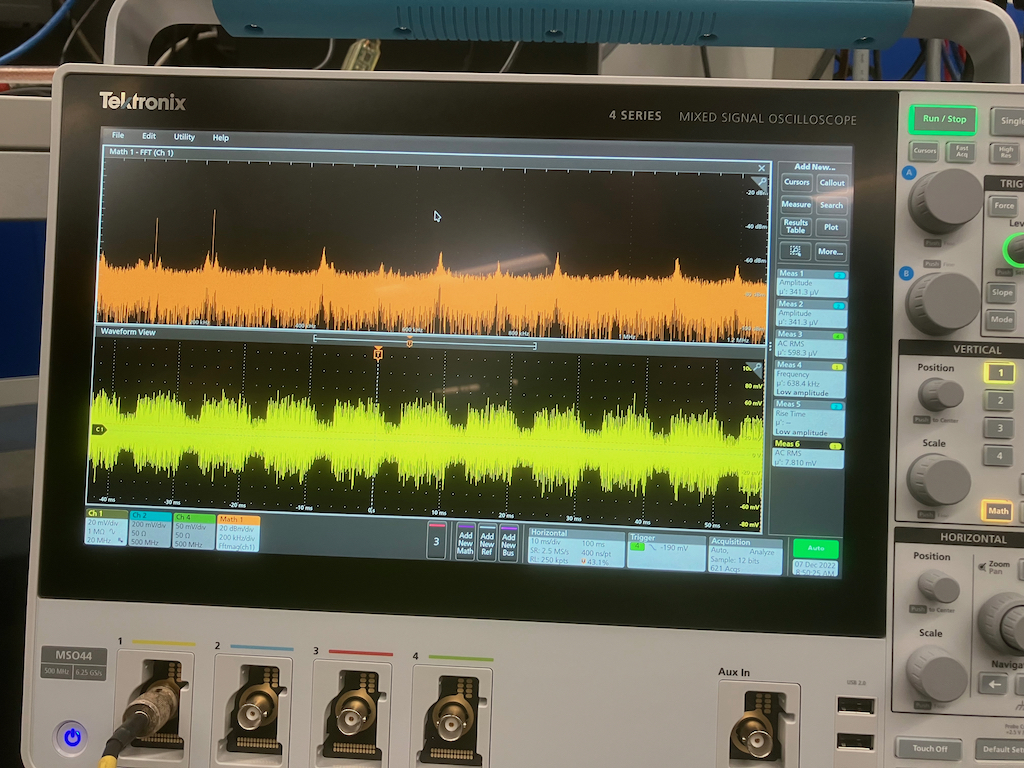

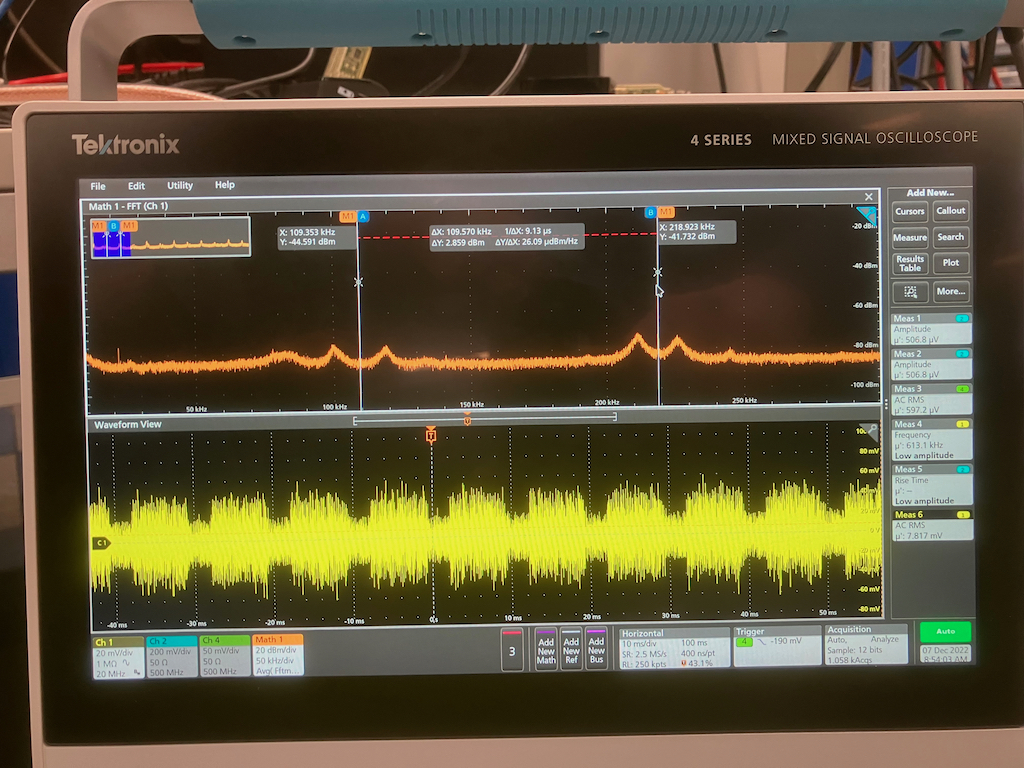

<p>We opened one up and soldered a co-ax cable to one of the +6v power contacts at the output of the filter board.</p> <p>Connecting this to a 'scope we observed a level of +/- 5mv noise with no FEE connected.</p> <p>Connecting one FEE made little difference.</p> <p>Re-connected the FEE to the power supply in the cabinet and wired a co-ax to a spare FEE power plug. </p> <p> </p> <p>Ran the system with two FEEs on the bench top and two in the cabinet. The benchtop FEEs were connected to the NIM bin in the cabinet with copper braid.</p> <p>Using a PB4 in the NIM bin and my test input cards on the FEE mezzanine connector, the following readings were taken using the 'integrate' function in the spectrum browser.</p> <p>Shaping 8us, negative pulse.</p> <p>aida02, ASIC1, ch0 Peak width => 16.58 channels ( full 16 bit spectra )</p> <p>aida03, ASIC1, ch0 Peak width => 18.48 channels ( full 16 bit spectra )</p> <p>aida04, ASIC1, ch0 Peak width => 18.05 channels ( full 16 bit spectra )</p> <p>These could be better but the output of the PB4 was not perfect. I think ASIC 1 Ch0 is normally the worst on the mezzanine.</p> <p>Attachments 1 to 6 are the waveforms and some zoomed in.</p> <p>The co-ax from the power supply was connected to a 'scope and showed a noise level of +/-50mv. </p> <p>Fourier analysis of this noise showed two peaks 109kHz and 218kHz. ( Attachments 7 & 8 )</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4032x3024
Attachment 2:
Original size: 4032x3024
Attachment 3:
Original size: 640x480
Attachment 4:
Original size: 800x600
Attachment 5:
Original size: 800x600
Attachment 6:
Original size: 800x600
Attachment 7:
Original size: 1024x768
Attachment 8:
Original size: 1024x768
Attachment 9:
