Entry time:
Wed Apr 26 16:49:28 2023
Author
*
:
Subject
*
:

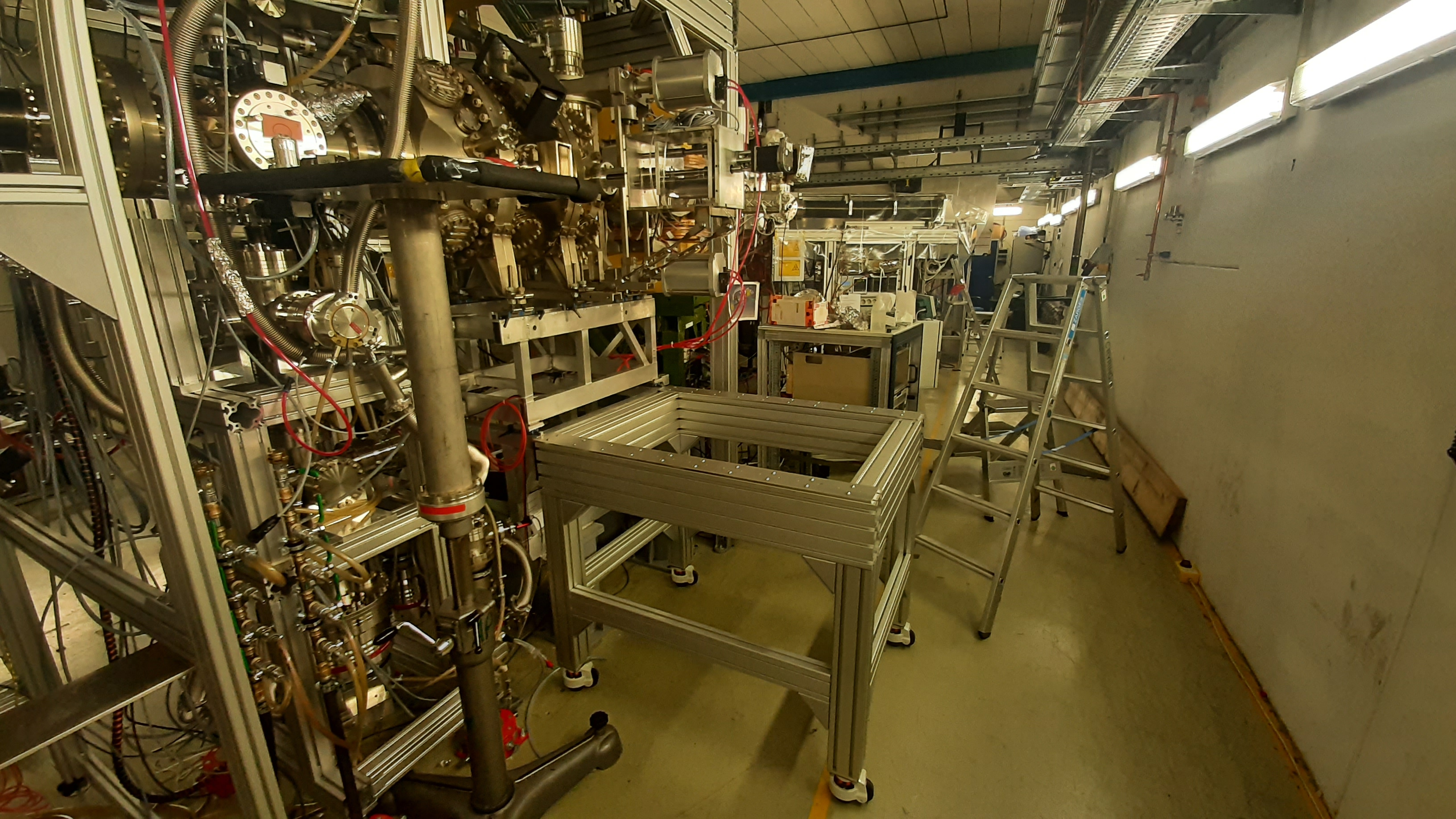

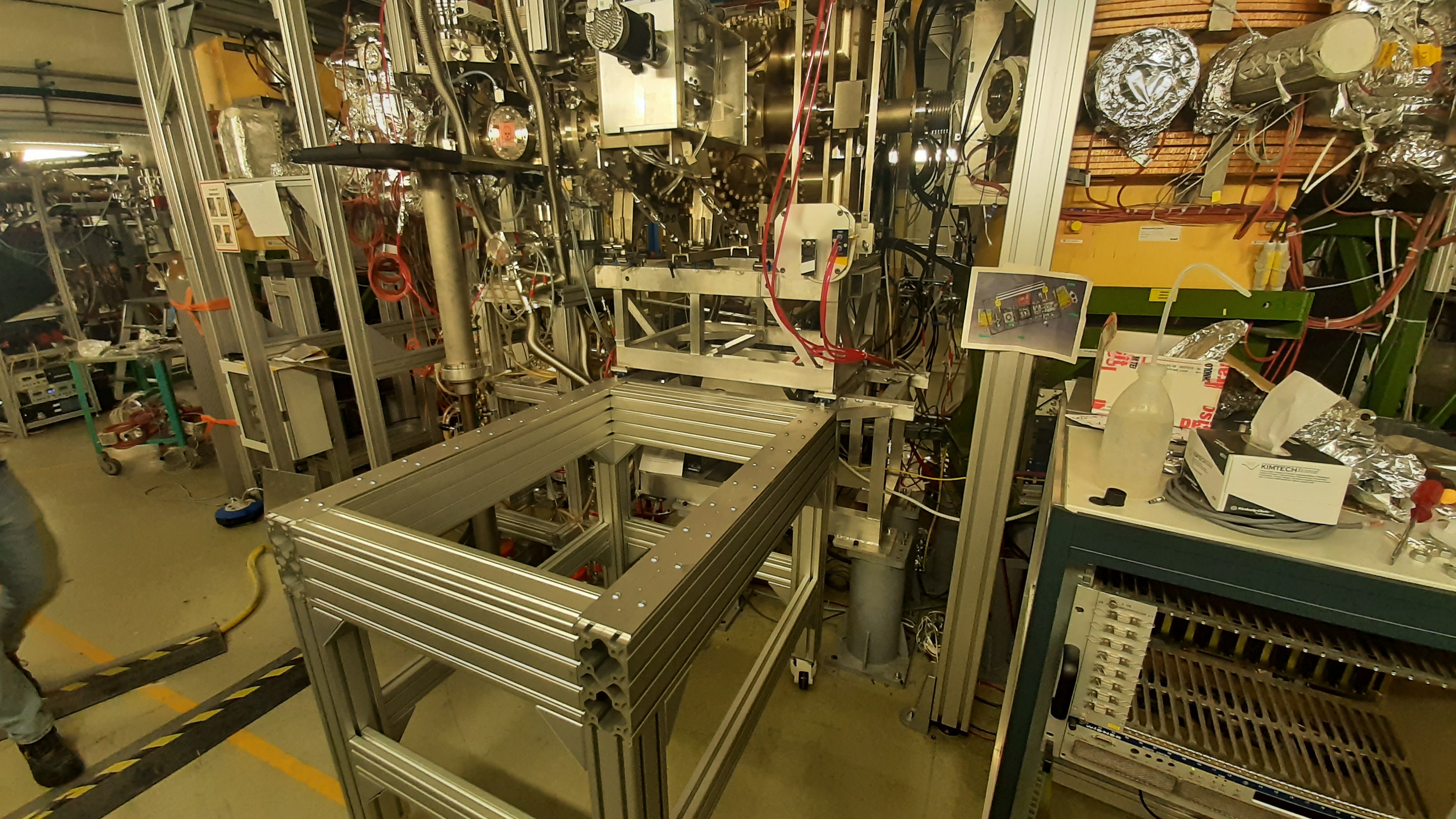

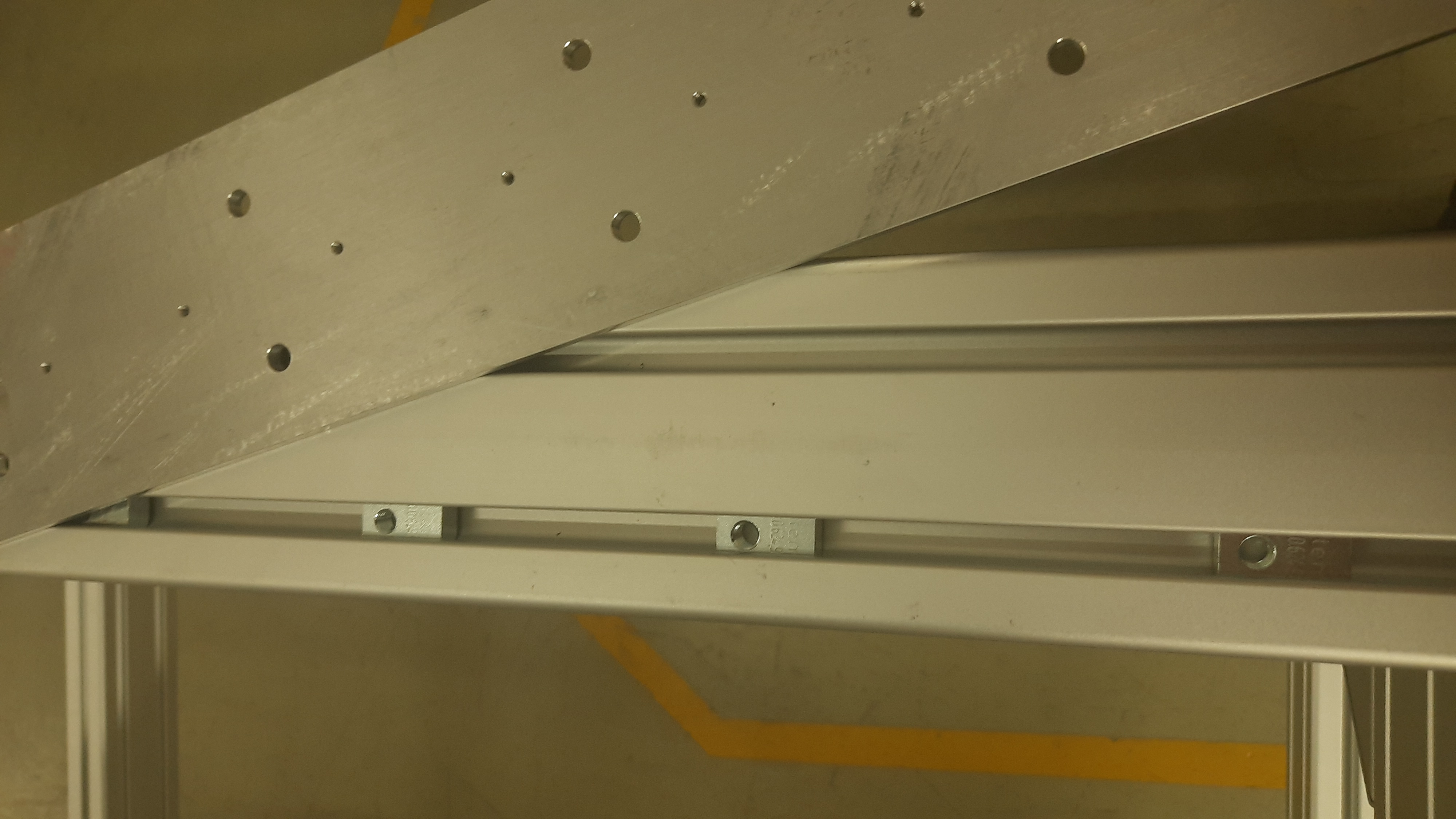

<p>Disconnected cables from CARME motors and turbo. The turbo has to go to allow Carme to slide out. Crane may be required to lift because it's in a very hard spot to access.</p> <p> </p> <p>Dolly mostly built. See attached. Left side doesn't quite fit right by 1-2 mm. Might be okay anyway but will put some shims to avoid any shaking during sliding.</p> <p> </p> <p>Waiting for the rails to arrive due to GSI procurement issues.</p> <p> </p> <p>Plan to mount new feet and bellow support tomorrow.</p> <p>Also plan to split CARME at the smaller flange towards the interaction chamber, after the bellows and before the bellows towards the magnet on the downstream side.</p>
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4000x2250
Attachment 2:
Original size: 3264x1836
Attachment 3:
Original size: 3264x1836
Attachment 4:
