Entry time:
Wed Aug 11 12:30:40 2021
Author
*
:
Subject
*
:

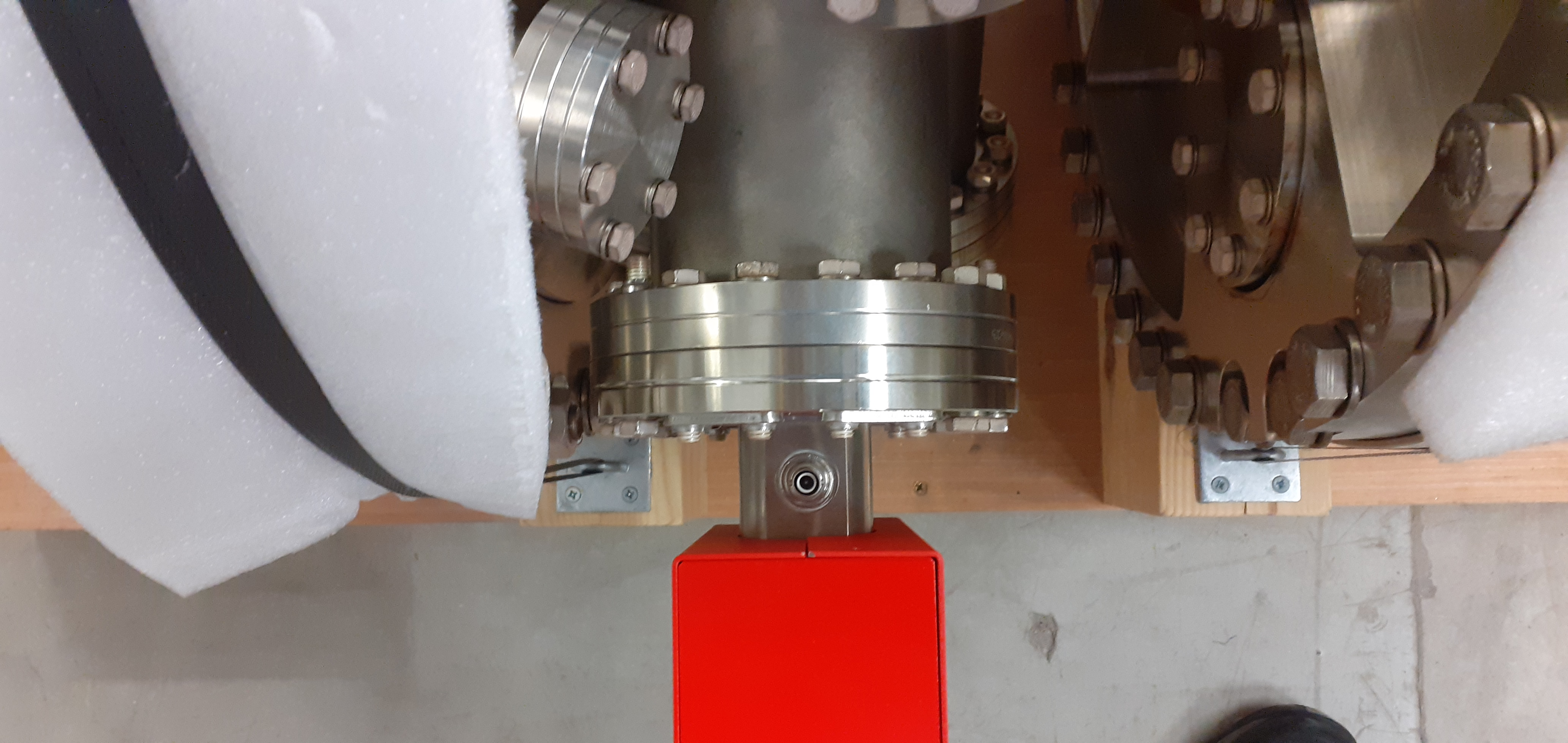

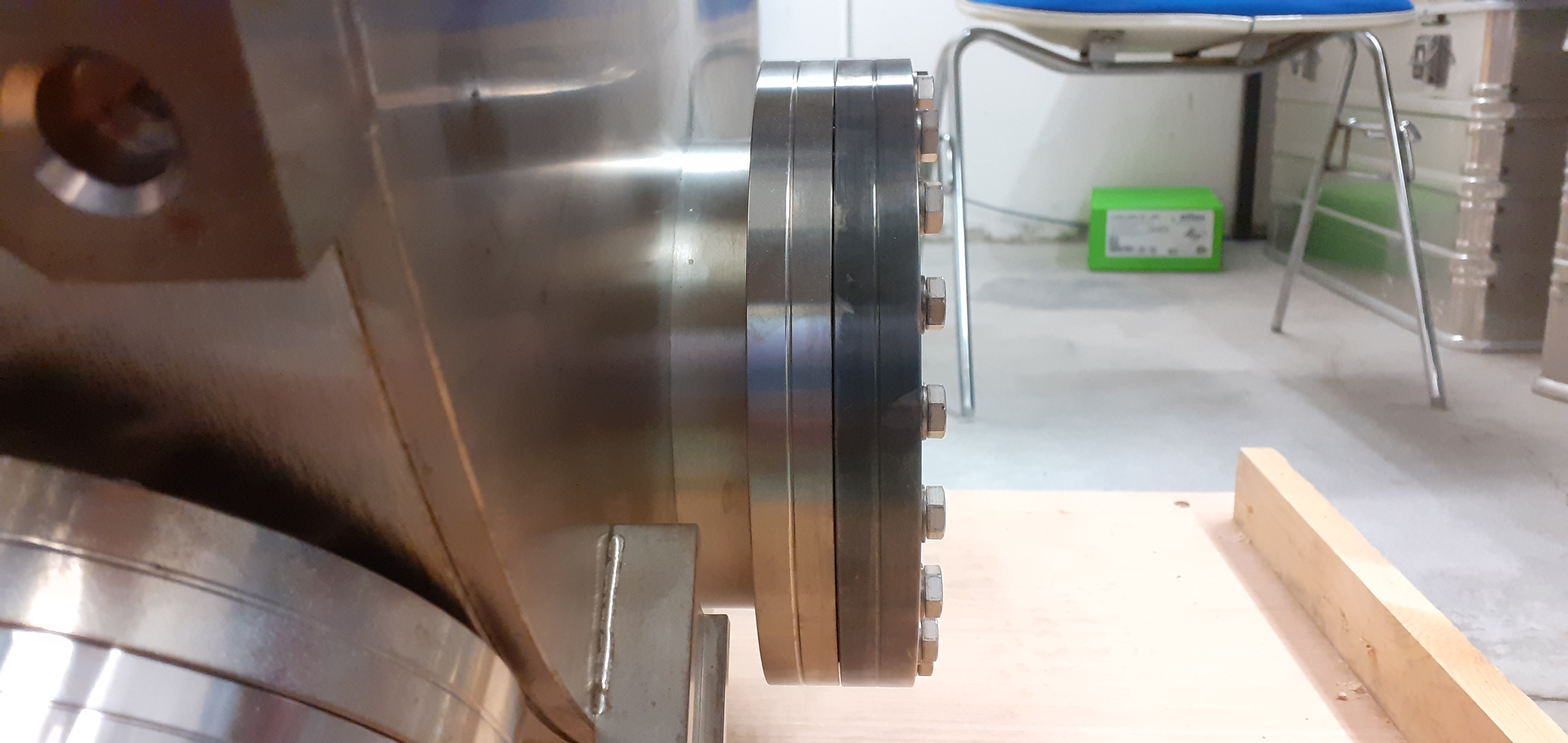

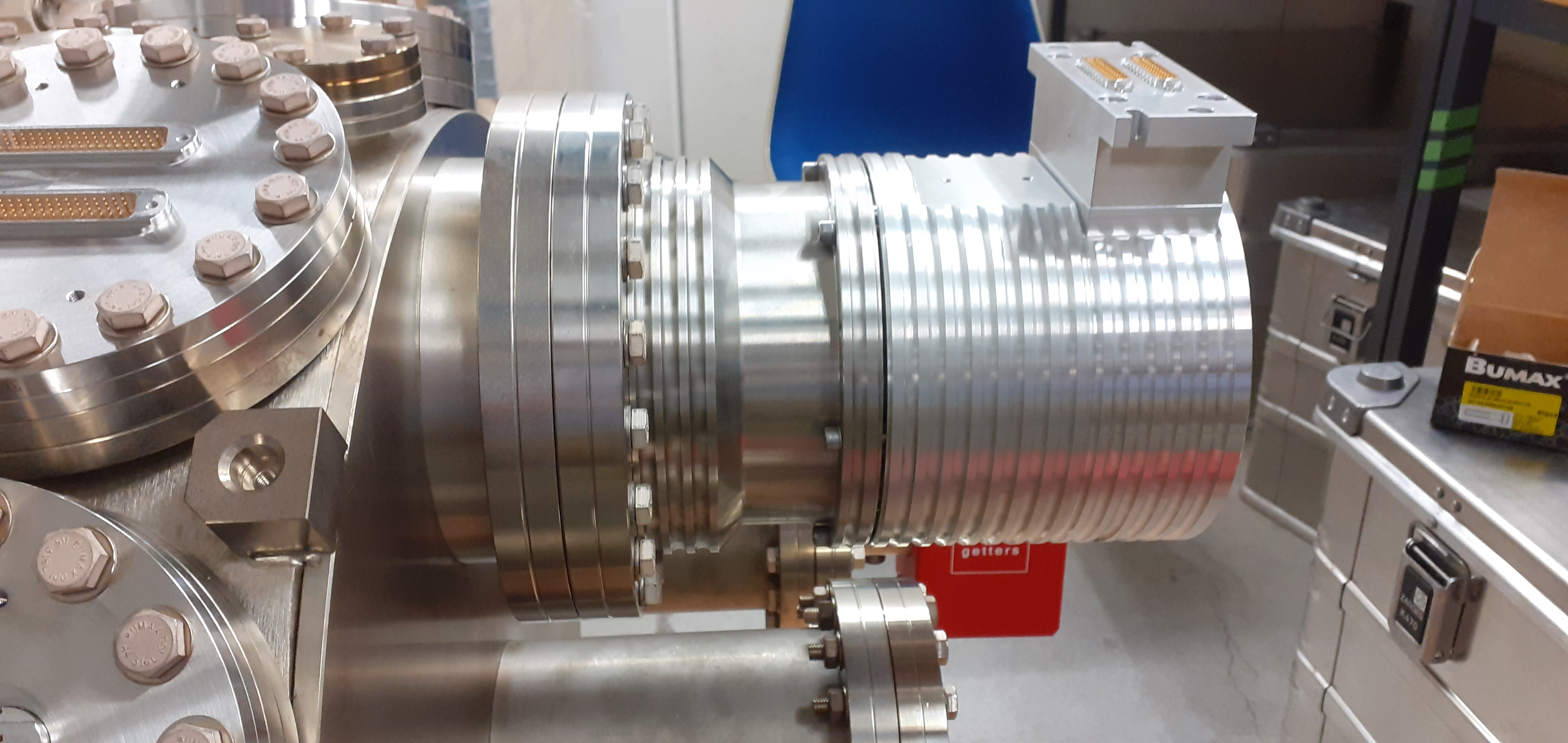

Attachments 1 & 2 - 2x SAES D-2000 re-fitted to side ports all 4x SAES D-2000 now re-fitted to chamber Will now fit 1x turbo and blank (currently) unused turbo port. Attachments 3 & 4 - centre 2x78 pin micro-D feedthrough has some pins slightly bent - can probably be safely bent back into position ALWAYS check 78-pin feedthroughs for bent/broken pins before fitting connectors/cabling Attachment 5 - currently unused turbo port Attachments 6 & 7 - turbo port from above and side Attachment 8 - turbo + NW16/NW25 adaptor + NW25 s/s hose + scroll pump + turbo controller + CMS52 gauge controller Note we currently do not have a vent valve or backing line vacuum gauge (both functions provided by leak detector at STFC DL).
Encoding
:
HTML
ELCode
plain
Suppress Email notification
Resubmit as new entry
Attachment 1:
Original size: 4128x1956
Attachment 2:
Original size: 4128x1956
Attachment 3:
Original size: 4128x1956
Attachment 4:
Original size: 4128x1956
Attachment 5:
Original size: 4128x1956
Attachment 6:
Original size: 4128x1956
Attachment 7:
Original size: 4128x1956
Attachment 8:
Original size: 4128x1956
