Entry time:

Thu Jul 20 08:29:26 2023

Author*:

Subject*:

09.28 Pirani 1.00e-3 mbar IE514 5.45e-8 mbar

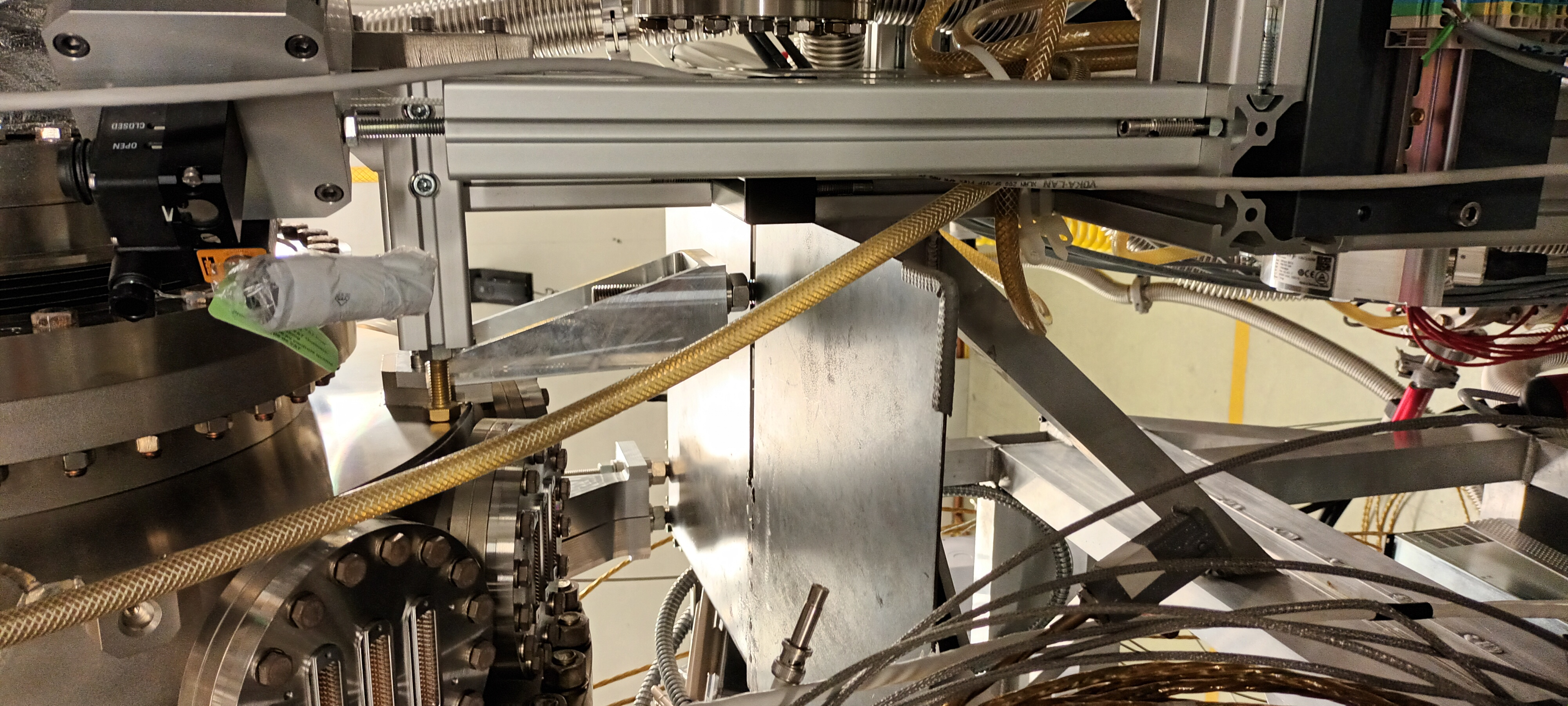

12.10 Bakeout tent frame installed

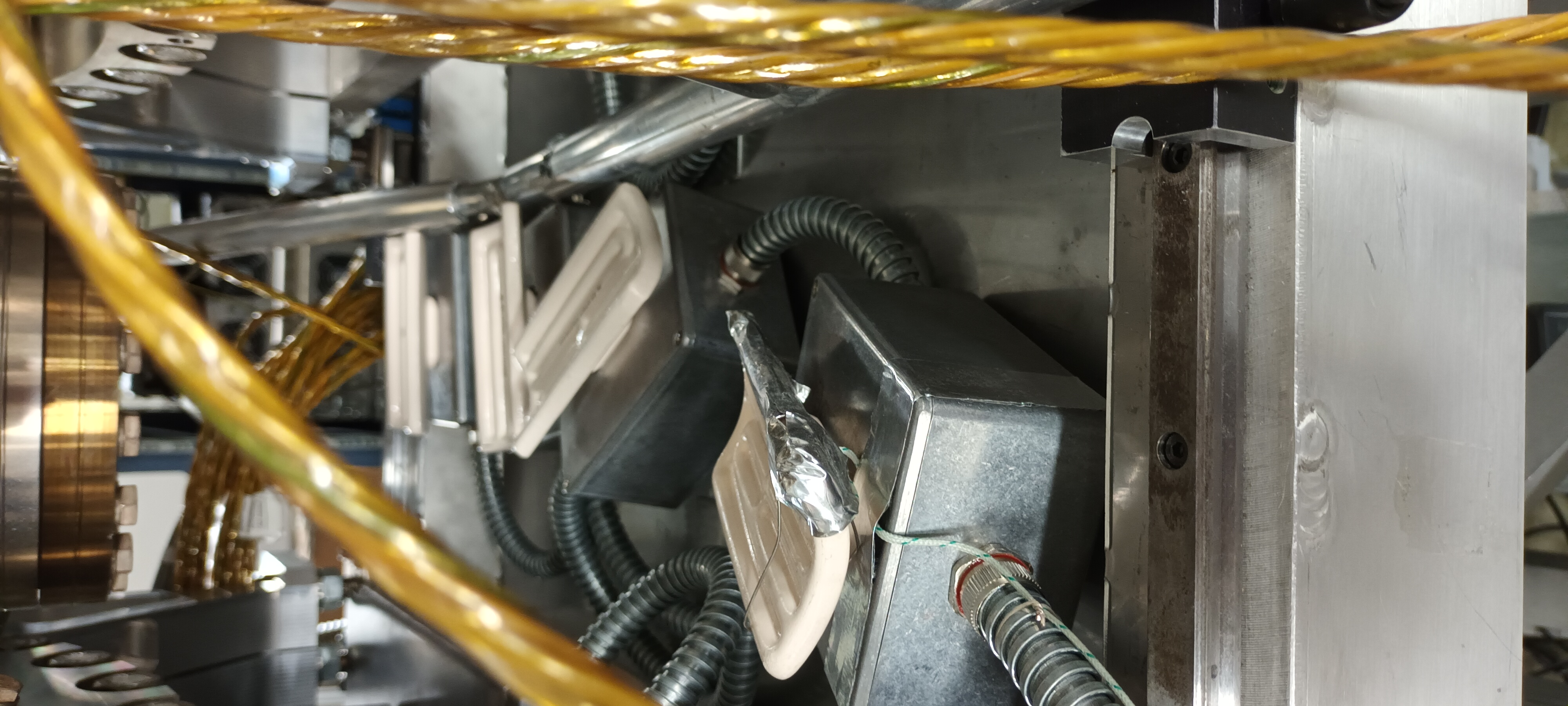

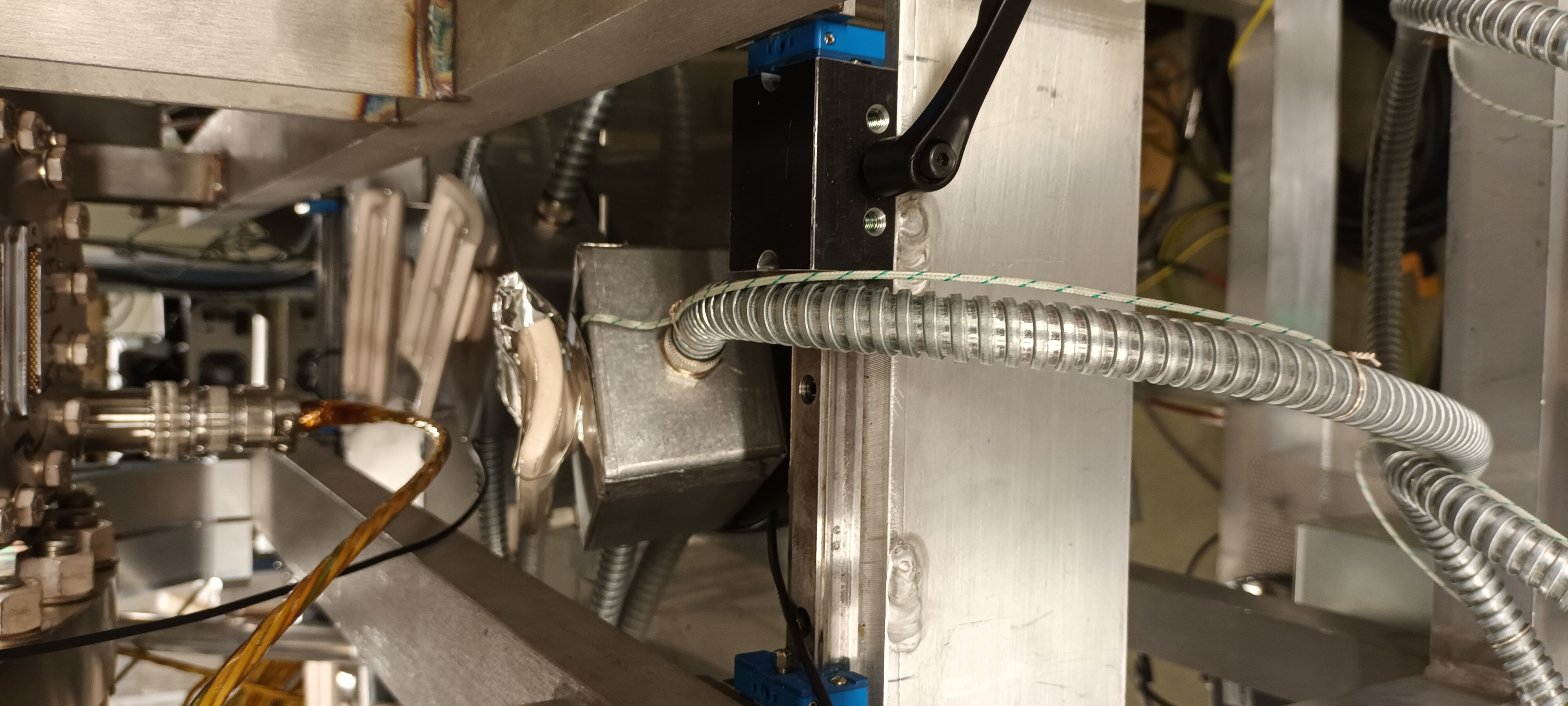

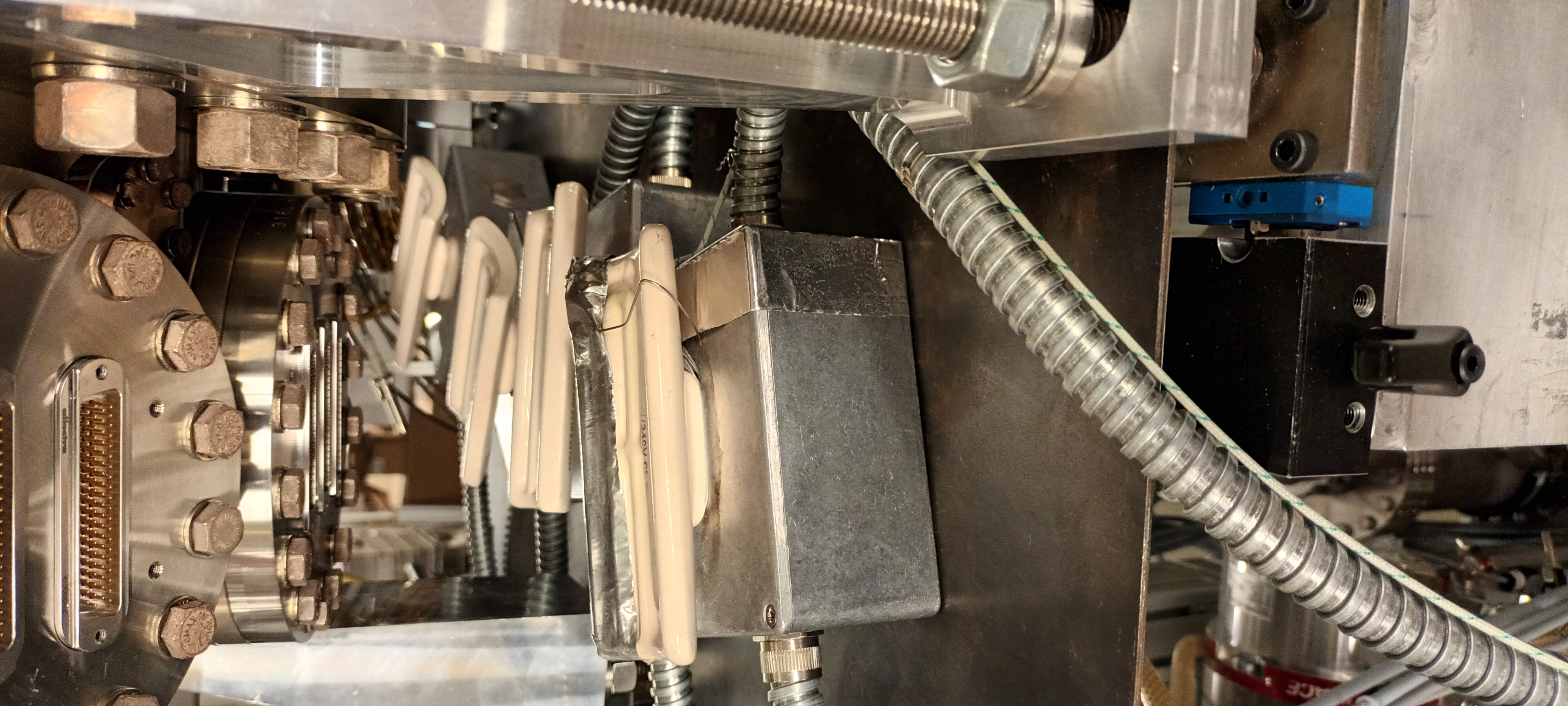

      SAES UHV1400 NEG pump power cables #1-6 installed
      See attachments 1 & 2

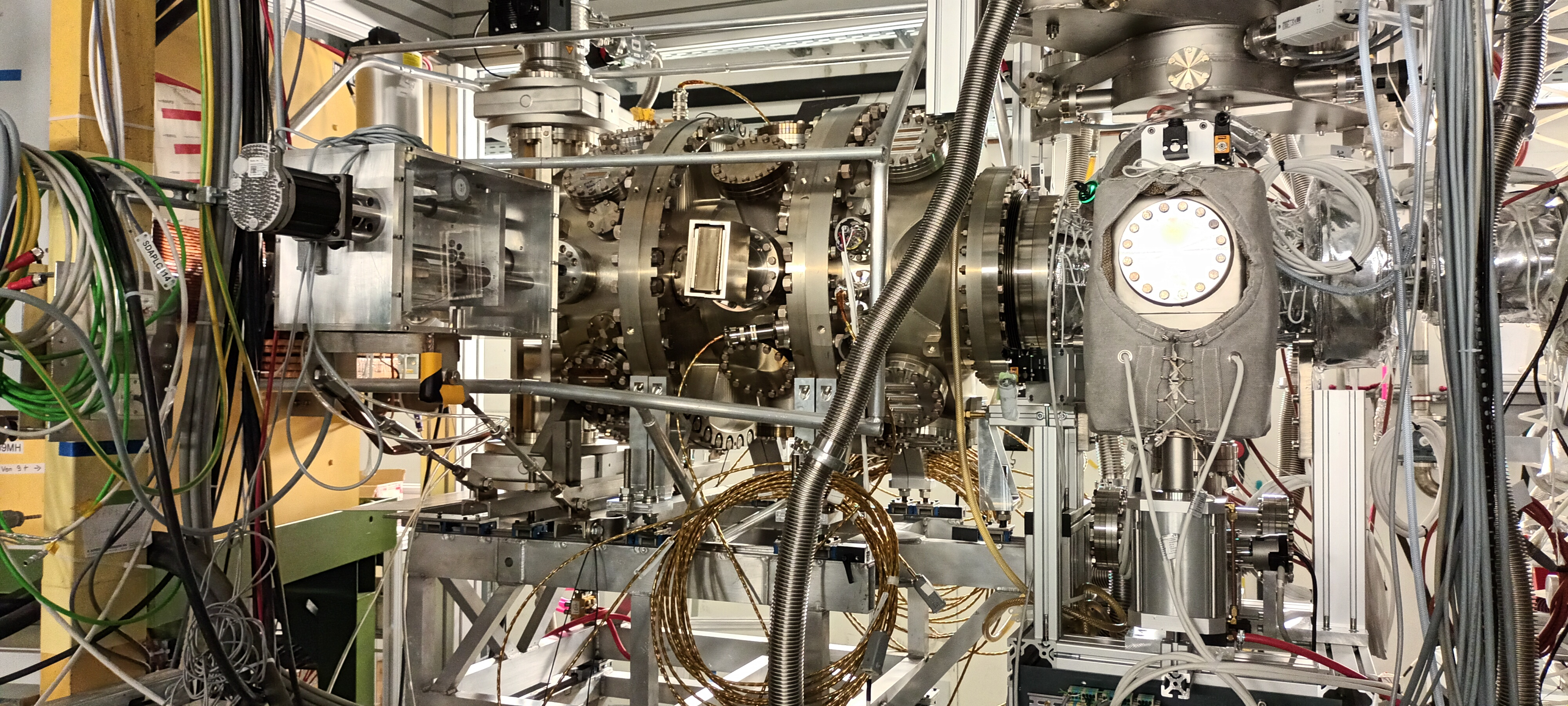

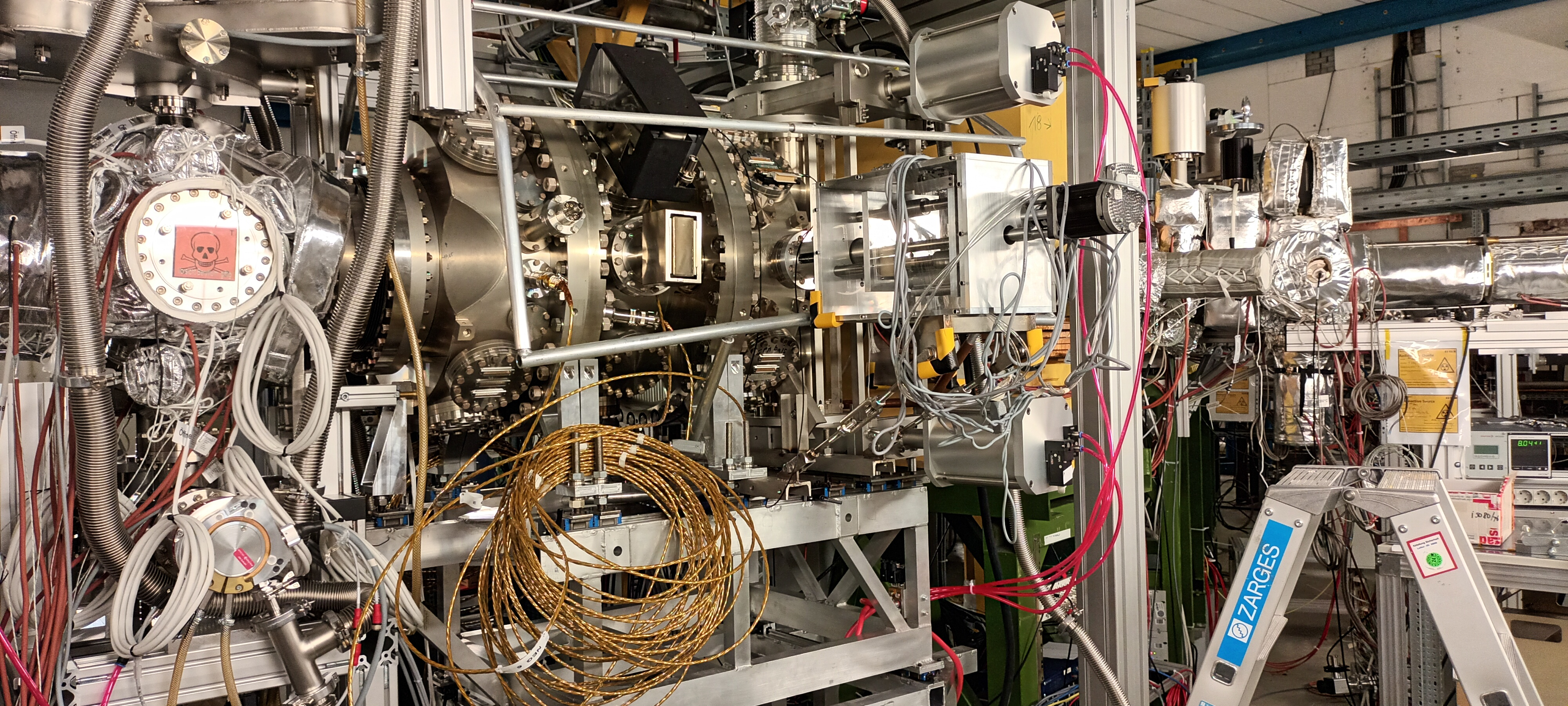

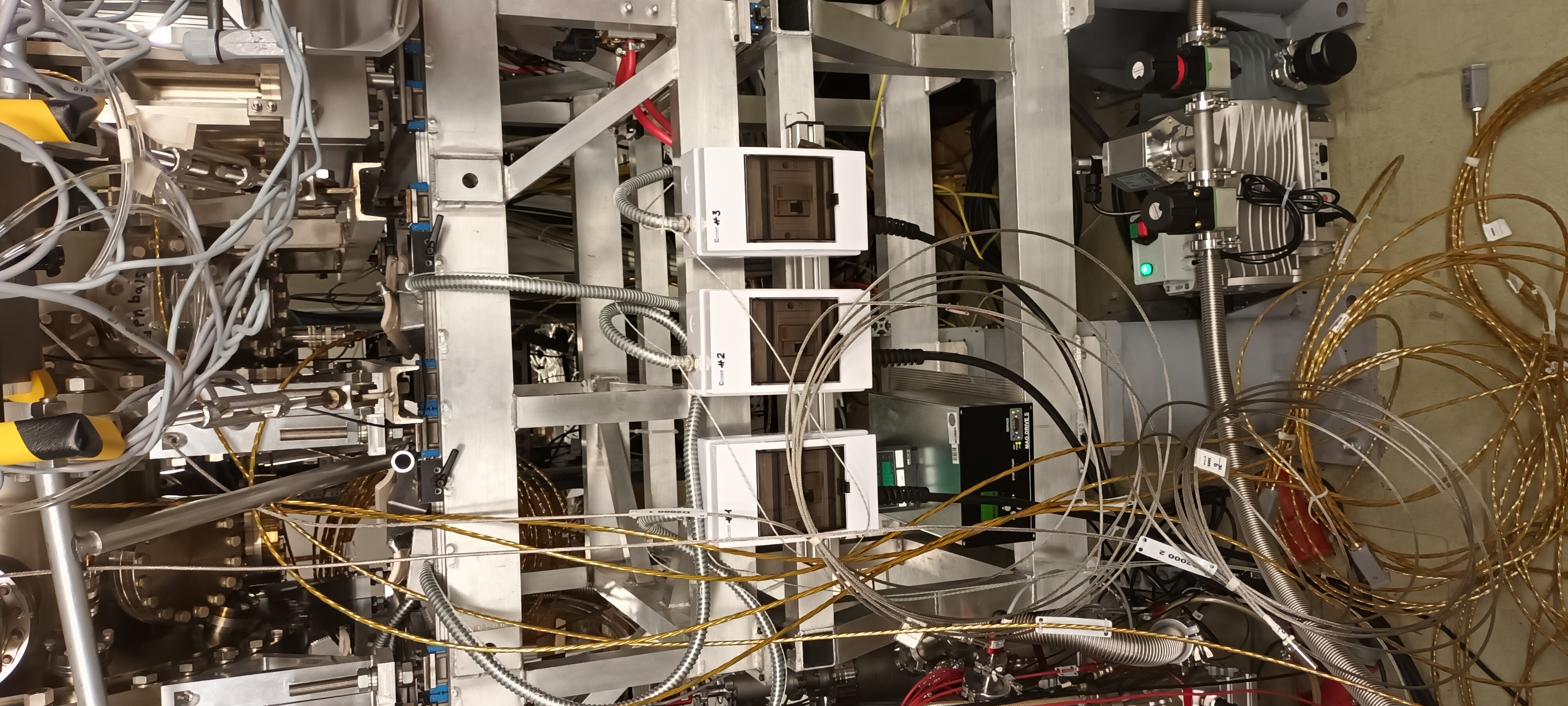

16.35 Attachments 3-6
      upstream baseplate

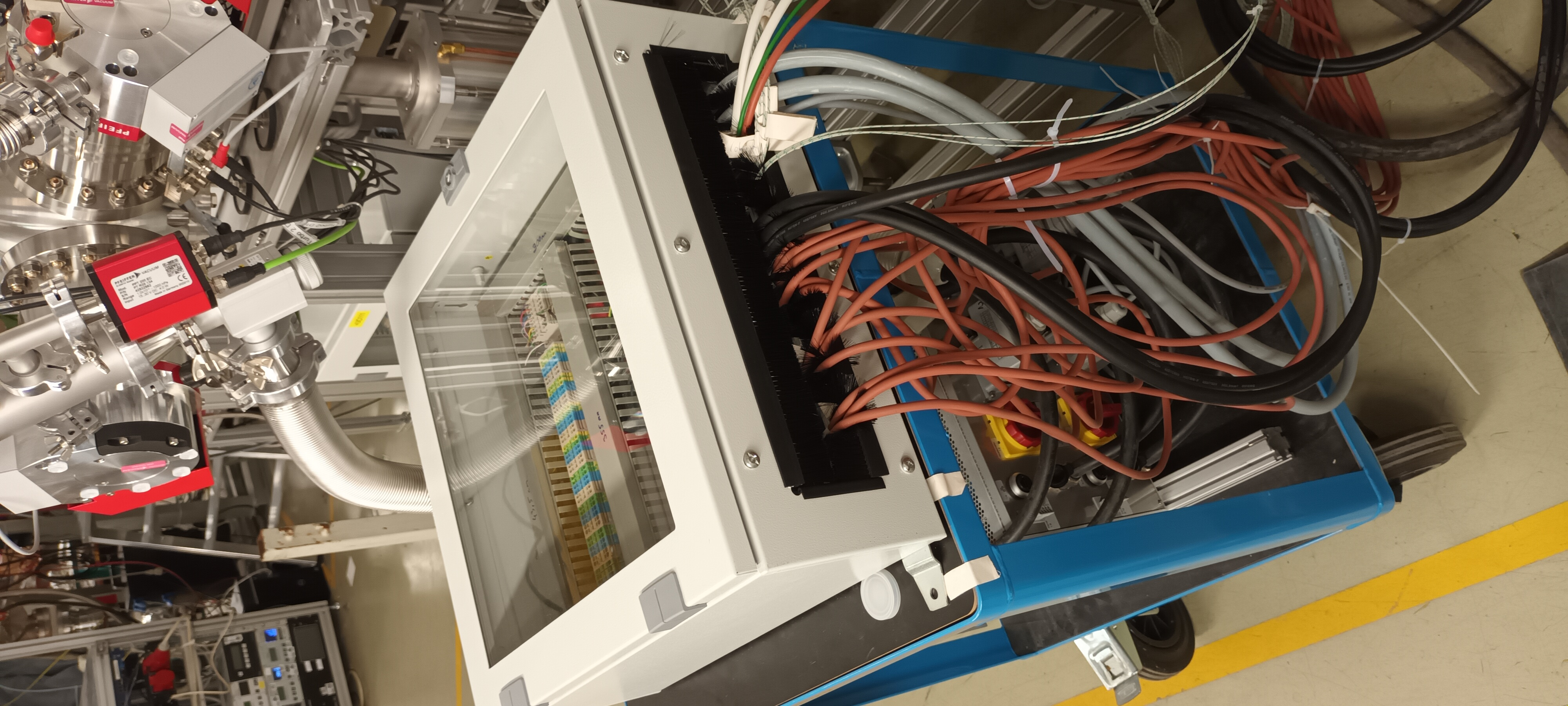

      3x sets of heaters beneath CARME chamber connected to CRYRING heater/TC manifold - attachments 7-8

16.45 Pirani 1.00e-3 mbar IE514 4.80e-8 mbar

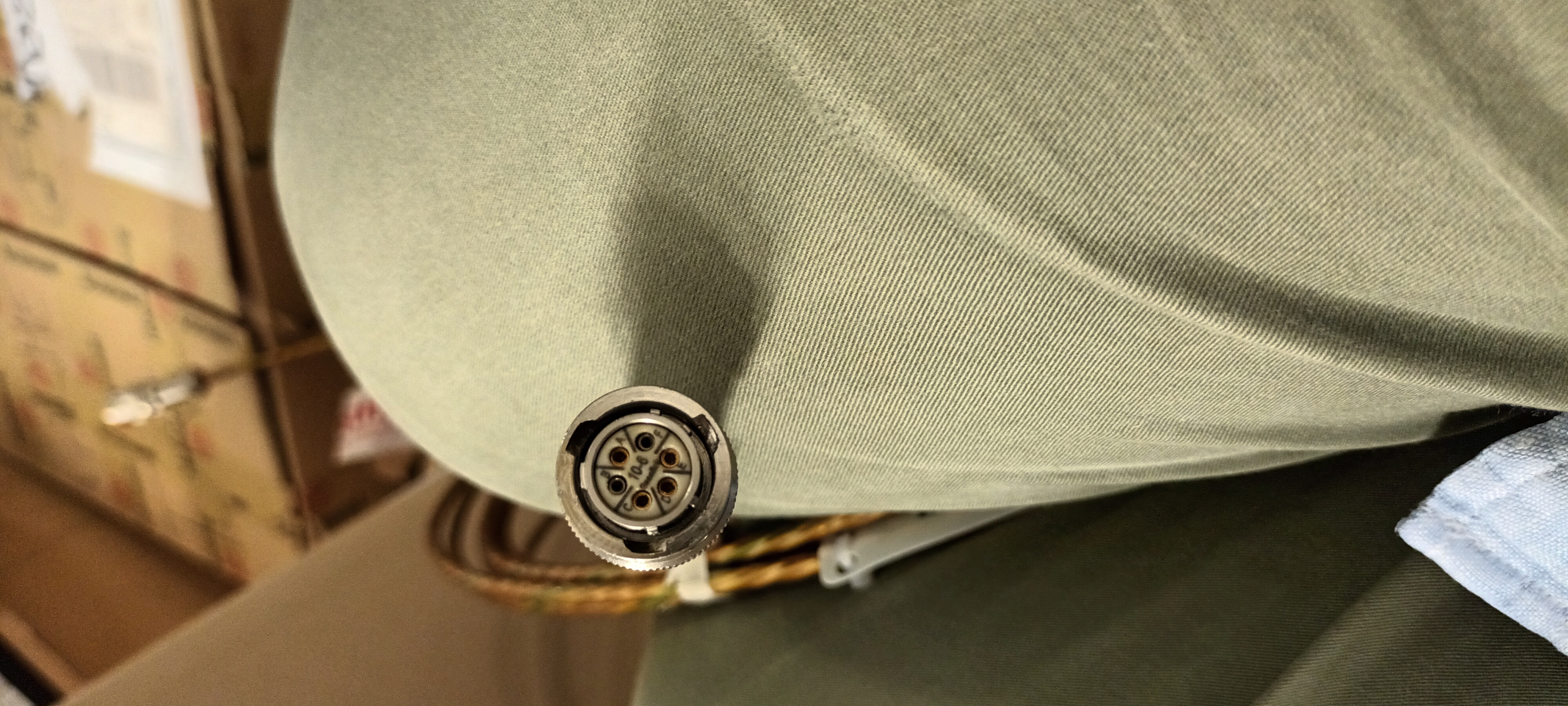

17.10 SAES D-2000 #1 downstream, outside   NEG power + HV ( attachment 9 - OK cable connector )
      SAES D-2000 #3 downstream, inside   NEG power + HV
      SAES D-2000 #4 upstream, inside   HV
      SAES D-2000 #2 upstream, outside   HV

2x ( of 4x ) SAES D-2000 neg power cables were broken - forward-shell detached (unscrewed ) from back-shell remaining attached to D-2000 neg power connector.

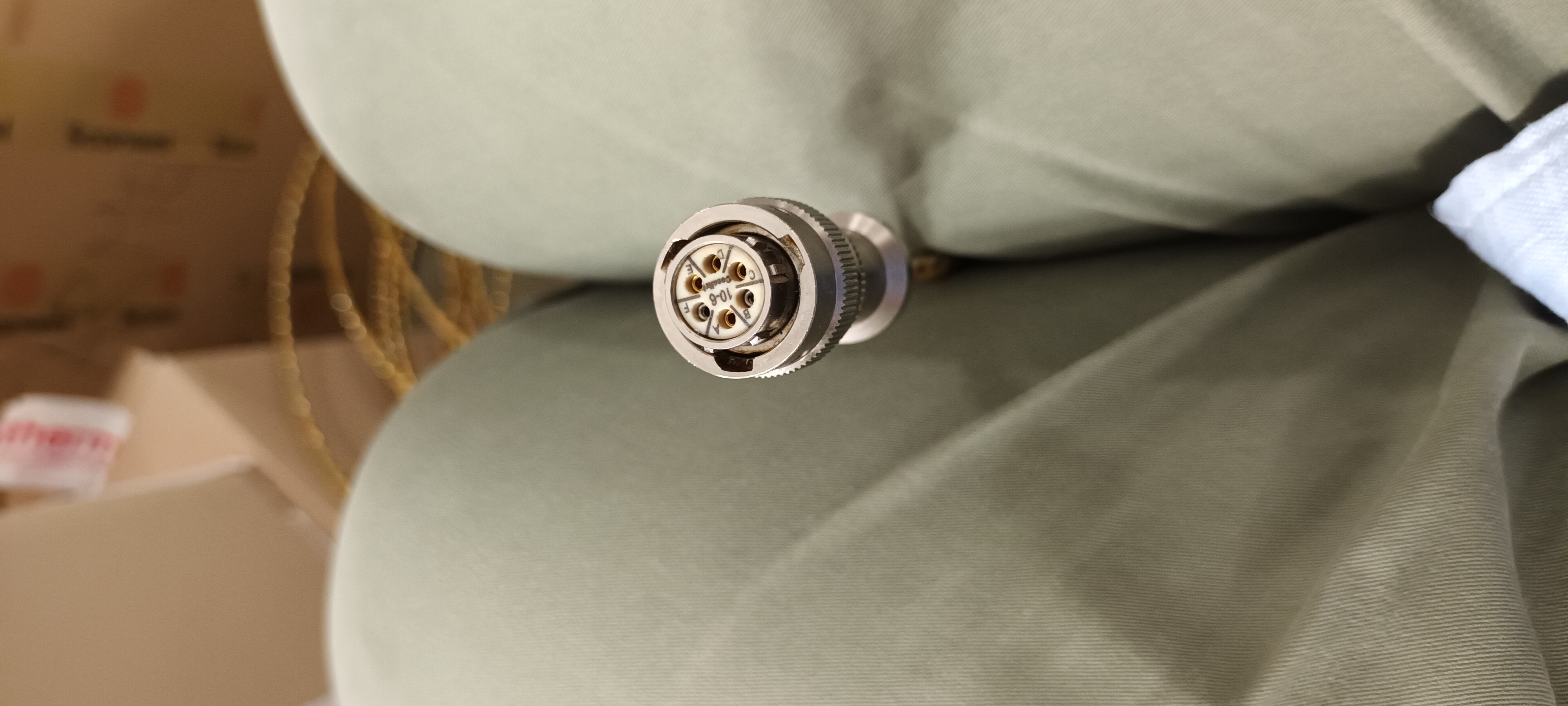

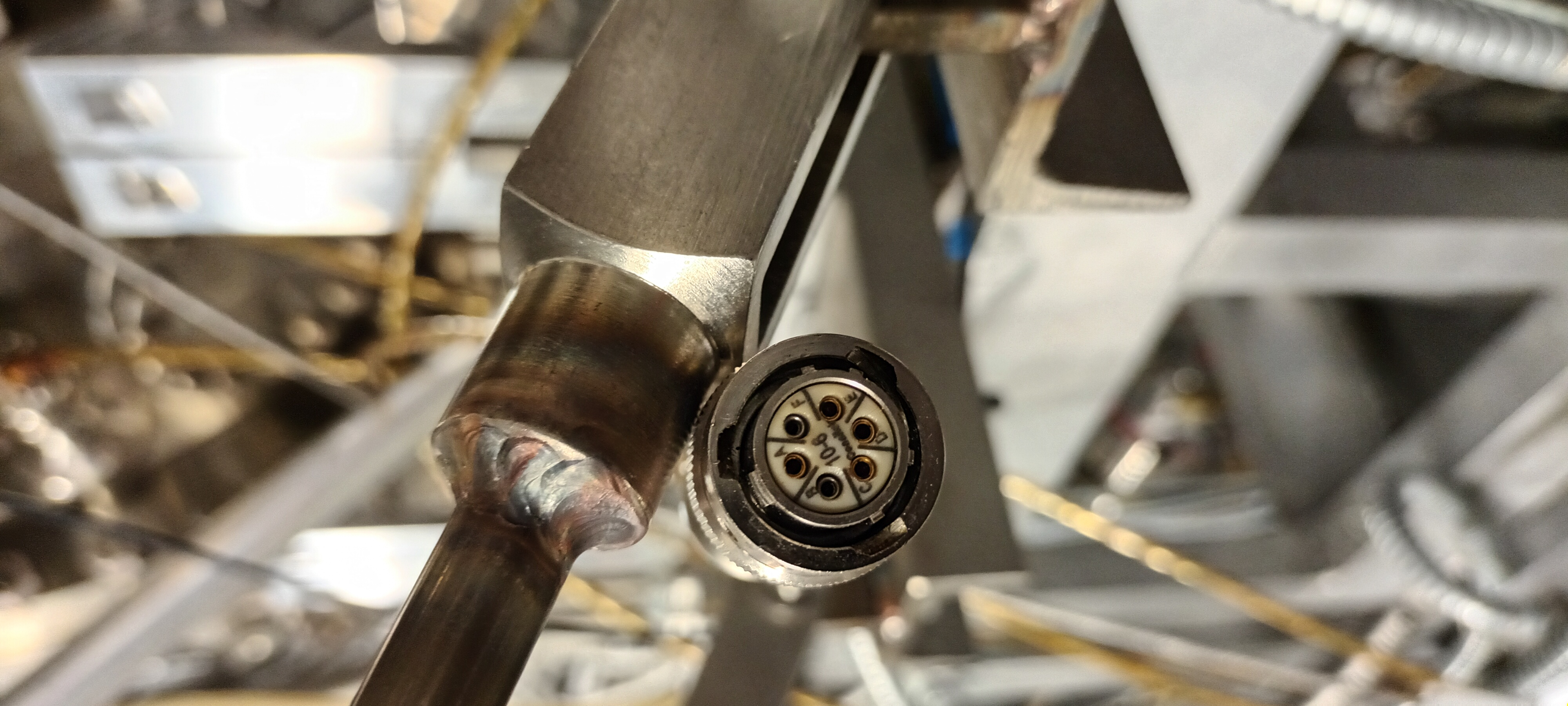

Re-assembly is straightforward but it is unclear how the 6x female sockets are aligned with the connector keys of the forward-shell (attachments 10-11 cf. attachment 9).
Until this is understood these 2x SAES D-2000 neg power cables should not be used.
